XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost – Concrete Installation

XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost – Concrete Installation

SKU:INN-BF-52C-SP-XL-RENT

Regular price $683.25 USD
Regular price Sale price $683.25 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Color: Red
Tape color

XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost – Concrete Installation

The XL BollardFlex Heavy-Duty Flexible Bollard with 8' Signpost combines a flexible parking and traffic delineator with a tall galvanized steel signpost for locations where both visibility and regulatory signage are required.

Designed for concrete installation, the system features a heavy-duty galvanized base and 5/16" steel spring that allows the assembly to flex through a 360° range of motion when contacted. The lower portion of the system is concealed by a rigid 7.35" OD × 52" BollardGard™ HDPE cover, providing a highly visible finished appearance around the steel structure.

The integrated signpost accepts compatible steel regulatory signs and includes a set of two double-sided sign brackets. The finished system stands approximately 102" high. Sign is not included.

Features & Benefits

  • Heavy-Duty Flexible Design: 5/16" steel spring provides a 360° range of motion when the post is contacted.
  • Integrated 8' Signpost: Tall galvanized steel post allows compatible regulatory and informational signs to be mounted above the bollard.
  • 102" Finished Height: Provides excellent visibility in parking, traffic, and pedestrian-control applications.
  • 2-3/8" OD Galvanized Steel Signpost: Heavy-duty steel construction supports compatible steel signage.
  • Sign Brackets Included: Supplied with a set of two double-sided sign brackets.
  • Concrete Mounting Hardware Included: Supplied with anchoring hardware intended for concrete installation.
  • Heavy-Duty Steel Base: 9.5" square, 7-gauge steel base plate supports the flexible assembly.
  • 52" BollardGard™ Cover: Rigid HDPE cover conceals the lower steel structure and provides a clean, highly visible exterior.
  • UV-Stable HDPE: Bollard cover is designed for exterior exposure and long-term color stability.
  • Reflective Options: Available with 3M™ #5100 Scotchlite™ Film in multiple colors for increased low-light visibility.
  • Sign Not Included: Compatible steel regulatory signs can be selected separately for the intended application.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Heavy-Duty Flexible Bollard & Signpost System
Model BF-52C-SP-XL
Installation Type Concrete Mount

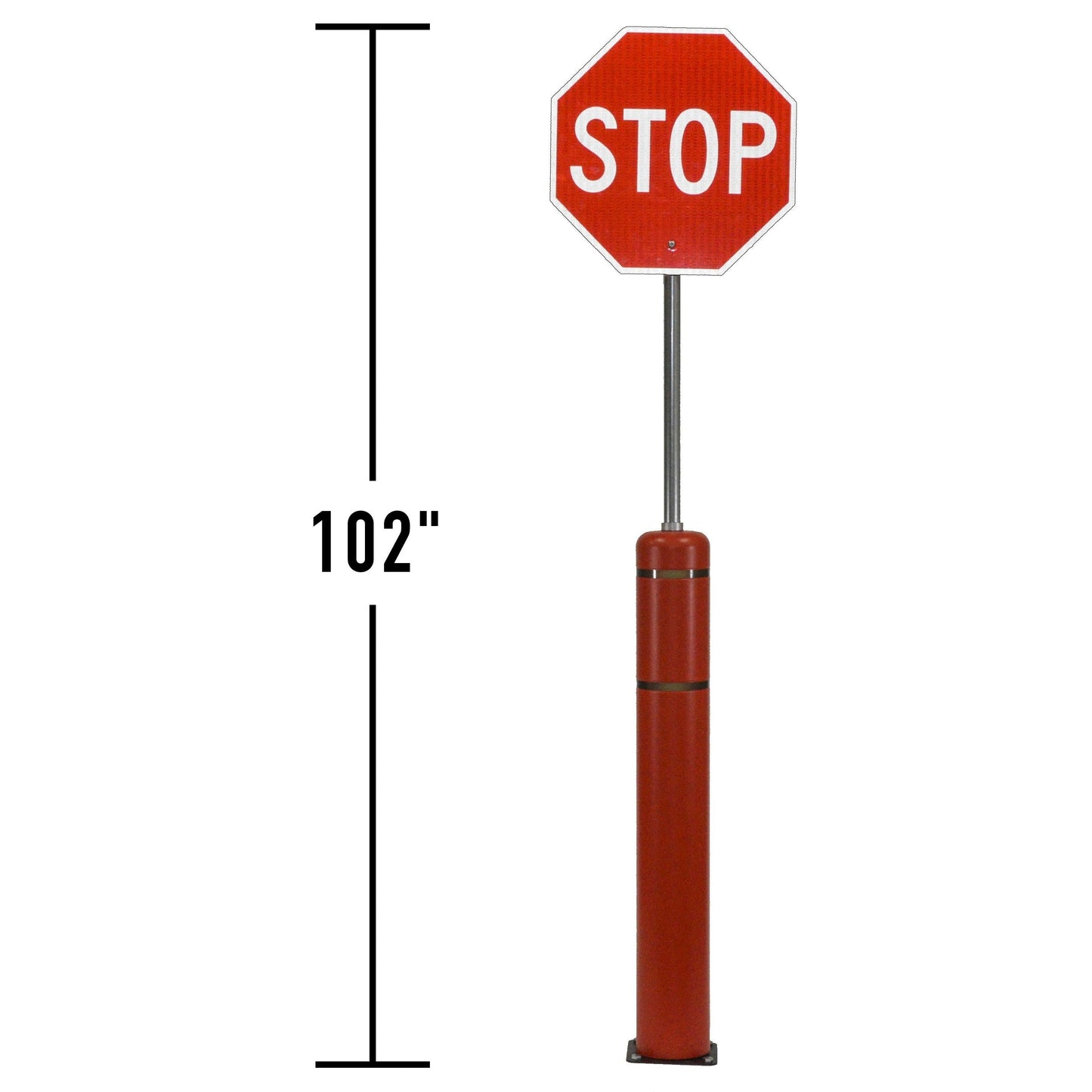

Finished Overall Height 102"
Bollard Cover Height 52"
Bollard Cover Outside Diameter 7.35"
Bollard Cover Wall Thickness .125" HDPE
Signpost 2-3/8" OD × .055" Wall Galvanized Steel – Silver
Base Plate 9.5" Square, 7-Gauge Steel
Spring 5/16" Thick Steel Spring
Range of Motion 360°
Materials HDPE / Steel
Weight 38 lb
Included Accessories Concrete Mounting Hardware & Set of Two Double-Sided Sign Brackets
Sign Not Included
Warranty 1 Year Against Manufacturer Defects

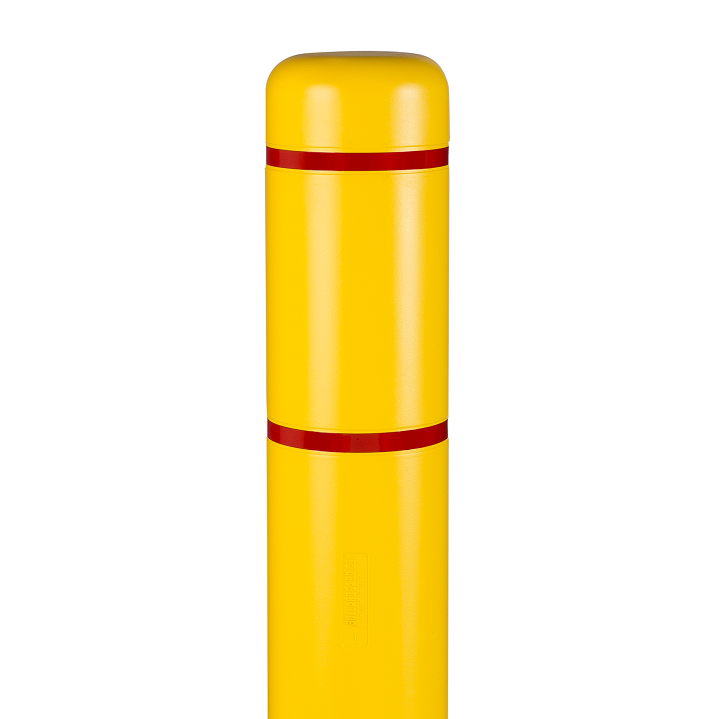

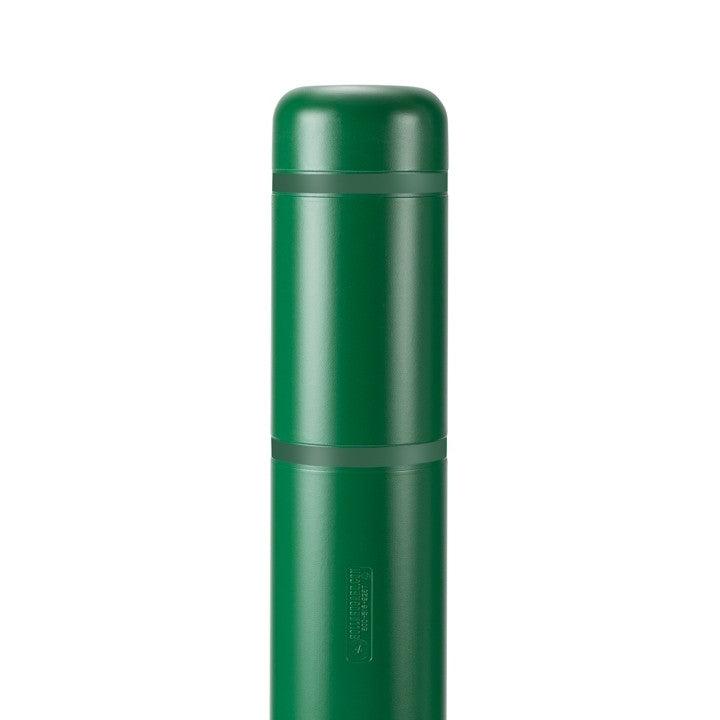

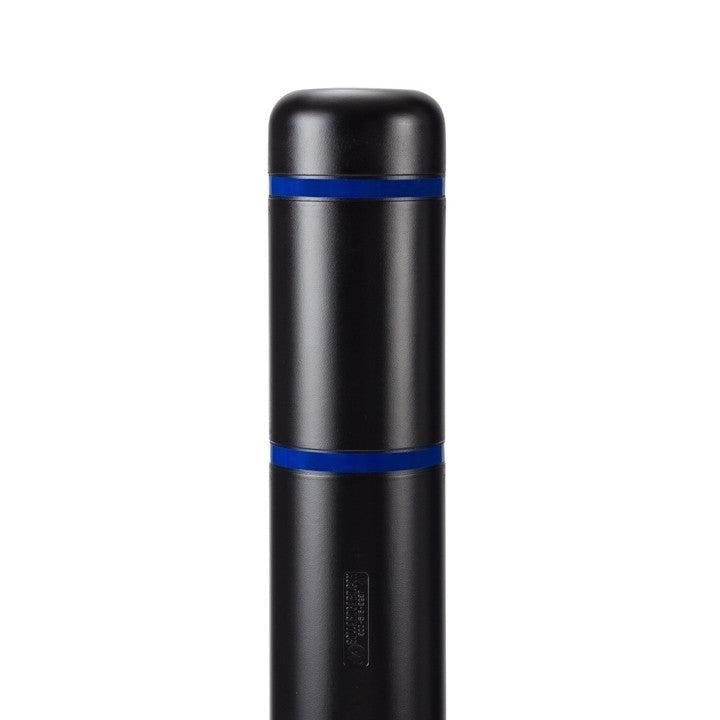

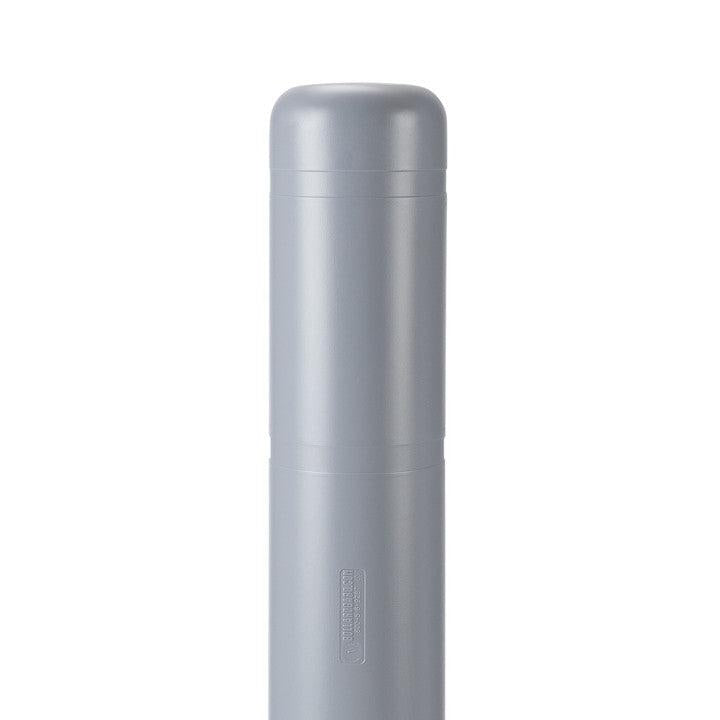

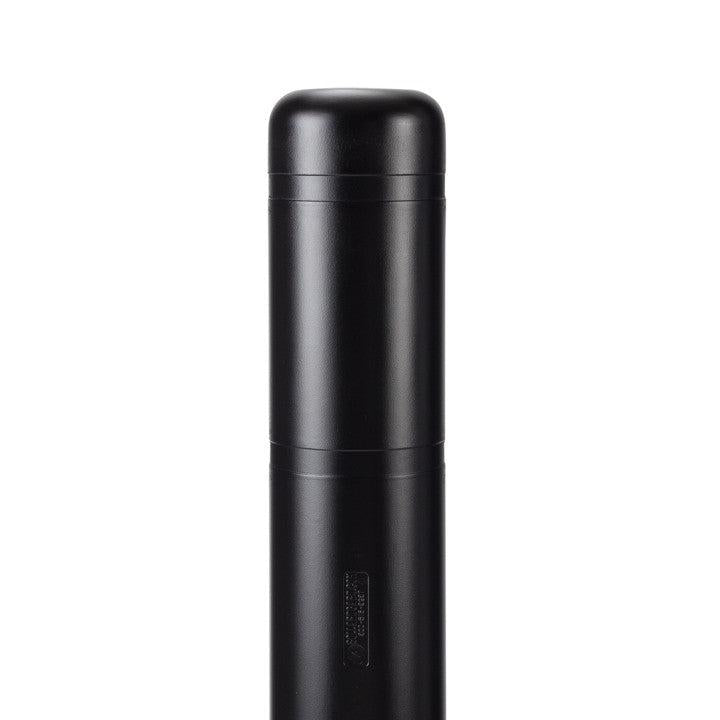

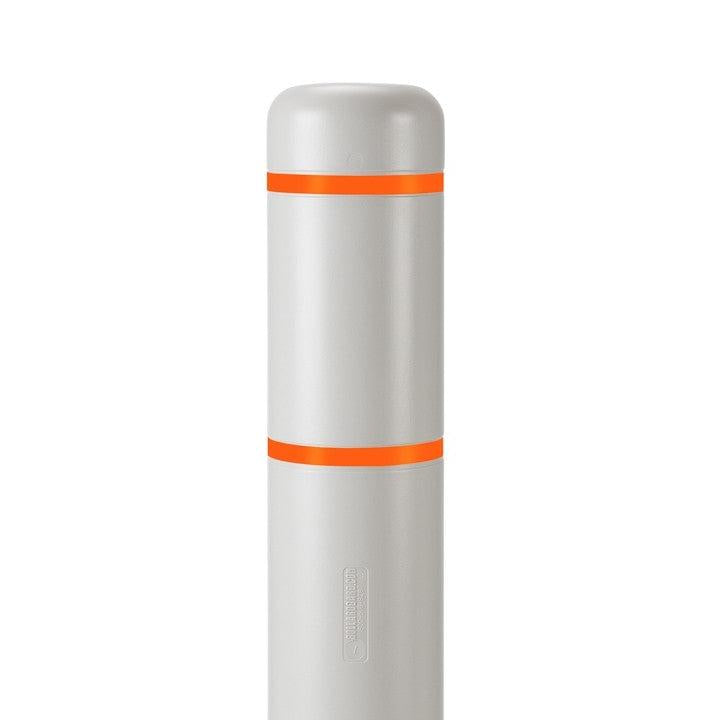

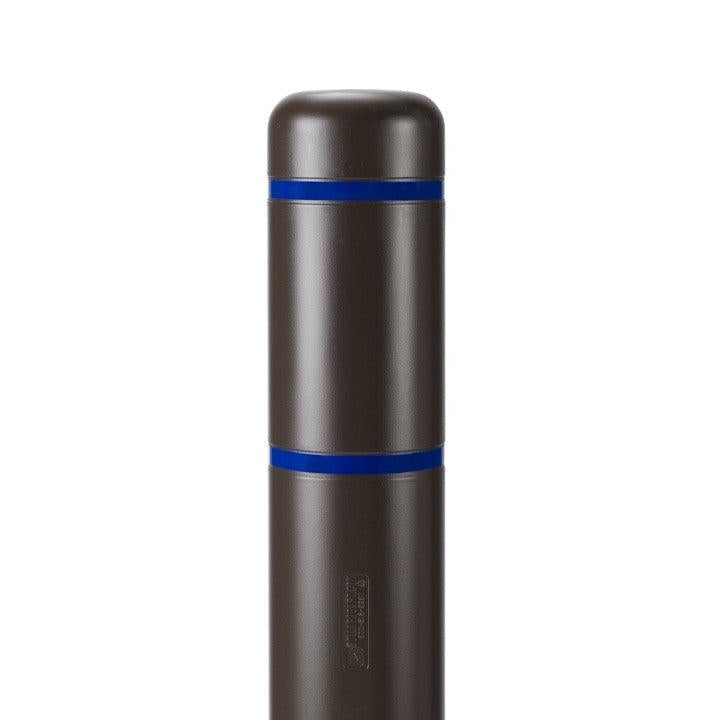

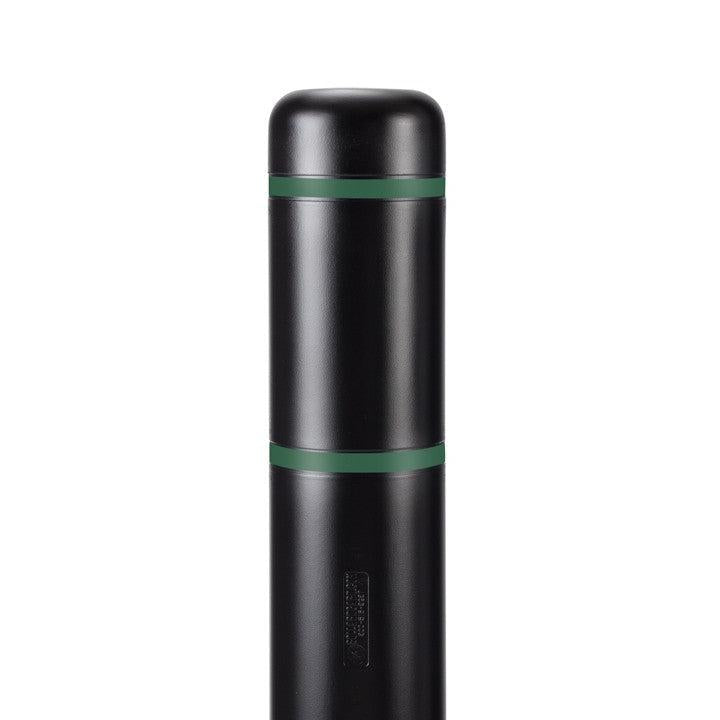

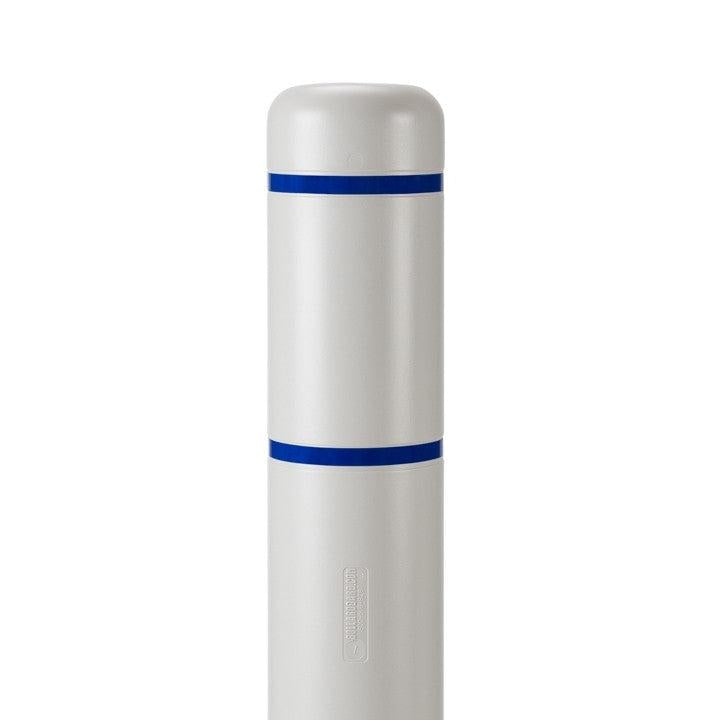

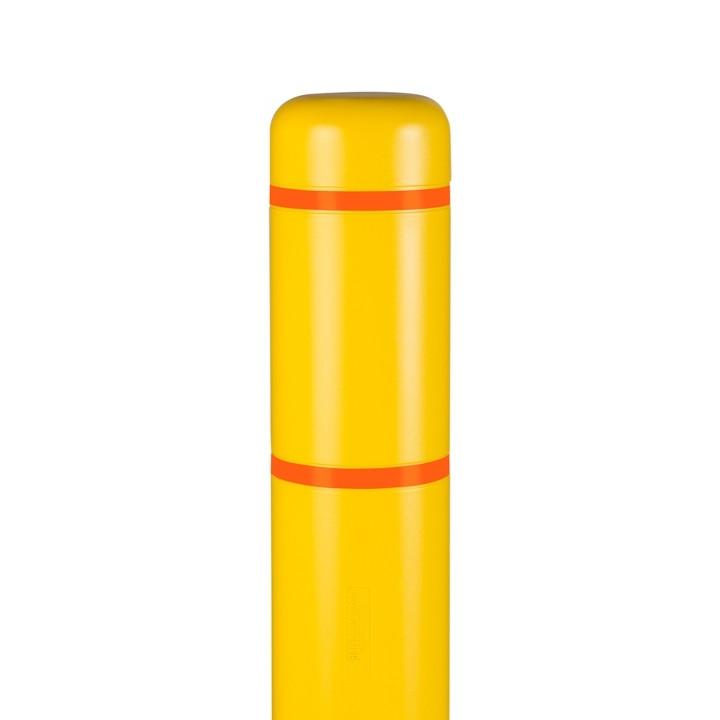

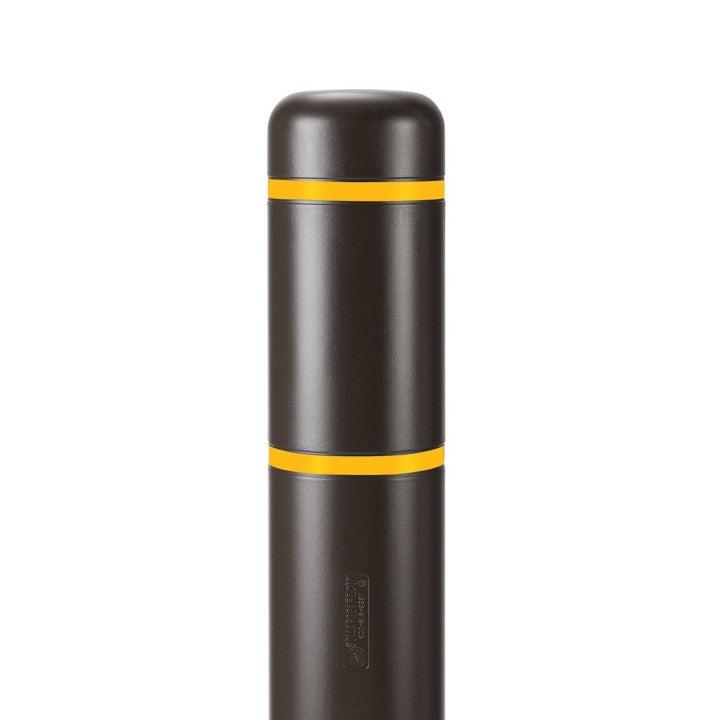

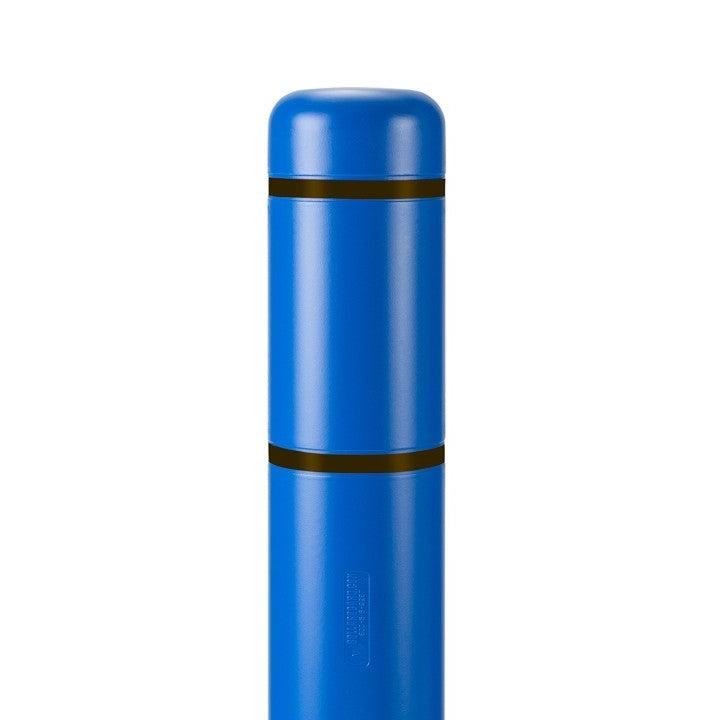

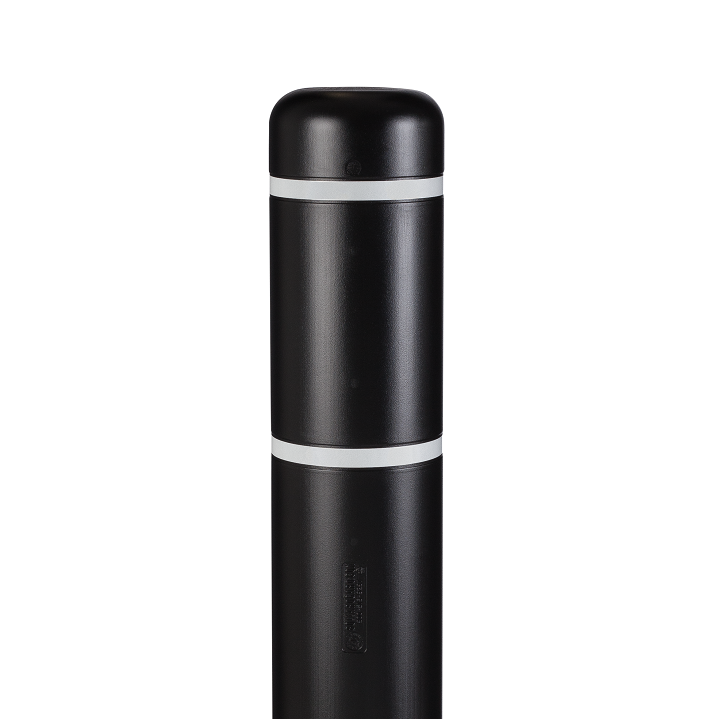

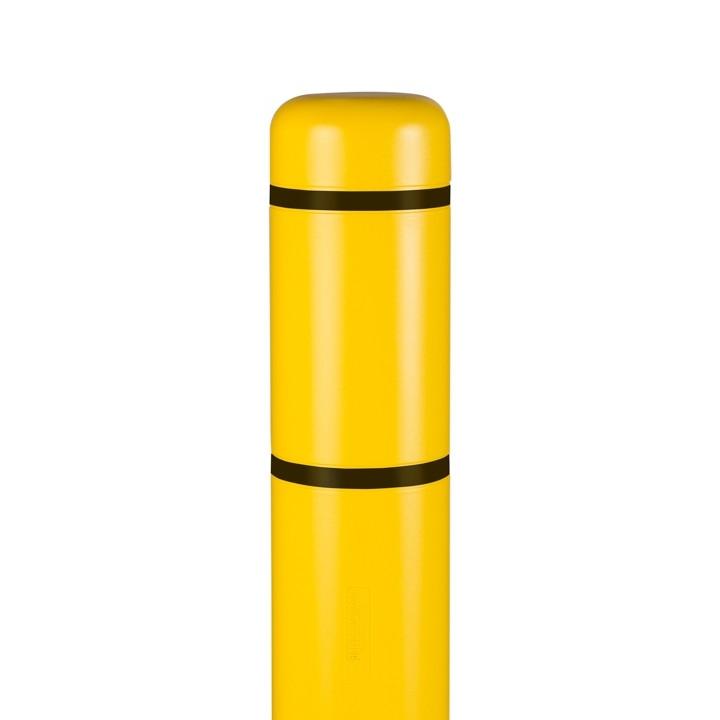

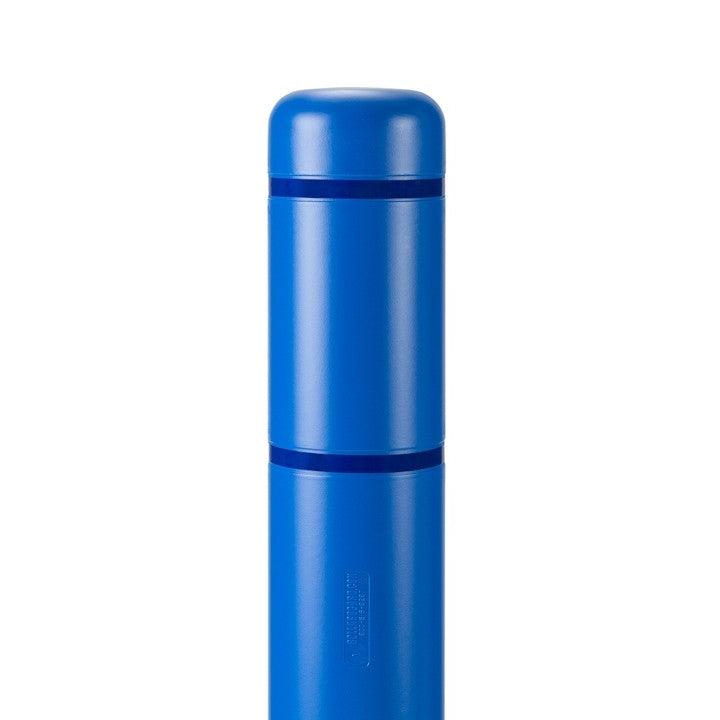

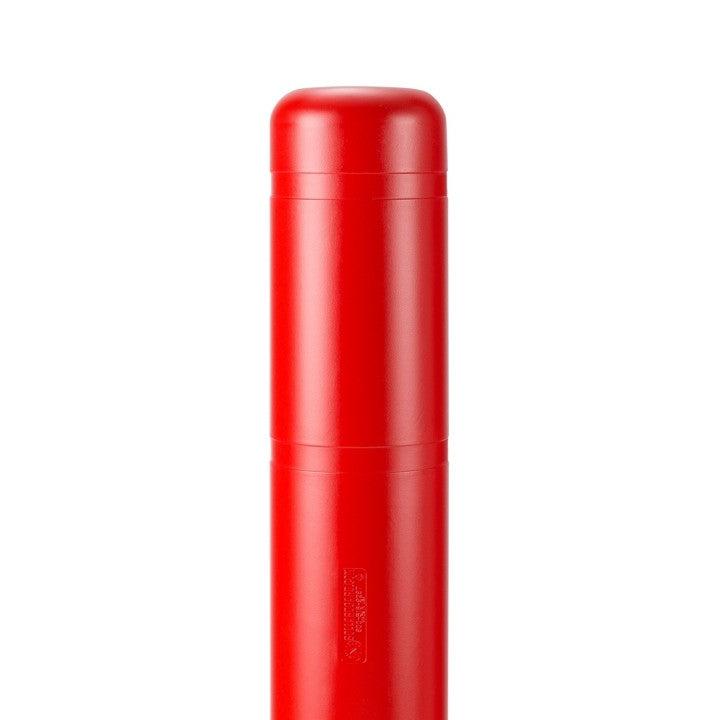

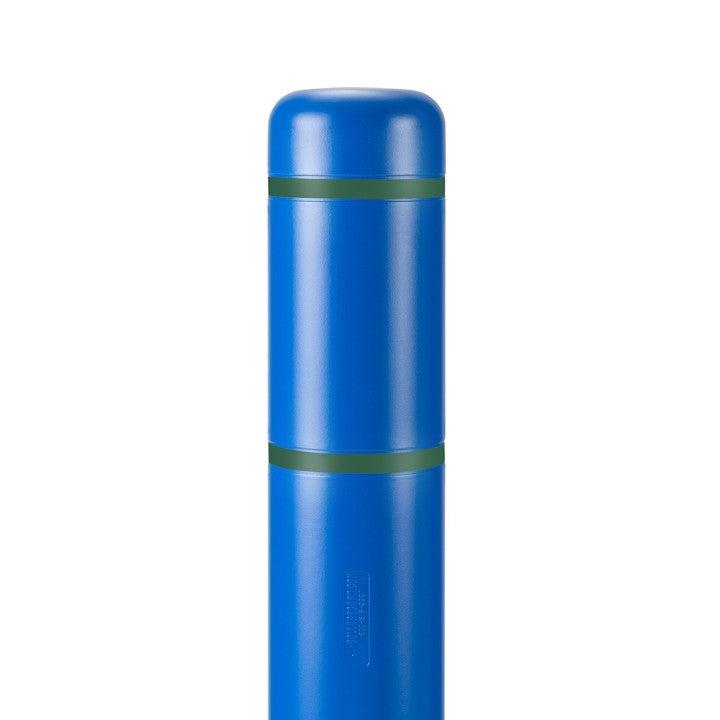

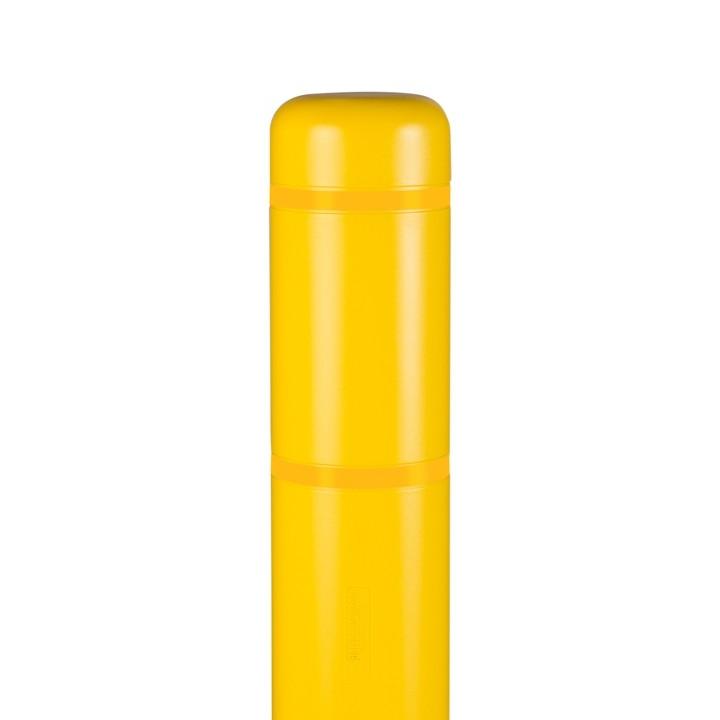

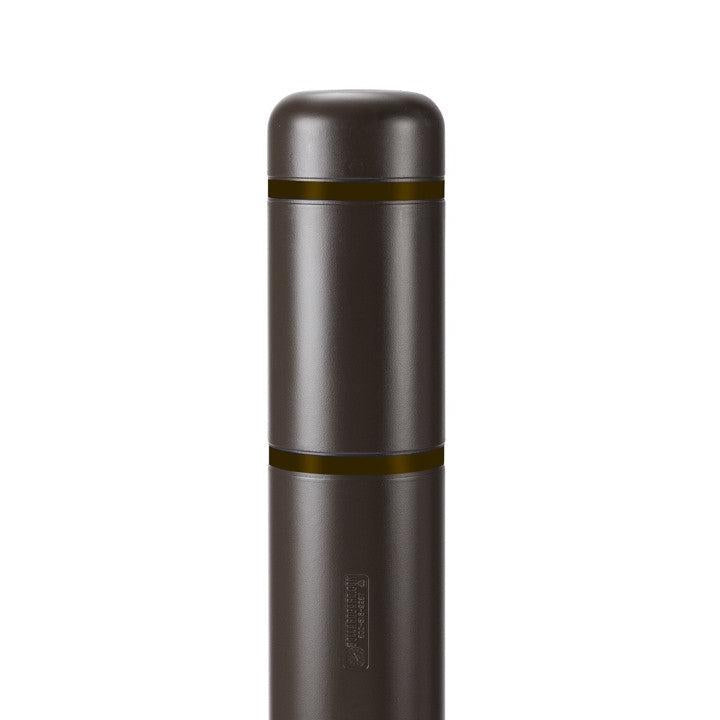

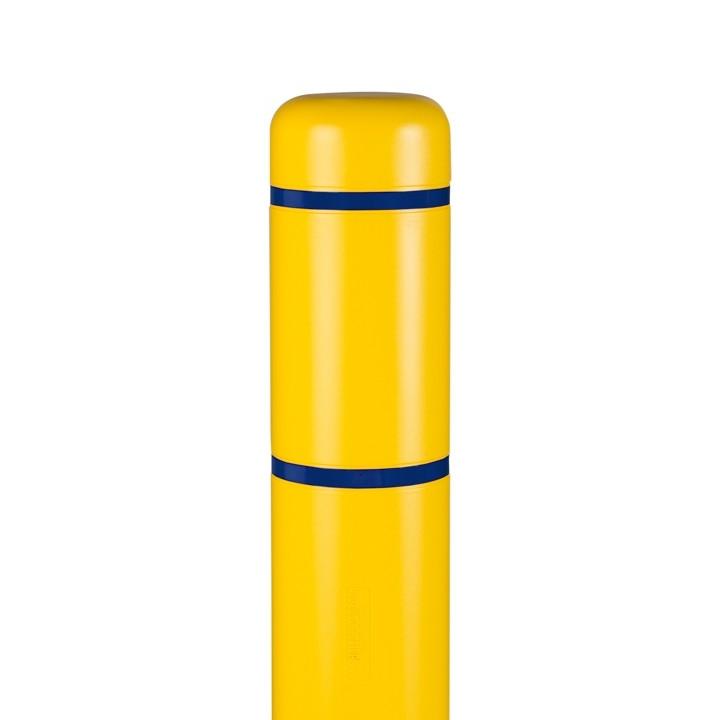

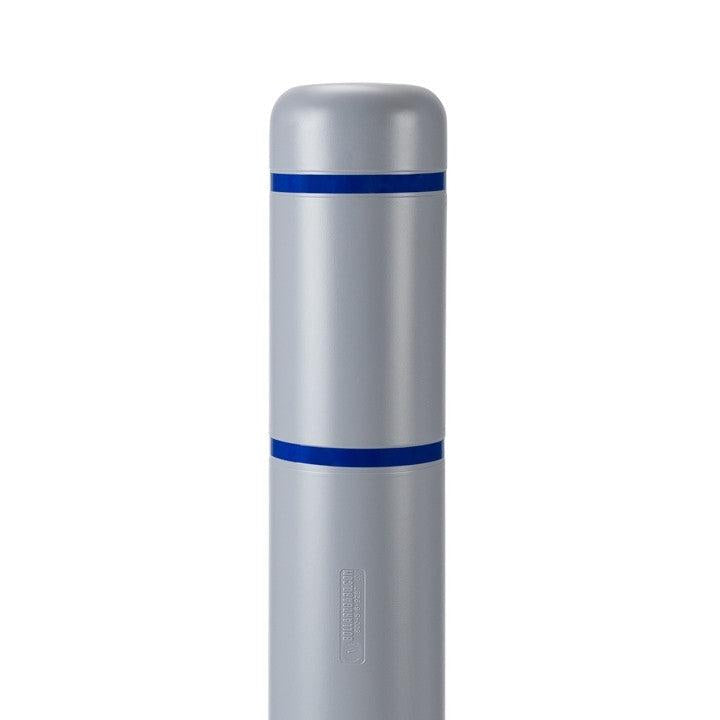

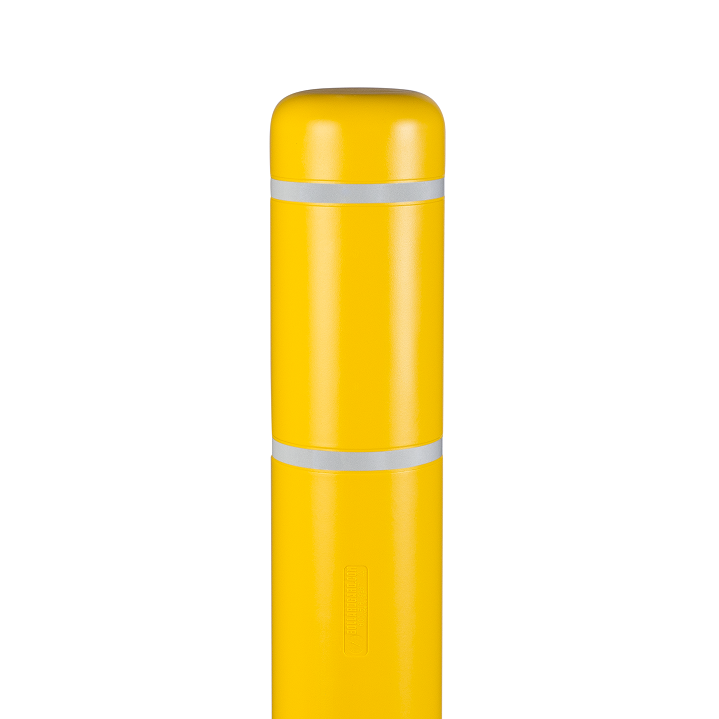

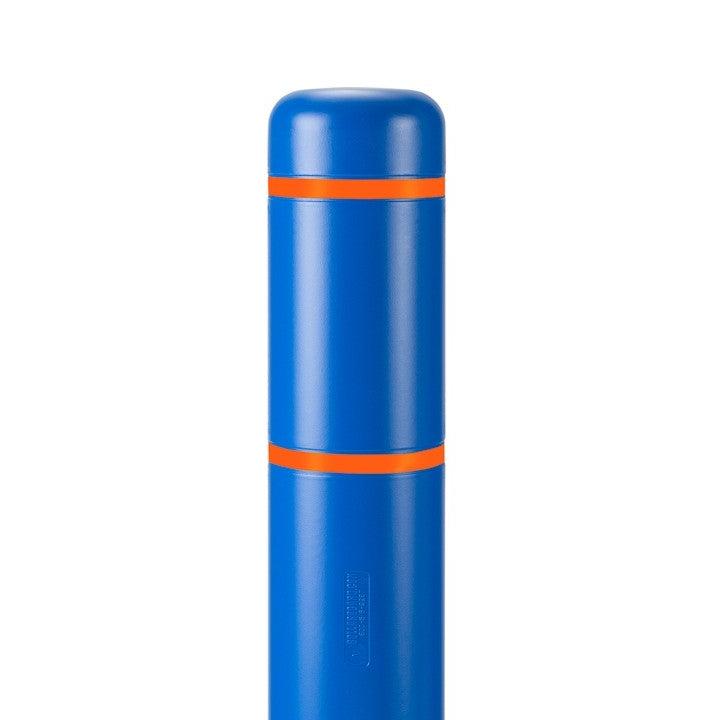

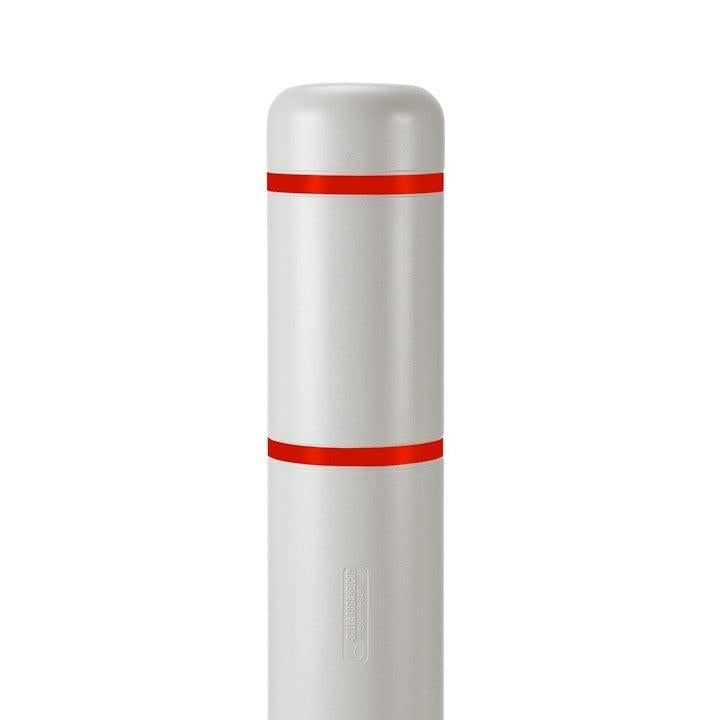

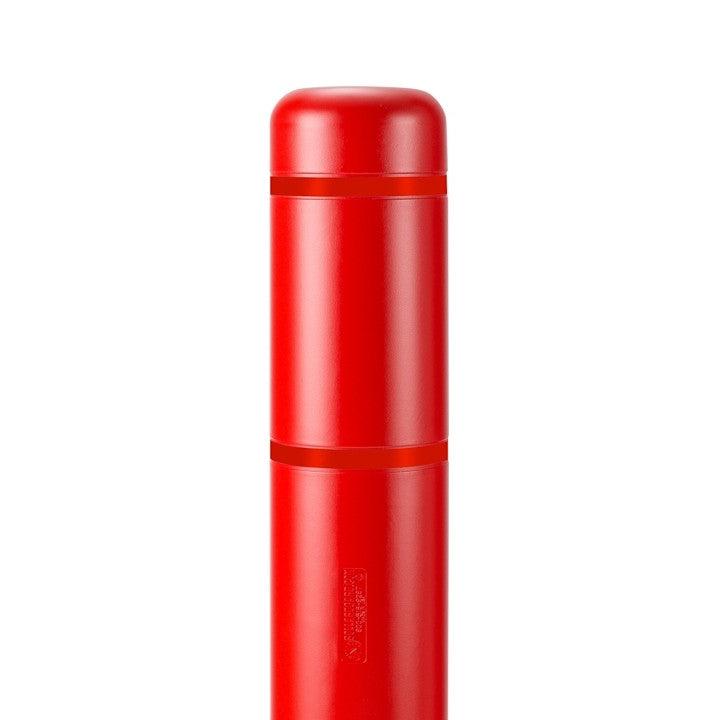

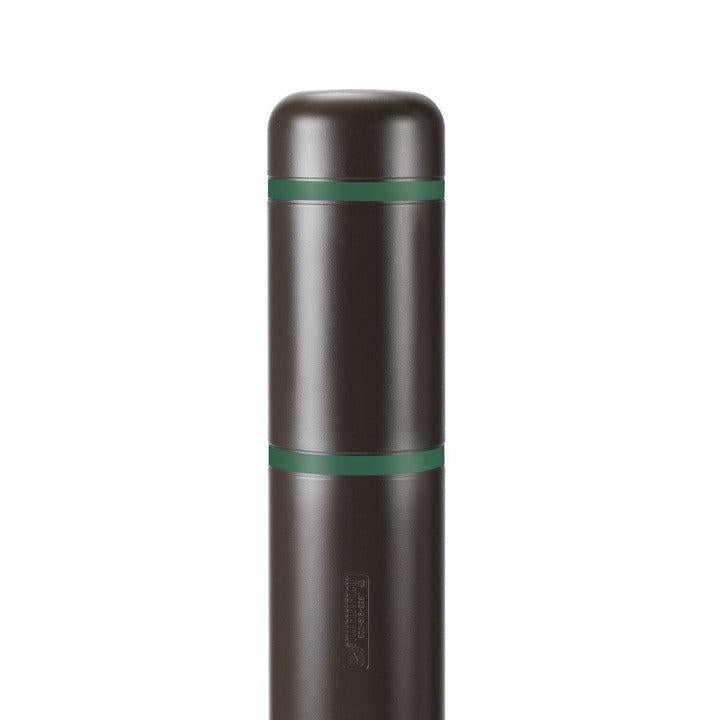

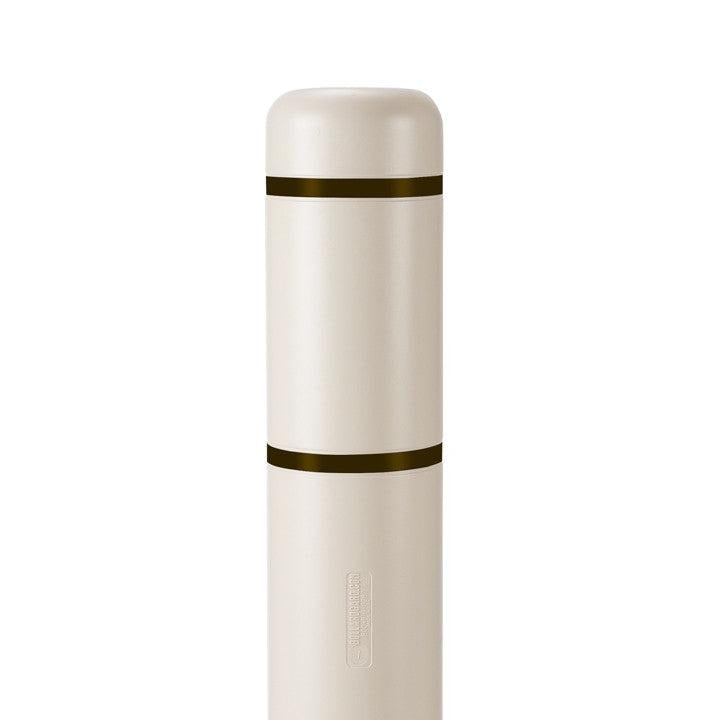

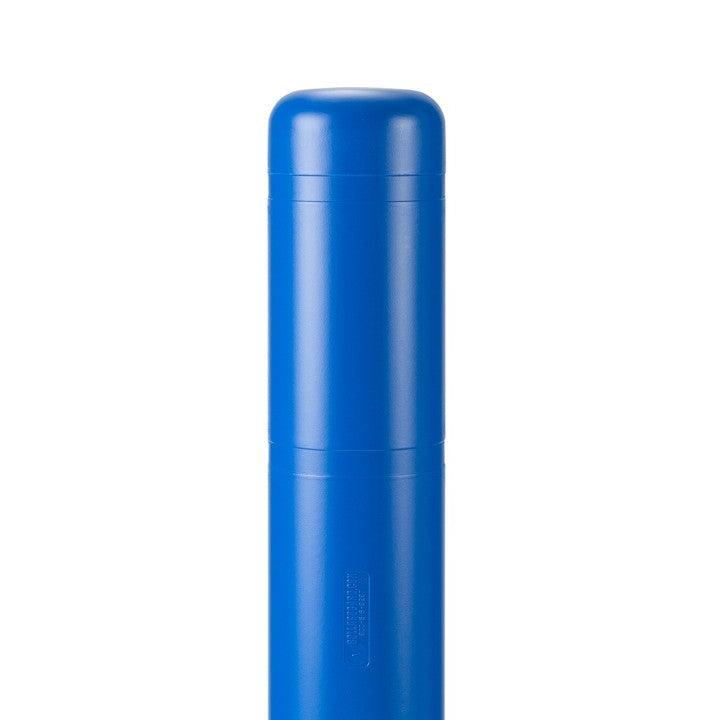

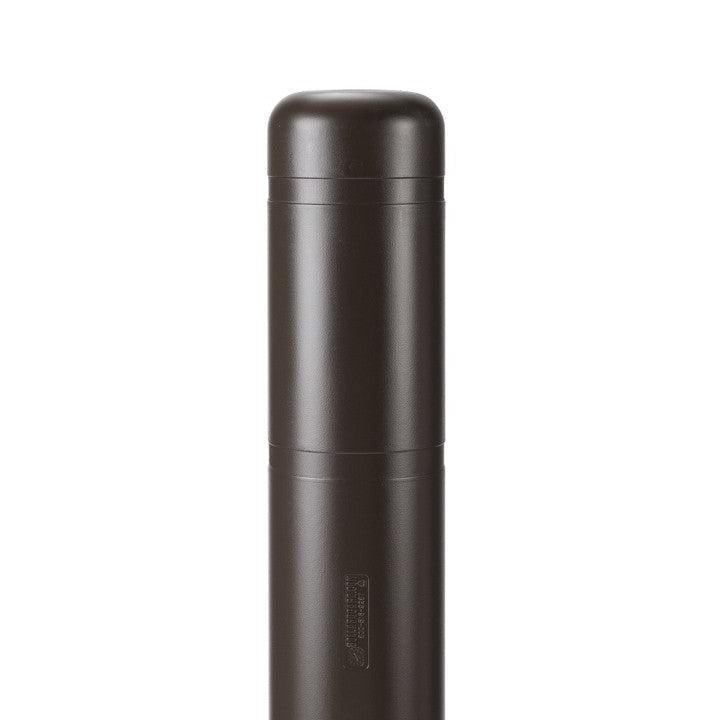

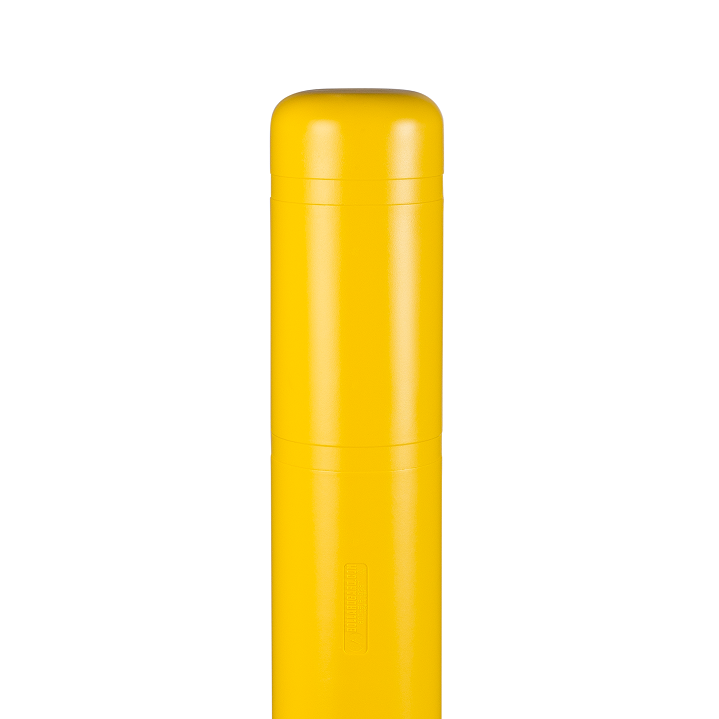

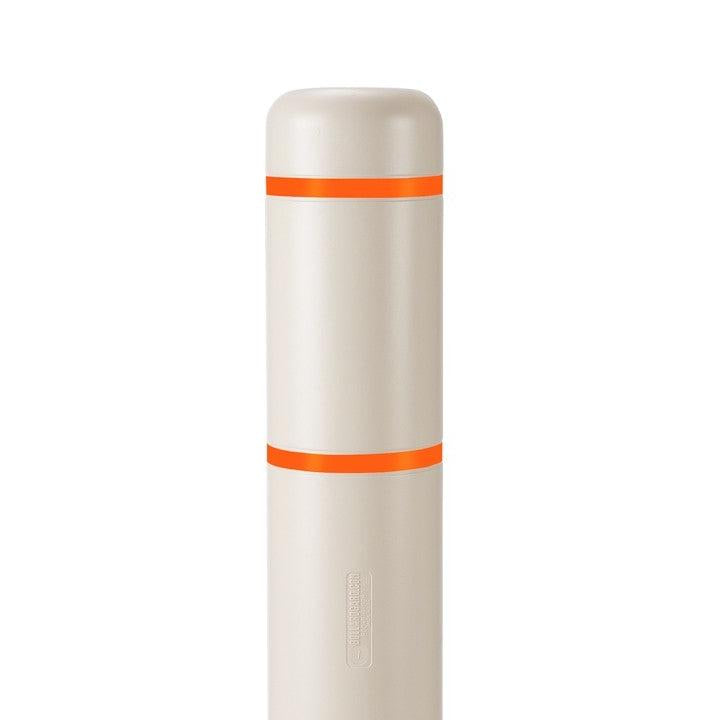

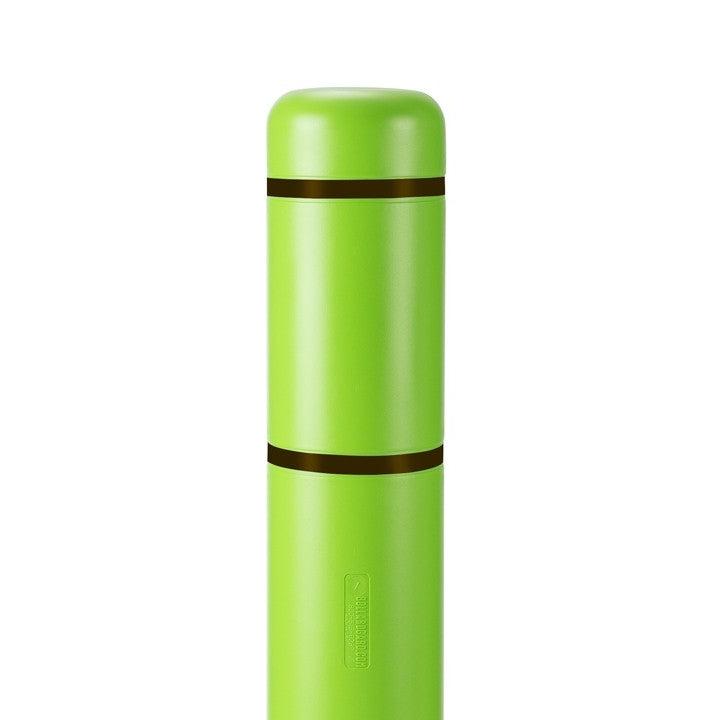

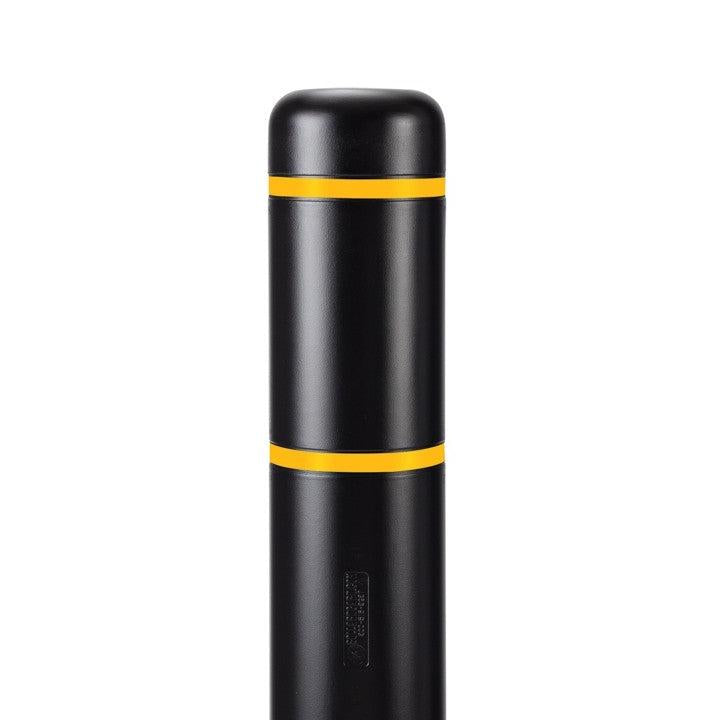

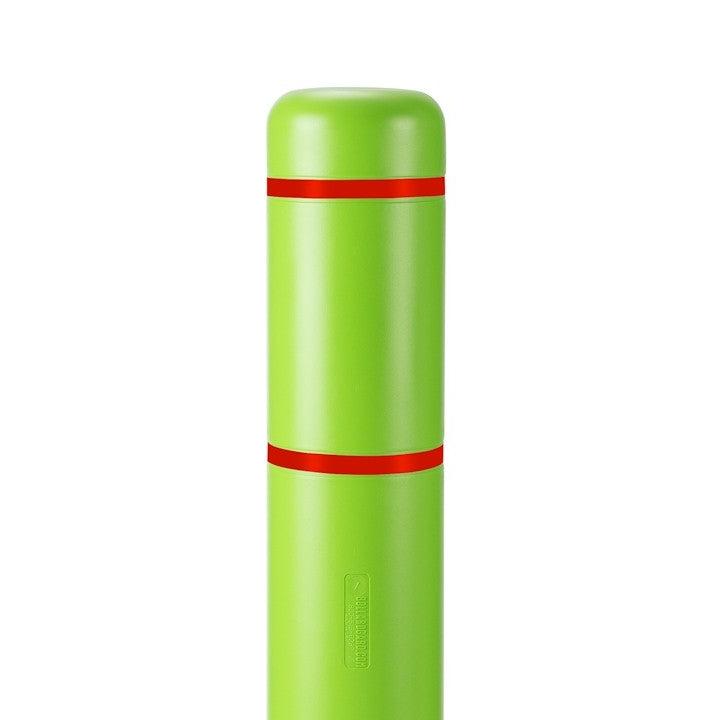

Bollard Cover Colors

The BollardGard™ cover is available in multiple high-visibility and architectural colors:

Black, Blue, Brown, Green, Light Gray, Red, White, Yellow, and Gray.

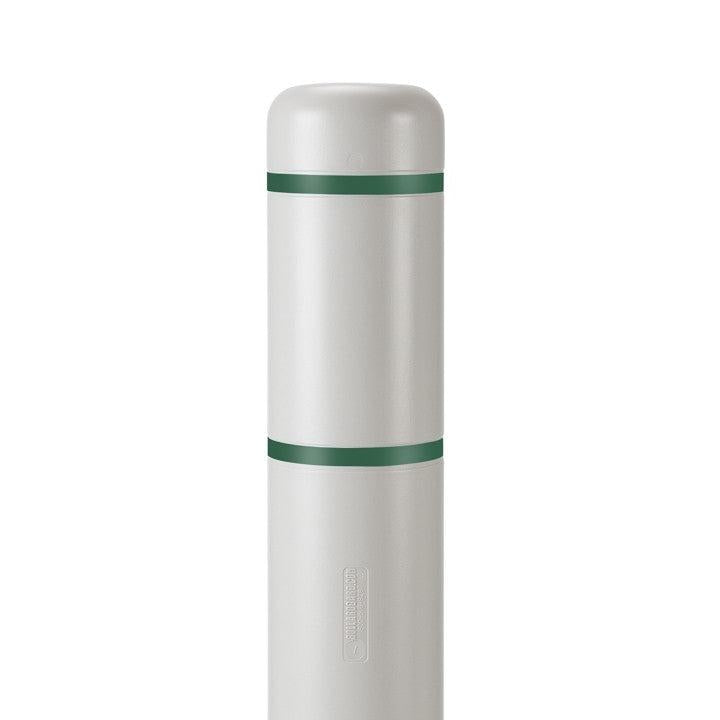

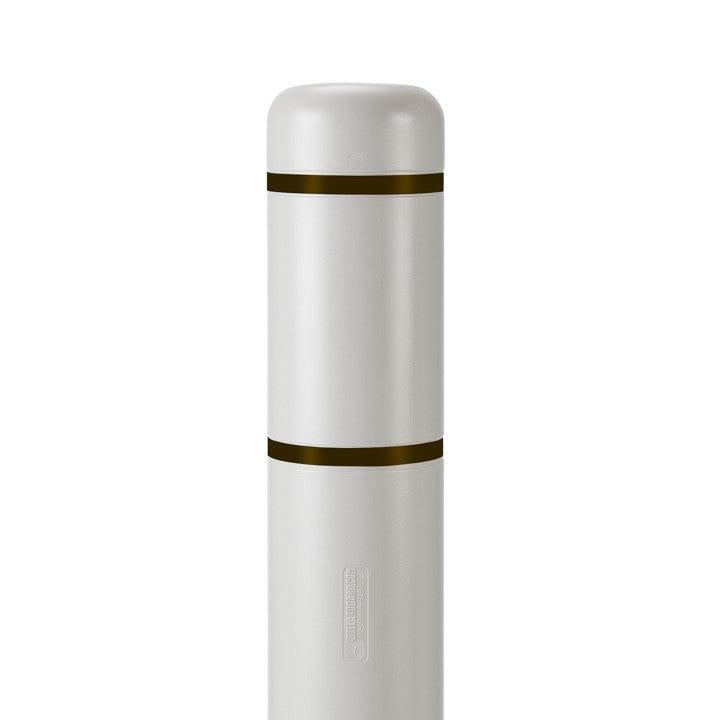

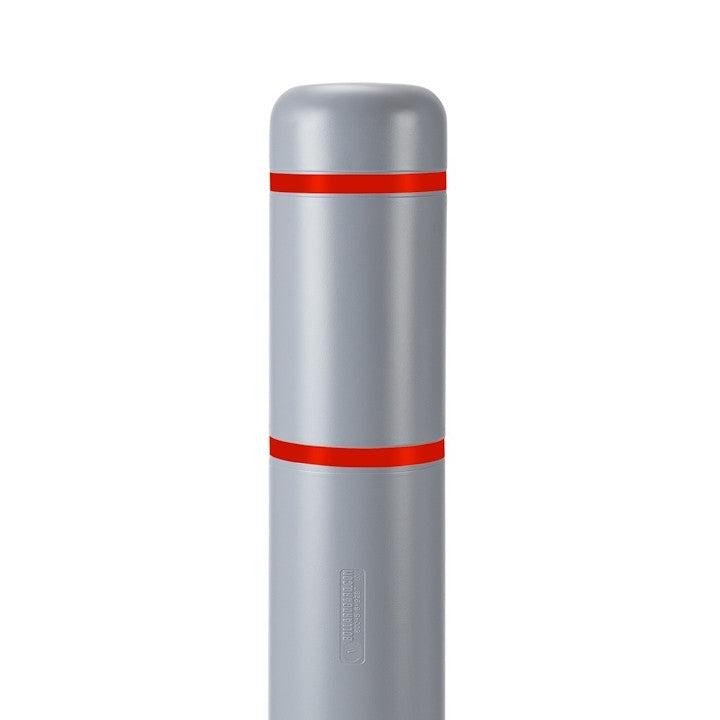

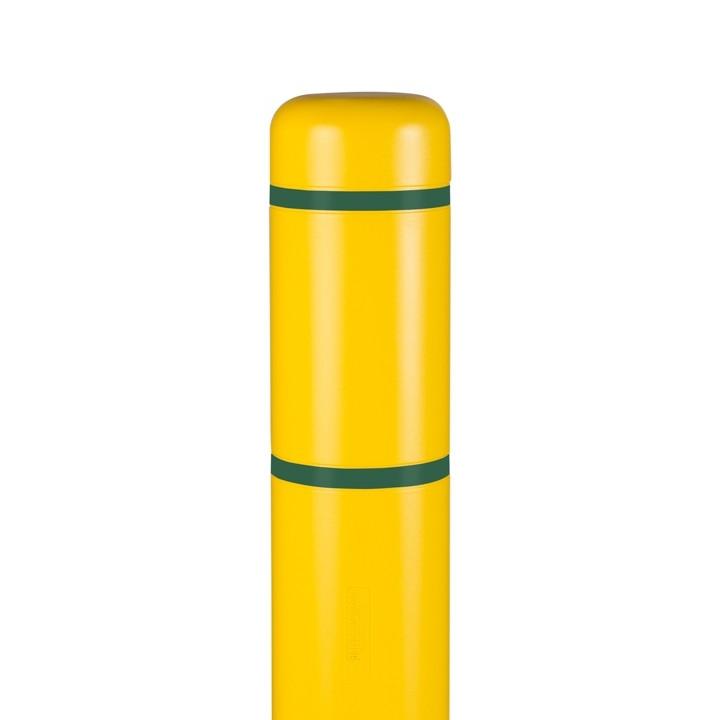

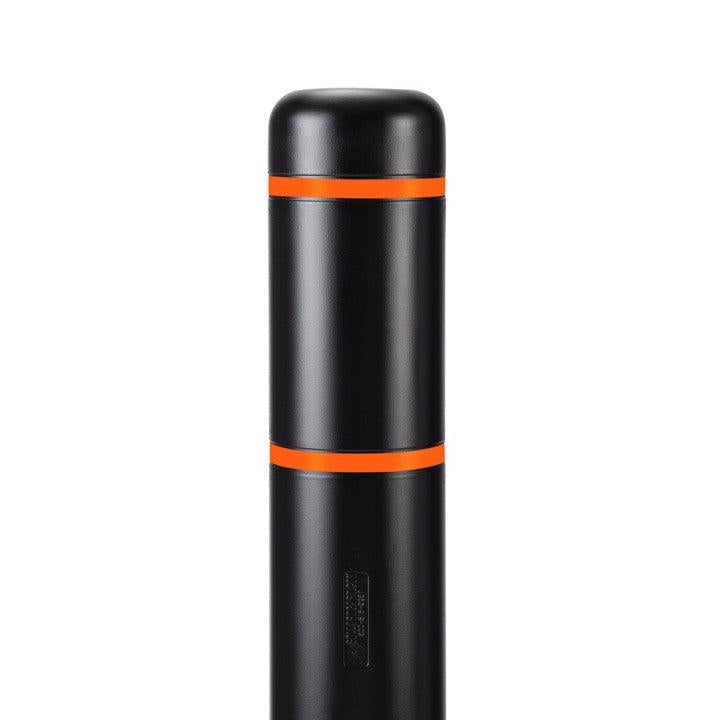

Reflective Options

For increased visibility in parking facilities and low-light environments, the BollardGard™ cover can be configured with 3M™ #5100 Scotchlite™ Film.

Available reflective colors include Black, Blue, Green, Orange, Red, White, and Yellow.

Integrated 8' Signpost

The tall galvanized steel post allows the BollardFlex system to perform two functions from a single mounting location: traffic delineation at vehicle level and sign placement above the bollard.

The system includes a set of two double-sided sign brackets for mounting compatible steel regulatory or informational signs. This makes the unit well suited for accessible parking areas, reserved parking, traffic-control locations, and other applications where elevated signage is required.

Steel sign is not included.

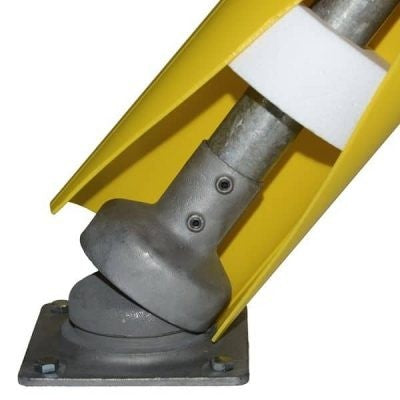

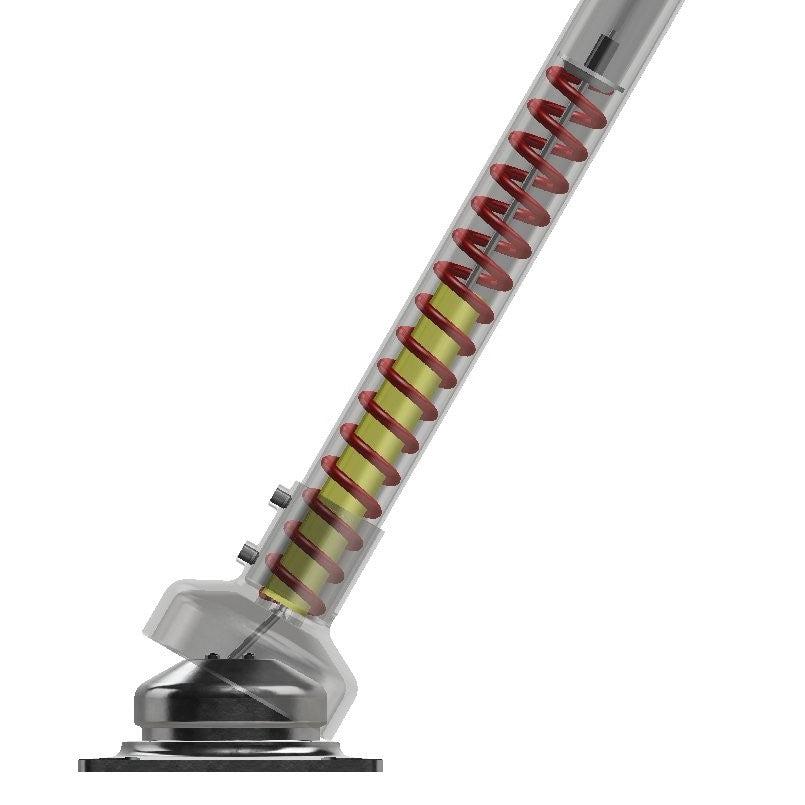

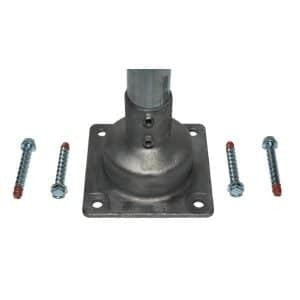

Heavy-Duty 360° Flexible Base

The XL system uses a galvanized base with a 5/16" thick steel spring designed to allow the post assembly to flex through a 360° range of motion when contacted.

Unlike a rigid signpost, the flexible assembly can yield when struck and then continue serving as a visible delineator and sign support. This can help reduce damage associated with incidental contact in parking and traffic environments.

Concrete Installation

This version is configured specifically for concrete installation and includes the appropriate mounting hardware for securing the steel base to a suitable concrete surface.

The base should be securely anchored before assembling the post and sign components. Follow the concrete installation instructions and verify that the mounting surface is suitable for the supplied anchoring system.

Common Applications

  • Accessible parking signage
  • Reserved parking areas
  • Parking lots and garages
  • Traffic-control signs
  • Pedestrian and vehicle separation
  • Building approaches
  • Drive-through lanes
  • Directional signage
  • Commercial facilities
  • Municipal and institutional properties

BollardGard™ HDPE Cover

The lower portion of the steel post is concealed by a rigid 52" BollardGard™ HDPE cover. The cover provides a clean finished appearance while adding a highly visible surface around the flexible steel assembly.

The cover measures 7.35" outside diameter with a .125" wall thickness and is available in multiple colors and reflective-film options.

Important Application Note

The XL BollardFlex system is designed primarily for parking delineation, traffic guidance, sign support, and visual separation. Its flexible design allows the assembly to yield when contacted rather than function as a rigid crash barrier.

No certified crash rating, vehicle-impact rating, or specific impact-speed classification has been provided with the supplied product information.

Made in the USA

The XL BollardFlex Heavy-Duty Flexible Bollard with Signpost is proudly manufactured in the United States for parking, traffic-control, commercial, municipal, and institutional applications.

Made in the USA

Technical Resources

View Concrete Installation Instructions

View Mechanical Drawings

Need Multiple Units or Project Pricing?

Request a Quote
For large quantities or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
