4" Surface-Mount Steel Bollard – 4.5" OD x 48"H, Primed

4" Surface-Mount Steel Bollard – 4.5" OD x 48"H, Primed

SKU:INN-Pipe448SMB-SMSB

Regular price $190.99 USD
Regular price Sale price $190.99 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes

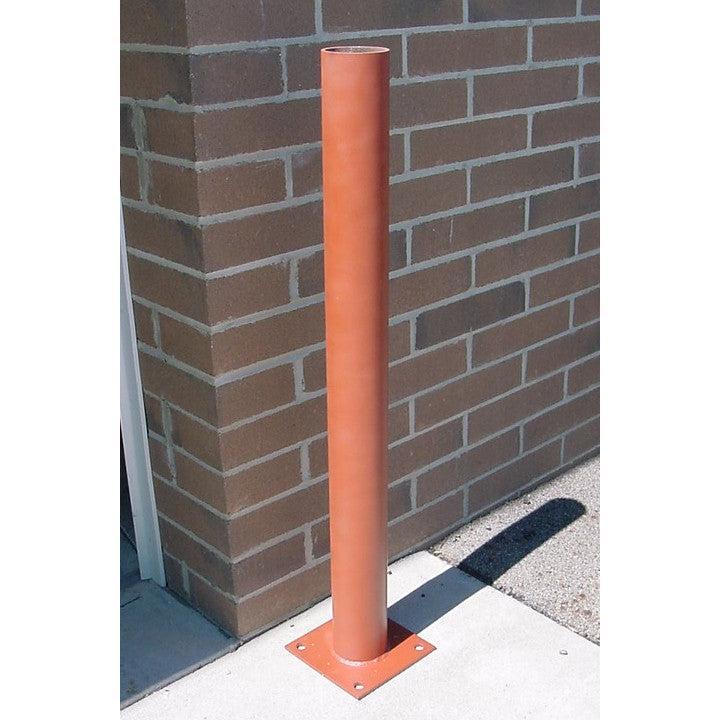

4" Surface-Mount Steel Bollard – 4.5" OD × 48"H, Primed

The 4" Surface-Mount Steel Bollard provides a practical solution for installations where digging a footing or embedding a bollard below grade is not practical. The 4.5" OD Schedule 40 steel pipe is welded to a heavy-duty 8" × 8" steel base plate, allowing the bollard to be mounted directly to a suitable concrete surface.

Four 13/16" diameter laser-cut mounting holes in the base plate simplify anchor placement and installation. The bollard is supplied with a primed finish and is well suited for storefronts, parking areas, warehouses, equipment areas, gas stations, and other commercial or industrial applications where a surface-mounted steel post is required.

Features & Benefits

  • Surface-Mount Design: Ideal for applications where excavation or below-grade bollard installation is not practical.
  • Schedule 40 Steel: Constructed from 4.5" OD carbon steel pipe with a .237" wall thickness.
  • Heavy-Duty Welded Base Plate: 8" × 8" × 5/16" steel plate provides a solid mounting interface.
  • Four Laser-Cut Mounting Holes: Four 13/16" diameter holes are provided for anchoring the bollard to a suitable surface.
  • 48" Overall Height: Provides a substantial visible post for commercial, parking, warehouse, and facility applications.
  • Primed Finish: Supplied with a primer coating; primer color may vary between red and gray.
  • Compatible with 4" Bollard Covers: Appropriately sized BollardGard™ covers can be added for increased visibility and a cleaner finished appearance.
  • Made in the USA: Manufactured in the United States.

Technical Specifications

Product Type Surface-Mount Steel Bollard
Model PIPE448SMB
Nominal Size 4"
Outside Diameter 4.5"
Overall Height 48"
Pipe Schedule Schedule 40
Wall Thickness .237"
Base Plate 8" × 8" × 5/16" welded steel plate
Mounting Holes Four 13/16" diameter laser-cut holes
Weight 50 lb
Material Carbon Steel
Finish Primed – color may vary between red and gray
UPC 649906609476

Surface-Mount Installation

This bollard is designed for applications where an embedded steel pipe is not practical. The welded base plate allows the bollard to be positioned directly on a suitable concrete surface and secured through the four pre-cut mounting holes.

The base plate measures 8" × 8" × 5/16" and includes four 13/16" diameter mounting holes. Anchoring hardware is not listed as included and should be selected according to the mounting surface and project requirements.

Common Applications

  • Storefronts and building entrances
  • Parking areas and parking garages
  • Gas pumps and fueling areas
  • Warehouses and distribution centers
  • Machinery and equipment areas
  • Loading and receiving areas
  • Commercial facilities
  • Industrial properties

Primed Finish

The bollard is supplied with a primed finish, with primer color varying between red and gray. The primer provides a prepared base surface but should not necessarily be considered the final exterior finish.

Depending on the installation environment and desired appearance, an additional compatible topcoat or protective finish may be applied after installation.

Add a Bollard Cover for a Finished Look

For installations where reduced painting maintenance, improved visibility, or a more finished appearance is desired, this 4.5" OD steel bollard is compatible with appropriately sized 4" BollardGard™ covers.

A bollard cover conceals the exposed steel surface and can provide a consistent finished appearance across multiple bollards without the recurring cosmetic maintenance associated with repainting.

Made in the USA

This surface-mount steel bollard is proudly manufactured in the United States.

Made in the USA

Technical Resources

View Mechanical Drawings

Need Multiple Bollards or Project Pricing?

Request a Quote
For large quantities or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
