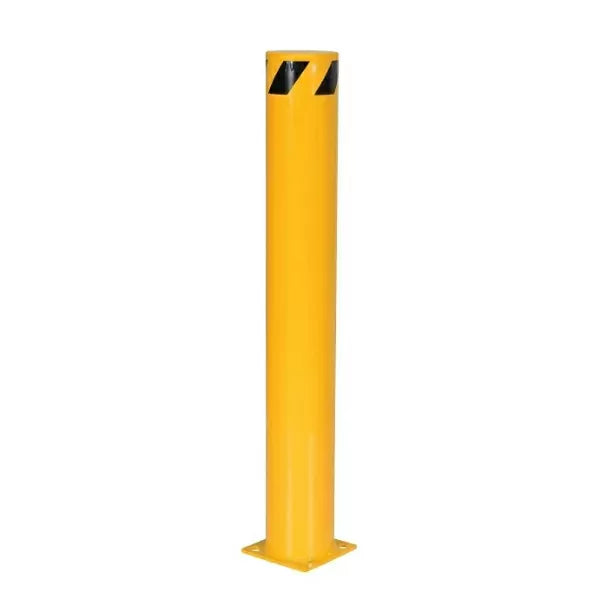

6-5/8" OD Surface-Mount Steel Safety Bollard – Yellow, 36", 42" or 48" H

6-5/8" OD Surface-Mount Steel Safety Bollard – Yellow, 36", 42" or 48" H

The 6-5/8" OD Surface-Mount Steel Safety Bollard provides a durable, highly visible barrier for warehouses, work areas, storage racks, machinery, pedestrian zones, parking facilities, and other commercial or industrial environments.

Available in 36", 42", and 48" heights, all three versions feature the same heavy-duty welded carbon steel construction, Schedule 10 wall, powder-coated safety-yellow finish, welded steel top cap, and surface-mount base plate.

Each bollard is welded to an 8" × 8" × 5/8" steel base plate with four pre-drilled 1" mounting holes, allowing installation on a suitable concrete surface without embedding the pipe below grade.

Available Heights

Choose the height that best fits your application. All three models share the same 6-5/8" outside diameter, Schedule 10 construction, welded base plate, yellow powder-coated finish, welded steel cap, and manufacturer-stated impact resistance.

• 36" Height: Model BOL-36-6.5 – 30 lb
• 42" Height: Model BOL-42-6.5 – 40 lb
• 48" Height: Model BOL-48-6.5 – 47 lb

Features & Benefits

• Heavy-Duty Steel Construction: Welded carbon steel construction provides a substantial barrier for demanding commercial and industrial environments.
• 6-5/8" Outside Diameter: Large-diameter steel pipe provides strong visual presence in vehicle, equipment, and pedestrian areas.
• High-Visibility Safety Yellow: Powder-coated yellow finish helps make the bollard easy to identify in busy facilities and traffic areas.
• Three Height Options: Available in 36", 42", and 48" configurations.
• Surface-Mount Design: Welded base plate allows installation on an existing suitable concrete surface without embedding the pipe below grade.
• Pre-Drilled Base Plate: Four 1" diameter mounting holes provide clearly defined anchor locations.
• Welded Steel Cap: Permanently welded top cap closes the pipe and provides a durable finished appearance.
• Schedule 10 Steel: All three height variants use Schedule 10 carbon steel pipe.
• Indoor or Outdoor Use: Suitable for warehouses, loading areas, parking facilities, equipment zones, and other interior or exterior applications.
• Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type	Surface-Mount Steel Safety Bollard
Outside Diameter	6-5/8" (6.625")
Available Heights	36", 42", and 48"
Pipe Wall	Schedule 10
Base Plate	8" × 8" × 5/8" welded steel plate
Mounting Holes	Four 1" diameter pre-drilled holes
Material	Carbon Steel
Finish	Powder-Coated Safety Yellow
Top Cap	Welded Steel Cap
Manufacturer-Stated Impact Resistance	4,000 lb @ 4 mph

Height & Weight by Model

Model	Height	Weight
BOL-36-6.5	36"	30 lb
BOL-42-6.5	42"	40 lb
BOL-48-6.5	48"	47 lb

Surface-Mount Installation

Each bollard is welded to an 8" × 8" × 5/8" steel base plate with four 1" diameter pre-drilled mounting holes. This surface-mount configuration allows the bollard to be positioned and anchored to a suitable concrete surface without embedding the steel pipe below grade.

Anchoring hardware is not listed as included and should be selected according to the mounting surface, substrate condition, and project requirements.

Common Applications

• Warehouse aisles and work areas
• Storage racks and shelving
• Machinery and equipment zones
• Loading and receiving areas
• Parking facilities and garages
• Building entrances
• Pedestrian and equipment separation areas
• Commercial facilities
• Industrial properties

High-Visibility Powder-Coated Finish

The safety-yellow powder-coated finish provides a durable exterior with strong visual contrast in warehouses, parking facilities, equipment areas, and other high-traffic environments.

Because the yellow powder coating is already applied, the bollard arrives with a finished exterior rather than a primer-only surface requiring immediate cosmetic finishing.

Welded Steel Cap

Unlike the smaller 4.5" and 5.5" safety bollard series that use removable molded caps, these 6-5/8" OD models have a welded steel cap.

The welded cap permanently closes the top of the pipe and provides a durable, finished surface suitable for demanding commercial and industrial installations.

Impact Resistance

The manufacturer lists an impact resistance of 4,000 lb at 4 mph for the 6-5/8" OD steel safety bollard series.

Actual performance depends on installation conditions, anchoring, substrate, and other project-specific factors. This product should not be represented as crash-rated or vehicle-rated beyond the manufacturer-stated specification unless additional certified testing documentation is available.

Made in the USA

These steel pipe safety bollards are proudly manufactured in the United States for commercial and industrial applications.
