6" Surface-Mount Steel Bollard – 6.625" OD x 48"H, Primed
6" Surface-Mount Steel Bollard – 6.625" OD x 48"H, Primed
SKU:INN-Pipe648SMB-SMSB
- Call or Email us for large QTY, corporate, or government quotes
Couldn't load pickup availability
6" Surface-Mount Steel Bollard – 6.625" OD × 48"H, Primed

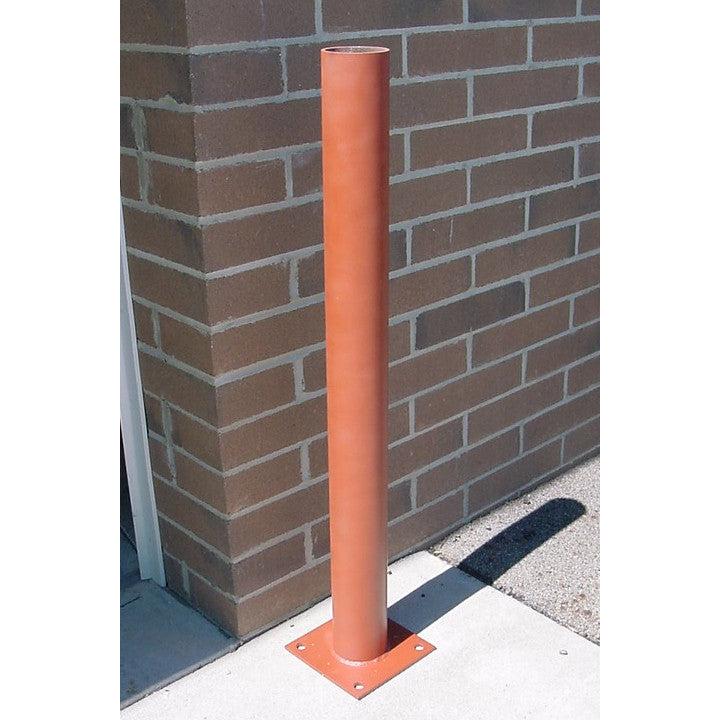

The 6" Surface-Mount Steel Bollard provides a practical solution for installations where excavating a footing or embedding a steel bollard below grade is not practical. The 6.625" (6-5/8") OD Schedule 40 steel pipe is welded to a heavy-duty 10" × 10" steel base plate, allowing the bollard to be anchored directly to a suitable concrete surface.
Four 13/16" diameter laser-cut mounting holes in the base plate provide clearly defined anchor locations for installation. The bollard is supplied with a primed finish and is well suited for parking areas, storefronts, warehouses, equipment areas, loading facilities, gas stations, and other commercial or industrial applications requiring a substantial surface-mounted steel post.
Features & Benefits
- Surface-Mount Design: Ideal for locations where excavation or below-grade bollard installation is not practical.
- 6.625" Outside Diameter: Heavy-duty steel pipe provides a substantial post for commercial and industrial installations.
- Schedule 40 Steel Pipe: Constructed from carbon steel for demanding bollard and facility applications.
- 48" Overall Height: Provides a highly visible above-ground post for parking, warehouse, storefront, and equipment-area applications.
- Heavy-Duty Welded Base Plate: 10" × 10" × 5/16" steel plate provides a solid mounting interface.
- Four Laser-Cut Mounting Holes: Four 13/16" diameter holes are provided for anchoring to a suitable surface.
- Primed Finish: Supplied with a primer coating; primer color may vary between red and gray.
- Compatible with 7" BollardGard™ Covers: Appropriately sized 7" bollard covers can be added for increased visibility and a cleaner finished appearance.
- Made in the USA: Manufactured in the United States.
Technical Specifications
| Product Type | Surface-Mount Steel Bollard |
| Model | PIPE648SMB |
| Nominal Size | 6" |
| Outside Diameter | 6.625" (6-5/8") |
| Overall Height | 48" |
| Pipe Schedule | Schedule 40 |
| Base Plate | 10" × 10" × 5/16" welded steel plate |
| Mounting Holes | Four 13/16" diameter laser-cut holes |
| Weight | 80 lb |
| Material | Carbon Steel |
| Finish | Primed – color may vary between red and gray |
Surface-Mount Installation
This bollard is designed for applications where an embedded steel pipe is not practical. The welded base plate allows the bollard to be positioned on a suitable concrete surface and secured through the four pre-cut mounting holes.
The base plate measures 10" × 10" × 5/16" and includes four 13/16" diameter mounting holes. Anchoring hardware is not listed as included and should be selected according to the mounting surface, substrate condition, and project requirements.
Common Applications
- Storefronts and building entrances
- Parking lots and parking garages
- Gas pumps and fueling areas
- Warehouses and distribution centers
- Machinery and equipment areas
- Loading and receiving areas
- Commercial facilities
- Industrial properties
Primed Finish
The steel bollard is supplied with a primed surface, with primer color varying between red and gray. The primer provides a prepared base surface but should not necessarily be considered the final exterior finish.
Depending on the installation environment and desired appearance, an additional compatible topcoat or protective finish may be applied after installation.
Add a Bollard Cover for a Finished Look
For installations where improved visibility, reduced painting maintenance, or a more finished appearance is desired, the 6.625" OD steel pipe can be paired with an appropriately sized 7" BollardGard™ cover.
A bollard cover conceals the exposed steel surface and provides a consistent finished appearance while reducing the recurring cosmetic maintenance associated with repainting exposed steel bollards.
Made in the USA
This surface-mount steel bollard is proudly manufactured in the United States.

Technical Resources
Need Multiple Bollards or Project Pricing?
For large quantities or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
