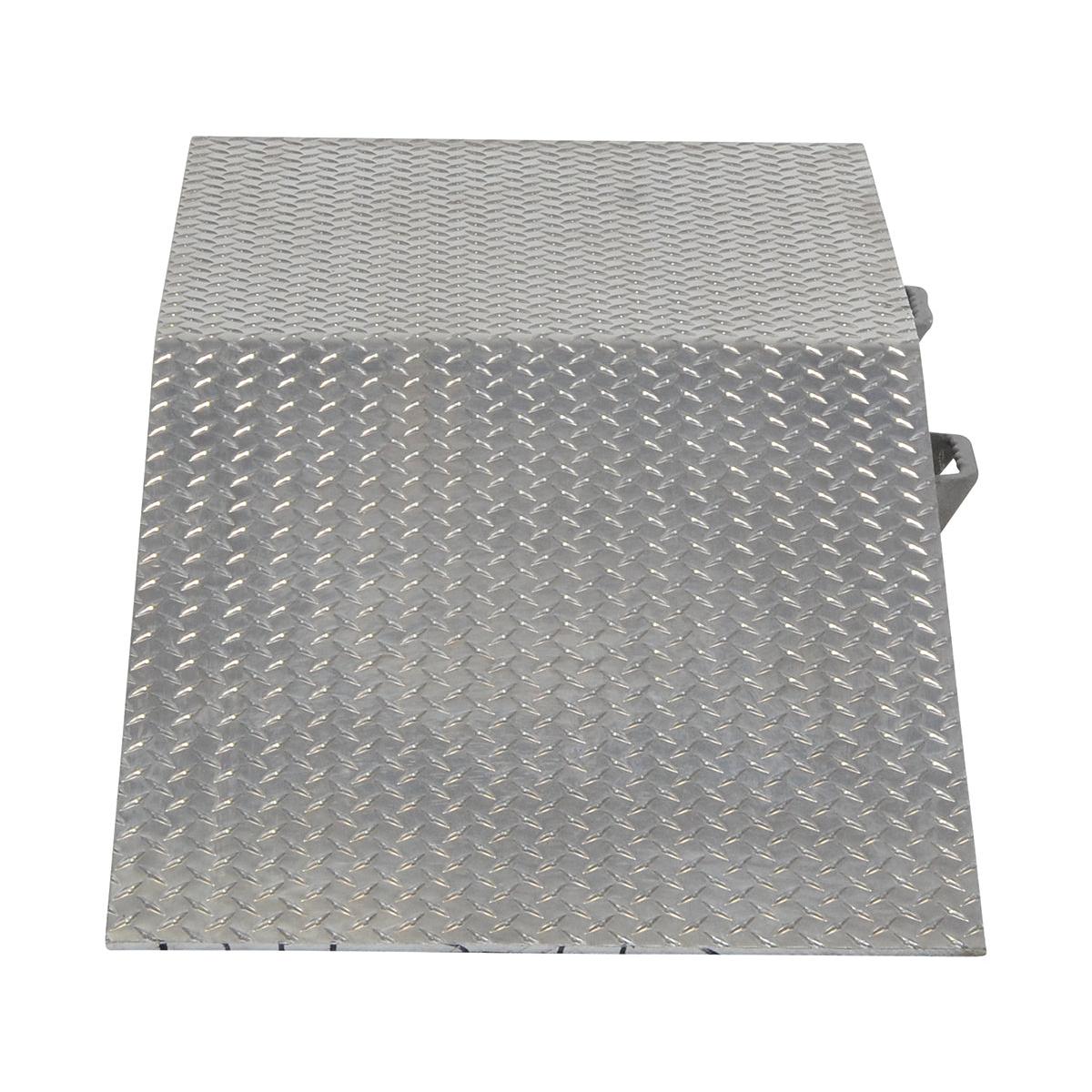

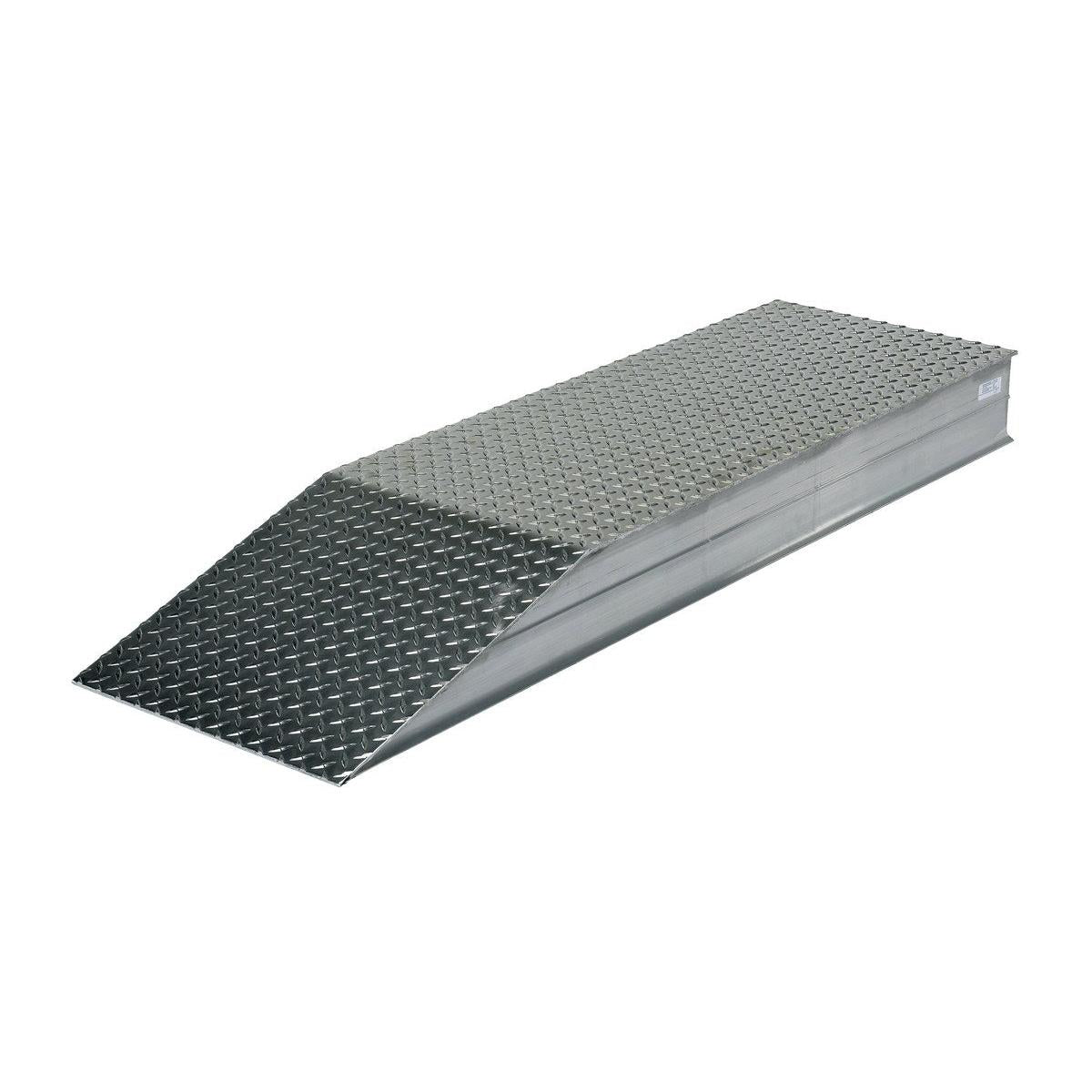

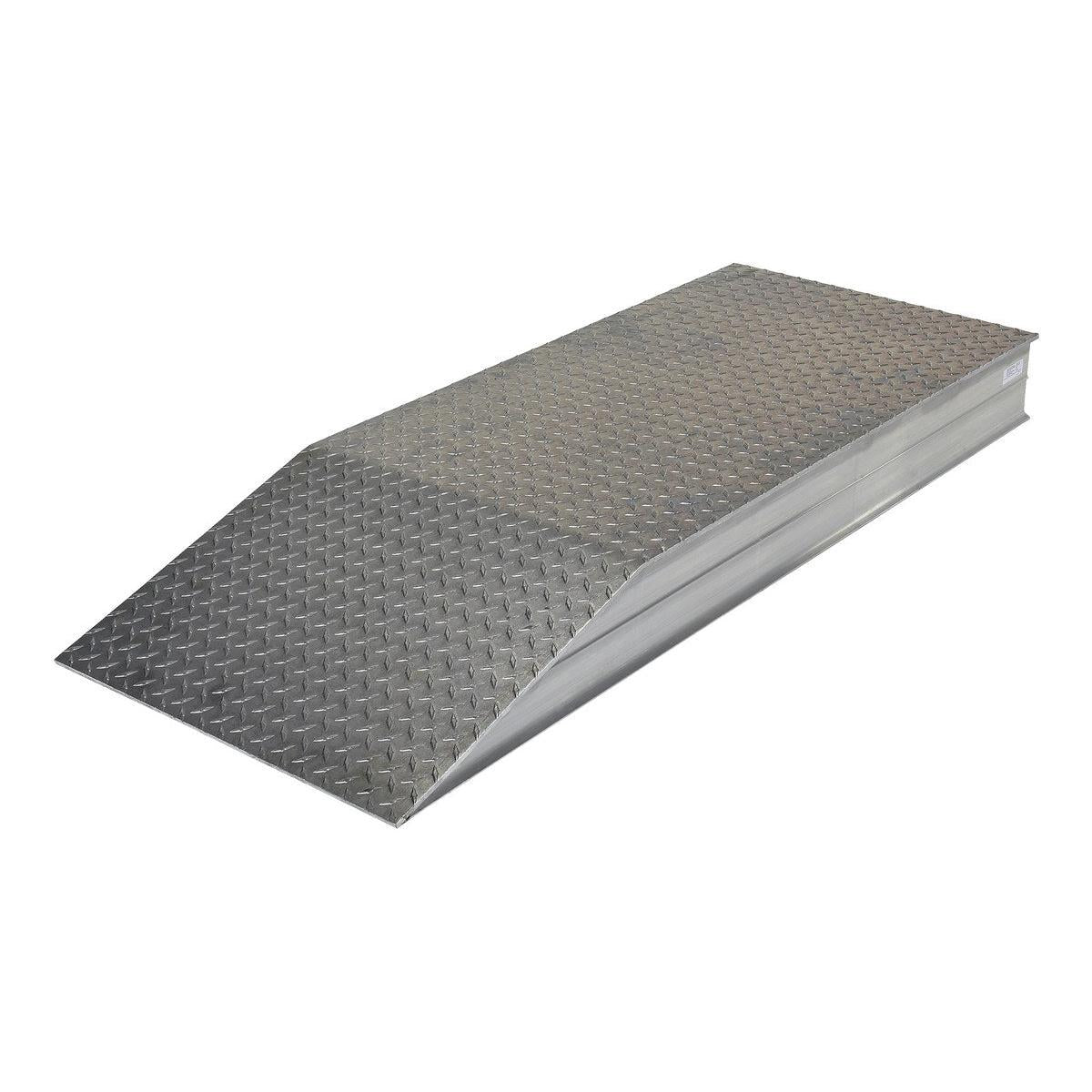

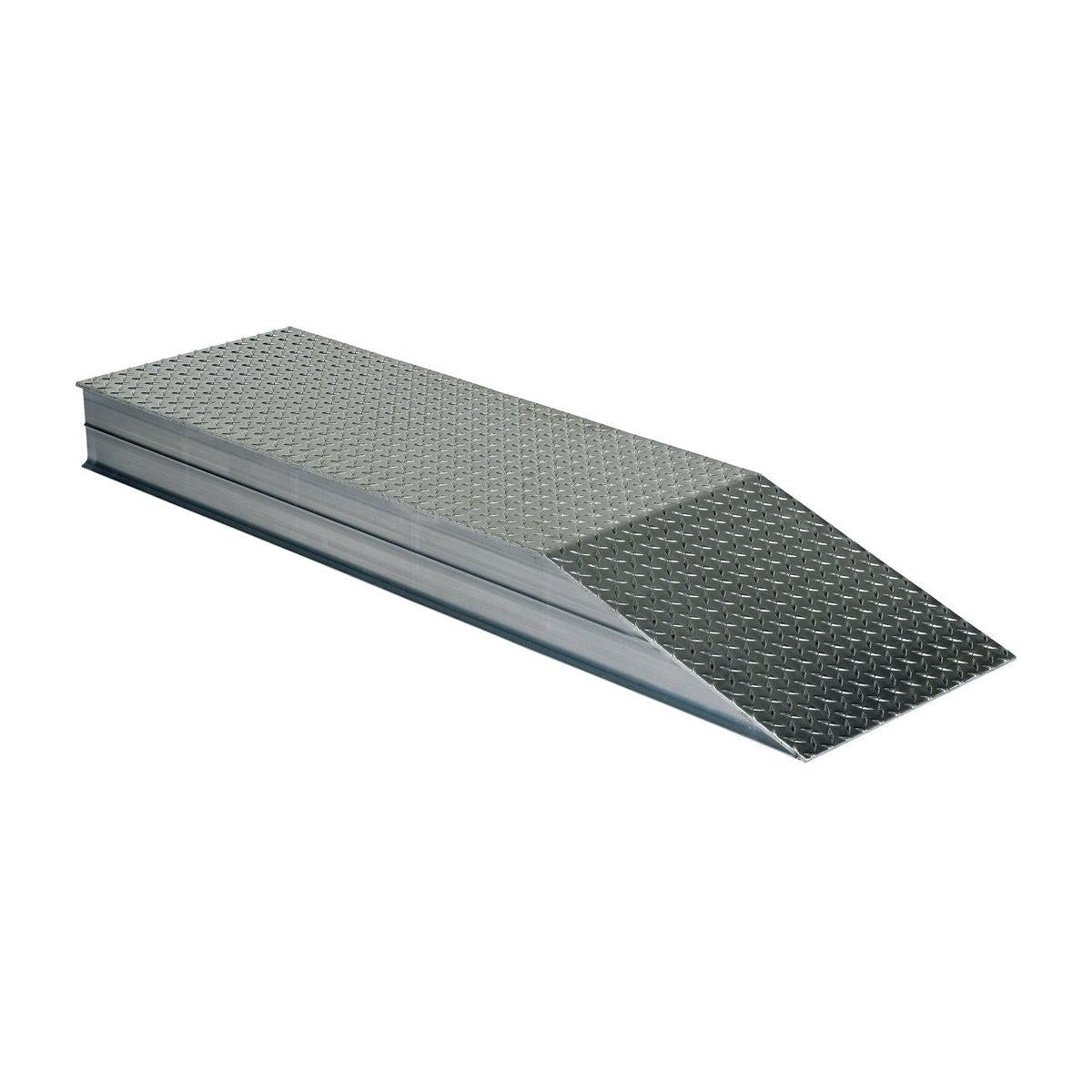

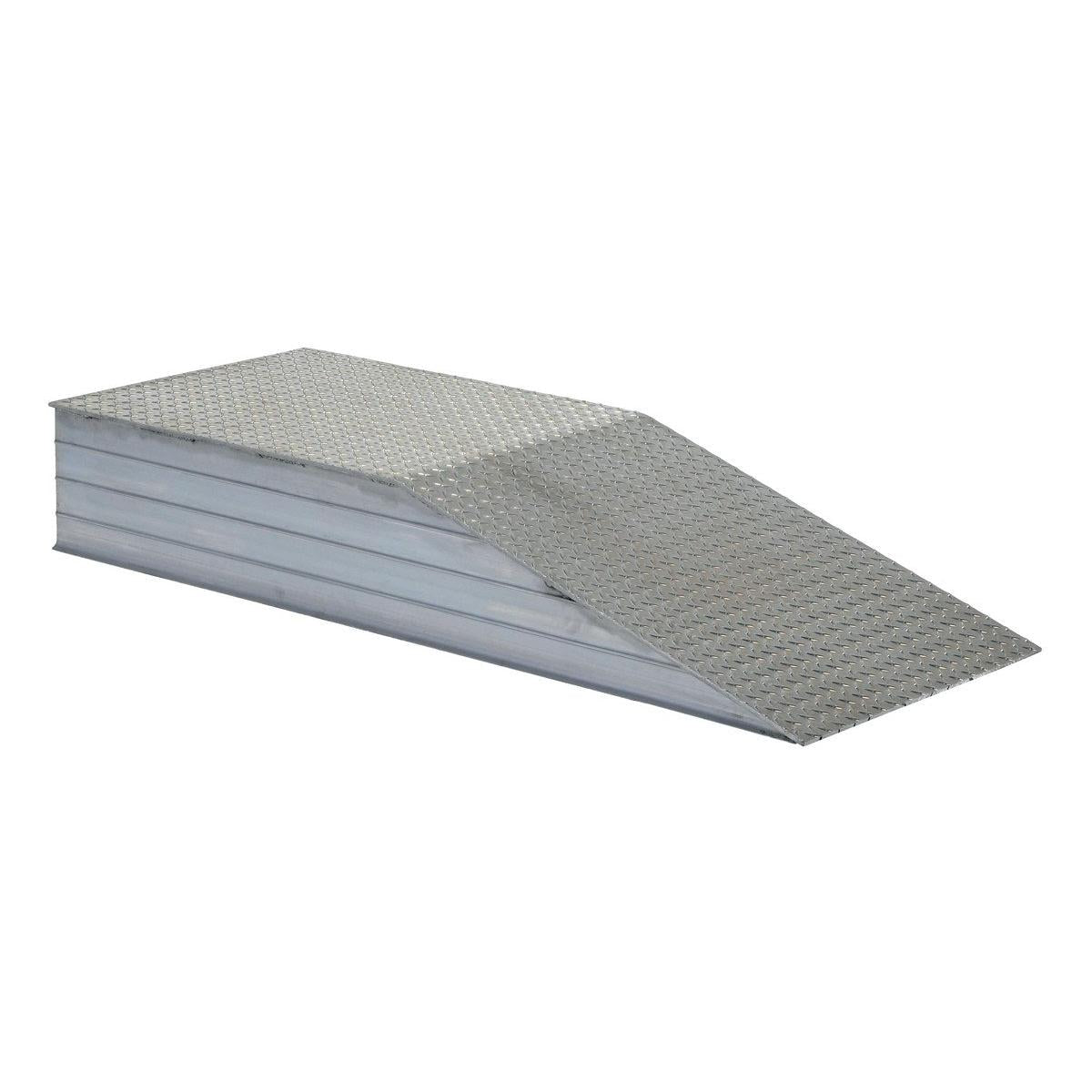

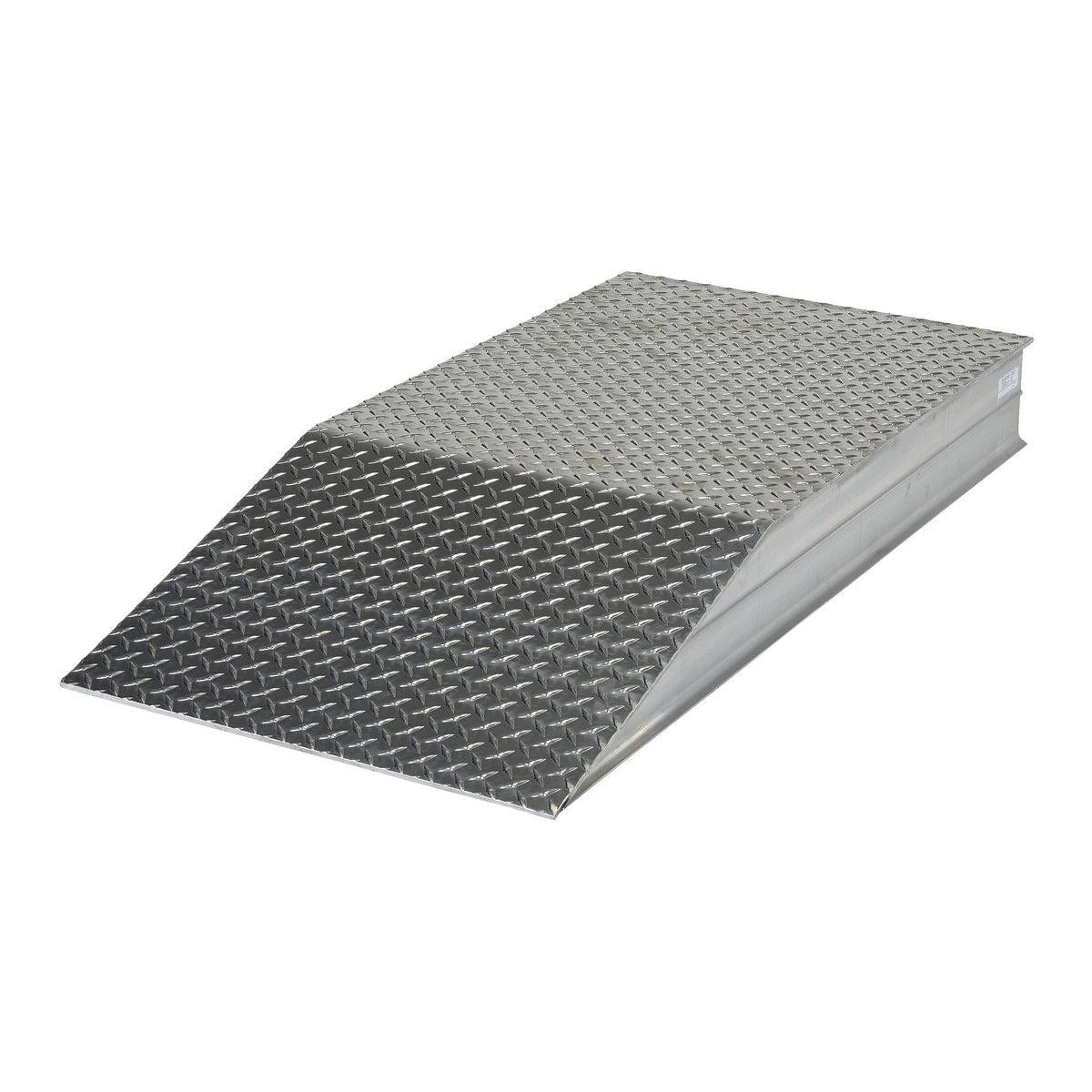

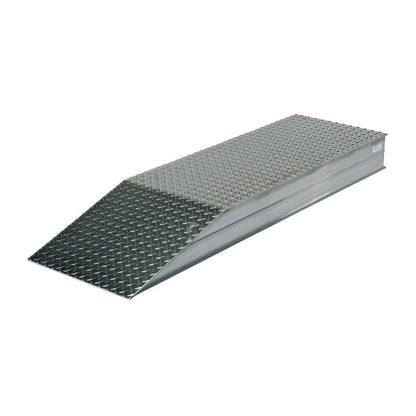

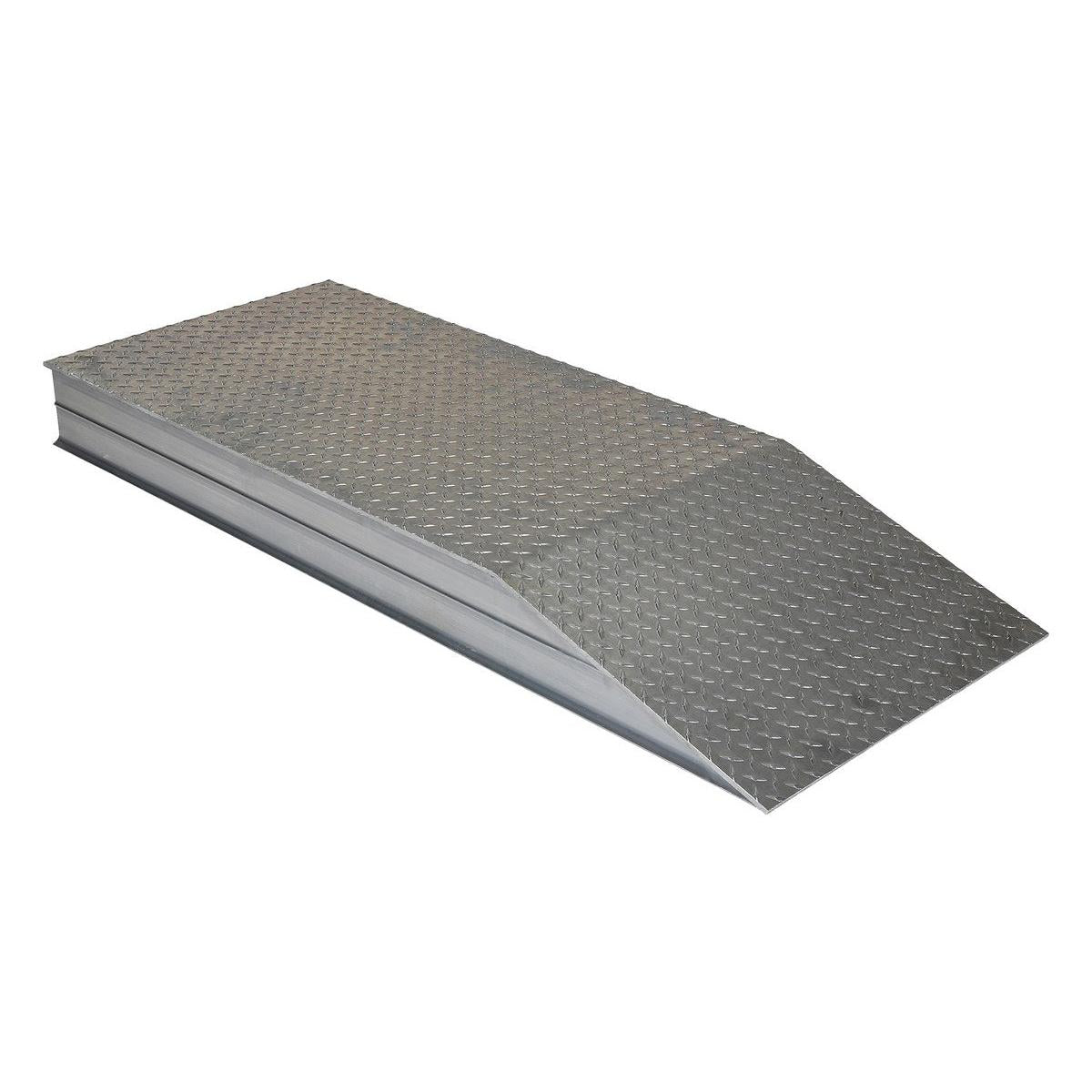

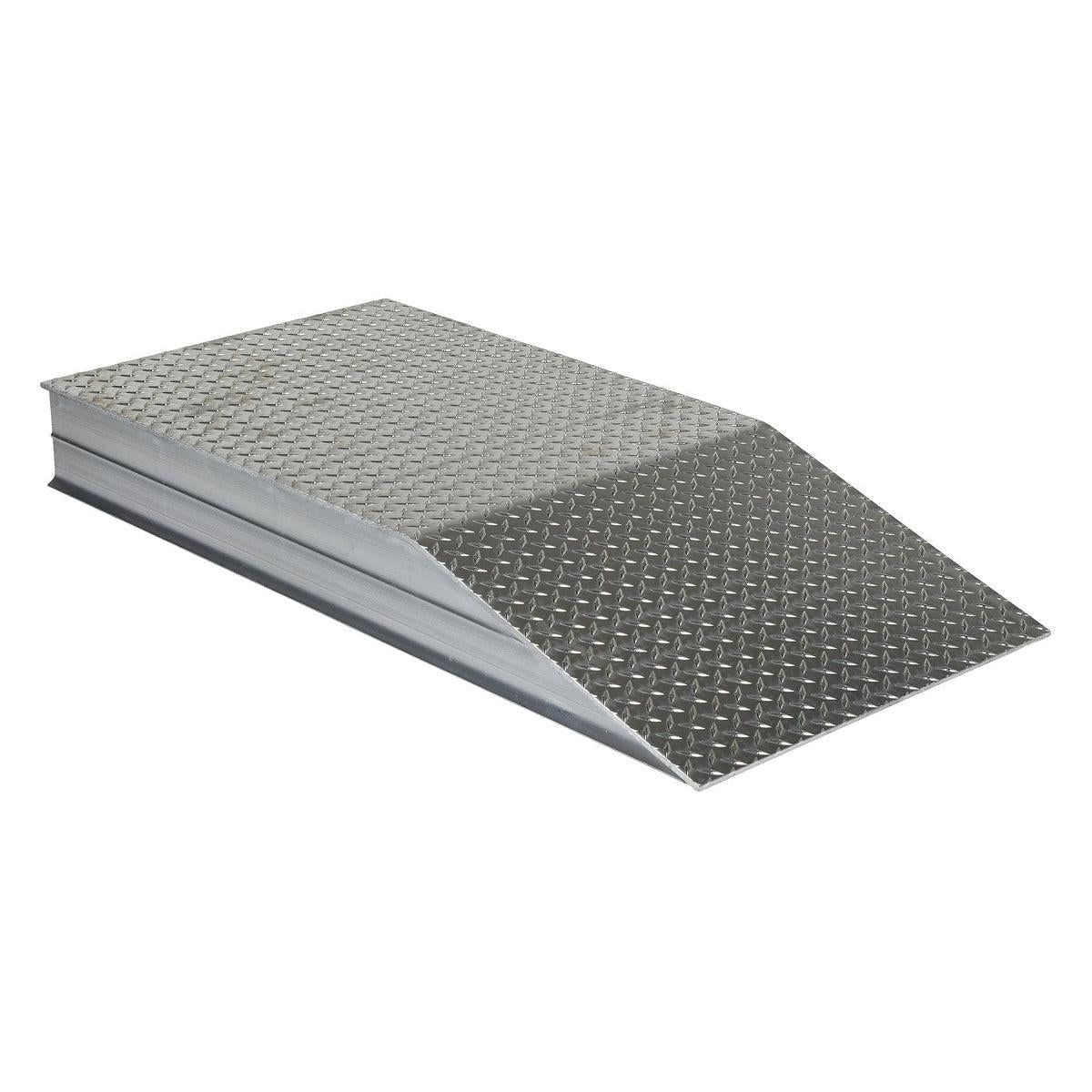

Aluminum Wheel Risers

Aluminum Wheel Risers are designed to elevate semi-trailers to loading dock height safely, ensuring level access for forklifts and compliance with OSHA/ANSI B56.1 Part 3 Section 7 grade requirements. Built from heavy-duty, all-welded aluminum tread plate, these risers provide exceptional strength, corrosion resistance, and traction — ideal for demanding dock operations.

Each riser features a raised diamond tread surface for non-slip footing and a stackable design for compact storage when not in use. With a uniform capacity of 30,000 lb per pair, they offer dependable performance across industrial, logistics, and warehouse applications.

Features and Benefits

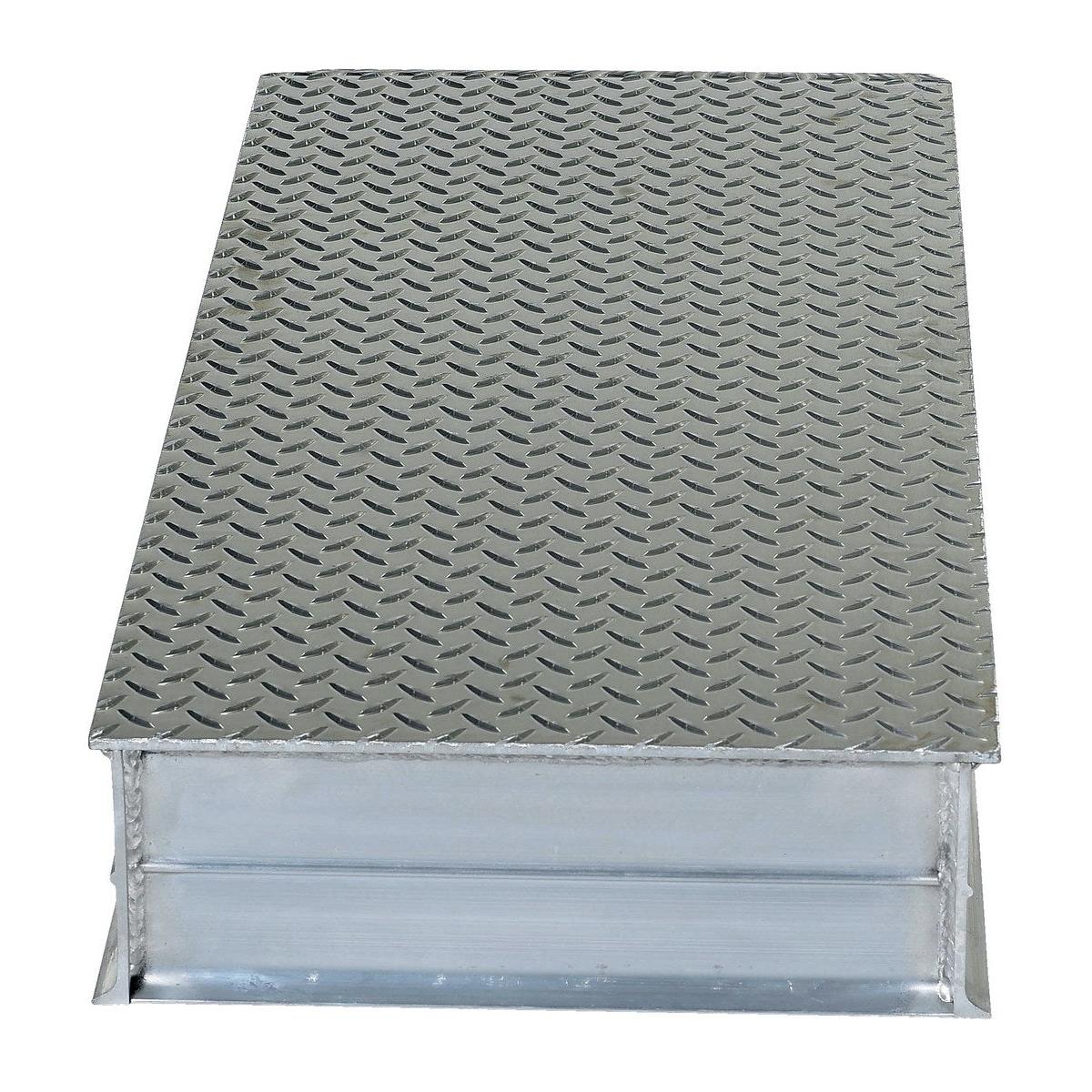

• Heavy-Duty Construction: All-welded aluminum structure with ¼ in. material thickness ensures strength and durability under heavy loads.
• High Load Capacity: Rated 30,000 lb per pair, suitable for semi-trailers and heavy equipment.

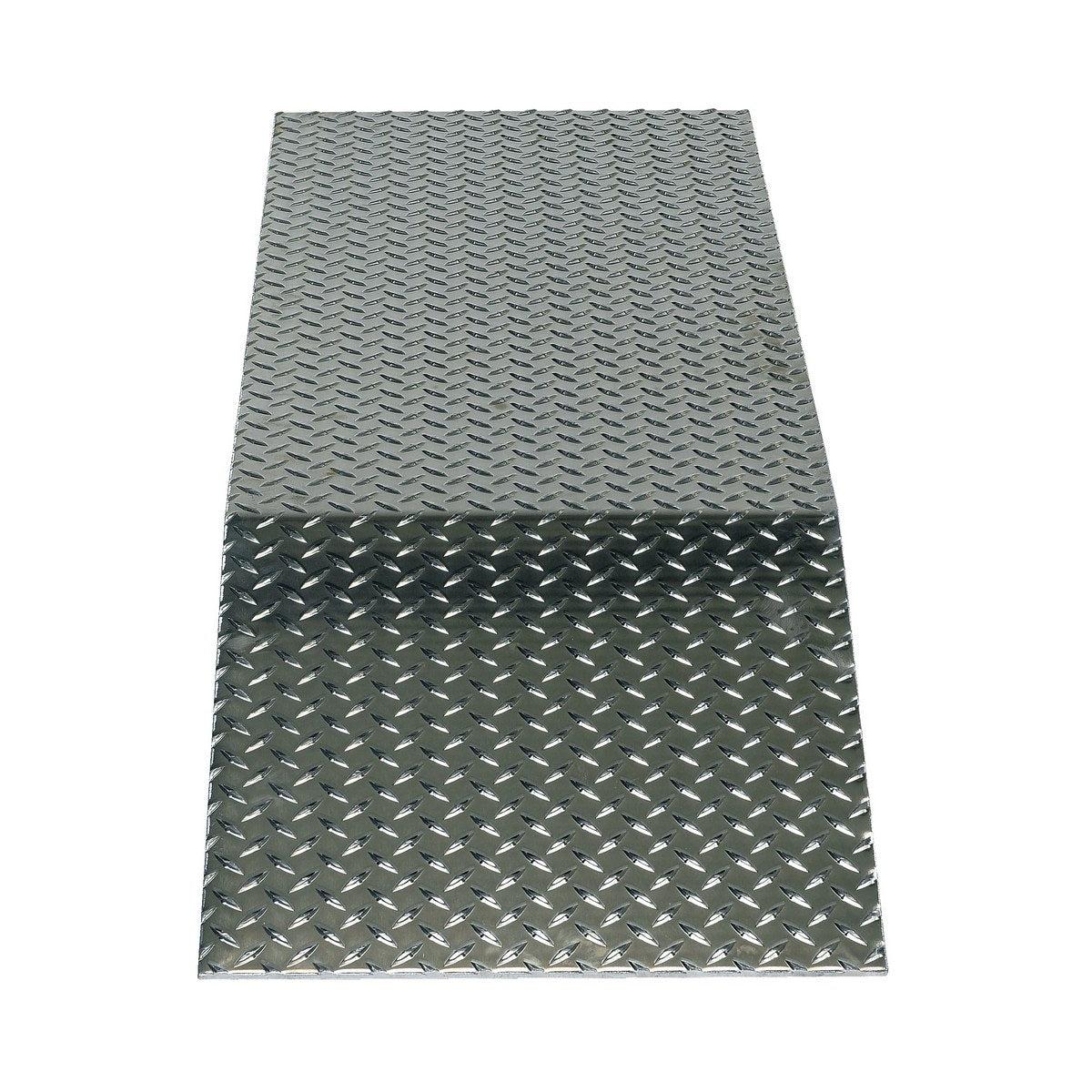

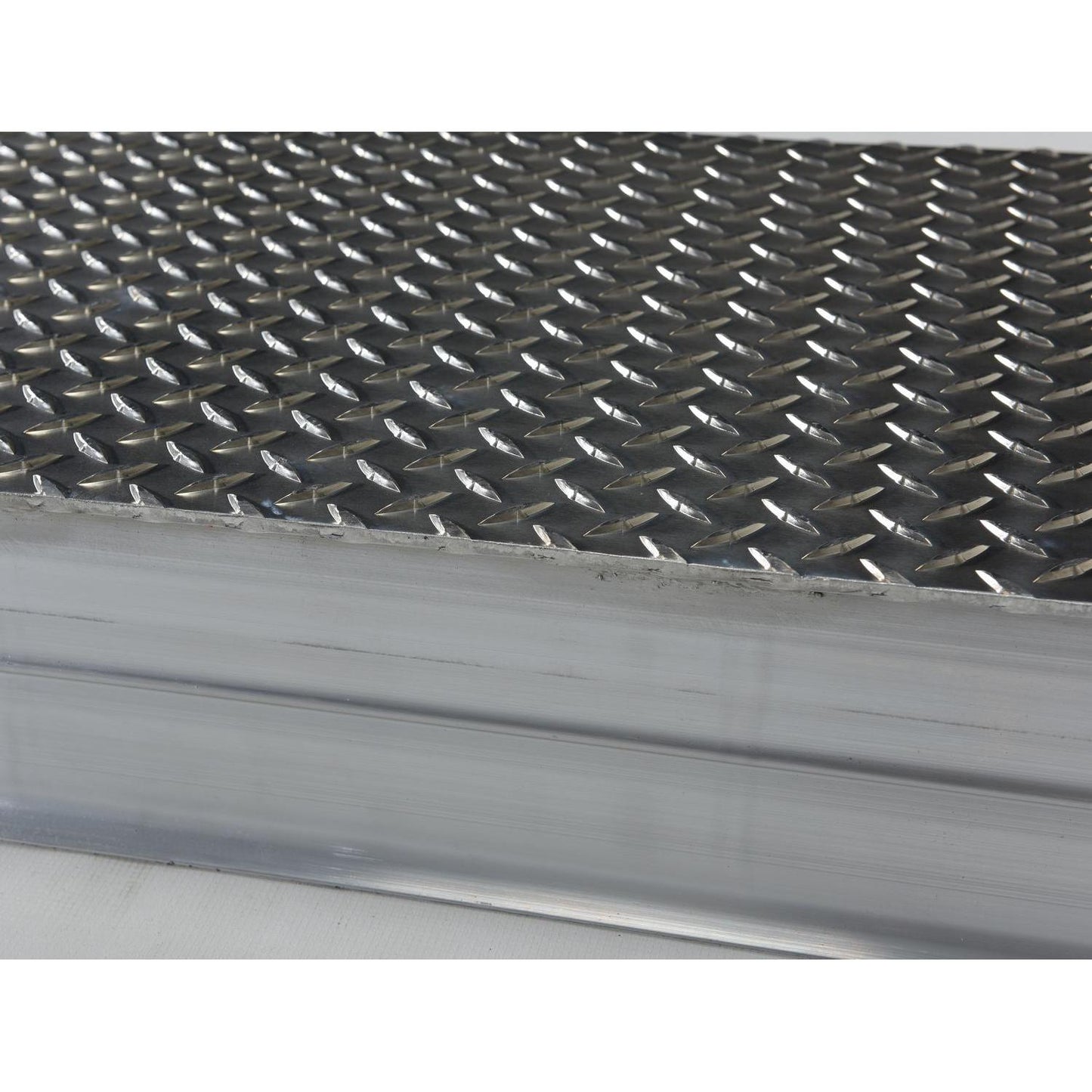

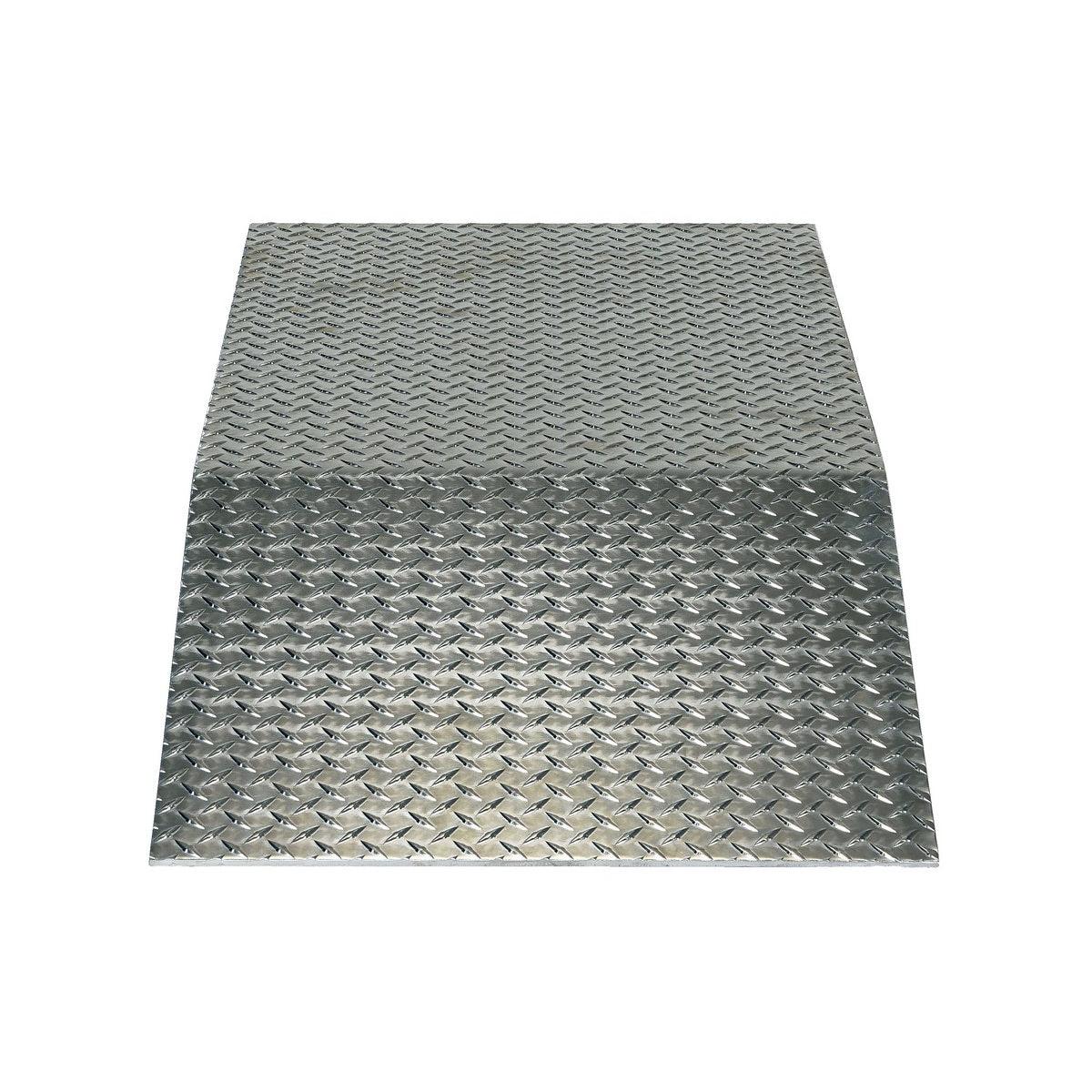

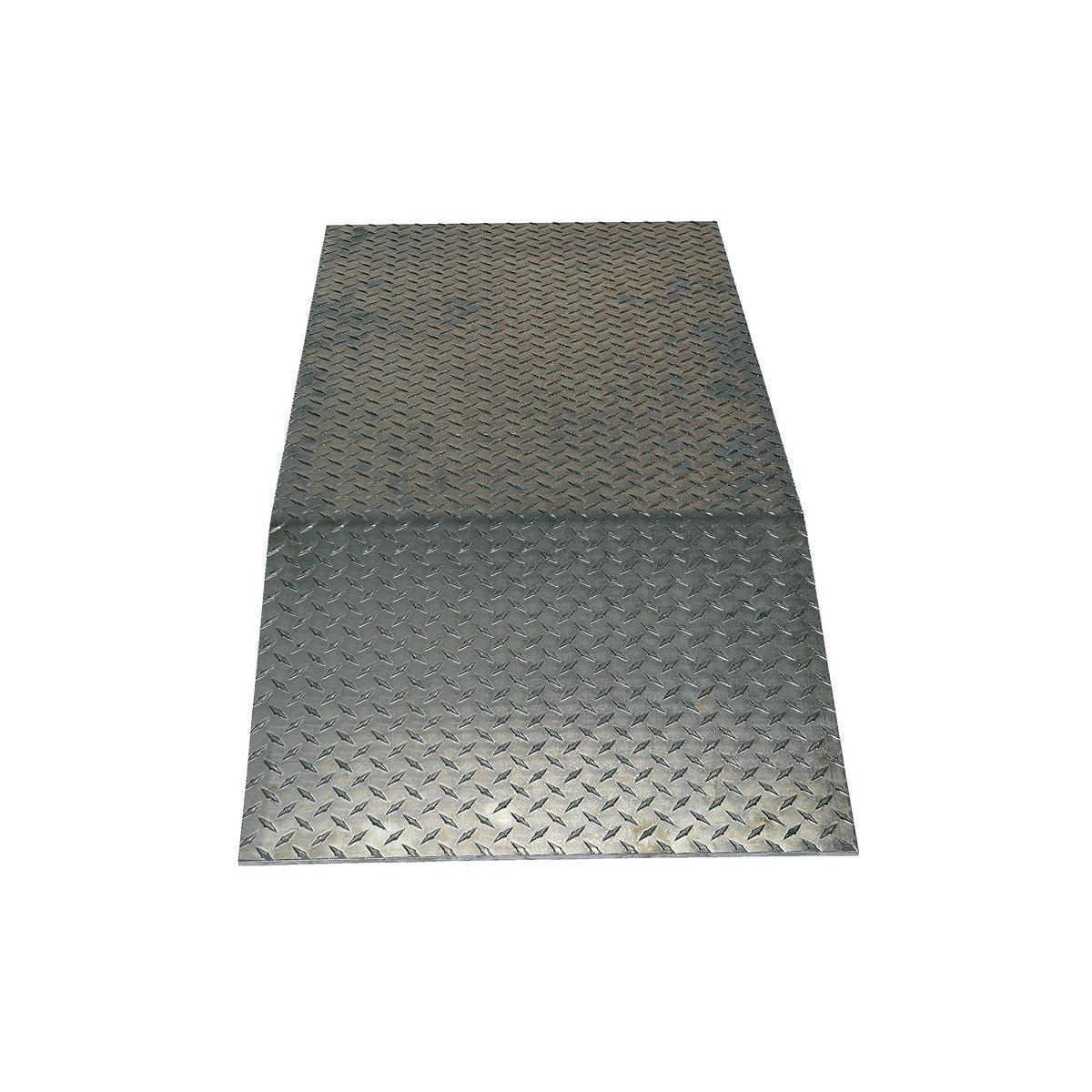

• Non-Slip Surface: Raised diamond tread plate provides secure traction for tires and forklifts.
• Stackable Design: Compact storage and easy handling when not in use.
• Multiple Approach Angles: Available in 18 in., 24 in., 30 in., and 36 in. approach lengths for various dock configurations.
• OSHA/ANSI Compliant: Meets B56.1 Part 3 Sec 7 grade requirements for safe forklift access.
• Corrosion Resistant: Aluminum construction withstands outdoor exposure without rusting.

Available Configurations

• Platform Widths: 18 in or 24 in.

• Heights: 5-7/8 in., 7-7/8 in., 9-7/8 in., and 11-7/8 in.

• Lengths: Models range from 48 in. to 120 in. in overall length.

• Approach Angles: 18.1°, 18.2°, 18.3°, angled entry depending on model.

Additional Information

Each Aluminum Wheel Riser is sold individually (not as a pair). For optimal performance and safety, use one pair per axle.
Custom dimensions and approach lengths are available upon request.

Available Accessories:

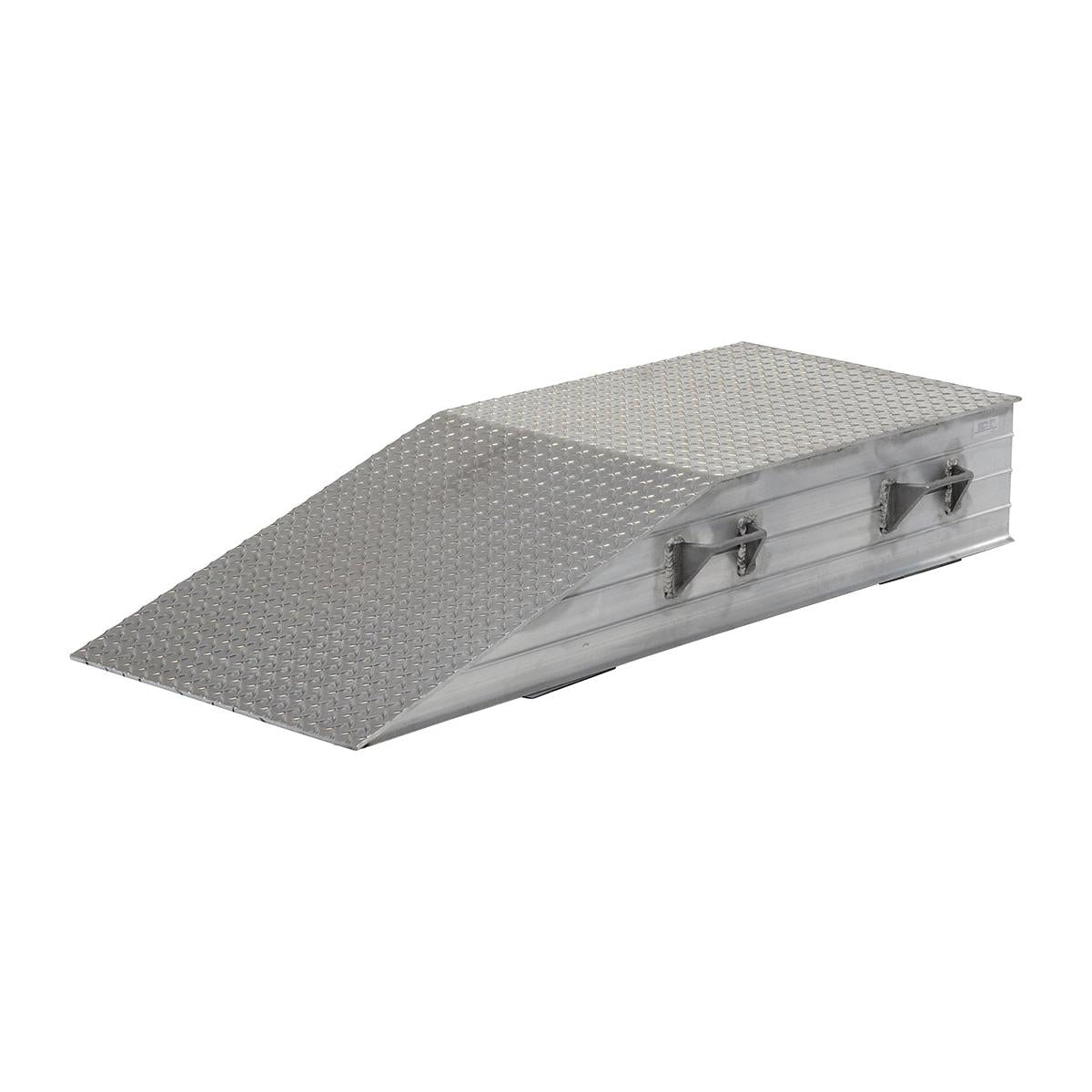

	Factory Installed Steel Anchor Brackets (Set of 4): Use these for permanent installations to bolt the ramps to the ground.

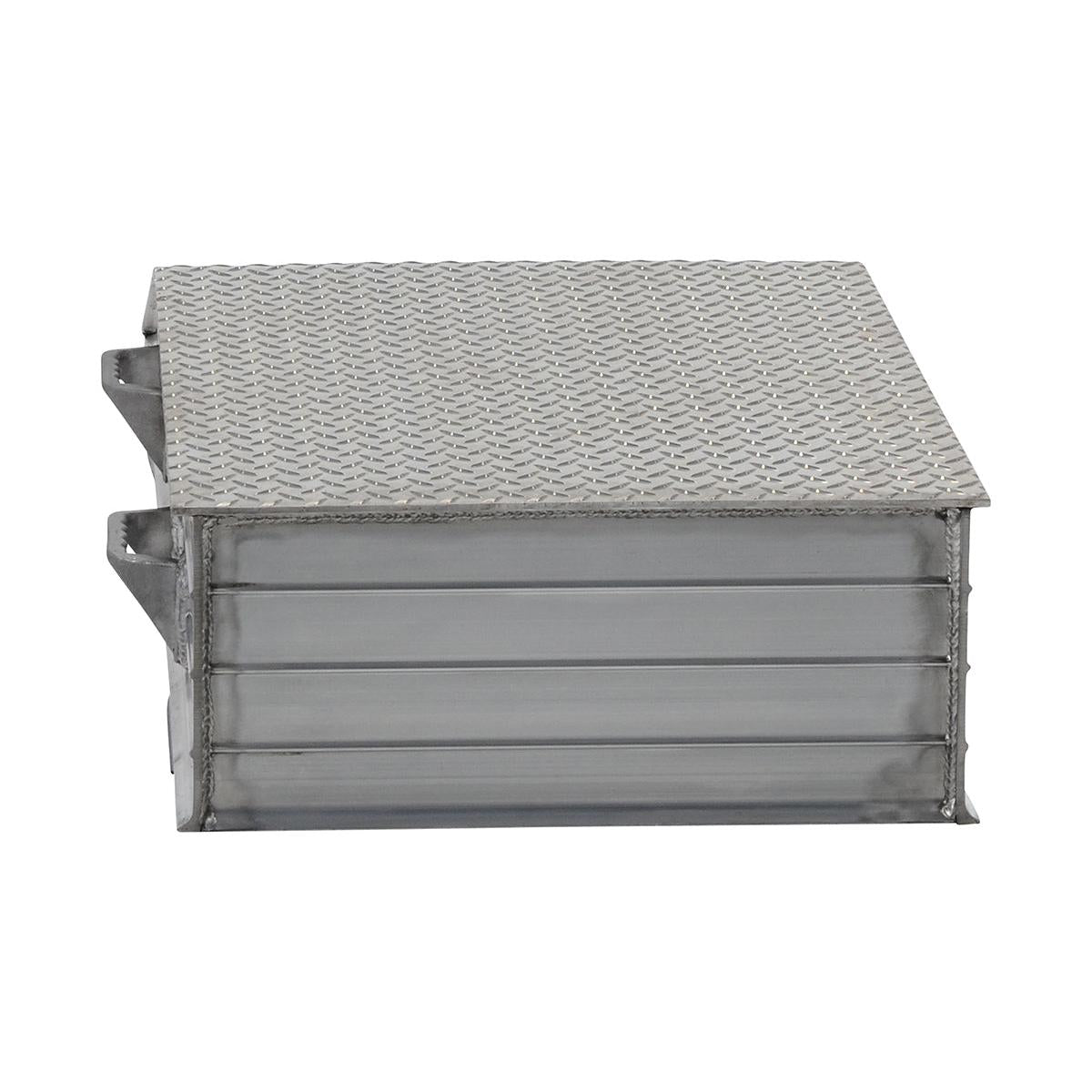

	Factory Installed Welded Steel Fork Pockets: Use these to allow you to move the ramps around with a forklift.
	Factory Installed Rubber Add-On Wheel: Use this wheel attachment to move each ramp around individually by hand.
	Portable Wheel Riser Caddy – For 18" and 24" Wide Units: Use this caddy to transport wheel risers without heavy lifting easily.
	Wheel Riser Caddy Brackets and Hardware: Use these brackets for securely mounting a portable caddy to wheel risers.

Technical Specifications:

• Material: Aluminum
• Product Type: Wheel Riser
• Number of Ramps: 1
• Ramp Weight Capacity (lbs): 30,000
• Assembly: Assembled
• Color / Finish: Silver
• CPO-Prop 65 Warning Required: Yes
• Manufacturer Warranty: 90 Days
• OSHA Compliance: 1910.30 (a)
• ANSI Compliance: B56.1 part 3 sec 7

Made in the USA
