Innoplast

Column Protector Fit Medium

Column Protector Fit Medium

SKU:INN-CS-FIT-M-Y-FYL

Regular price $424.99 USD
Regular price Sale price $424.99 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes

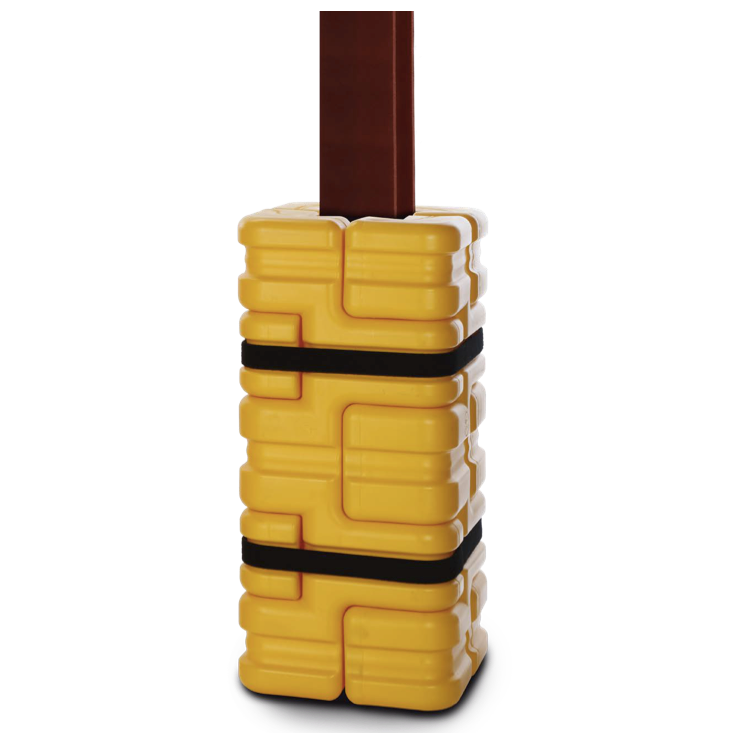

Column Sentry FIT Medium – Adjustable 20" OD Column Protector for 8"–12" Columns

The Column Sentry FIT Medium is an adjustable four-sided column protector designed for square, round, and H-shaped columns measuring from 8" × 8" up to 12" × 12".

With a 42" height and an expandable outside diameter starting at approximately 20", the FIT Medium is designed for parking structures, warehouses, distribution centers, manufacturing facilities, interior building columns, and other locations where structural columns are exposed to vehicle or material-handling traffic.

The interlocking four-sided design adjusts around the existing column to provide coverage on all sides. Once positioned, the included securing straps hold the protector in place without requiring drilling into the column.

Features & Benefits

  • Adjustable Fit: Designed for square, round, or H-shaped columns from 8" × 8" through 12" × 12".
  • Four-Sided Protection: Interlocking sections surround the column on all four sides for consistent coverage.
  • Expandable Design: Sliding sections adjust to accommodate different column sizes within the specified range.
  • 20" Starting Outside Diameter: Provides a substantial protective zone while adapting to the column underneath.
  • 42" Height: Protects the lower portion of the column where contact from vehicles and material-handling equipment is most likely to occur.
  • Patented Air-Vent System: Allows air to escape as the protector flexes during impact, helping prevent the sections from separating.
  • Impact-Absorbing Construction: Molded polymer construction is designed to flex and recover following incidental impacts.
  • HDPE / EVA Construction: Molded from a blend of high-density polyethylene and ethylene vinyl acetate.
  • Highly Visible Federal Yellow: Bright color increases column visibility in vehicle, warehouse, and pedestrian environments.
  • Weatherproof: Suitable for indoor and outdoor applications.
  • Chemical Resistant: Designed for demanding commercial and industrial environments.
  • UV-Stabilized: Formulated for exterior exposure.
  • Easy Installation: Fits around the existing column without drilling into the column.
  • Installation Straps Included: Securing straps hold the assembled protector in position.
  • Stackable: Multiple protectors can be stacked where additional vertical coverage is required.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Adjustable Column Protector
Model / SKU CS-FIT-M-Y
Starting Outside Diameter Approximately 20"
Height 42"
Column Size Range 8" × 8" to 12" × 12"
Metric Column Size Range Approximately 200 × 200 mm to 300 × 300 mm
Compatible Column Shapes Square, Round & H-Shaped Columns
Weight 48 lb
Construction Interlocking 4-Sided Adjustable Design
Material Molded HDPE / EVA Blend
Color Federal Yellow
Environmental Properties Weatherproof, Chemical Resistant & UV-Stabilized
Installation Included Securing Straps
Warranty 30-Day Limited Warranty Against Manufacturing Defects

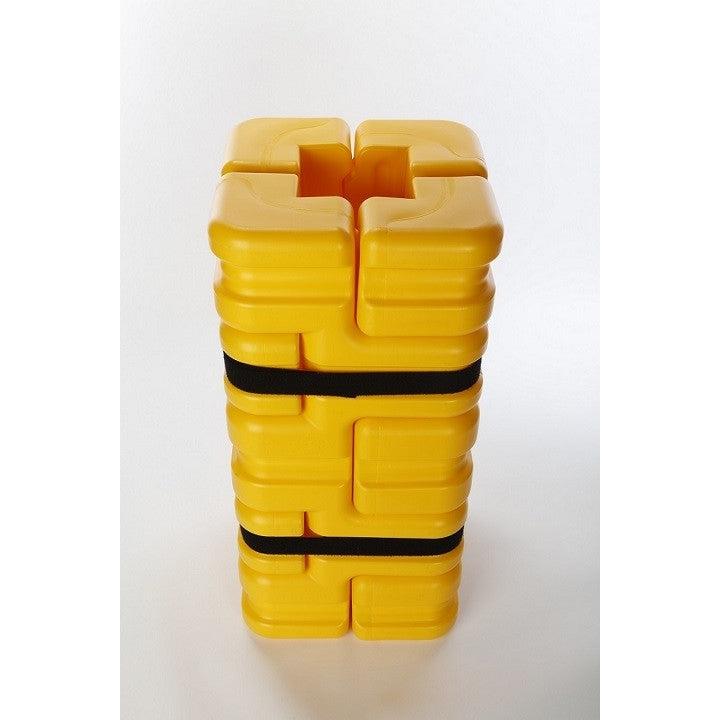

Adjustable Four-Sided Design

The Column Sentry FIT Medium uses an interlocking four-sided configuration rather than a conventional fixed-size two-piece design. The sections slide relative to one another so the protector can be adjusted to fit columns within the specified 8" × 8" to 12" × 12" range.

The four-sided configuration provides coverage around the entire column and maintains a consistent protective zone as the protector is adjusted.

Patented Air-Vent System

An integrated air-vent system allows air inside the protector to escape as the molded sections flex during contact. This helps the protector absorb movement without forcing the interlocking sides apart and allows the material to recover following minor impacts.

Designed for Medium-Size Structural Columns

The FIT Medium is sized for columns larger than those accommodated by the FIT Small while maintaining an adjustable design. Its 20" starting outside diameter and 42" height make it suitable for many structural columns found in parking, warehouse, commercial, and industrial facilities.

High-Visibility Federal Yellow

The bright Federal Yellow finish increases column visibility in areas with vehicle, forklift, material-handling, or pedestrian traffic.

The highly visible exterior helps make fixed structural columns easier to identify while the molded protector provides a cushioning layer around the underlying column.

Installation

The four interlocking sections assemble around the existing column and are secured using the included straps. No drilling into the column is required.

View Installation Instructions

Common Applications

  • Parking structure columns
  • Parking garage support columns
  • Warehouse columns
  • Distribution centers
  • Manufacturing facilities
  • Interior building columns
  • Mezzanine supports
  • Conveyor areas
  • Commercial buildings
  • Areas with forklift or material-handling traffic

Important Application Note

The Column Sentry FIT Medium is designed to provide impact cushioning and increased visibility around structural columns. Its effectiveness depends on the type, speed, direction, and energy of an impact as well as the installation and underlying structure.

No certified crash rating or specific vehicle-impact speed classification has been provided with the supplied product information. It should not be represented as a crash-rated barrier.

Made in the USA

The Column Sentry FIT Medium is proudly manufactured in the United States.

Made in the USA

Product Videos

Technical Resources

View Installation Instructions

View Mechanical Drawings

Need Multiple Column Protectors or Project Pricing?

Request a Quote
For large quantities or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
