4.5" OD Stainless Steel Surface-Mount Safety Bollard
4.5" OD Stainless Steel Surface-Mount Safety Bollard
SKU:INN-BOL-SS-36-4.5-SSSB
- Call or Email us for large QTY, corporate, or government quotes
Couldn't load pickup availability

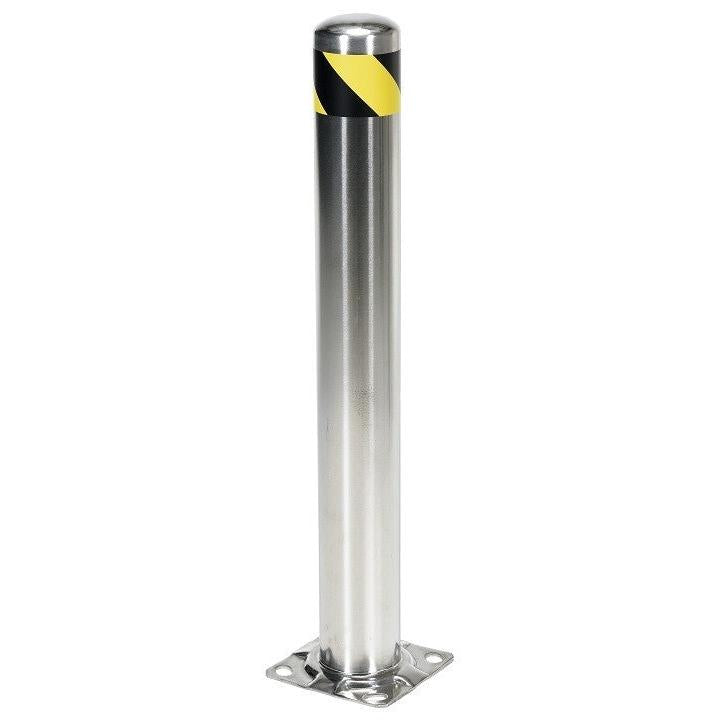

4.5" OD Stainless Steel Surface-Mount Safety Bollard – 36" or 42" H
The 4.5" OD Stainless Steel Surface-Mount Safety Bollard combines durable steel construction with a clean, polished appearance for commercial, industrial, and high-visibility environments. Available in 36" and 42" heights, it is well suited for work areas, equipment zones, storage racks, building entrances, parking facilities, and other locations where a substantial surface-mounted barrier is required.
Each bollard is manufactured from 304 stainless steel with a polished finish and features a welded steel top cap for a durable, finished appearance. The post is welded to an 8" × 8" × 1/8" stainless steel base plate with four mounting slots for installation on a suitable concrete surface.
A 3" yellow-and-black hazard tape band is included to increase visual contrast and help make the bollard easier to identify in busy work, vehicle, and pedestrian areas.
Available Heights
| Model | Height | Outside Diameter | Weight |
|---|---|---|---|
| BOL-SS-36-4.5 | 36" | 4.5" | 25 lb |
| BOL-SS-42-4.5 | 42" | 4.5" | 25 lb |
Features & Benefits
- 304 Stainless Steel Construction: Provides durable, corrosion-resistant construction for commercial and industrial environments.
- Polished Stainless Finish: Creates a clean, professional appearance suitable for exposed installations.
- 4.5" Outside Diameter: Provides a substantial visual and physical presence around work areas, equipment, and access points.
- Two Height Options: Available in 36" and 42" configurations.
- Surface-Mount Design: Welded base plate allows installation on a suitable existing concrete surface without embedding the post below grade.
- Four Mounting Slots: Pre-cut slots in the base plate provide defined anchoring locations.
- Welded Steel Cap: Permanently attached cap provides a durable finished top and eliminates the need for a removable plastic cap.
- Hazard Tape Included: 3" yellow-and-black tape adds visual contrast for work, pedestrian, and vehicle areas.
- Indoor or Outdoor Use: Suitable for warehouses, parking facilities, commercial properties, equipment zones, and other interior or exterior applications.
- Made in the USA: Proudly manufactured in the United States.
Technical Specifications
| Product Type | Stainless Steel Surface-Mount Safety Bollard |
| Outside Diameter | 4.5" |
| Available Heights | 36" and 42" |
| Base Plate | 8" × 8" × 1/8" welded stainless steel plate |
| Mounting Slots | Four 7/8" × 3/8" slots |
| Mounting Hardware | Not included; anchor bolts sold separately |
| Weight | 25 lb |
| Material | 304 Stainless Steel |
| Finish | Polished Stainless Steel |
| Top Cap | Welded Steel Cap |
| Visibility Accessory | 3" Yellow & Black Hazard Tape |
Surface-Mount Installation
The bollard is welded to an 8" × 8" × 1/8" base plate with four 7/8" × 3/8" mounting slots. This configuration allows the bollard to be positioned and anchored to a suitable concrete surface without embedding the post below grade.
Anchor bolts are sold separately and should be selected according to the mounting surface, substrate condition, and requirements of the specific project.
Polished Stainless Steel Finish
The polished 304 stainless steel surface provides a clean, professional appearance that works well in applications where conventional painted safety bollards may look too industrial.
Because the visible exterior is stainless steel rather than painted carbon steel, the bollard does not depend on a painted finish for its appearance, helping reduce recurring cosmetic maintenance.
High-Visibility Hazard Tape
Each bollard includes 3" yellow-and-black hazard tape to increase contrast and help make the post easier to recognize in work areas, vehicle zones, pedestrian routes, and other busy environments.
The hazard marking complements the polished stainless steel finish while preserving a more architectural appearance than a fully yellow-painted bollard.
Common Applications
- Warehouse work areas
- Storage racks and shelving
- Machinery and equipment zones
- Loading and receiving areas
- Parking garages and parking areas
- Building entrances
- Pedestrian and equipment separation areas
- Retail and commercial properties
- Institutional facilities
- Industrial environments
Welded Steel Cap
The top of the bollard is permanently closed with a welded steel cap. This provides a durable finished surface and avoids the loosening, damage, or replacement issues that can occur with removable plastic caps.
Important Application Note
This product is designed as a substantial surface-mounted steel bollard for facility, equipment, and traffic-separation applications. No certified crash rating or specific vehicle-impact classification has been provided with the supplied product information. Performance depends on the anchoring system, substrate, installation conditions, and requirements of the specific project.
Made in the USA
These stainless steel surface-mount safety bollards are proudly manufactured in the United States for commercial and industrial applications.
