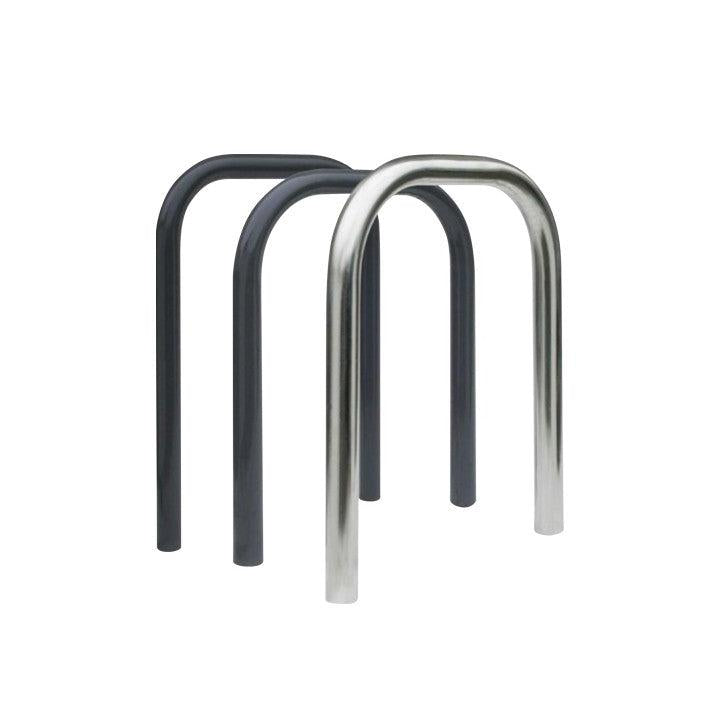

3.5" OD Stainless Steel U-Shaped Pipe Guard

3.5" OD Stainless Steel U-Shaped Pipe Guard

SKU:INN-US1983-353656-SS-UNIQUE

Regular price $302.75 USD
Regular price Sale price $302.75 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Size

3.5" OD Stainless Steel U-Shaped Pipe Guard – 304 SS, #4 Brushed Finish

The 3.5" OD Stainless Steel U-Shaped Pipe Guard provides a durable, corrosion-resistant barrier for areas where equipment, dispensers, building components, pedestrian zones, or other assets need separation from nearby vehicle traffic.

Manufactured from 304 stainless steel with a .216" wall thickness, this guard combines substantial construction with a clean architectural appearance. The #4 brushed finish gives the exposed stainless surface a refined, professional look suitable for commercial, institutional, and high-visibility environments.

Its U-shaped configuration provides wider coverage than a single-post bollard and is available in three standard size combinations for different installation requirements.

Available Sizes

Model Width (Out to Out) Height Weight
INN-US1983-353656-SS 36" 56" 70 lb
INN-US1983-354153-SS 41" 53" 70 lb
INN-US1983-354850-SS 48" 50" 70 lb

Features & Benefits

  • 304 Stainless Steel Construction: Provides durable, corrosion-resistant performance for commercial and industrial environments.
  • 3.5" Outside Diameter: Substantial pipe diameter provides a strong visual and physical presence.
  • .216" Wall Thickness: Heavy-wall stainless steel construction for demanding applications.
  • U-Shaped Design: Protects a wider area than a single-post bollard and can be positioned around equipment, dispensers, entrances, or restricted zones.
  • #4 Brushed Finish: Creates a clean architectural appearance suitable for exposed installations.
  • Three Standard Sizes: Available in 36" × 56", 41" × 53", and 48" × 50" configurations.
  • Corrosion Resistant: Stainless steel construction is well suited for locations exposed to moisture and weather.
  • Indoor or Outdoor Applications: Suitable for commercial, institutional, parking, and industrial environments.
  • Custom Sizes Available: Project-specific dimensions are available by request.
  • ±1" Dimensional Tolerance: Installation layouts should allow for normal manufacturing variation.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type Stainless Steel U-Shaped Pipe Guard
Outside Diameter 3.5"
Standard Sizes 36" W × 56" H, 41" W × 53" H, 48" W × 50" H
Wall Thickness .216"
Weight 70 lb
Material 304 Stainless Steel
Finish #4 Brushed Finish
Dimensional Tolerance ±1" on all dimensions
Custom Sizes Available by request

Designed for Equipment & Traffic Separation

The U-shaped configuration makes this pipe guard especially useful where a single bollard would not provide sufficient coverage. It can be positioned around equipment, dispensers, entrances, or facility components to create a substantial physical and visual separation from nearby vehicle traffic.

  • Fuel dispensers and service equipment
  • Warehouse machinery
  • Electrical and mechanical equipment
  • Parking facilities
  • Building entrances
  • Commercial drive-through areas
  • Pedestrian separation zones
  • Commercial and institutional properties
  • Industrial facilities

#4 Brushed Stainless Steel Finish

The #4 brushed finish gives the stainless steel a uniform directional grain with a clean architectural appearance. This makes the guard suitable for locations where the barrier is visible as part of the overall facility design.

Unlike painted steel, the stainless surface does not rely on a painted or powder-coated finish for its appearance, helping reduce the cosmetic maintenance associated with conventional painted pipe guards.

304 Stainless Steel Construction

304 stainless steel provides strong resistance to corrosion and weathering for many commercial, institutional, and industrial environments. It is well suited for applications where long-term appearance and reduced maintenance are important.

For highly corrosive, marine, or chloride-heavy environments, material suitability should be evaluated according to the specific site conditions.

Multiple & Custom Sizes

Three standard size combinations are available: 36" W × 56" H, 41" W × 53" H, and 48" W × 50" H.

Custom dimensions are also available for project-specific requirements. Because the manufacturer specifies a ±1" tolerance on all dimensions, installation layouts should allow for normal manufacturing variation.

Important Application Note

This product is intended as a substantial stainless steel pipe guard for equipment, facility, and traffic-separation applications. No certified crash rating or specific vehicle-impact classification has been provided with the supplied product information. Performance depends on the installation method, foundation, substrate, and requirements of the specific project.

Made in the USA

These stainless steel U-shaped pipe guards are proudly manufactured in the United States for commercial, institutional, and industrial applications.

Made in the USA

Technical Resources

View Mechanical Drawings

Need a Custom Size or Project Quantity?

Request a Quote
For custom sizes, large quantities, or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
