Steel Dock Chain Barrier Bollard Conversion Hardware Kit

The Steel Dock Chain Barrier Bollard Conversion Hardware Kit lets you transform standard bollards into an effective chain-link barrier system—ideal for loading docks, forklift aisles, and restricted zones. By adding chain connection points to existing posts, the kit provides a fast, economical way to improve pedestrian and vehicle safety without replacing installed bollards.

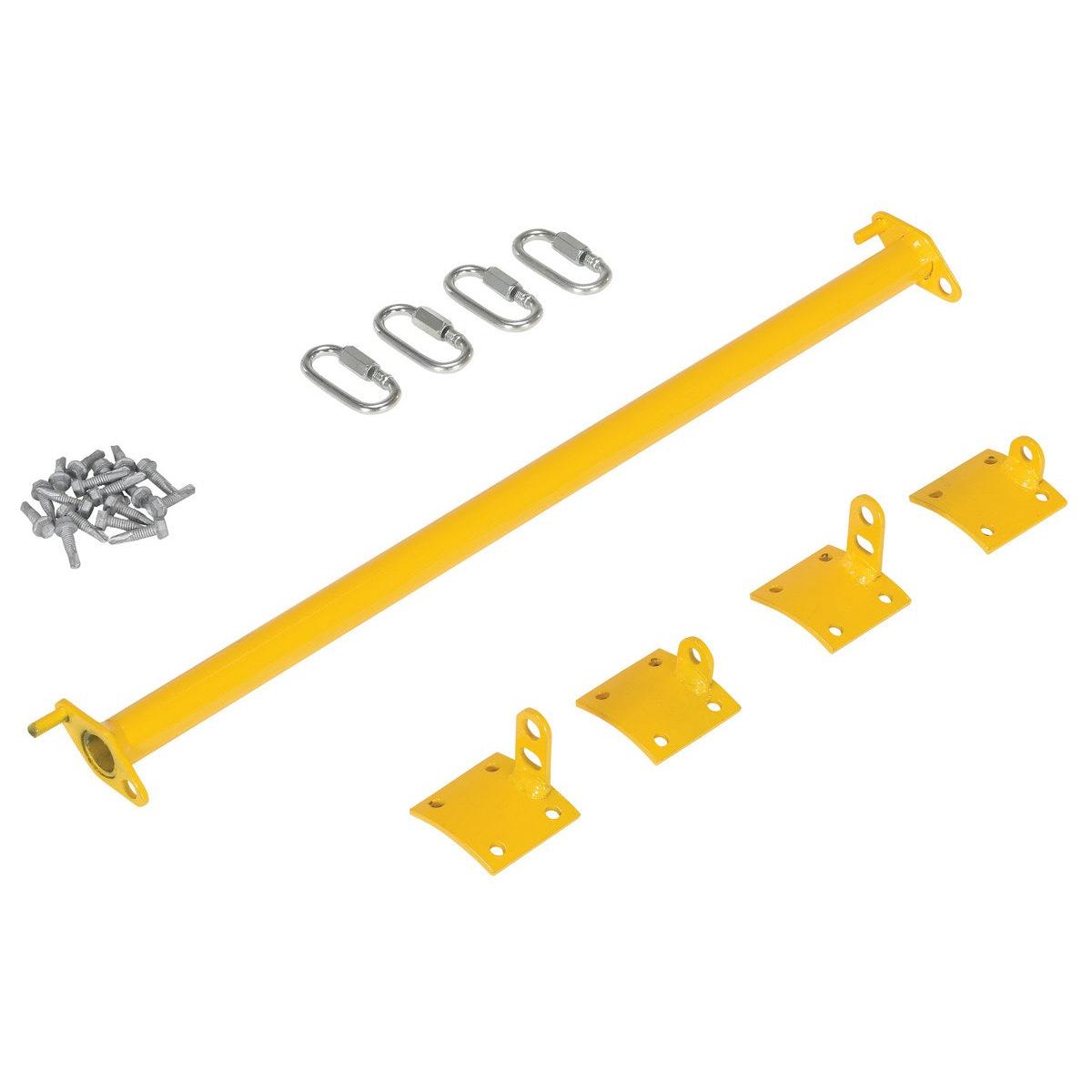

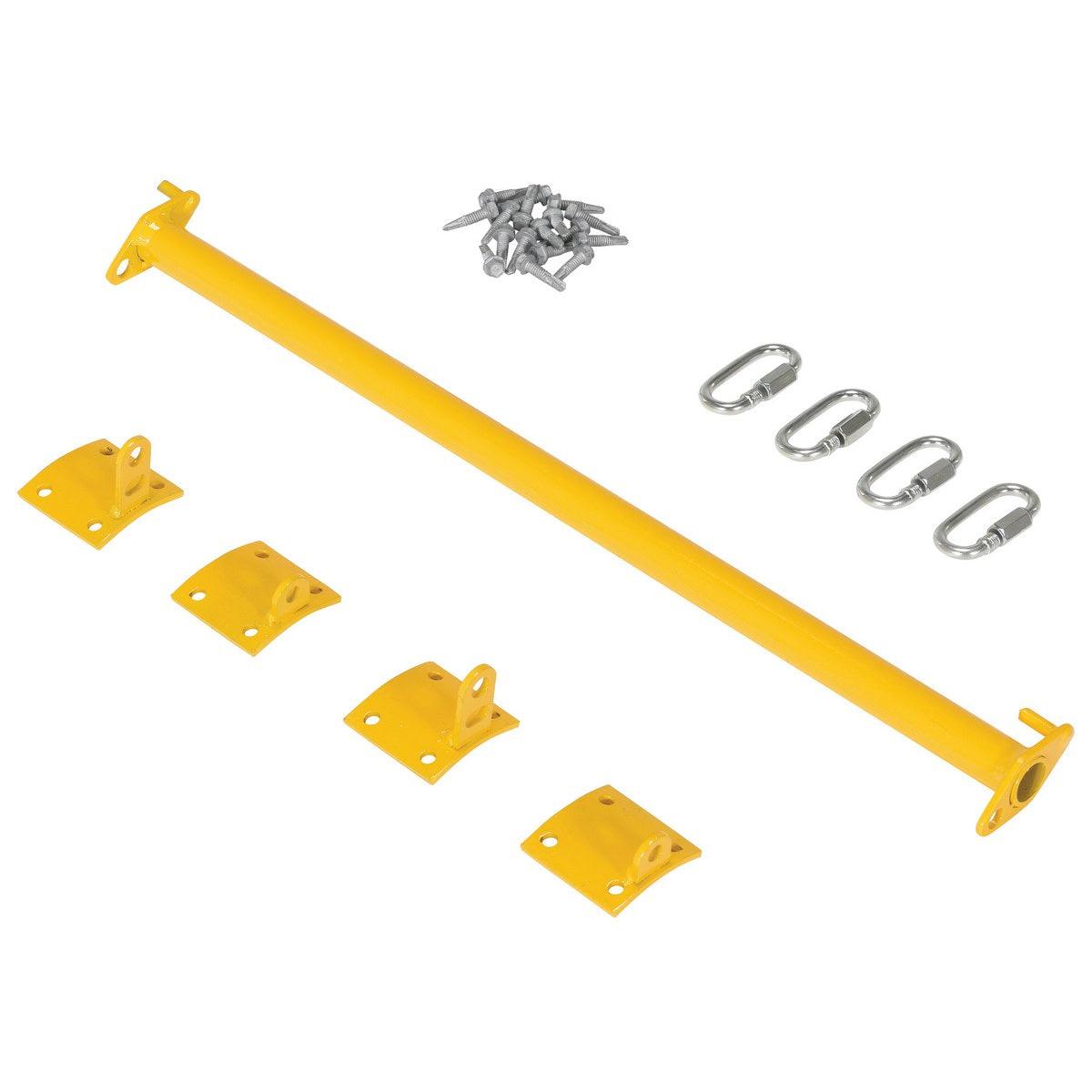

Each kit includes everything required for one four-post run: four heavy-duty bollard mounting brackets, one post-welded bracket, four quick links, and twelve self-tapping screws for secure attachment. (Chains and padlocks sold separately.) Note: this kit is not compatible with 2-inch-diameter bollards or 24-inch-tall bollards.

Key Features & Benefits

• Easy Retrofit Solution – Converts existing bollards into a chain barrier without core drilling or welding.
• Complete Hardware Set – Includes brackets, quick links, and self-tapping screws for immediate installation.
• Heavy-Duty Steel Construction – Brackets are designed for long service life in demanding dock and warehouse environments.
• Improved Safety – Quickly establishes a visual and physical barrier to control traffic and protect personnel.
• Versatile Application – Suitable for loading docks, staging lanes, maintenance areas, and other industrial settings.

Additional Information:

• One kit converts up to four bollards.
• Chains, padlocks, and bollards are sold separately.
• Not compatible with 2 in. diameter or 24 in. tall bollards; verify bollard dimensions before ordering.

The Steel Bollard Chain 20 Ft. Length 3/16 In. is available here.

Technical Specifications:

• Total Ship Wt.(lbs.): 3
• Size: 2"W x 2"L x 20.0625"H
• Mounting Bracket Quantity: 4
• Self Tapping Screw Quantity: 16
• Chain Post Handle Quantity: 1
• Quick Links (qty.): 4
• Impact Resistance: only rated for personnel barrier of 250 lbs. load
• Mounting Bracket Height (in.): 2-11/16

• Mounting Bracket Length (in.): 2-13/16
• Mounting Bracket Width (in.): 7/8
• Chain Post Handle Length (in.): 20-1/16

• Chain Post Handle Width (in.): 7/8

• Package Contents: (12) Self Tapping Screws (1) Chain Post Handle (4) Quick Links (4) Mounting Brackets

• Material: Steel
• UPC: 691215106122
• GTIN: 00691215106122
• Manufacturer Warranty: 90 days

Made in the USA
