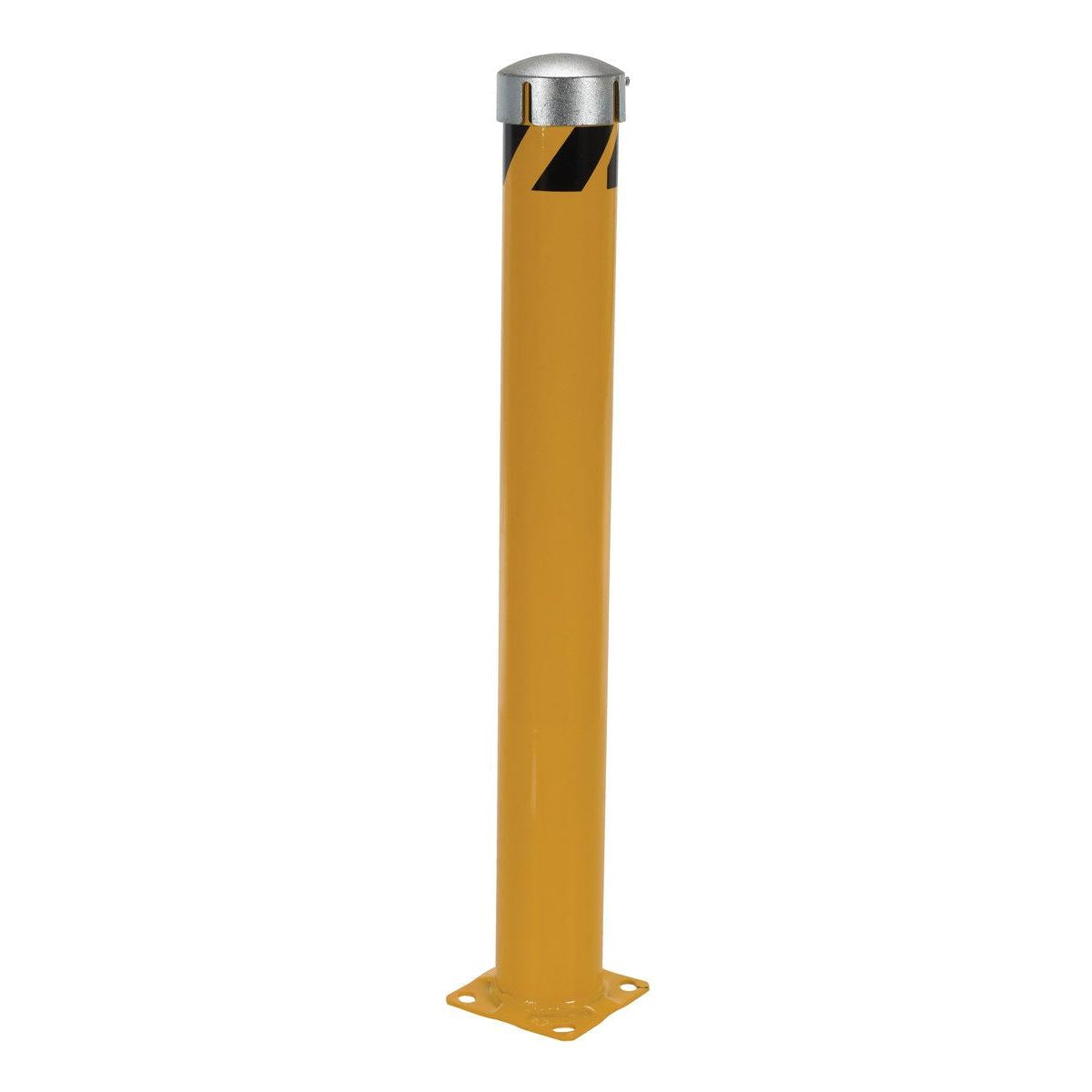

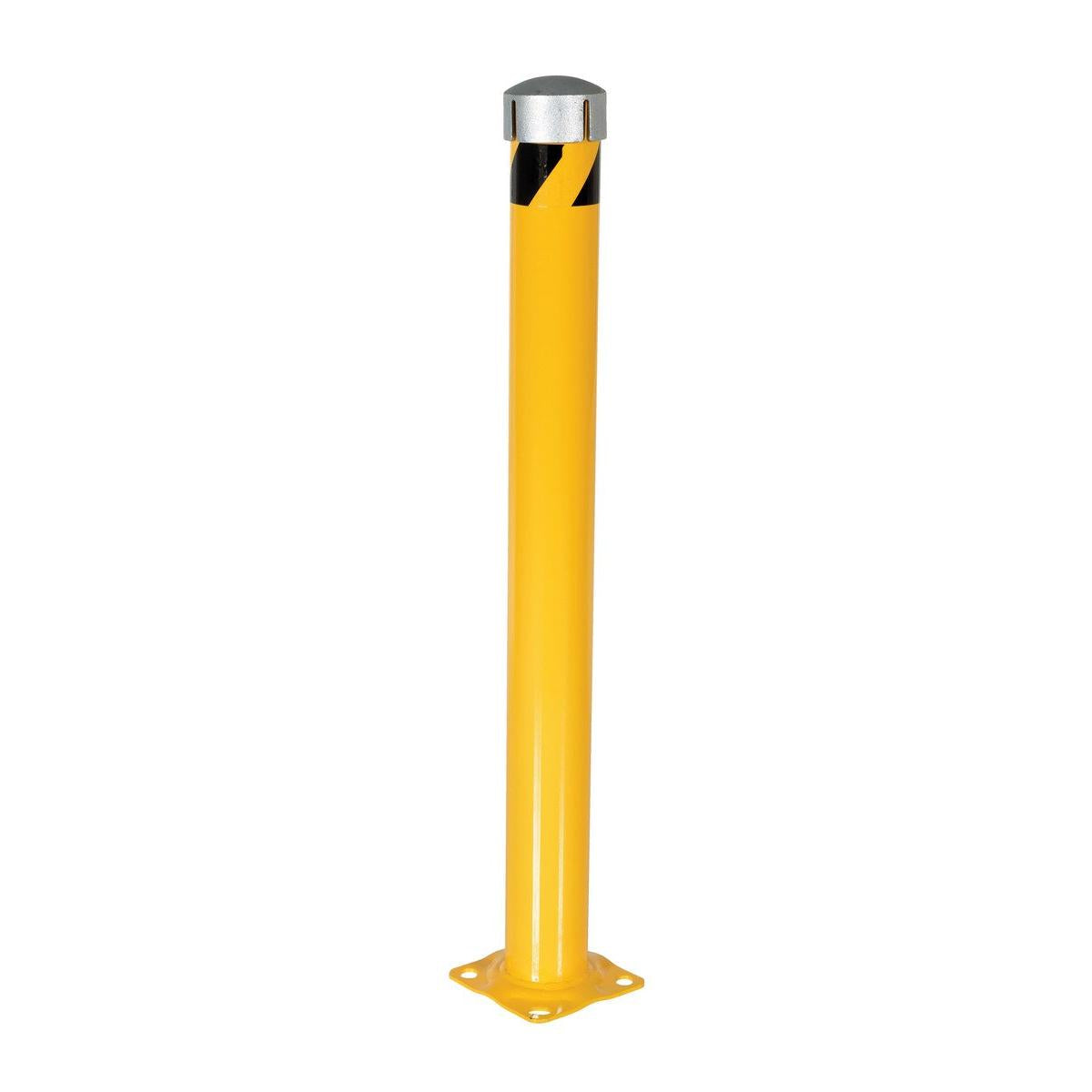

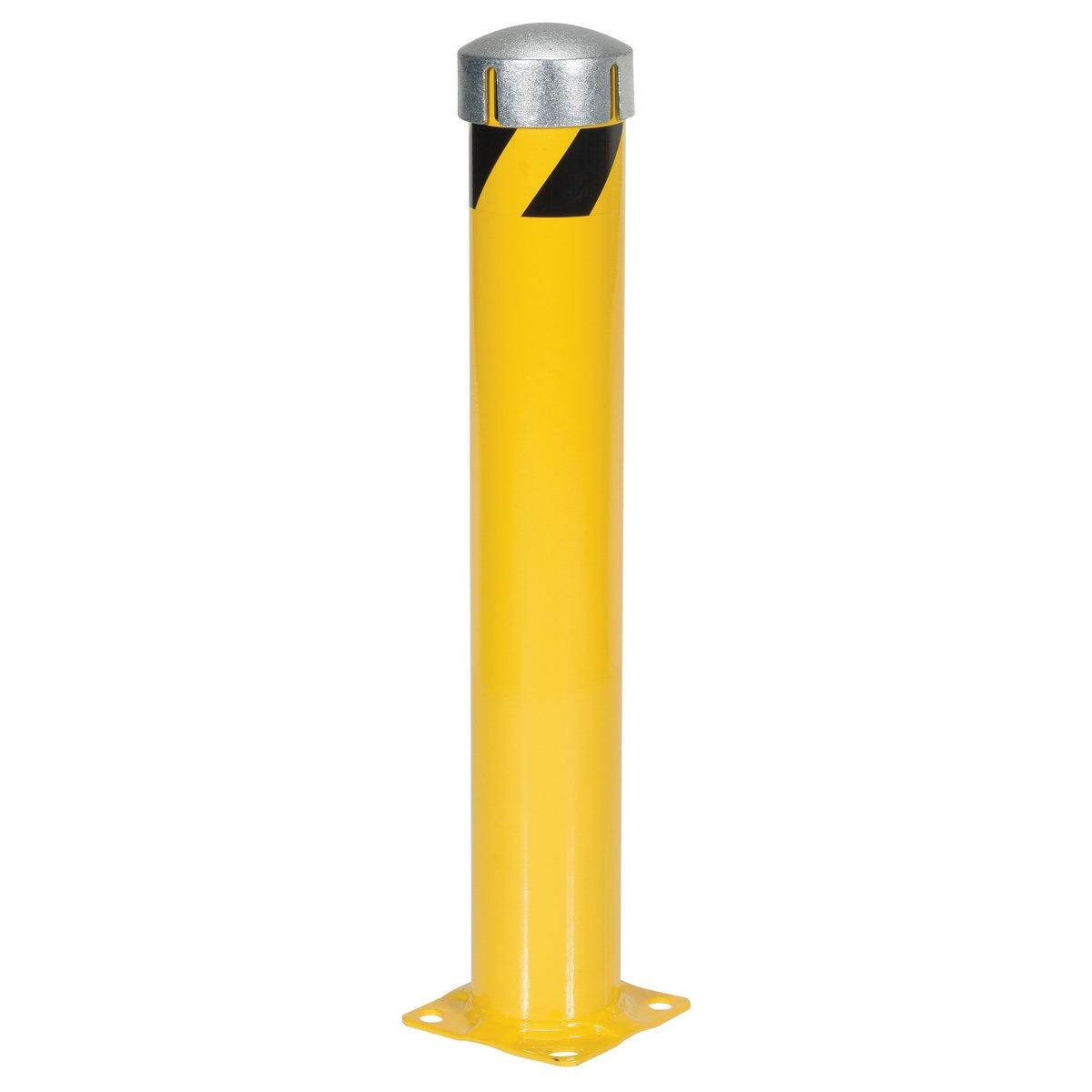

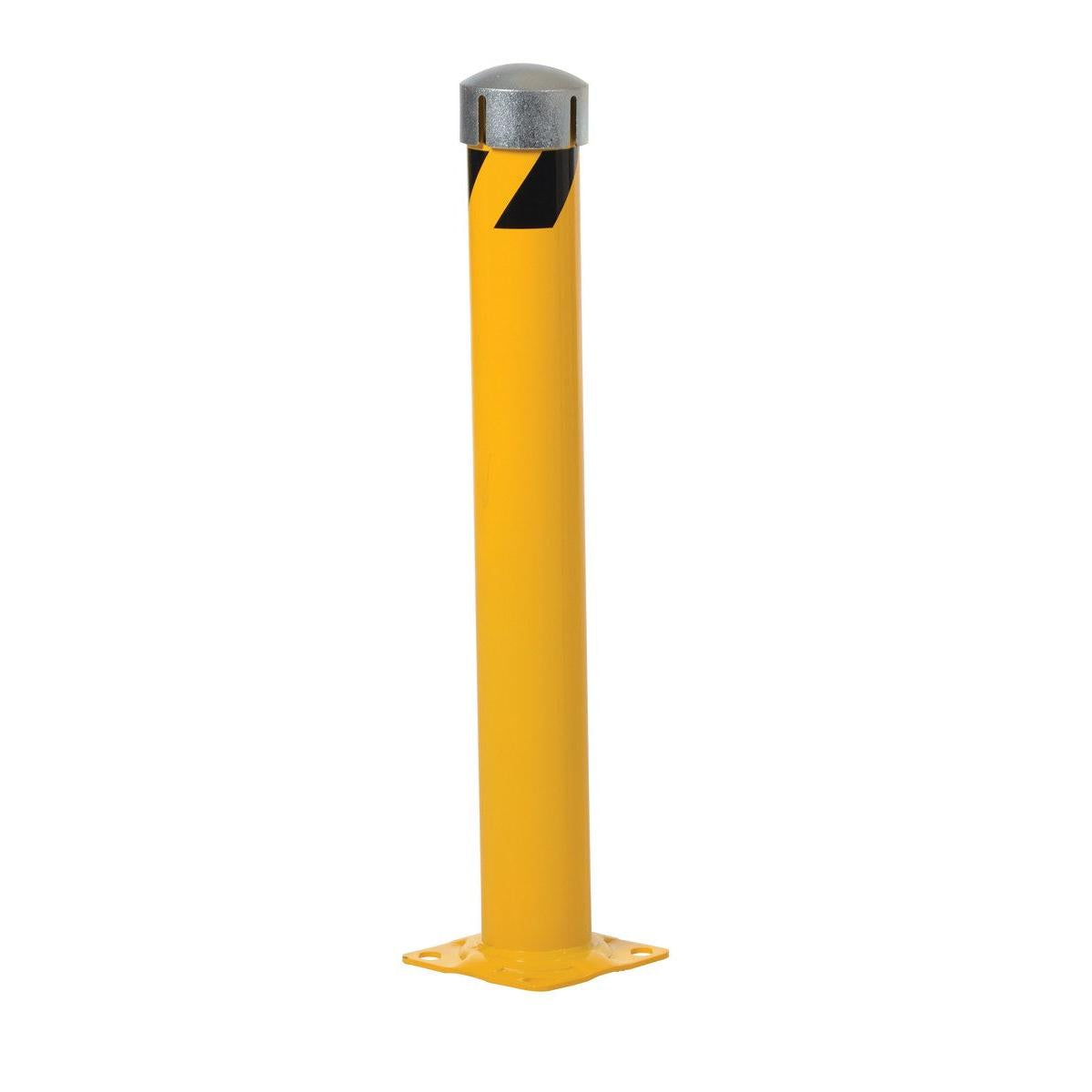

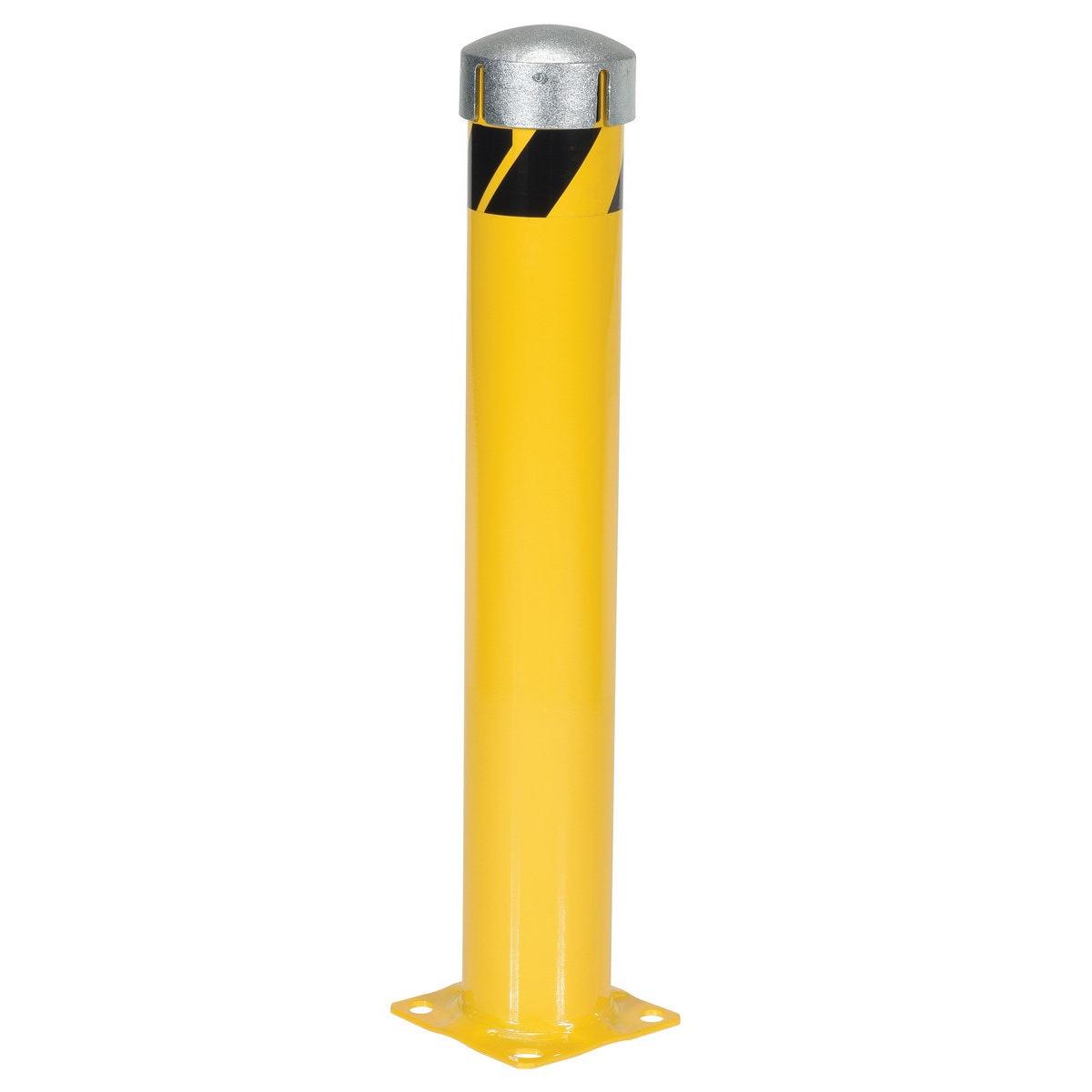

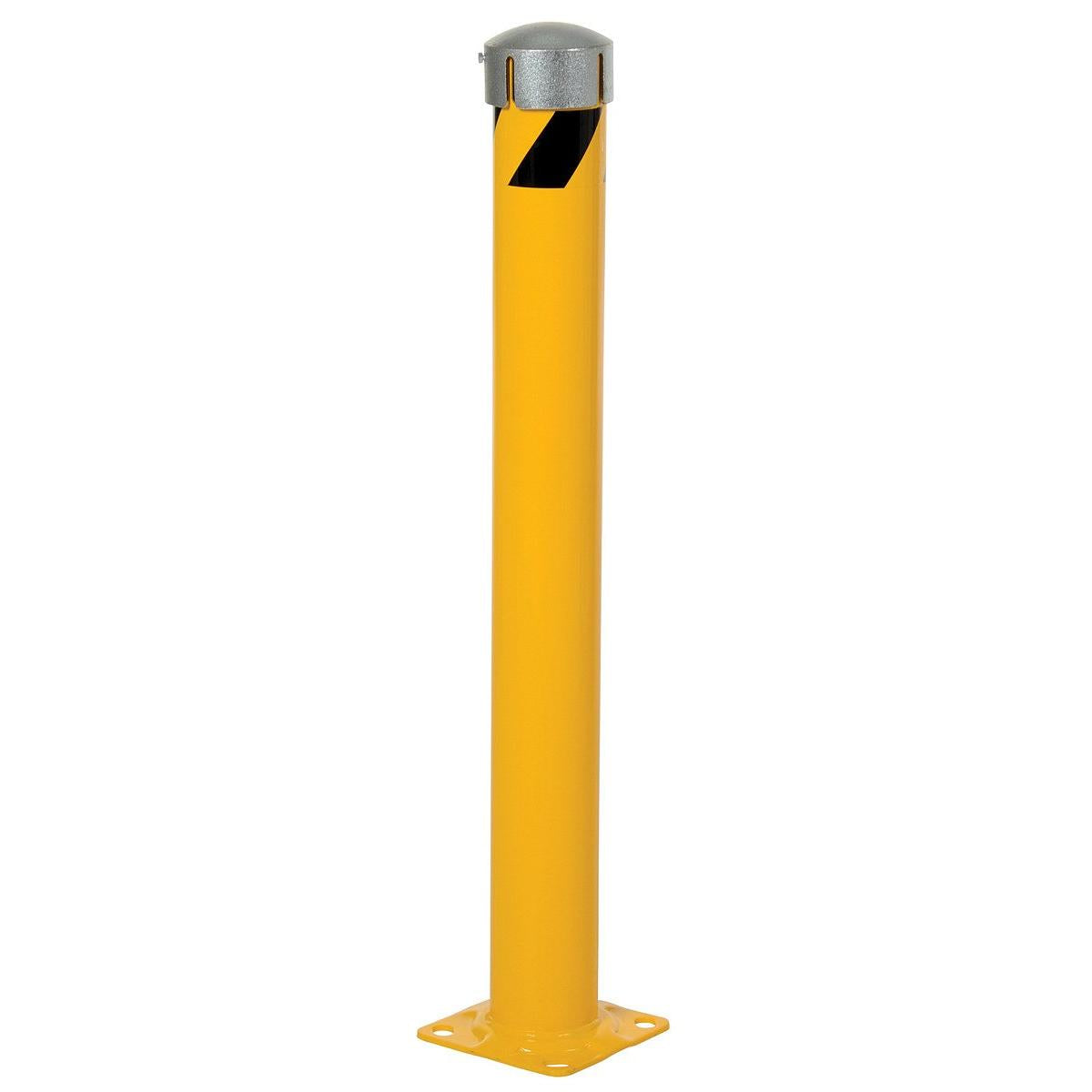

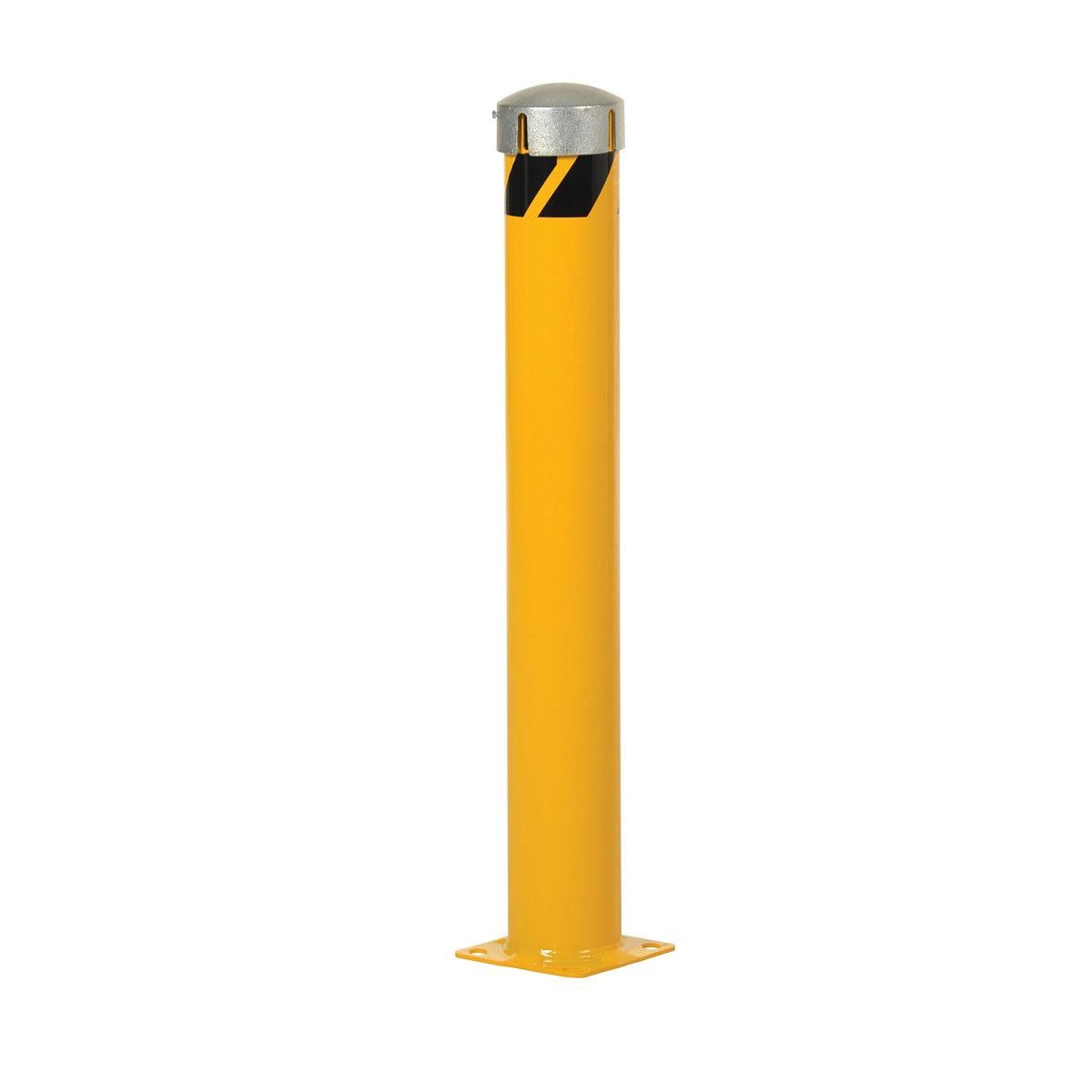

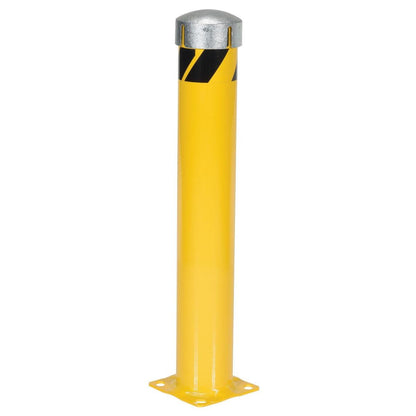

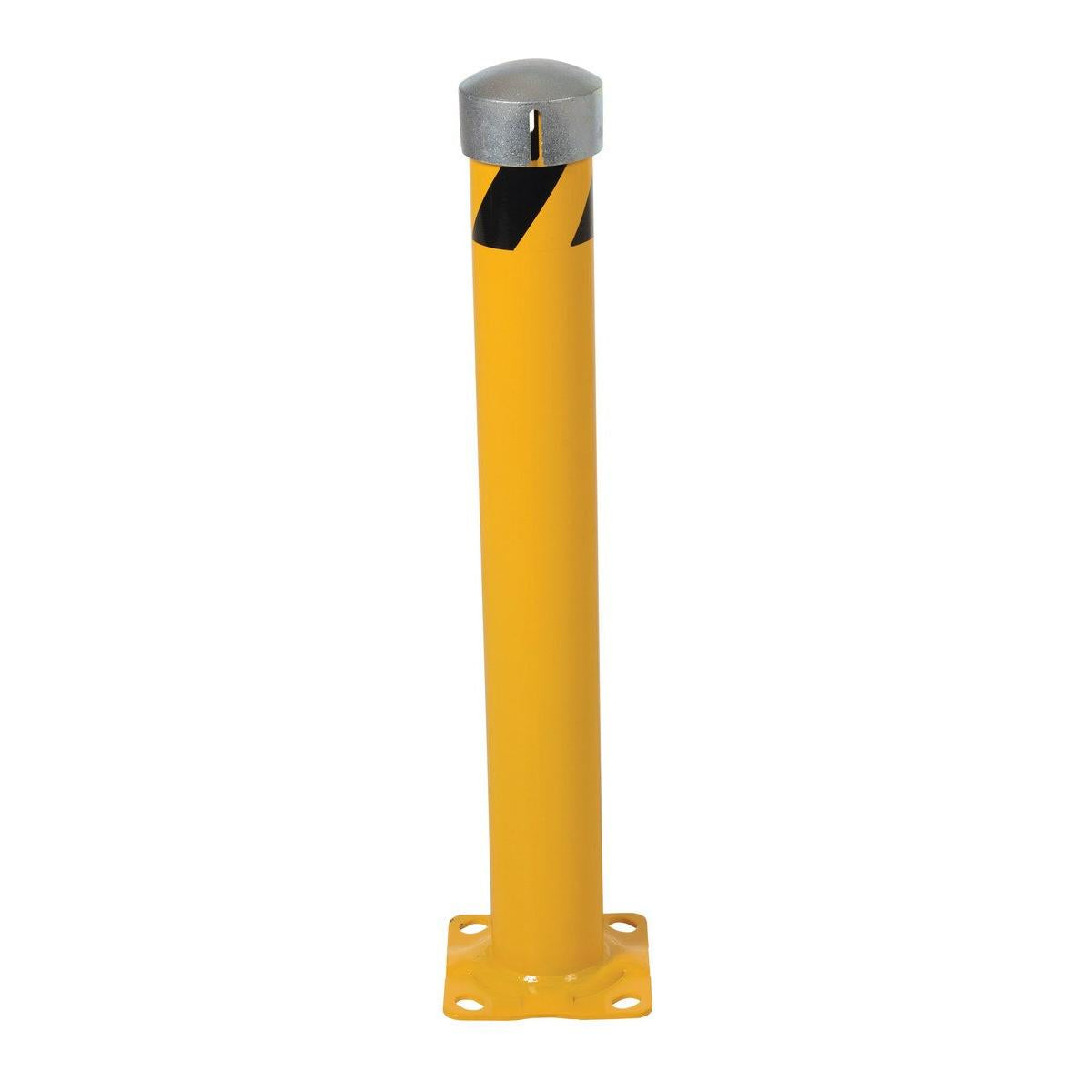

Steel Pipe Bollard with Removable Bolt-On Steel Cap and Slots

The Steel Pipe Bollard with Removable Bolt-On Cap and Chain Slots provides versatile impact protection and quick-connect barrier capability for warehouses, loading docks, and outdoor perimeters. In the upright position it shields doors, racks, and machinery; integrated slots allow you to drop in safety chain, linking multiple bollards to create an instant access-control barrier.

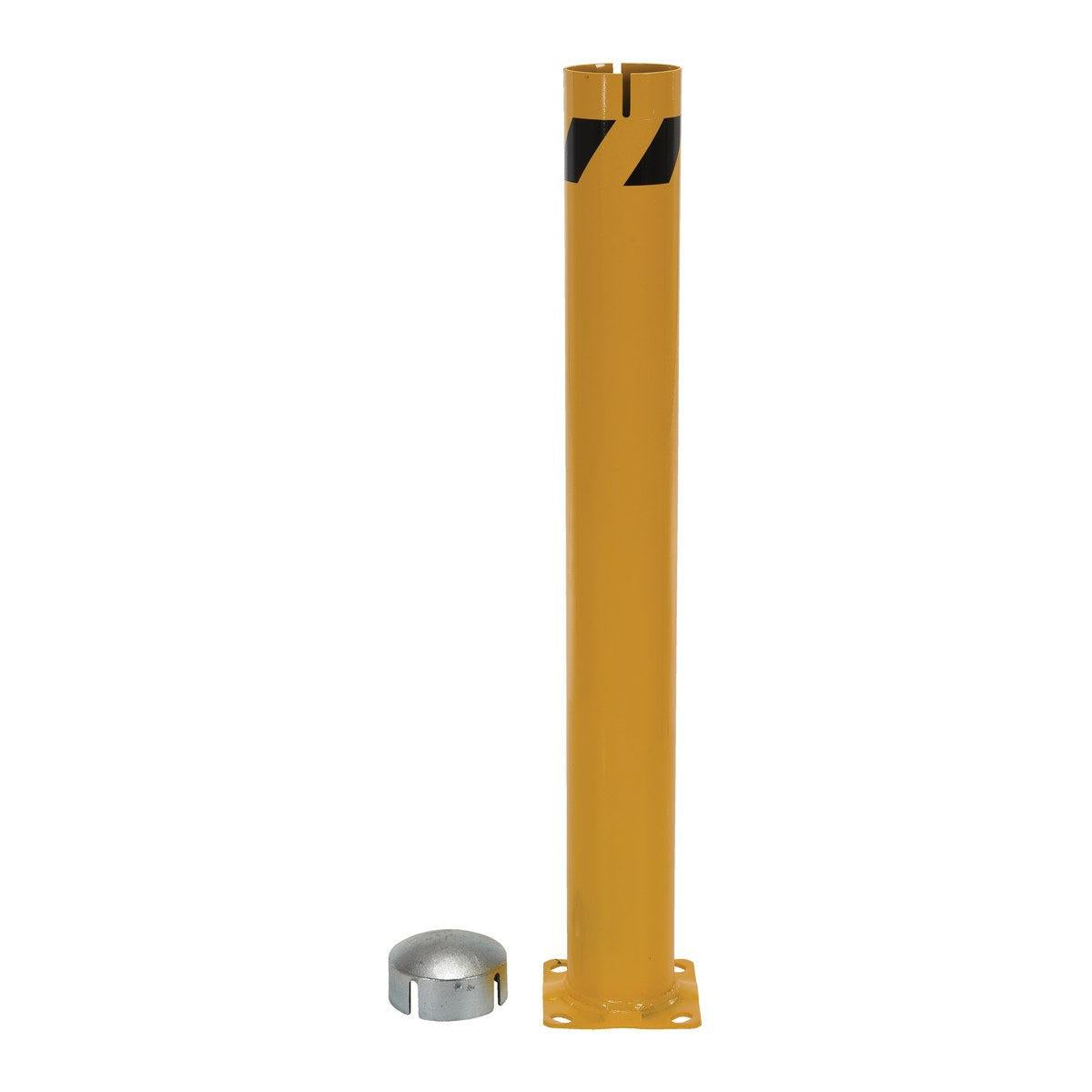

Fabricated from heavy-duty welded steel and finished in a high-visibility yellow powder coat, each bollard includes a bolt-on steel cap secured by a socket set-screw. Remove the cap, place chain in the slots, store any excess length inside the pipe, and re-secure the cap for a clean, tamper-resistant installation. A base plate with four pre-drilled holes enables fast lag-down mounting (anchors sold separately).

Key Features & Benefits

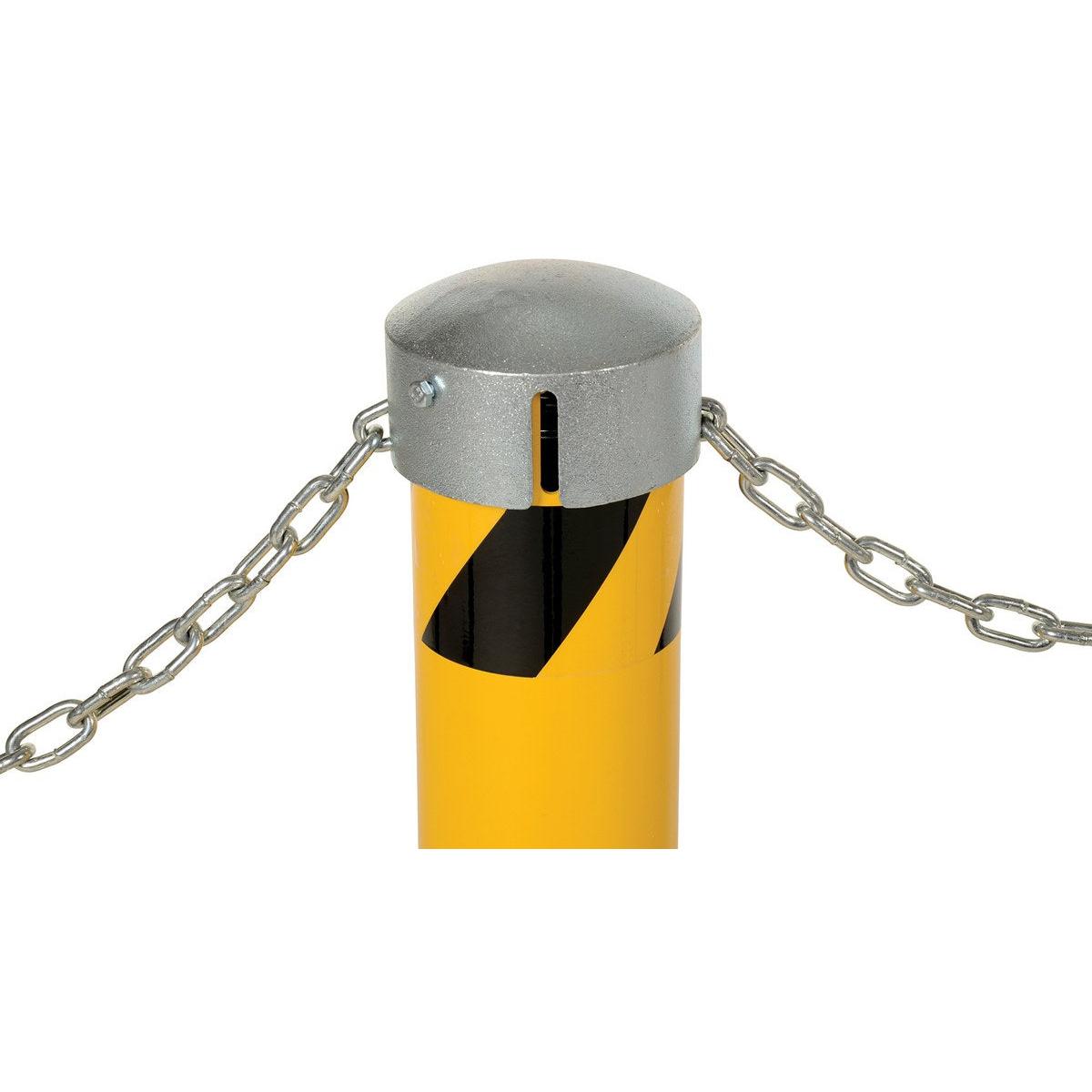

• Integrated Chain Slots – Accept standard safety chain; excess chain stores neatly inside the pipe.
• Removable Bolt-On Cap – Steel cap with set-screw simplifies chain placement and prevents unauthorized removal.
• Heavy-Duty Construction – Welded steel body withstands frequent impacts in industrial environments.
• Powder-Coated Safety Yellow – Corrosion-resistant finish ensures long-lasting visibility indoors or out.
• Rapid Installation – Base plate with four pre-drilled holes allows quick, secure attachment to concrete.
• Multiple Sizes Available – Heights: 24 in, 36 in, 42 in, 48 in; Diameters: 4-1/2 in or 5-1/2 in for application-specific protection.

Additional Information:

Compatible galvanized or powder-coated safety chain, quick links, and mounting anchors are available separately. Ideal for defining pedestrian walkways, blocking vehicle lanes, or protecting sensitive equipment in demanding industrial and commercial settings.

Mounting Kits, Steel Safety Chains, and Replacement Caps are available.

Technical Specifications:

• Chain Slot (qty.): 4
• Bolt Hole (qty.): 4
• Anchor Bolt Kit: AS-344-4PK

• Top Cap Style: Removable Bolt On

• Cap Color: Silver
• Cap Material: Steel

• Base Thickness (in.): 1/4
• Inside Diameter (in.): 4-1/4 or 5-1/4
• Impact Resistance (lb./mph): 4,000 @ 4mph
• Bollard Material: Steel
• Color / Finish: Yellow
• Base Length (in.): 8

• Base Width (in.): 8

• Base Thickness (in.): 0.625
• Indoor / Outdoor
• Integrated Chain Slots: Yes

• Installation Hardware Included: No

• Additional Contents: Includes (4) Mounting Holes 7/8 In. x 1-1/4 In.

• Manufacturer Warranty: 90 Days

Made in the USA
