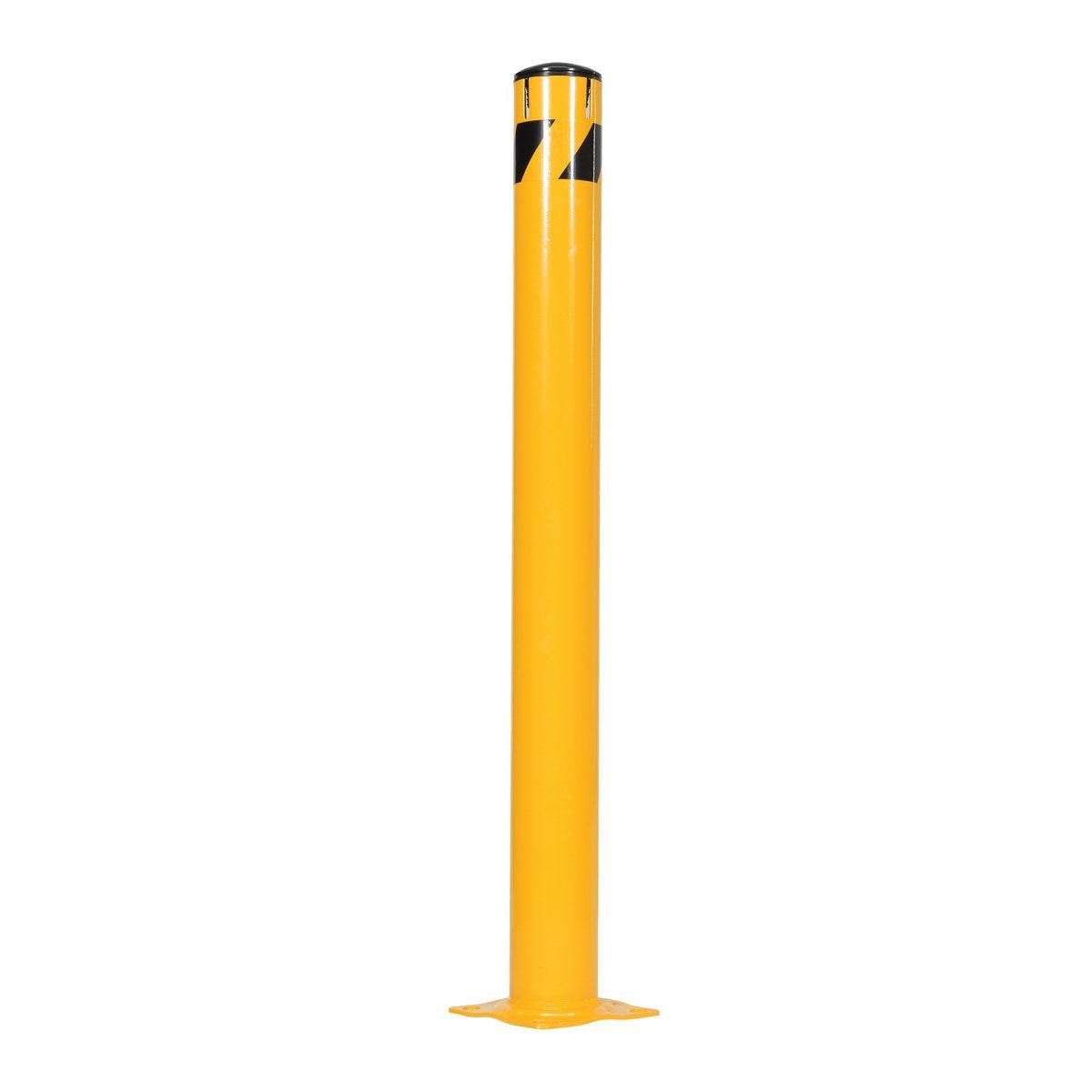

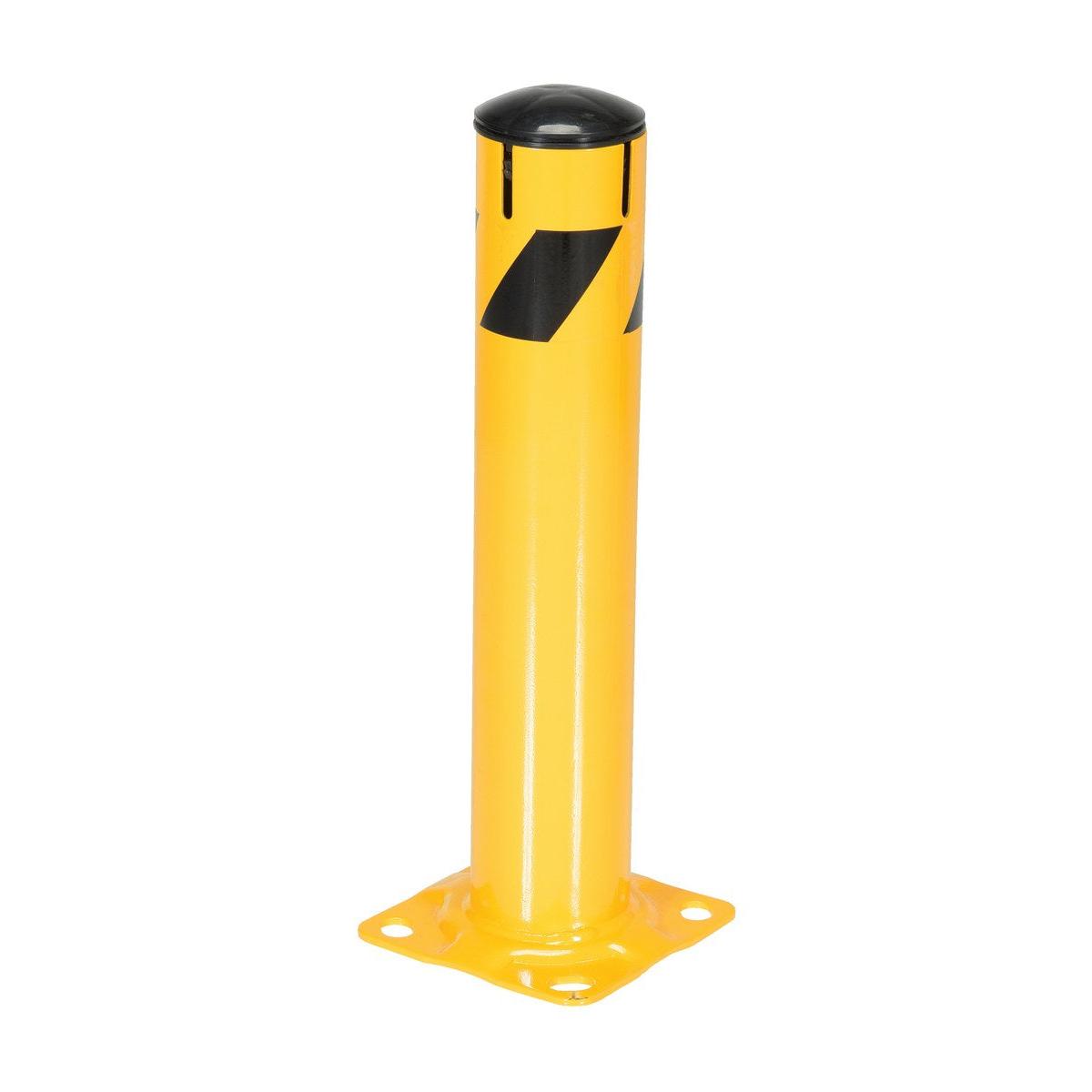

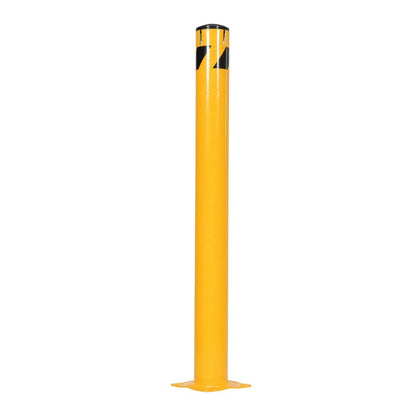

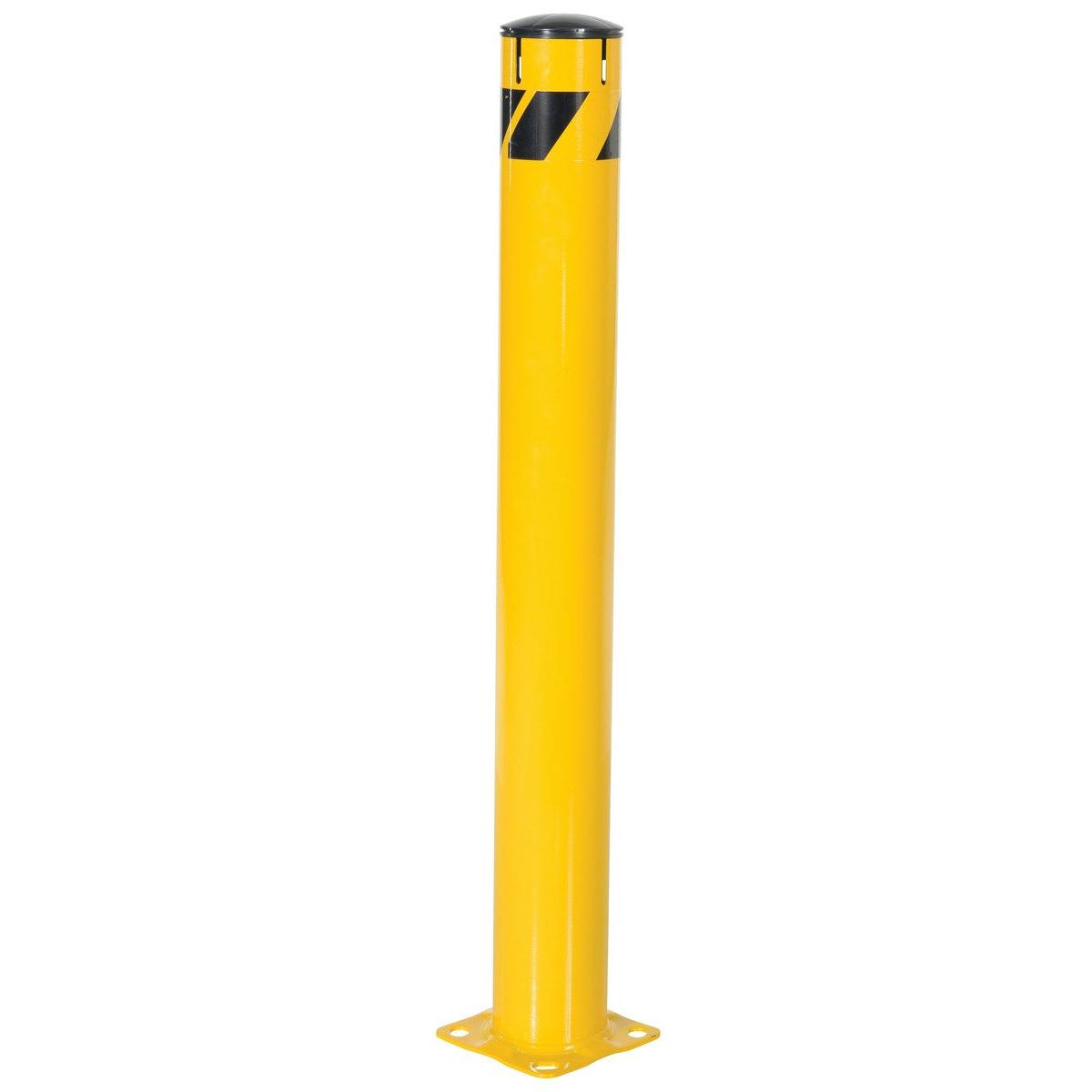

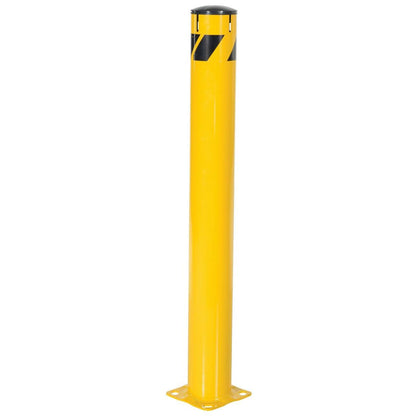

Steel Pipe Bollard with Slots

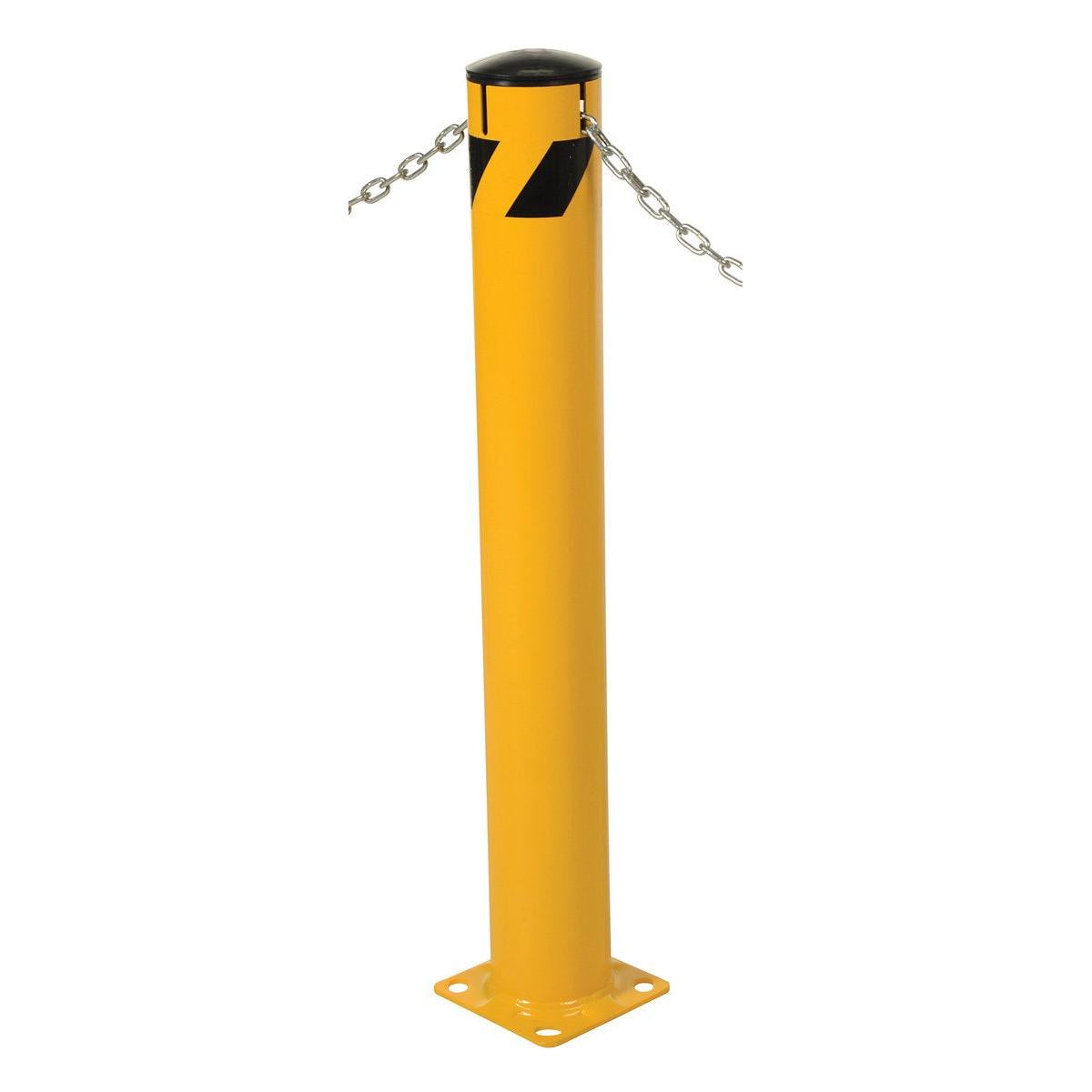

The Steel Pipe Bollard with Chain Slots is engineered to create flexible, high-visibility barriers around workstations, machinery, loading zones, and outdoor perimeters. Designed for both indoor and outdoor use, the bollard offers robust impact protection while enabling quick attachment of a safety chain to control traffic flow or restrict access.

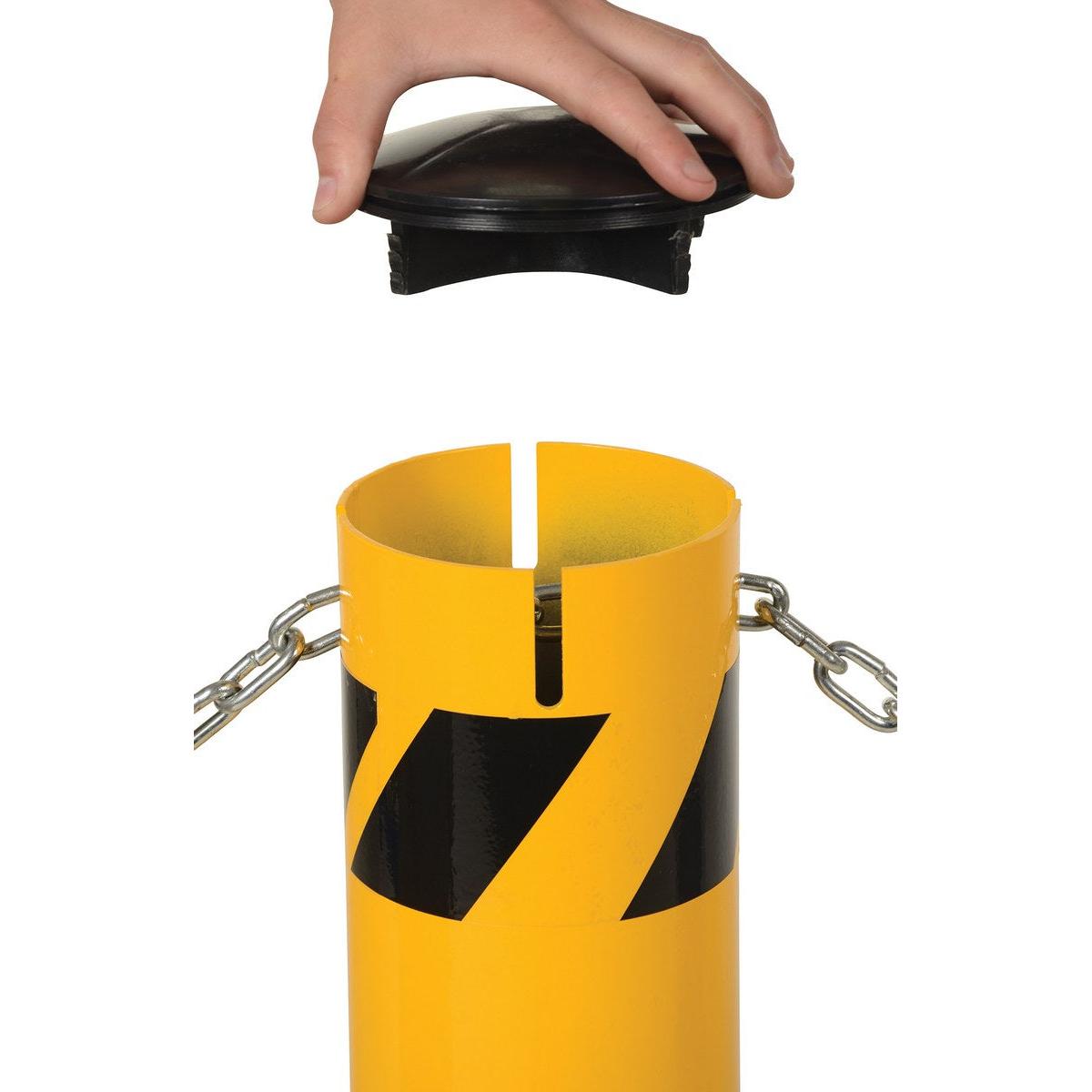

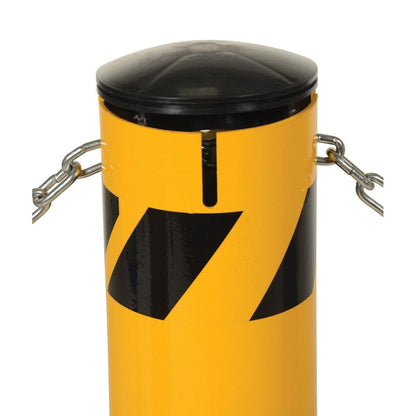

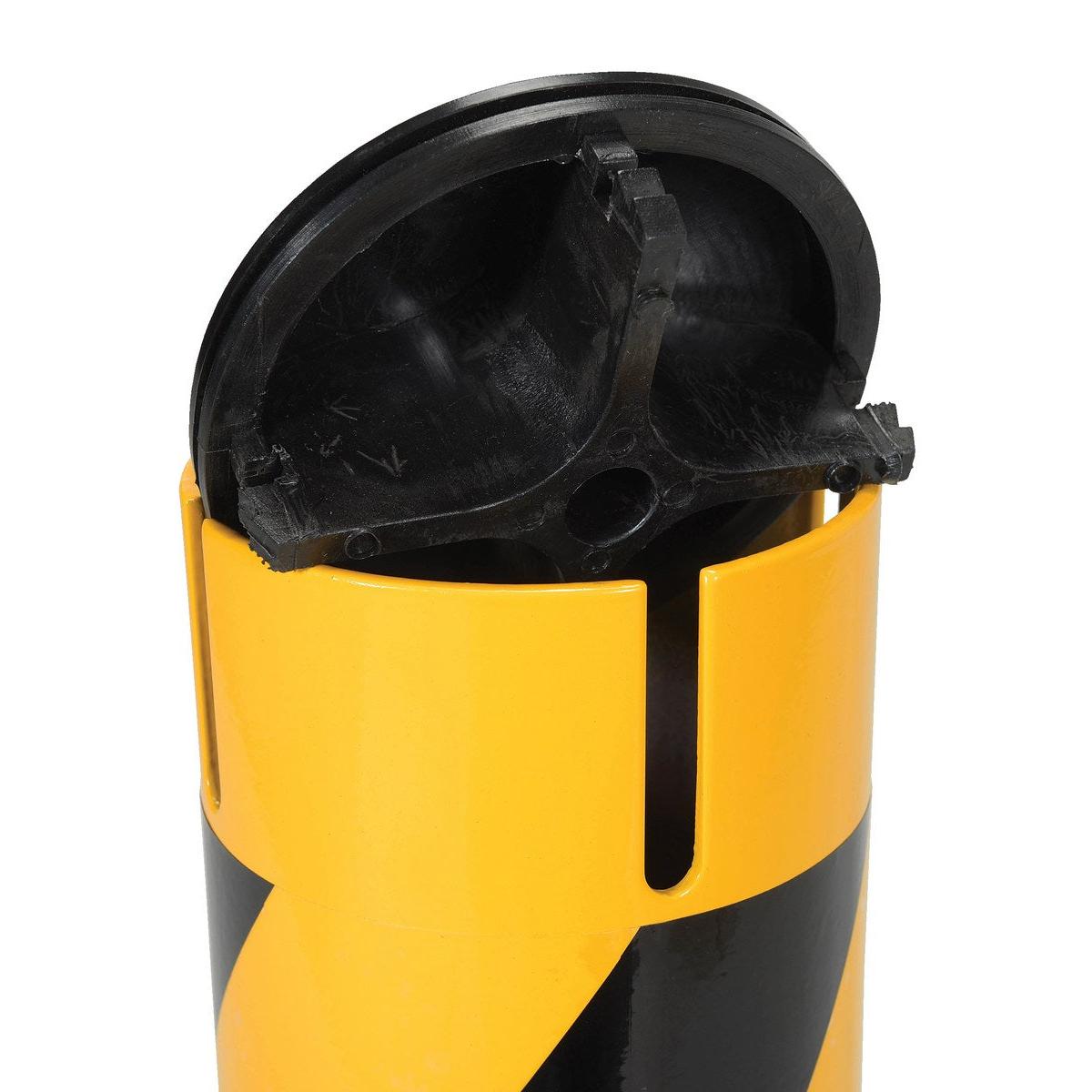

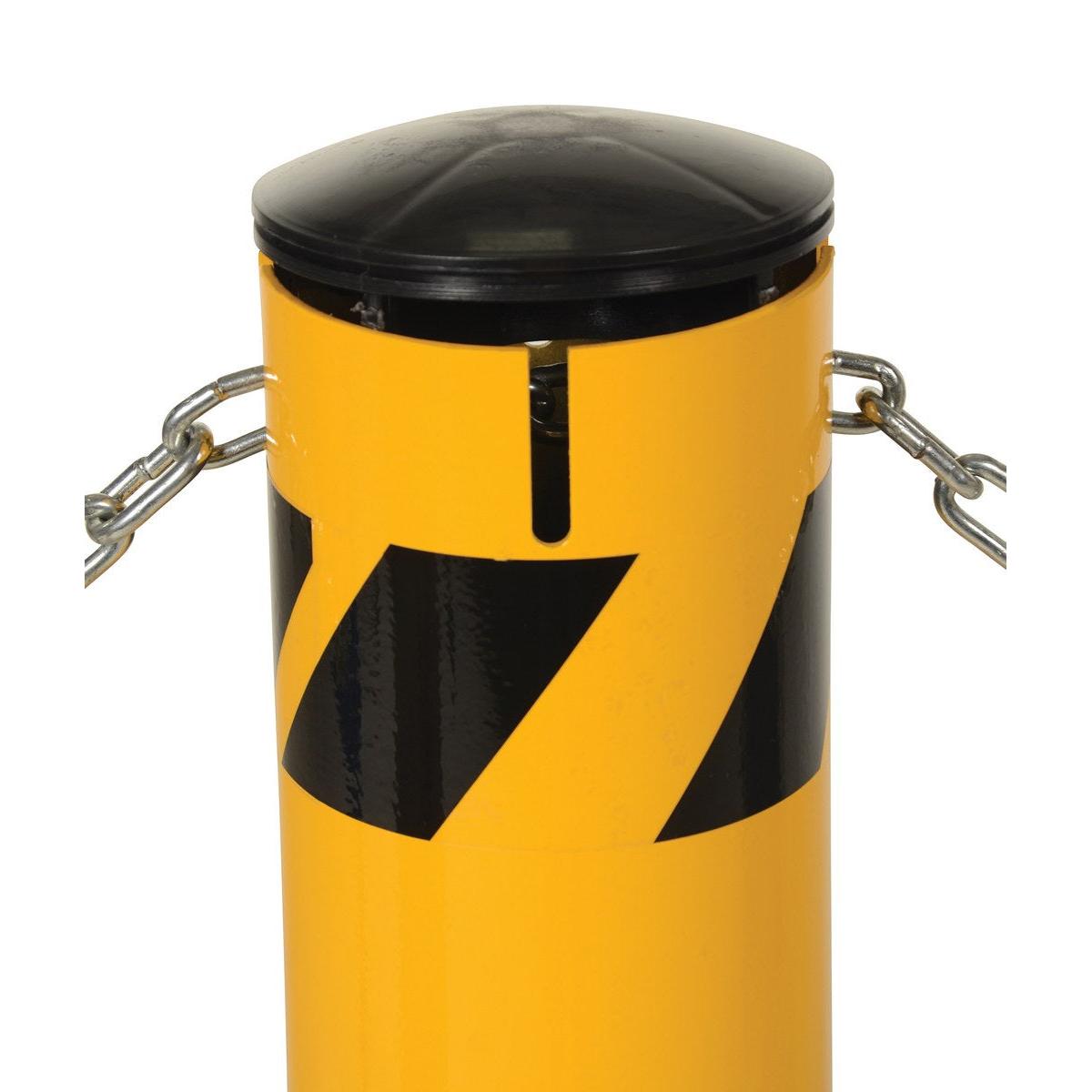

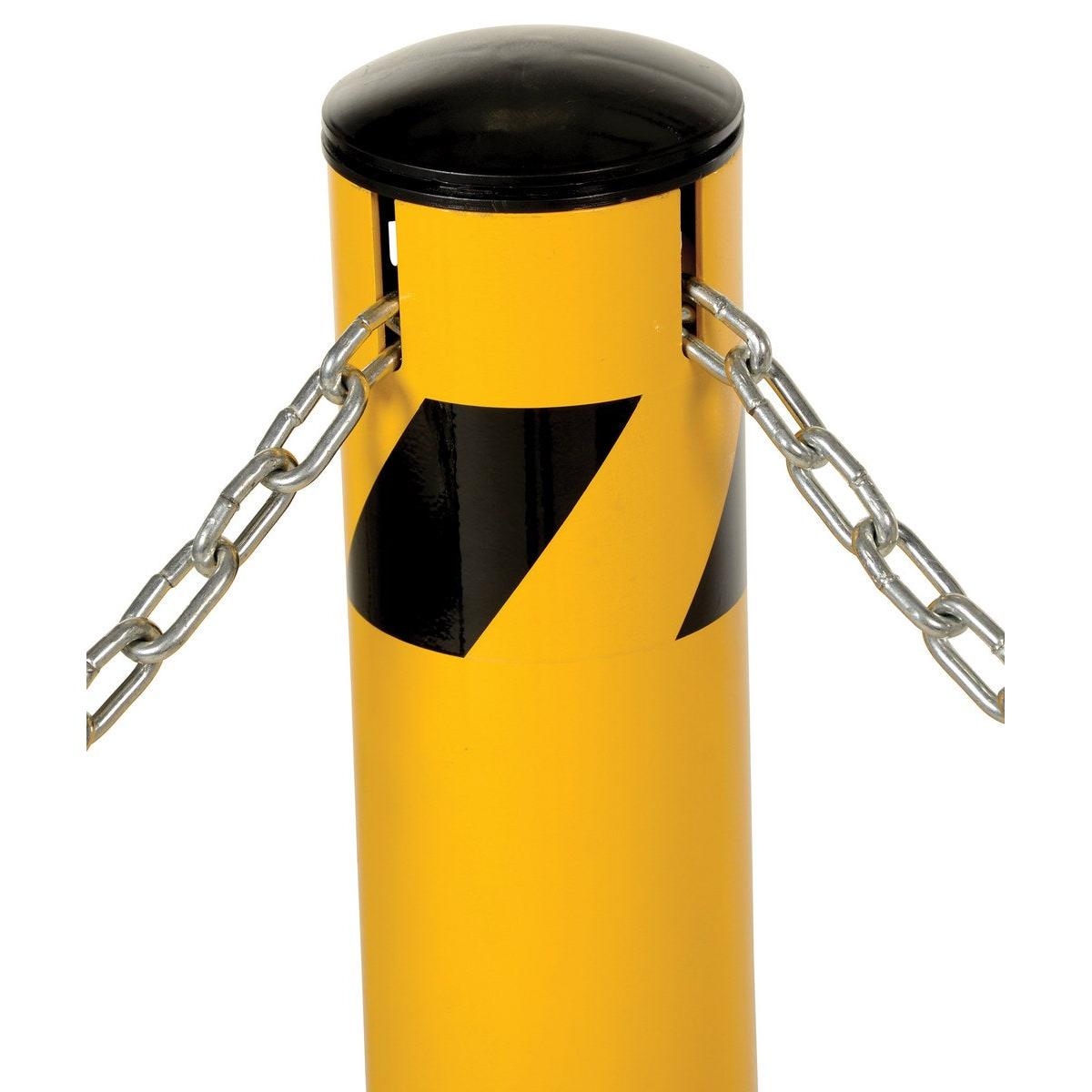

Fabricated from heavy-duty welded steel and finished in a durable safety-yellow powder coat, each bollard includes a removable black plastic cap. Lifting the cap exposes two opposing chain slots. Drop the chain in, store any excess inside the pipe, and replace the cap for a clean, tamper-resistant installation. A welded base plate with four pre-drilled holes ensures fast, secure anchoring to concrete (mounting hardware sold separately).

Key Features & Benefits

• Integrated Chain Slots – Built-in slots allow rapid connection of safety chain between bollards.
• Heavy-Duty Steel Construction – Provides long-lasting impact resistance in industrial and commercial environments.
• Powder-Coated Safety Yellow Finish – Enhances visibility and resists corrosion for indoor/outdoor durability.
• Removable Top Cap – Enables easy chain placement and conceals excess chain inside the bollard.
• Easy Installation – Base plate with four pre-drilled mounting holes simplifies lag-down to concrete surfaces.
• Multiple Sizes Available – Choose 24", 36", 42", or 48" heights and 4-1/2" or 5-1/2" diameters to match protection requirements.

Additional Information:

Ideal for warehouses, factories, parking areas, and pedestrian zones where configurable barriers are needed. Compatible powder-coated safety chain, quick links, and concrete anchoring kits are available separately.

Mounting Kits, Steel Safety Chains, and Replacement Caps are available.

Technical Specifications:

• Chain Slot (qty.): 4
• Bolt Hole (qty.): 4
• Anchor Bolt Kit: AS-344-4PK

• Top Cap Style: Removable Cap

• Cap Color: Black
• Cap Material: Plastic

• Base Thickness (in.): 1/4
• Inside Diameter (in.): 4-1/4 or 5-1/4
• Impact Resistance (lb./mph): 4,000 @ 4mph
• Bollard Material: Steel
• Color / Finish: Yellow
• Base Length (in.): 8

• Base Width (in.): 8

• Base Thickness (in.): 0.625
• Indoor / Outdoor
• Integrated Chain Slots: Yes

• Installation Hardware Included: No

• Additional Contents: Includes (4) Mounting Holes 7/8 In. x 1-1/4 In.

• Manufacturer Warranty: 90 Days

Made in the USA
