Steel Pipe Safety Railing with Welded Baseplate 10 Ft.

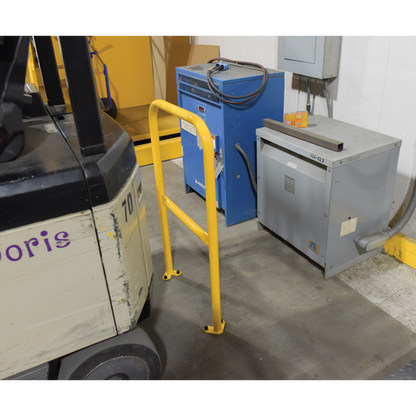

The Steel Safety Railings with Welded Baseplate provide robust protection for walkways, loading docks, and other elevated or hazardous areas. Designed for both indoor and outdoor use, these railings help prevent accidental falls and direct pedestrian traffic in industrial and commercial environments. The welded baseplate allows for quick and secure installation, making it easy to create permanent or semi-permanent safety zones.

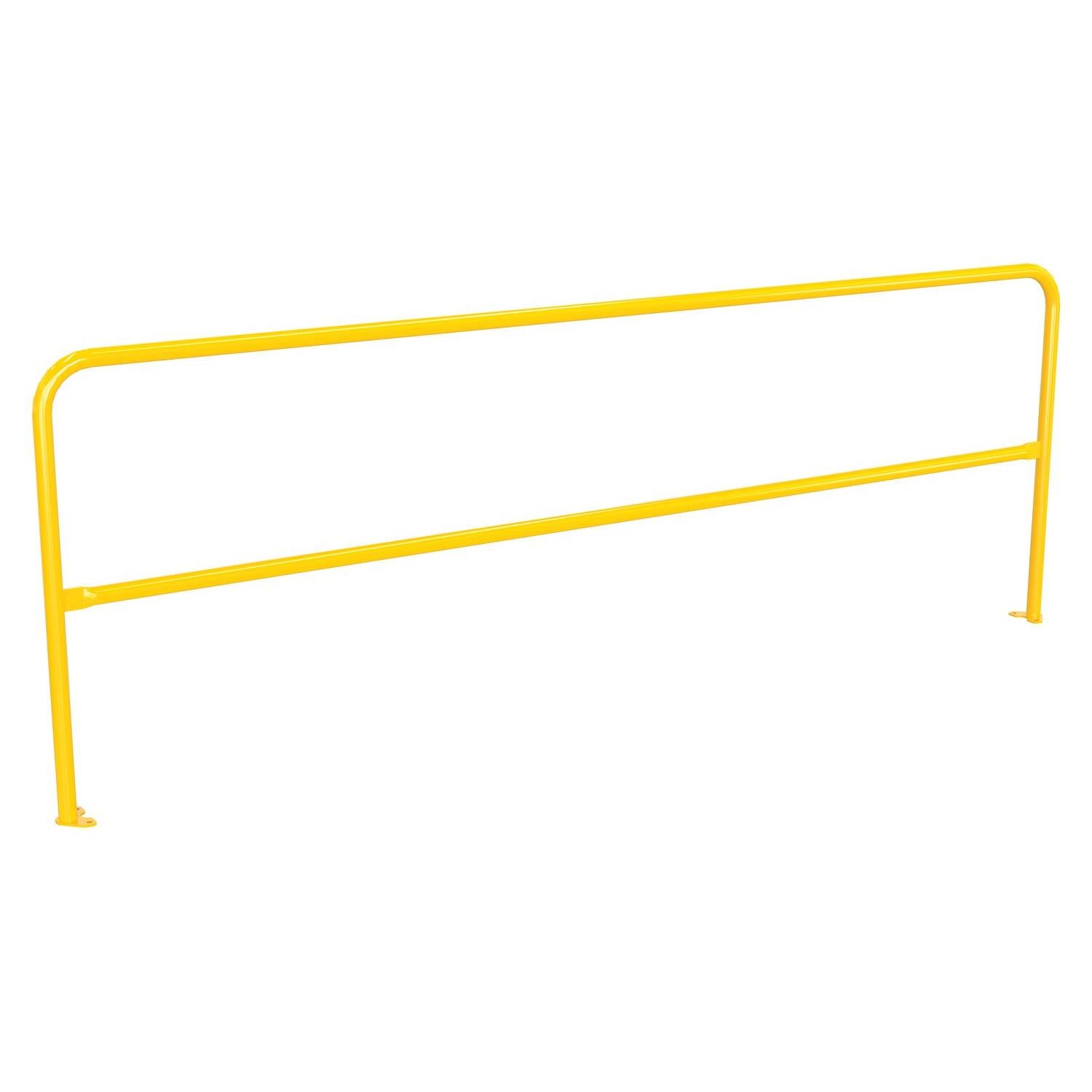

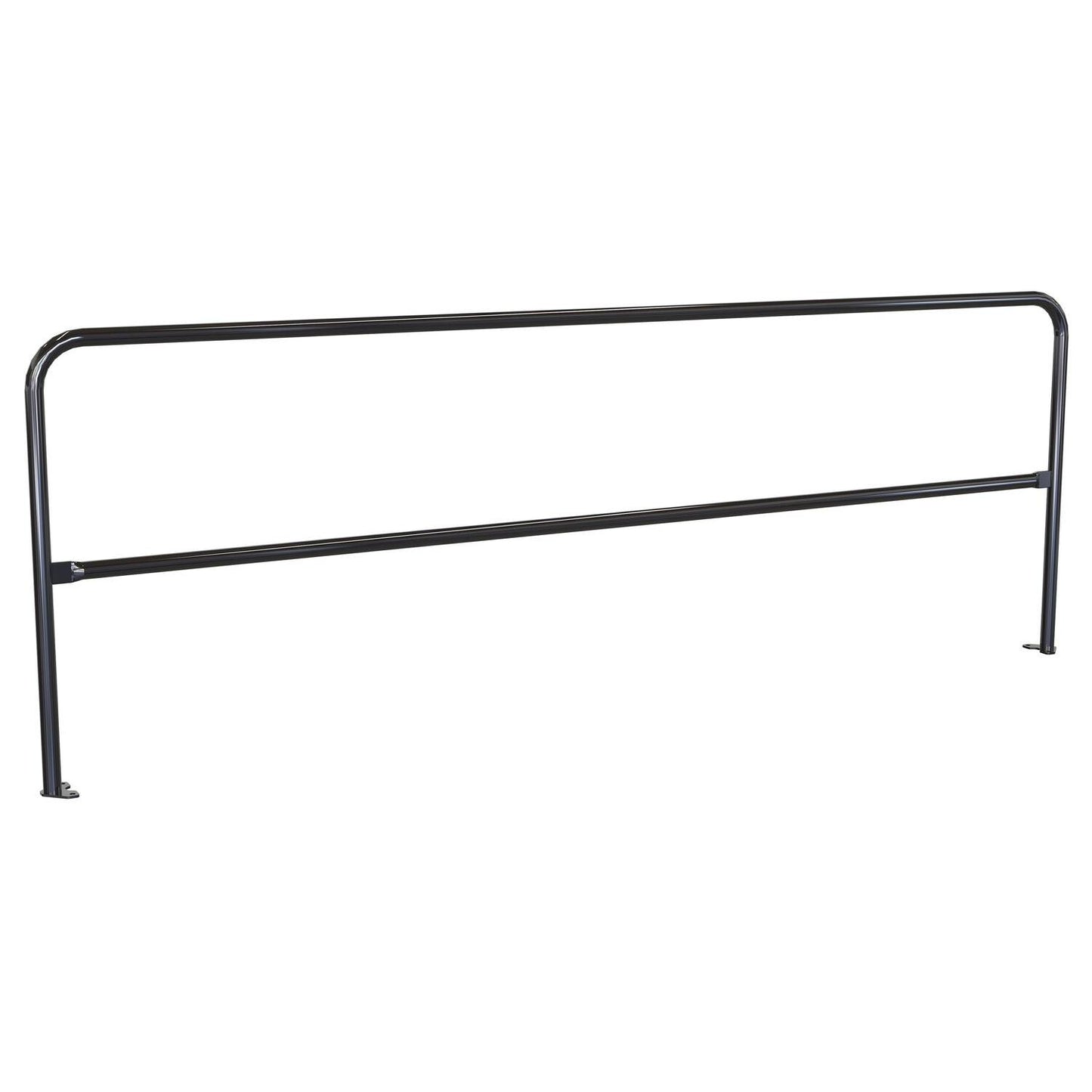

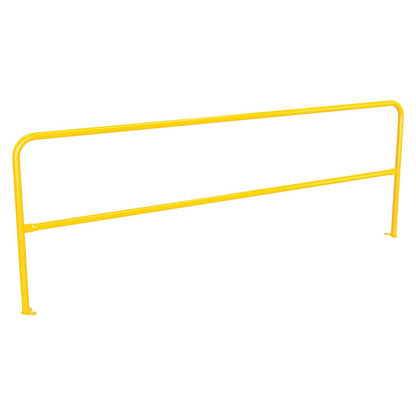

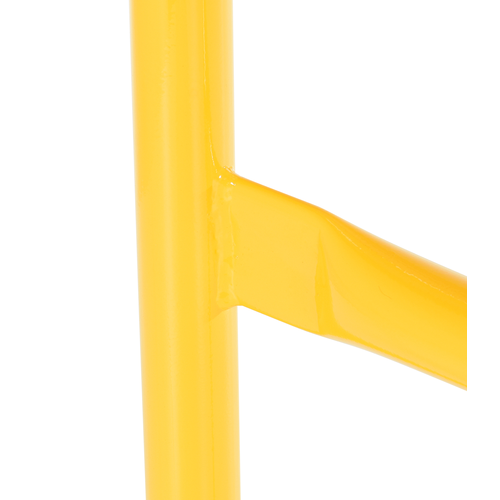

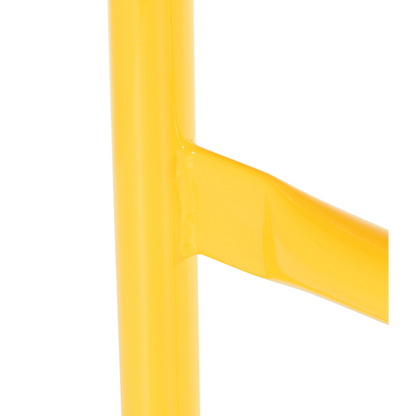

Constructed with a two-rail horizontal design and round handrail profile, the railing offers stability and ergonomic support. Each unit features a welded steel baseplate with two pre-drilled holes for fast bolting to concrete or other solid surfaces. A durable powder-coated yellow or black finish enhances visibility and corrosion resistance. The VDKR series meets OSHA General Industry standards per 29 CFR 1910.29 for guardrail systems.

Key Features & Benefits

• OSHA Compliant – Meets U.S. OSHA 29 CFR 1910.29 requirements for general industry guardrail systems.
• Heavy-Duty Steel Construction – Provides long-lasting strength and impact resistance.

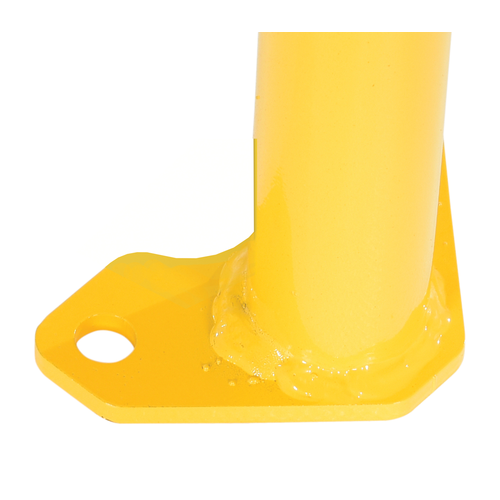

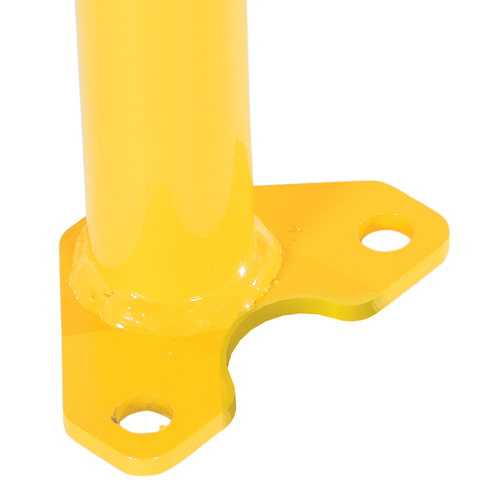

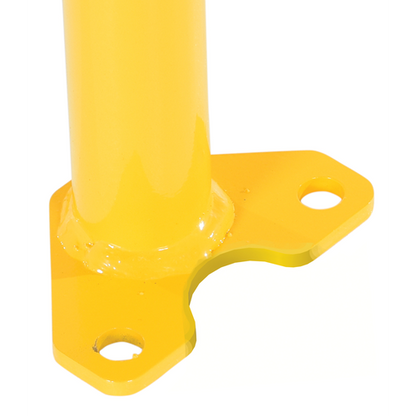

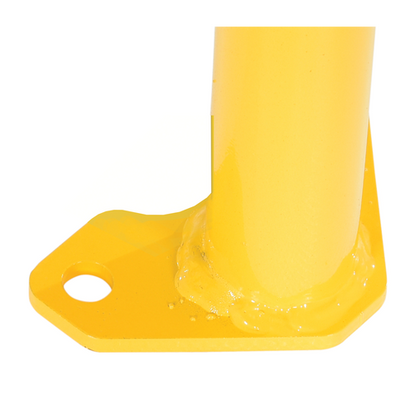

• Welded Baseplate – Offers rigid support and simplified installation.
• Two-Rail Horizontal Design – Enhances fall protection and stability.
• Pre-Drilled Mounting Holes – Facilitates fast installation with standard lag bolts.
• High-Visibility Finish – Powder-coated yellow or black for enhanced safety and corrosion protection.
• Round Handrail Shape – Provides a secure and comfortable grip.

Additional Information

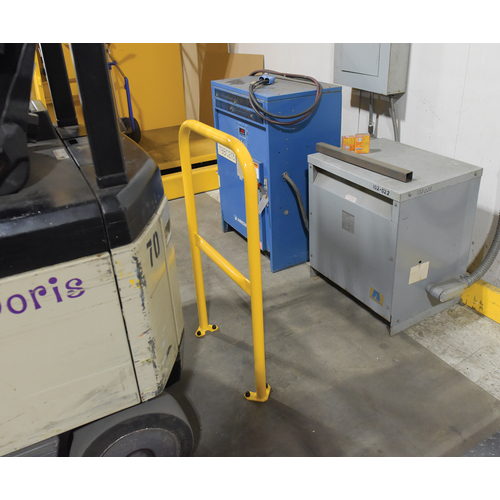

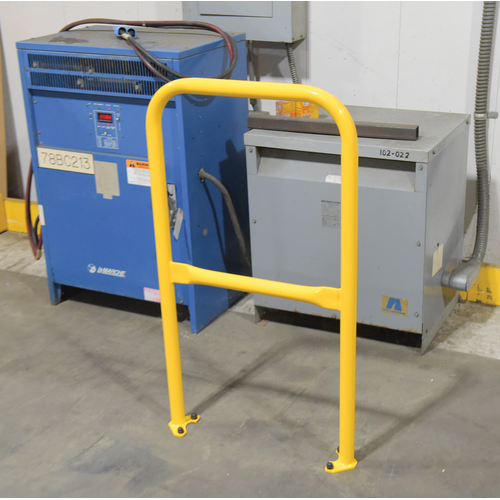

Optional Toe Boards can be mounted under the baseplate for added protection against falling objects. Ideal for warehouses, manufacturing floors, loading docks, and mezzanines where worker safety is a priority. Mounting Hardware and Toe Boards sold separately.

Technical Specifications:

• Total Ship Wt.(lbs.): 99
• Size: 4.625"W x 120.5"L x 42"H
• Base Plate Size (in.): 4.625 x 3 x .25
• Mounting Holes Per Base Plate: 2
• Mounting Hole Diameter (in.): .5625

• Top Rail Height (In.): 42
• Midrail Height (in.): 21
• Length (in.): 120.5
• Overall Width (in.): 4.625
• Material: Steel

• Rail Diameter (in): 1.625
• OSHA Compliant: 29 CFR 1910.29
• Available Powder-Coat Custom Colors:
  • Yellow
  • Black
• Installation Hardware Included: No
• Adjustable Length: No
• Adjustable Width: No
• Interlocking: No
• Reflective: No
• UPC: 691215370929

• GTIN: 00691215370929
• Manufacturer Warranty: 90 Days

Made in the USA
