Innoplast

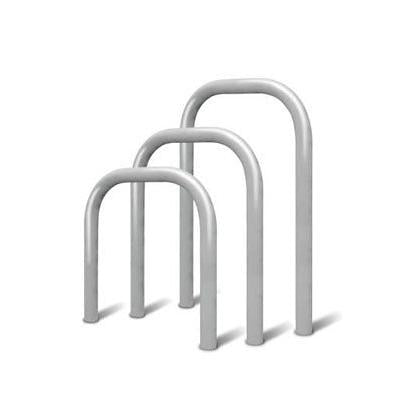

3.5" OD U-Shaped Steel Pipe Guard – Schedule 40, Primed

3.5" OD U-Shaped Steel Pipe Guard – Schedule 40, Primed

SKU:INN-US1983-353656-USPG

Regular price $302.75 USD
Regular price Sale price $302.75 USD
Sale Sold out
  • Call or Email us for large QTY, corporate, or government quotes
Size

3.5" OD U-Shaped Steel Pipe Guard – Schedule 40, Primed

The 3.5" OD U-Shaped Steel Pipe Guard provides a durable steel barrier for areas where equipment, dispensers, building components, pedestrian zones, or other assets need separation from vehicle traffic. Its U-shaped configuration provides wider coverage than a single-post bollard while maintaining a compact footprint.

Constructed from Schedule 40 steel pipe, the guard is suitable for commercial, industrial, parking, and facility applications. Each unit is supplied with a primed finish, providing a prepared surface that can be painted or finished to match the surrounding environment.

Common applications include fueling and dispenser areas, warehouse equipment zones, parking facilities, bank drive-throughs, building entrances, pedestrian areas, and other locations where a substantial steel barrier is required.

Features & Benefits

  • 3.5" OD Steel Construction: Schedule 40 steel pipe provides substantial construction for commercial and industrial applications.
  • U-Shaped Design: Provides wider coverage than a single bollard and can be positioned around equipment, dispensers, entrances, or restricted areas.
  • Multiple Size Options: Available in several width and height configurations for different installation requirements.
  • Primed Finish: Supplied with a primer coating and ready for application of a compatible final paint or protective coating.
  • Indoor or Outdoor Applications: Suitable for parking areas, warehouses, commercial facilities, equipment zones, and other interior or exterior locations.
  • Custom Sizes Available: Made-to-order dimensions are available for projects requiring non-standard configurations.
  • ±1" Dimensional Tolerance: Installation layouts should allow for normal manufacturing variation.
  • Made in the USA: Proudly manufactured in the United States.

Technical Specifications

Product Type U-Shaped Steel Pipe Guard
Model US1983
Outside Diameter 3.5"
Construction Schedule 40 Steel Pipe
Available Heights 50", 53", and 56" listed among standard configurations
Standard Widths Multiple configurations available; confirm exact width × height combination before ordering
Weight 70 lb
Finish Primed
Dimensional Tolerance ±1" on all dimensions
Custom Sizes Available by request
UPC 649906609490

Designed for Equipment & Traffic Separation

The U-shaped design allows this pipe guard to protect a broader area than a conventional single-post bollard. It can be positioned around equipment, dispensers, entrances, or facility components to create a substantial physical and visual separation from nearby vehicle traffic.

  • Fuel dispensers and service equipment
  • Warehouse machinery
  • Electrical and mechanical equipment
  • Loading and receiving areas
  • Parking facilities
  • Bank and commercial drive-through areas
  • Building entrances
  • Pedestrian separation zones
  • Commercial and industrial properties

Primed Finish

The pipe guard is supplied with a primed steel surface. The primer provides a prepared base for installation and finishing but should not necessarily be considered the final exterior coating.

A compatible topcoat or protective coating can be applied after installation to match facility colors, increase visibility, or provide additional environmental protection.

Multiple & Custom Sizes

The 3.5" OD U-Shaped Pipe Guard is available in three standard configurations, with custom dimensions also available for qualifying projects.

Because the manufacturer specifies a ±1" tolerance on all dimensions, installation layouts should allow for normal manufacturing variation.

For projects requiring a specific overall width and height, confirm the exact configuration before ordering.

Important Application Note

This product is intended as a substantial steel pipe guard for equipment, facility, and traffic-separation applications. No certified crash rating or vehicle-impact classification has been provided, so performance should be evaluated according to the installation method, substrate, and requirements of the specific project.

Made in the USA

These U-shaped steel pipe guards are proudly manufactured in the United States for commercial and industrial applications.

Made in the USA

Technical Resources

View Mechanical Drawings

Need a Custom Size or Project Quantity?

Custom dimensions and volume quantities are available for qualifying projects.

Request a Quote
For custom sizes, large quantities, or project-specific requirements, contact LineDividers at sales@linedividers.com or call 1-800-288-2832.
