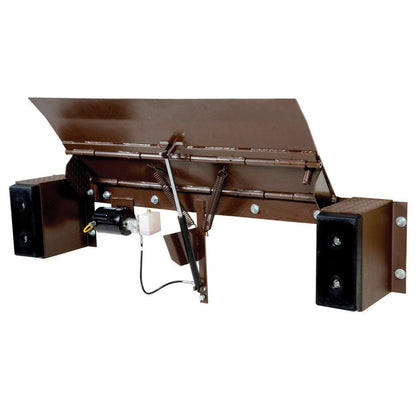

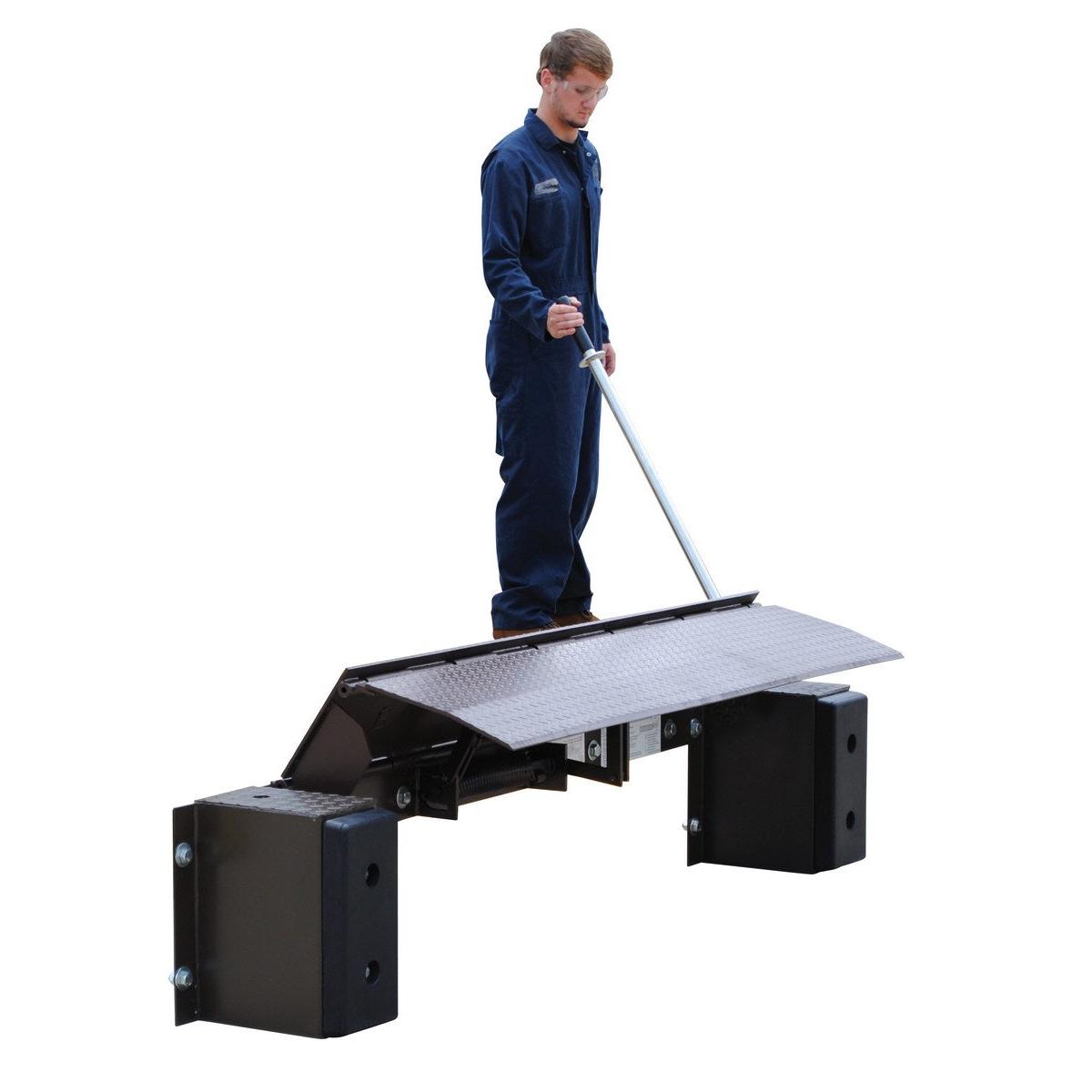

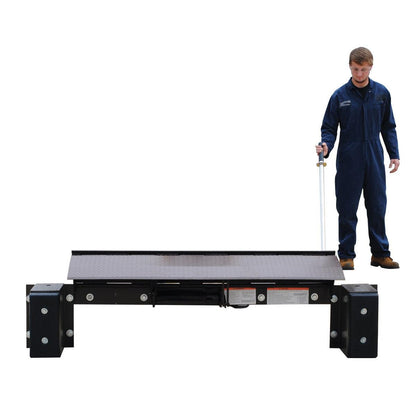

Steel Electric Edge-O-Dock Leveler – 15,000 lb. Capacity, 26-3/4 In. x 98 In. x 27-1/2 In.

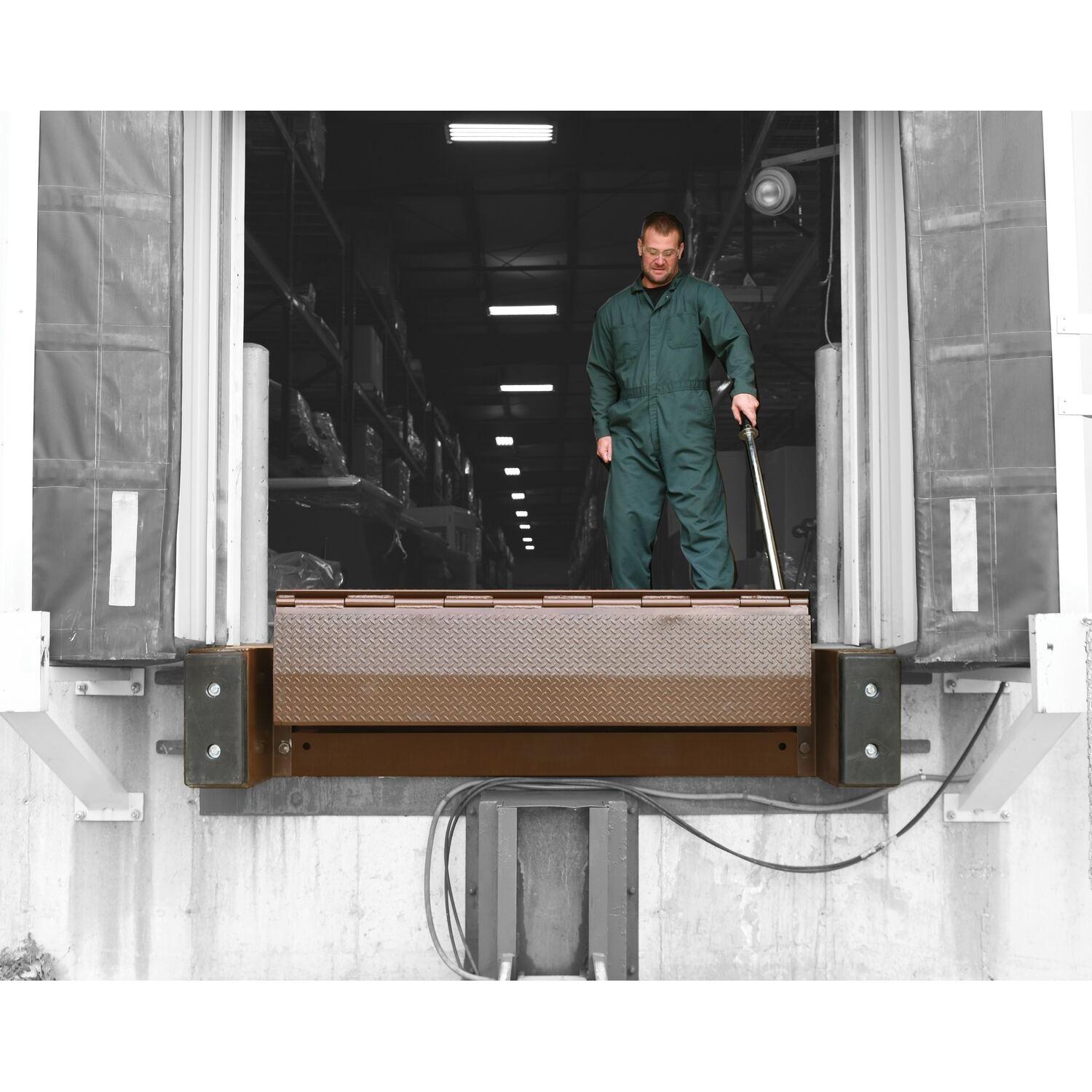

This Steel Electric Edge-O-Dock Leveler is engineered to streamline loading and unloading operations by providing a seamless bridge between the dock and trailer bed. Permanently mounted to the dock face, it enables efficient material handling for high-traffic areas with a capacity of up to 15,000 lbs.

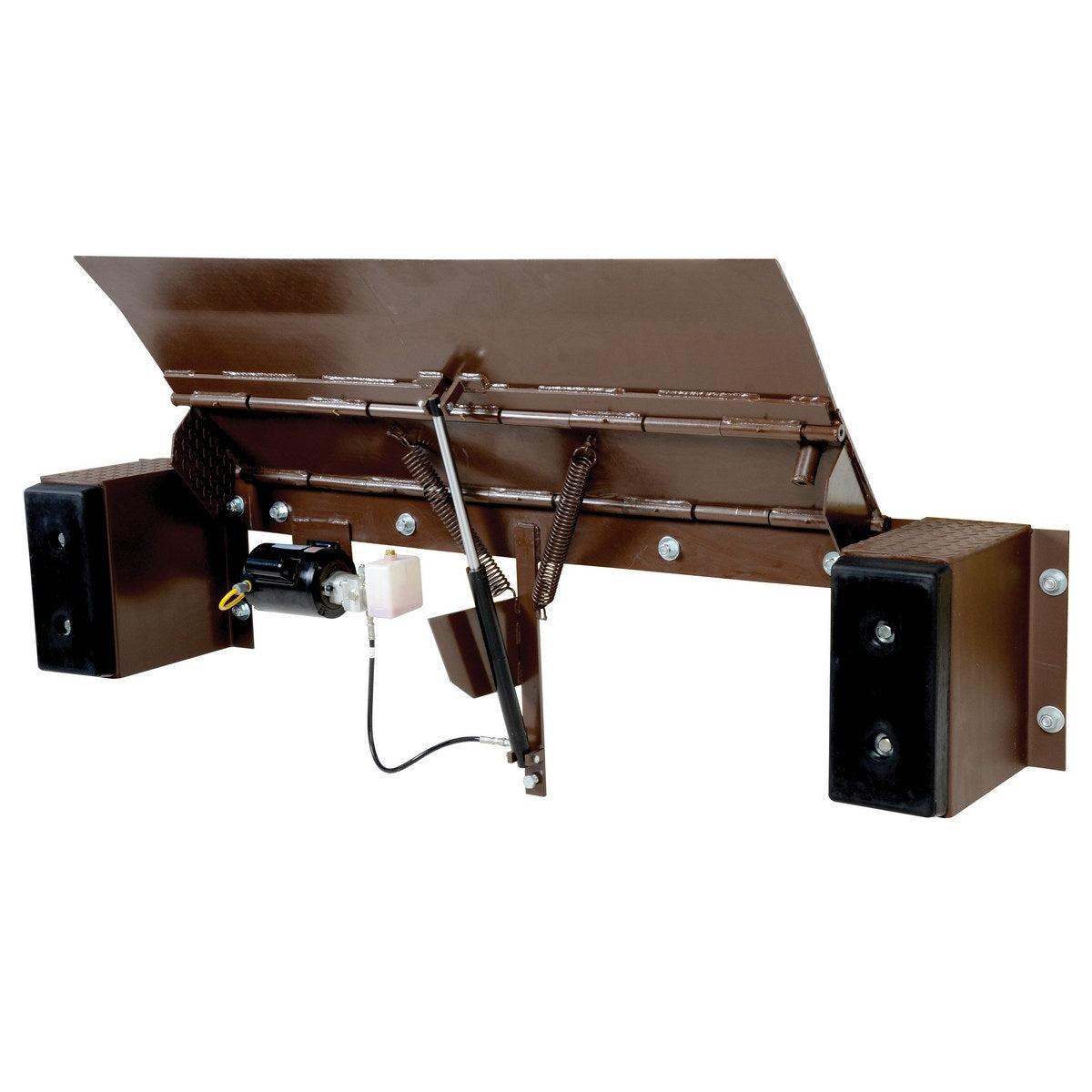

Designed for docks at least 48 inches high, this model offers an electric hydraulic operation—simply hold the control button to raise the leveler and extend the lip. Once loading is complete and the trailer departs, the lip retracts automatically. It installs quickly to any dock with a steel edge and does not require a concrete recess.

Features and Benefits

• Operation Type: Electric hydraulic system for effortless control
• Capacity: 15,000 lbs. load handling
• Dimensions: 26-3/4" W x 98" L x 27-1/2" H
• Mounting: Permanently attaches to steel dock edge

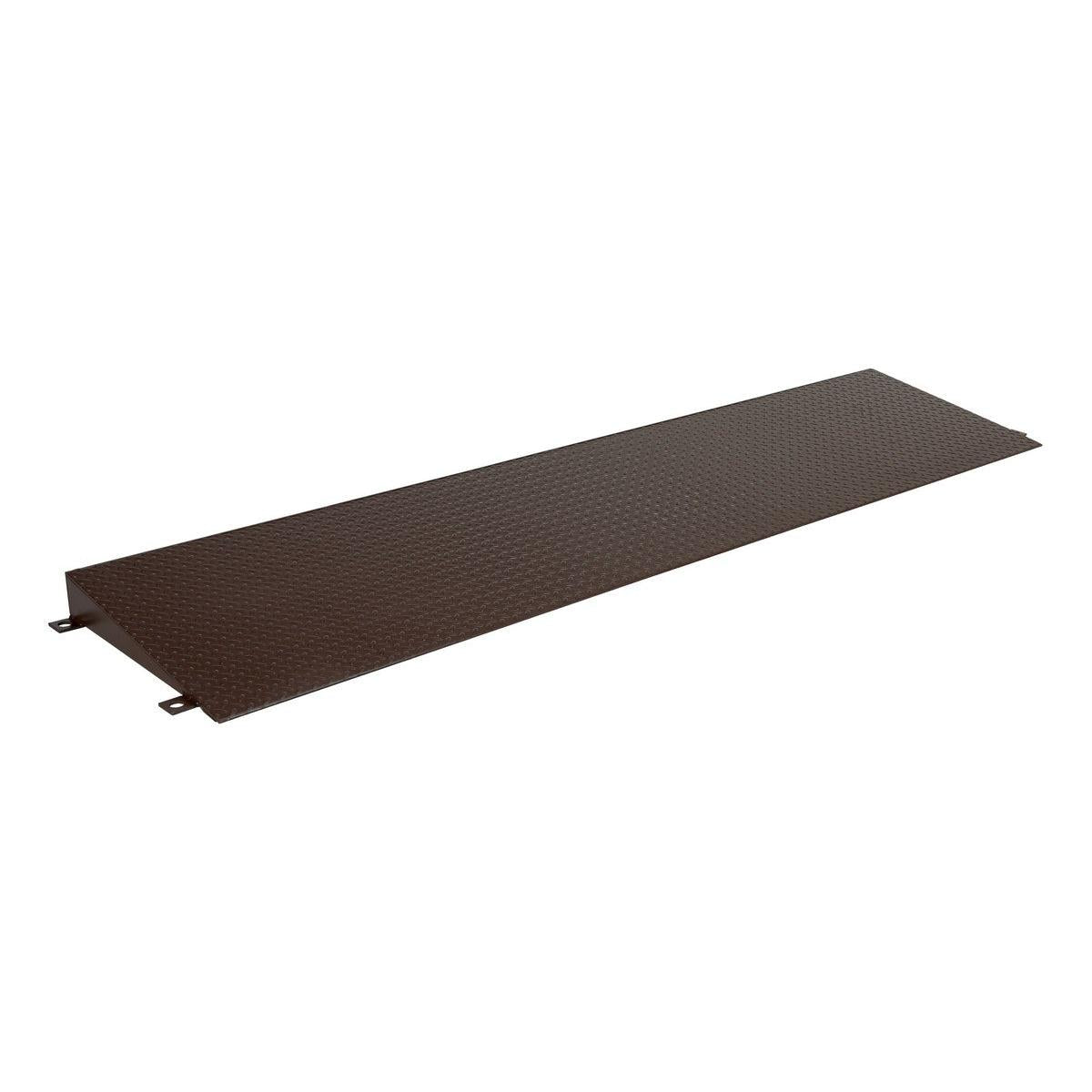

• Ramp Length: Standard 29", optional 36-5/8" models available

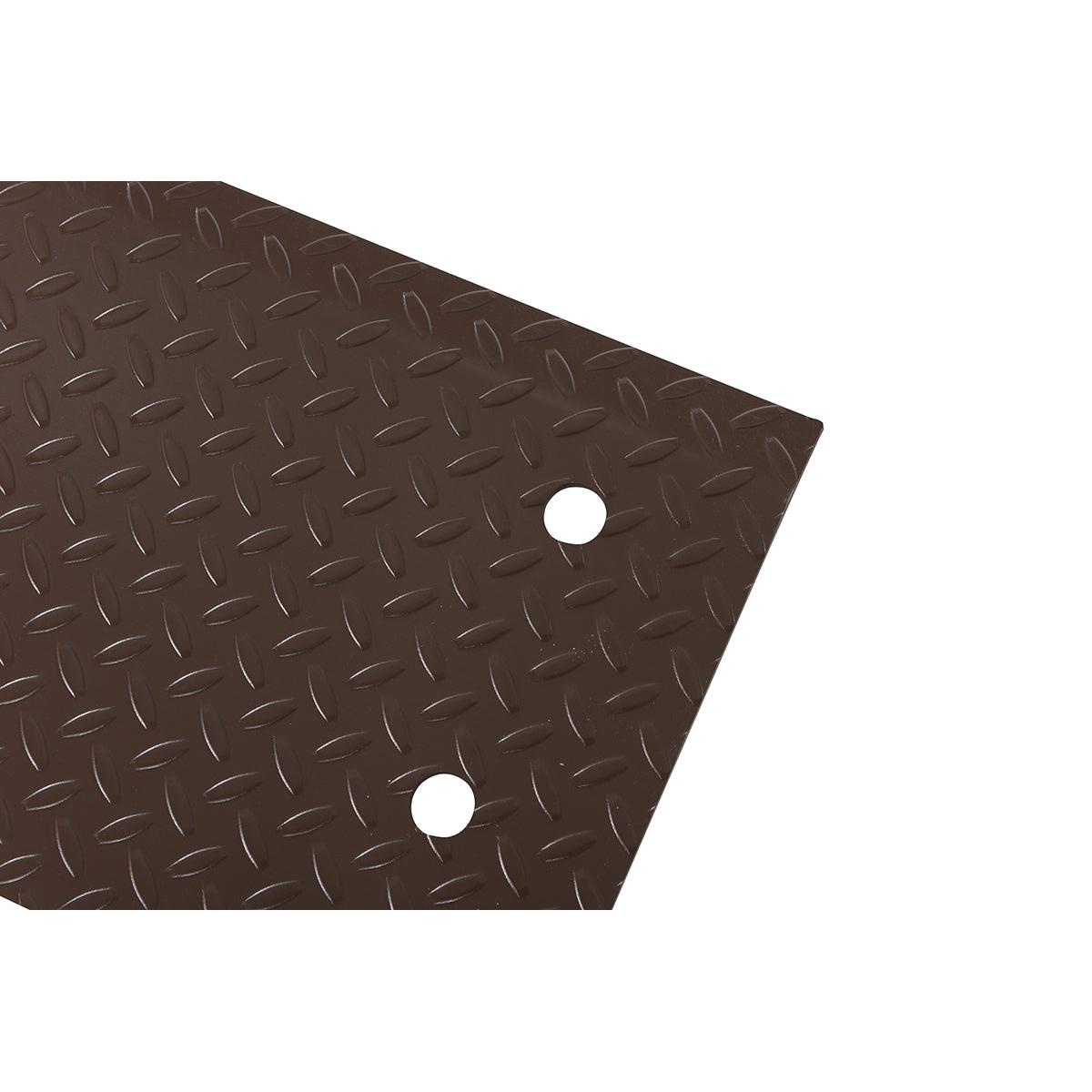

• Slip Resistance: Tread plate surface for enhanced traction
• Construction: Heavy-duty steel frame ensures durability
• Return Mechanism: Lip retracts behind bumpers when trailer departs
• Included Components: Motor, pump, control box, cylinder, lines, and oil
• Concrete Recess: Not required for installation

Additional Information:

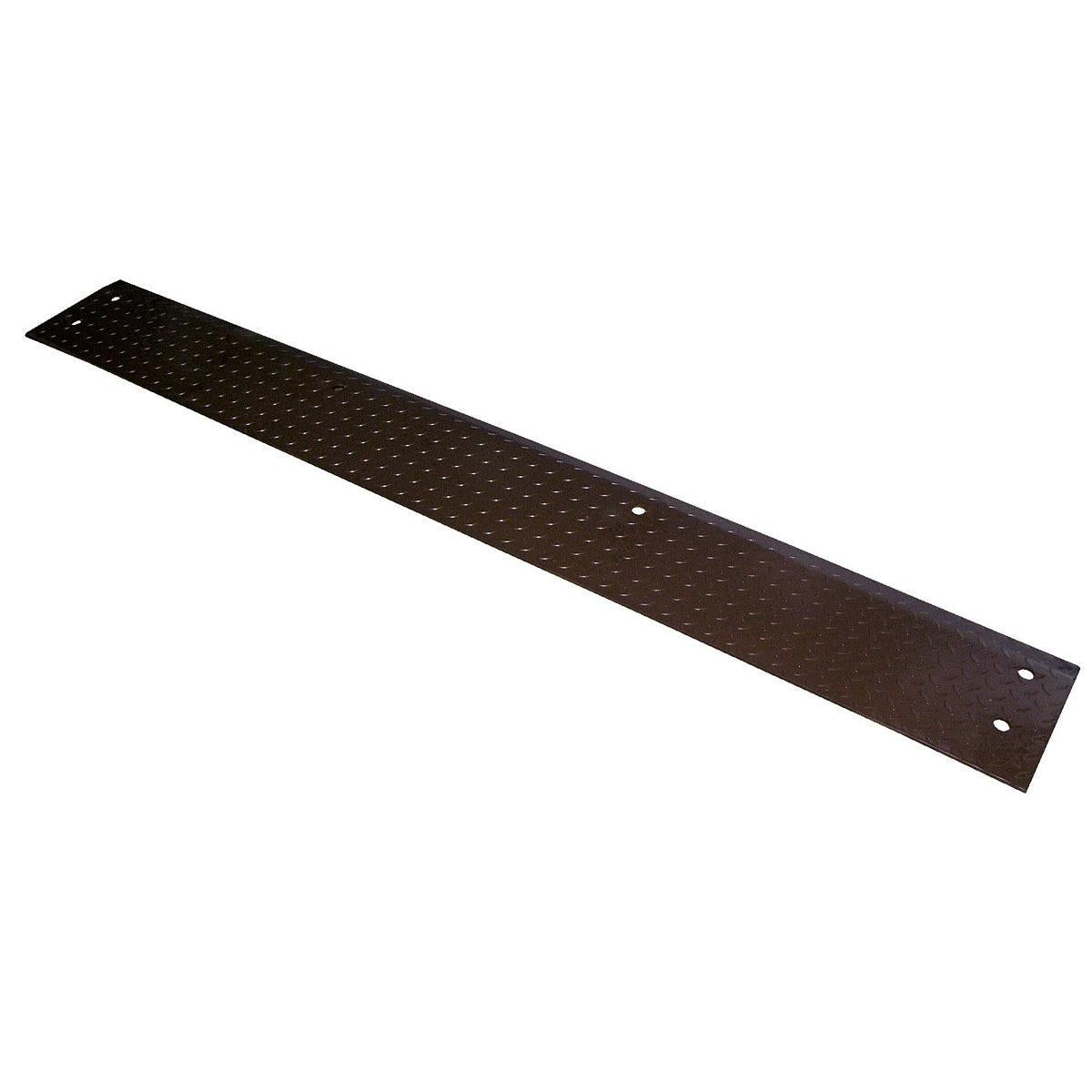

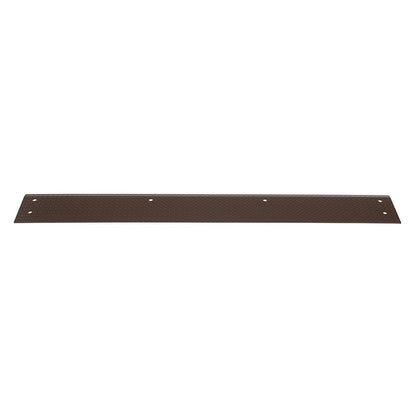

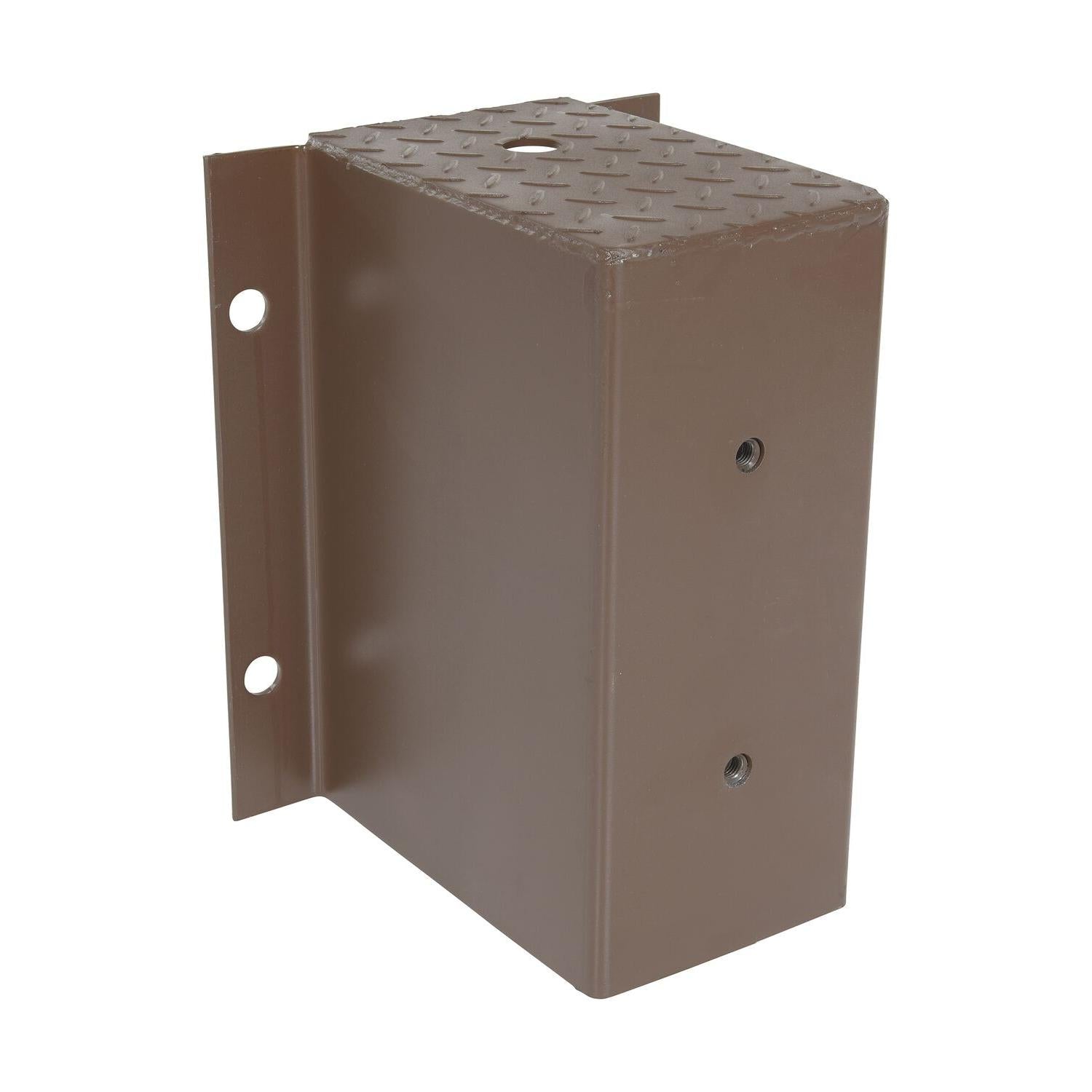

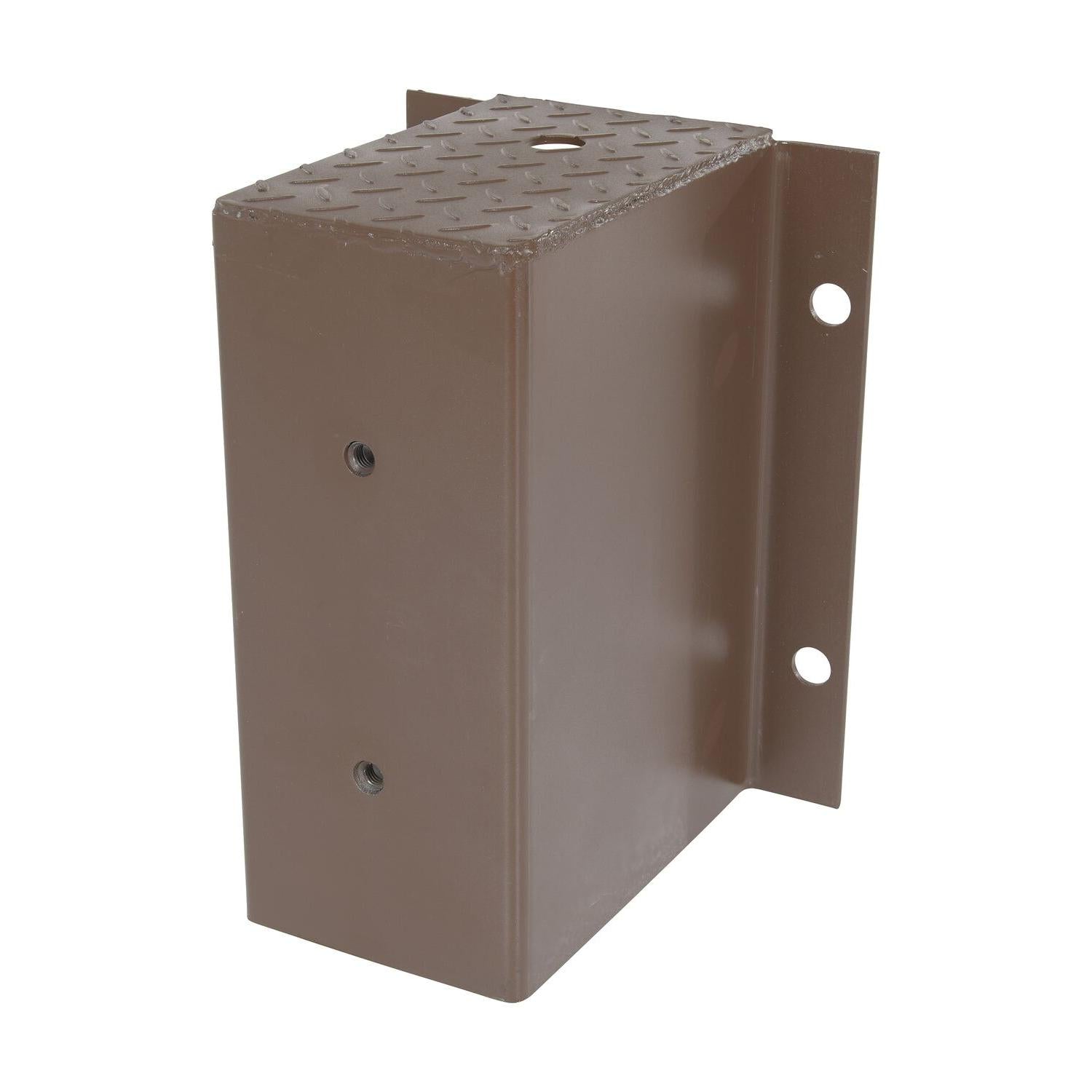

This Edge-O-Dock leveler is shipped complete with dock bumpers and installation instructions. A steel dock edge or approach ramp is necessary for proper setup. Ideal for operations seeking a durable and low-maintenance loading solution with simplified electronic control.

Technical Specifications:

• Total Shipping Weight (lbs): 749 (1 package)
• Assembled Weight (lbs): 650
• Dimensions (W x L x H): 98" x 26.75" x 27.5"
• Color / Finish: Brown
• Material: Steel
• Uniform Capacity (lbs): 15,000
• Service Range Above Dock (in): 5
• Service Range Below Dock (in): 5
• Ramp Width (in): 72
• Ramping Length (in): 36-5/8
• Platform Length (in): 15
• Platform Thickness (in): 0.375
• Dock Leveler Lip Projection (in): 9.875
• Operating Method: 115 Volt / 1 Phase AC Electric
• Electric Motor Voltage: 115
• Overall Length (ft): 3.05

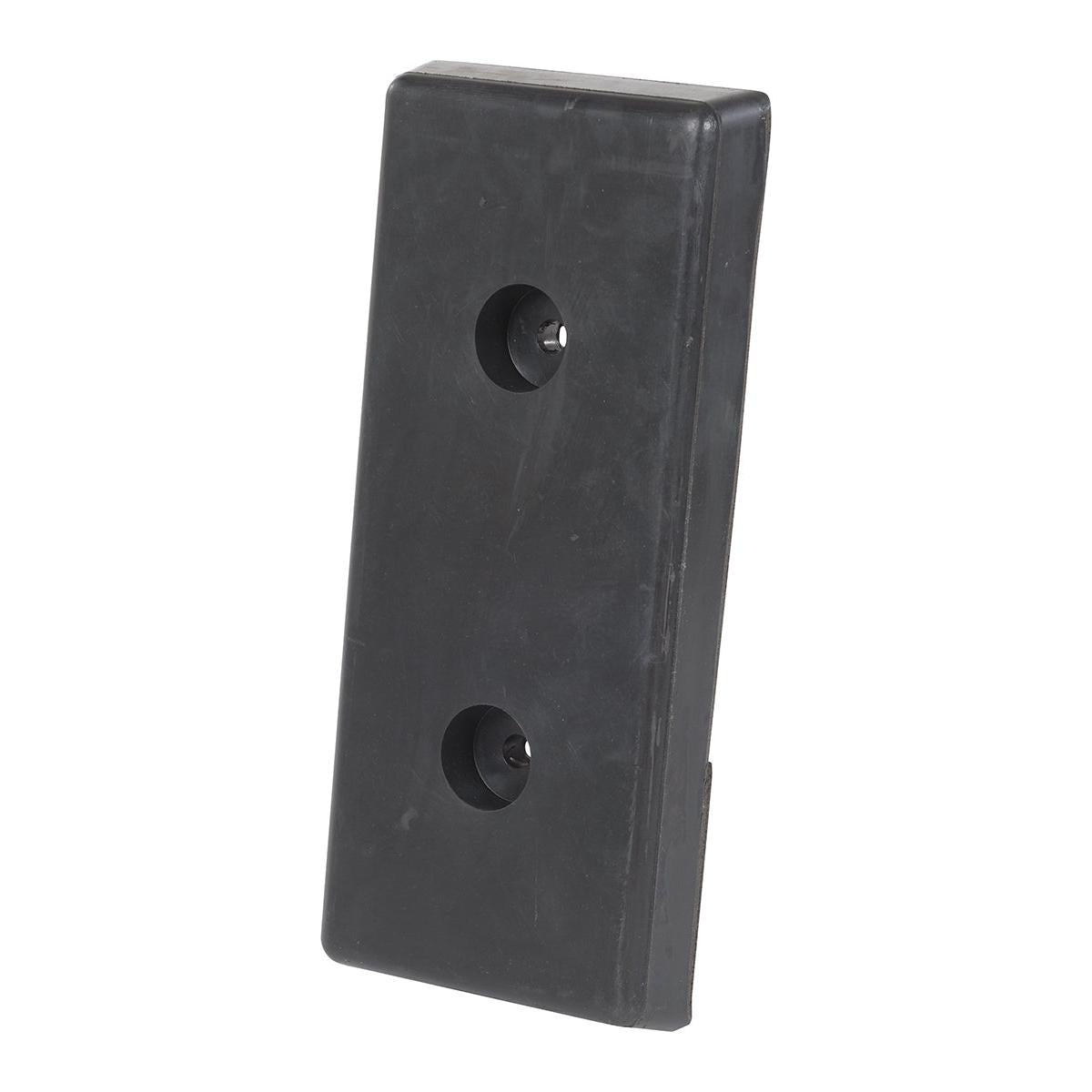

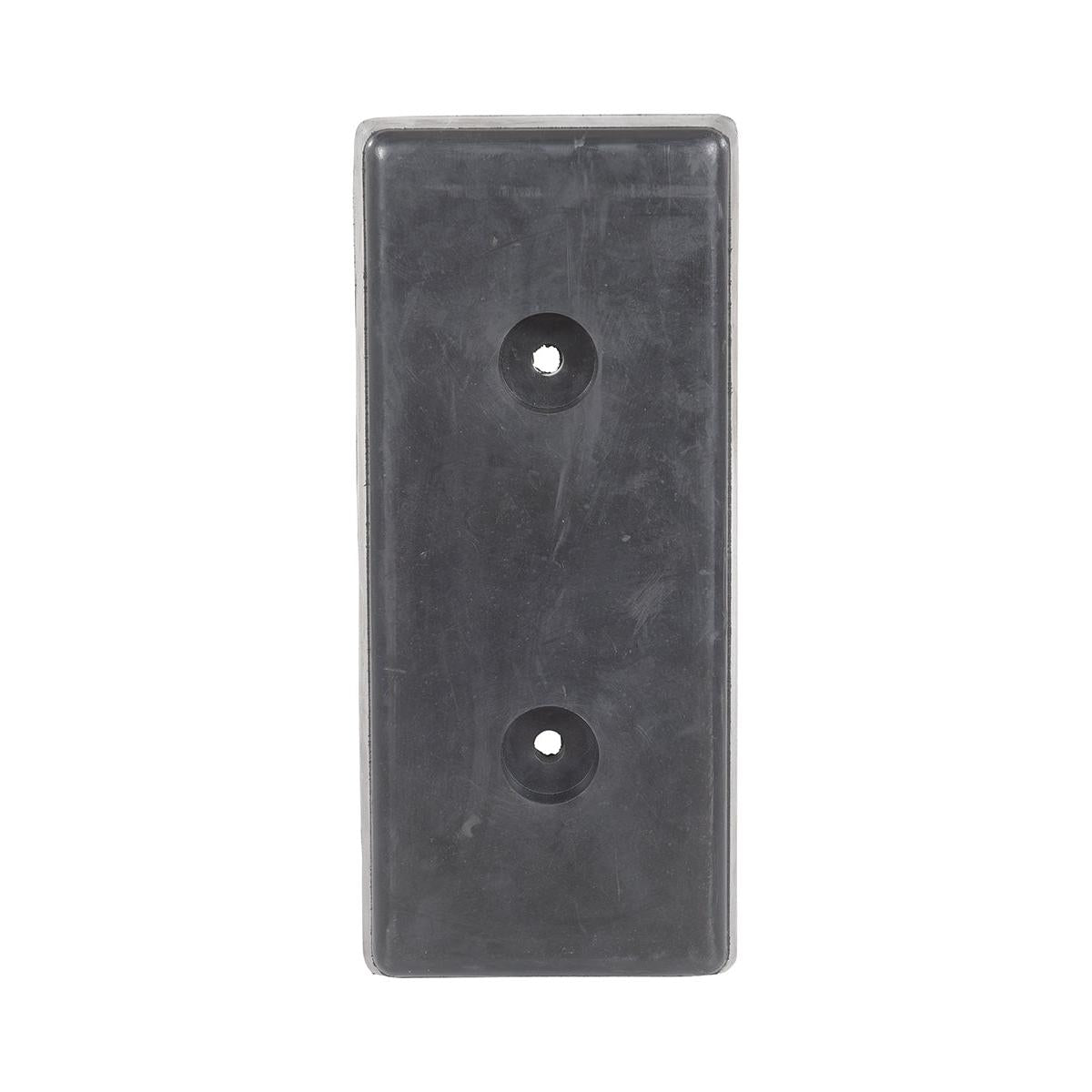

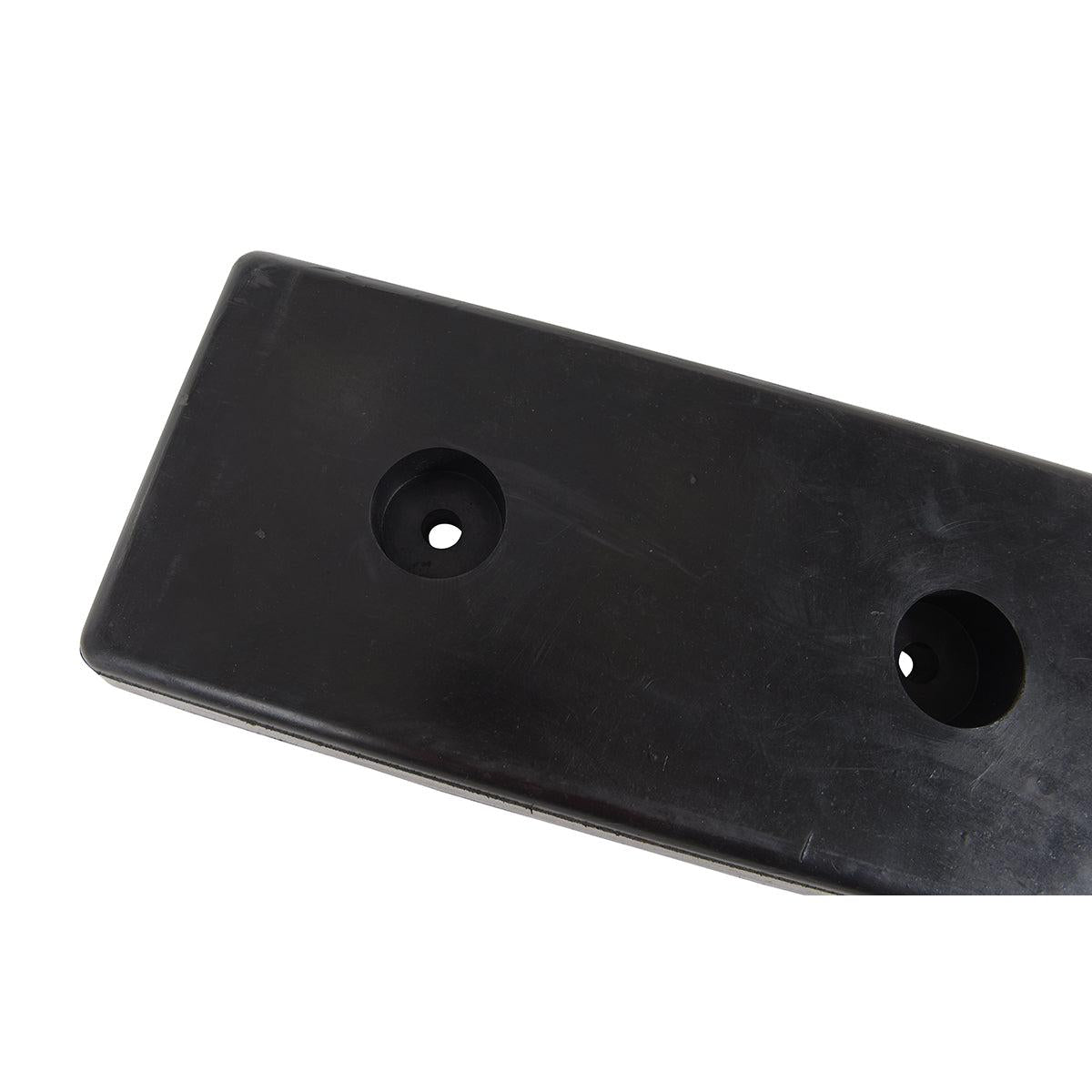

• Bumper Pad Width (in): 8
• Bumper Pad Height (in): 18
• Bumper Pad Thickness (in): 2

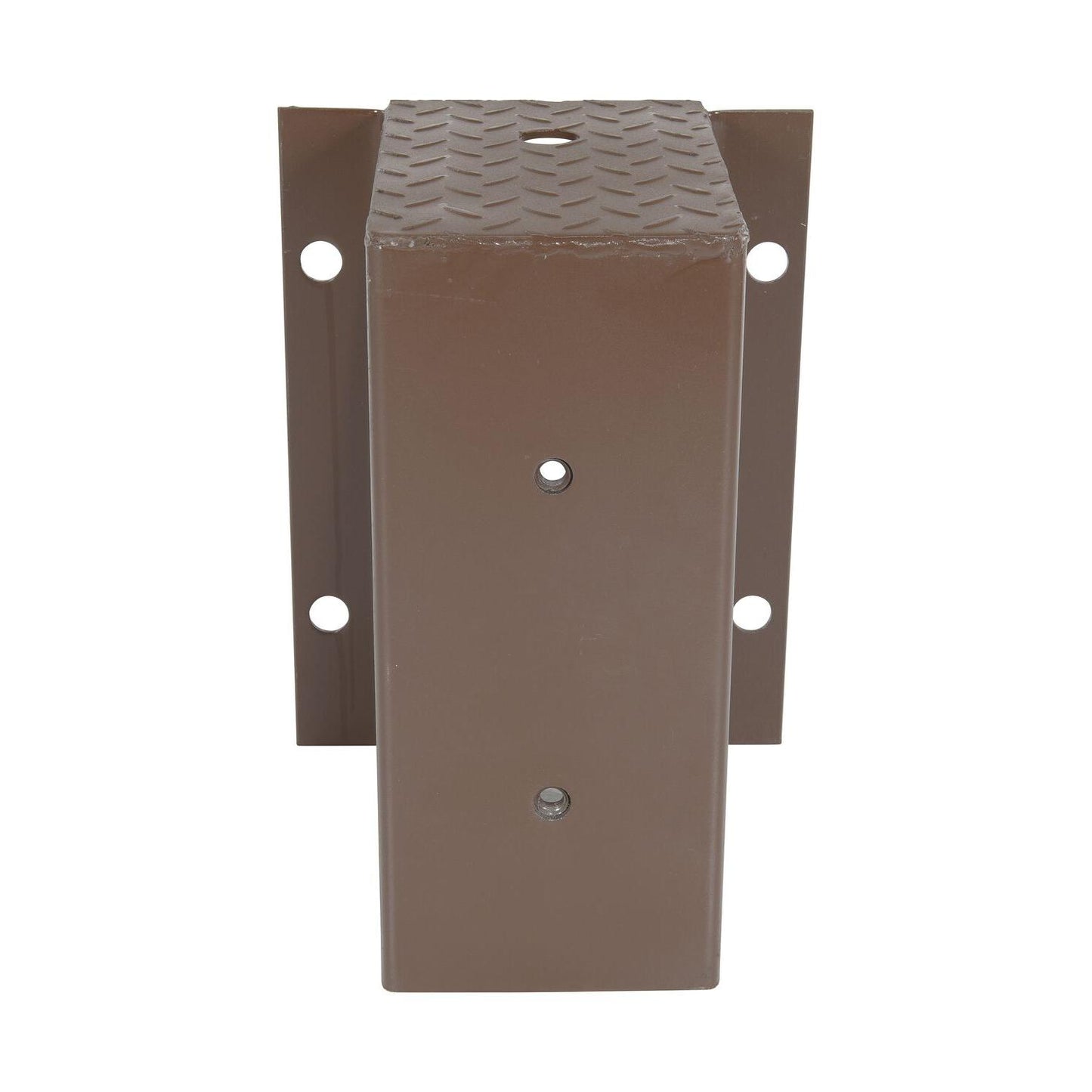

• Bumper Projection (in): 26.75 (including rubber)

• UPC: 691215029483

• GTIN: 00691215029483
• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and installation instructions
• Installation Hardware Included: Yes
• Assembly Required: Yes
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required: No
• Manufacturer Warranty: 1 Year
