Steel Electric Edge-O-Dock Levelers – 25,000 lb. Capacity
Steel Electric Edge-O-Dock Levelers – 25,000 lb. Capacity
SKU:VES-PE-2566
Regular price
$3,461.50 USD
Regular price
Sale price
$3,461.50 USD
Unit price
per
- Call or Email us for large QTY, corporate, or government quotes
Couldn't load pickup availability

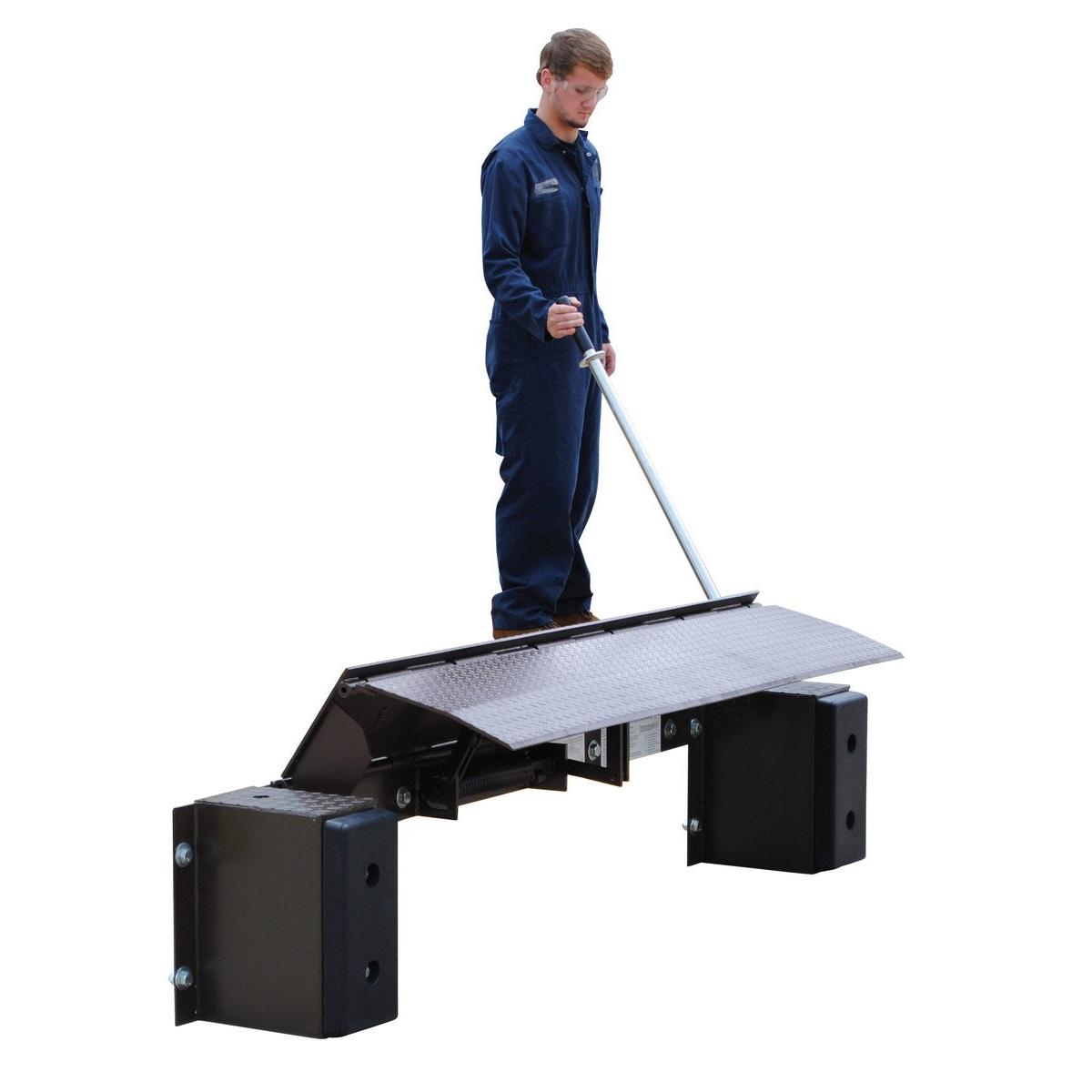

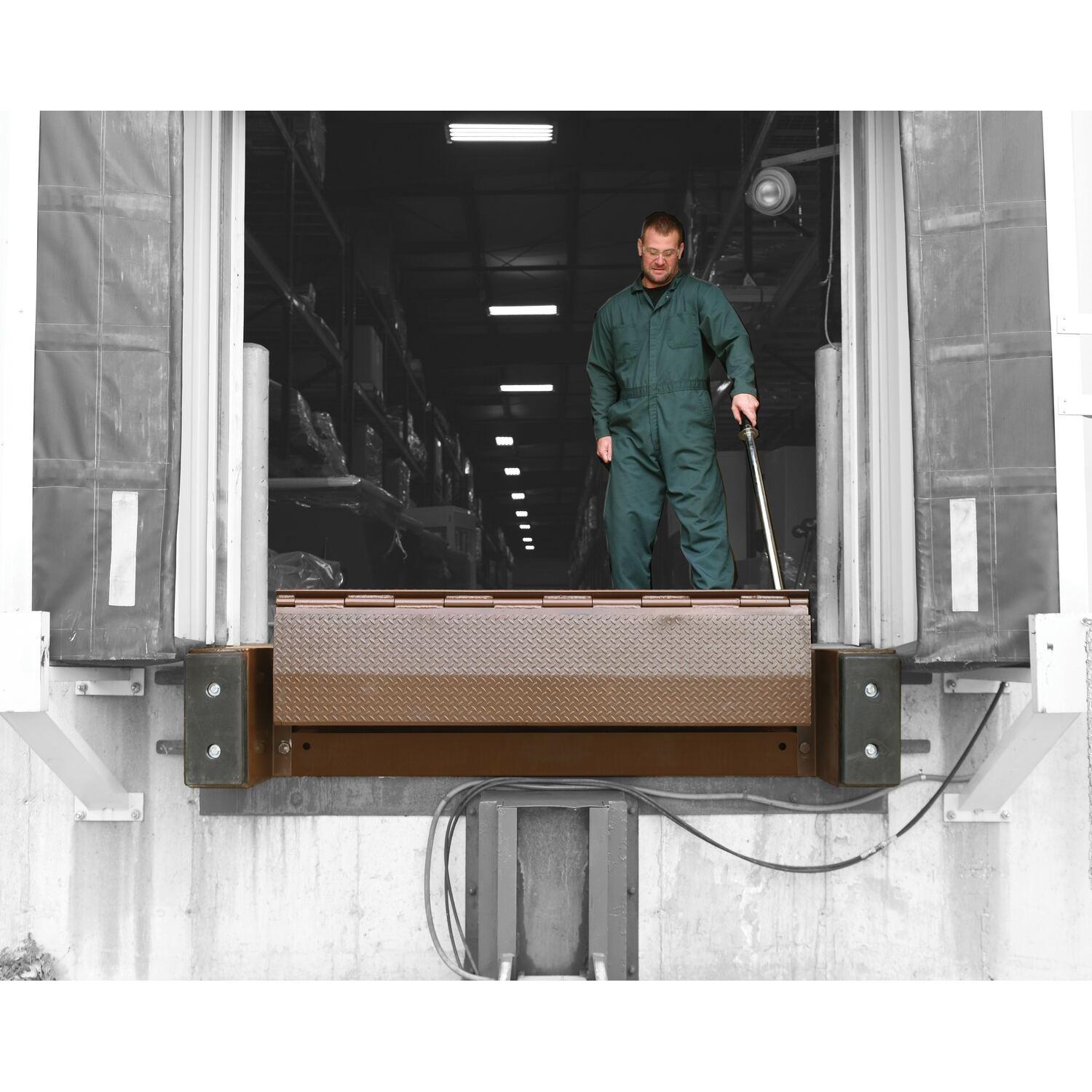

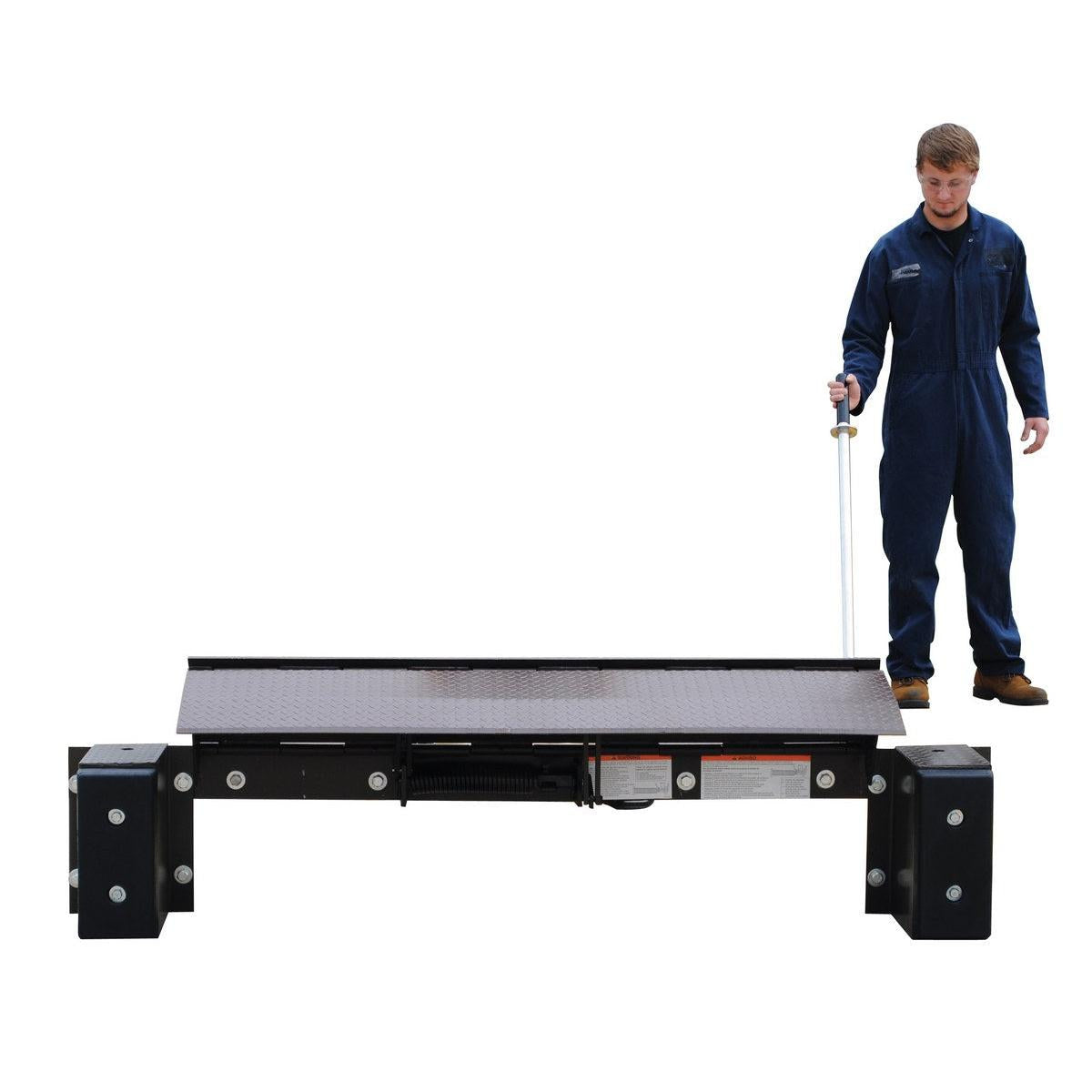

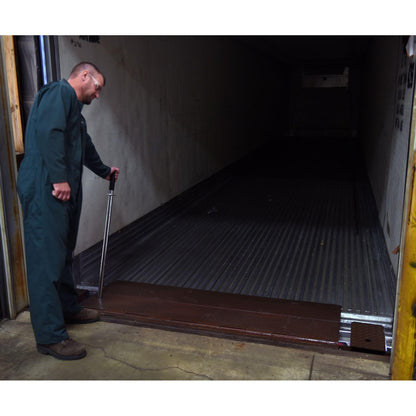

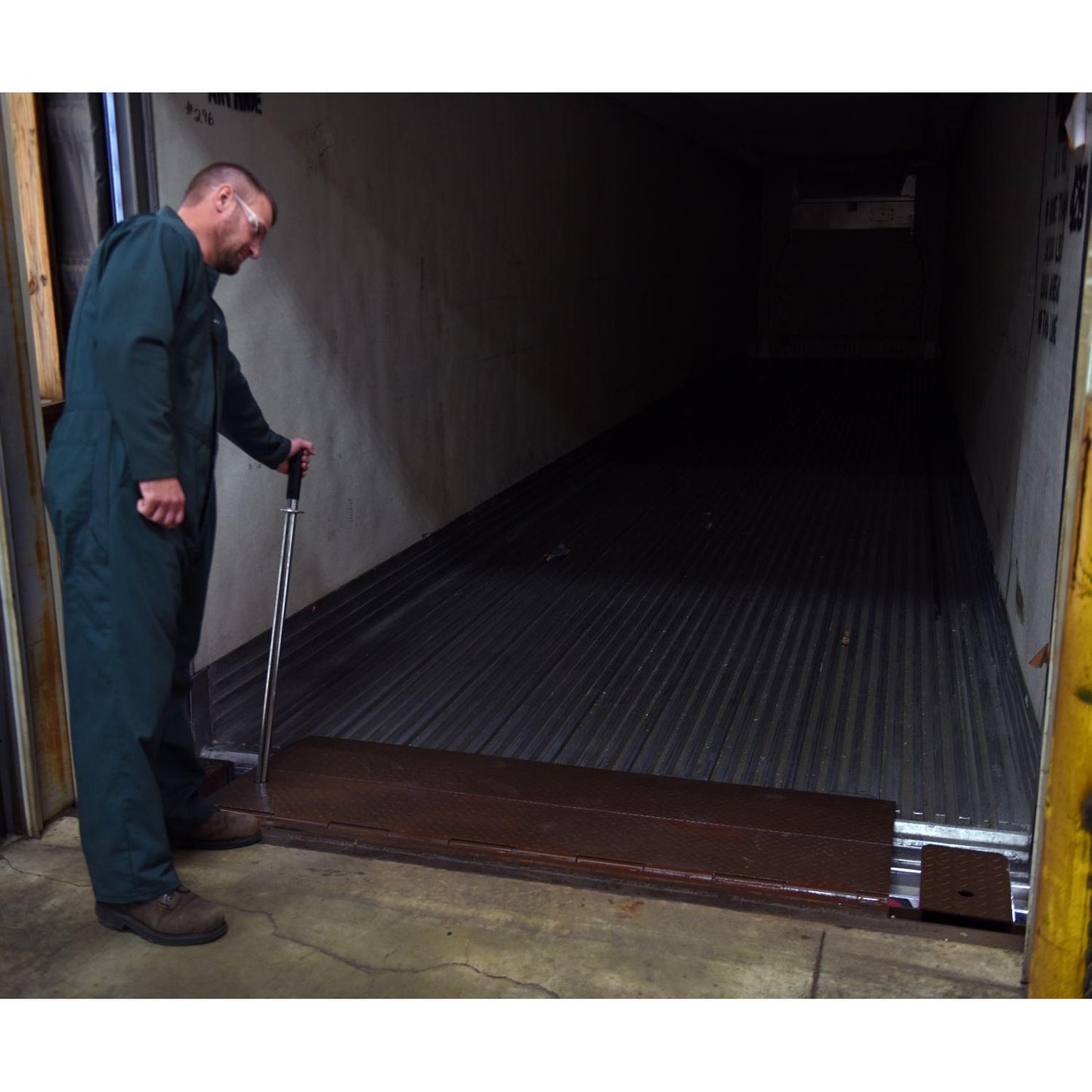

The Steel Electric Edge-O-Dock Levelers provide a permanent, efficient solution for bridging the gap between dock and trailer. Designed to attach to the face of any dock at least 48 inches high, these levelers streamline the loading and unloading process. With electric hydraulic operation, users simply press and hold a control button to raise the leveler and extend the lip—returning automatically once the truck pulls away.

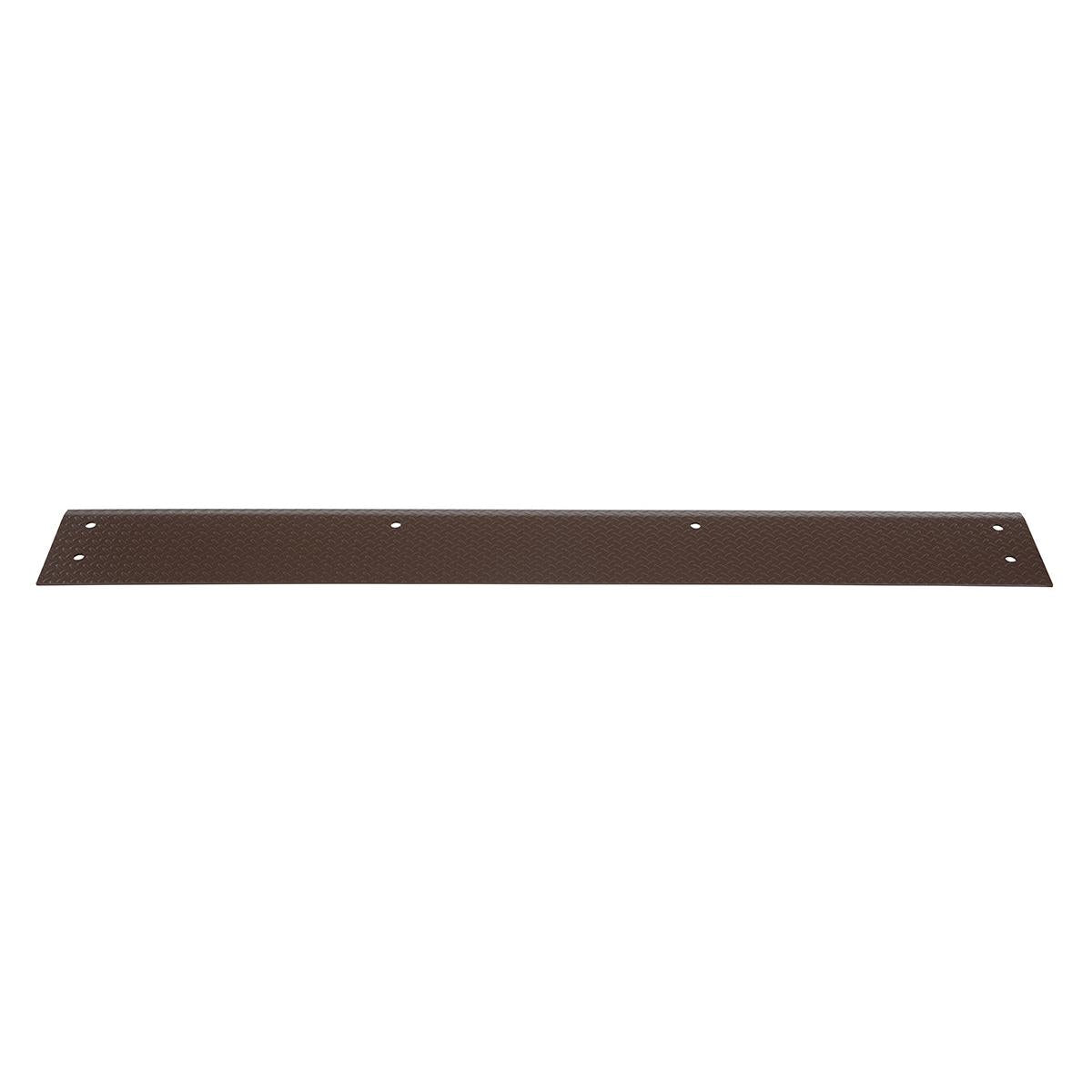

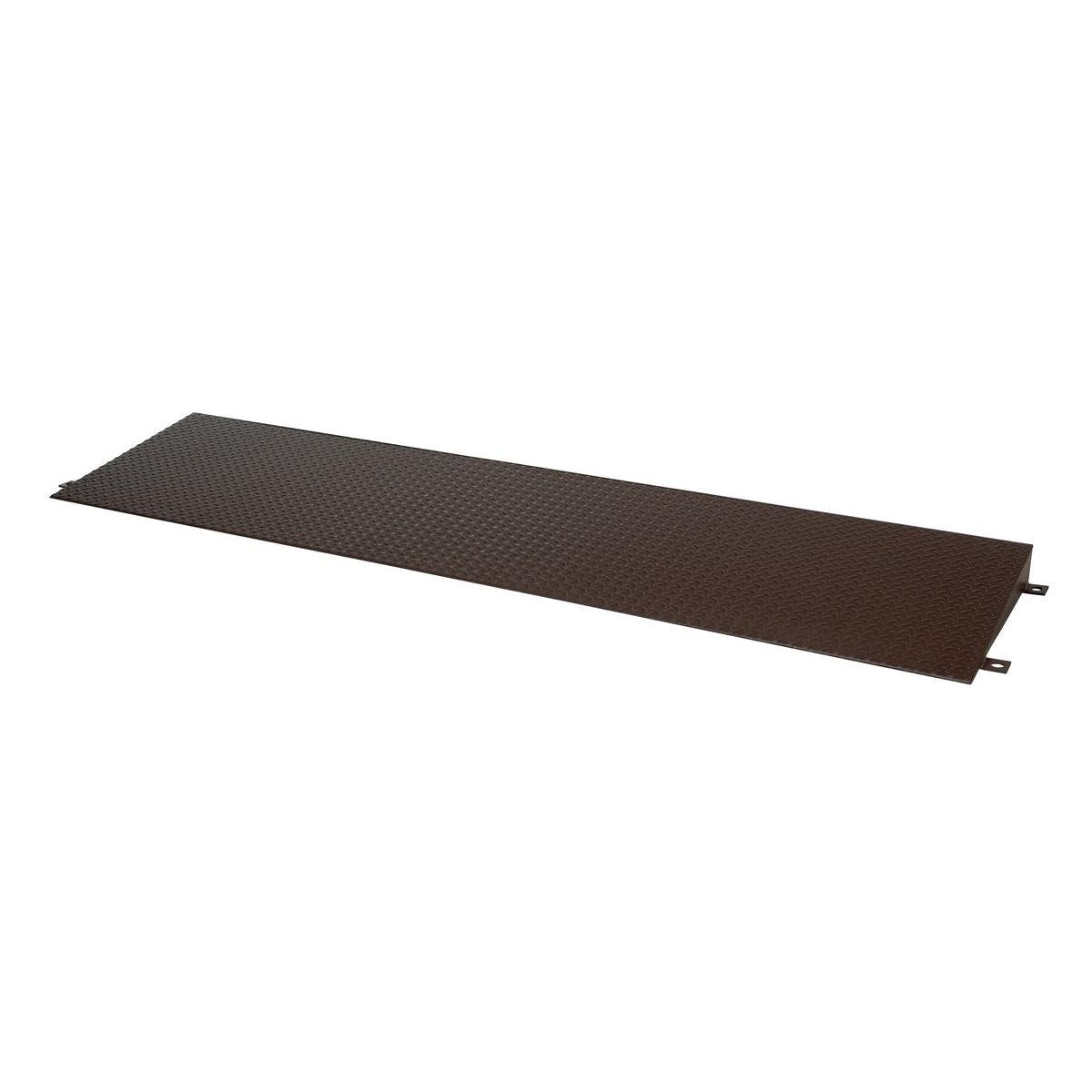

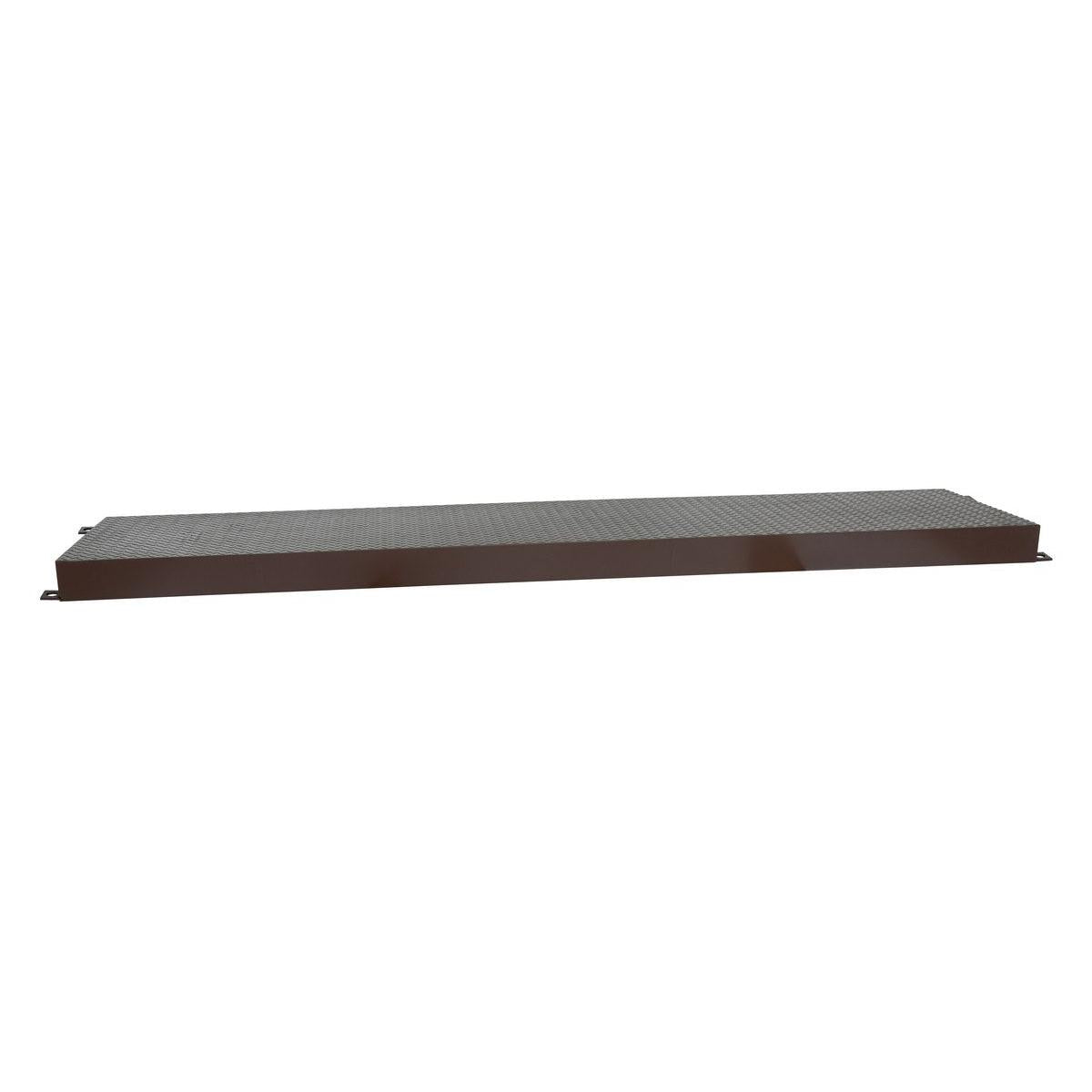

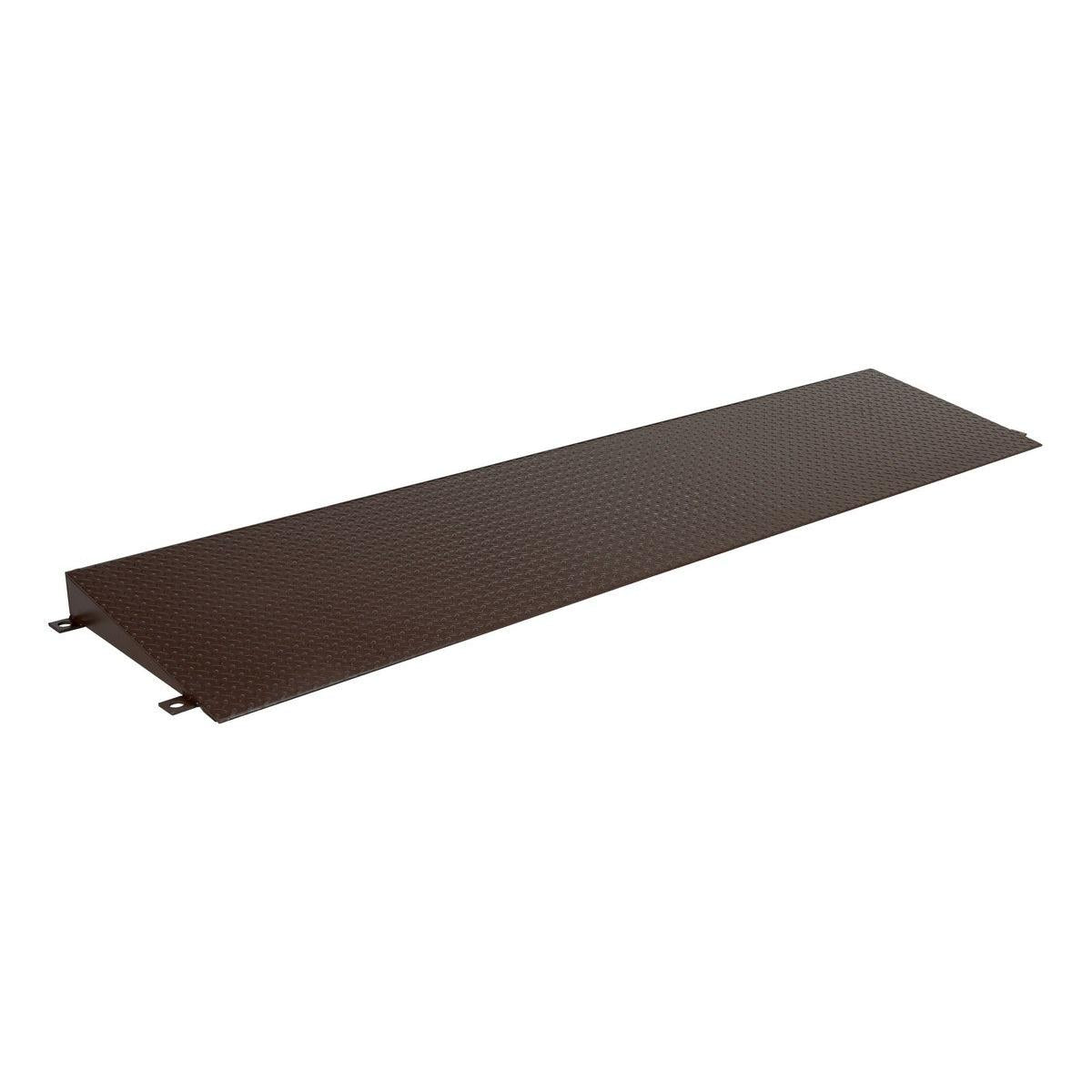

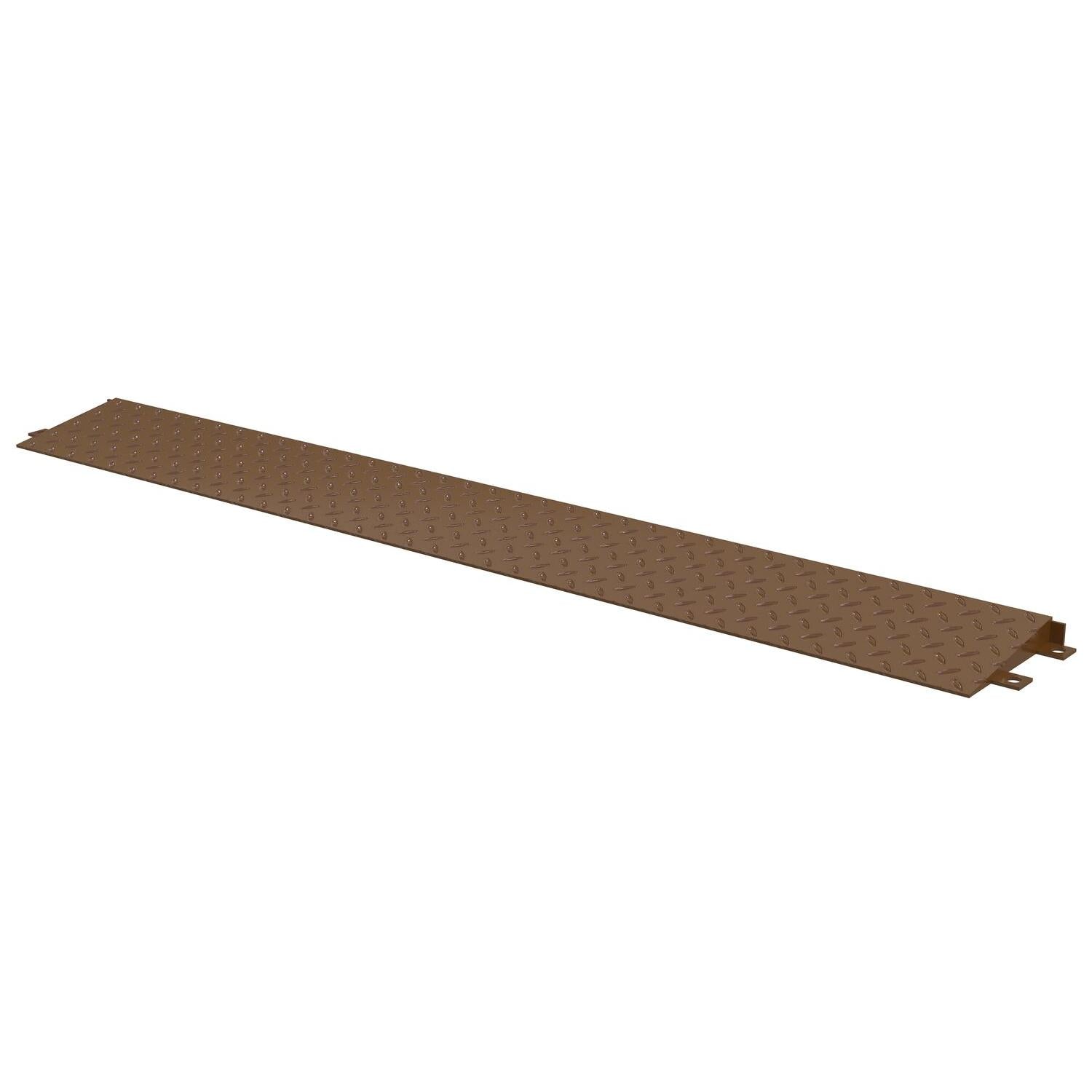

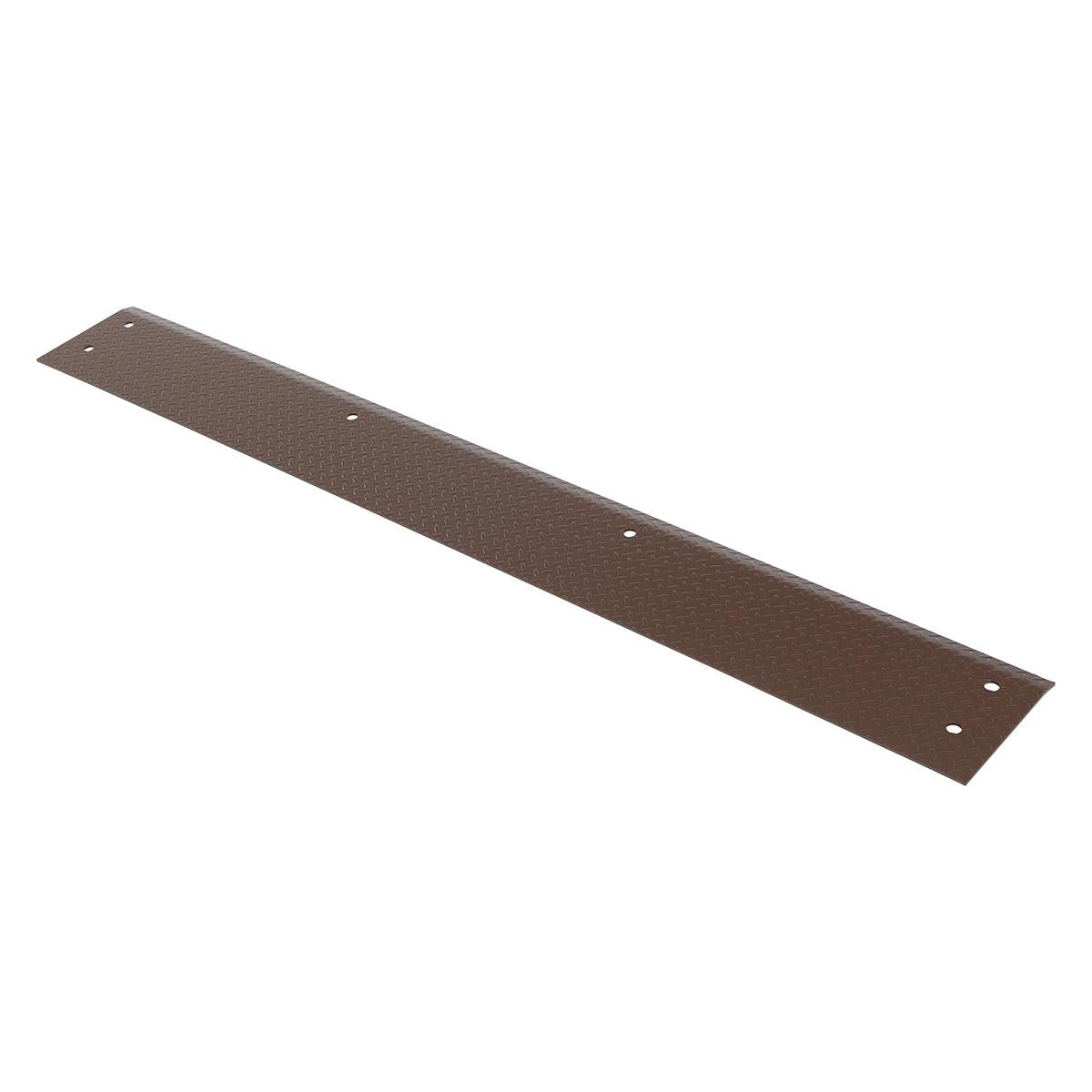

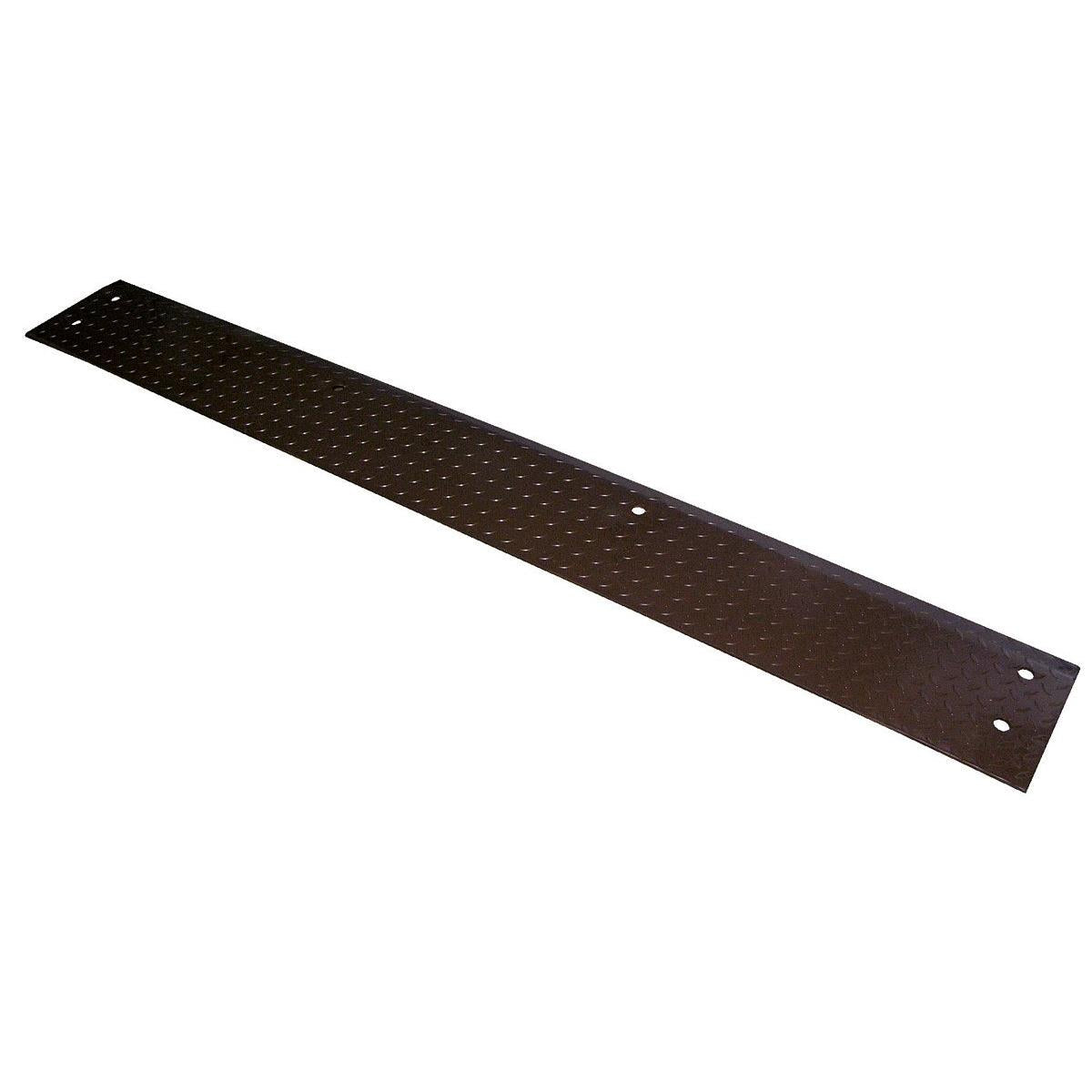

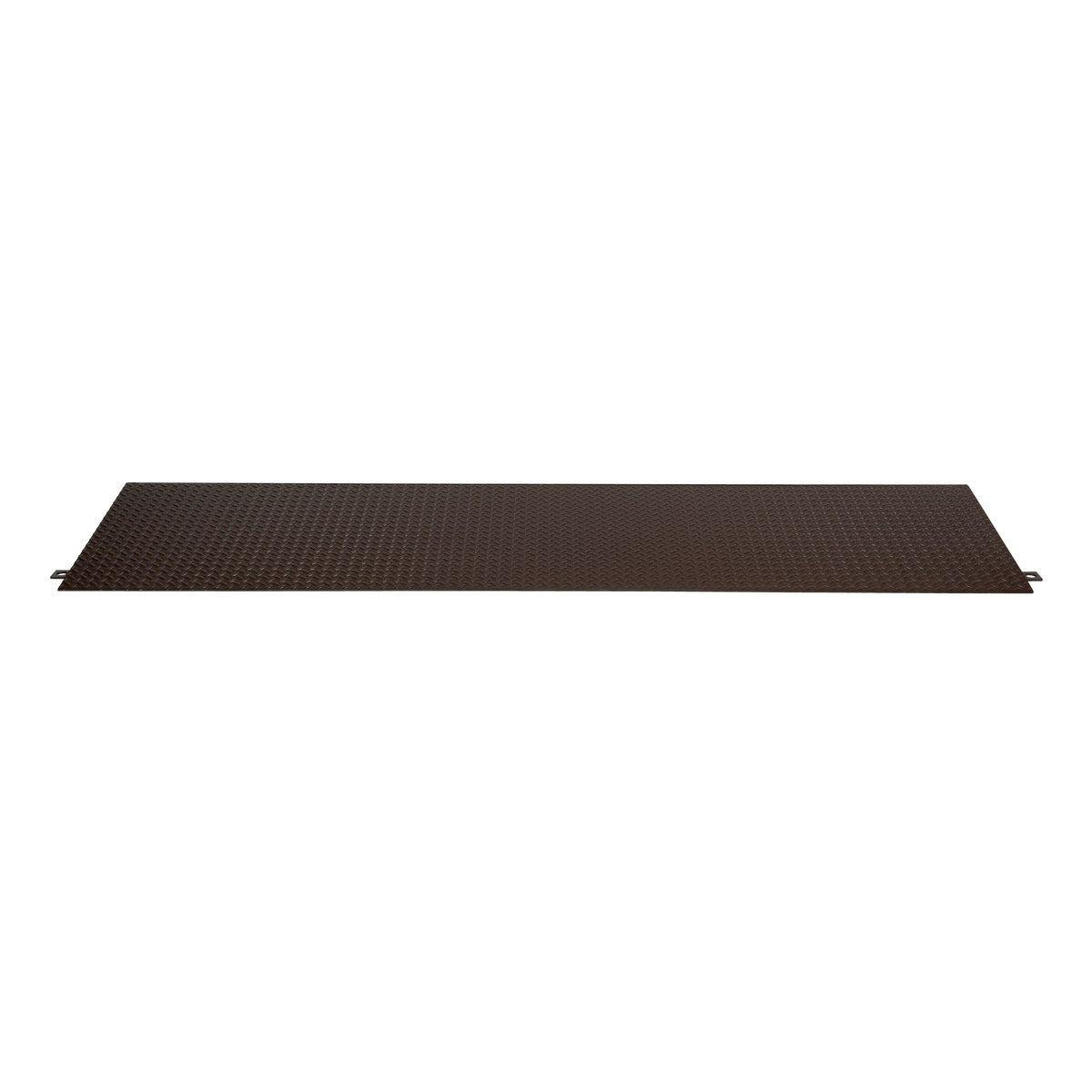

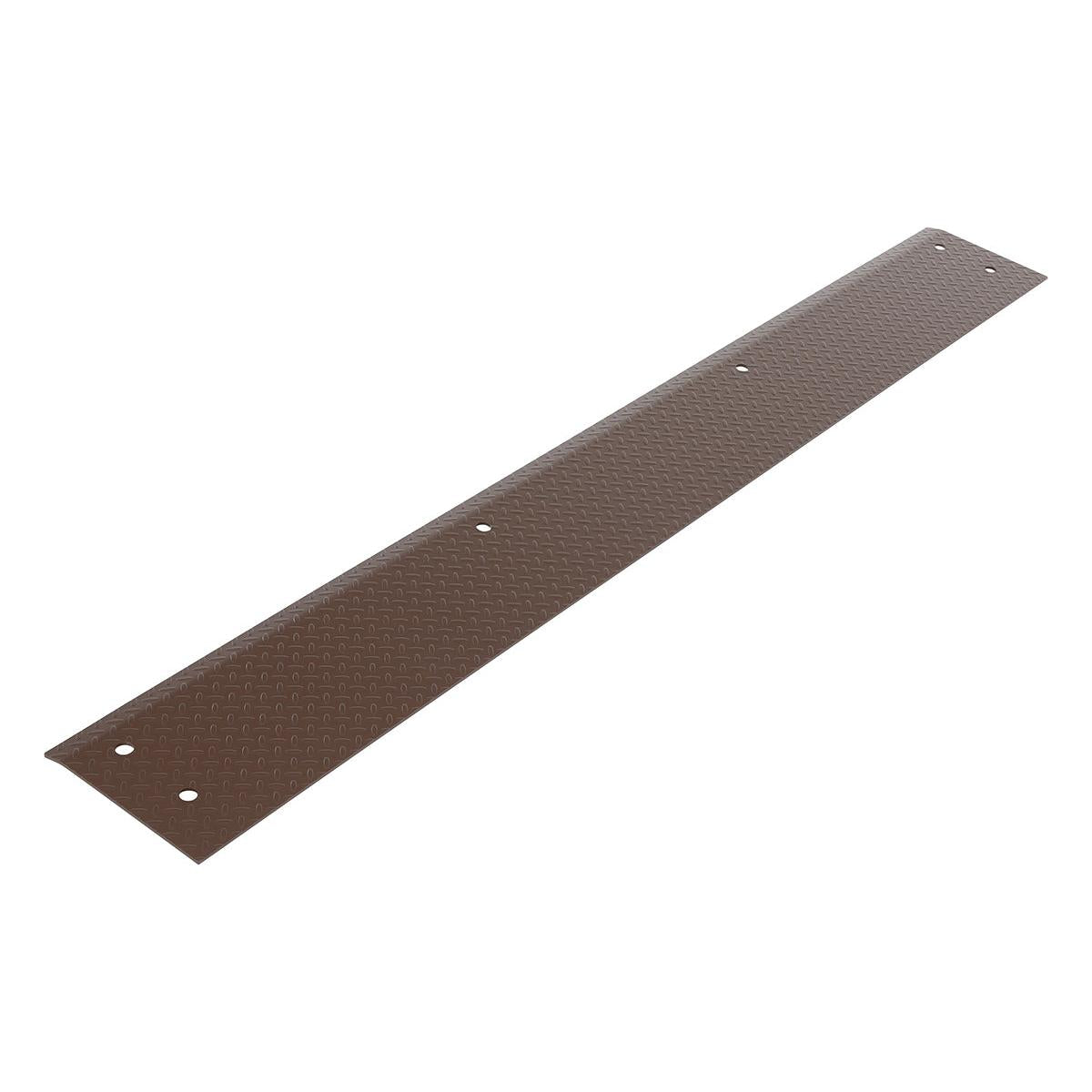

Built for durability and ease of use, each model includes bumpers and installation instructions, and does not require a concrete recess for mounting. A steel dock edge or approach ramp is required for proper installation.
Key Features & Benefits

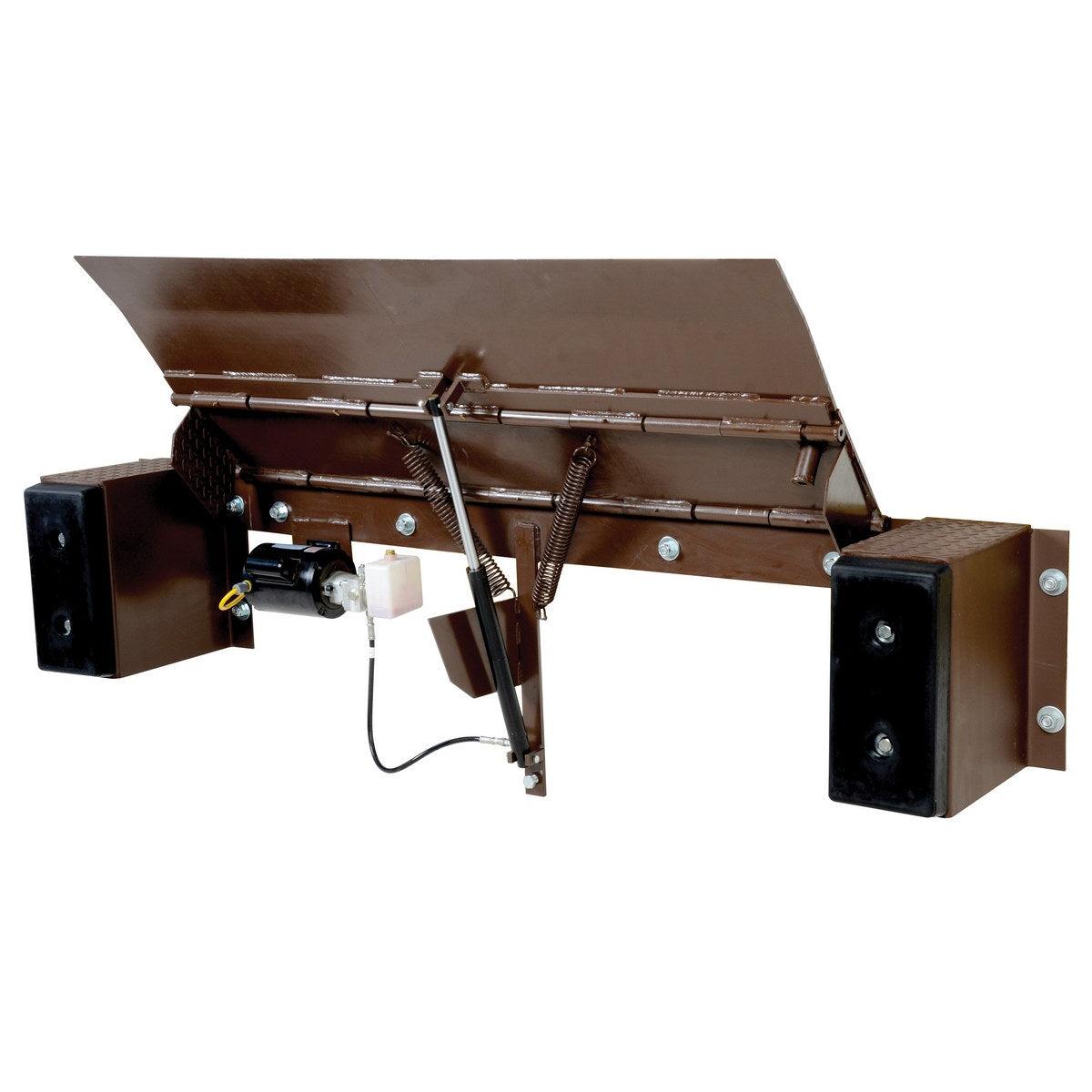

- Electric Operation: Includes motor, pump, control box, cylinder, lines, and oil for seamless activation.
- No Pit Required: Mounts directly to dock face—no need for recessed concrete installation.
- Durable Construction: Solid steel build ensures long-term reliability under heavy-duty use.

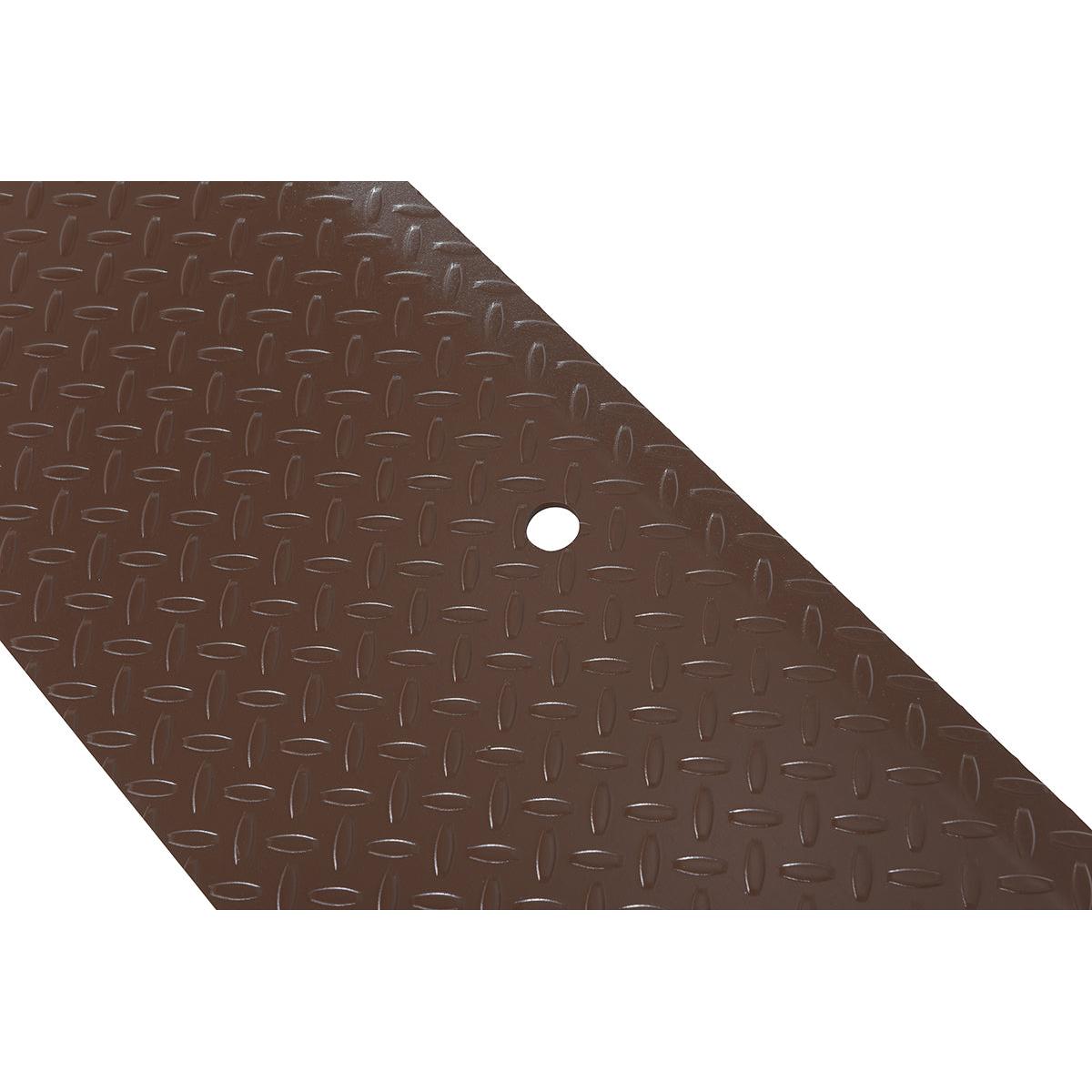

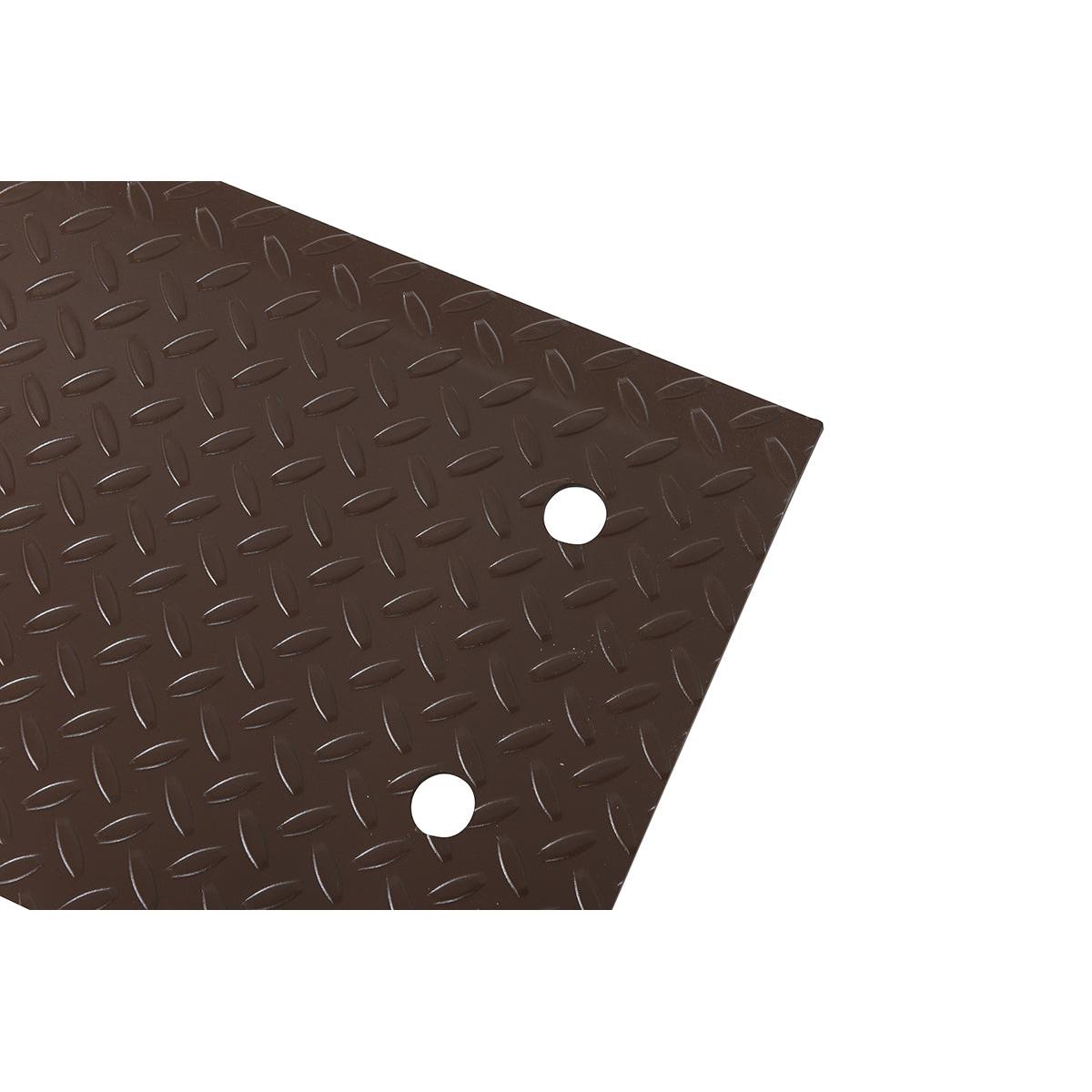

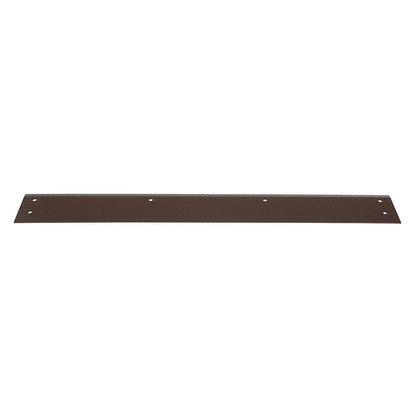

- Anti-Slip Surface: Tread plate design enhances grip and safety during operation.

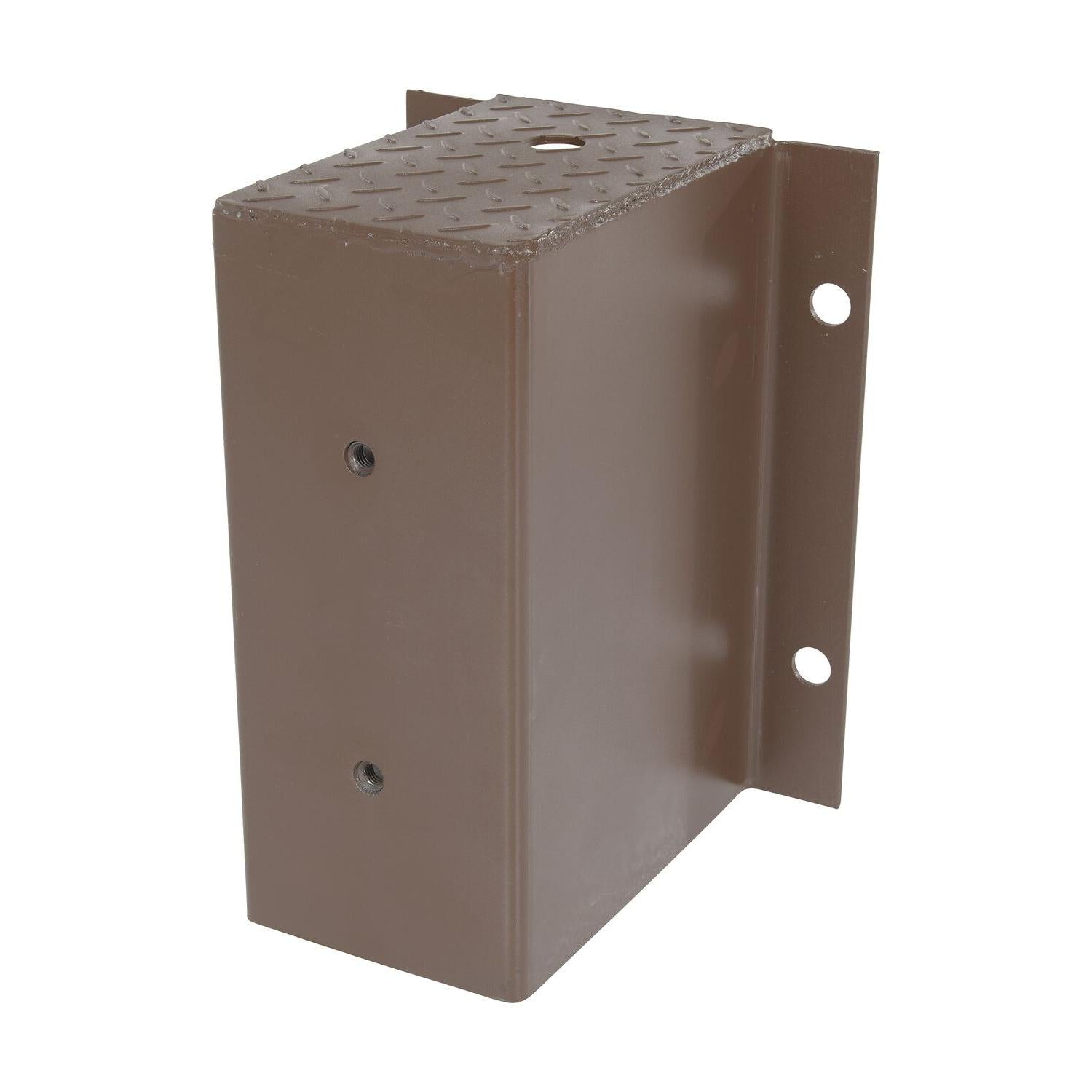

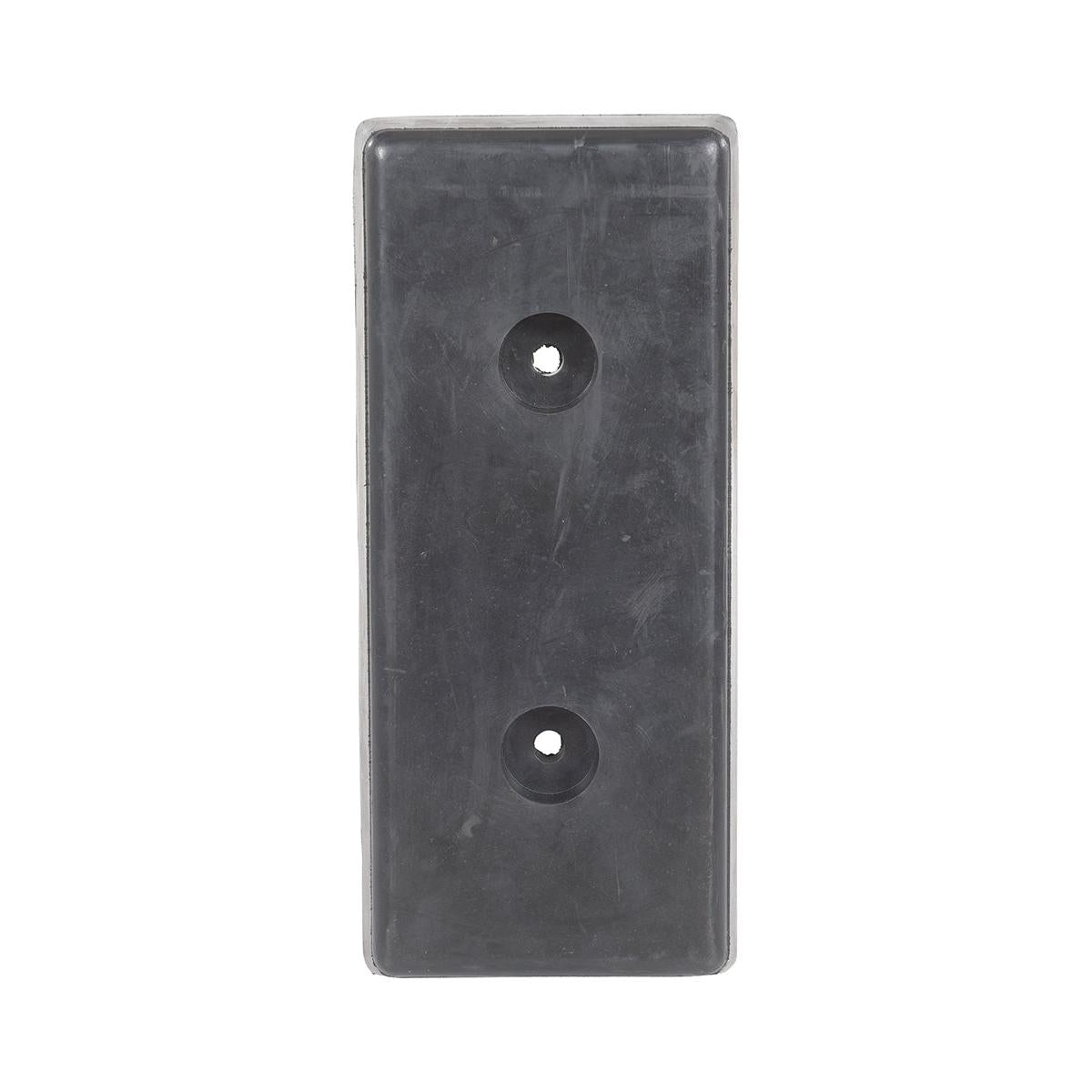

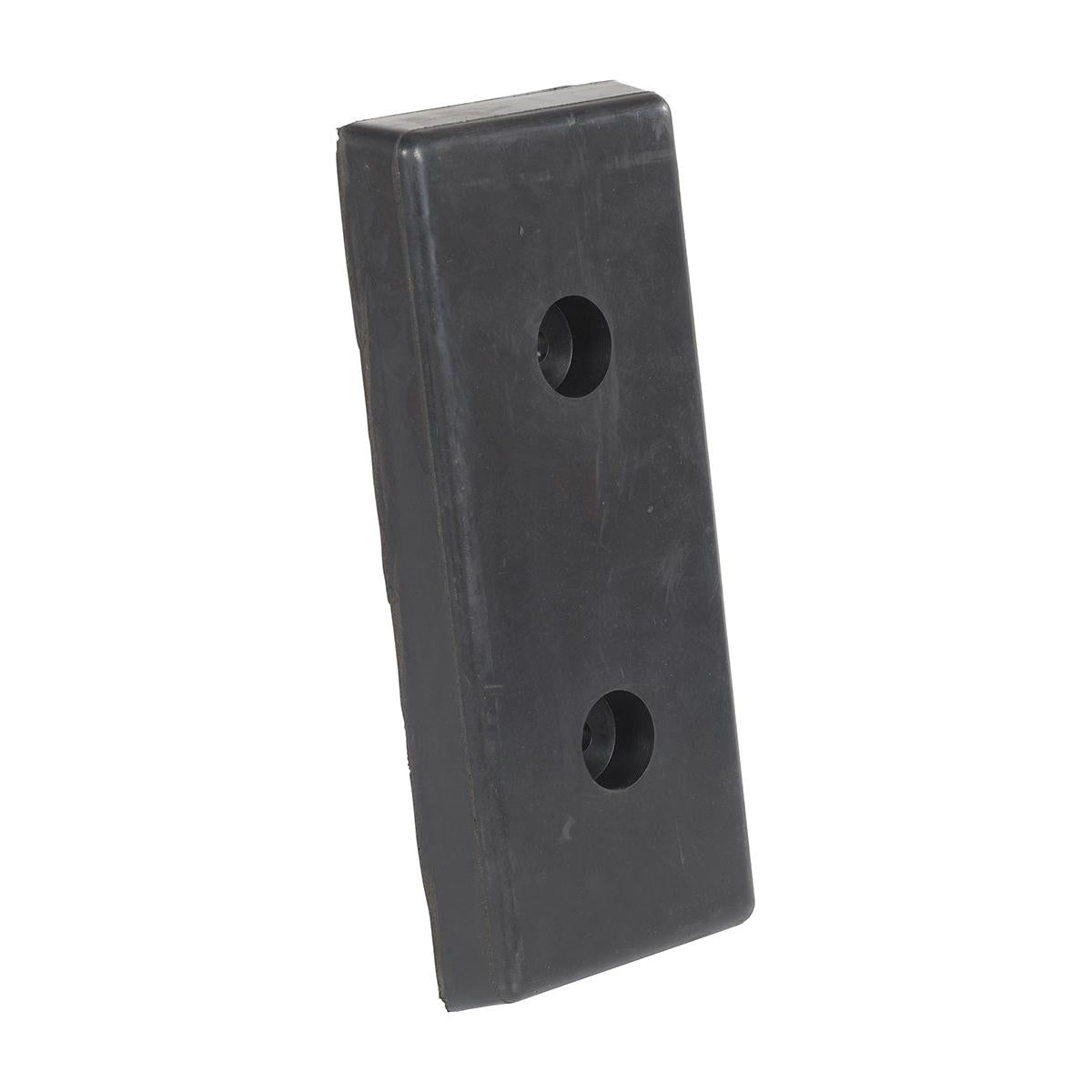

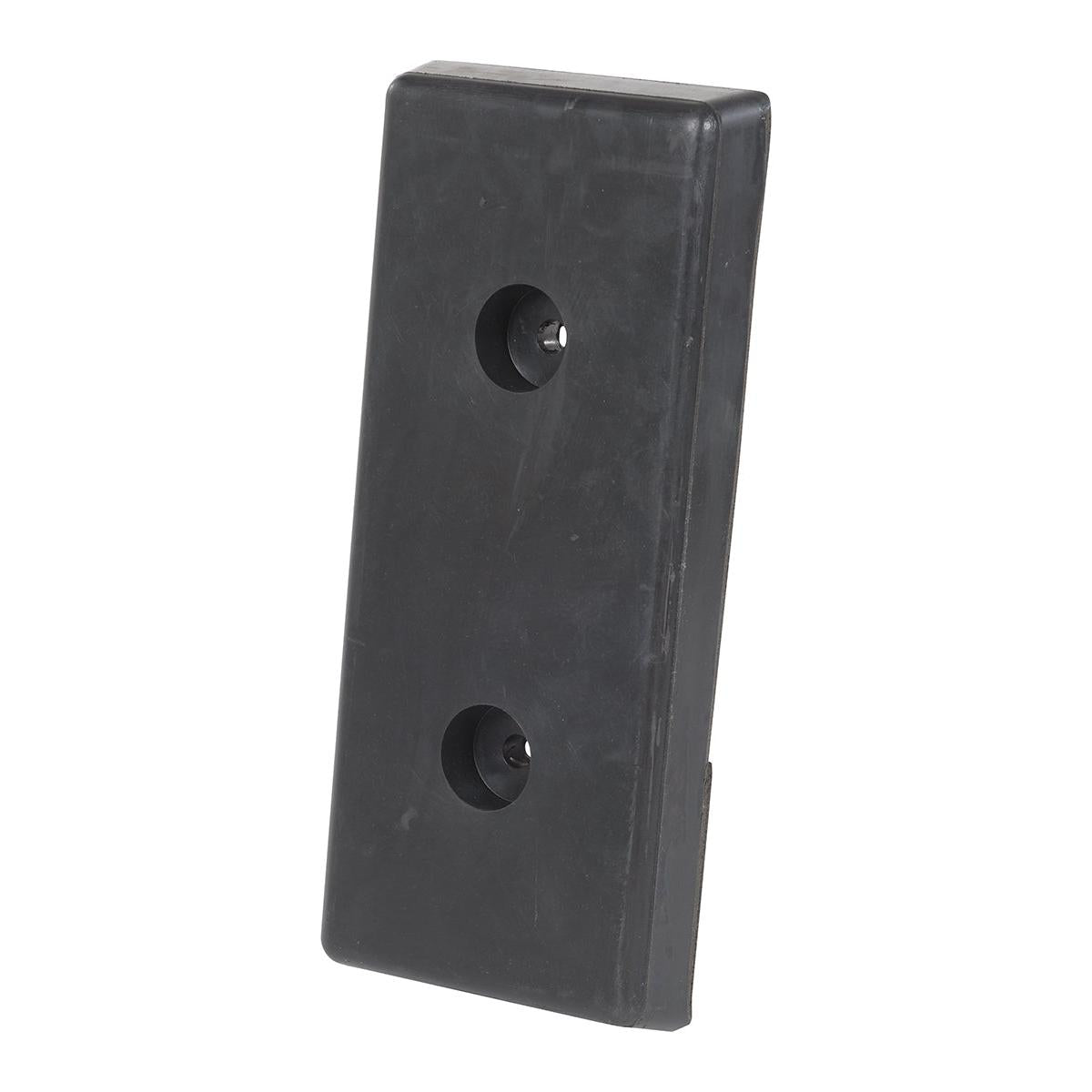

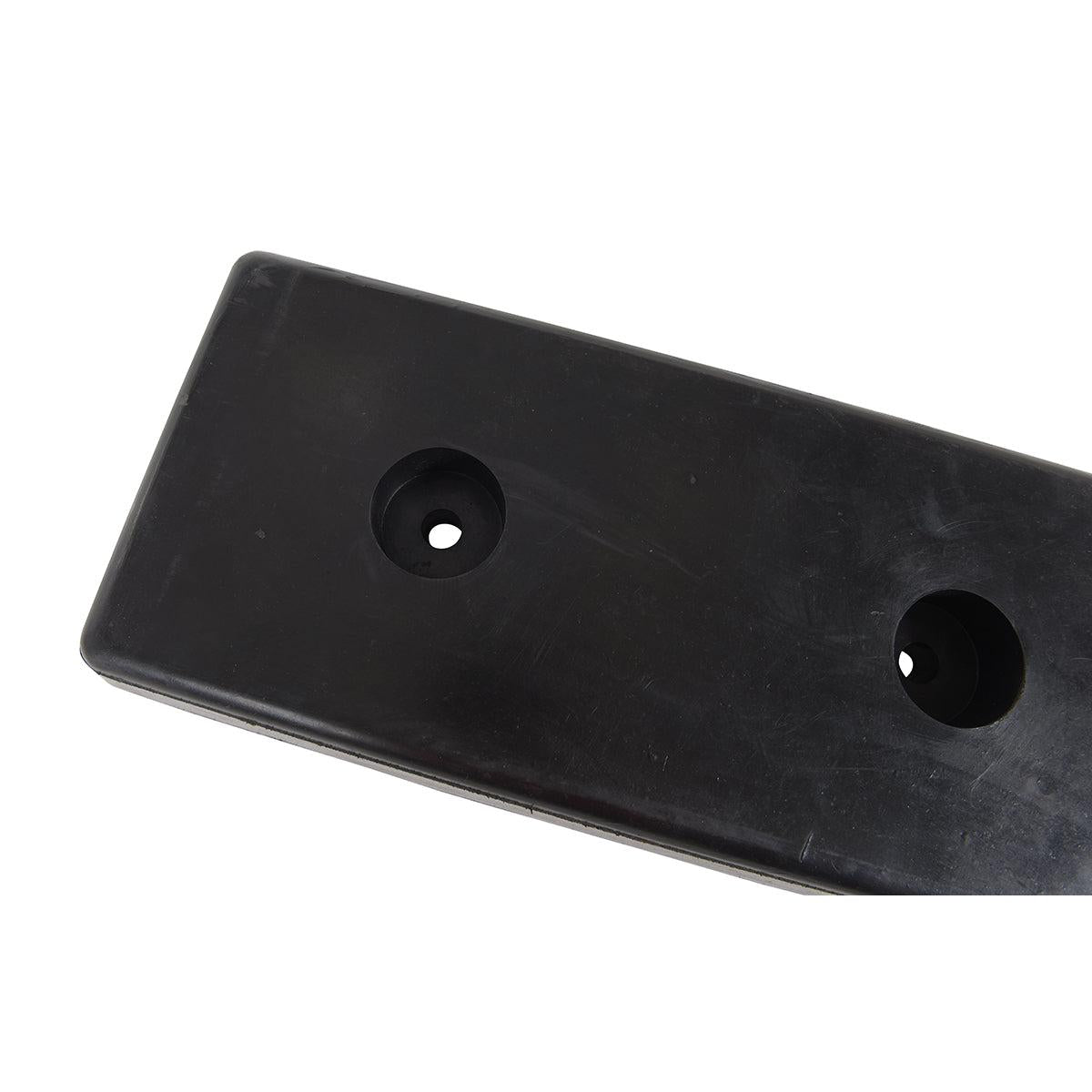

- Complete Kit: Comes with bumpers and installation hardware for straightforward setup.
Technical Specifications:
- Weight Capacity (lbs): 25,000
- Service Range Above Dock (in): 5
- Service Range Below Dock (in): 5

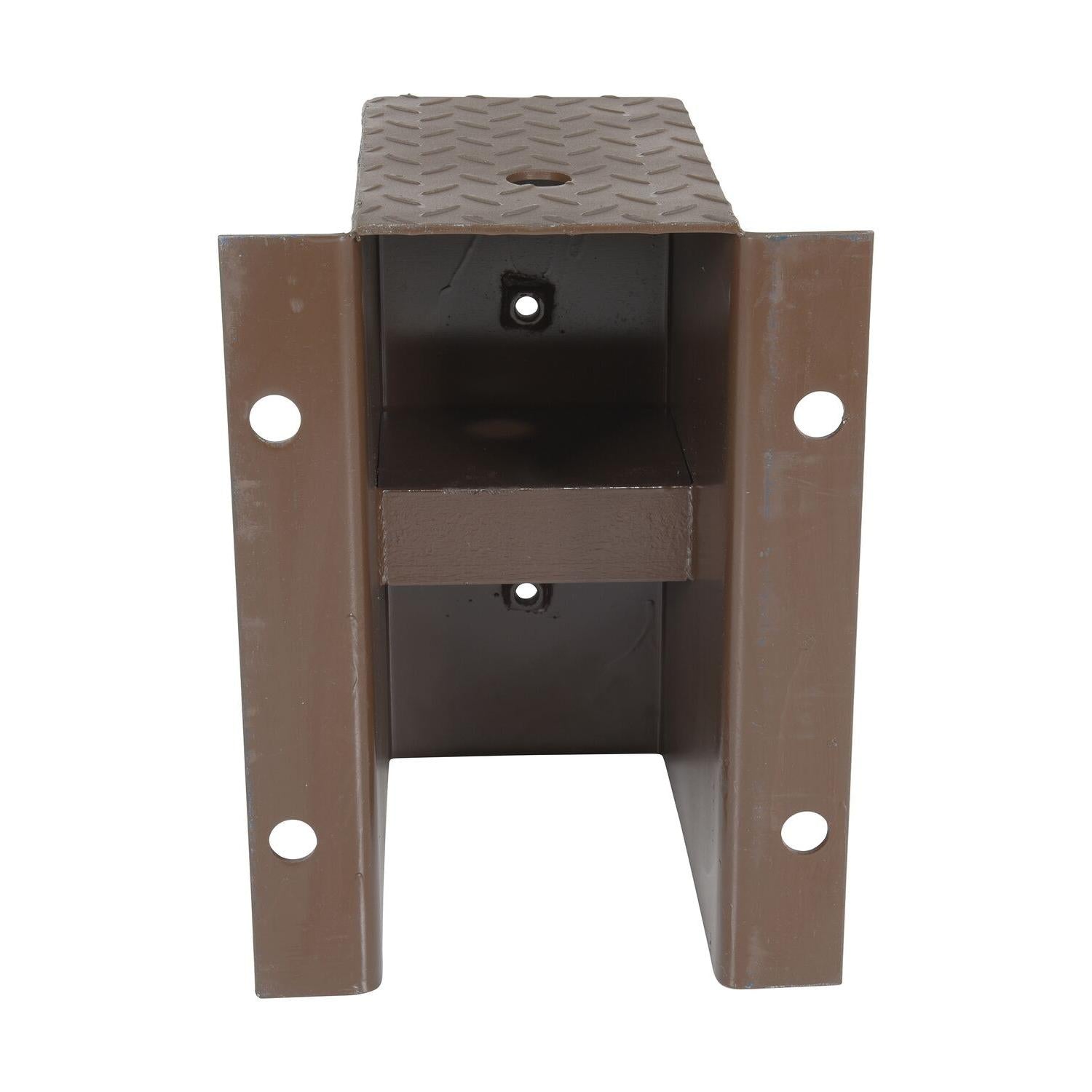

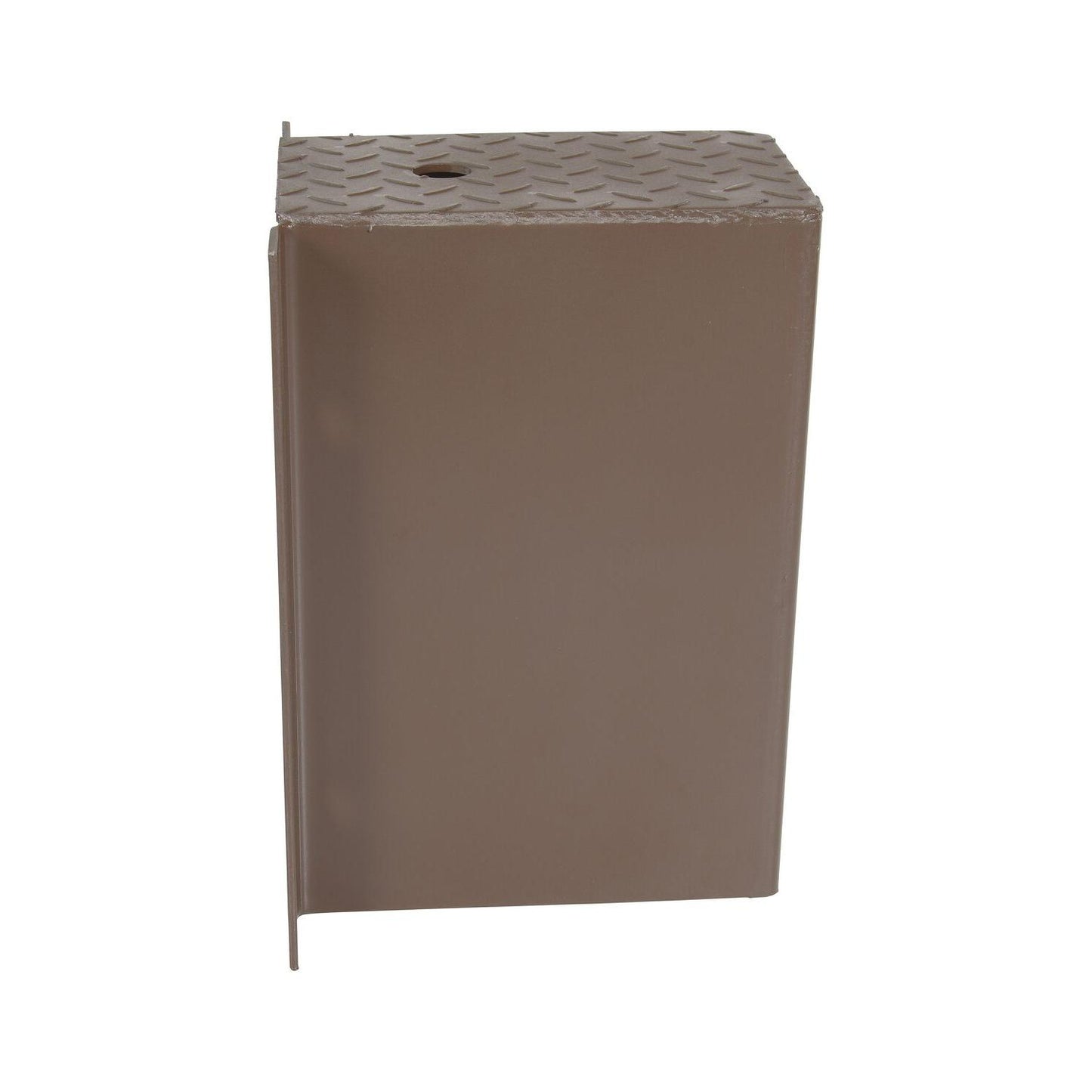

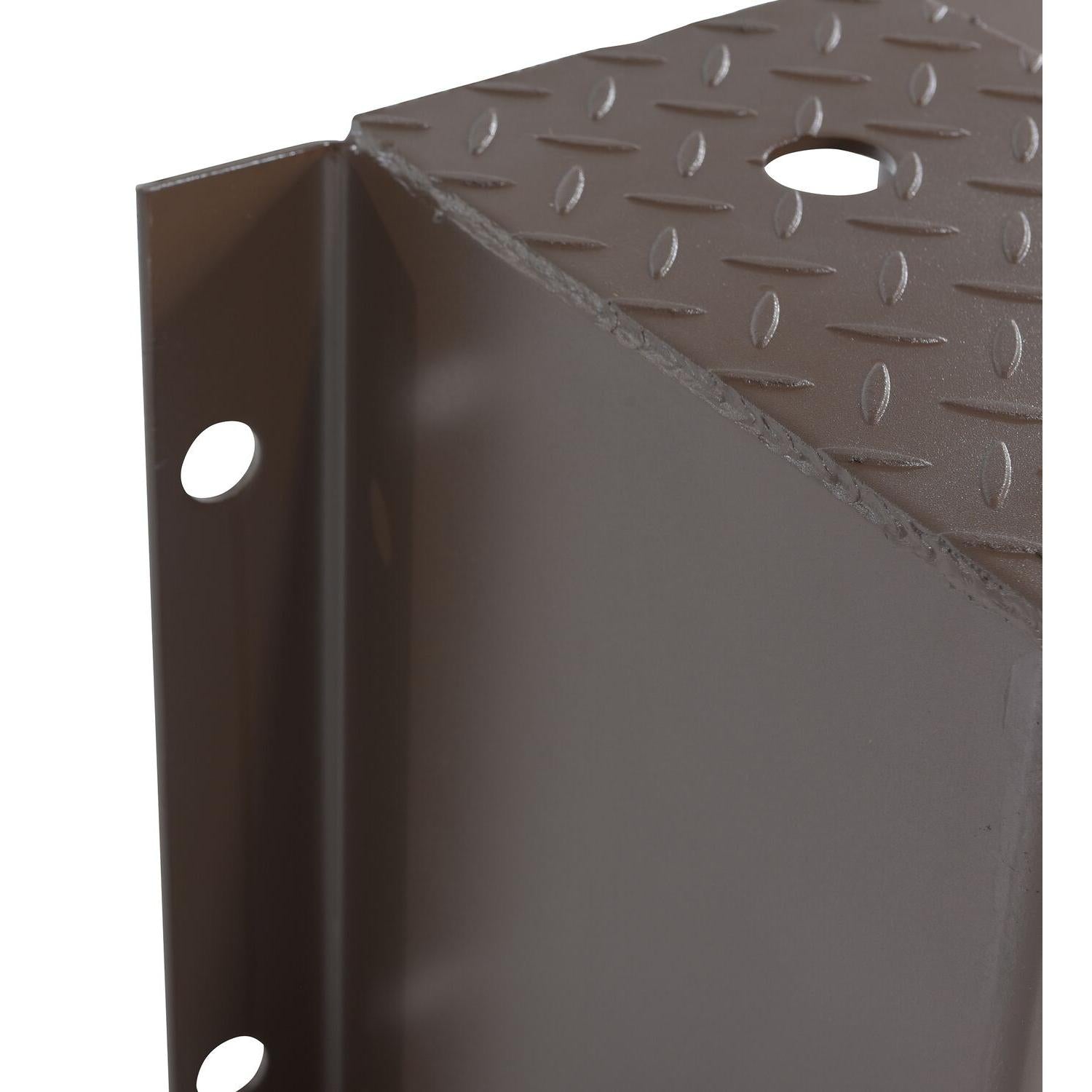

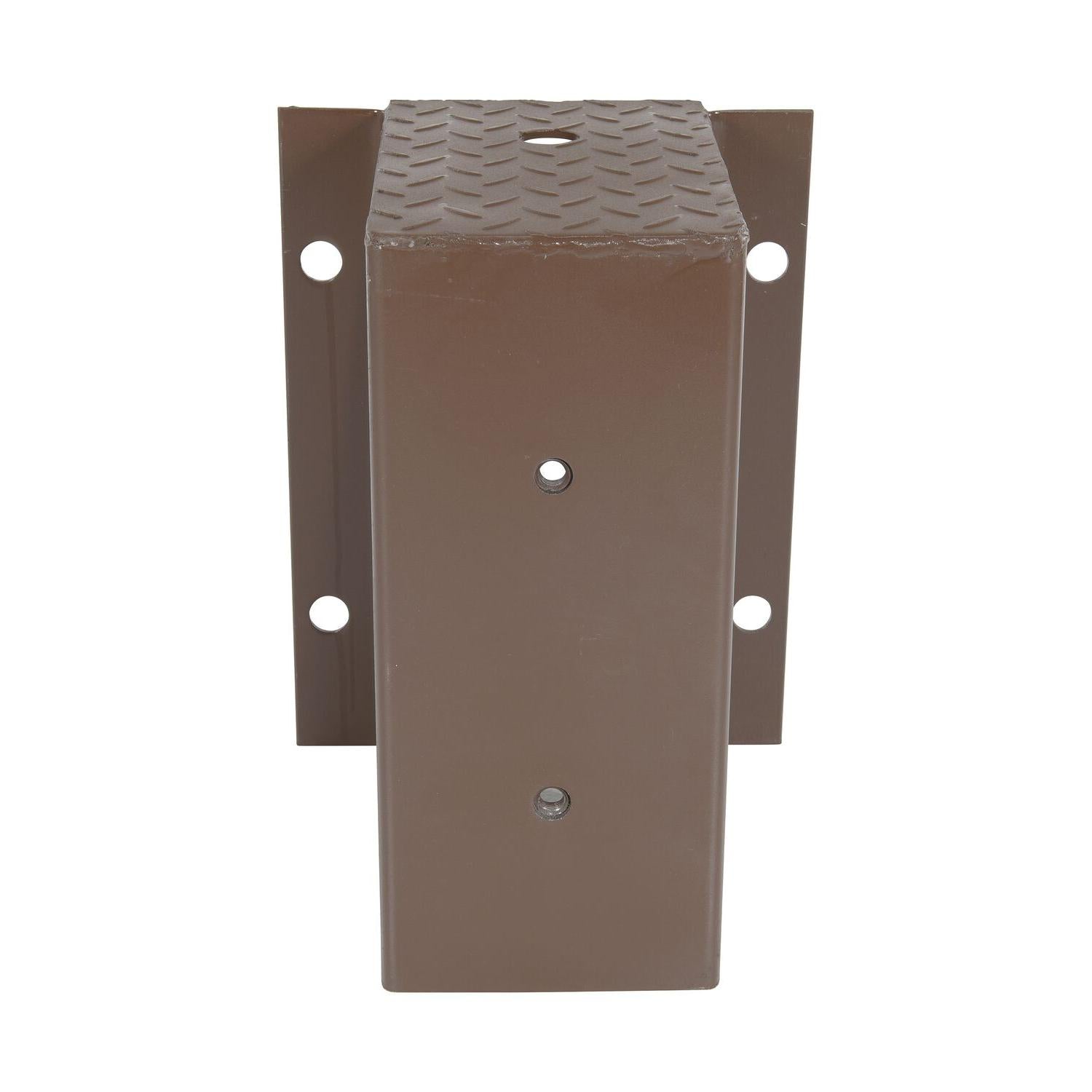

- Bumper Width (in): 8
- Bumper Length (in): 2
- Bumper Height (in): 18
- Platform Length (in): 25
- Platform Thickness (in): 0.375
- Electric Motor Voltage: 115
- Dock Leveler Operating Method: 115 Volt / 1 Phase AC Power Electric
- Material: Steel
- Color Family: Brown
- Installation Hardware Included: Yes
- Installation Method: Comes complete with bumpers and installation instructions
- Approval Drawing Required?: No
- Assembly: Assembly required
- CPO-Prop 65 Warning Required: Yes
- Manufacturer Warranty: 1 Year
| Specification | 66 Inches | 72 Inches | 72 x 36 Inches |
|---|---|---|---|
| Total Ship Weight (lbs) | 619 | 649 | 826 |
| Assembled Width (in) | 93 | 99 | 98 |
| Assembled Depth (in) | 17.5 | 17.5 | 26.75 |
| Assembled Height (in) | 27.5 | 27.5 | 27.5 |
| Assembled Weight (lbs) | 558 | 590 | 738 |
| Overall Width (in) | 93 | 99 | 98 |
| Overall Length (ft) | 2.42 | 2.42 | 3.05 |
| Ramp Width (in) | 66 | 72 | 72 |
| Ramping Length (in) | 29 | 29 | 36-5/8 |
| Dock Leveler Lip Projection (in) | 11.5 | 11.5 | 9.875 |
| Bumper Projection (in) | 17.5 | 17.5 | 26.75 |
| Platform Width (in) | 66 | 72 | 72 |
| UPC | 691215029513 | 691215029520 | 691215029537 |
| GTIN | 00691215029513 | 00691215029520 | 00691215029537 |
Discover the Edge-O-Dock Levelers complete collection:
- Steel Electric Edge-O-Dock Leveler – 15,000 lb. Capacity, 26-3/4 In. x 98 In. x 27-1/2 In.
- Steel Electric Edge-O-Dock Levelers – 20,000 lb Capacity
- Steel Electric Edge-O-Dock Levelers – 25,000 lb. Capacity
- Steel Electric Edge-O-Dock Levelers – 30,000 lb. Capacity (17-1/2 In. Height)
Made in USA
