Steel Electric Edge-O-Dock Levelers – 20,000 lb Capacity
Steel Electric Edge-O-Dock Levelers – 20,000 lb Capacity
SKU:VES-PE-2066
- Call or Email us for large QTY, corporate, or government quotes
Couldn't load pickup availability

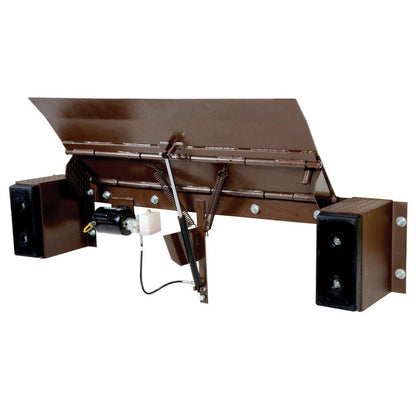

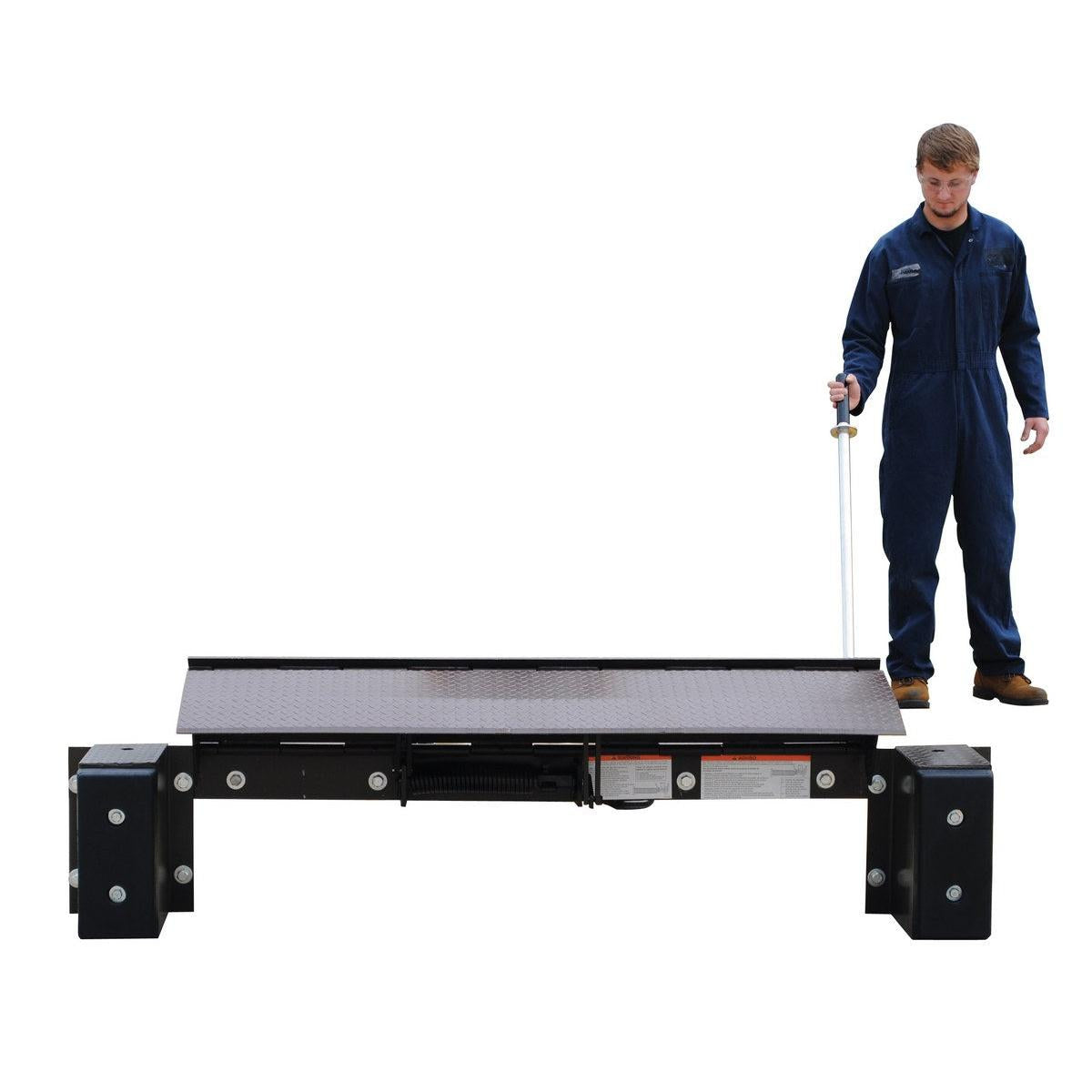

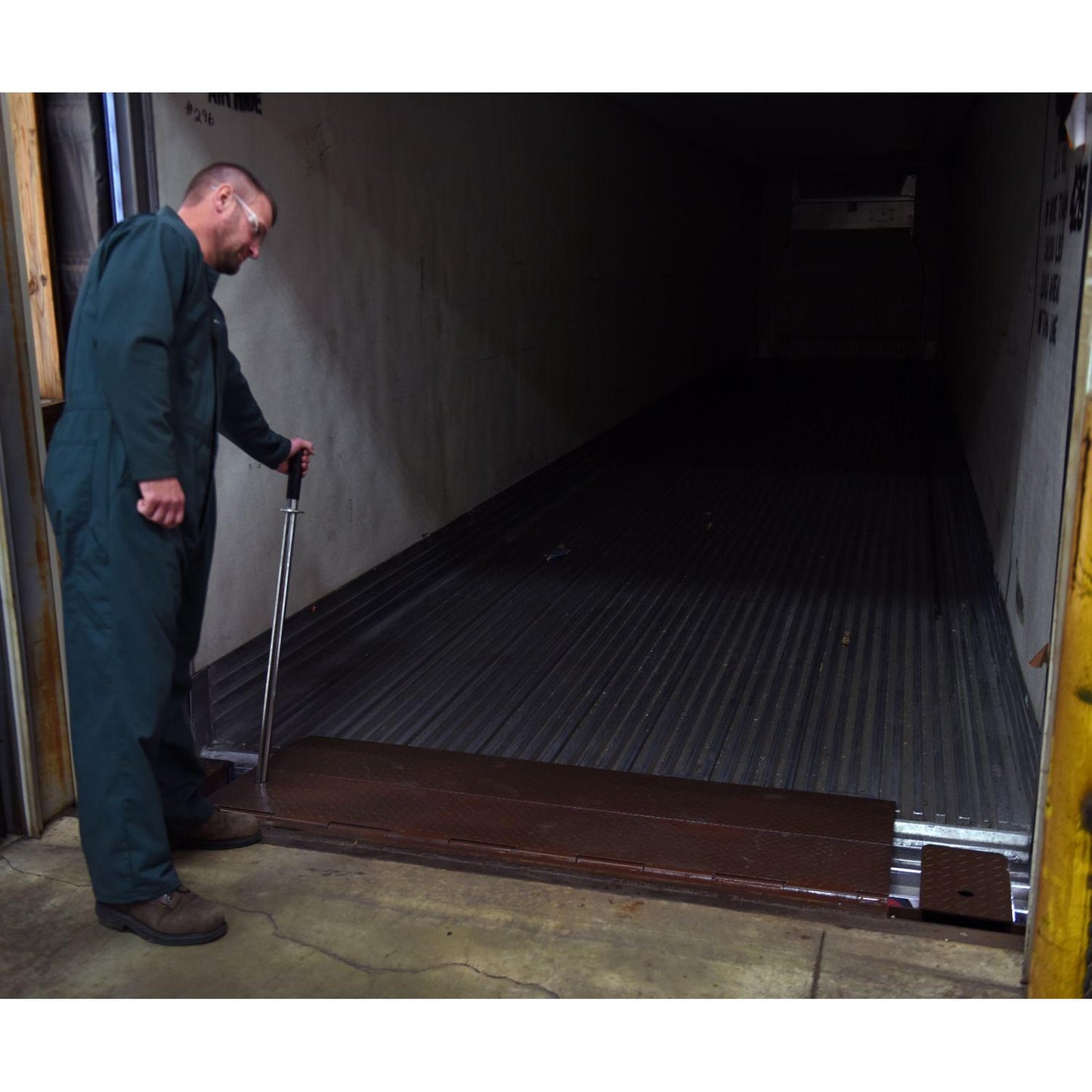

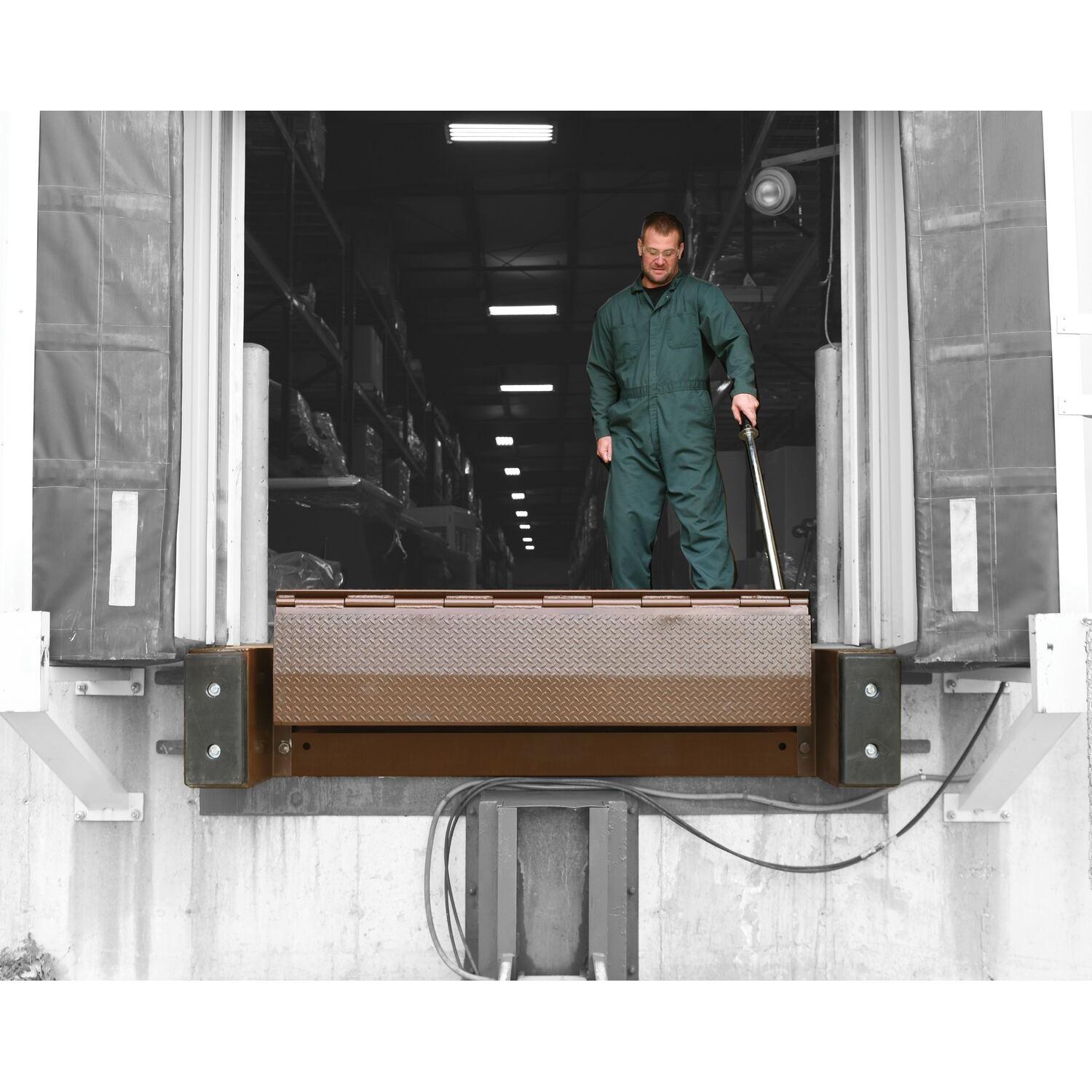

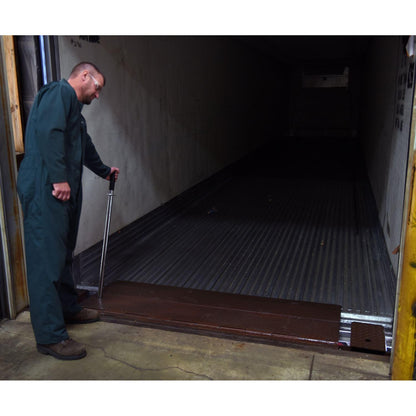

The Steel Electric Edge-O-Dock Leveler is a reliable and efficient solution for streamlining loading and unloading operations at facilities with a dock height of at least 48 inches. Permanently mounted to the dock face, this hydraulic leveler bridges the gap between the dock and trailer bed, ensuring smooth transition for forklifts and other material-handling equipment.

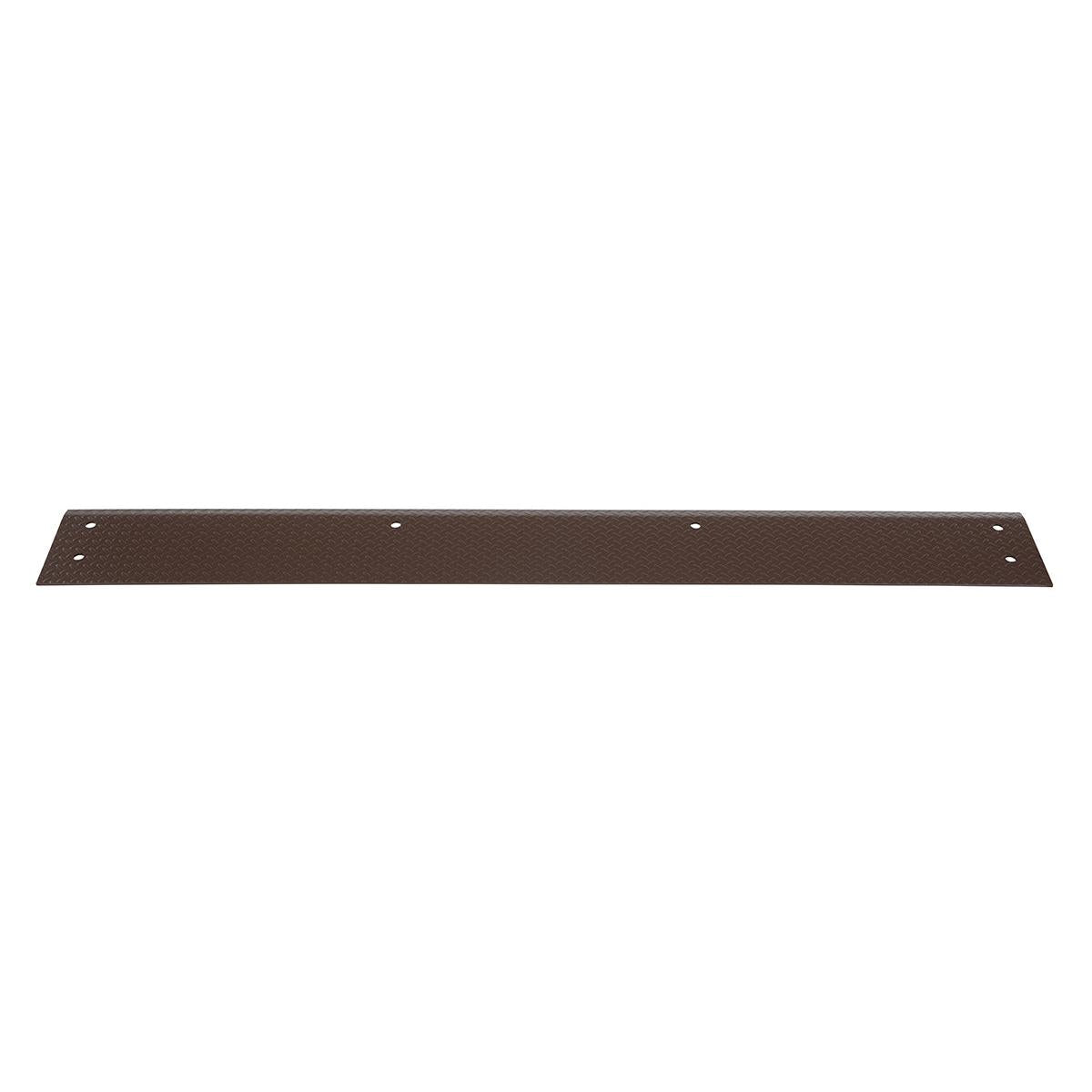

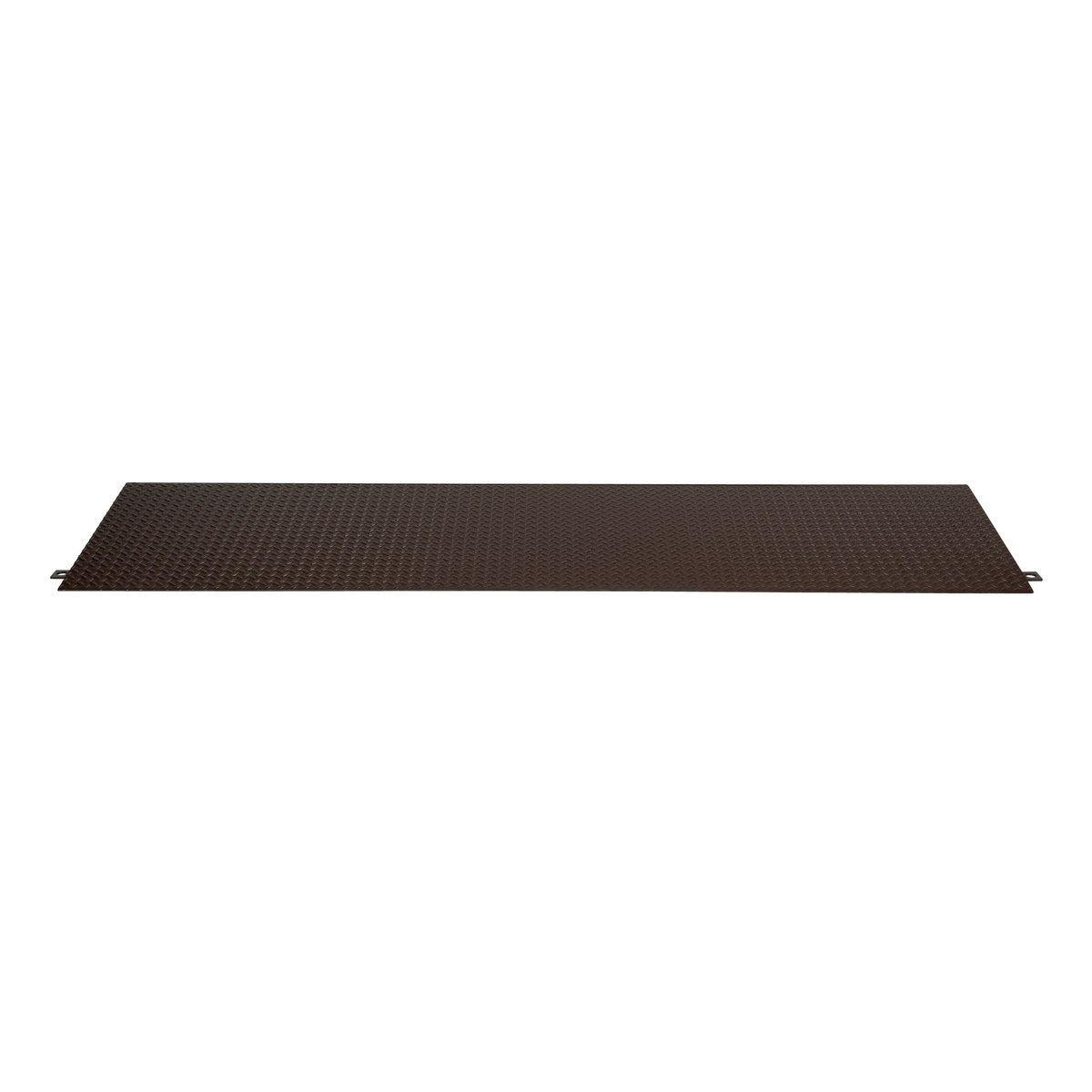

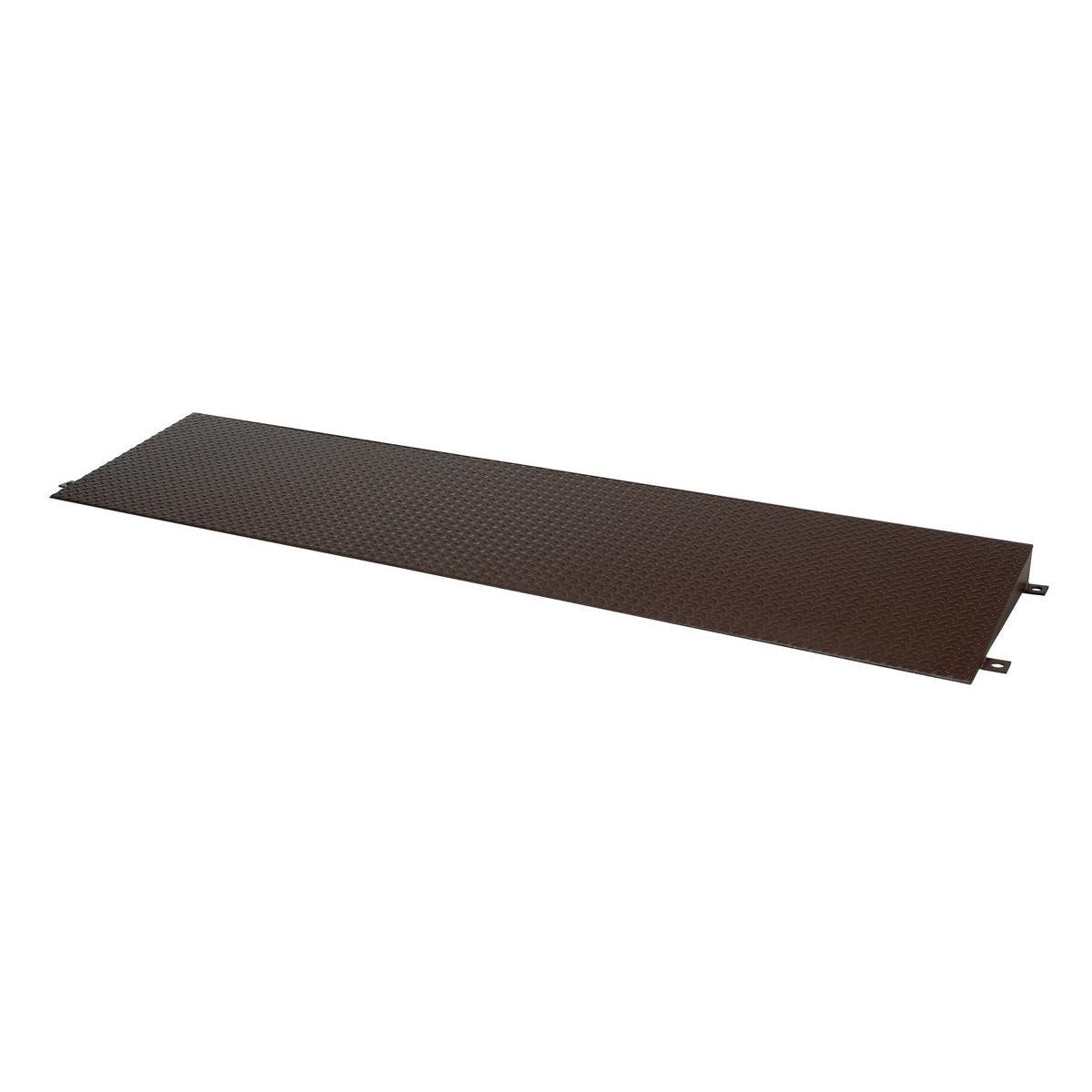

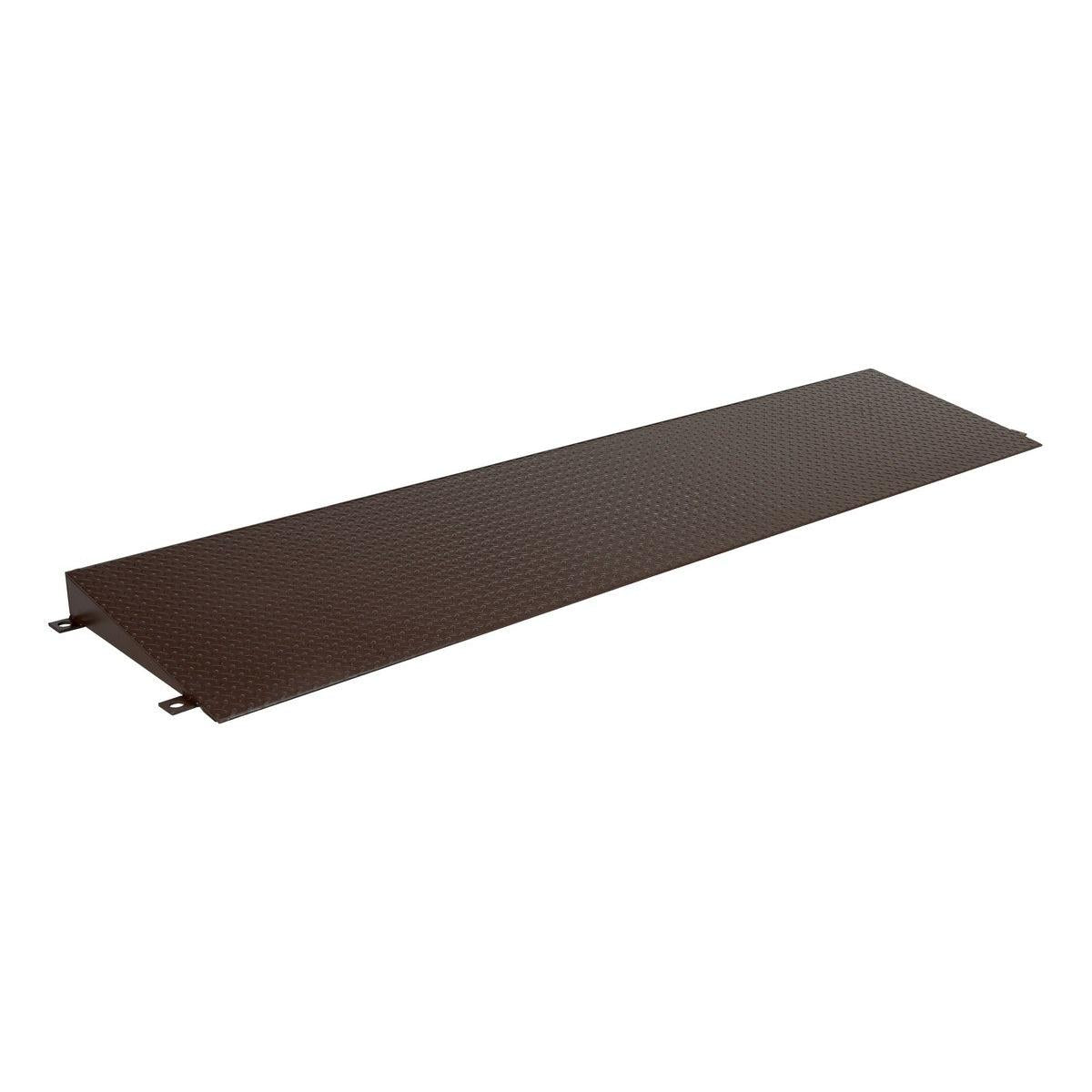

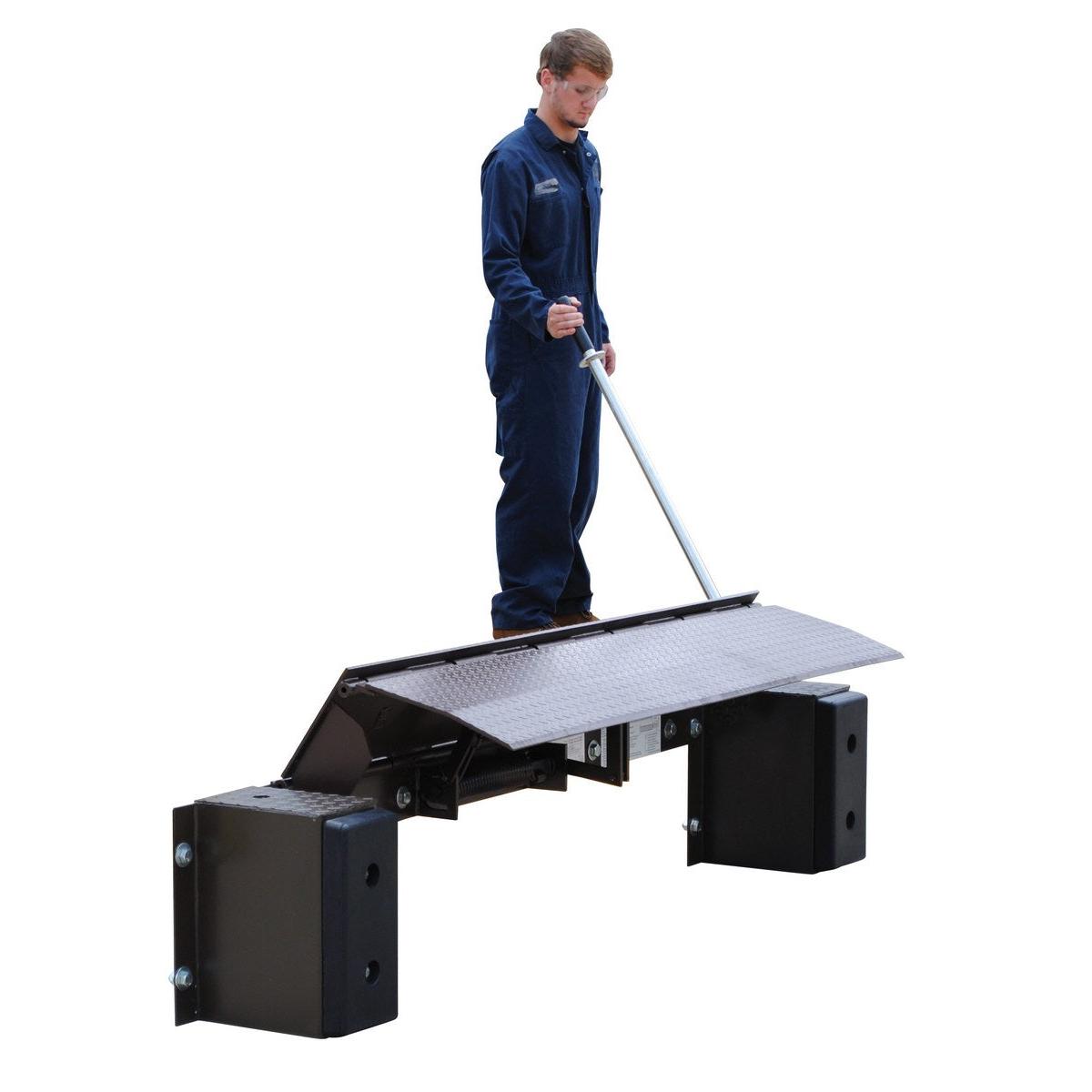

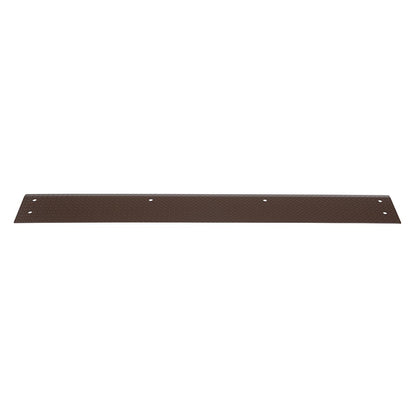

Designed for facilities prioritizing safety and efficiency, the electric Edge-O-Dock Leveler is activated via a push-button control system. Once the truck is in position, the leveler raises automatically, extends the lip, and settles smoothly onto the trailer bed. When the trailer departs, the lip retracts behind the dock bumpers for secure storage. Each unit includes bumpers, motor, pump, cylinder, control box, hydraulic lines, oil, and full installation instructions. A steel dock edge or approach ramp is required for proper installation.
Features & Benefits
- Permanent Mounting: Designed to attach directly to the dock face for long-term, low-maintenance operation.
- Electric Operation: Push-button control simplifies use and increases operator safety.
- Complete Hydraulic System: Includes all required components—motor, pump, cylinder, control box, lines, and oil.

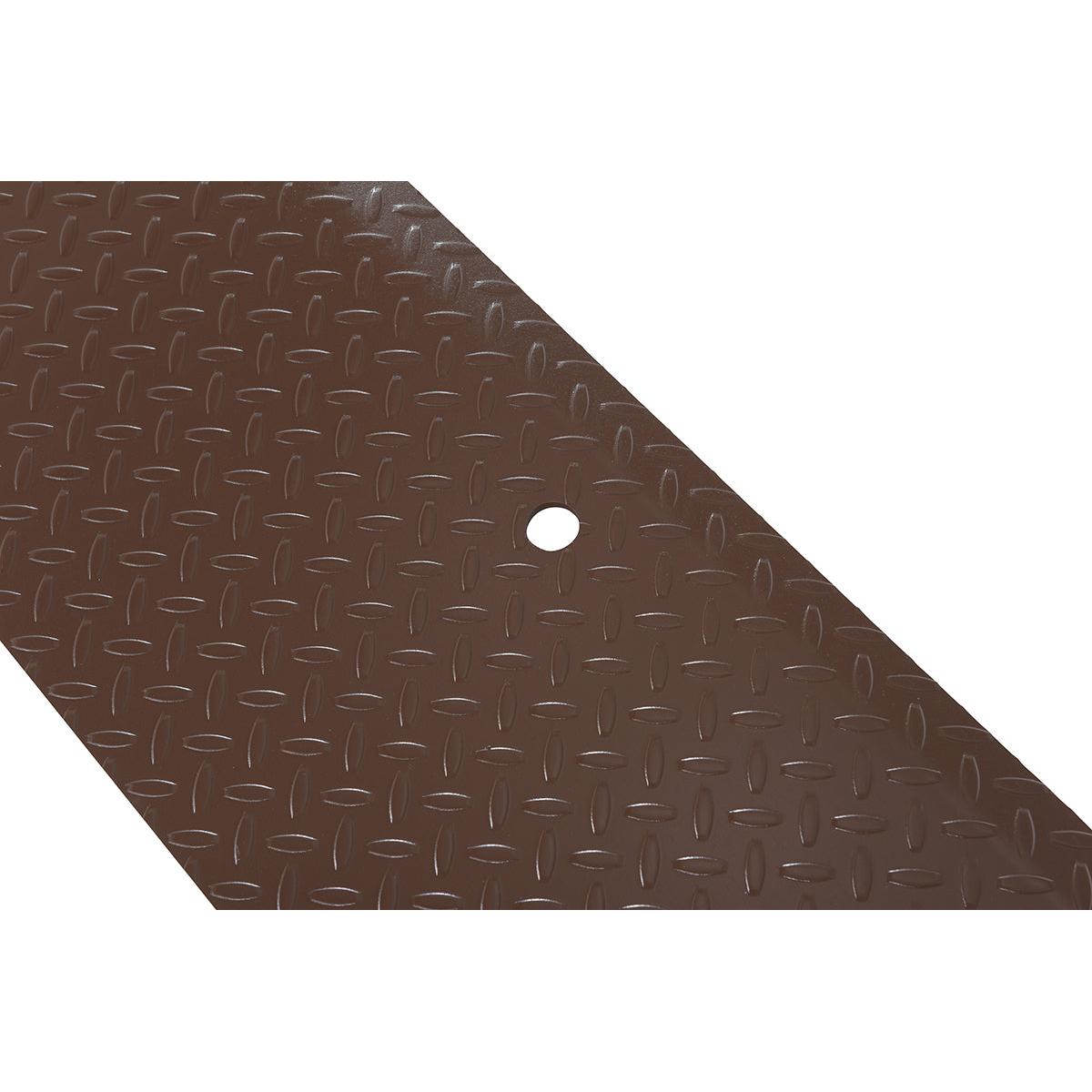

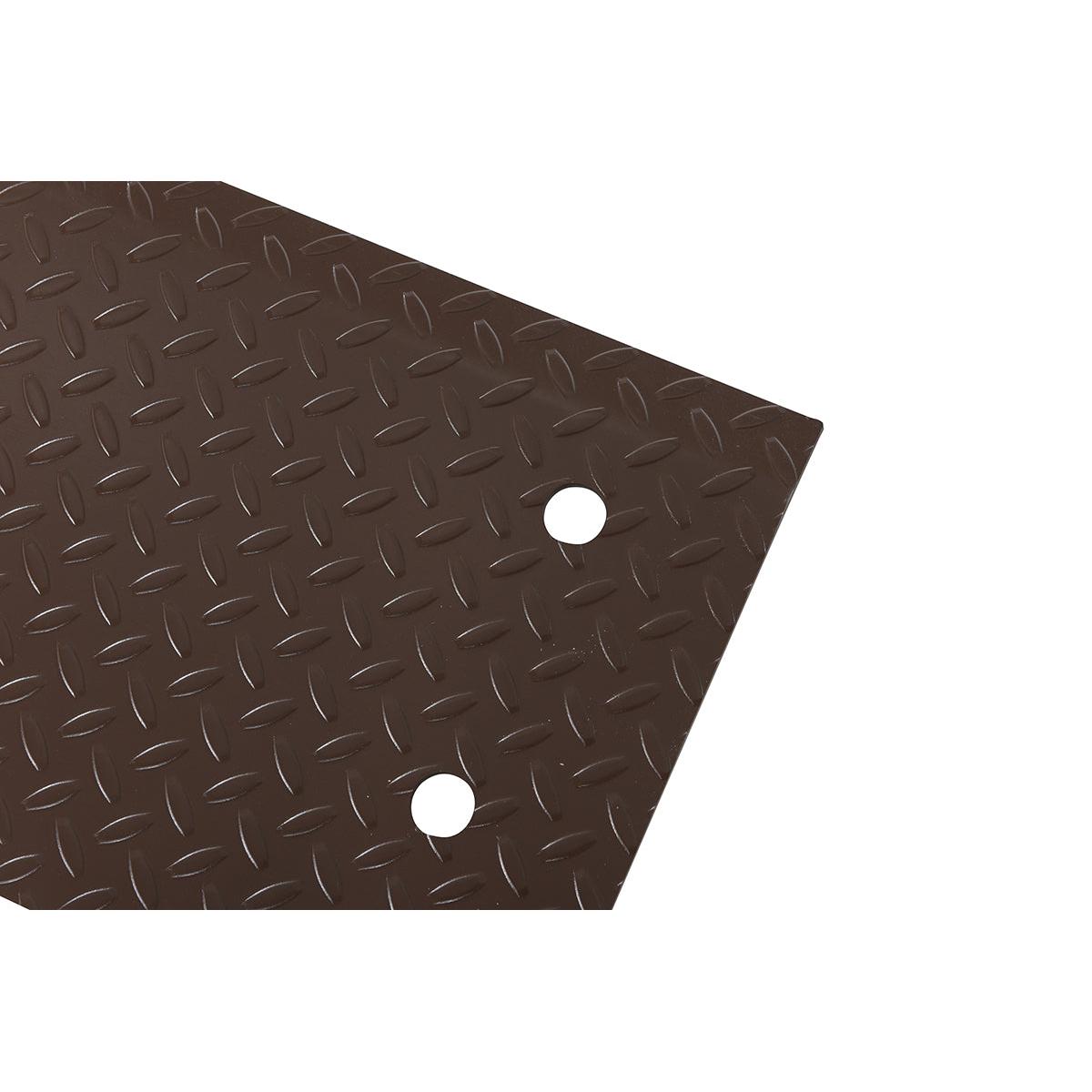

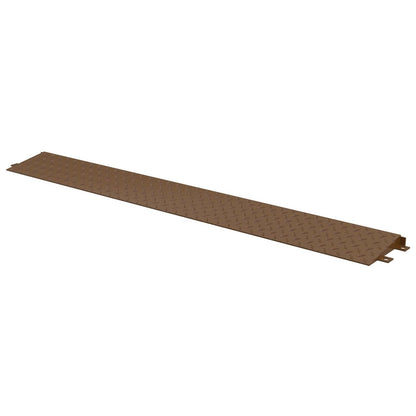

- Non-Slip Surface: Tread plate construction enhances traction in all conditions.
- No Concrete Recess Needed: Streamlines installation compared to traditional pit-style levelers.
- Durable Build: Heavy-duty steel frame ensures high weight capacity and long service life.
- Space-Efficient Design: Compact form factor ideal for docks with limited space.
-

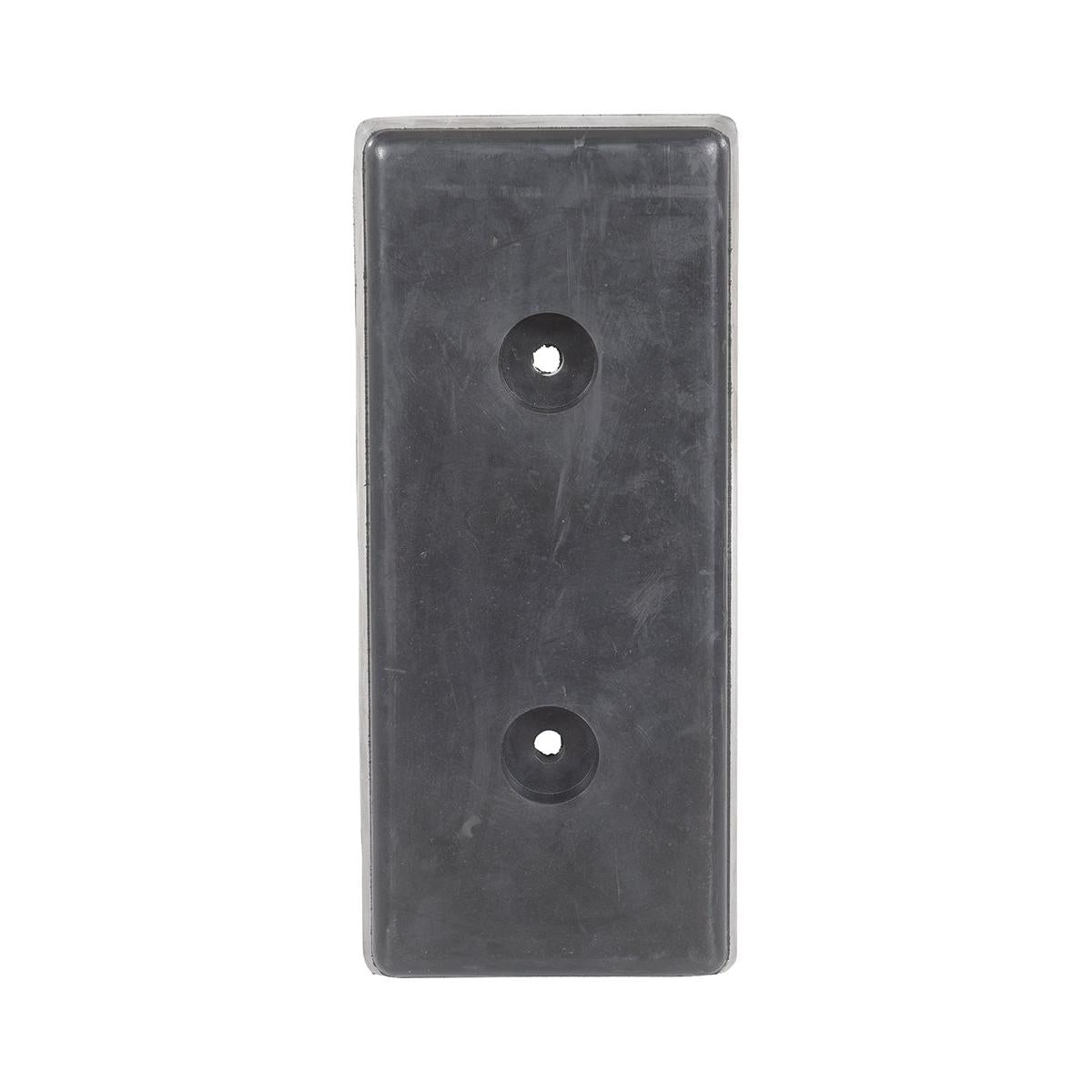

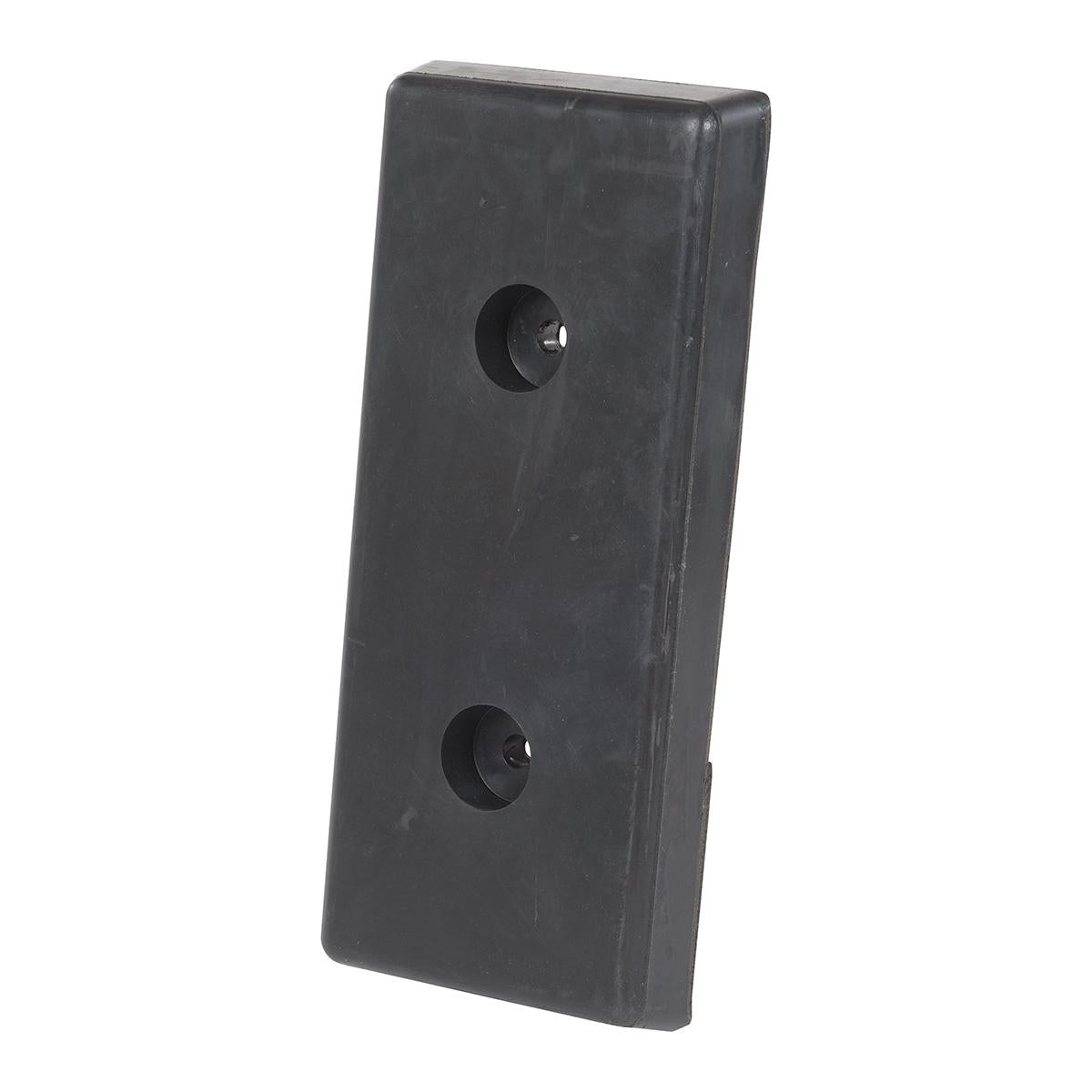

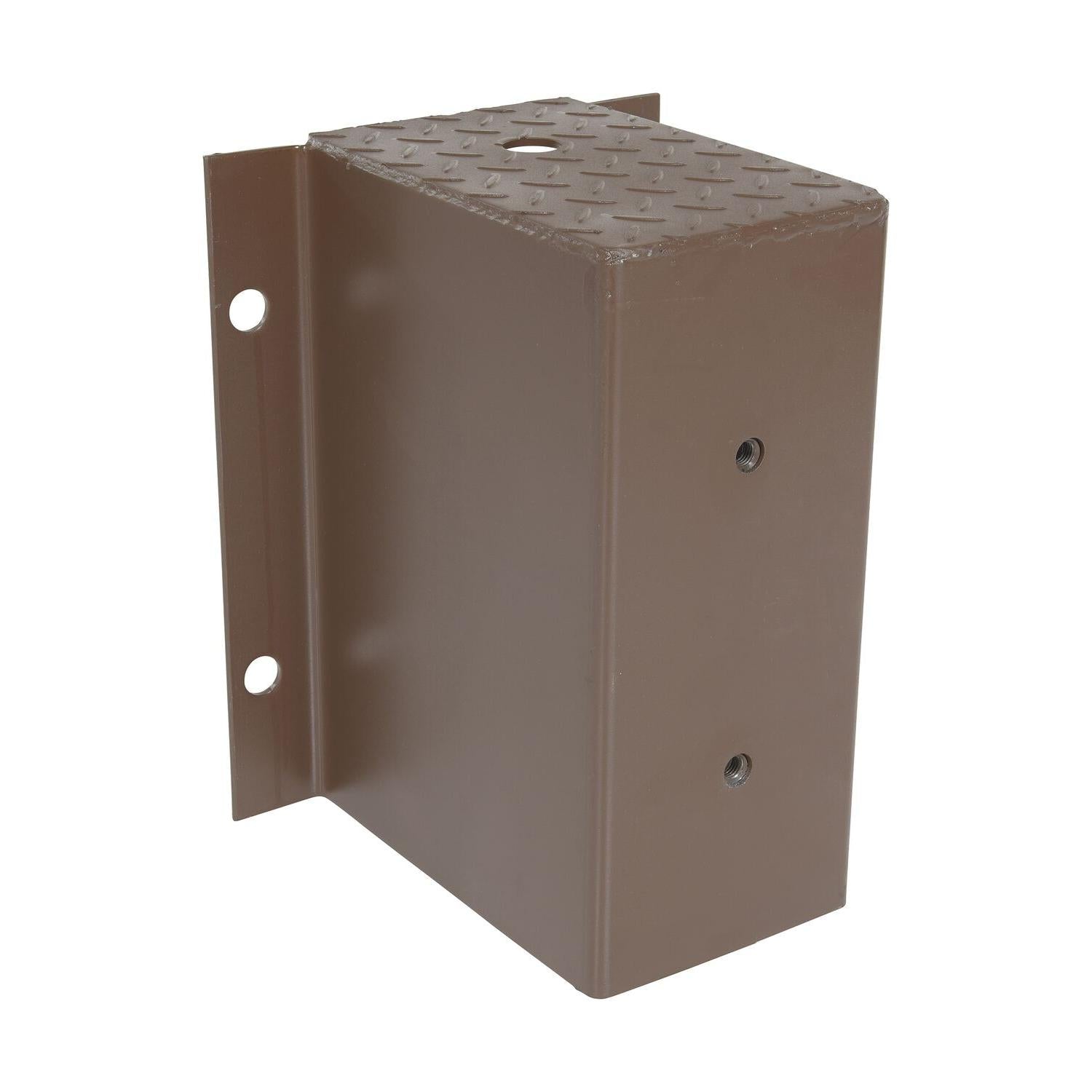

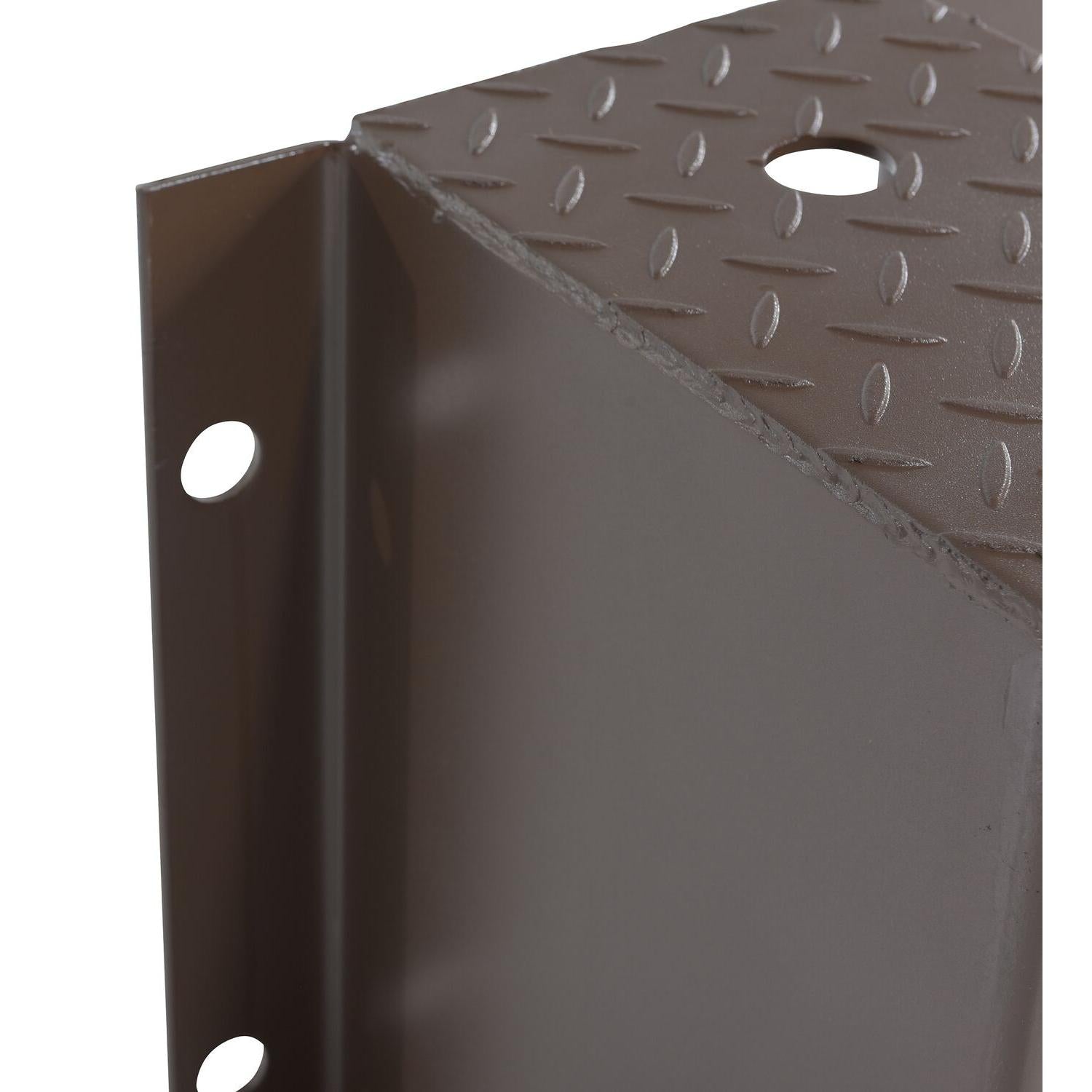

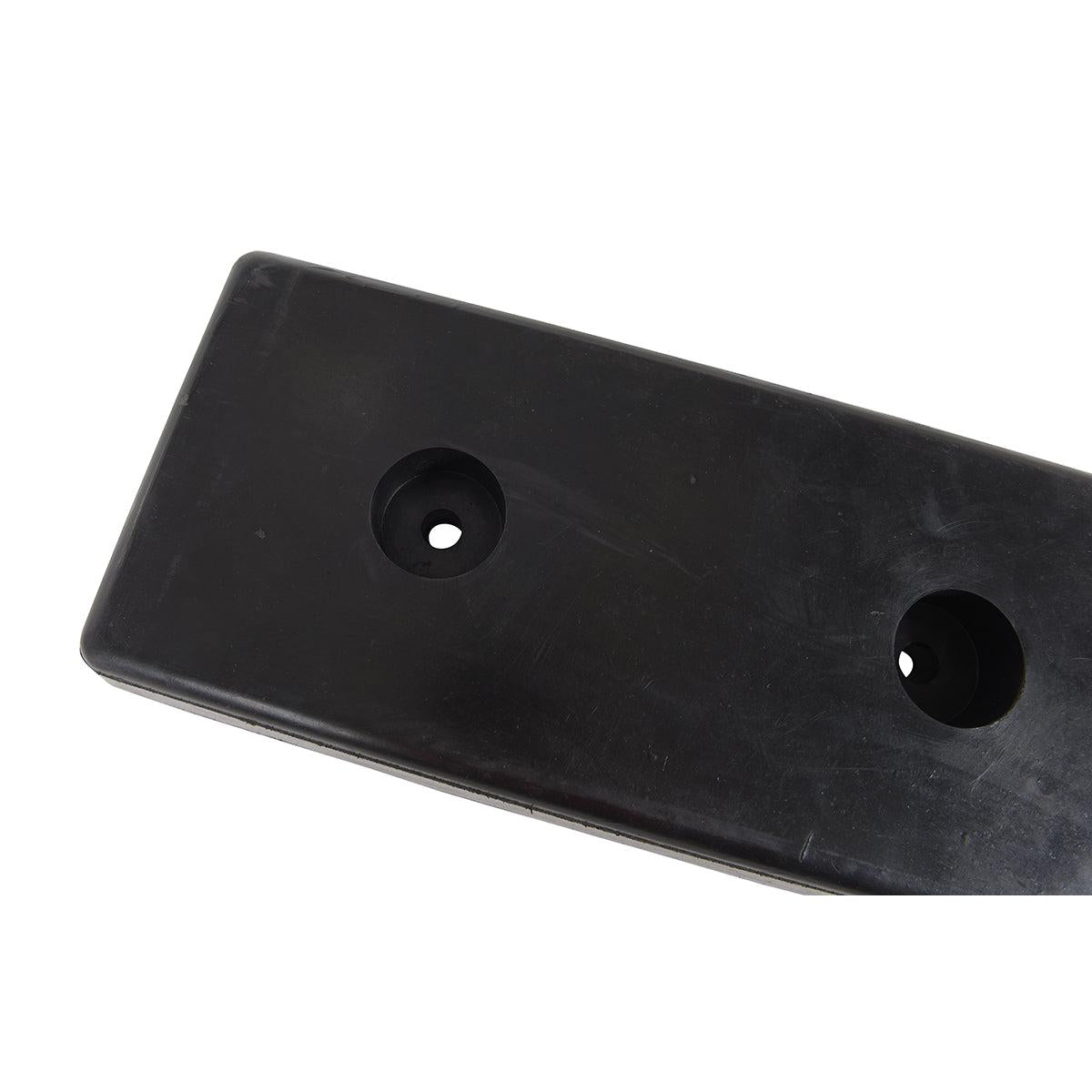

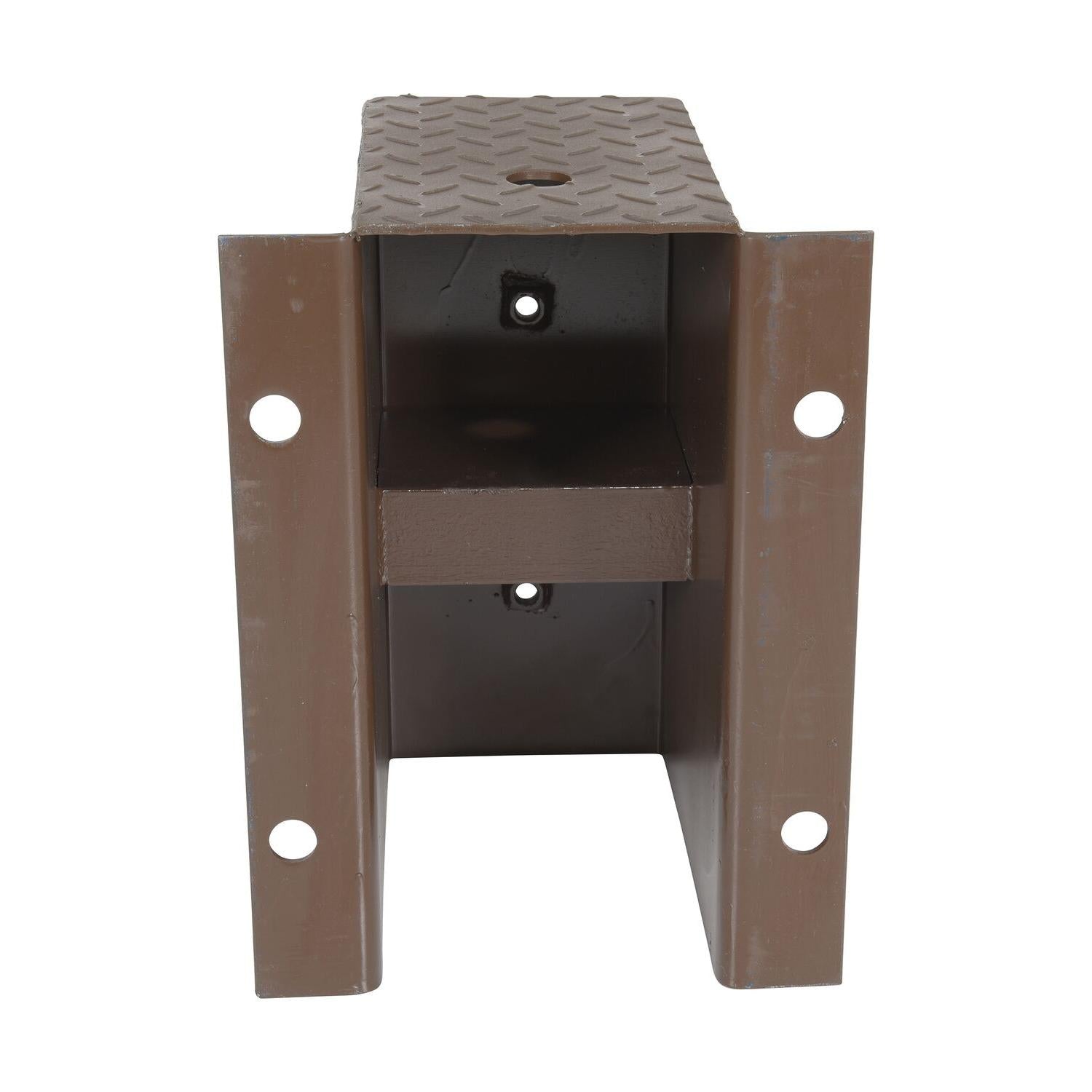

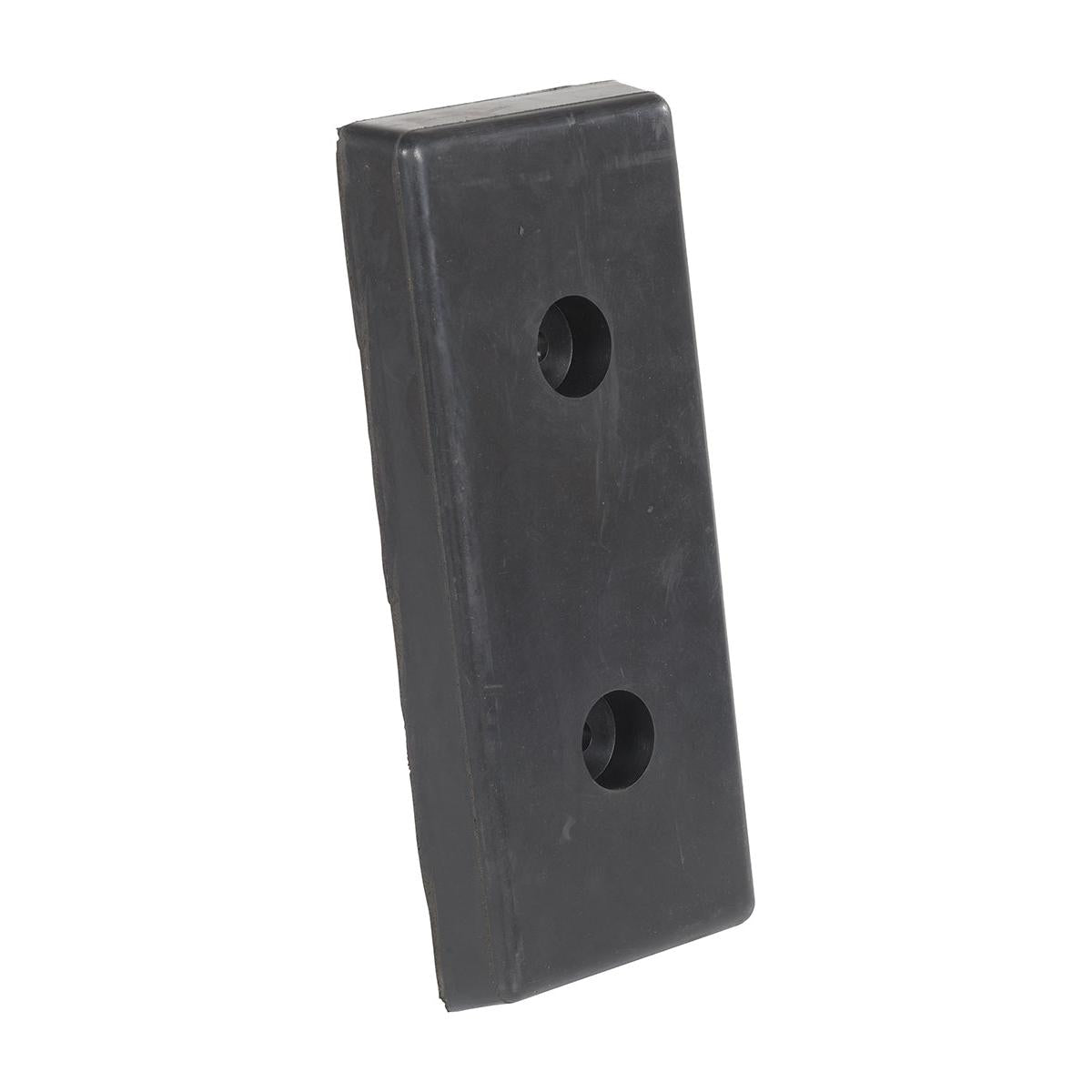

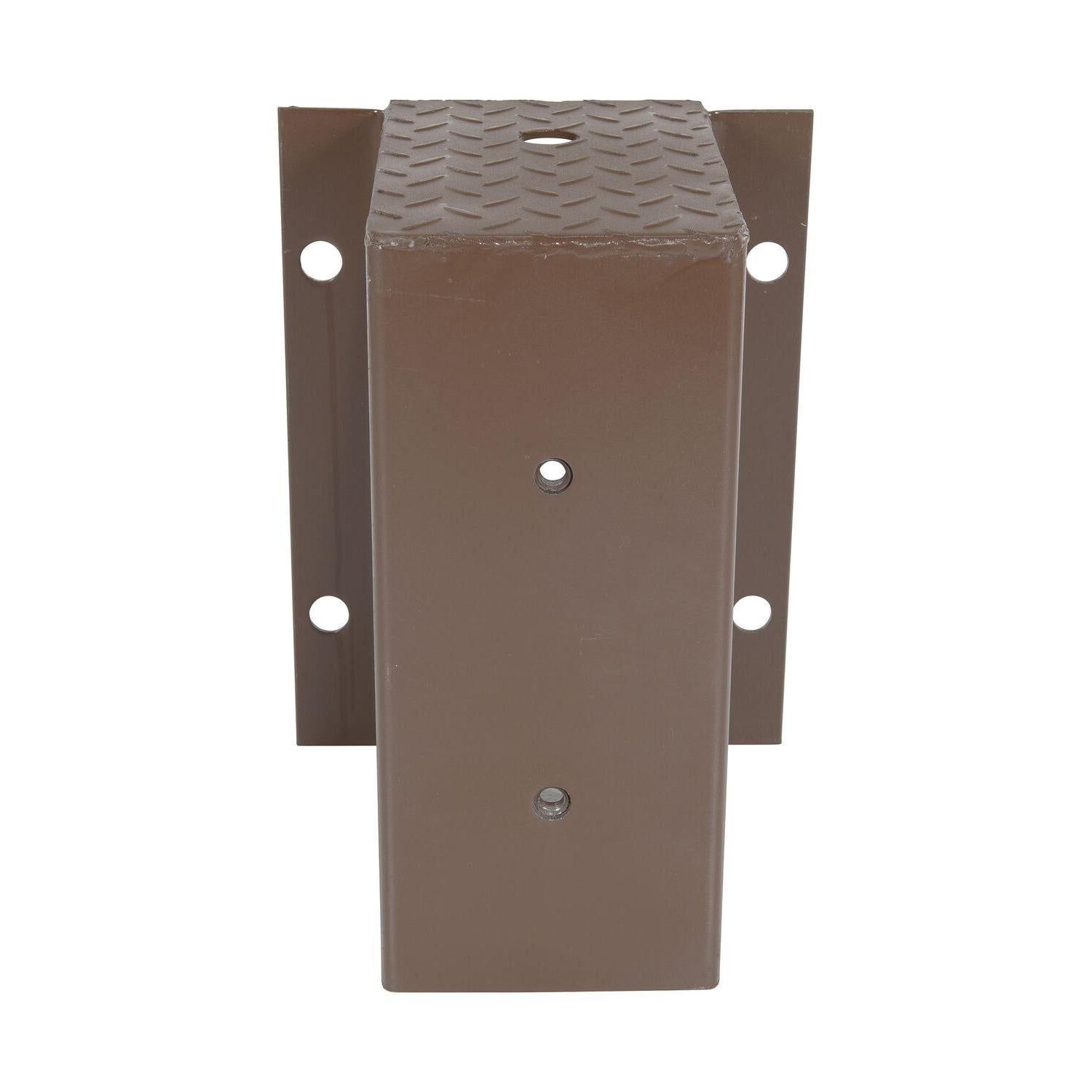

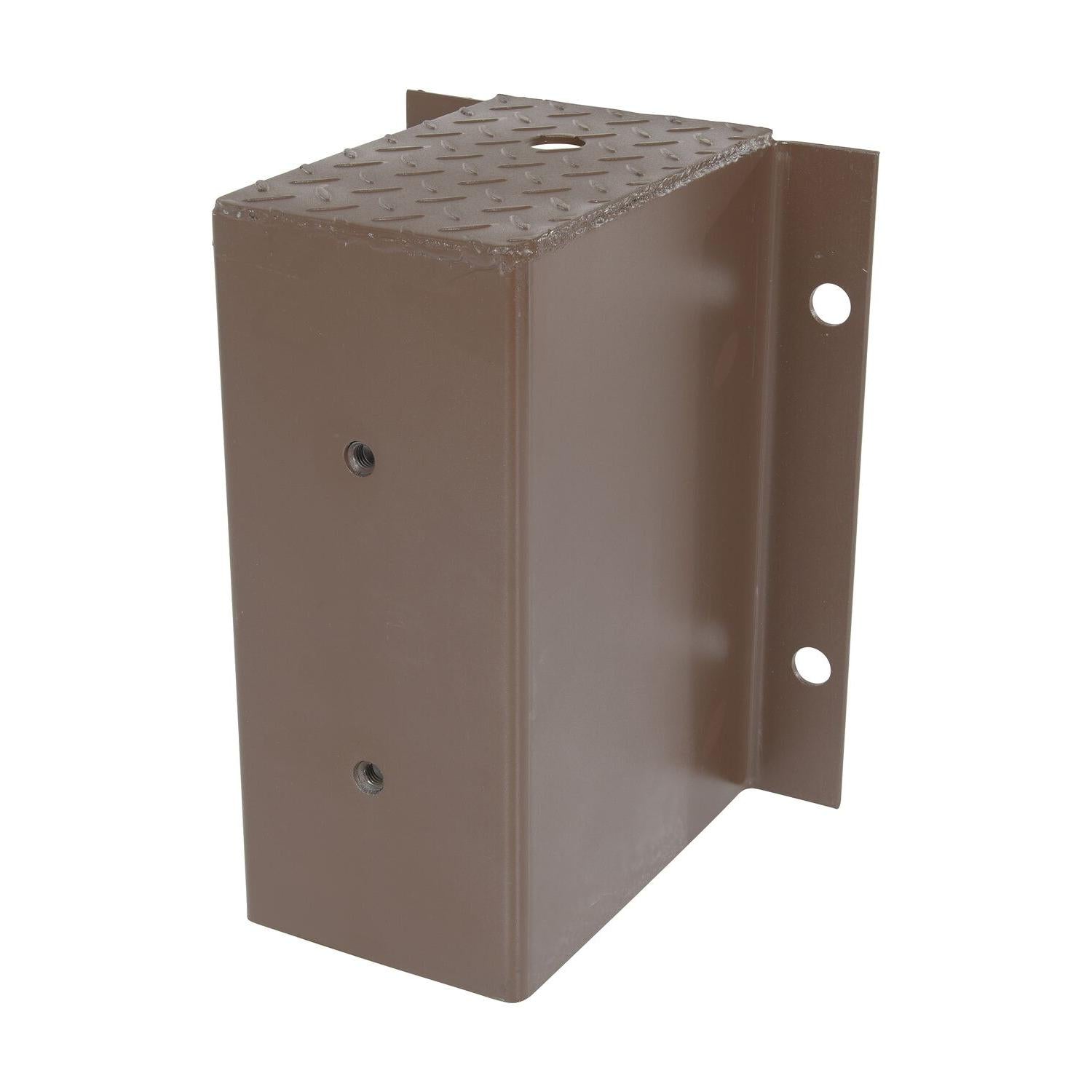

Includes Dock Bumpers: Protects the dock face and equipment during trailer contact.
Technical Specifications:
- Uniform Capacity (lb.): 20,000
- Service Range Above Dock (in.): 5
- Service Range Below Dock (in.): 5
- Bumper Width (in.): 8
- Bumper Length (in.): 2
- Bumper Height (in.): 18
- Bumper Projection (in.): 17.5
- Dock Leveler Lip Projection (in.): 11.5
- Ramping Length (in.): 29
- Platform Length (in.): 20
- Platform Thickness (in.): 0.375
- Material: Steel
- Color / Finish: Brown
- Electric Motor Voltage: 115
- AC Voltage/Phase: 115/1
- Assembly: Assembly required
- Dock Leveler Operating Method: 115 Volt/1 Phase AC Power Electric
- Installation Method: Edge-O-Dock Leveler comes complete with bumpers and Installation Instructions
- Installation Hardware Included: Yes
- Manufacturer Warranty: 1 Year
- Approval Drawing Required?: No
- CPO-Prop 65 Warning Required: Yes
| Specification | 93" Model | 99" Model | 105" Model |
|---|---|---|---|
| Total Ship Weight (lbs) | 581 | 601 | 567 |
| Size (W x L x H) | 93" x 17.5" x 27.5" | 99" x 17.5" x 27.5" | 105" x 17.5" x 27.5" |
| Ramp Width (in.) | 66 | 72 | 78 |
| Assembled Width (in.) | 93 | 99 | 105 |
| Assembled Weight (lbs) | 490 | 517 | 547 |
| Overall Width (in.) | 93 | 99 | 105 |
| Platform Width (in.) | 66 | 72 | 78 |
| UPC | 691215029490 | 691215029506 | 691215336819 |
| GTIN | 00691215029490 | 00691215029506 | 00691215336819 |
