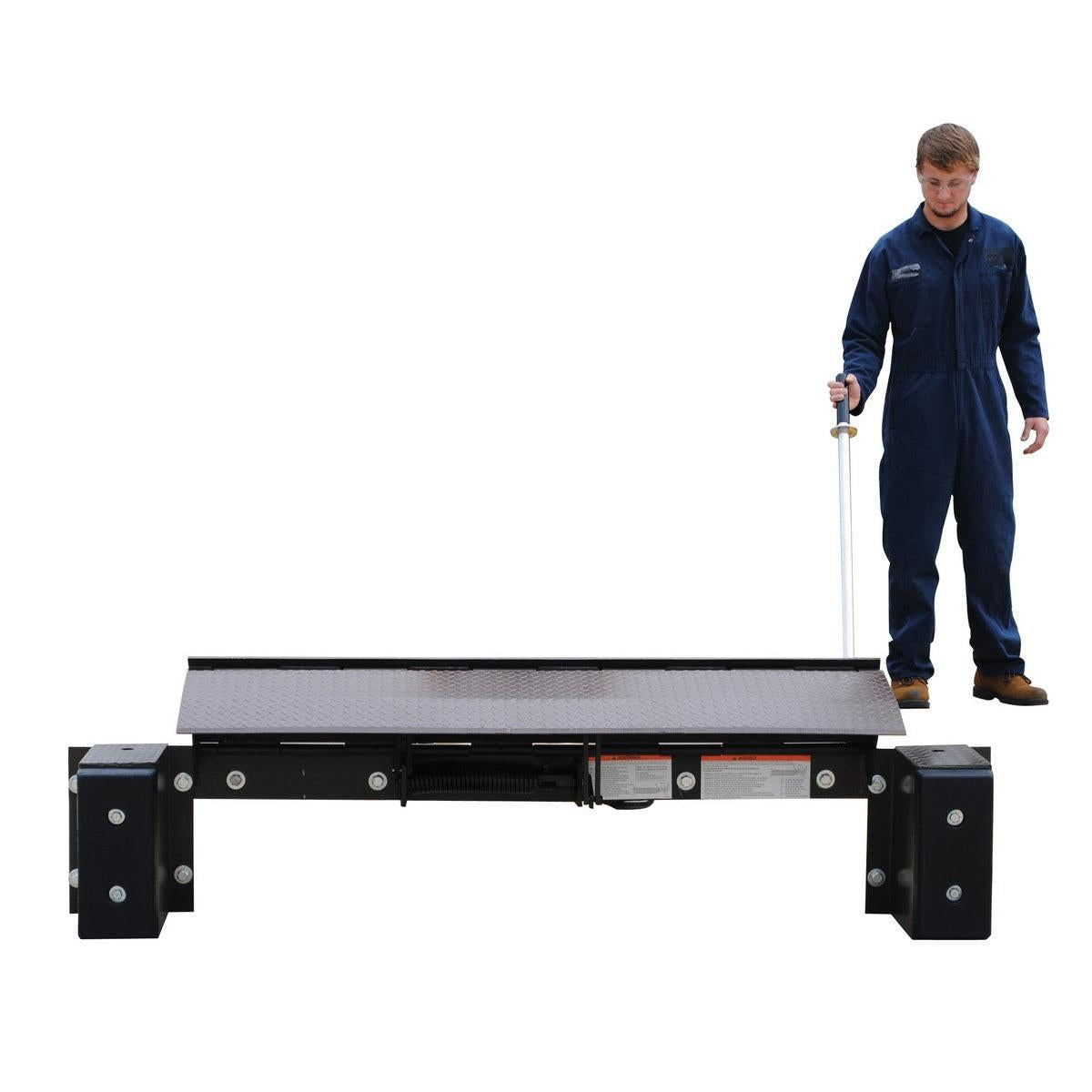

Steel Electric Edge-O-Dock Levelers – 30,000 lb. Capacity (17-1/2 In. Height)

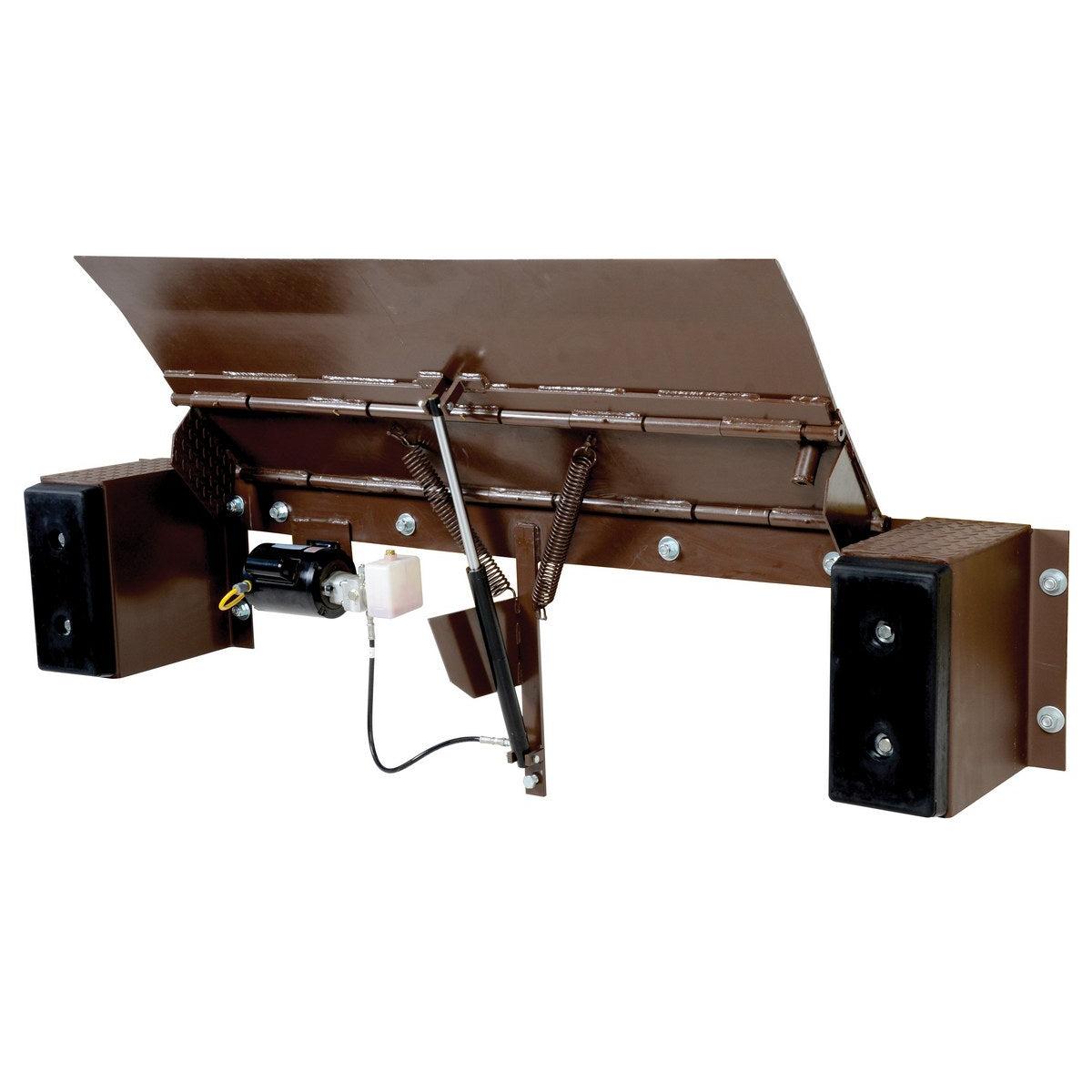

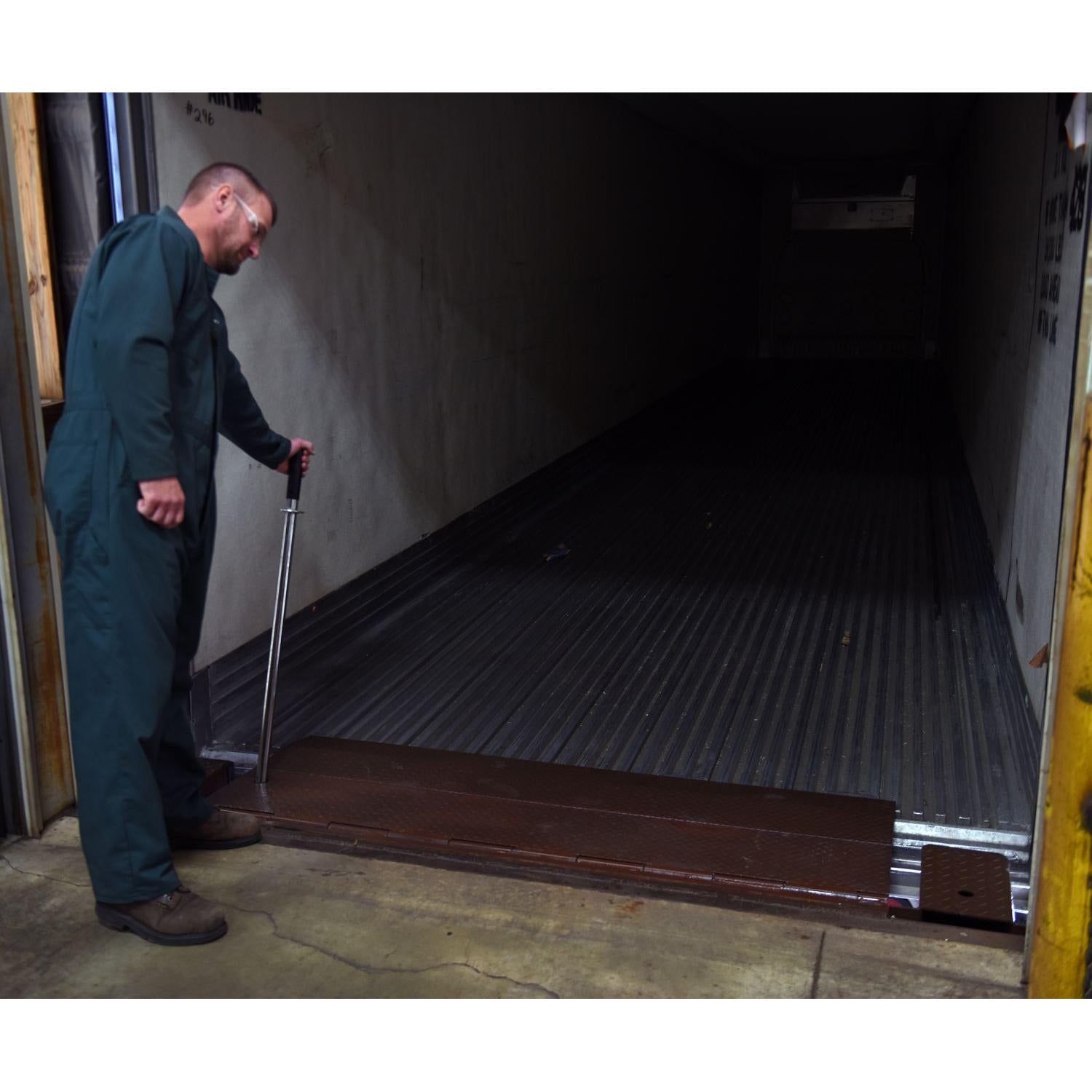

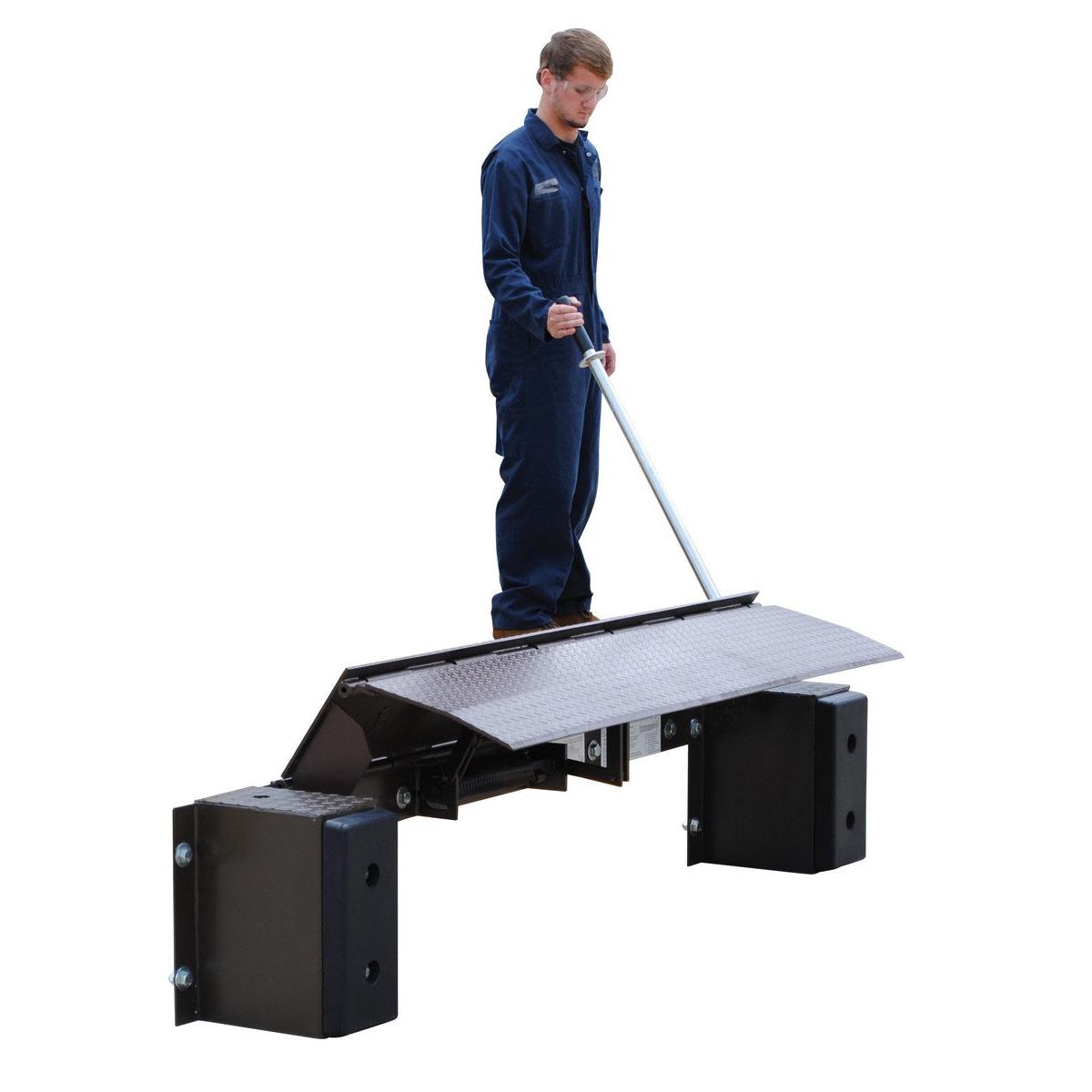

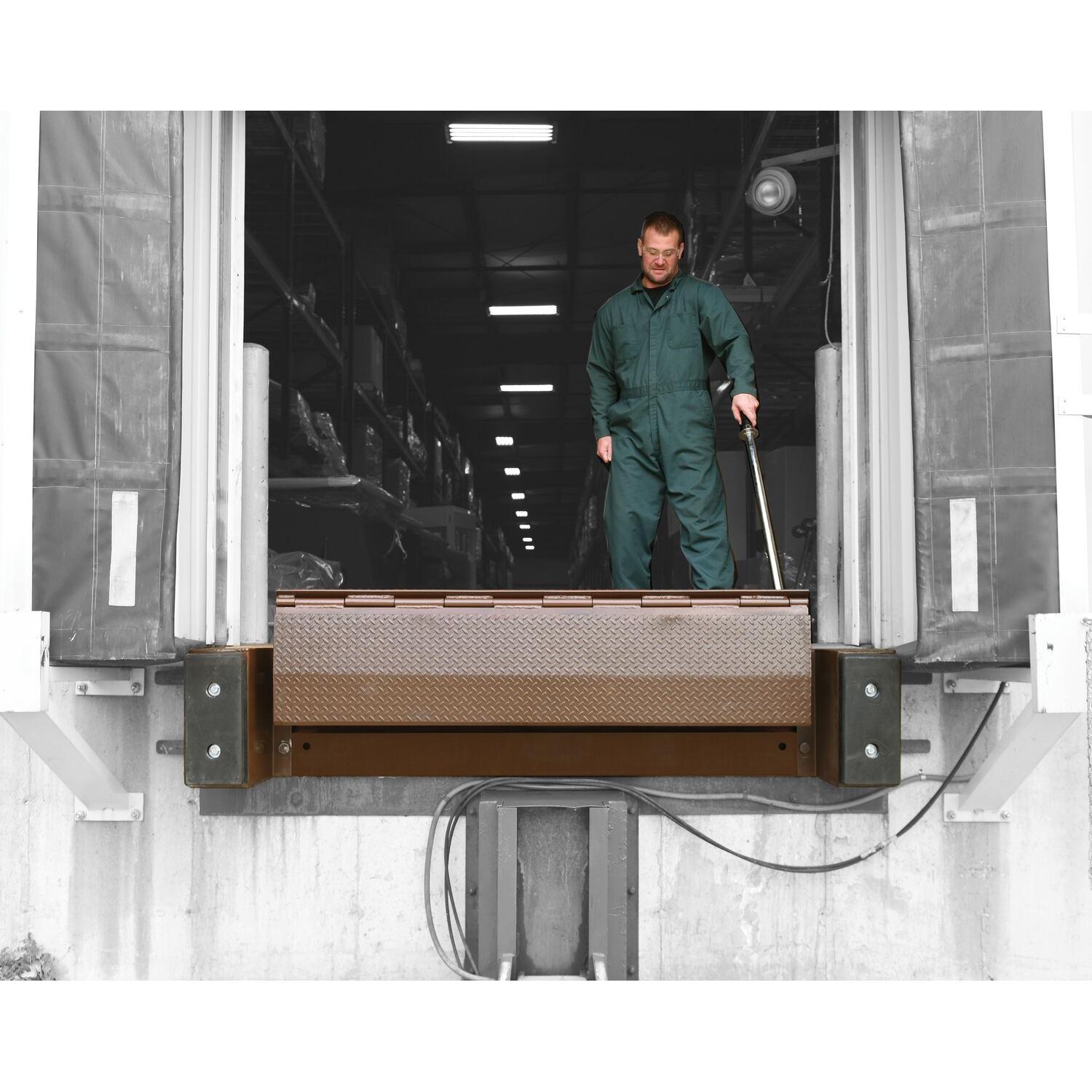

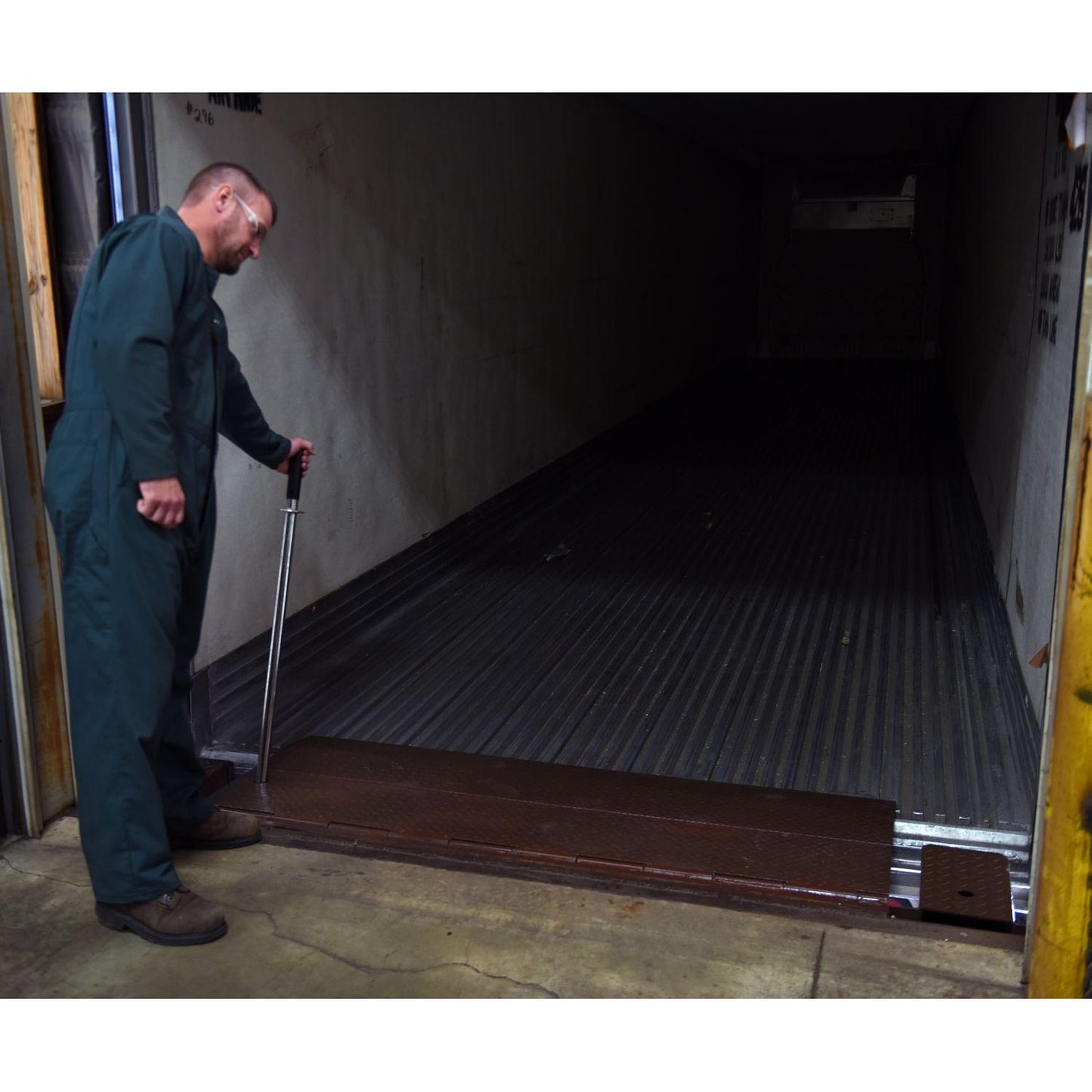

The Steel Electric Edge-O-Dock Levelers are permanently mounted solutions designed to bridge the gap between your dock and trailer with minimal installation requirements. Engineered for docks that are at least 48 inches high, these levelers provide a smooth, reliable transition for high-capacity loading and unloading operations. Their electric hydraulic mechanism allows operators to easily raise the deck and extend the lip with a simple push of a button.

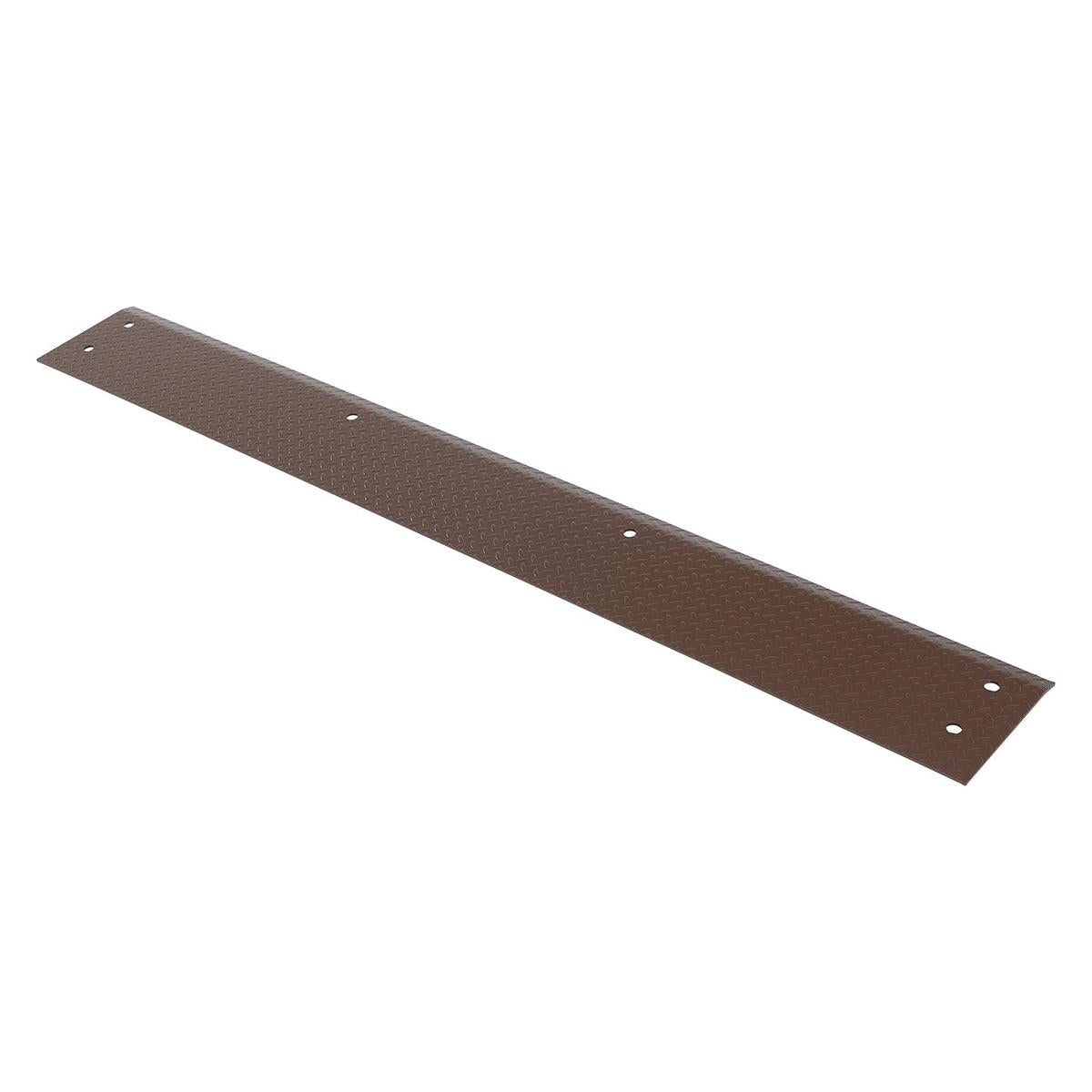

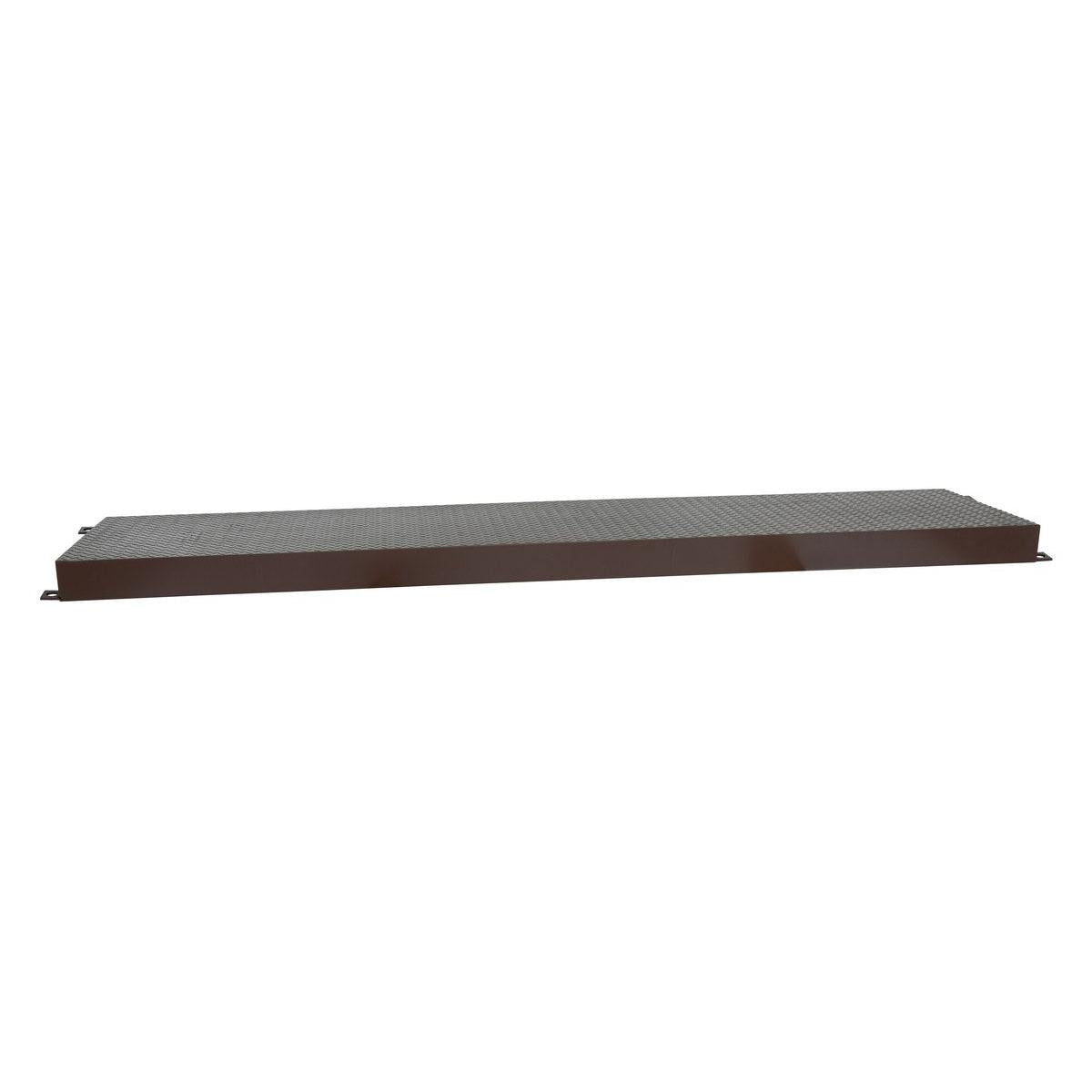

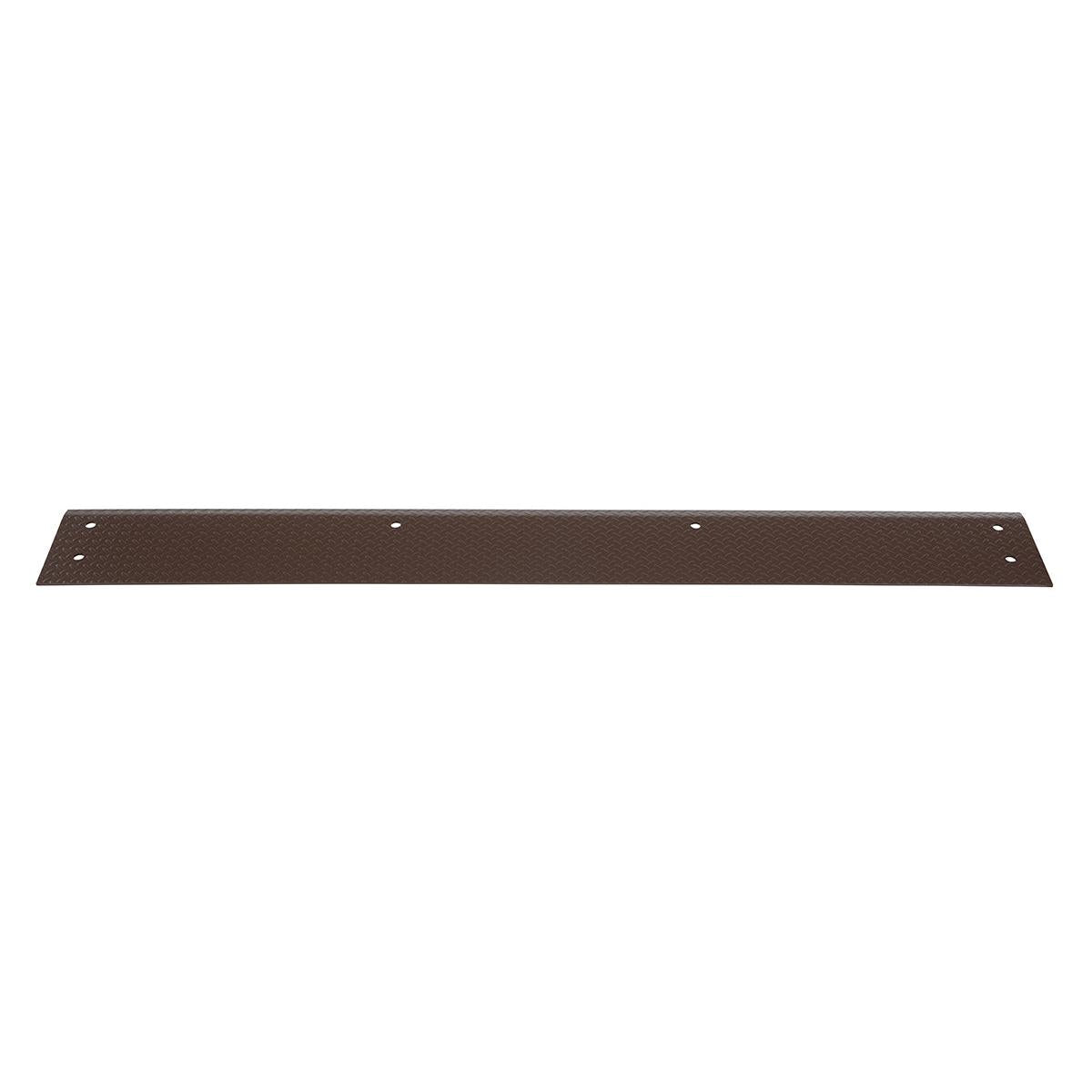

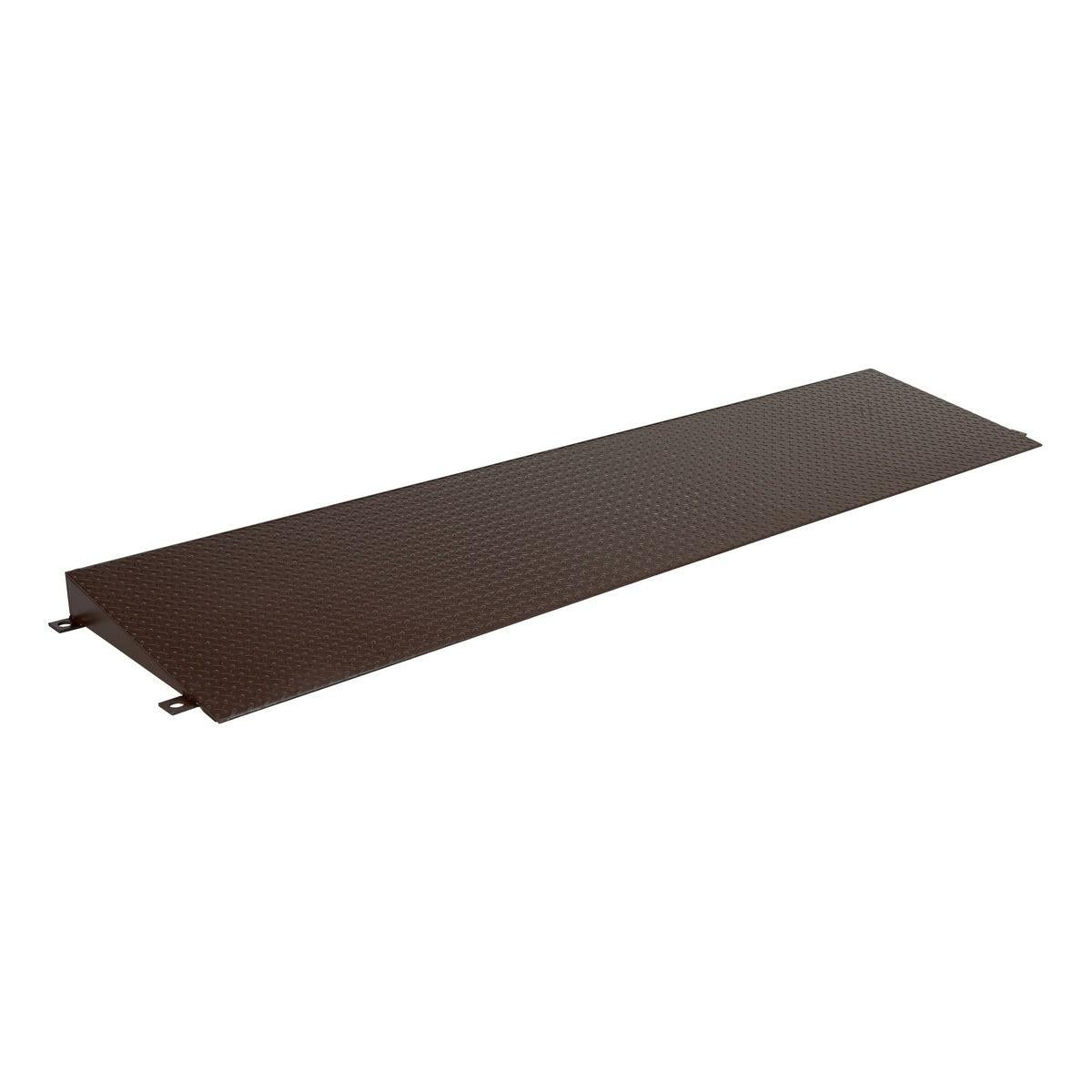

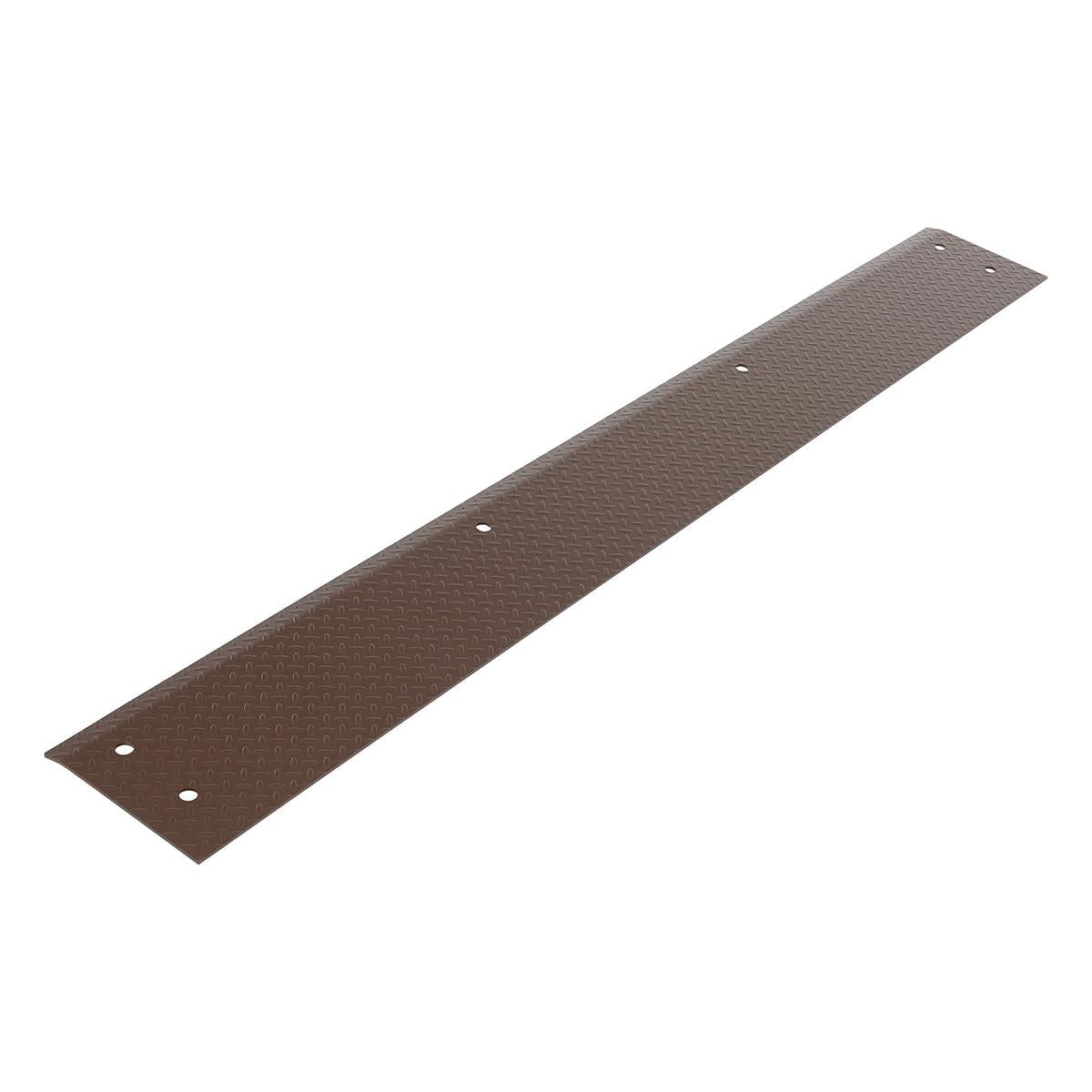

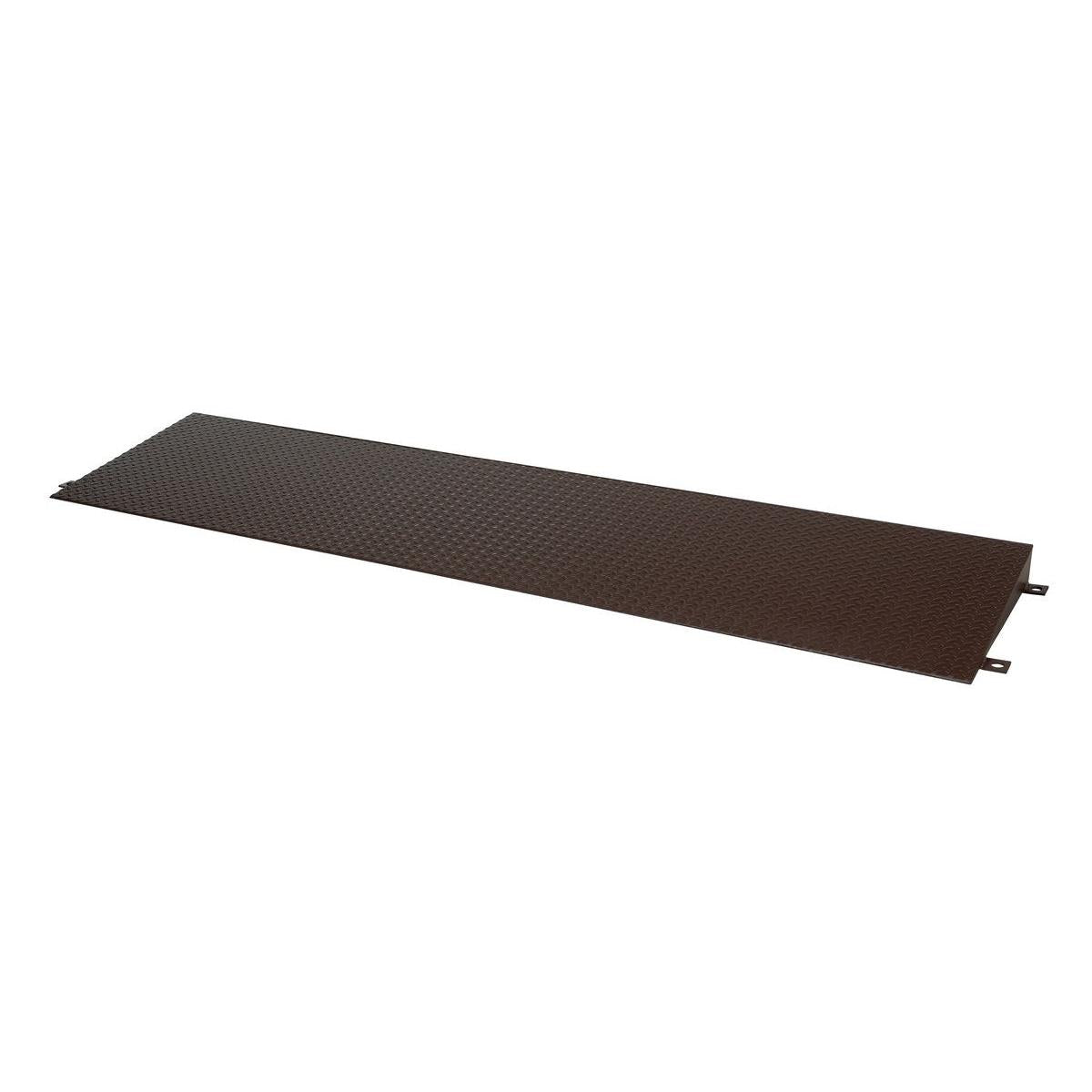

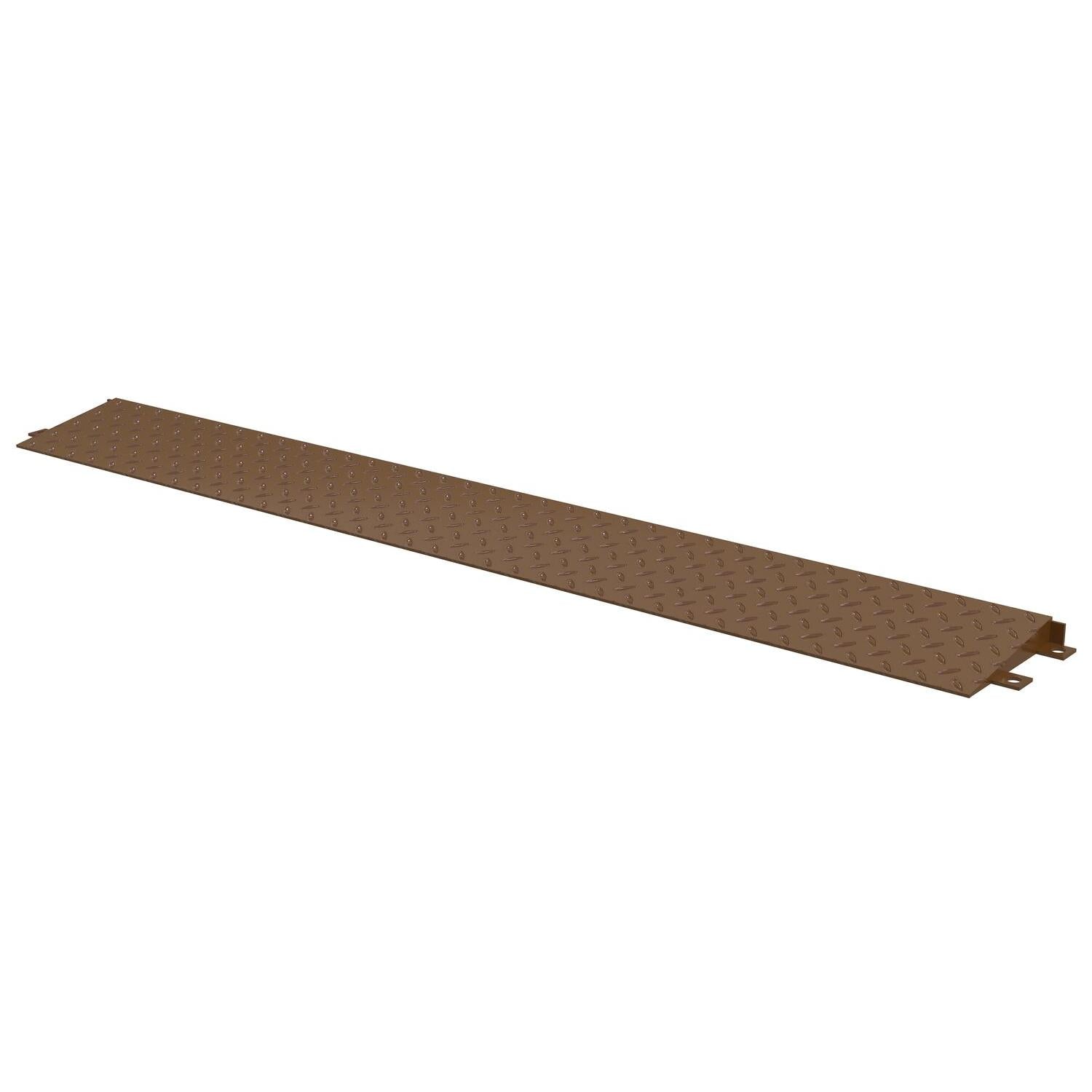

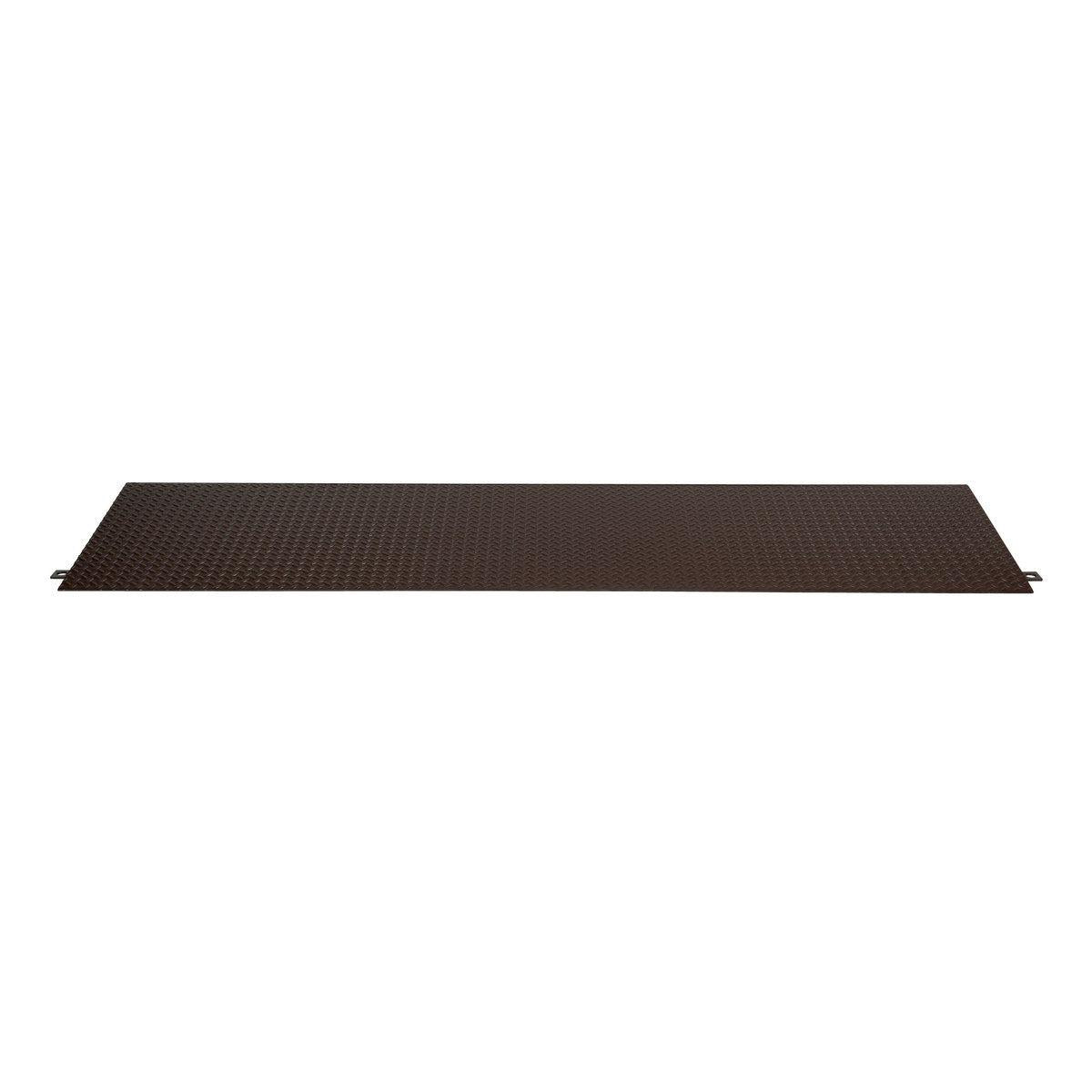

Designed for demanding environments, both models come complete with motor, pump, control box, cylinder, lines, oil, bumpers, and full installation instructions. Once the trailer pulls away, the lip automatically lowers behind the bumpers, resetting the leveler for the next use. A steel dock edge or approach ramp is required for proper installation.

Features & Benefits

• Easy Electric Operation: Push-button control activates hydraulic system for smooth, reliable deck and lip positioning.
• Space-Efficient Design: Permanently installs on the dock edge — no concrete recess required.

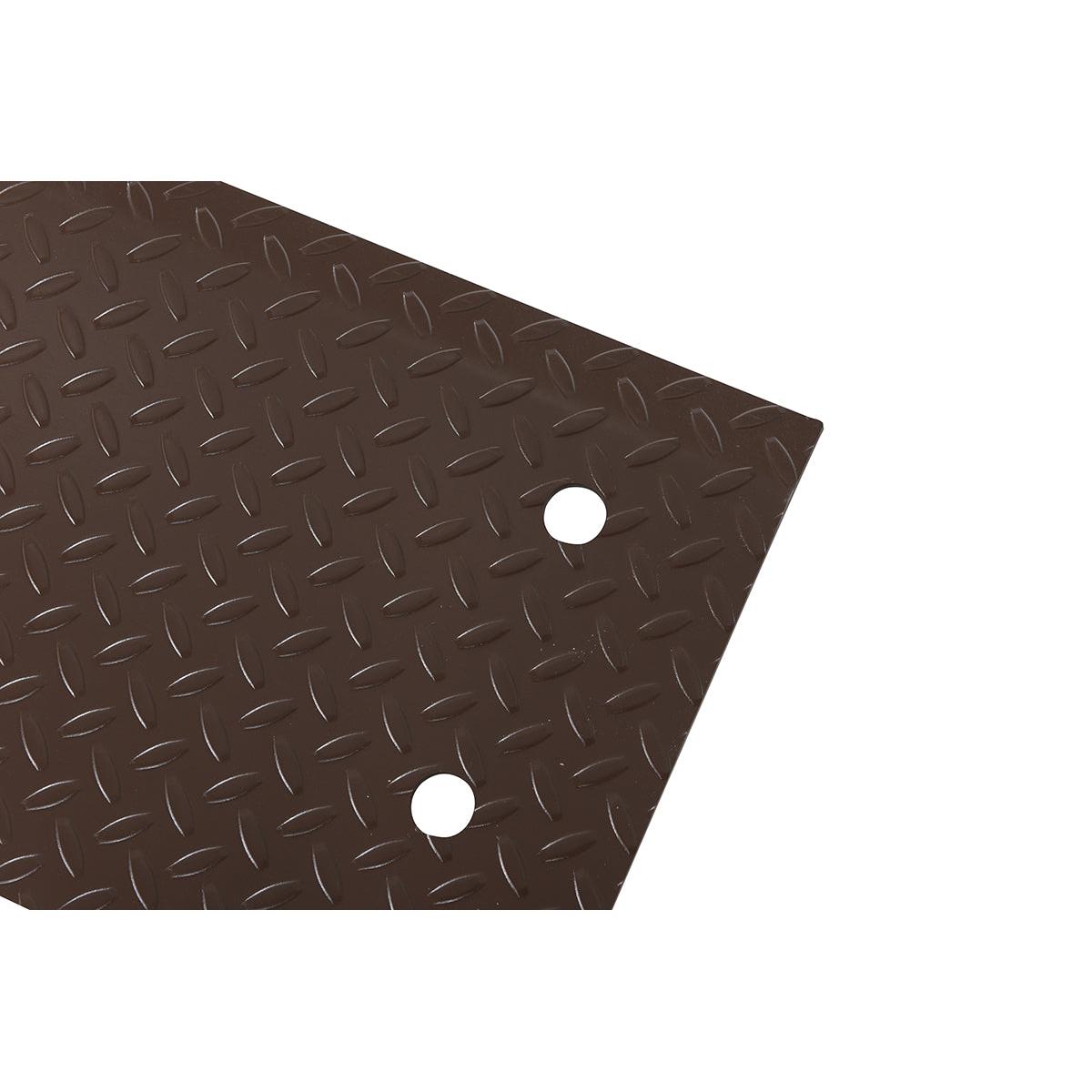

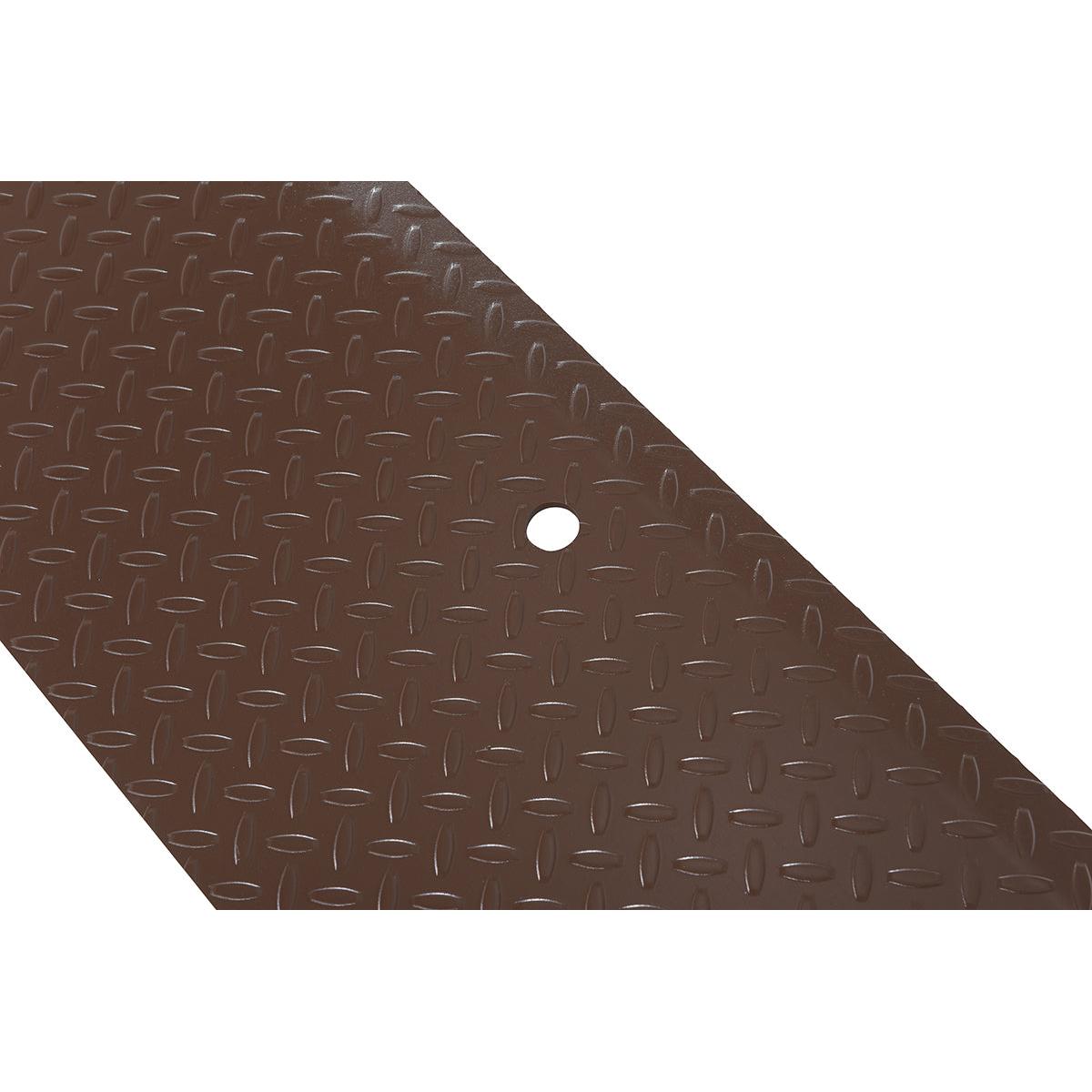

• Slip-Resistant Surface: Tread plate deck offers secure footing and improved safety.
• Durable Steel Construction: Built for long-term use in heavy-duty environments.
• Complete Kit: Includes electric motor, pump, hydraulic lines, control box, cylinder, bumpers, and installation hardware.
• Standard Ramping: 29" ramping length supports consistent performance and trailer access.
• Automatic Lip Reset: Lip drops behind bumper when the trailer departs, resetting the unit for the next load.

Technical Specifications:

• Uniform Capacity (lb.): 30,000
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5

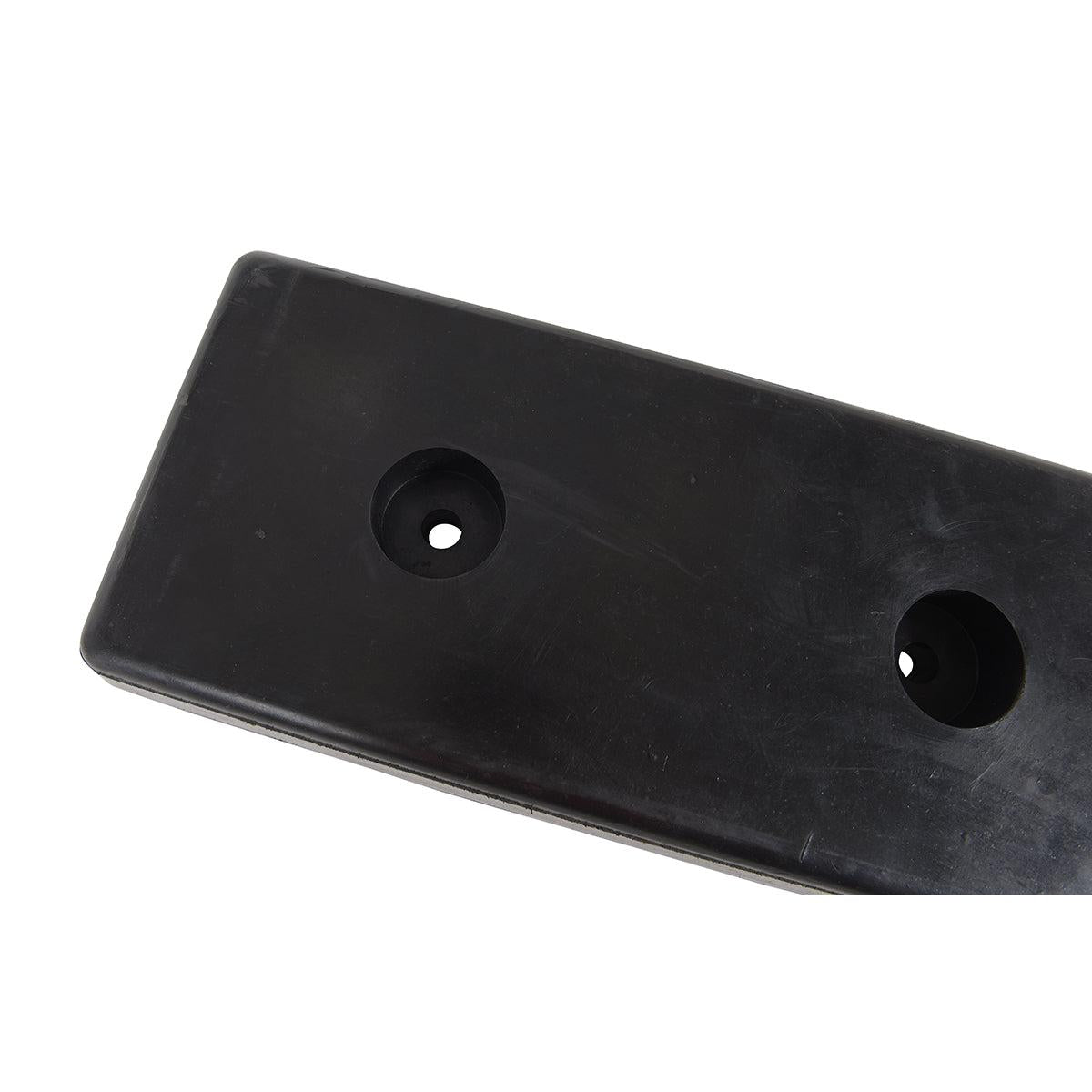

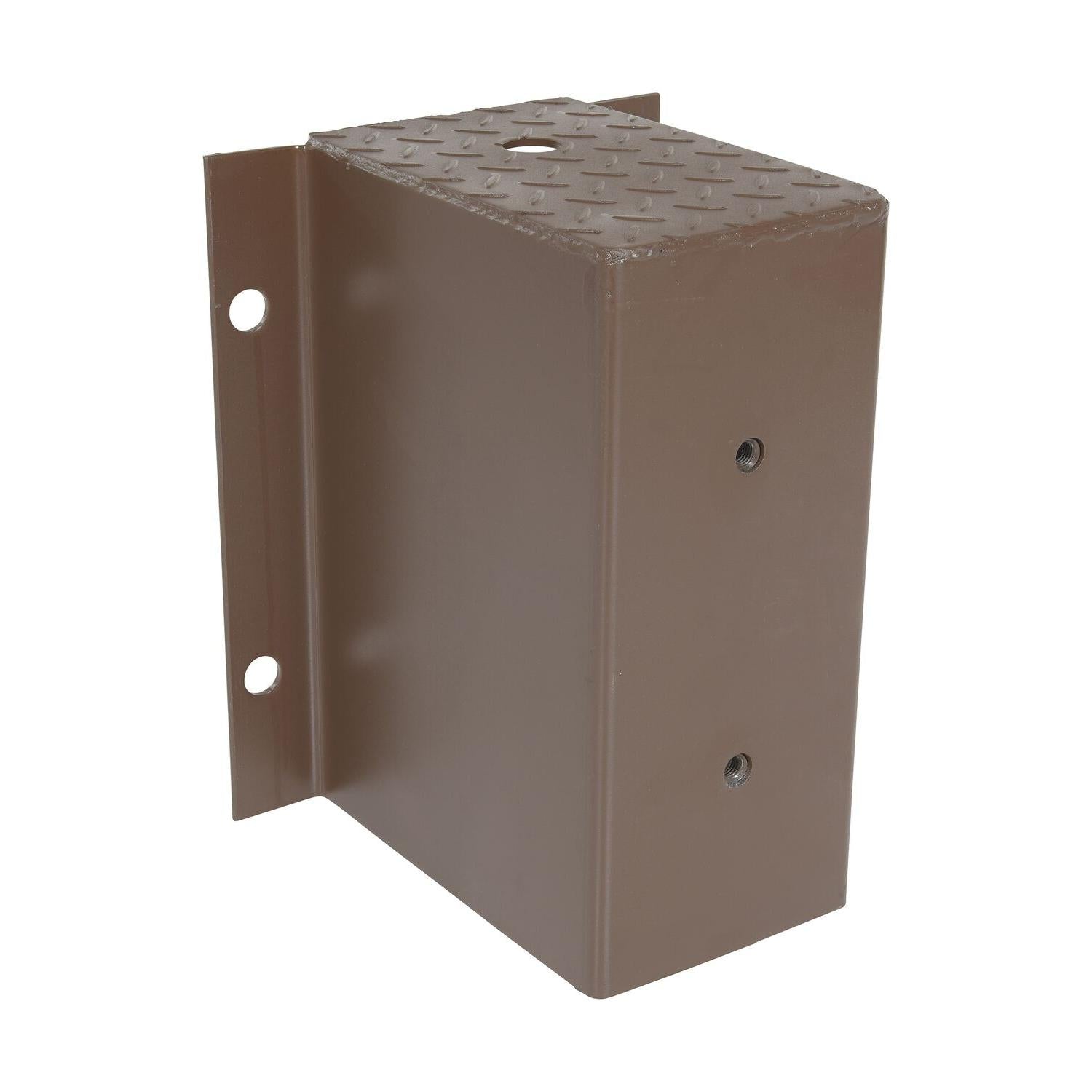

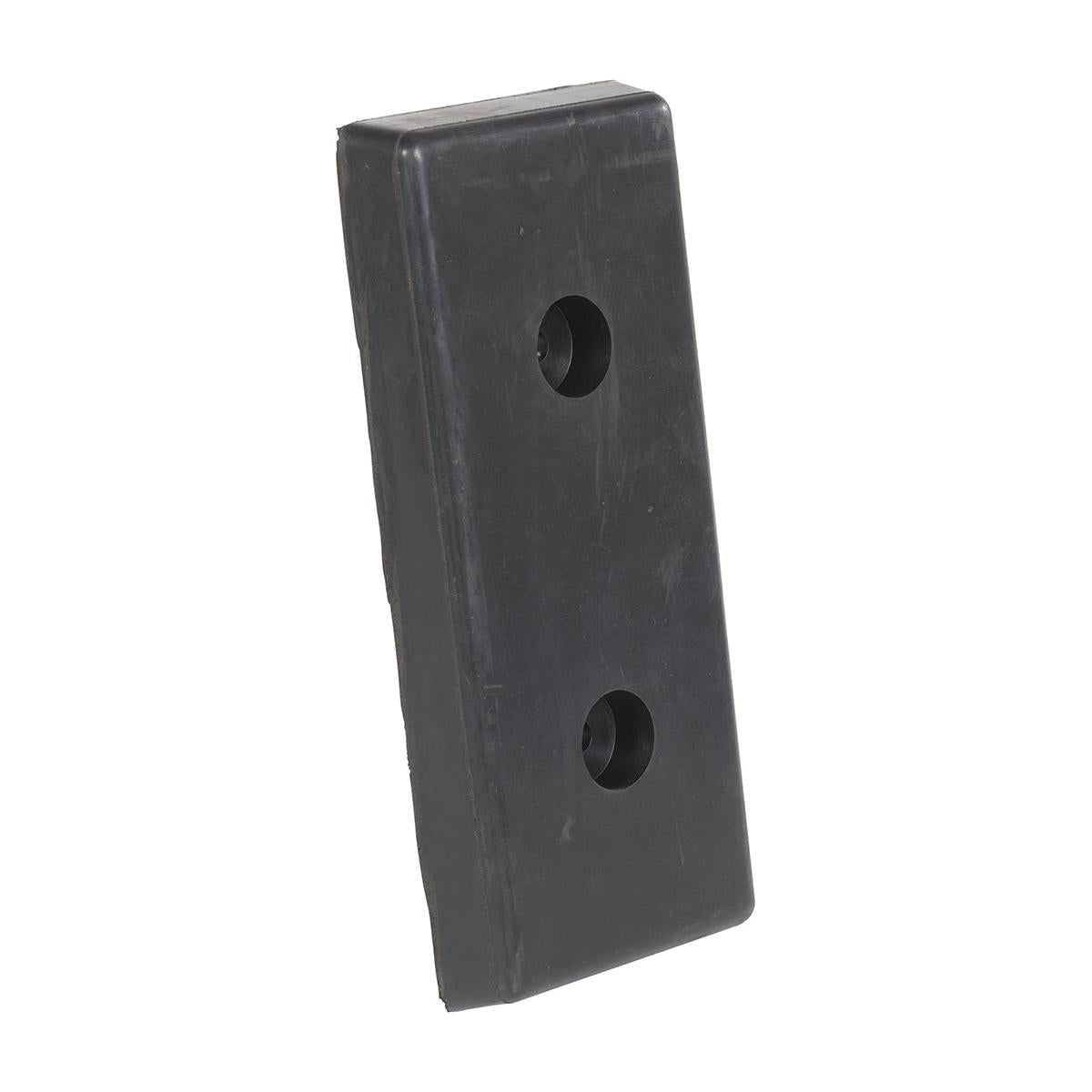

• Bumper Width (in.): 8
• Bumper Length (in.): 2
• Bumper Height (in.): 18
• Ramping Length (in.): 29-13/16
• Bumper Projection (in.): 17.5
• AC Voltage/Phase: 115/1
• Assembled Depth (in.): 17.5
• Assembled Height (in.): 27.5
• Prop 65 Warning Required: Yes
• Approval Drawing Required: No
• Dock Leveler Operating Method: 115 Volt / 1 Phase AC Power Electric
• Overall Length (ft.): 2.5
• Dock Leveler Lip Projection (in.): 12.31
• Platform Material: Steel
• Platform Length (in.): 30
• Platform Thickness (in.): 0.375
• Color / Finish: Brown
• Electric Motor Voltage: 115
• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and Installation Instructions
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year
