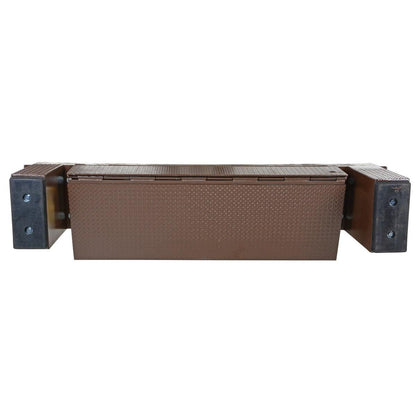

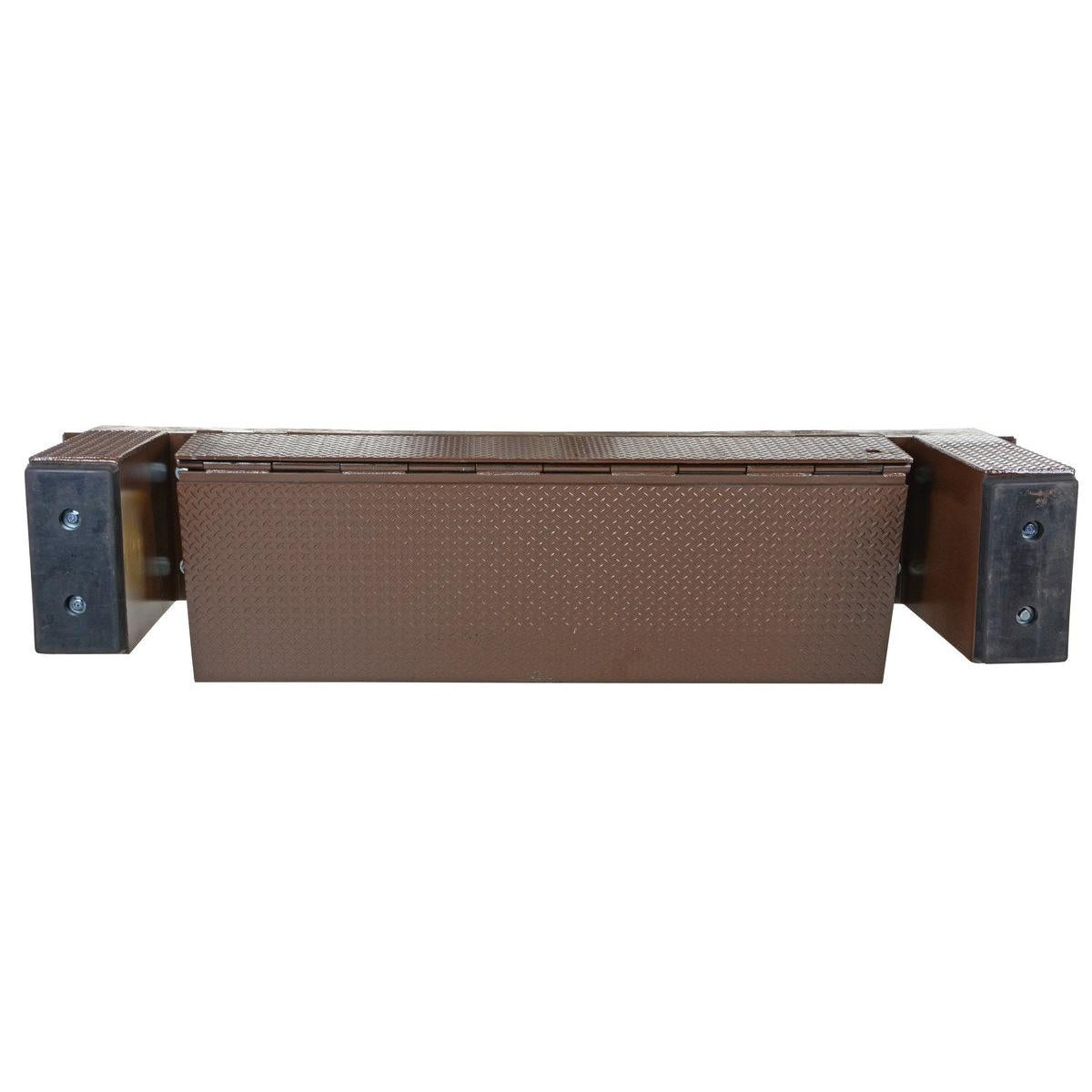

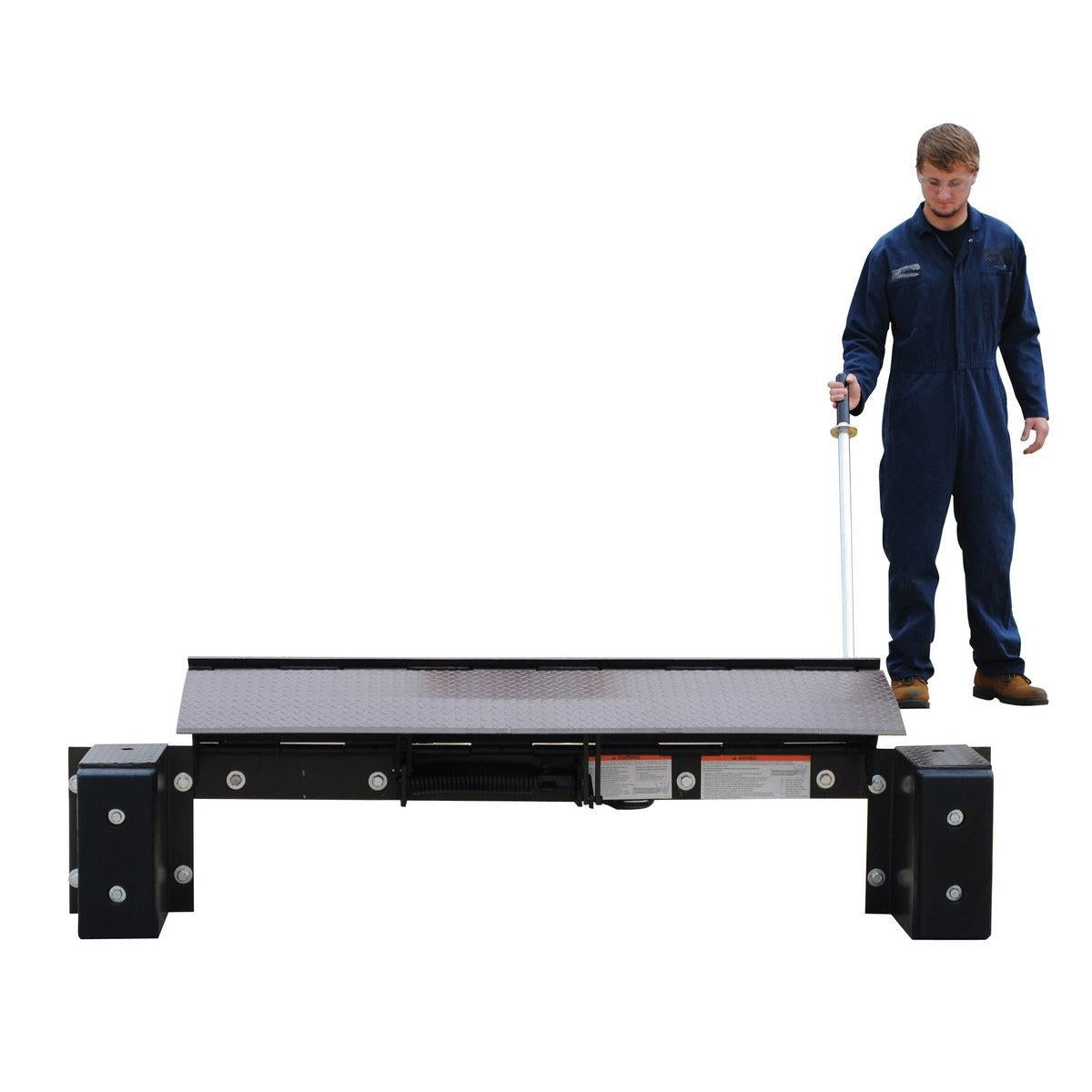

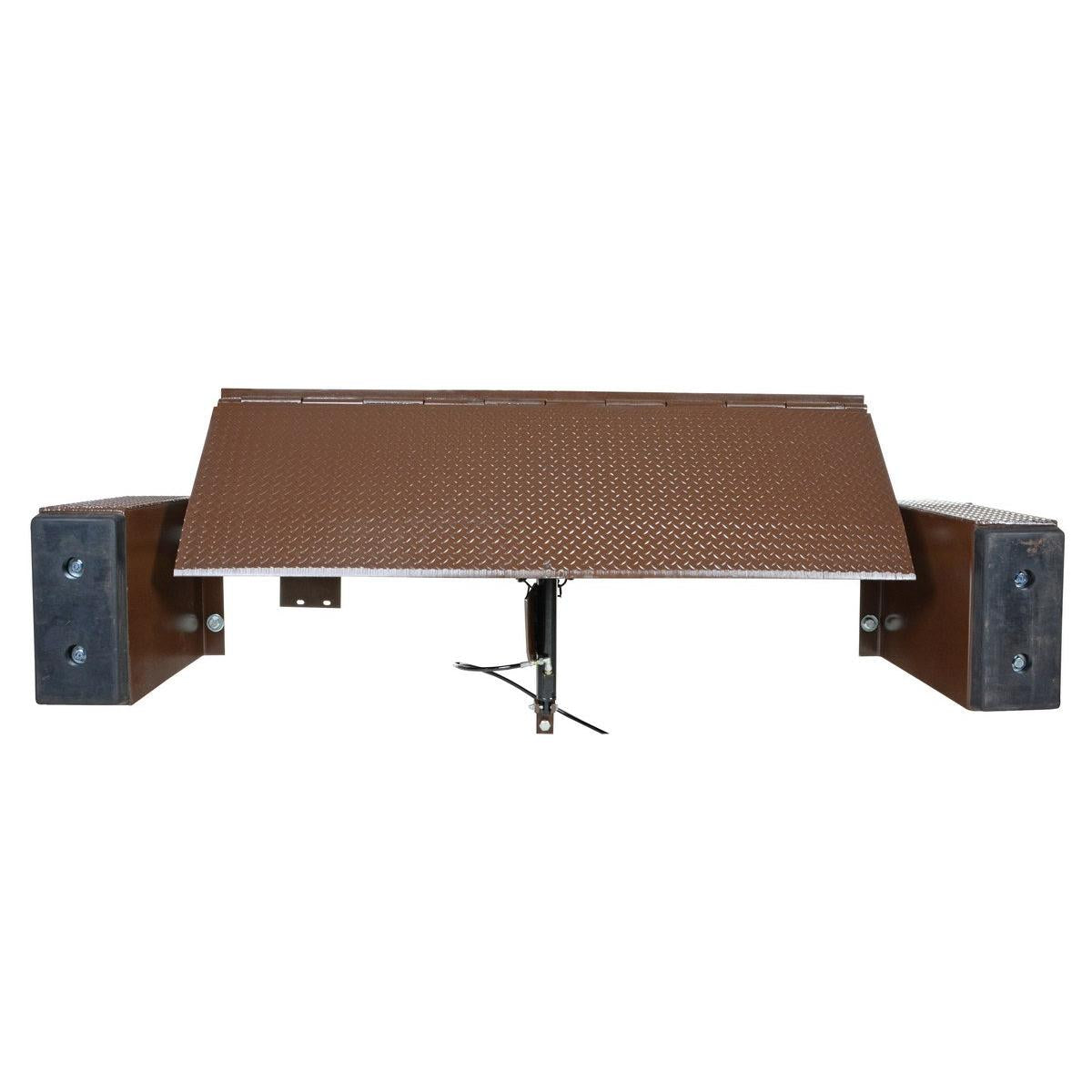

Steel Hand Pump Edge-O-Dock Leveler – 72" Ramp Width x 36-5/8" Ramp Length – 15,000 lb. Capacity

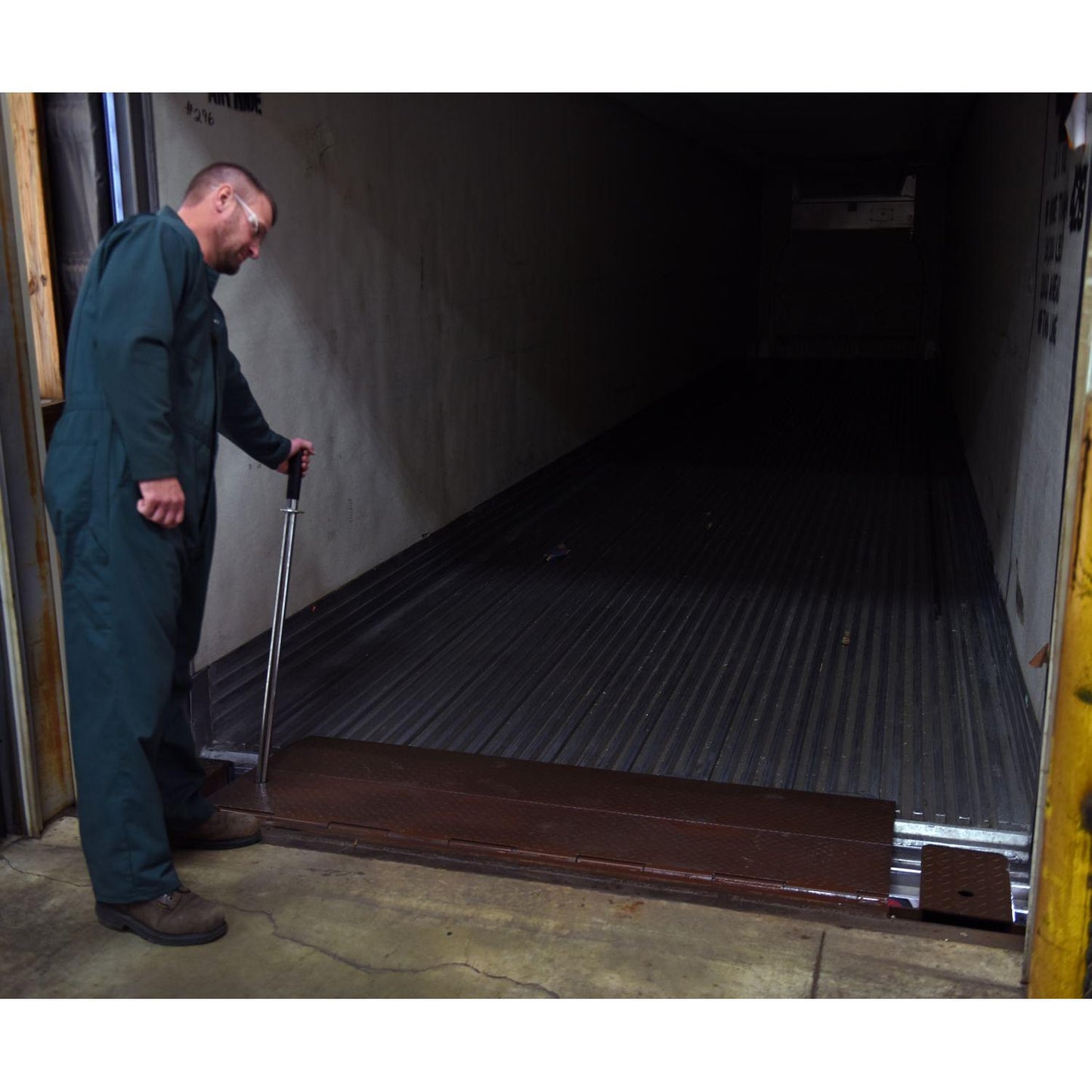

This Steel Hand Pump Edge-O-Dock Leveler provides a permanent, reliable transition between the loading dock and trailer, ideal for facilities with dock heights of at least 48 inches. Operated manually via a hydraulic hand pump, it ensures smooth and secure material transfer operations.

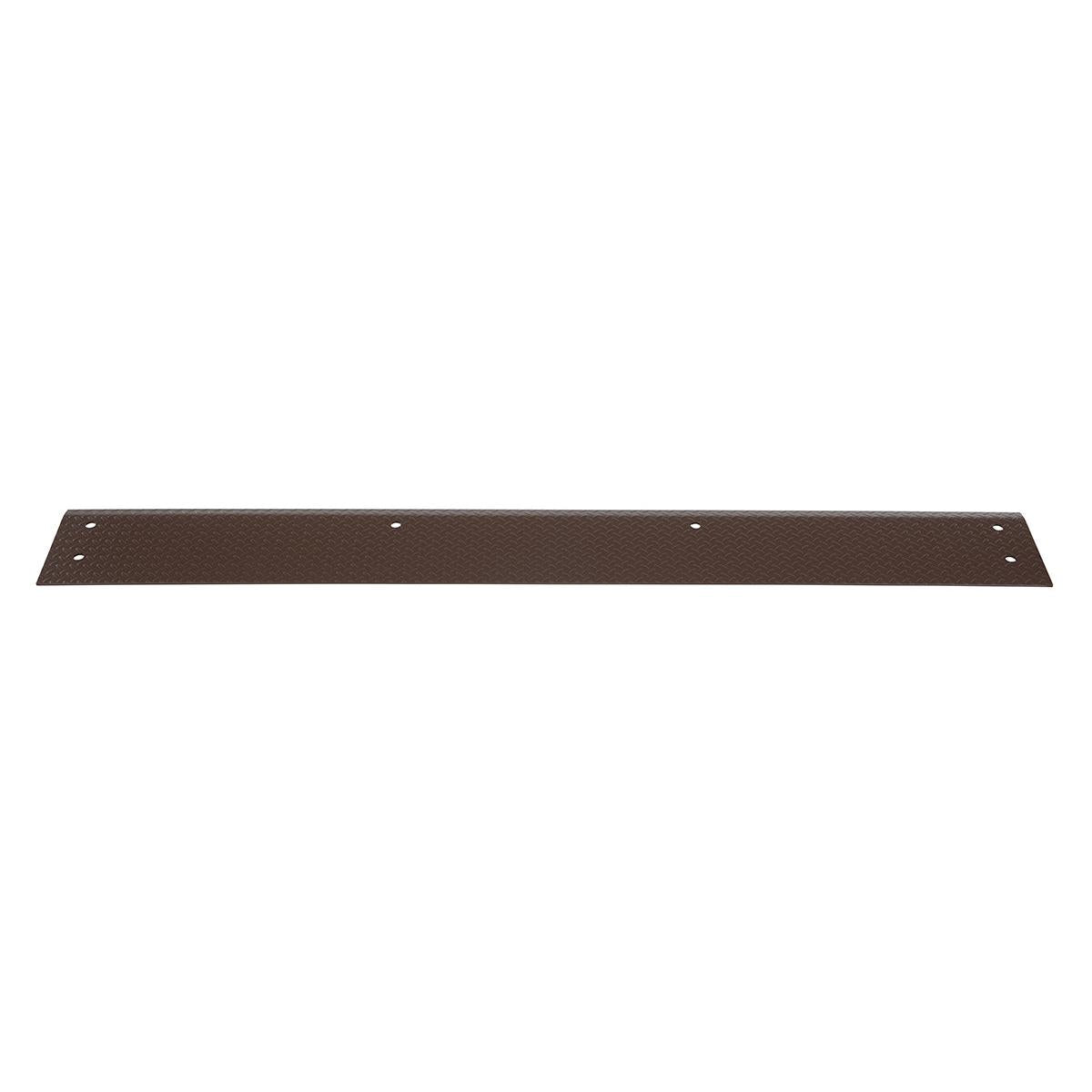

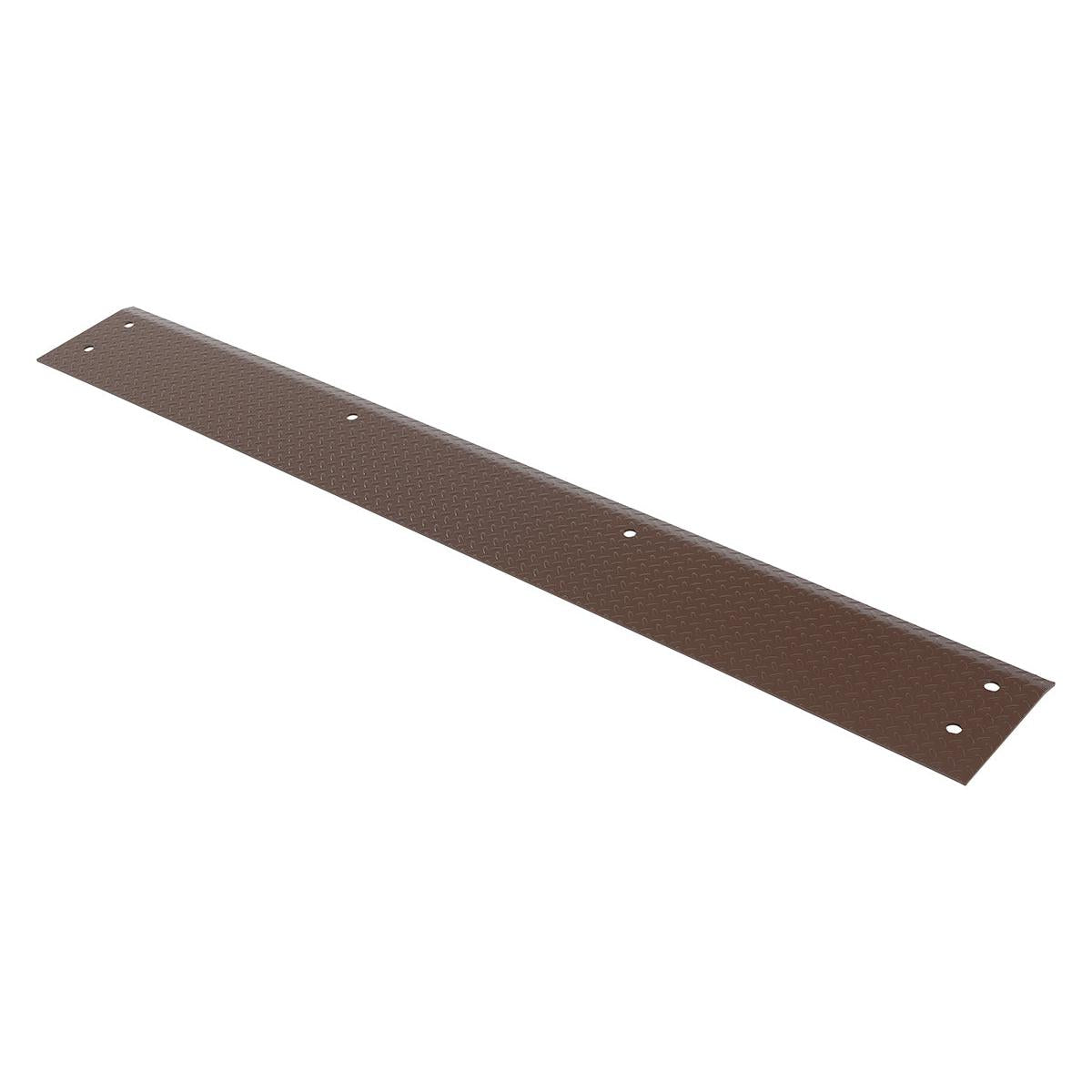

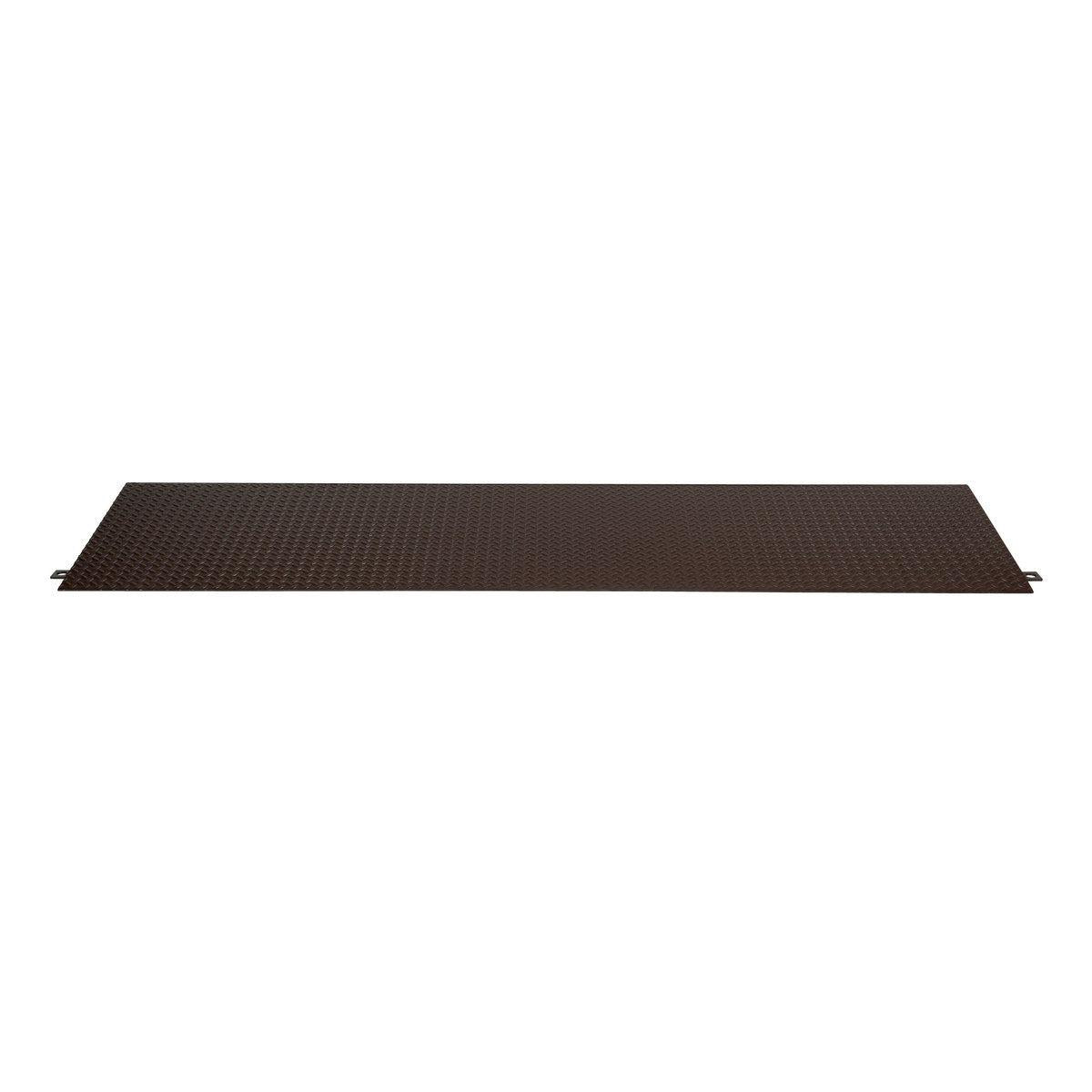

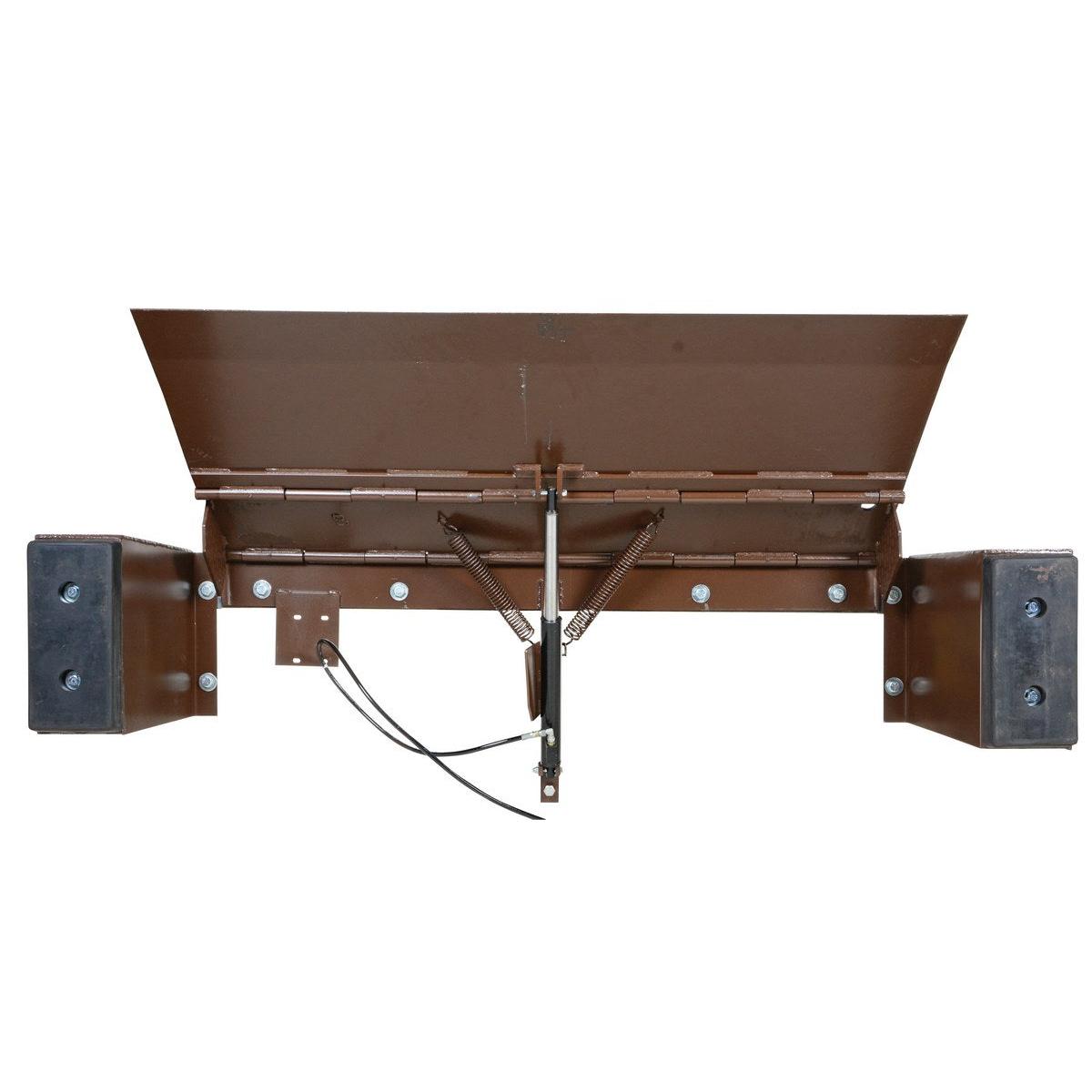

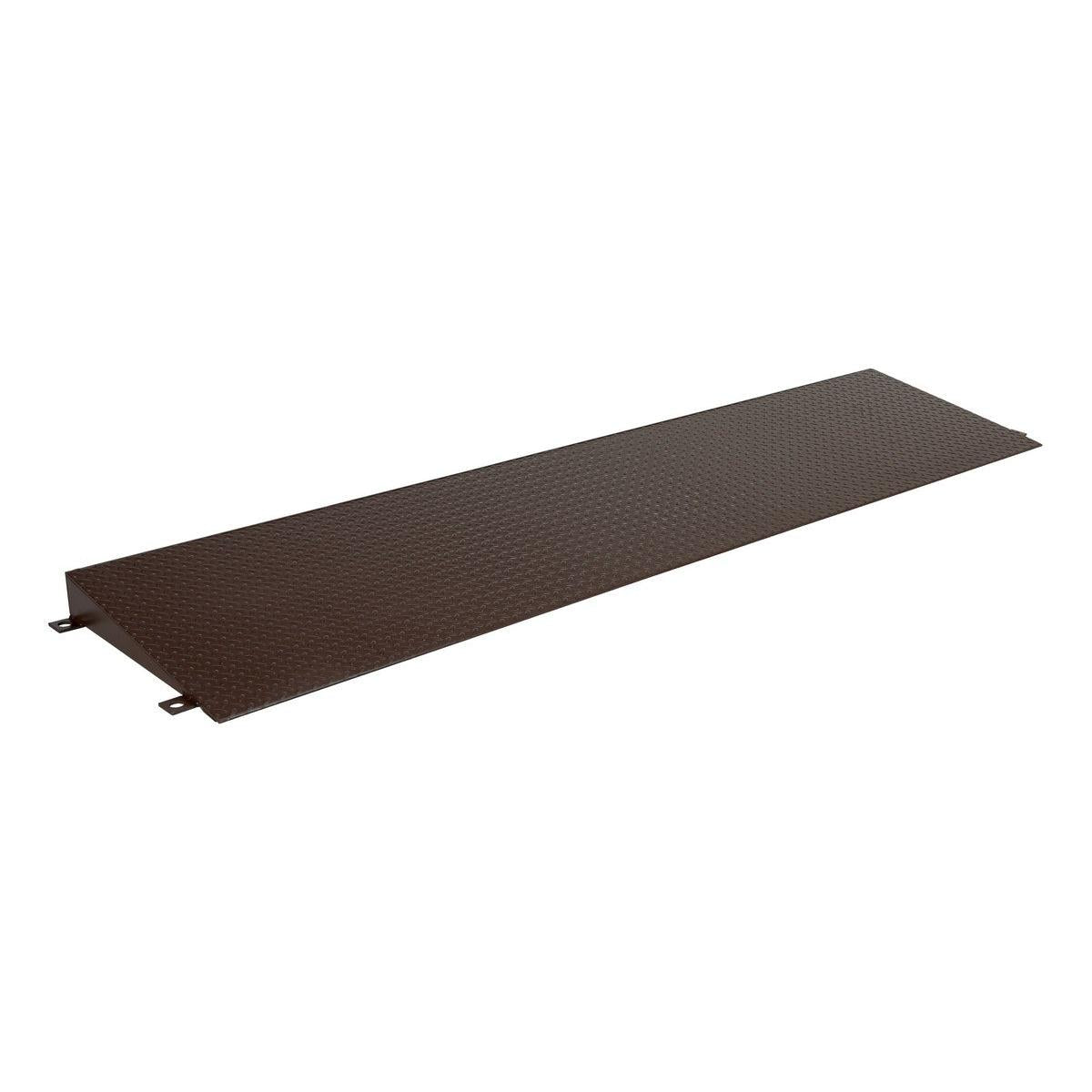

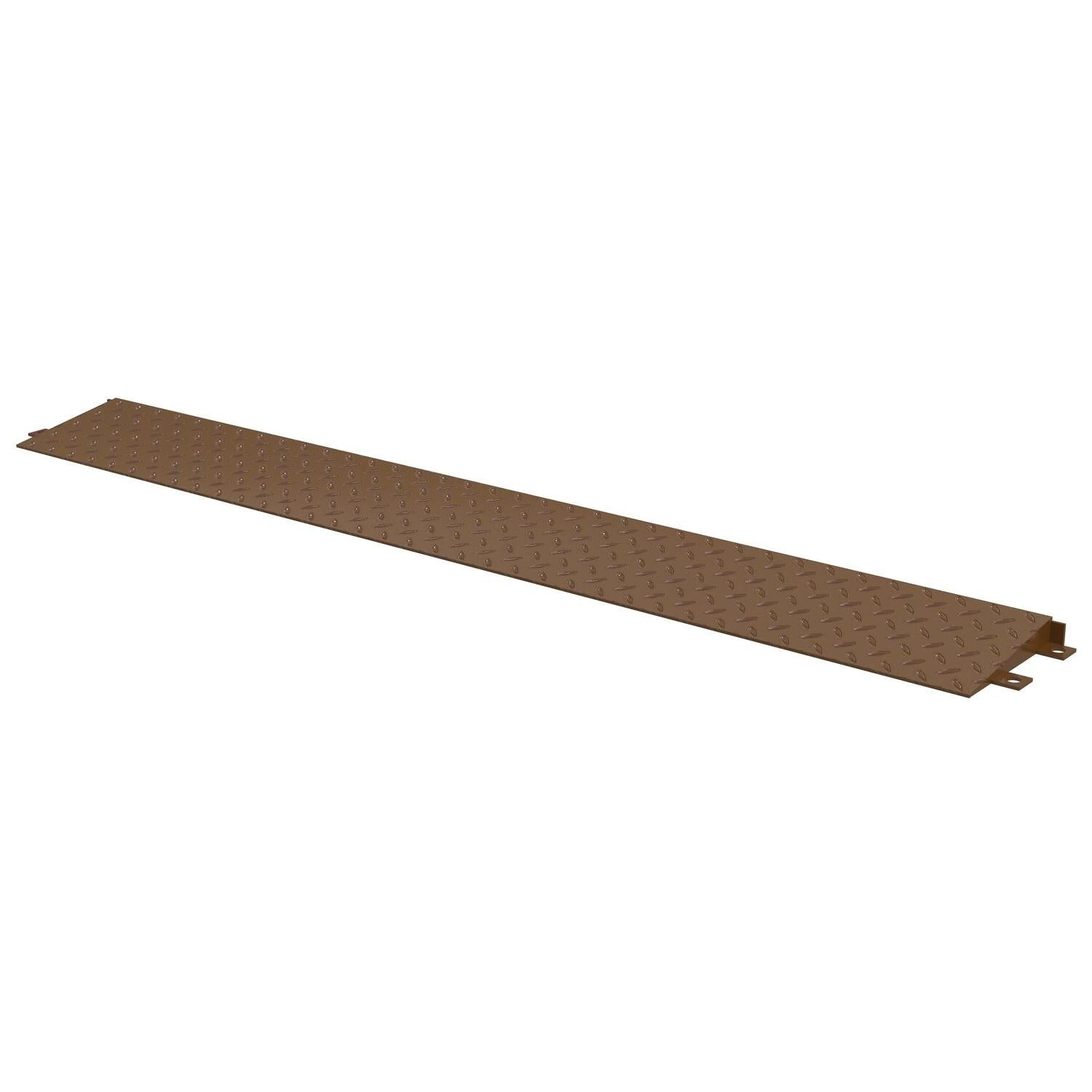

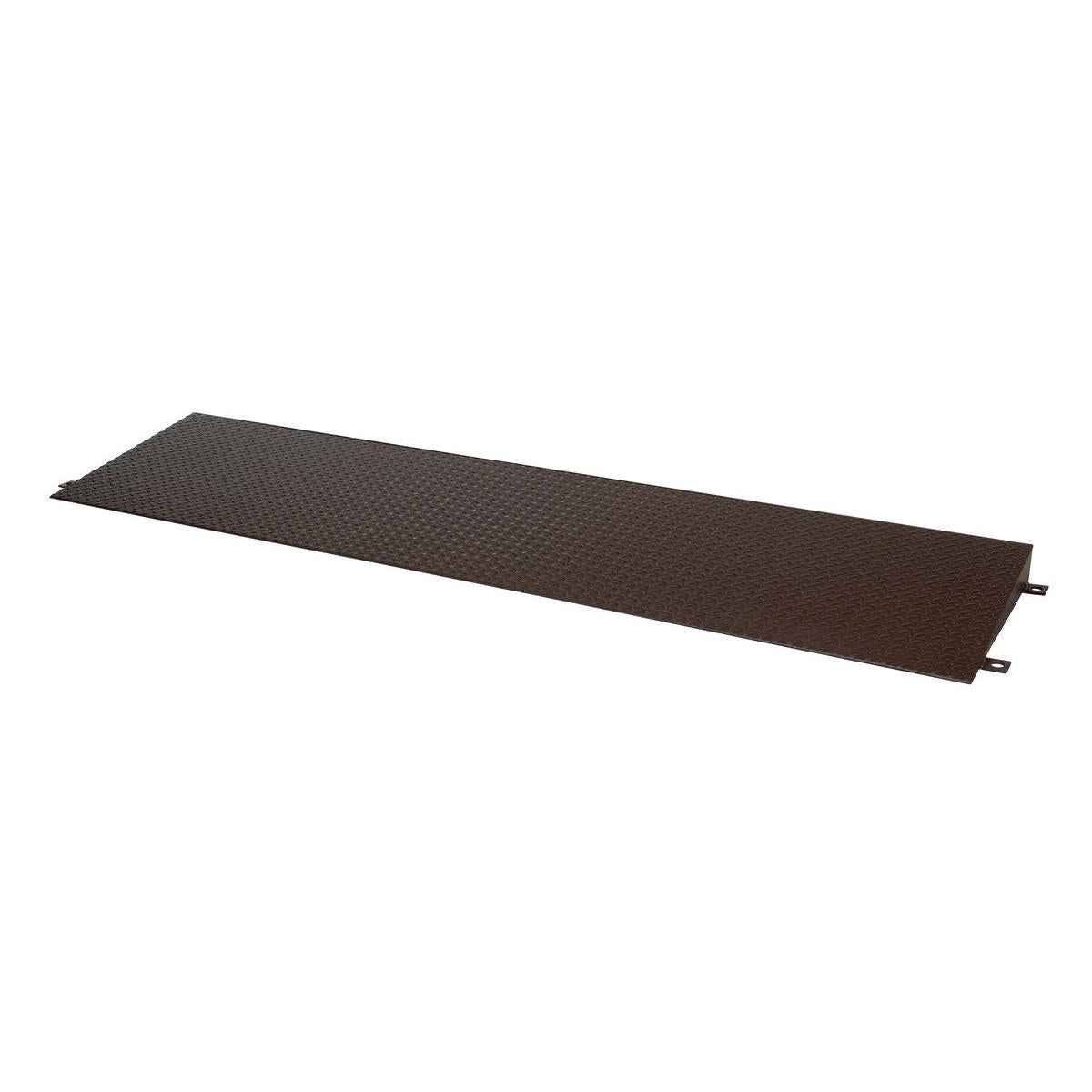

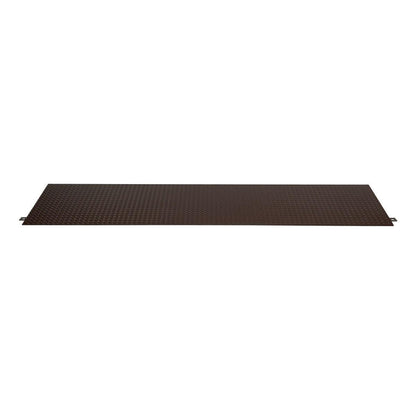

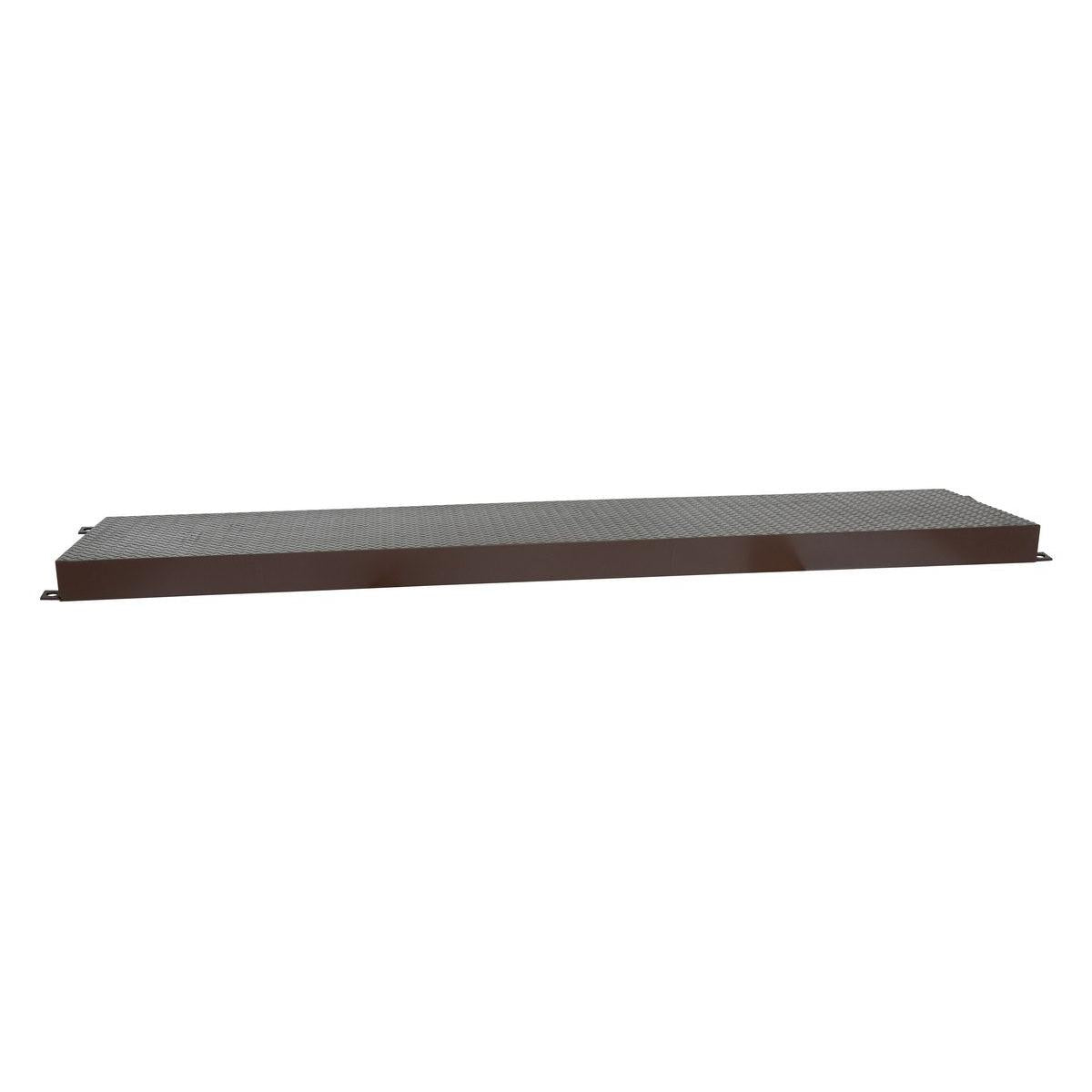

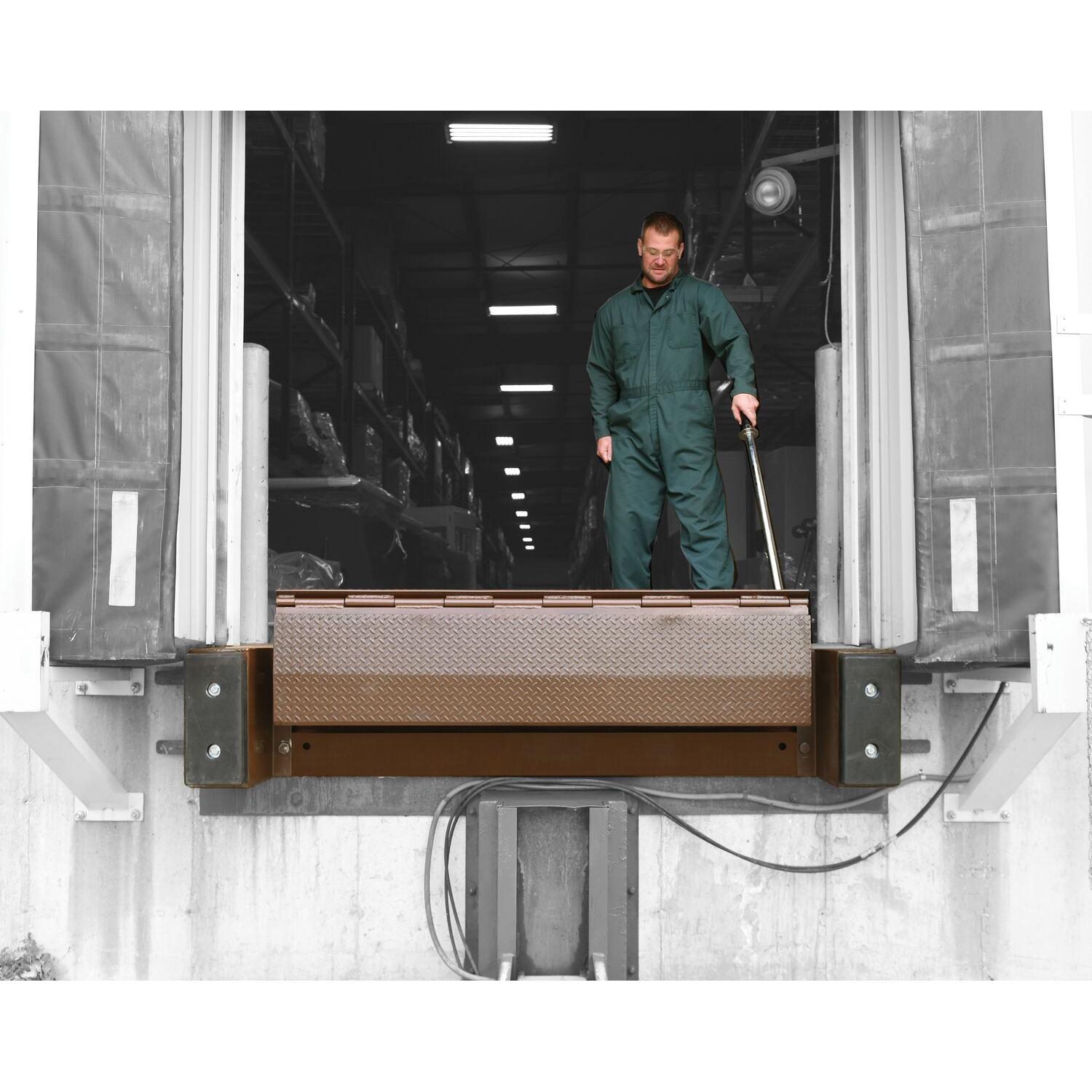

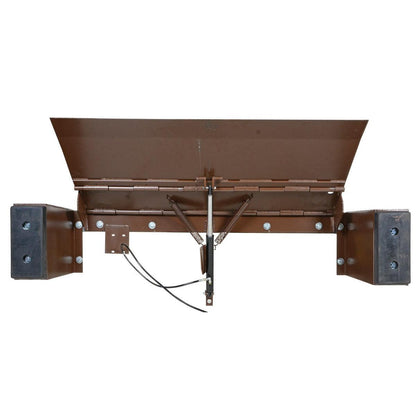

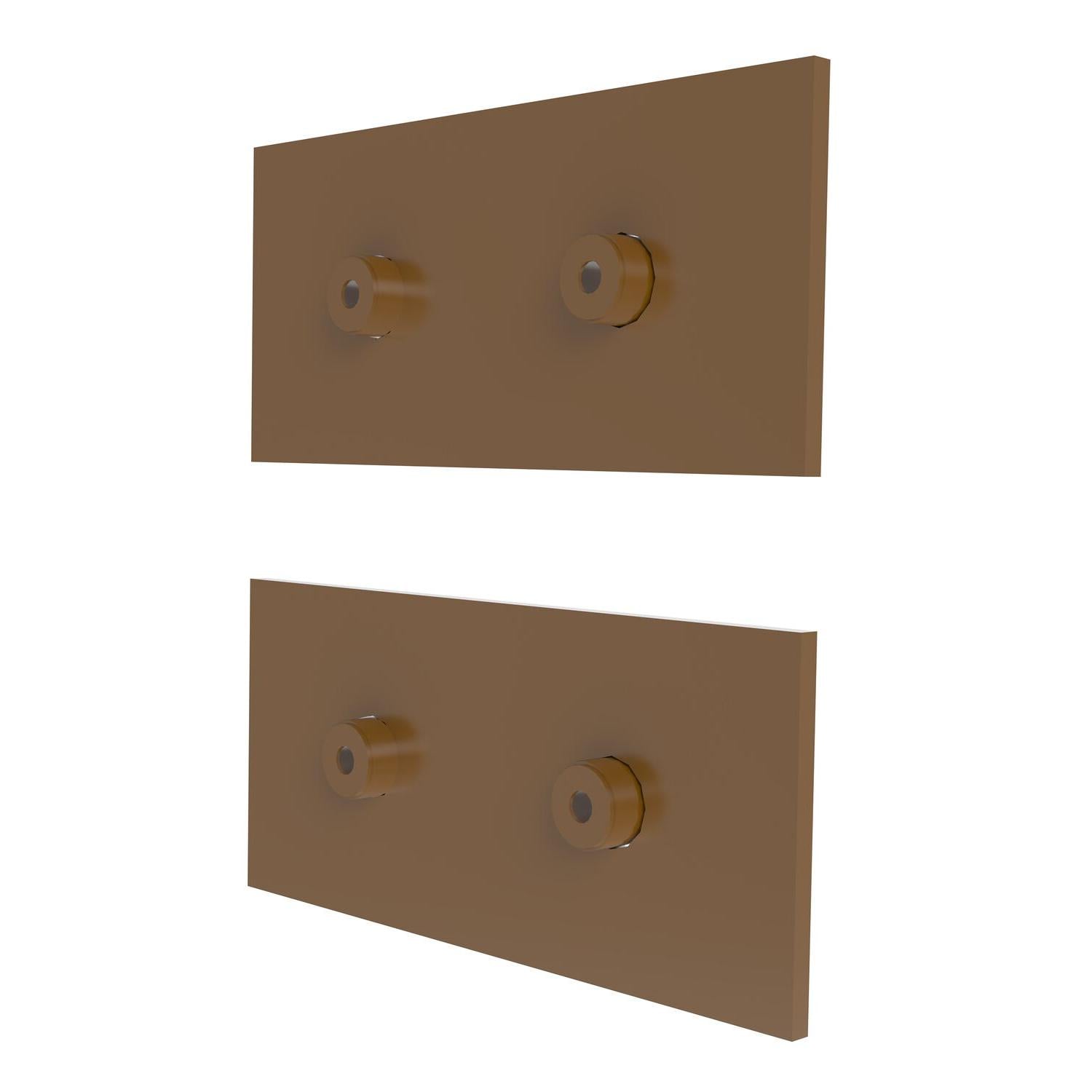

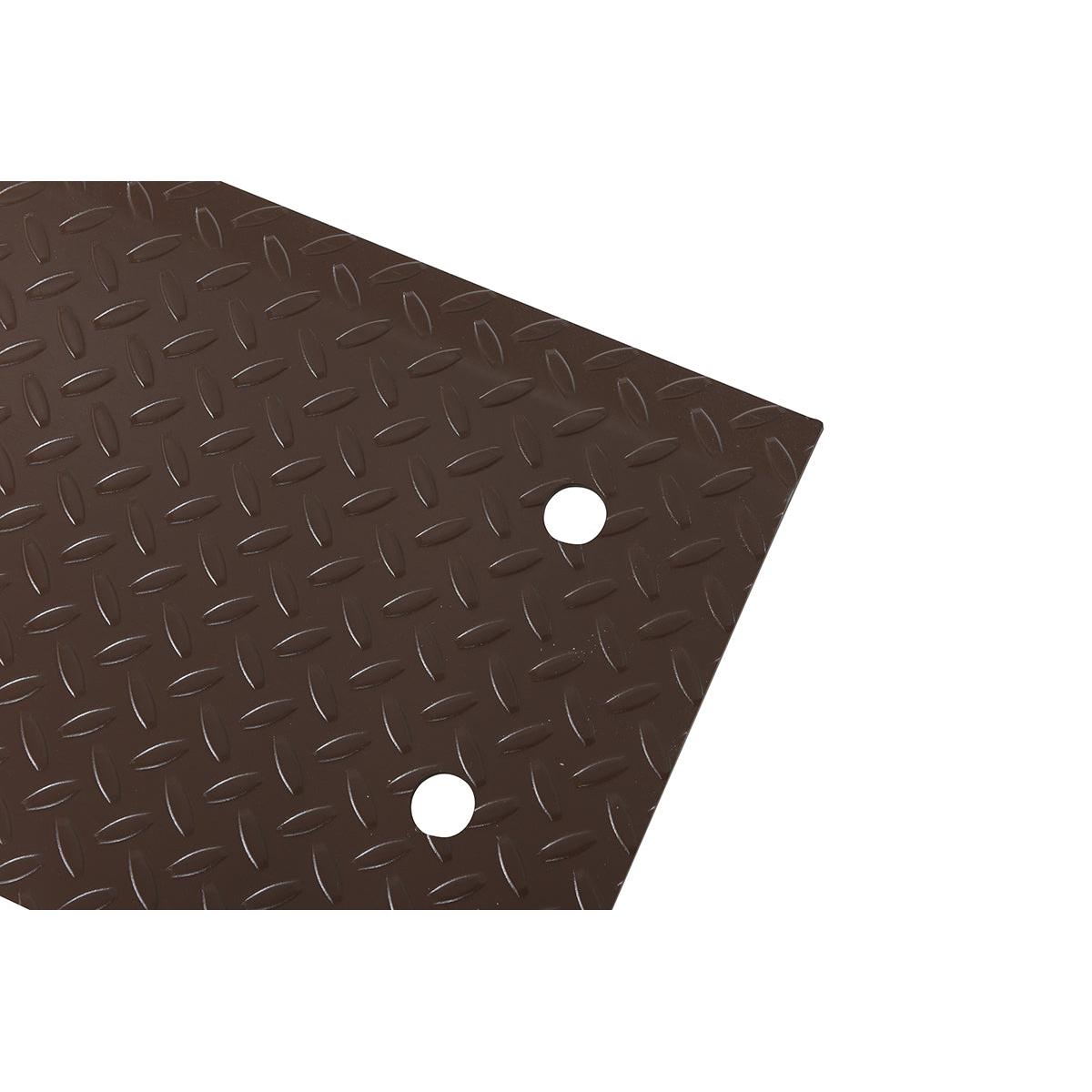

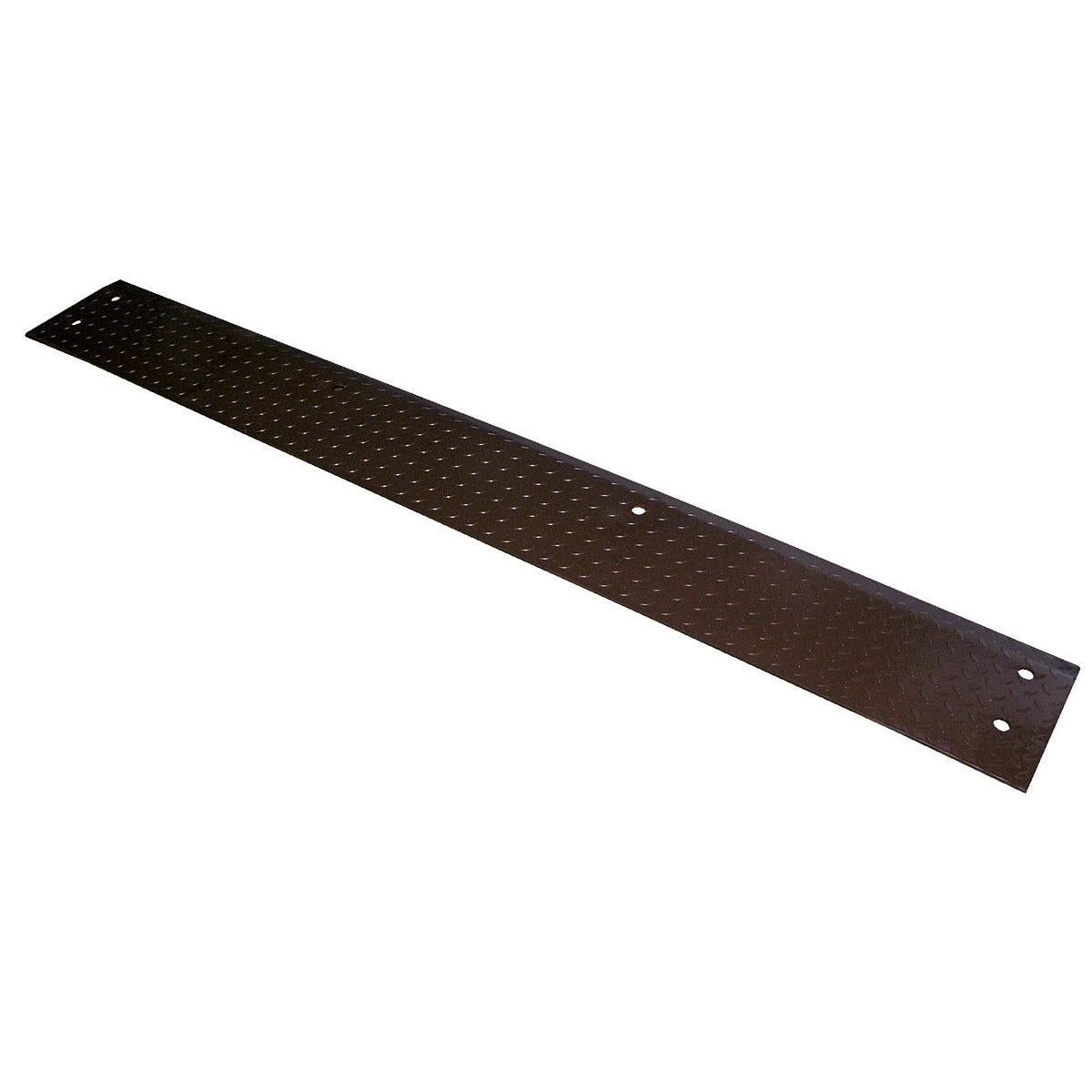

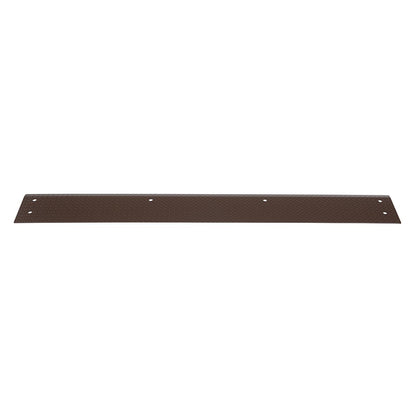

The leveler mounts directly to the dock face and does not require a concrete recess, simplifying installation. Once a trailer departs, the lip automatically retracts behind the bumpers. This model includes all necessary hydraulic components: a hand pump, wall mount brackets, cylinder, 180" hydraulic line, and hydraulic oil. A steel dock edge or approach ramp is required for proper setup.

Features and Benefits:

• Heavy-Duty Capacity: Supports loads up to 15,000 lbs for safe, efficient loading/unloading.

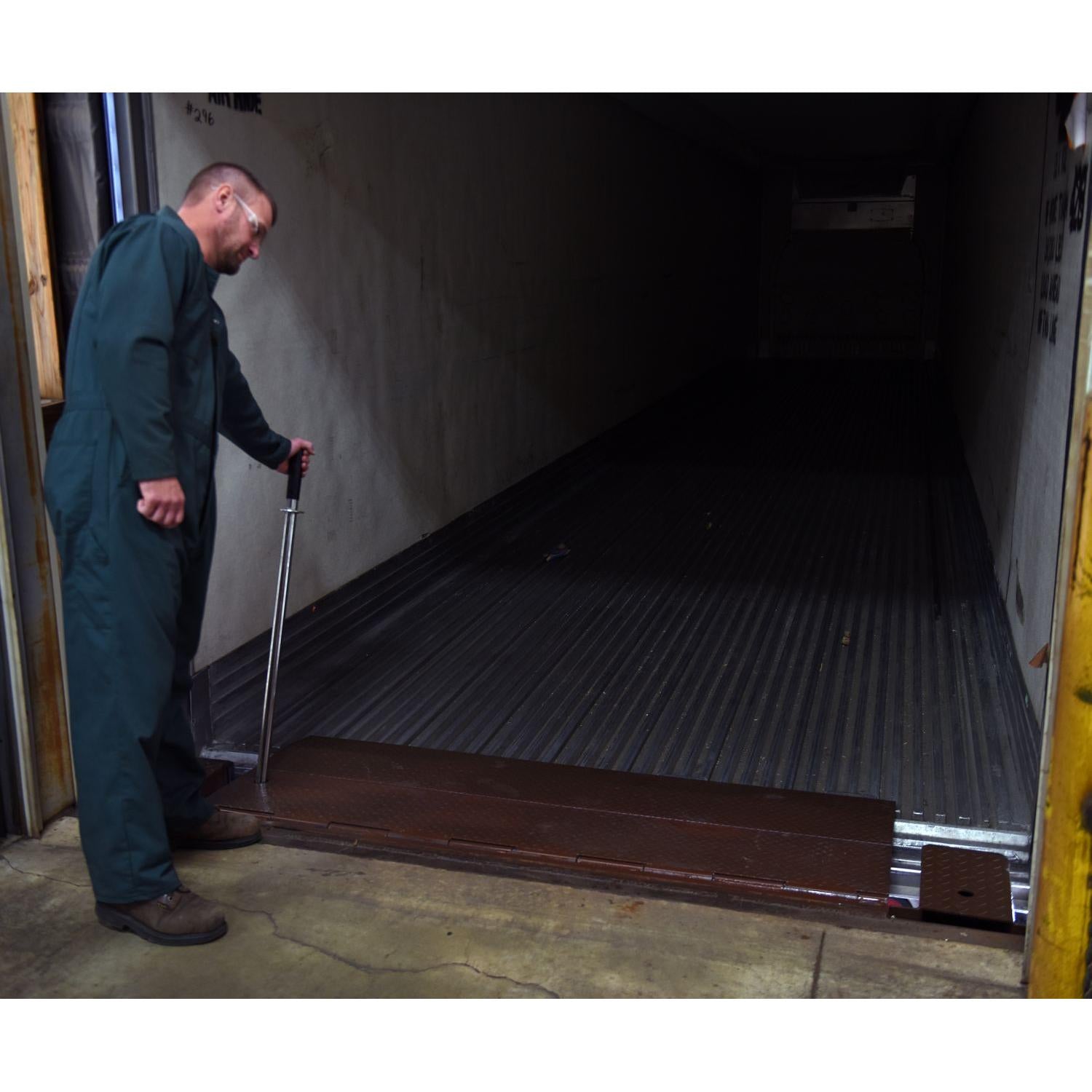

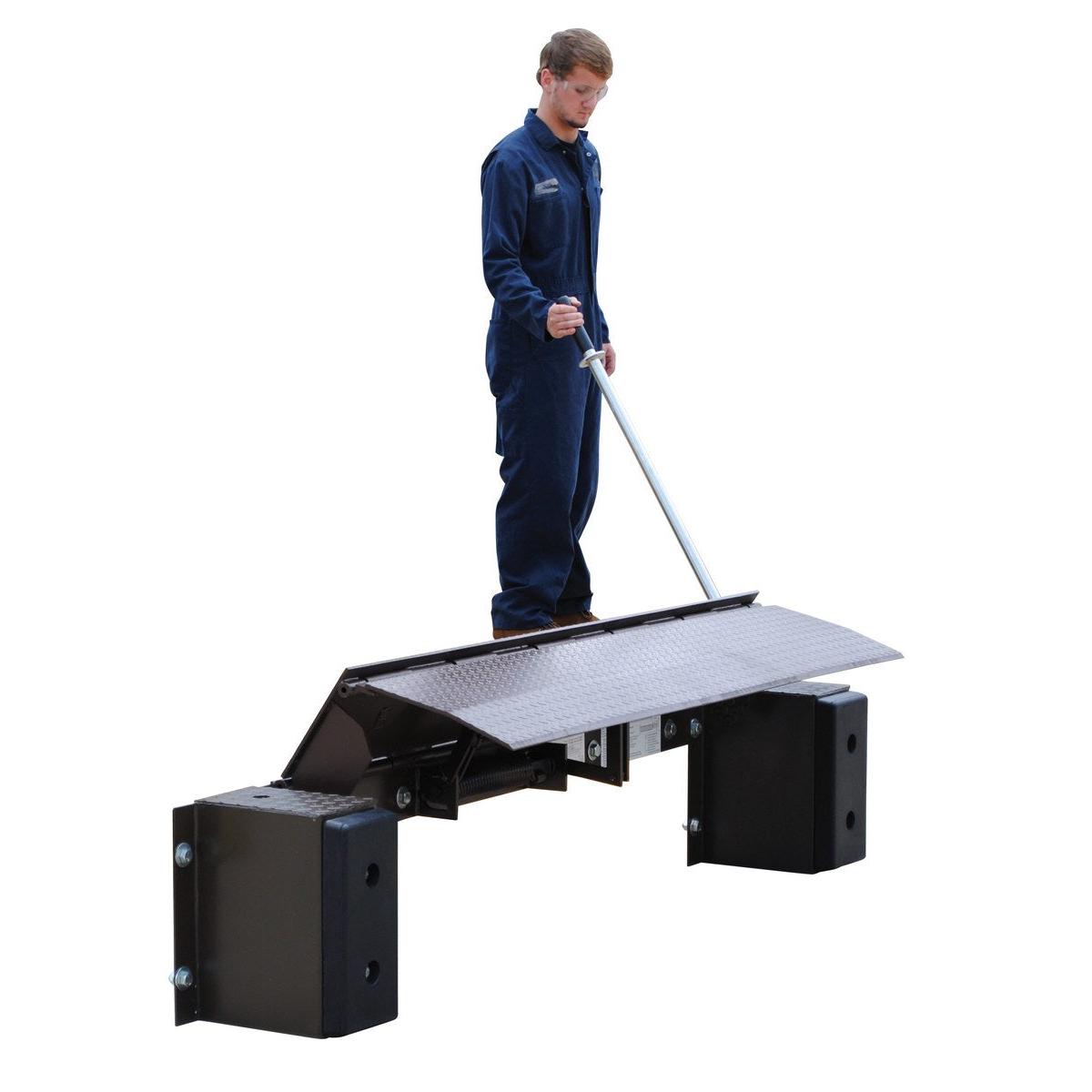

• Manual Hydraulic Operation: Hand pump system lifts the deck and extends the lip without electrical power.
• Permanent Installation: Secures to the dock face for long-term use.

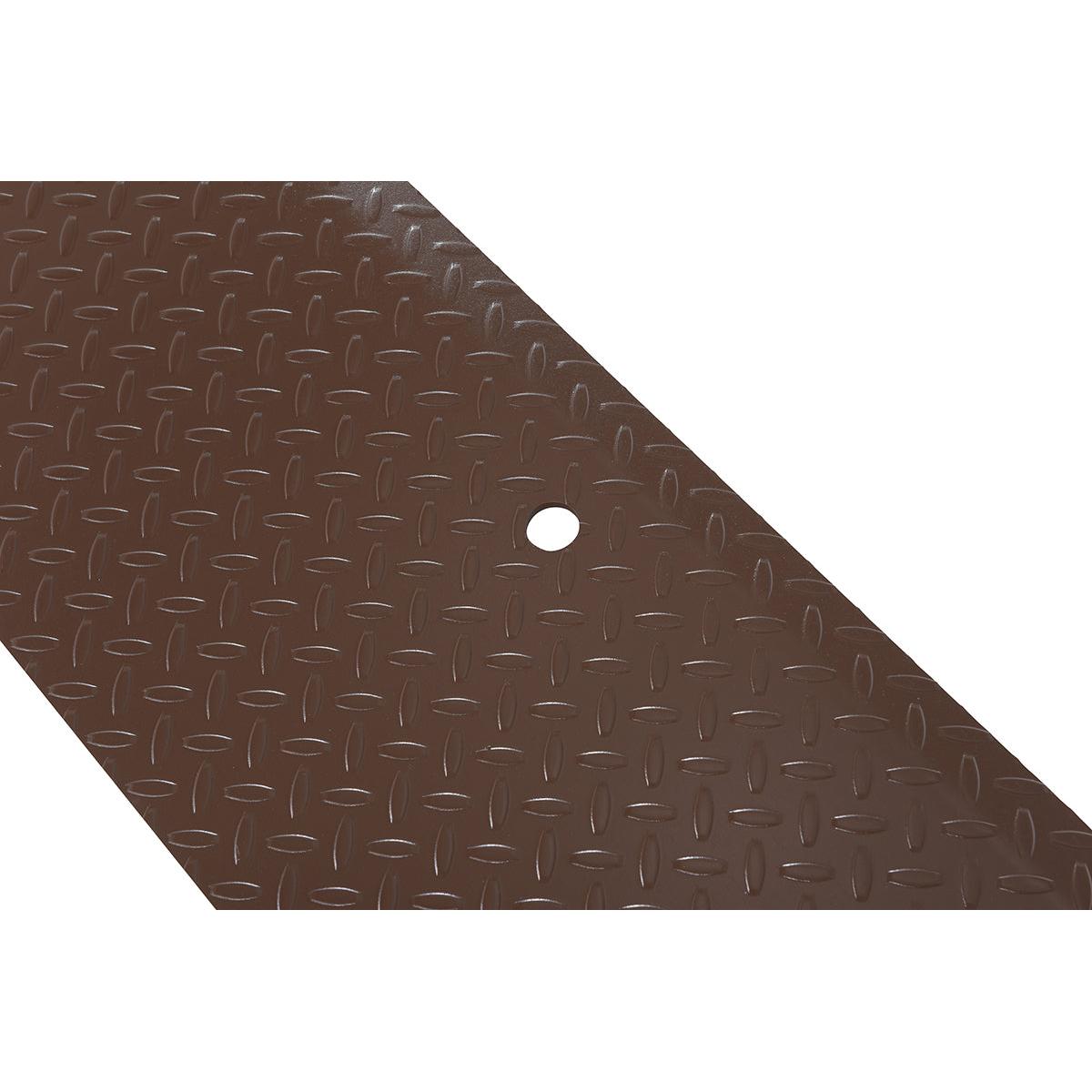

• Anti-Slip Surface: Tread plate platform enhances traction and worker safety.
• No Recess Required: Mounts without the need for dock concrete modifications.
• Includes All Components: Delivered with pump, cylinder, hydraulic line, oil, and installation instructions.

Additional Notes:
This leveler is ideal for facilities with moderate loading needs, offering durability and ease of use without the complexity of a fully hydraulic system. Proper installation with a steel dock edge is essential for optimal performance and safety.

Technical Specifications:

• Total Shipping Weight (lbs): 743 (only 1 package)
• Overall Size (W x L x H): 98"W x 26.75"L x 27.75"H
• Color: Brown
• Uniform Capacity (lbs): 15,000
• Service Range Above Dock (in): 5
• Service Range Below Dock (in): 5
• Ramp Width (in): 72
• Ramp Length (in): 36-5/8
• Platform Material: Steel
• Platform Length (in): 15
• Platform Thickness (in): 0.375
• Dock Leveler Operating Method: Hydraulic Hand Pump
• Dock Leveler Lip Projection (in): 9.875

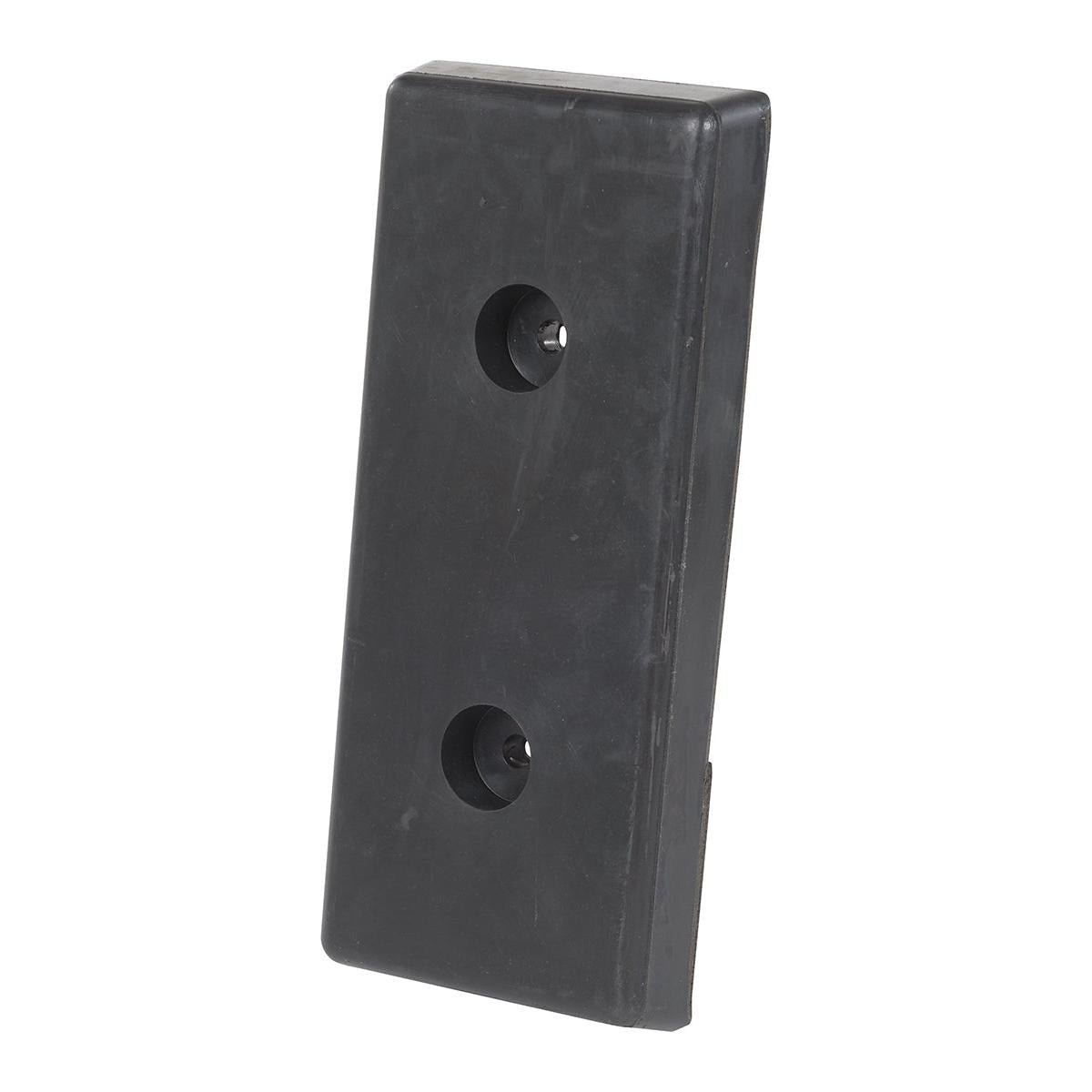

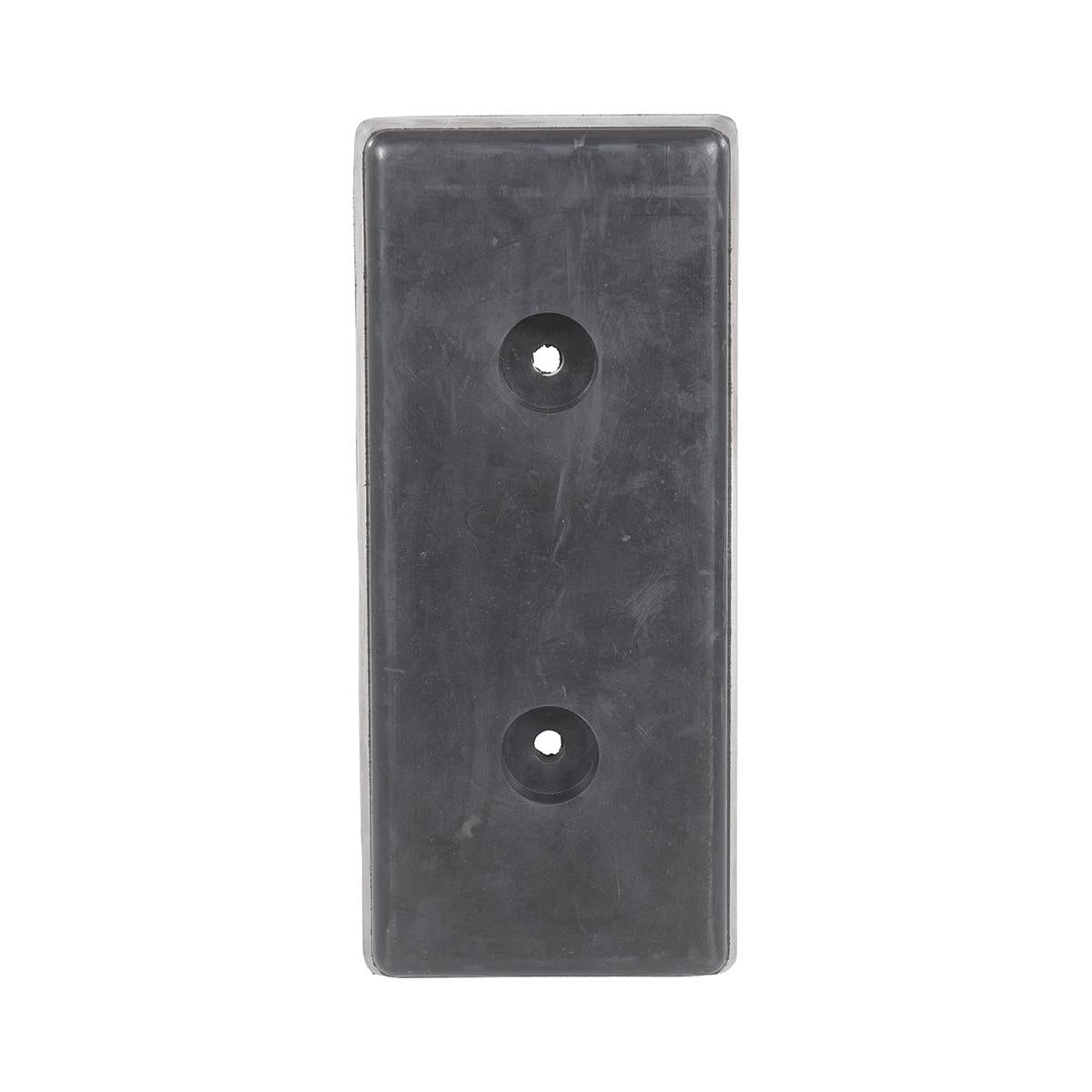

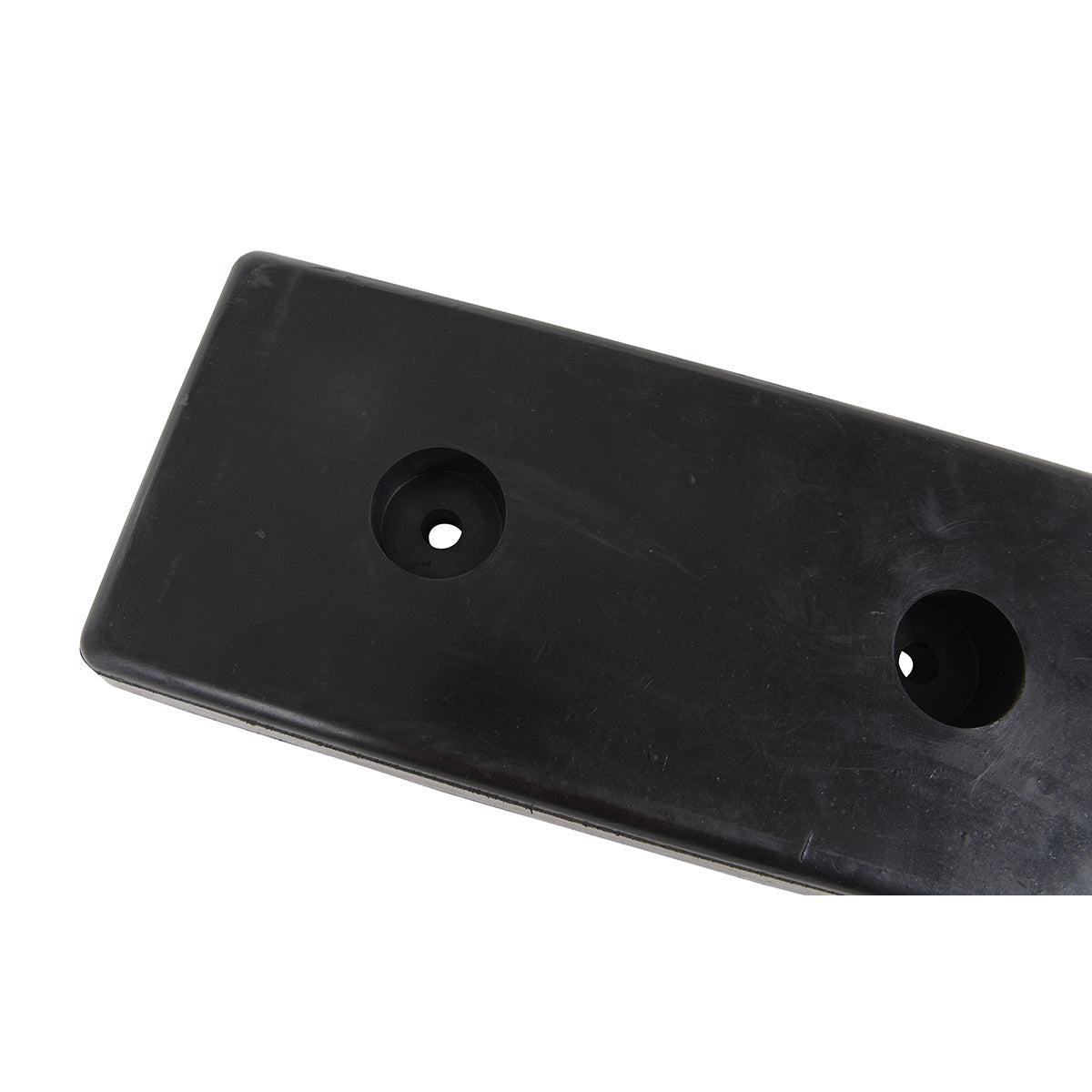

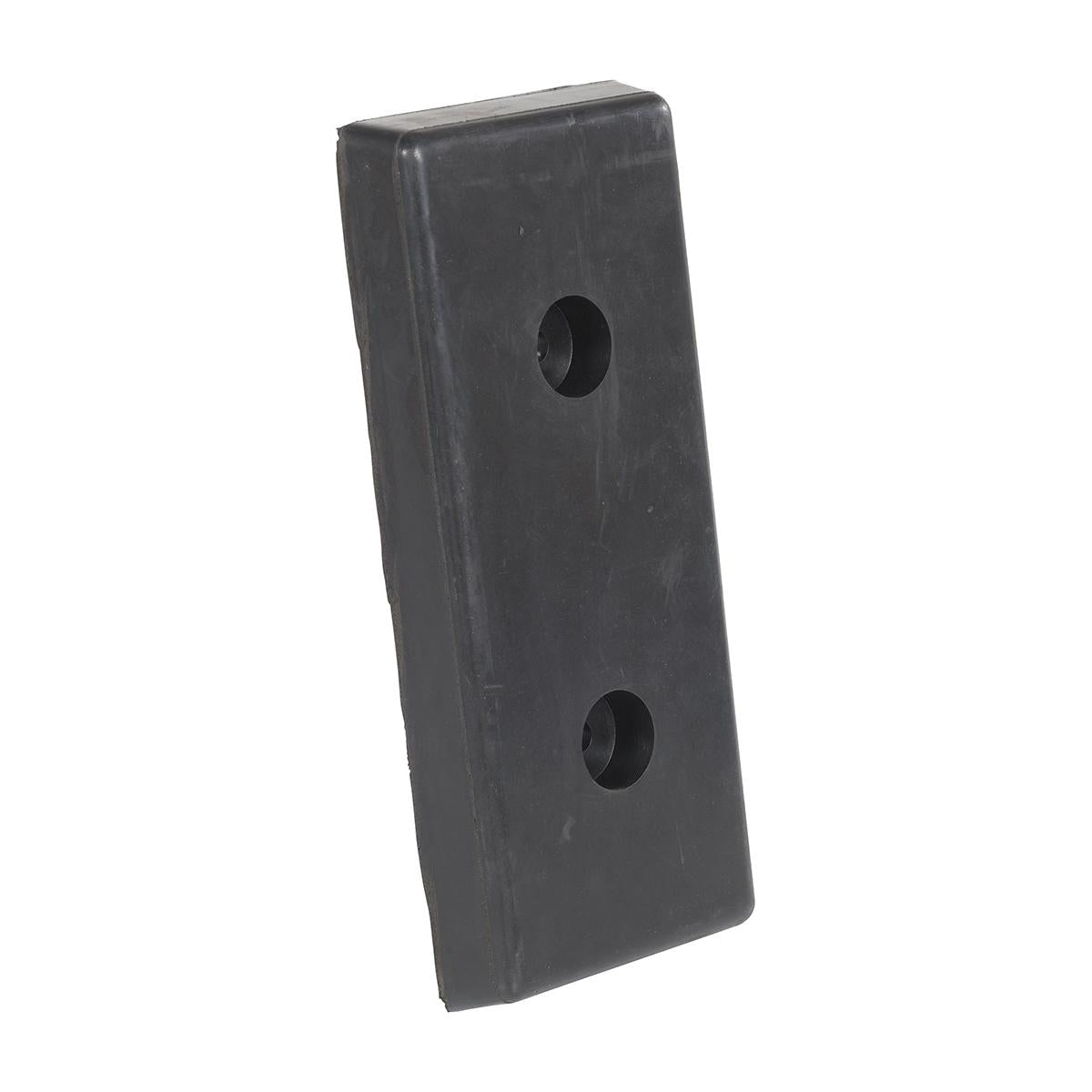

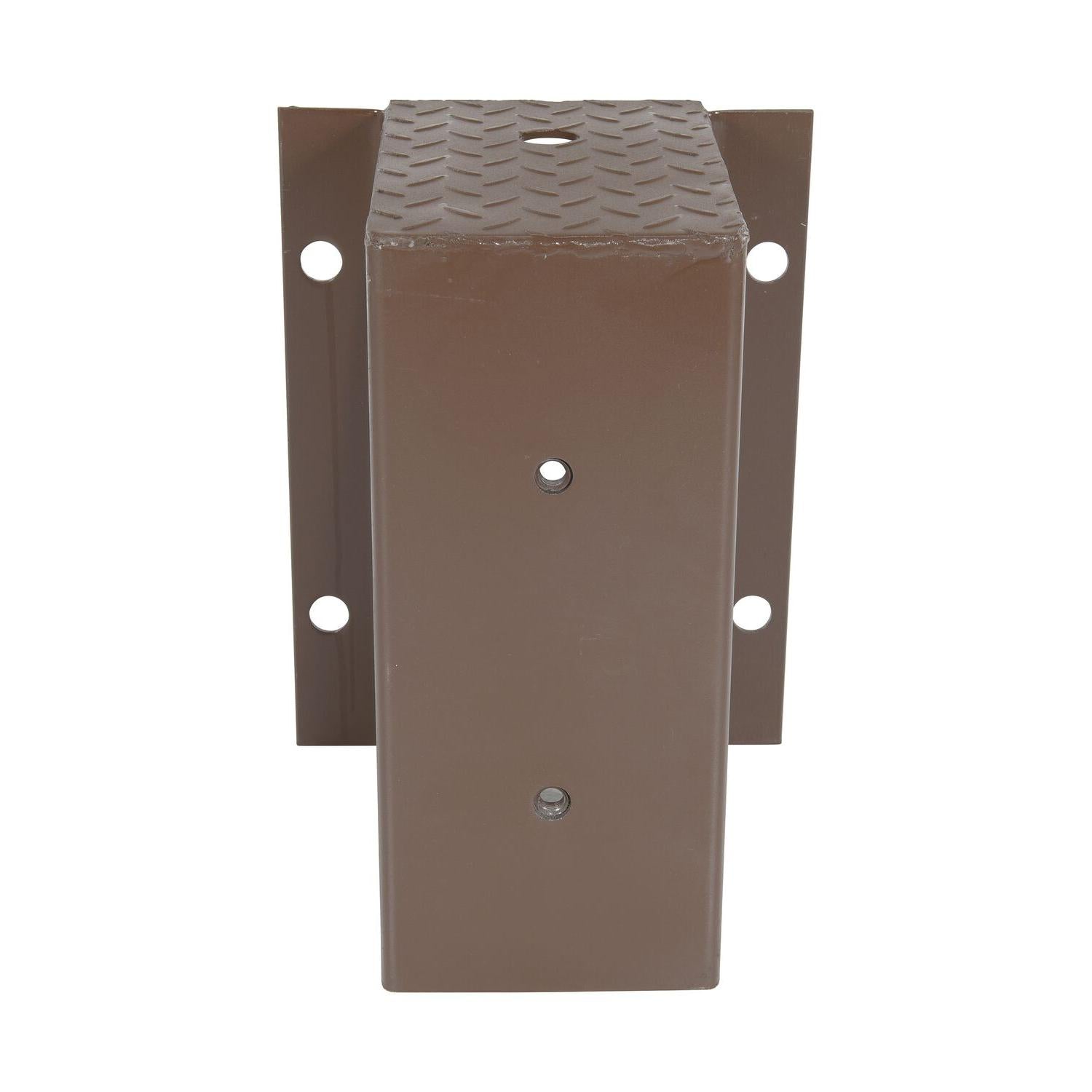

• Bumper Pad Width (in): 8
• Bumper Pad Thickness (in): 2
• Bumper Pad Height (in): 18
• Bumper Projection Including Rubber (in): 26.75
• Assembled Depth (in): 26.75
• Assembled Height (in): 27.75
• Overall Width (in): 98
• Overall Length (ft): 3.05
• UPC: 691215031240
• GTIN: 00691215031240
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required: No
• Assembly: Assembly Required

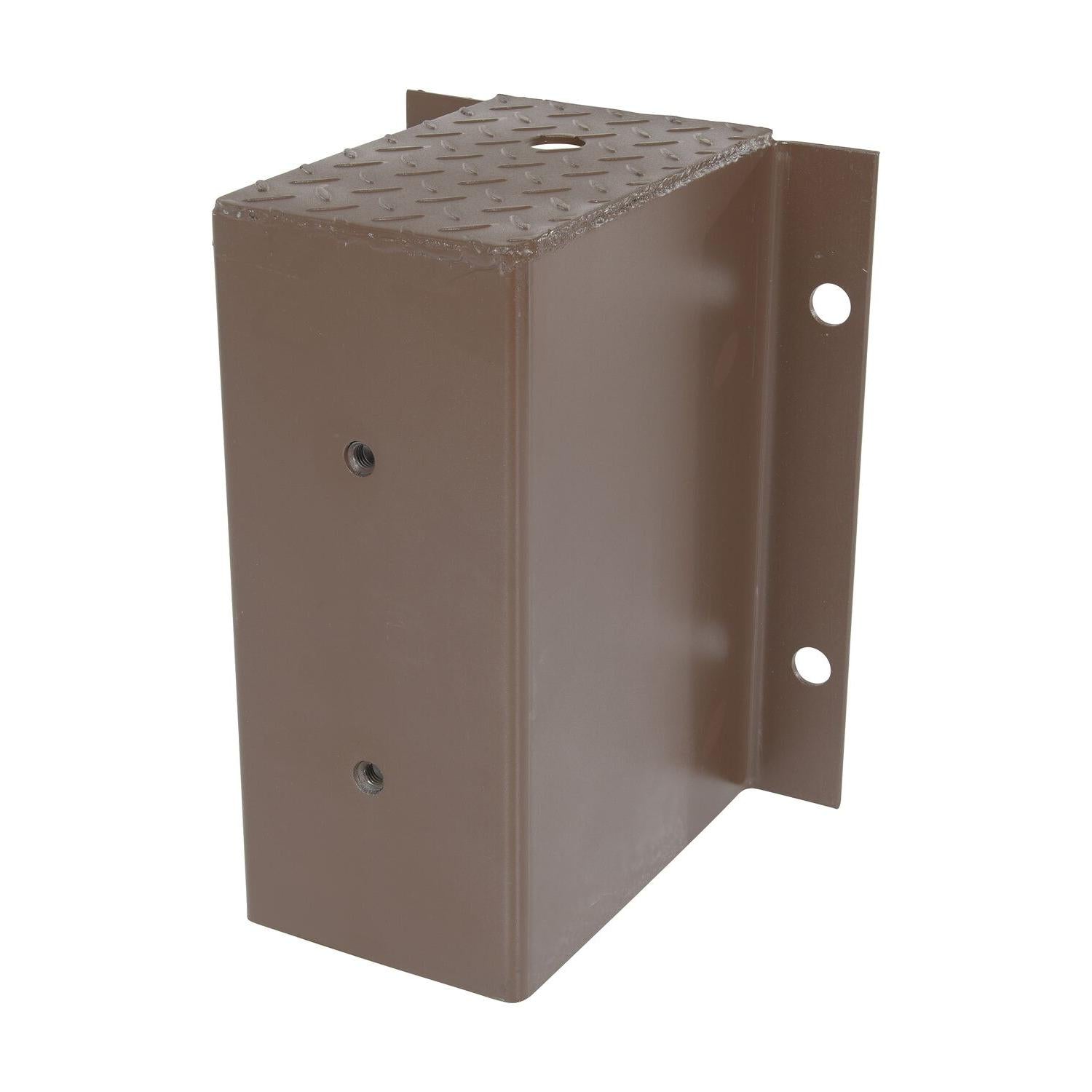

• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and Installation Instructions
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year

Discover the Edge-O-Dock Levelers complete collection:

• Steel Hand Pump Edge-O-Dock Leveler – 72" Ramp Width x 36-5/8" Ramp Length – 15,000 lb. Capacity
• Steel Hand Pump Edge-O-Dock Levelers – 20,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 25,000 lb. Capacity (66", 72", 72" Extended Ramp)

• Steel Hand Pump Edge-O-Dock Levelers – 30,000 lb. Capacity


Made in USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colorsof this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
