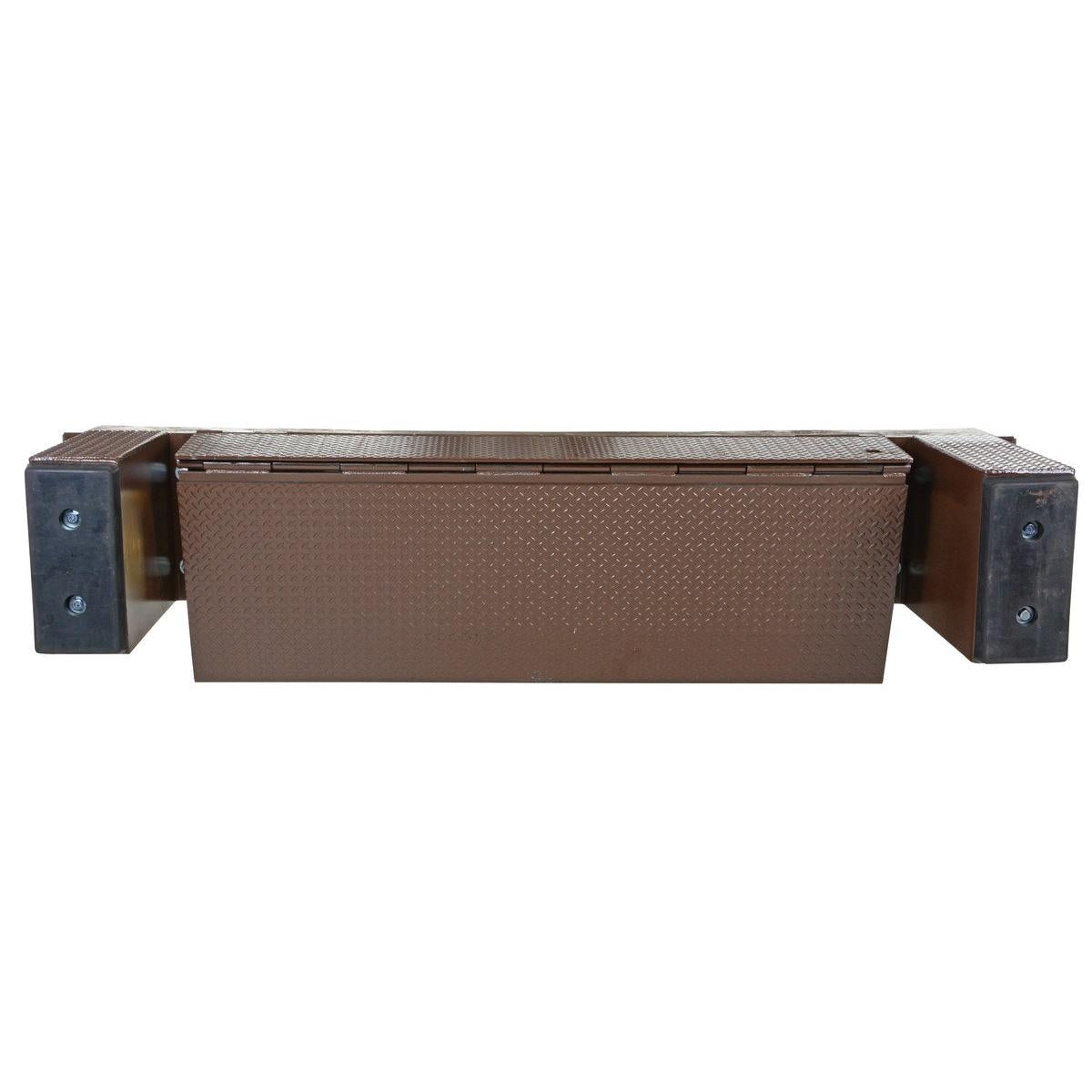

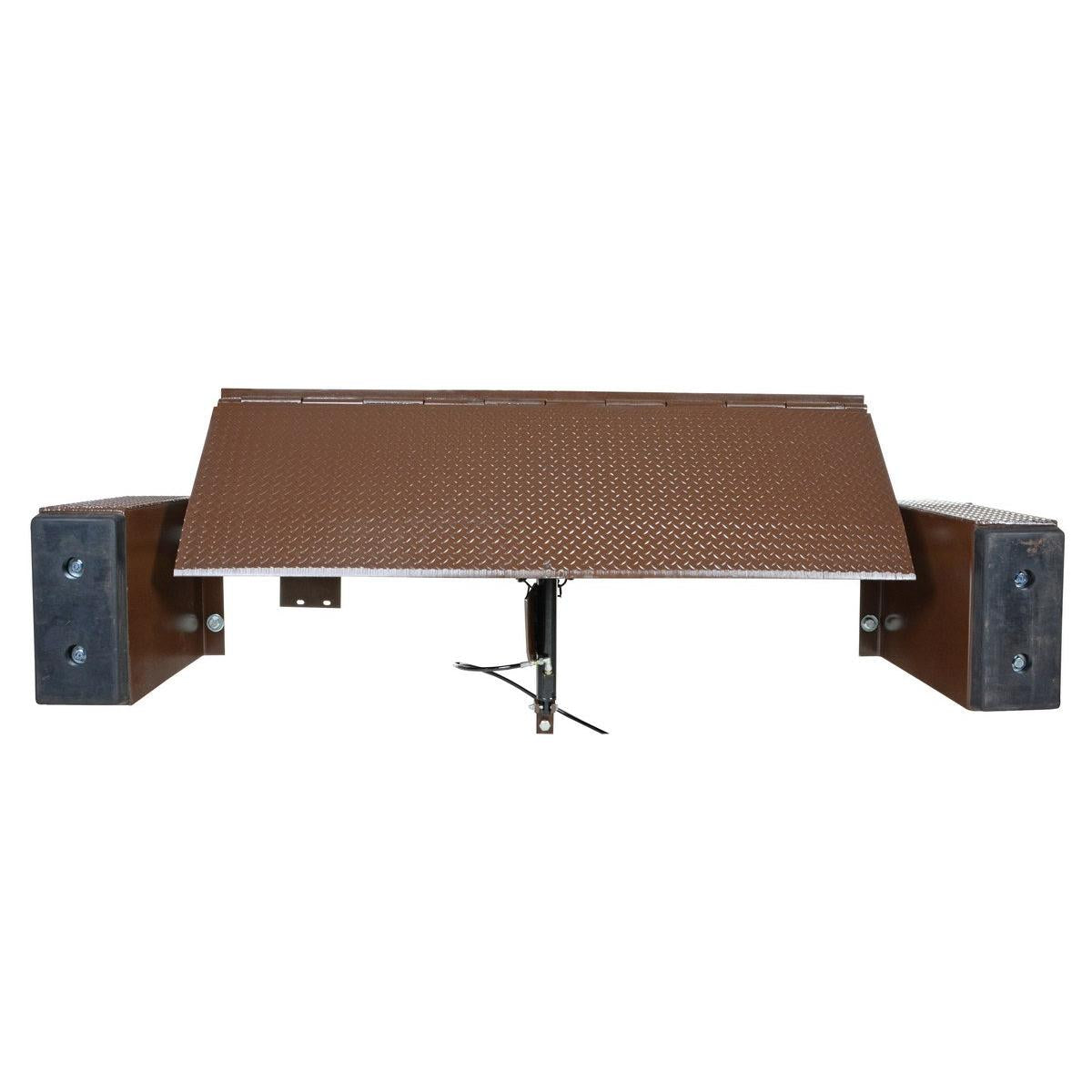

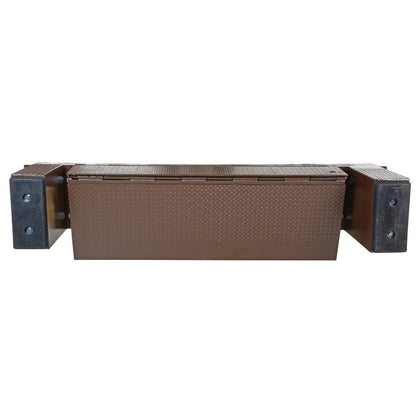

Steel Hand Pump Edge-O-Dock Levelers – 30,000 lb. Capacity

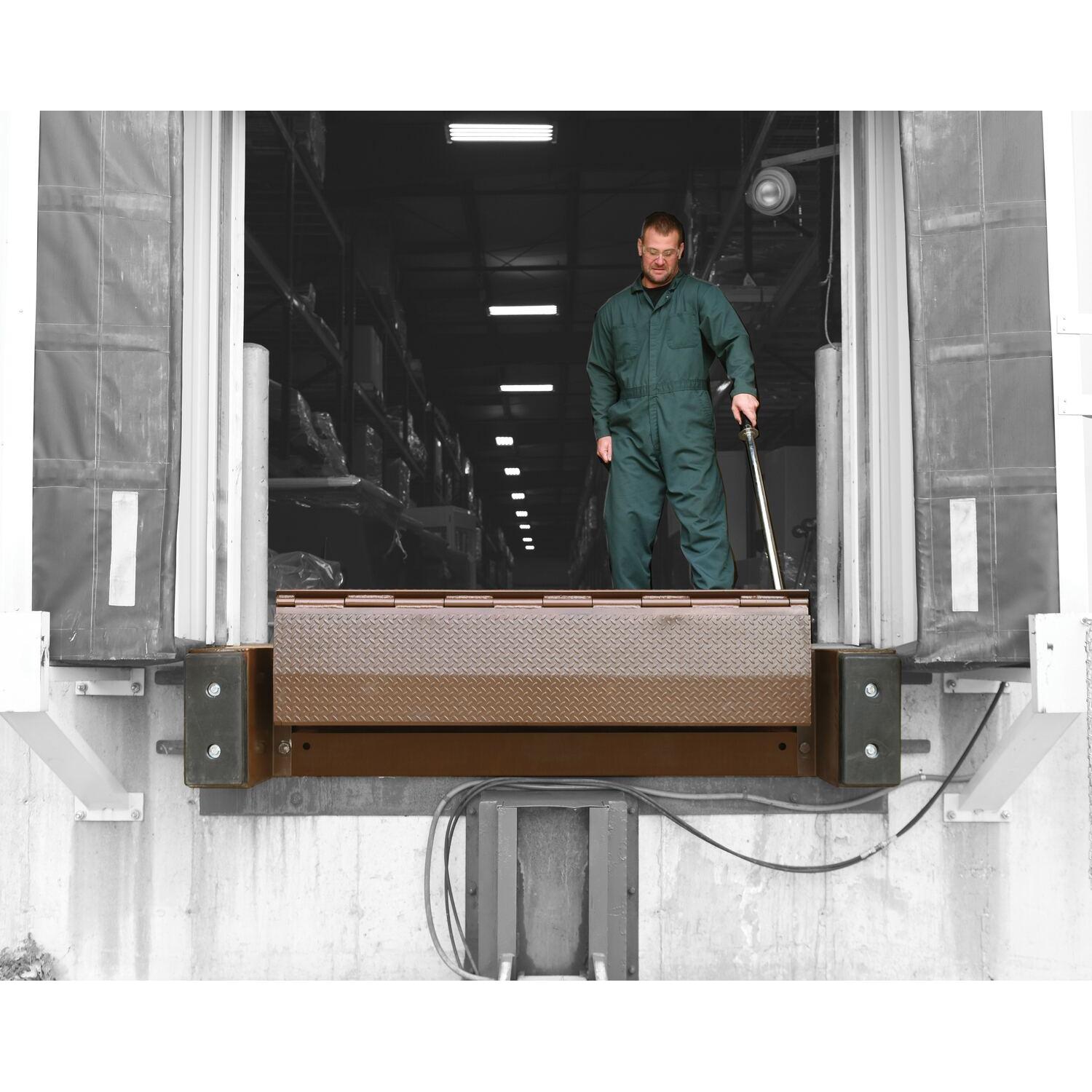

The Steel Hand Pump Edge-O-Dock Leveler provides a reliable and permanent solution for bridging the gap between your dock and trailer. Designed for docks at least 48" high, these levelers are ideal for heavy-duty loading environments and support up to 30,000 pounds of uniform capacity. The unit mounts directly to the dock face, eliminating the need for a concrete recess, and includes all components for efficient manual operation using a hydraulic hand pump.

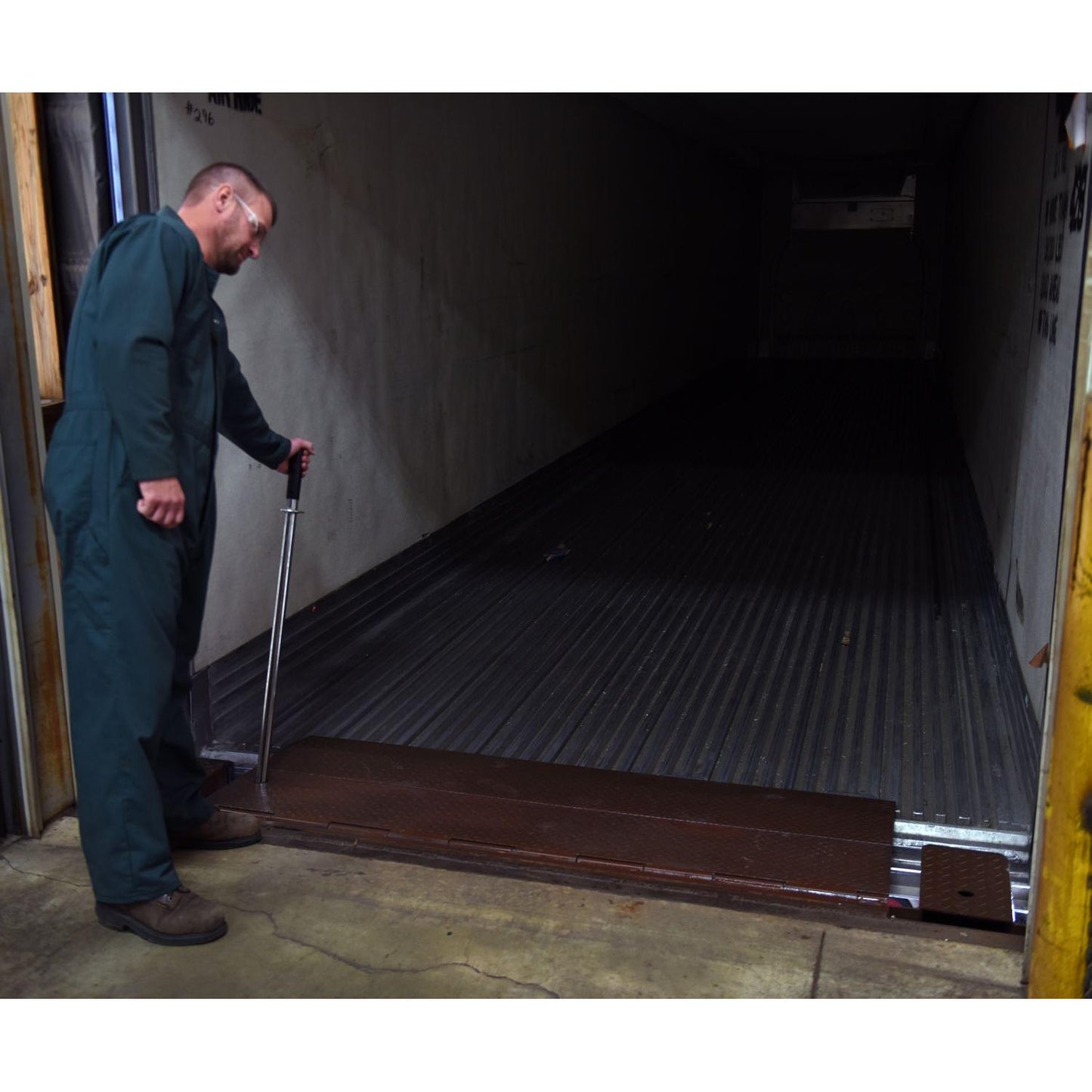

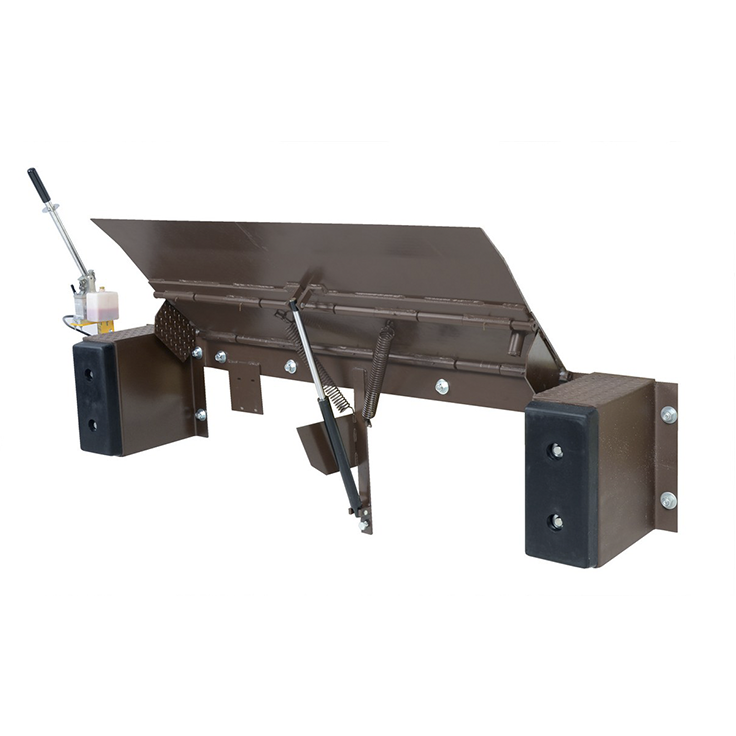

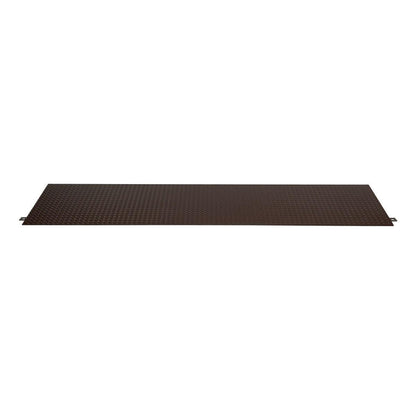

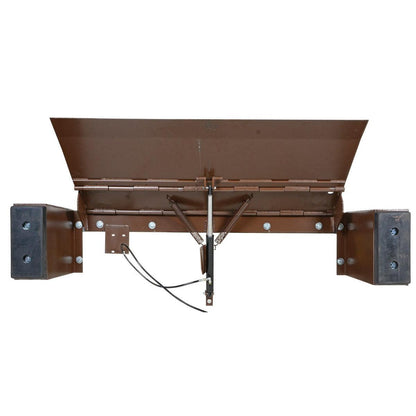

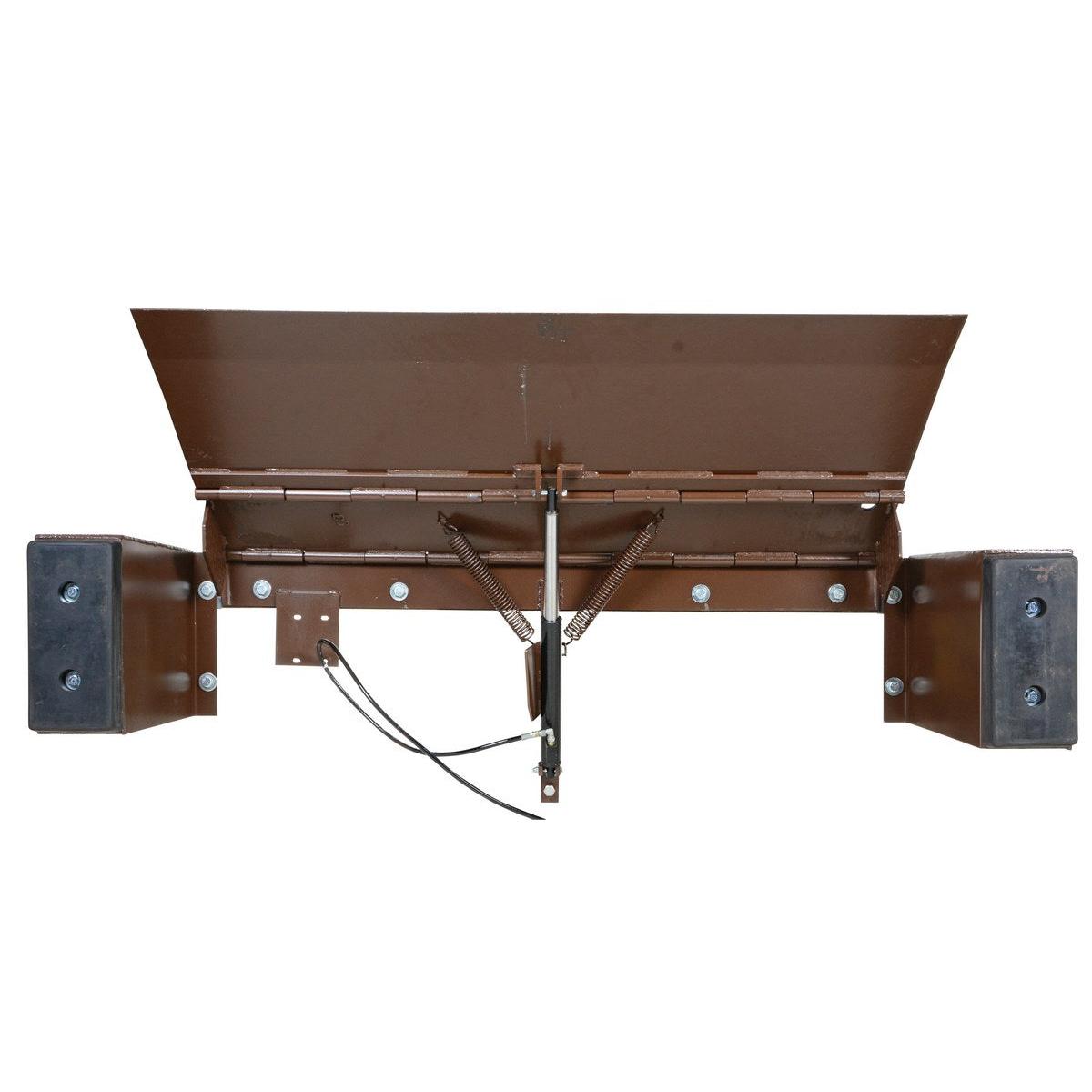

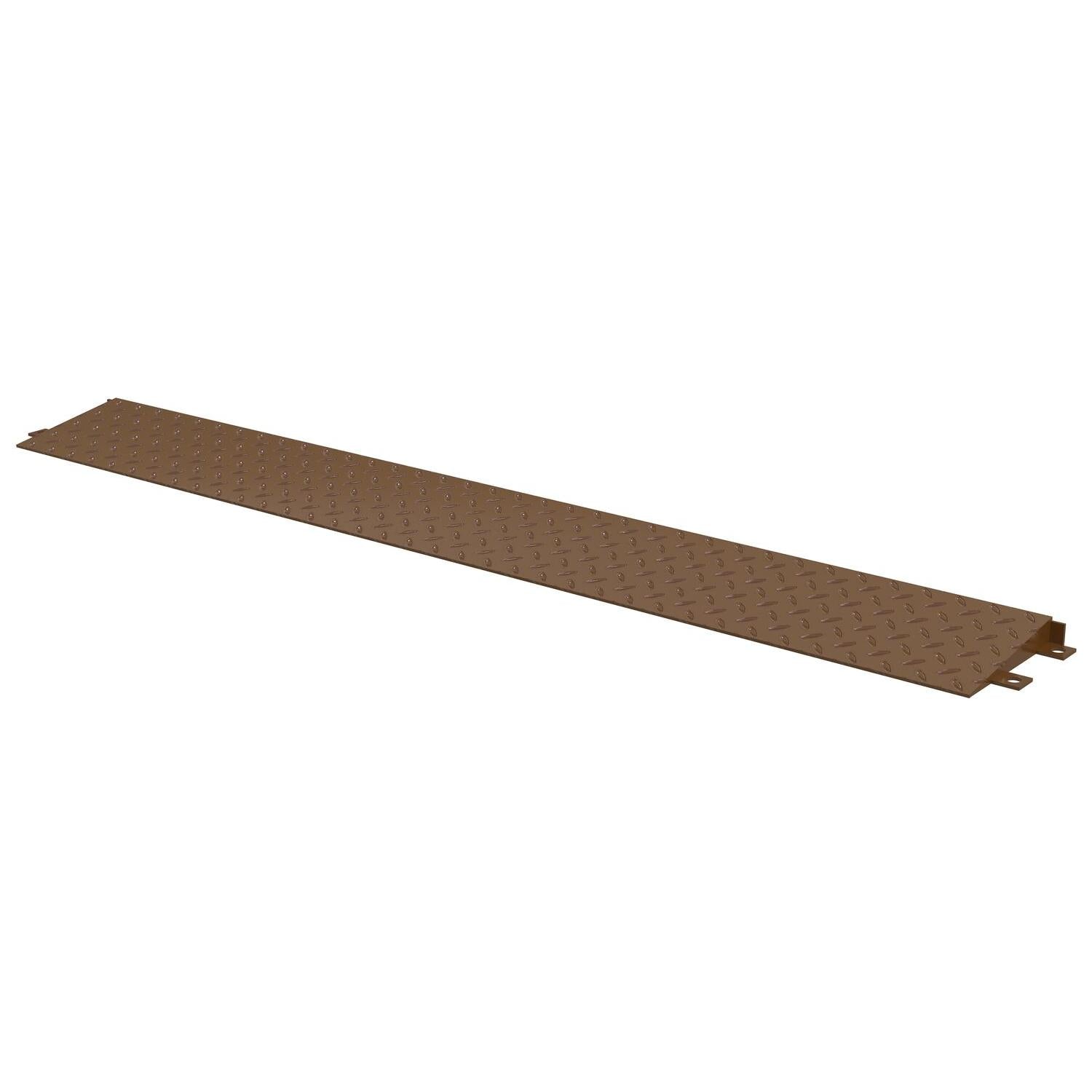

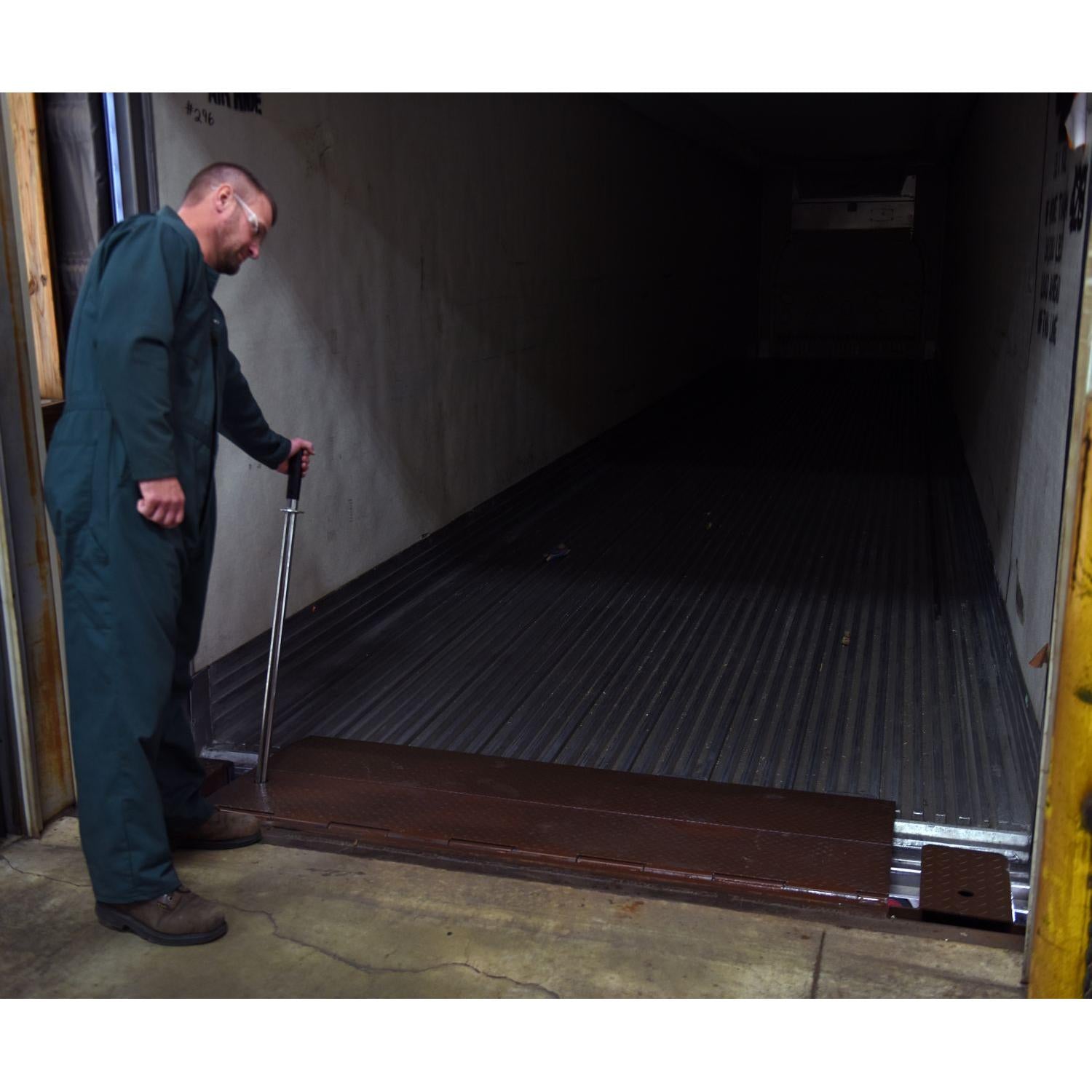

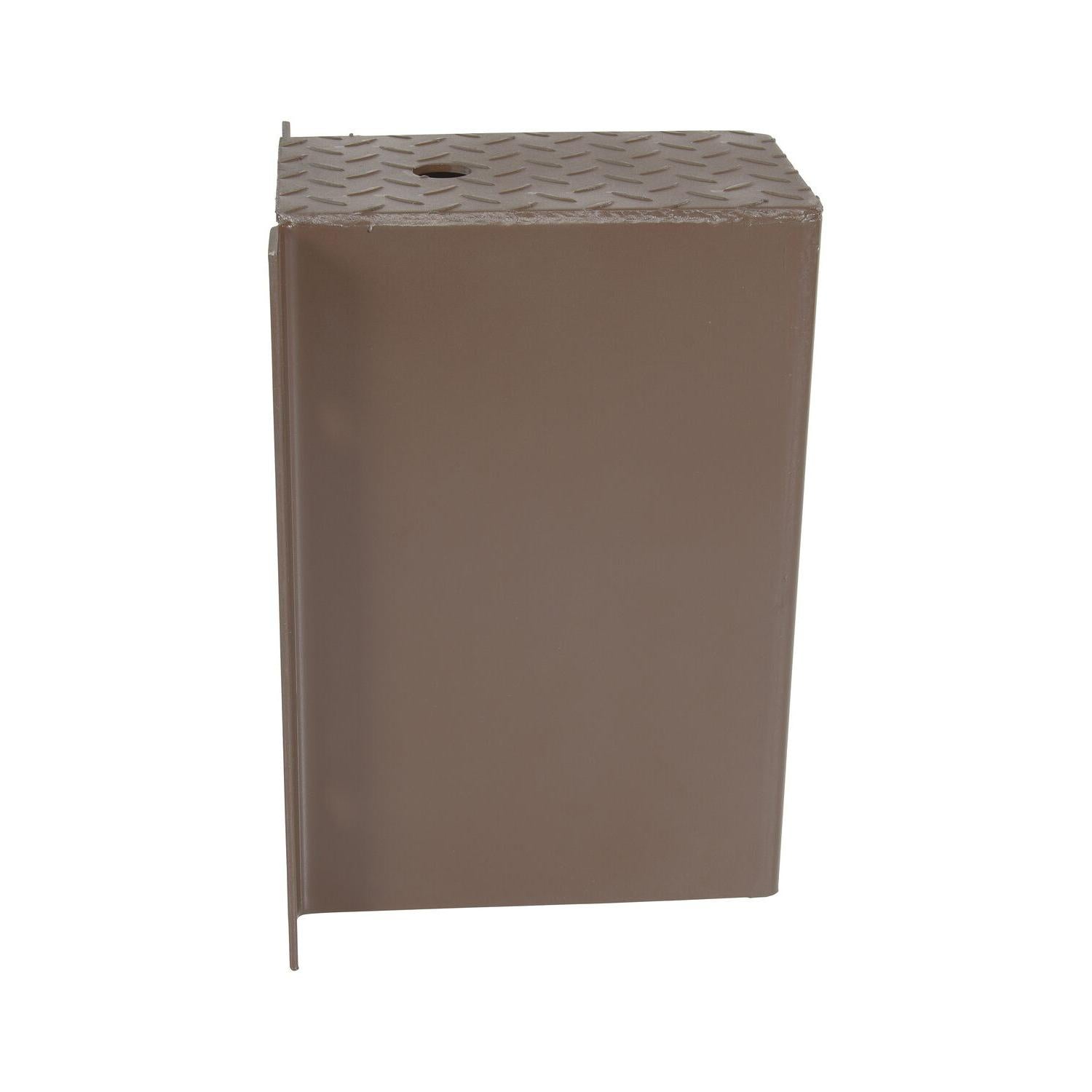

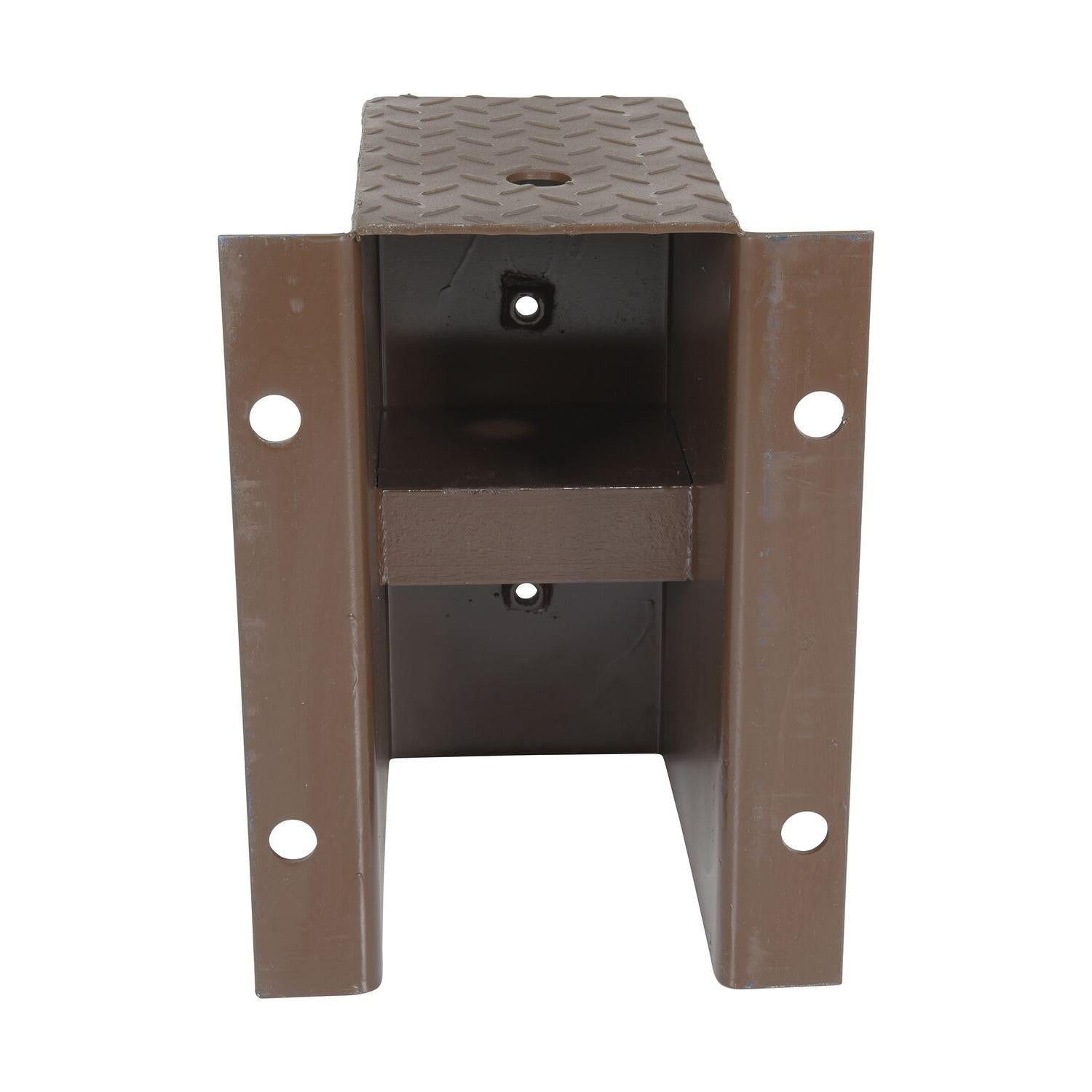

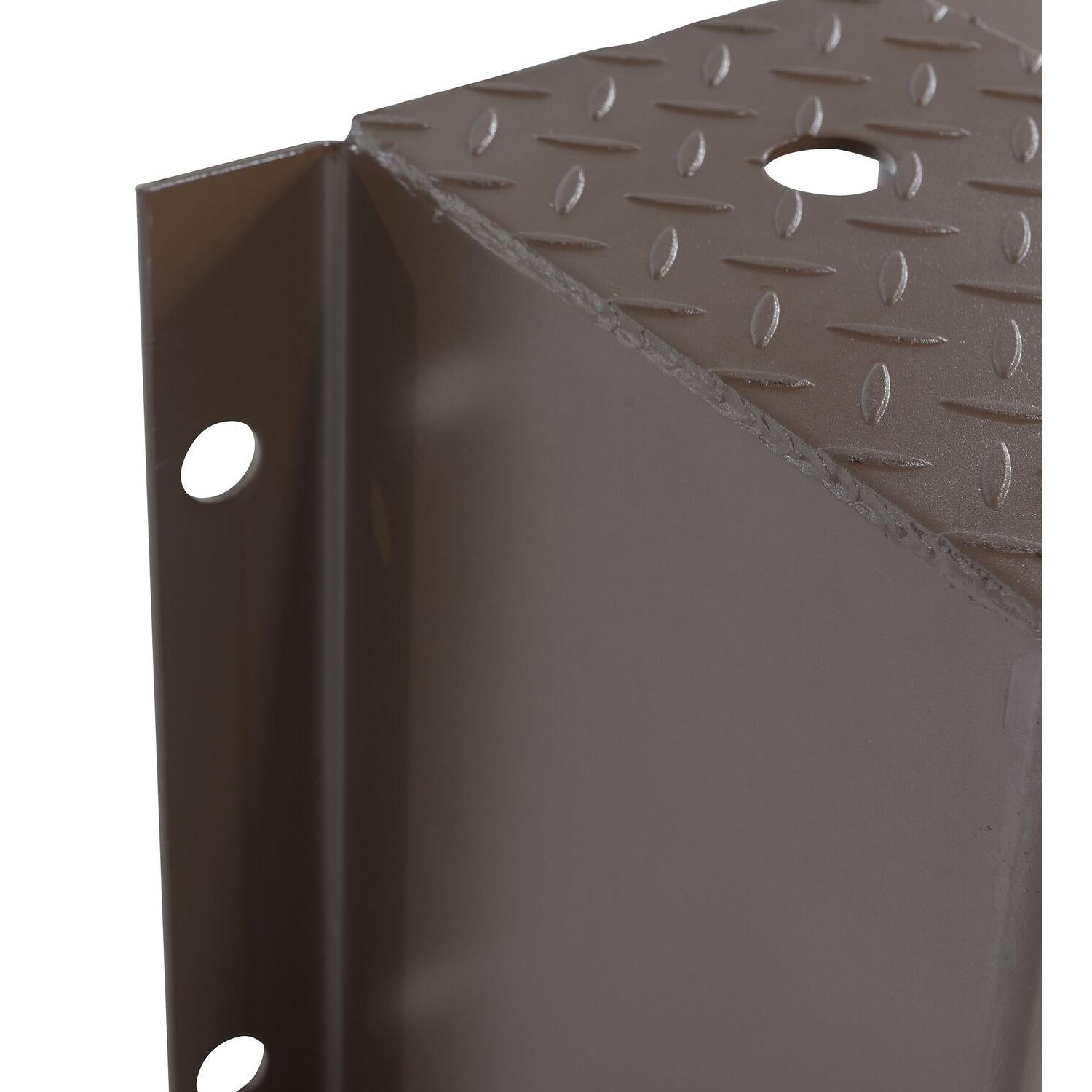

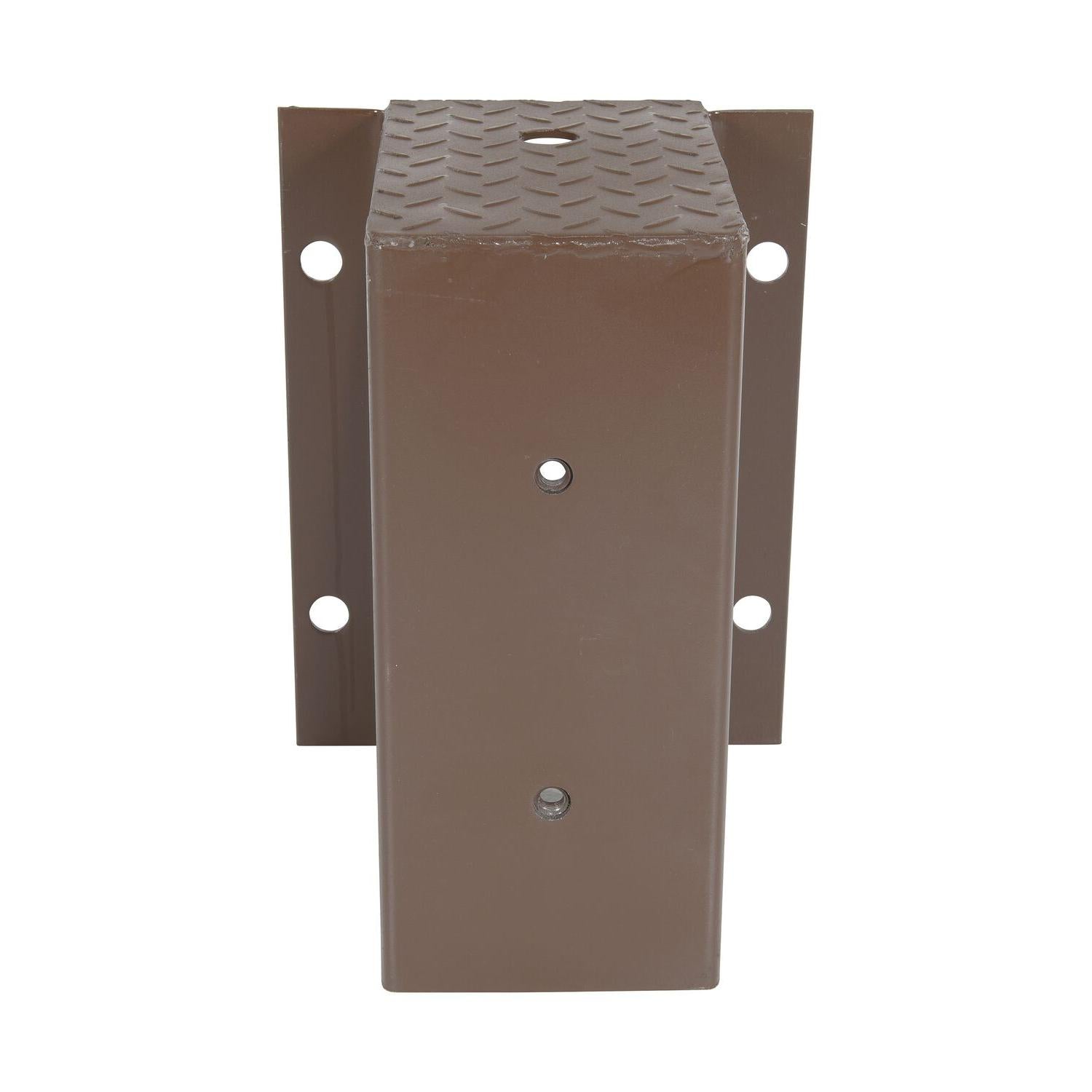

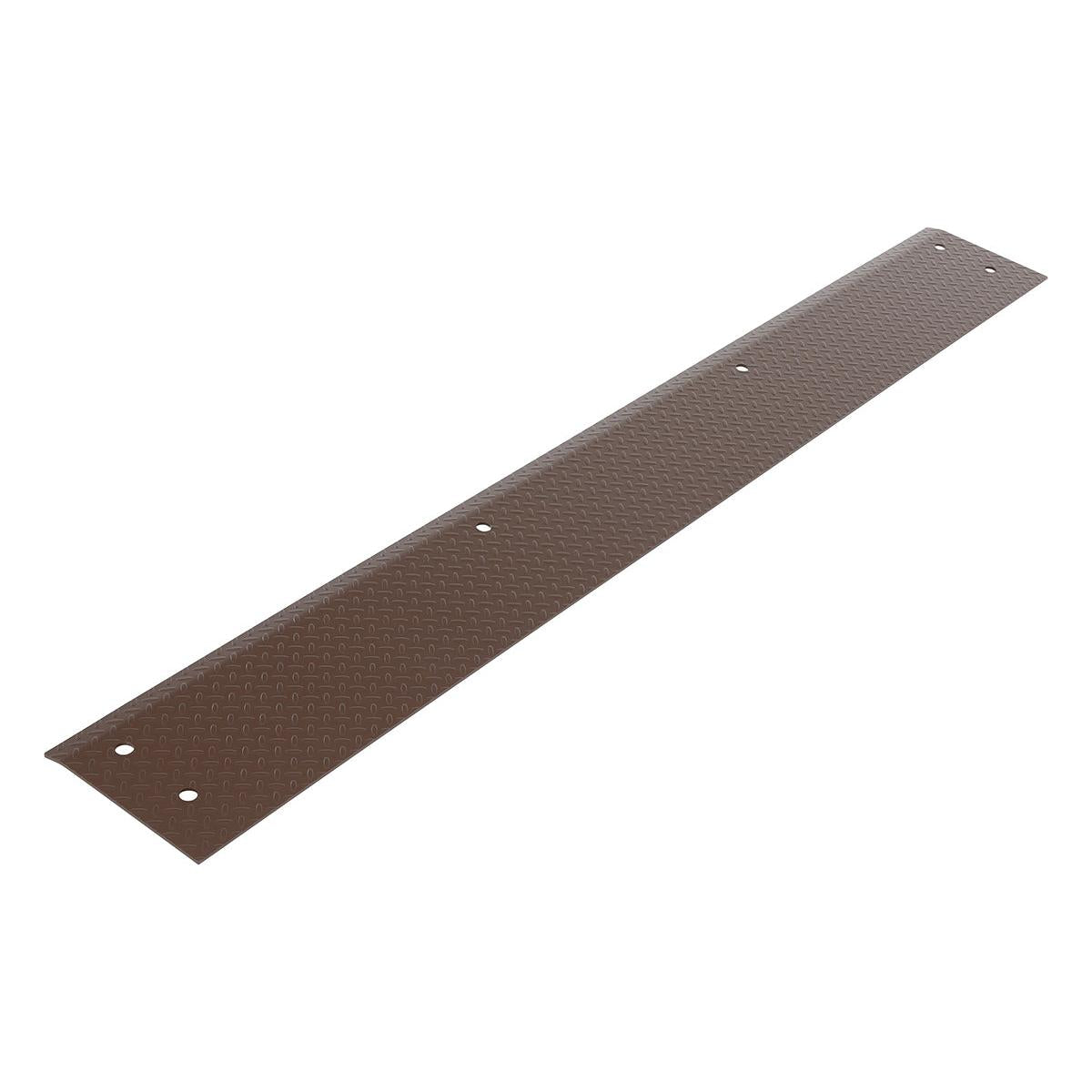

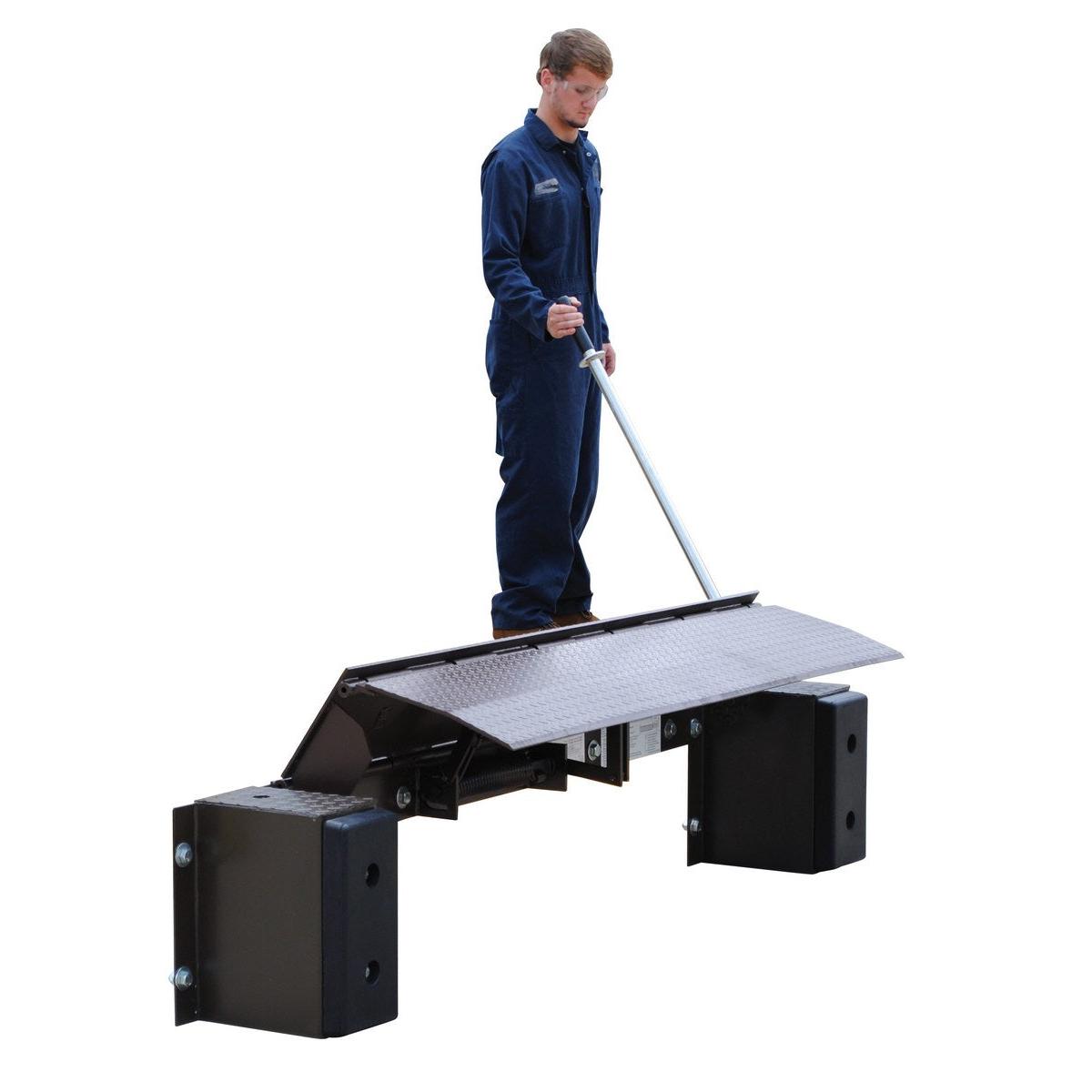

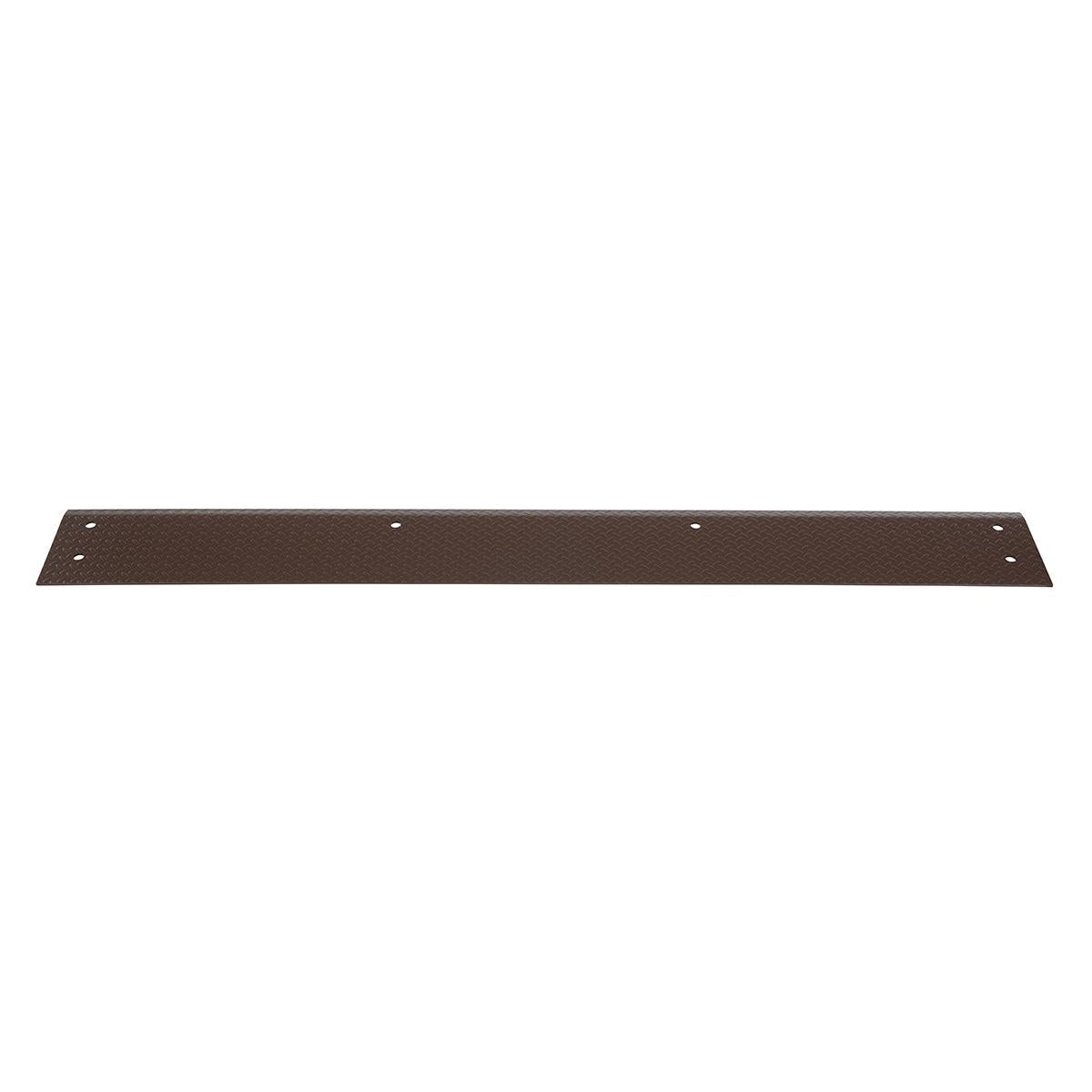

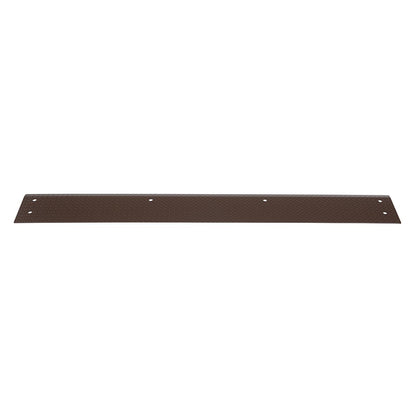

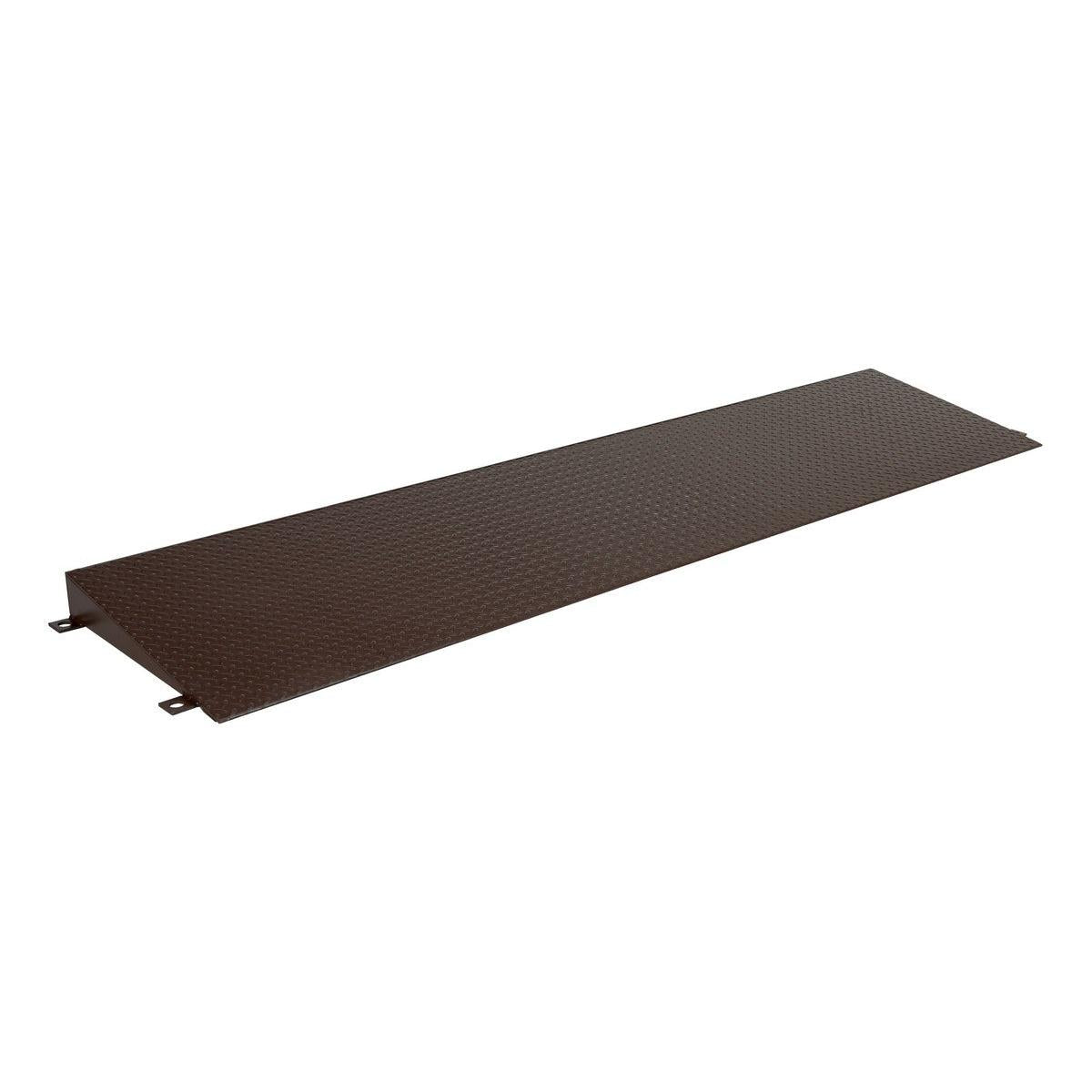

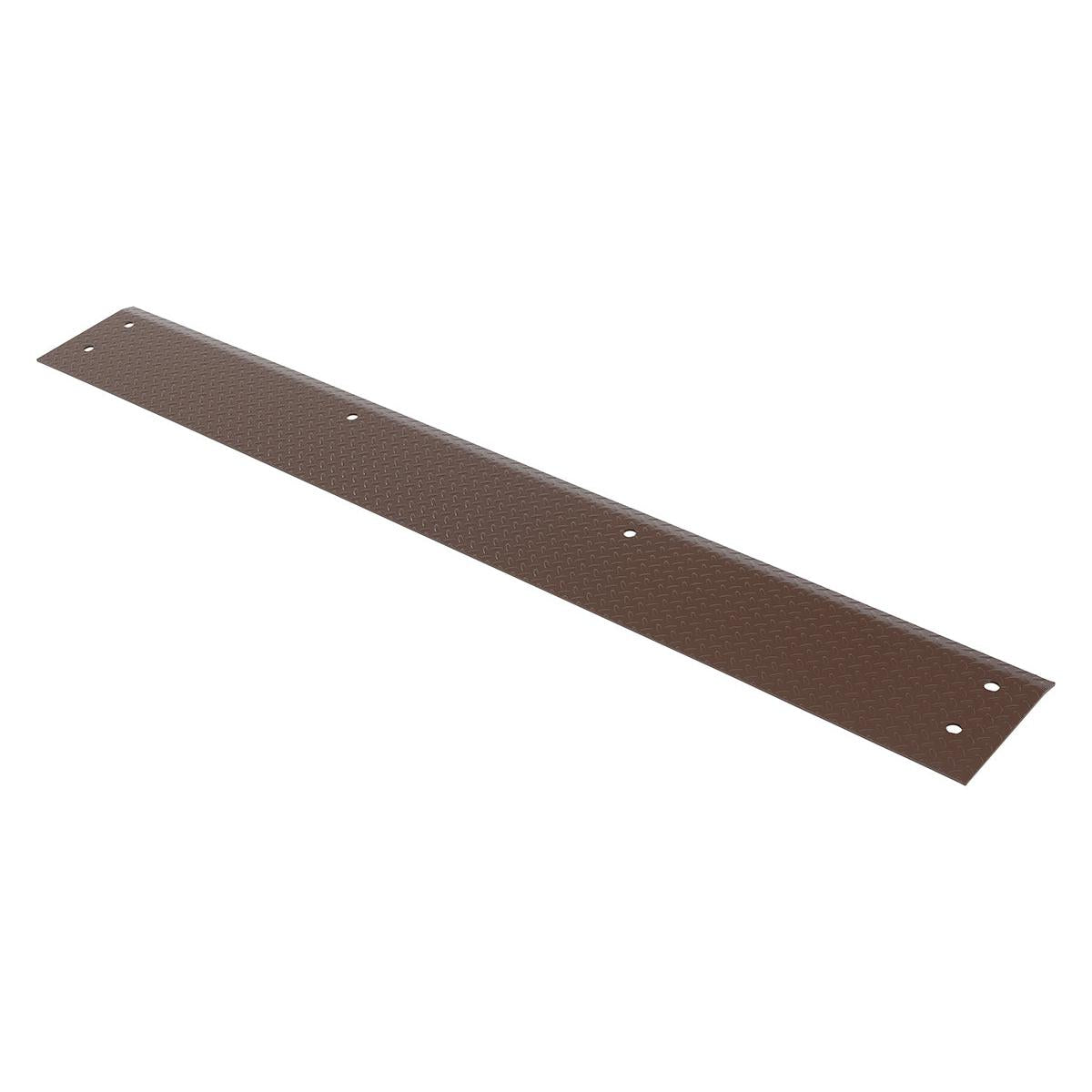

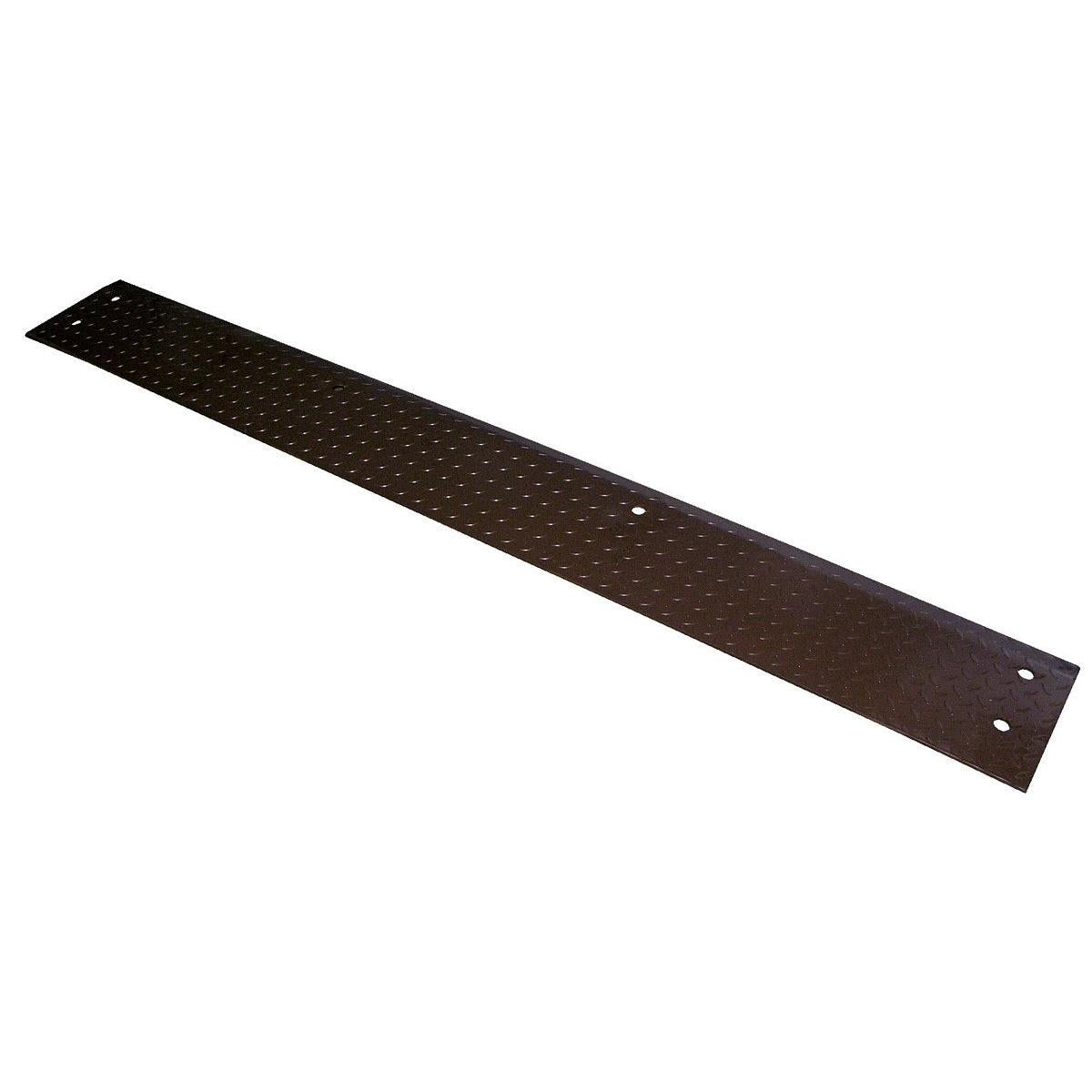

Both models use a hydraulic hand pump system that lifts the deck and extends the lip. Once the trailer is in place, the operator opens the relief valve to lower the deck onto the trailer. When the trailer departs, the lip drops behind the bumpers, returning the unit to its stored position. Each unit comes complete with a hand pump, wall-mount brackets, cylinder, 180" hydraulic line, and oil. A steel dock edge or approach ramp is required for proper installation.

Features & Benefits:

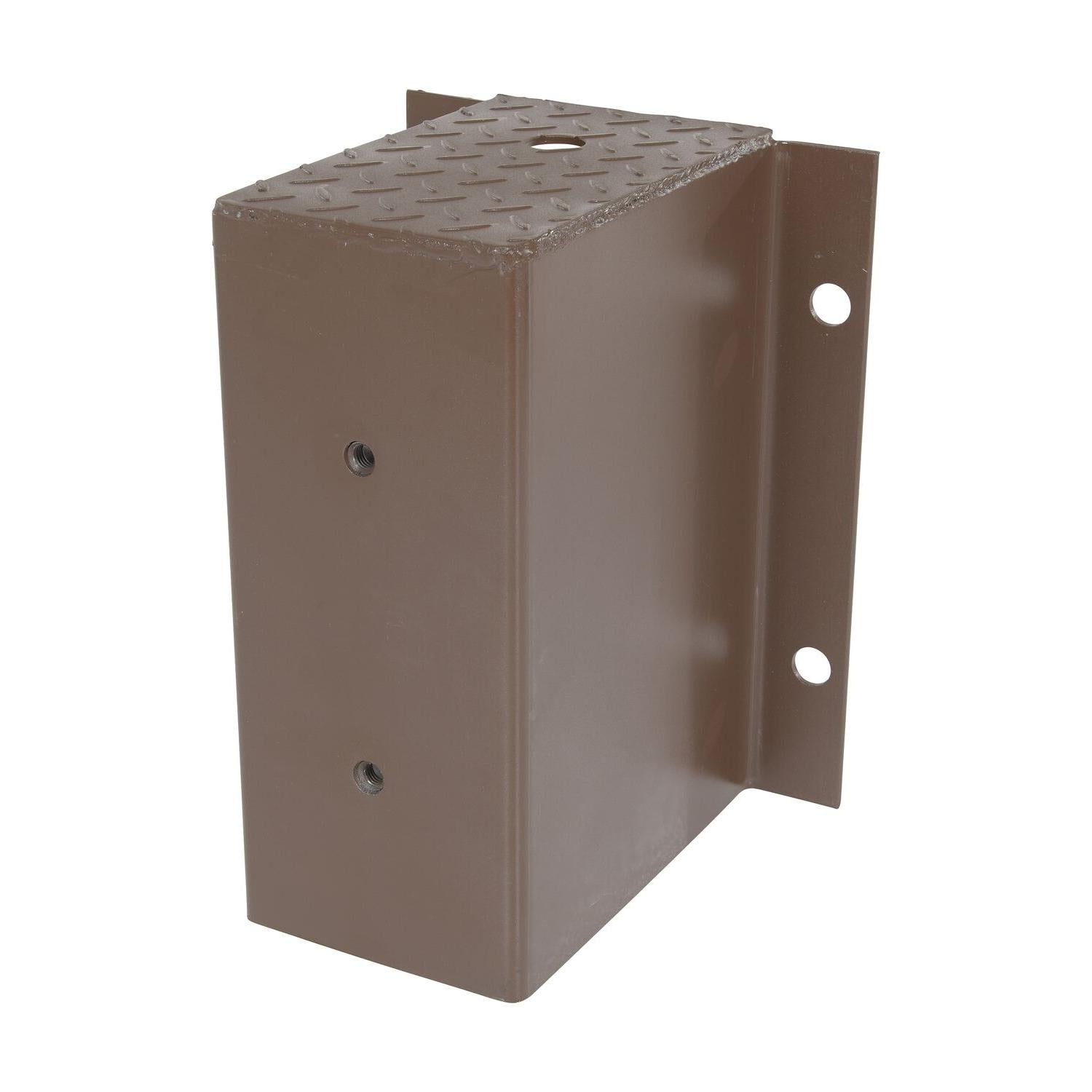

• Permanent Installation: Mounts directly to dock face with included hardware and bumpers

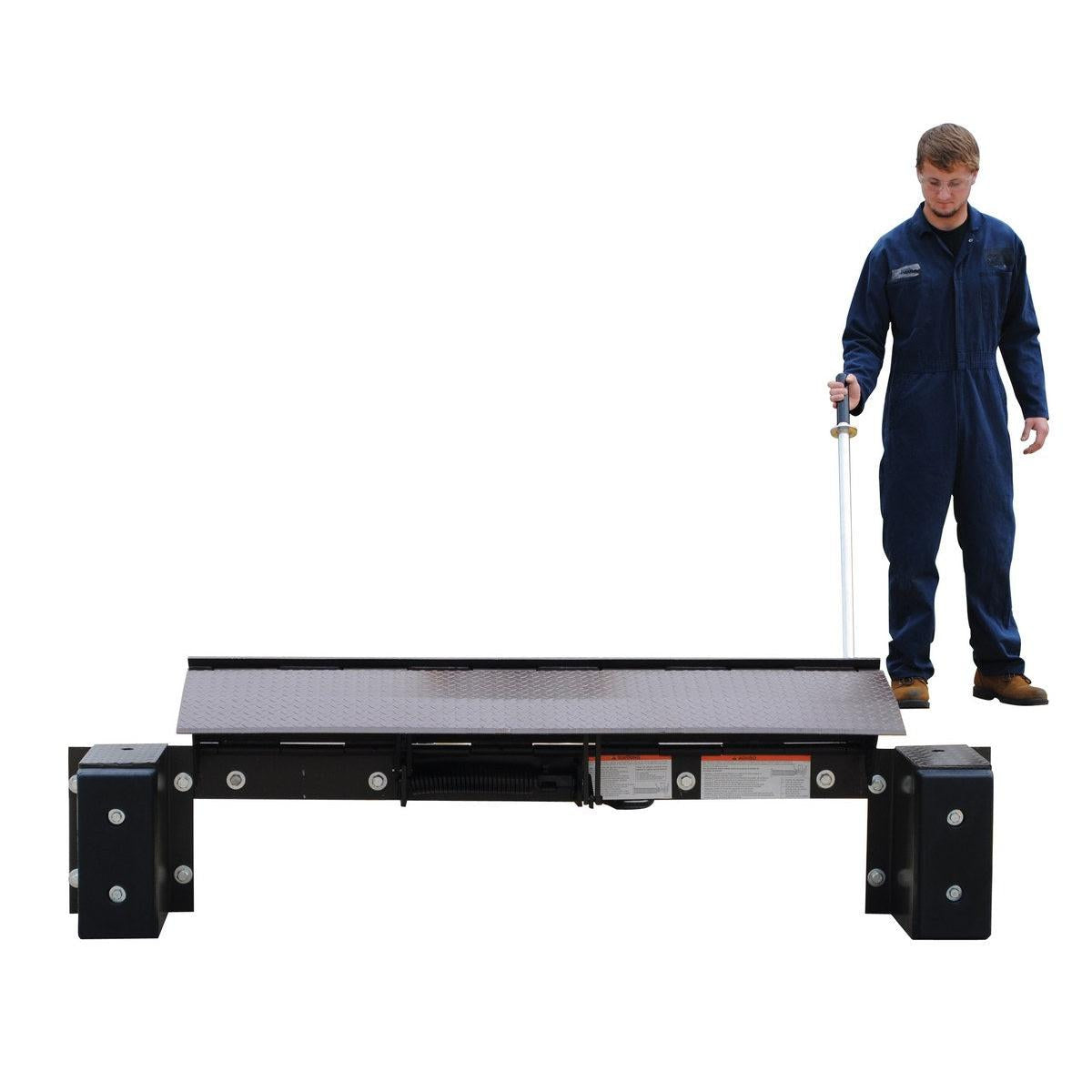

• Hydraulic Operation: Simple and efficient hand pump raises and lowers the platform

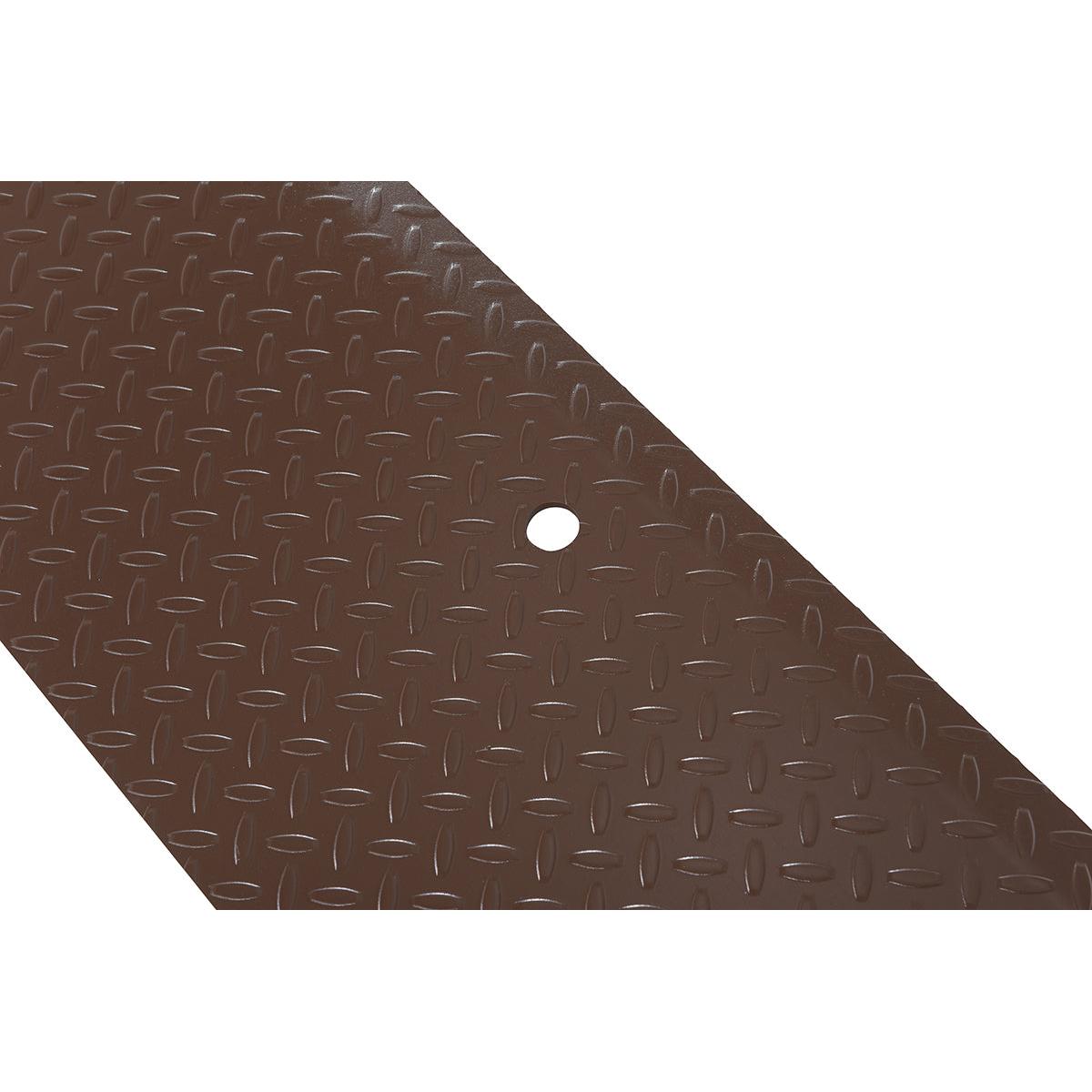

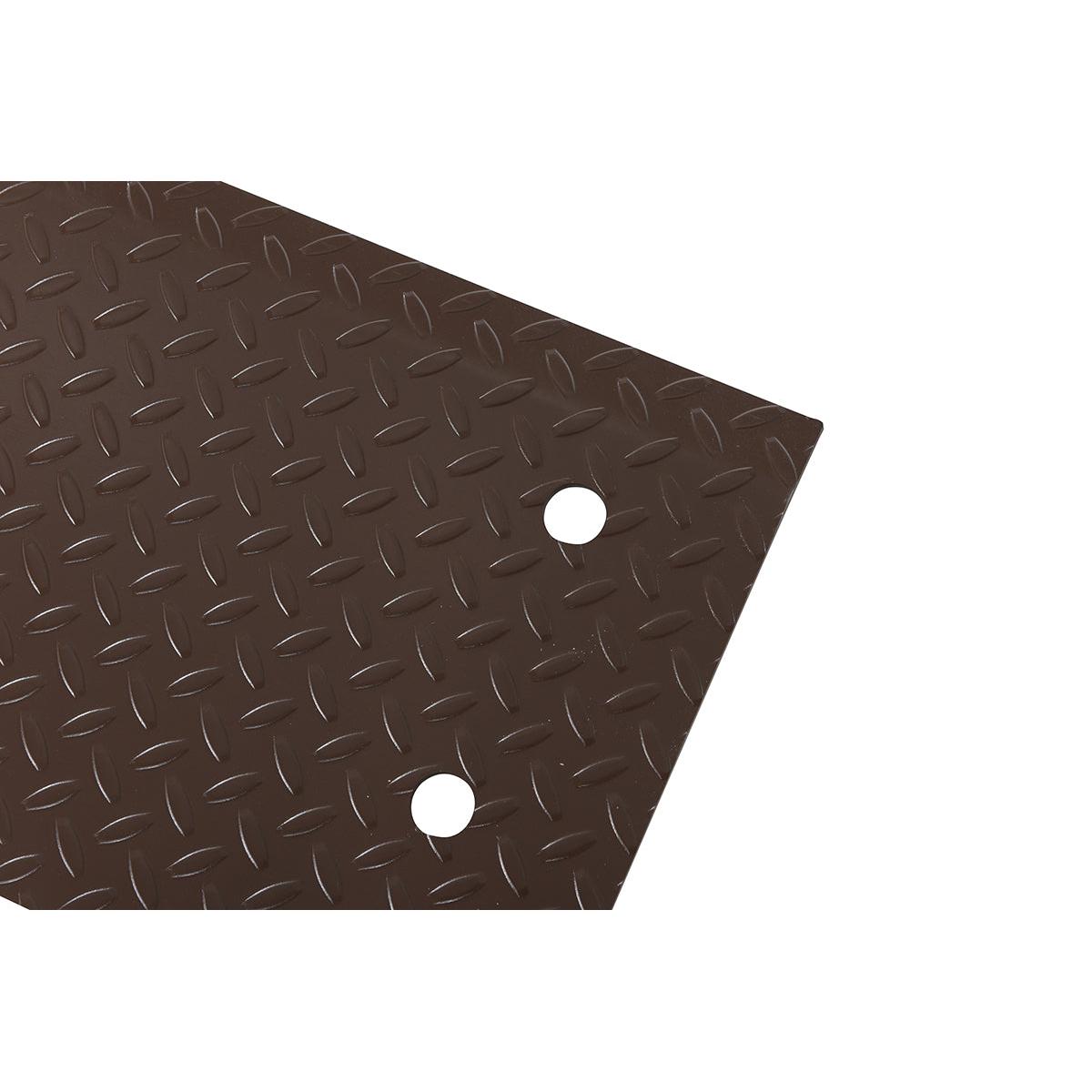

• Non-Slip Tread Plate: Textured surface enhances traction and safety during loading
• No Concrete Recess Needed: Simplifies installation, reducing preparation time and cost
• Durable Steel Construction: Built for long-term, high-capacity performance

Technical Specifications:

• Uniform Capacity (lb.): 30,000
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5

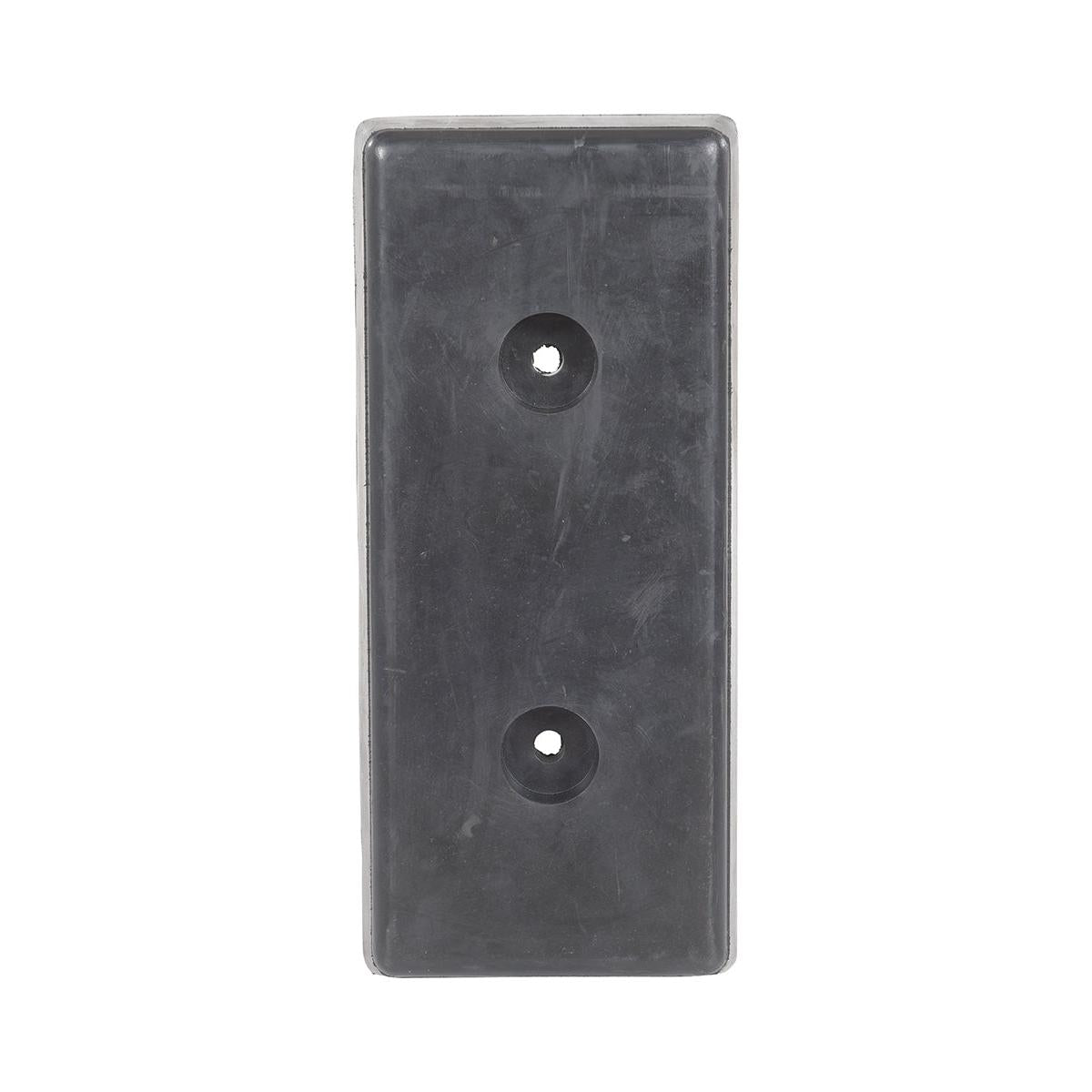

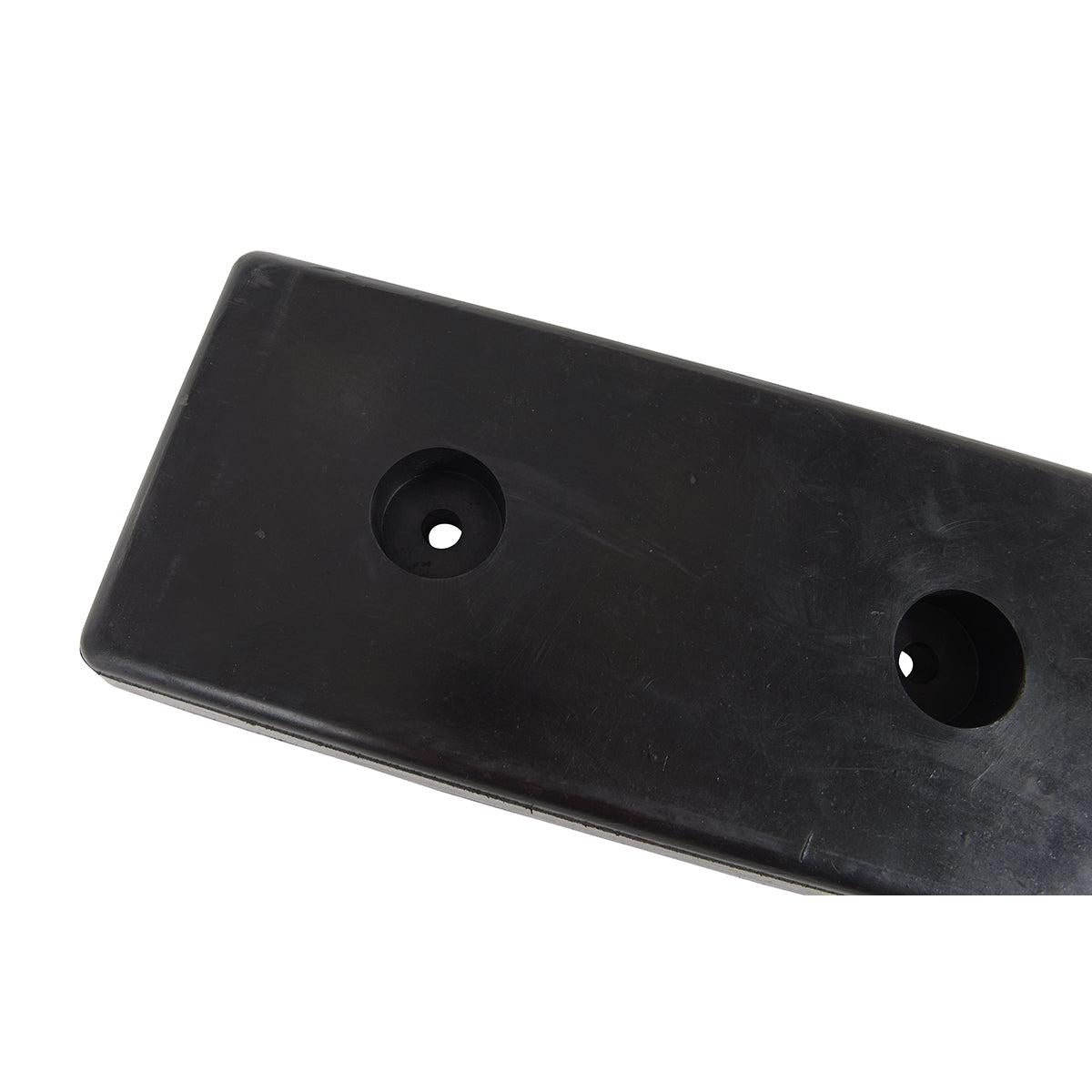

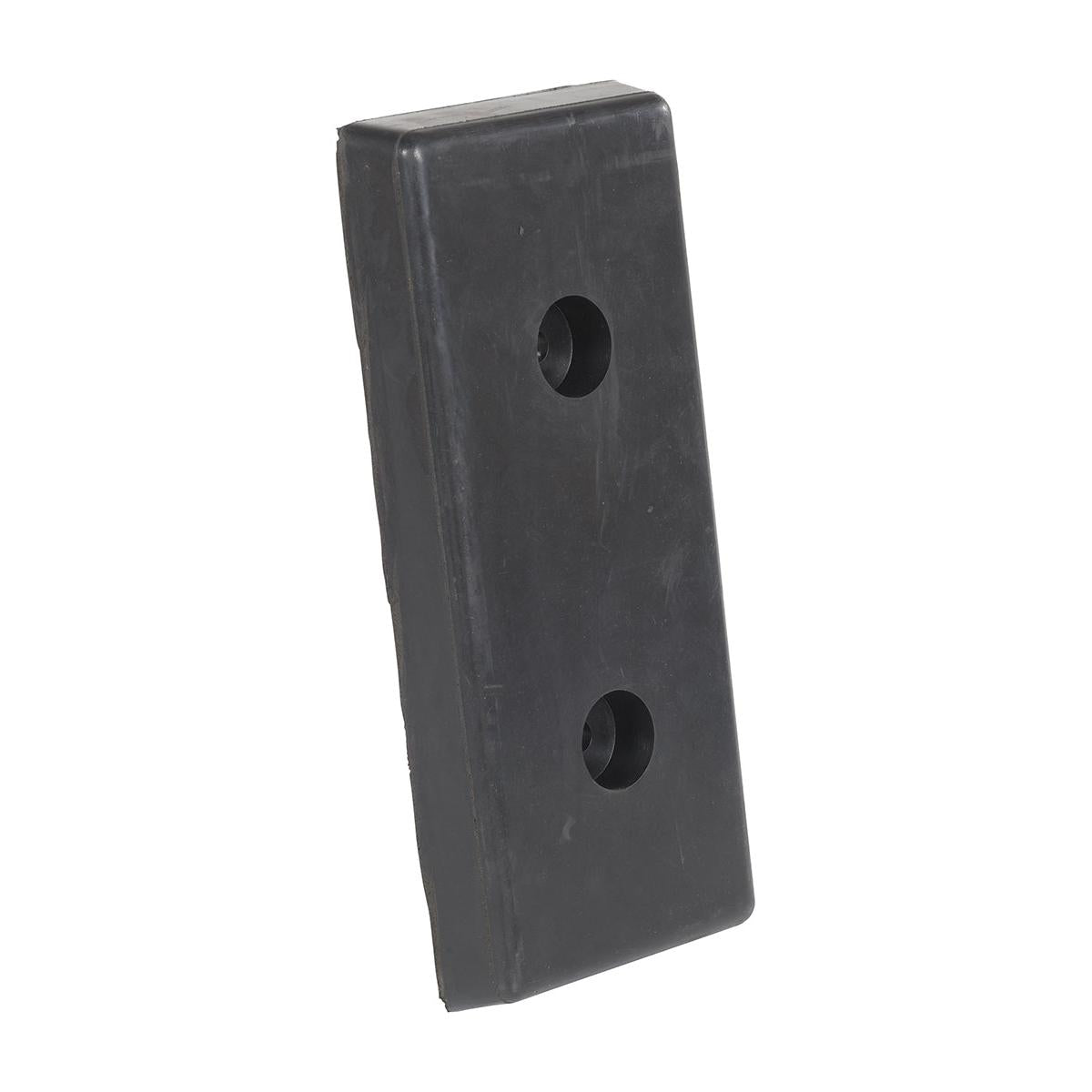

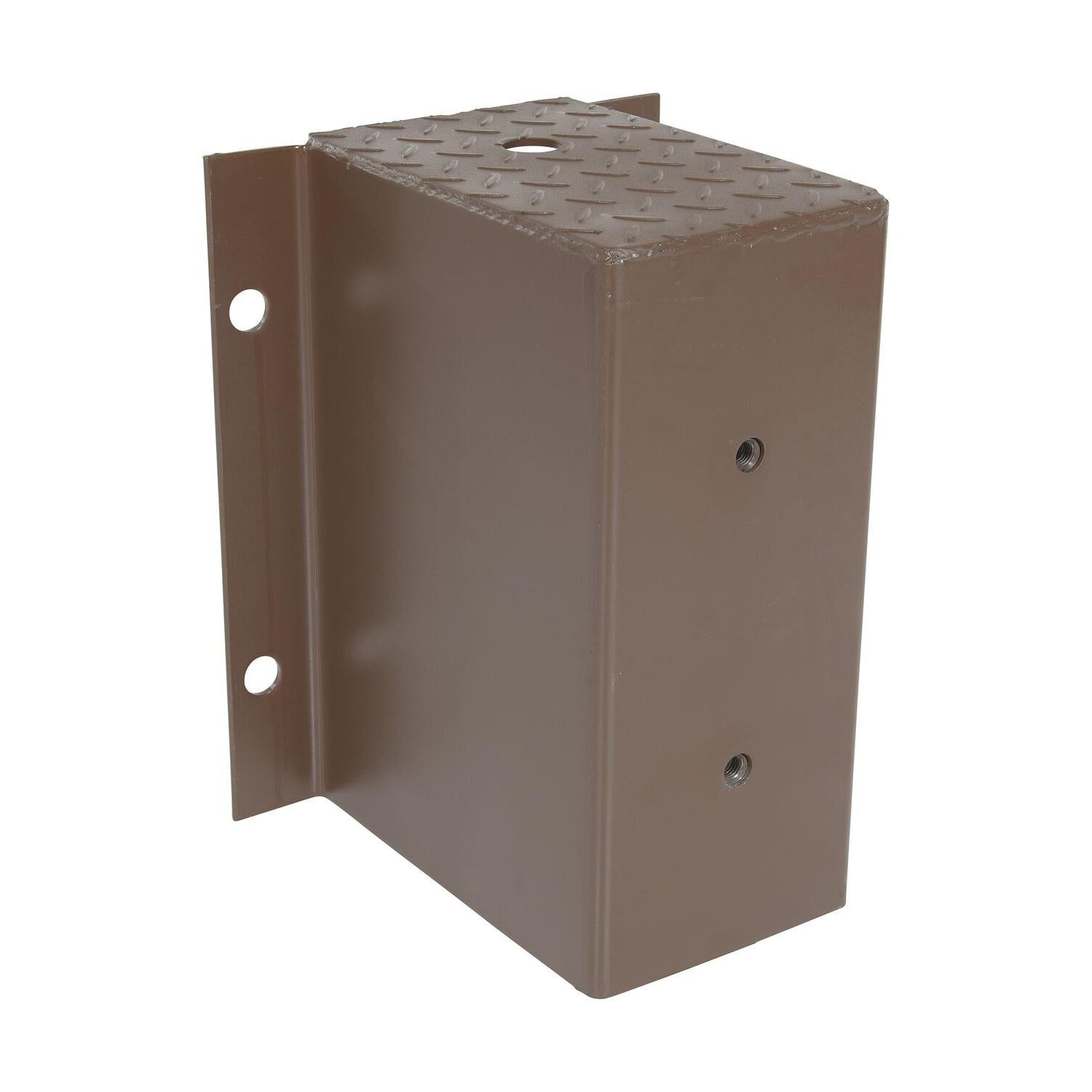

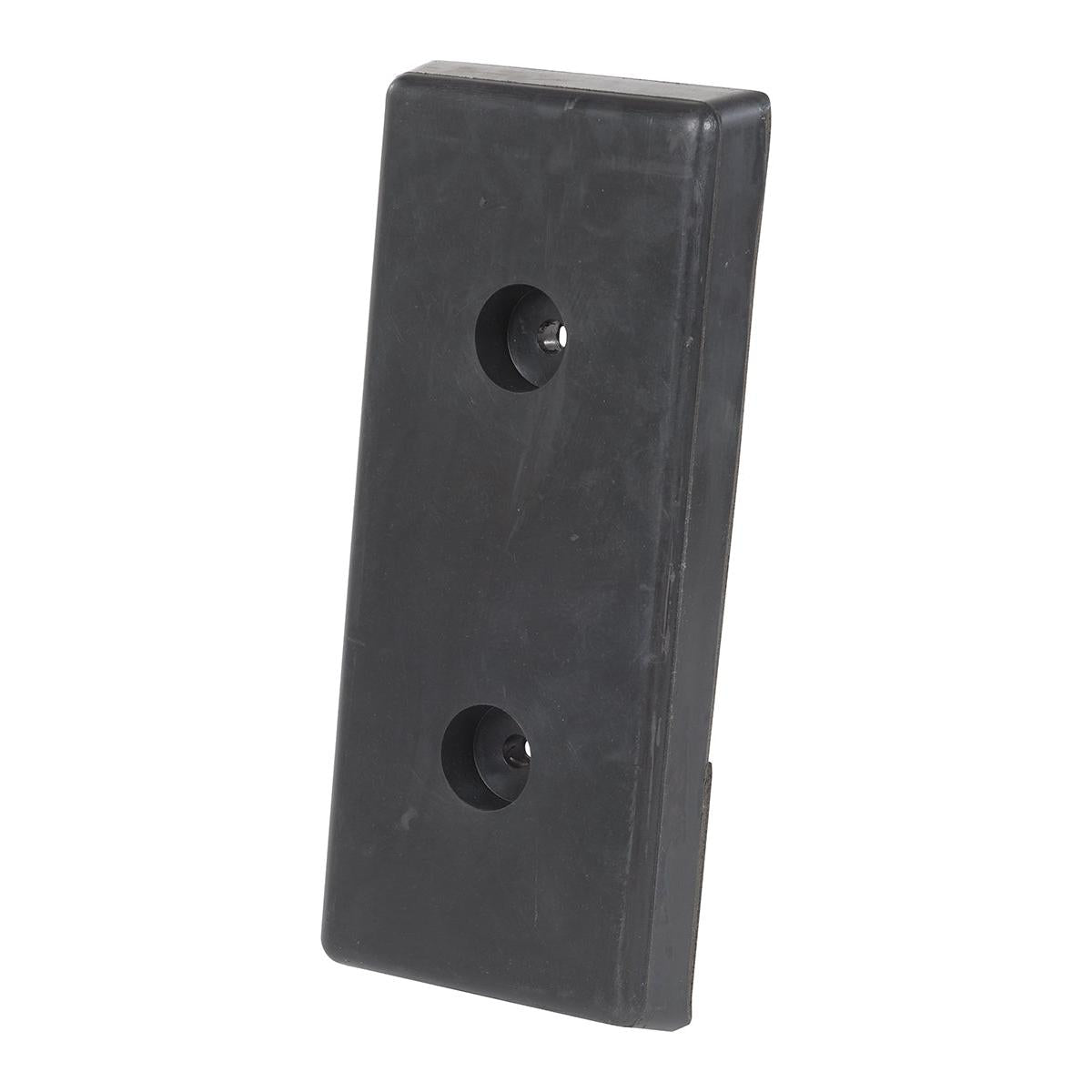

• Bumper Width (in.): 8
• Bumper Length (in.): 2
• Bumper Height (in.): 18
• Bumper Projection (in.): 17.5

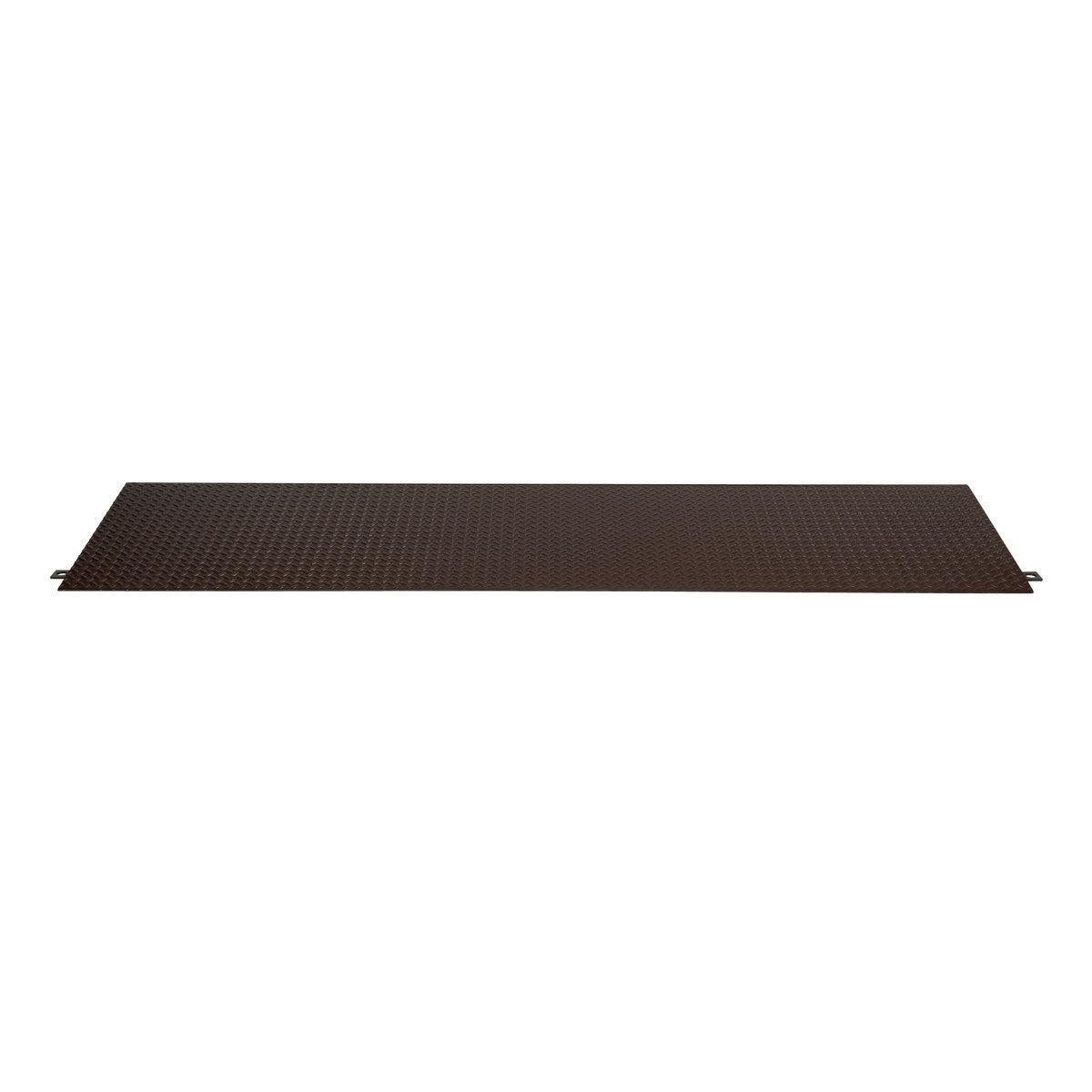

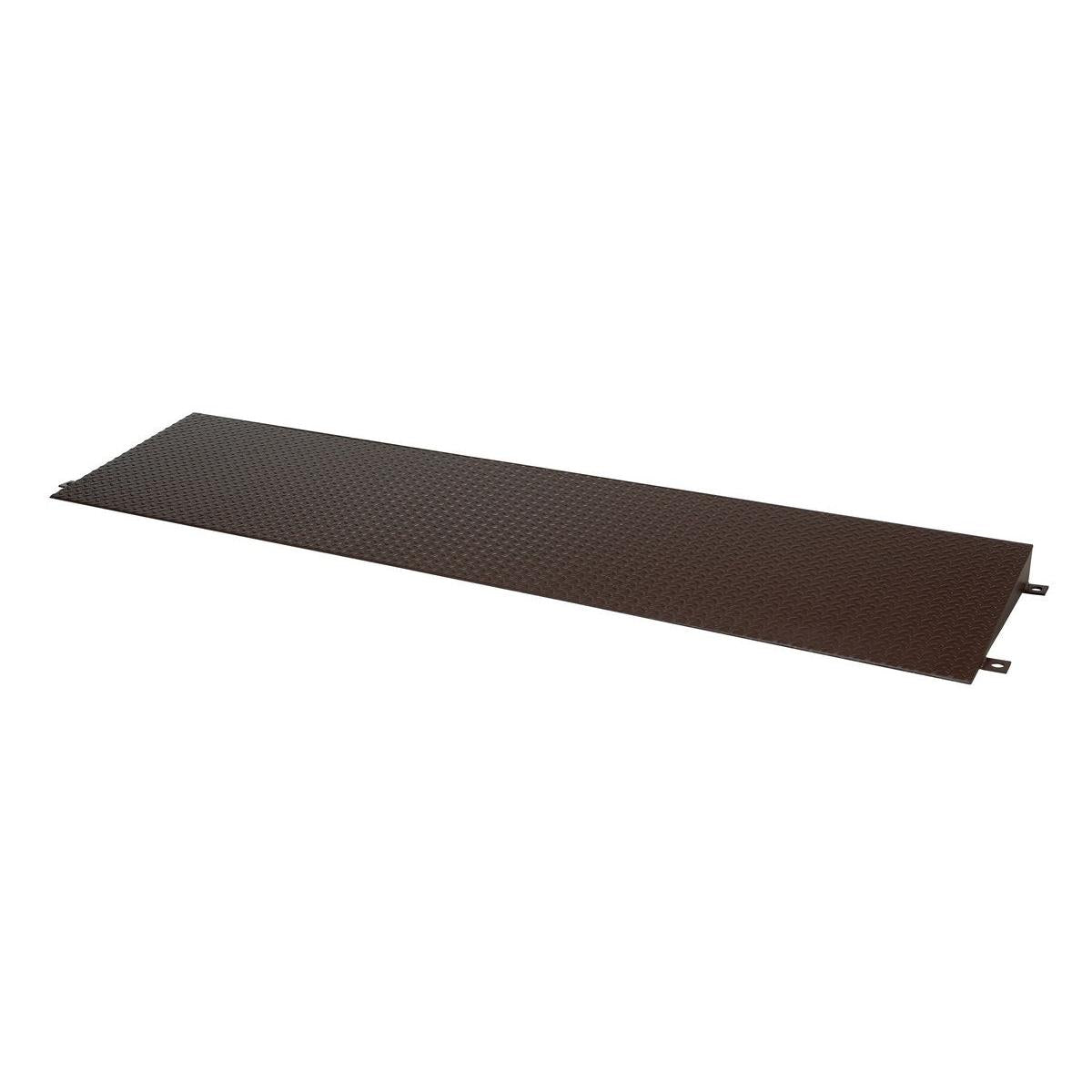

• Ramp Length (in.): 29-13/16
• Dock Leveler Lip Projection (in.): 12.31
• Platform Length (in.): 30
• Platform Thickness (in.): 0.375
• Platform Material: Steel
• Color Family: Brown
• Dock Leveler Operating Method: Hydraulic Hand Pump
• Assembly: Assembly required
• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and Installation Instructions
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required?: No

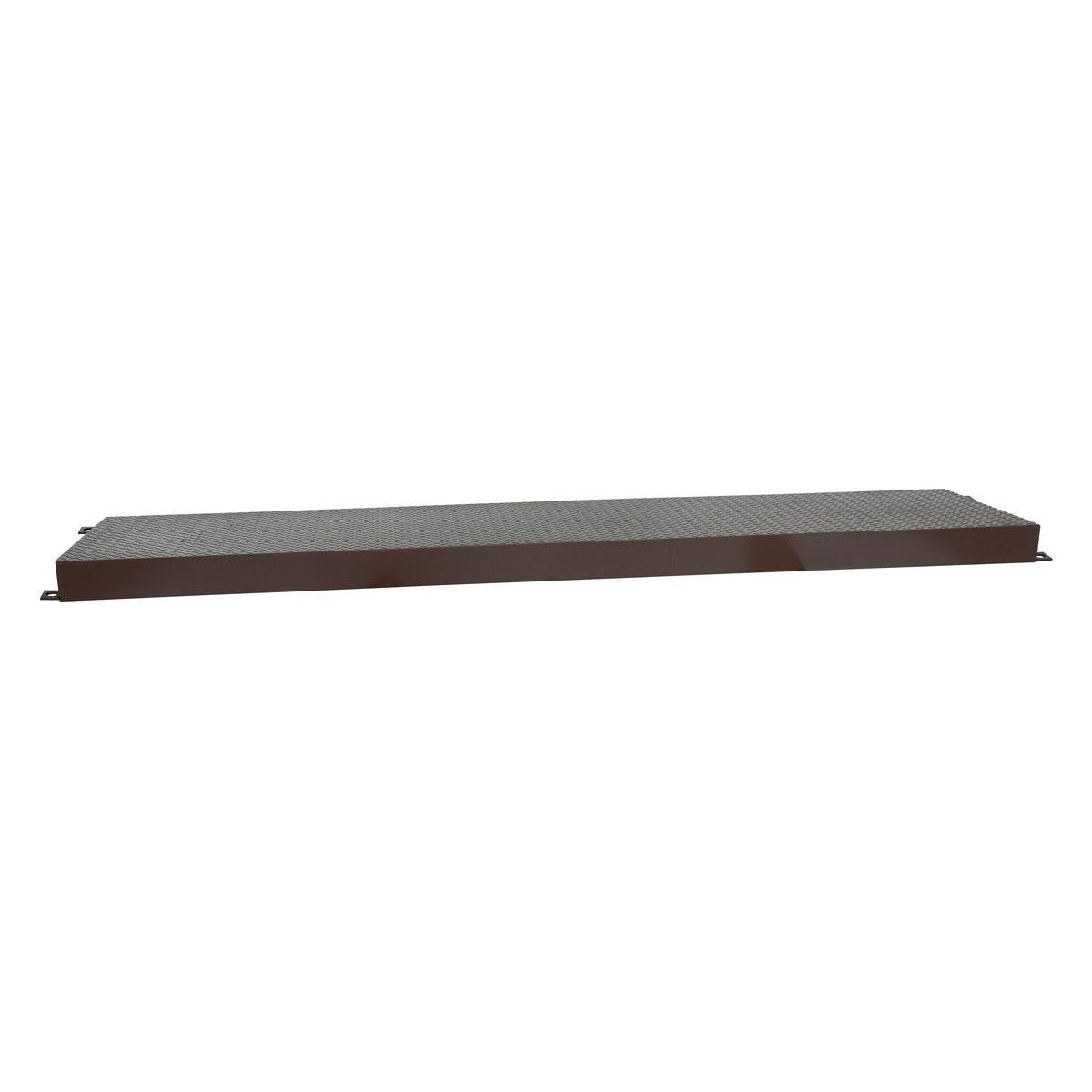

Discover the Edge-O-Dock Levelers complete collection:

• Steel Hand Pump Edge-O-Dock Leveler – 72" Ramp Width x 36-5/8" Ramp Length – 15,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 20,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 25,000 lb. Capacity (66", 72", 72" Extended Ramp)

• Steel Hand Pump Edge-O-Dock Levelers – 30,000 lb. Capacity

Made in USA
