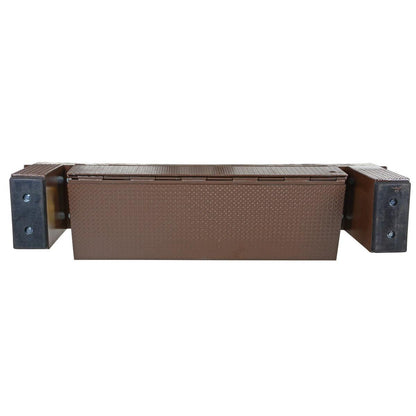

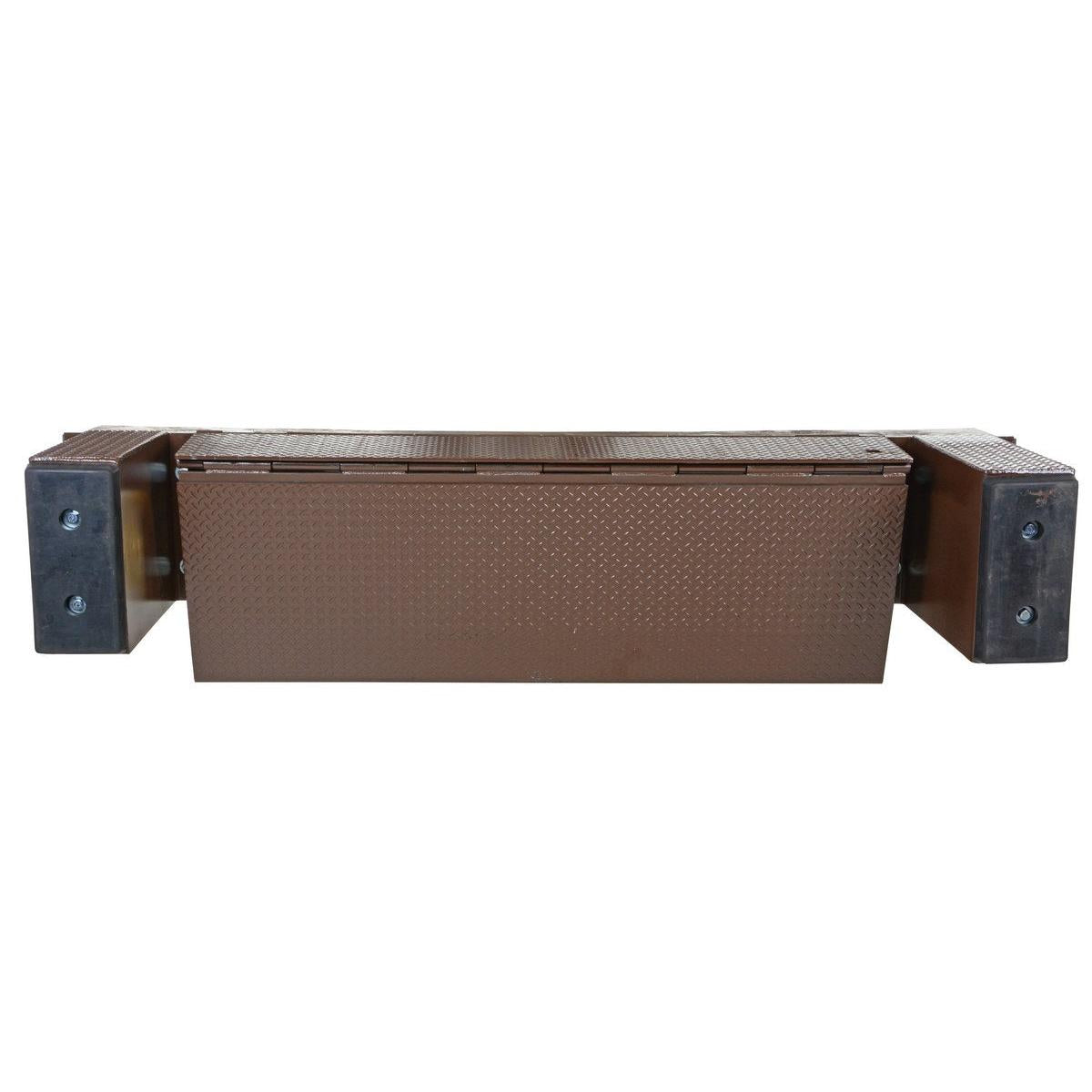

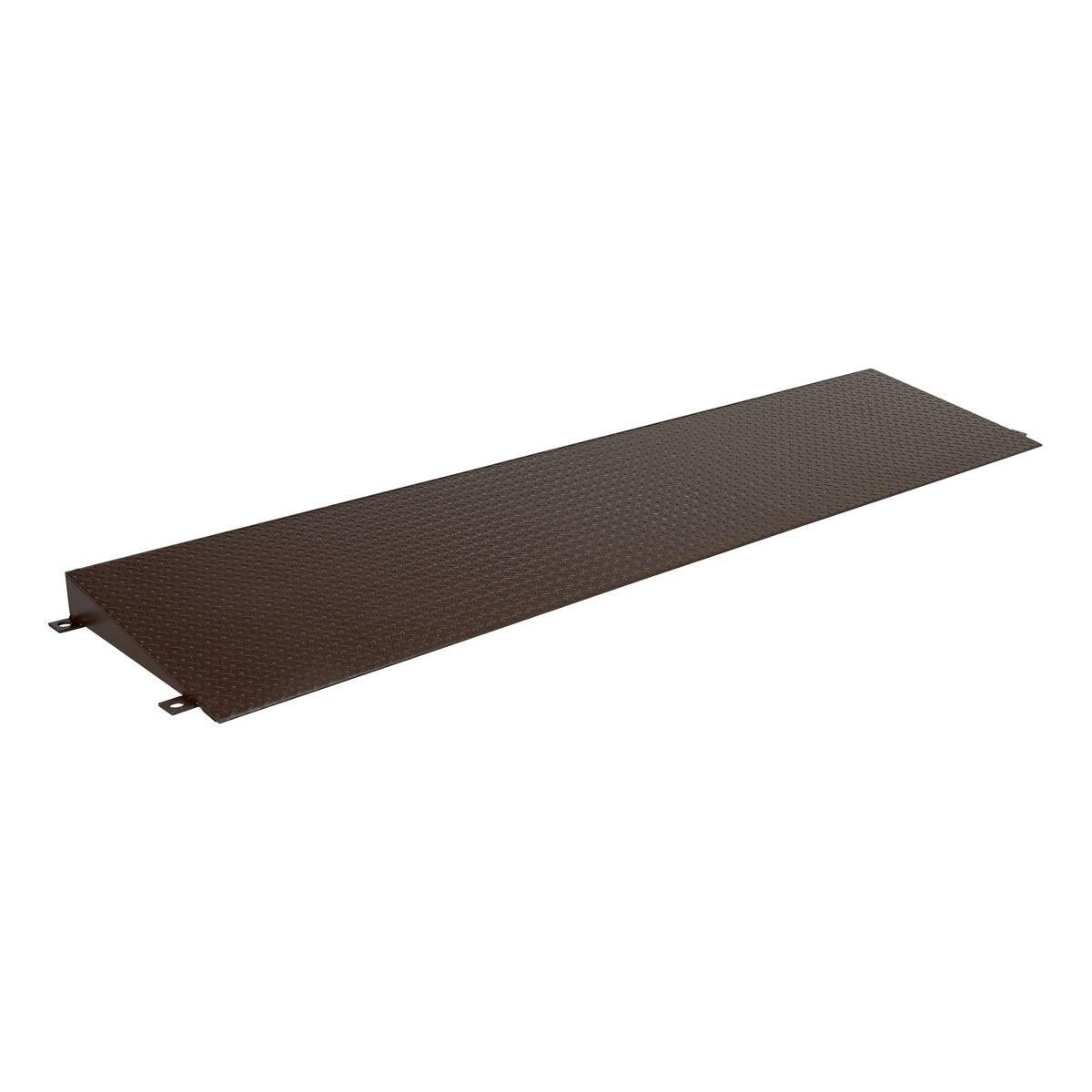

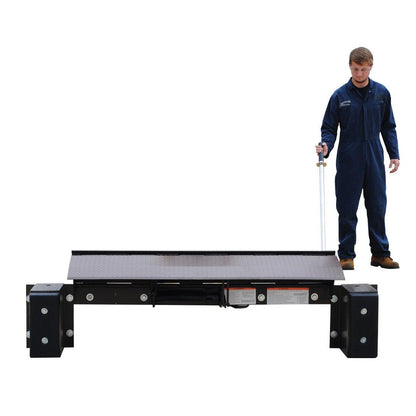

Steel Hand Pump Edge-O-Dock Levelers – 20,000 lb. Capacity

Steel Hand Pump Edge-O-Dock Levelers provide a reliable and cost-effective solution for bridging the gap between dock and trailer. Designed for permanent installation on dock faces, these levelers are ideal for facilities handling light to moderate freight volumes. Operated manually via a hydraulic hand pump, they allow safe, efficient loading and unloading with minimal effort and no electrical power required.

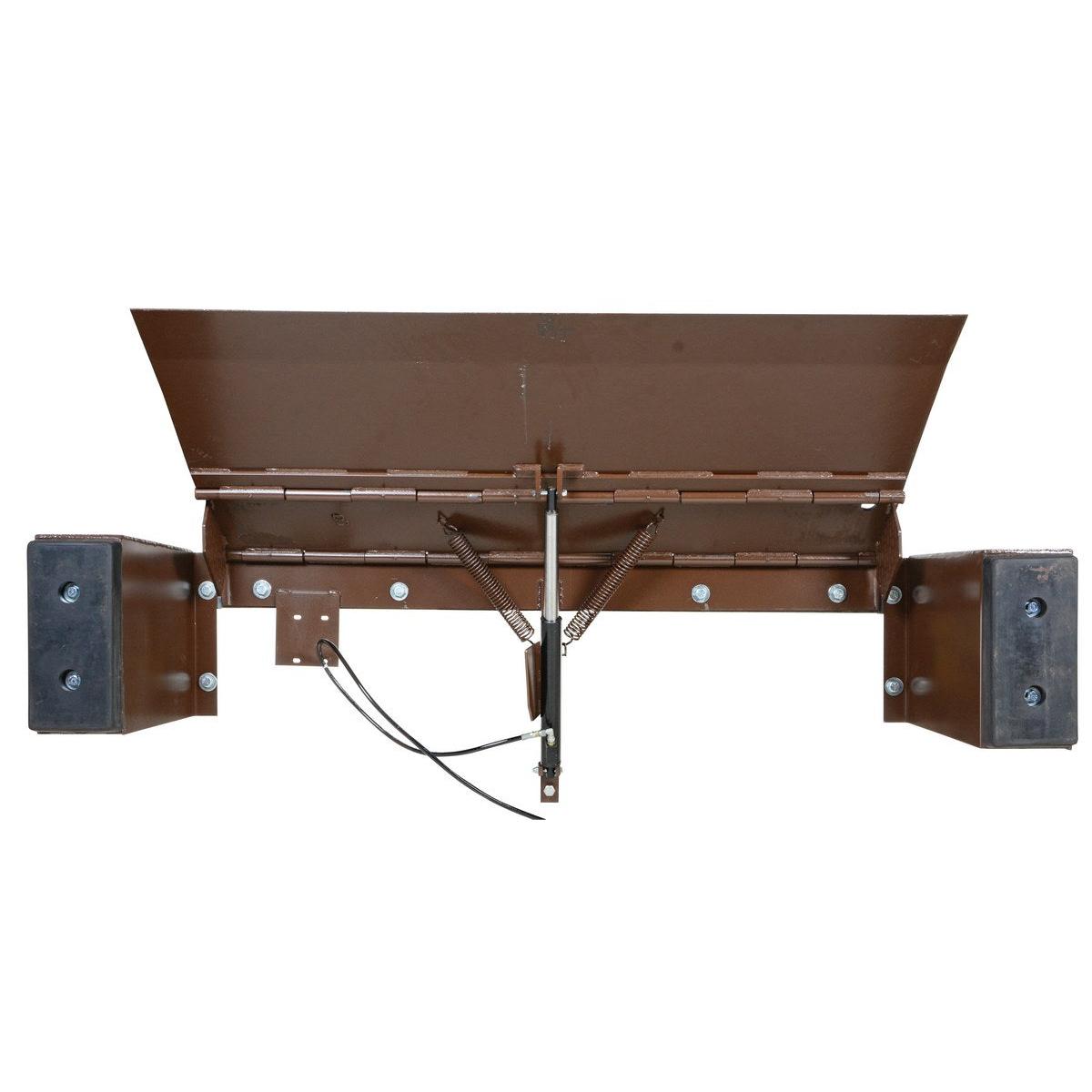

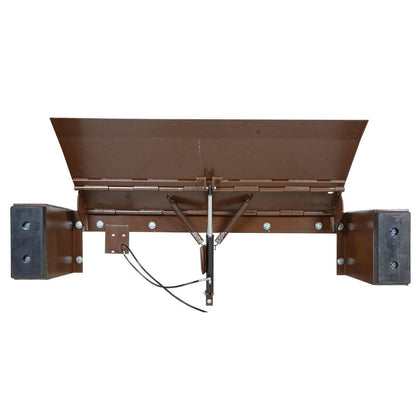

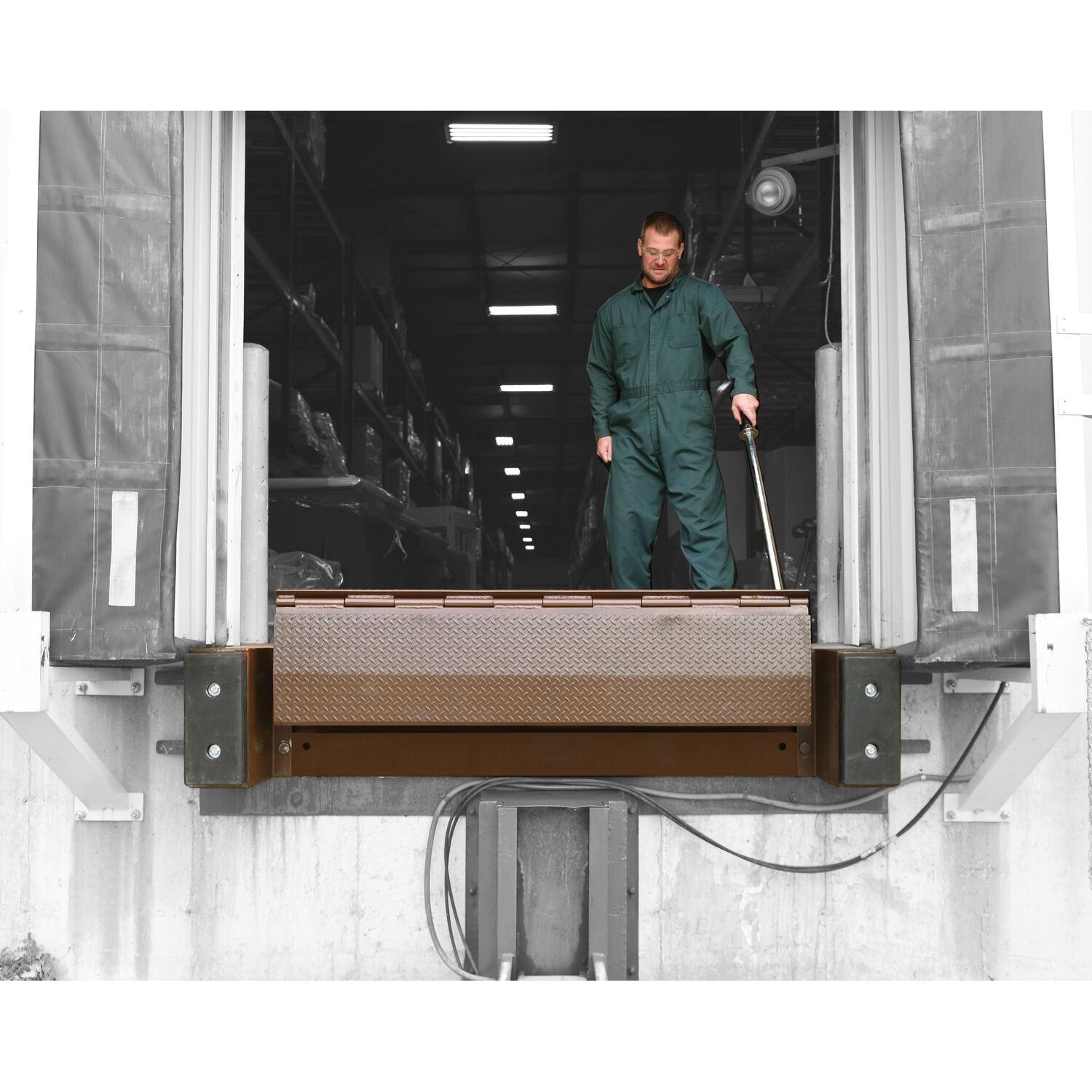

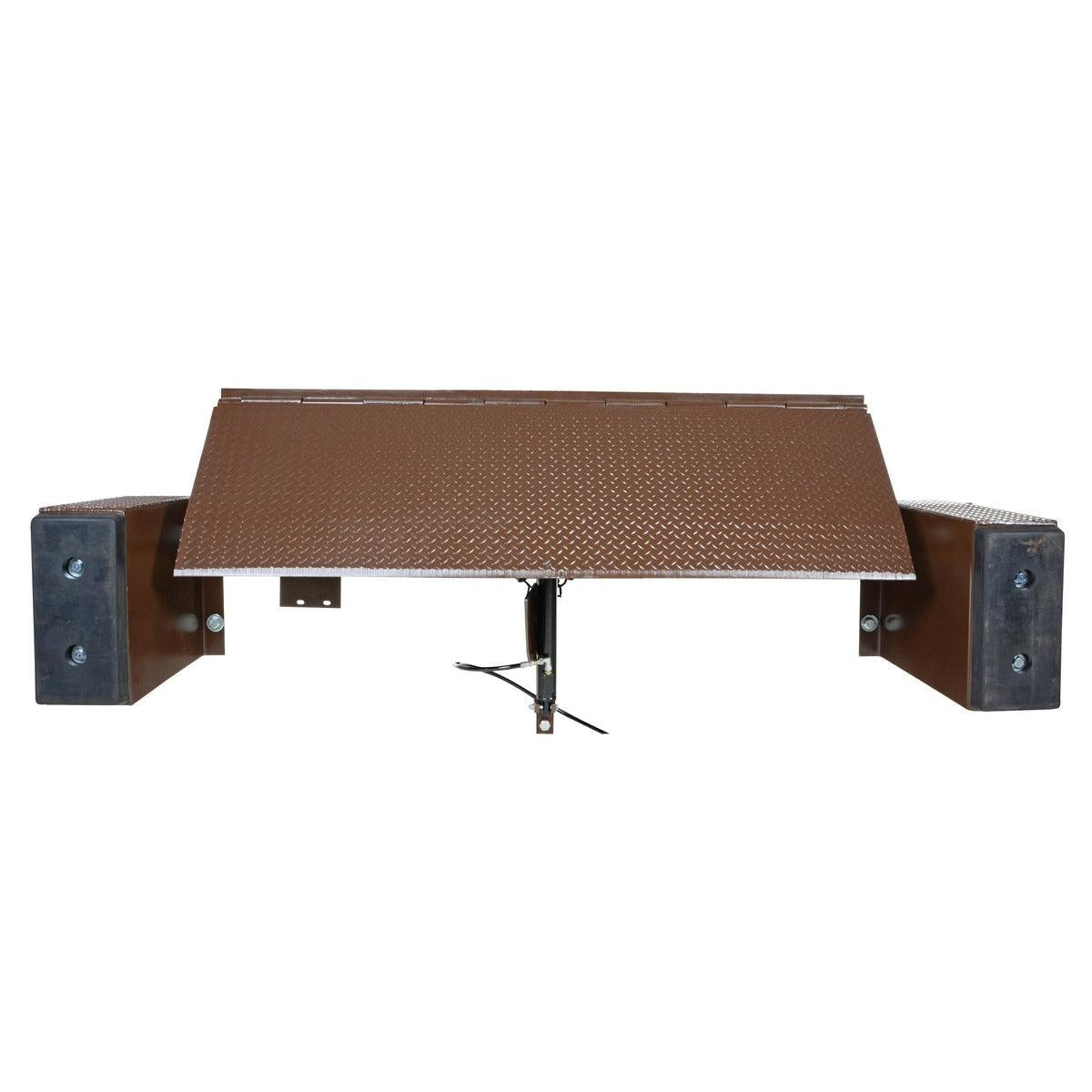

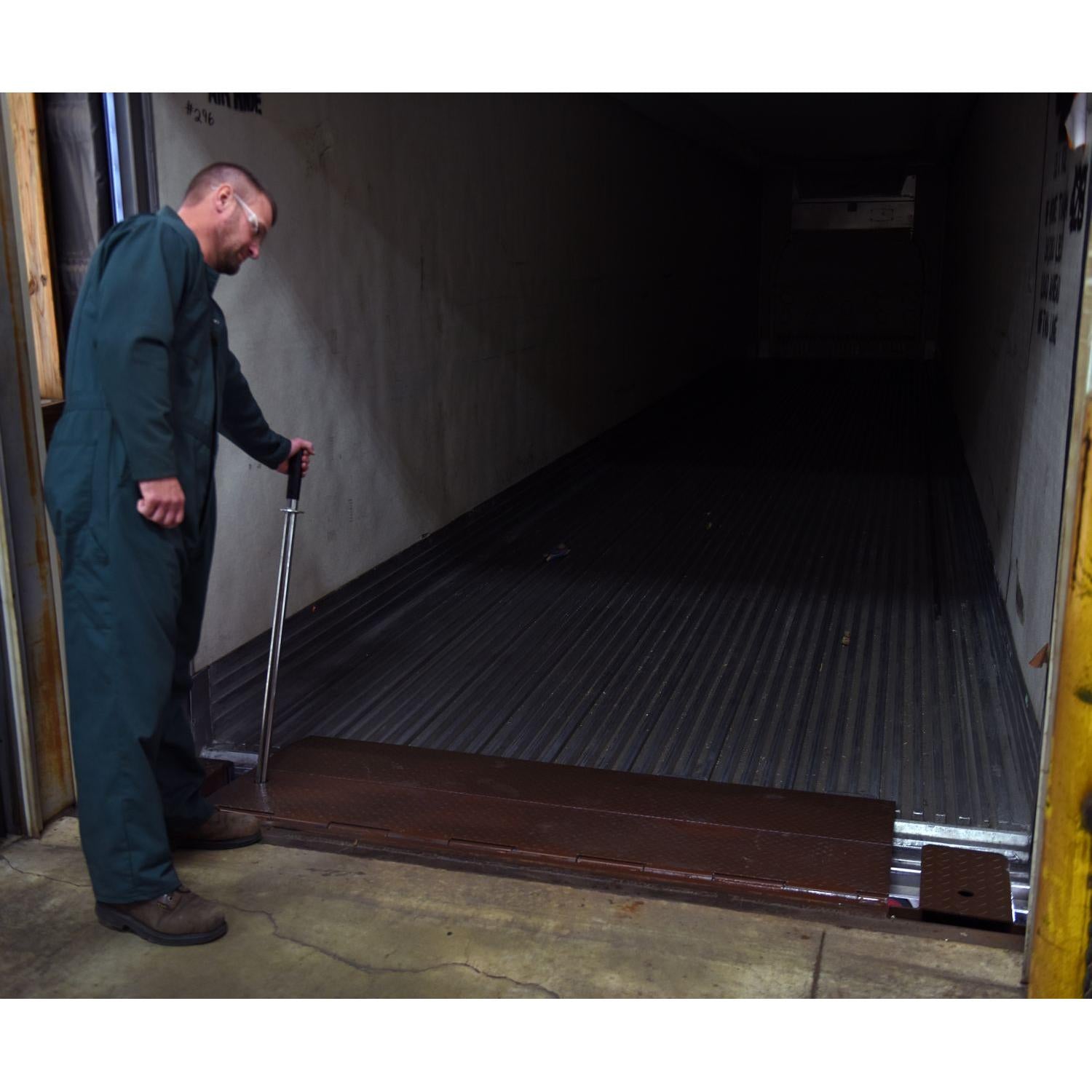

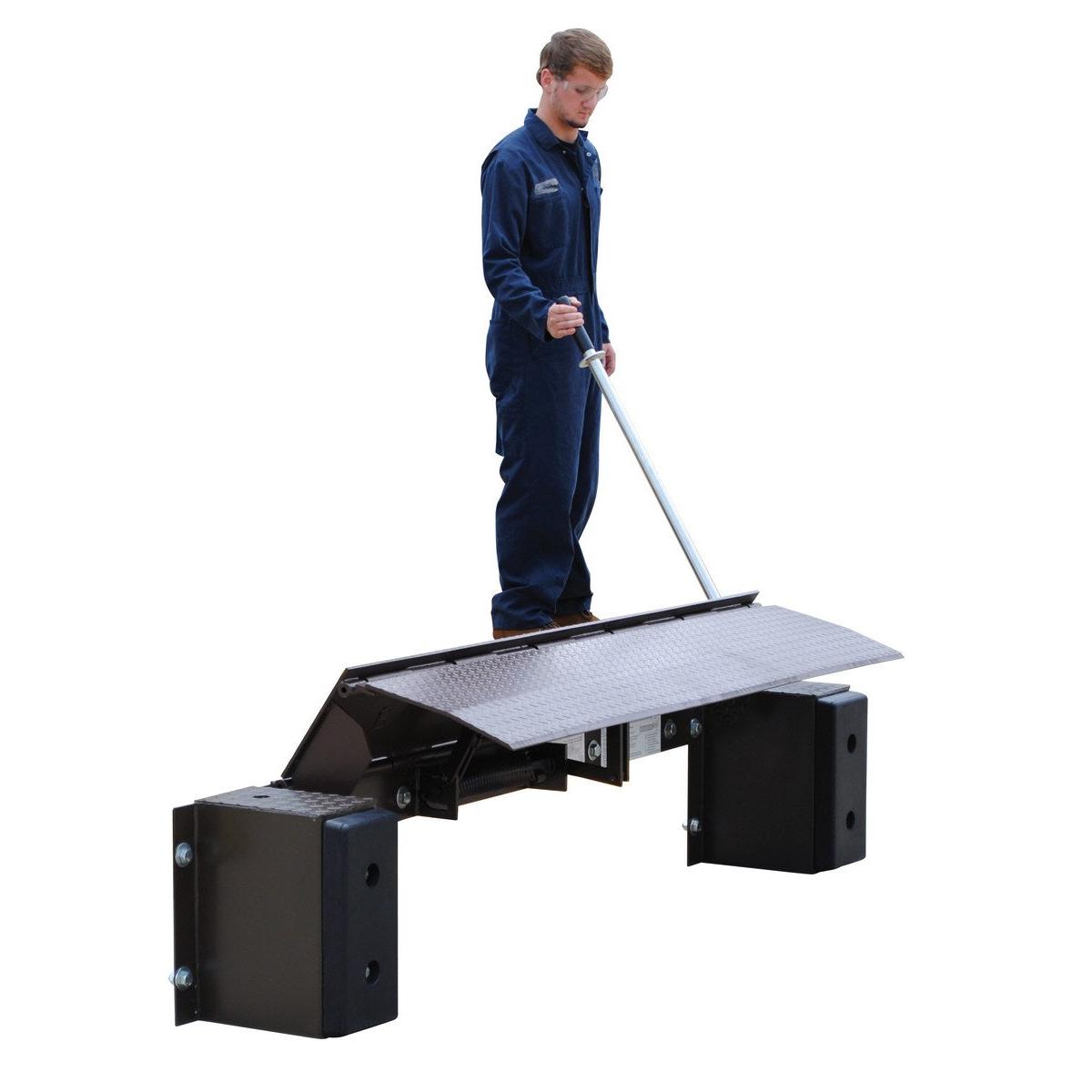

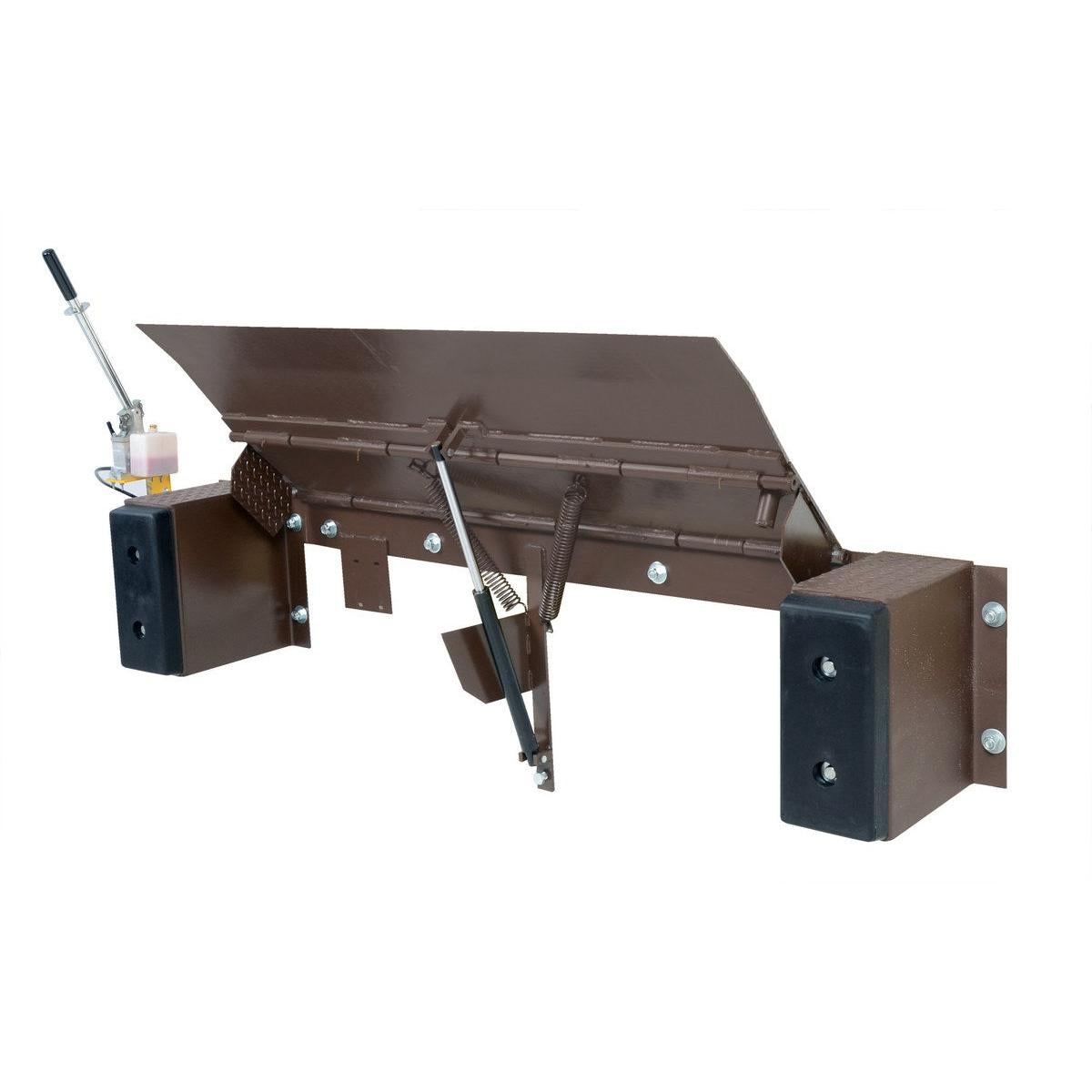

Each model includes a complete installation kit with hydraulic components and dock bumpers. The operator simply activates the hand pump to raise the platform and extend the lip. Once the relief valve is opened, the deck gently descends and rests securely on the trailer bed. When the trailer departs, the lip automatically retracts behind the bumpers for safe stowage.

Features and Benefits

• Permanent Dock Mounting: Attaches directly to the dock face; suitable for docks 48" and above
• Manual Hydraulic Operation: Simple hand-pump system raises the deck and extends the lip

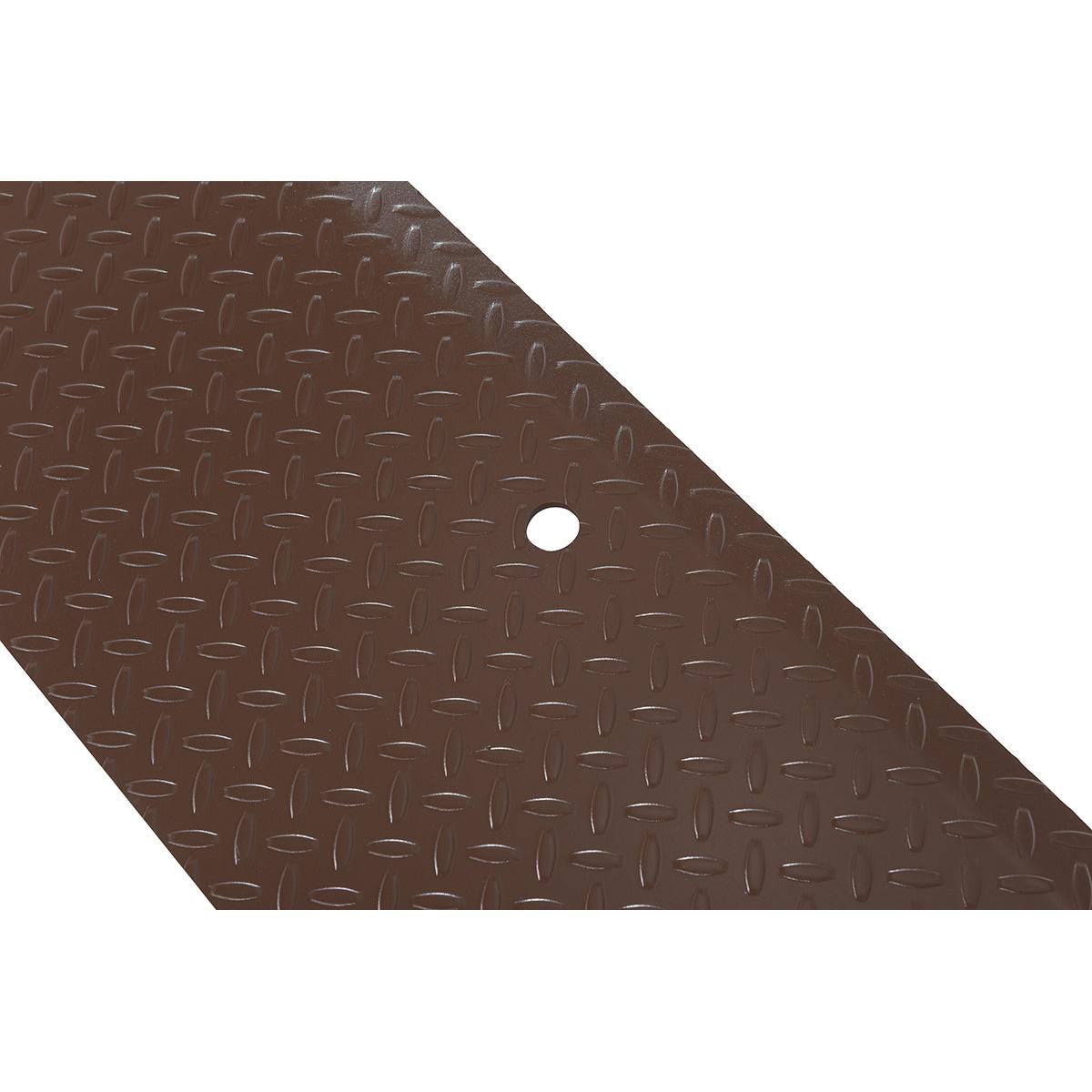

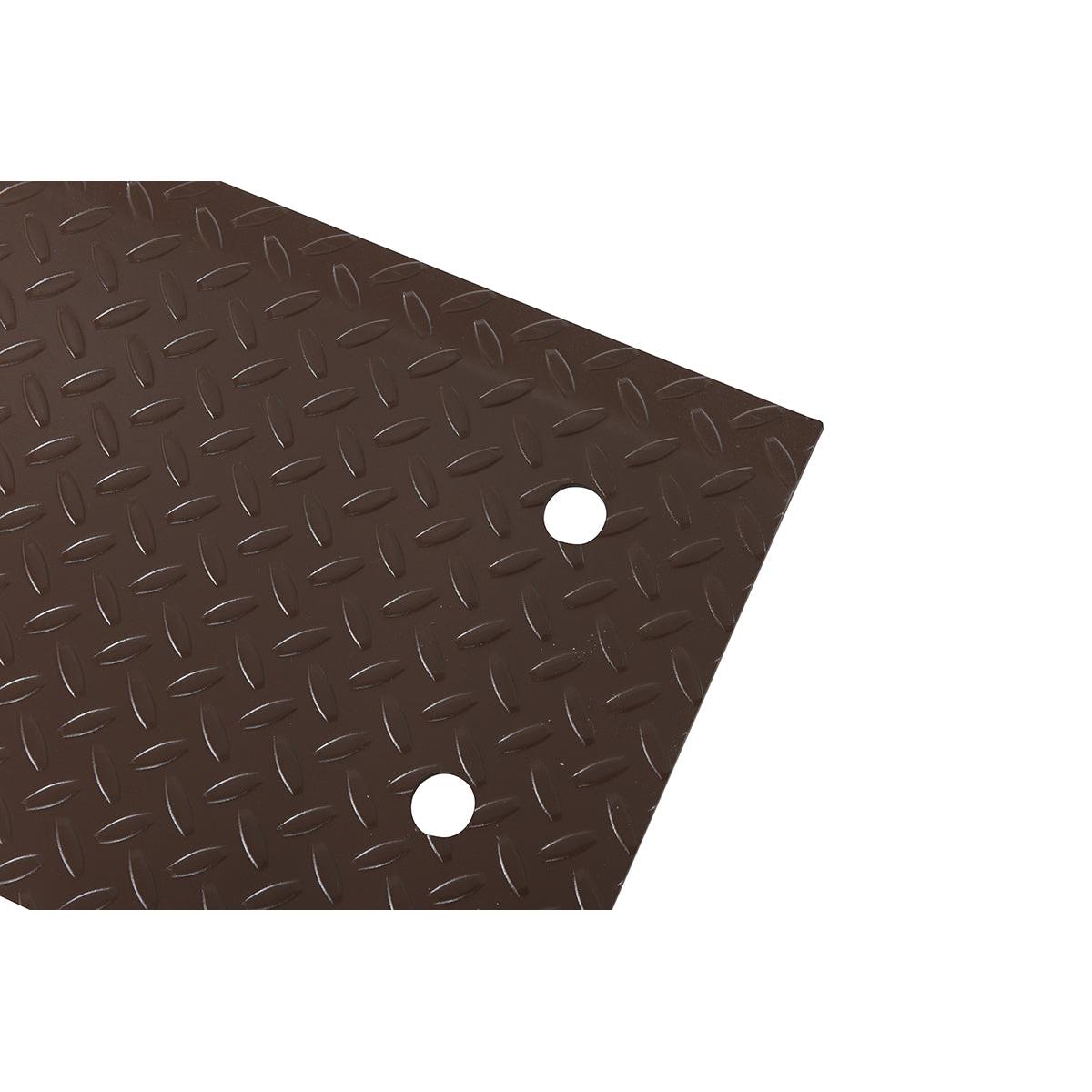

• Non-Slip Tread Plate Surface: Increases traction and safety during forklift or hand truck use
• Durable Steel Construction: Engineered for long service life and consistent performance

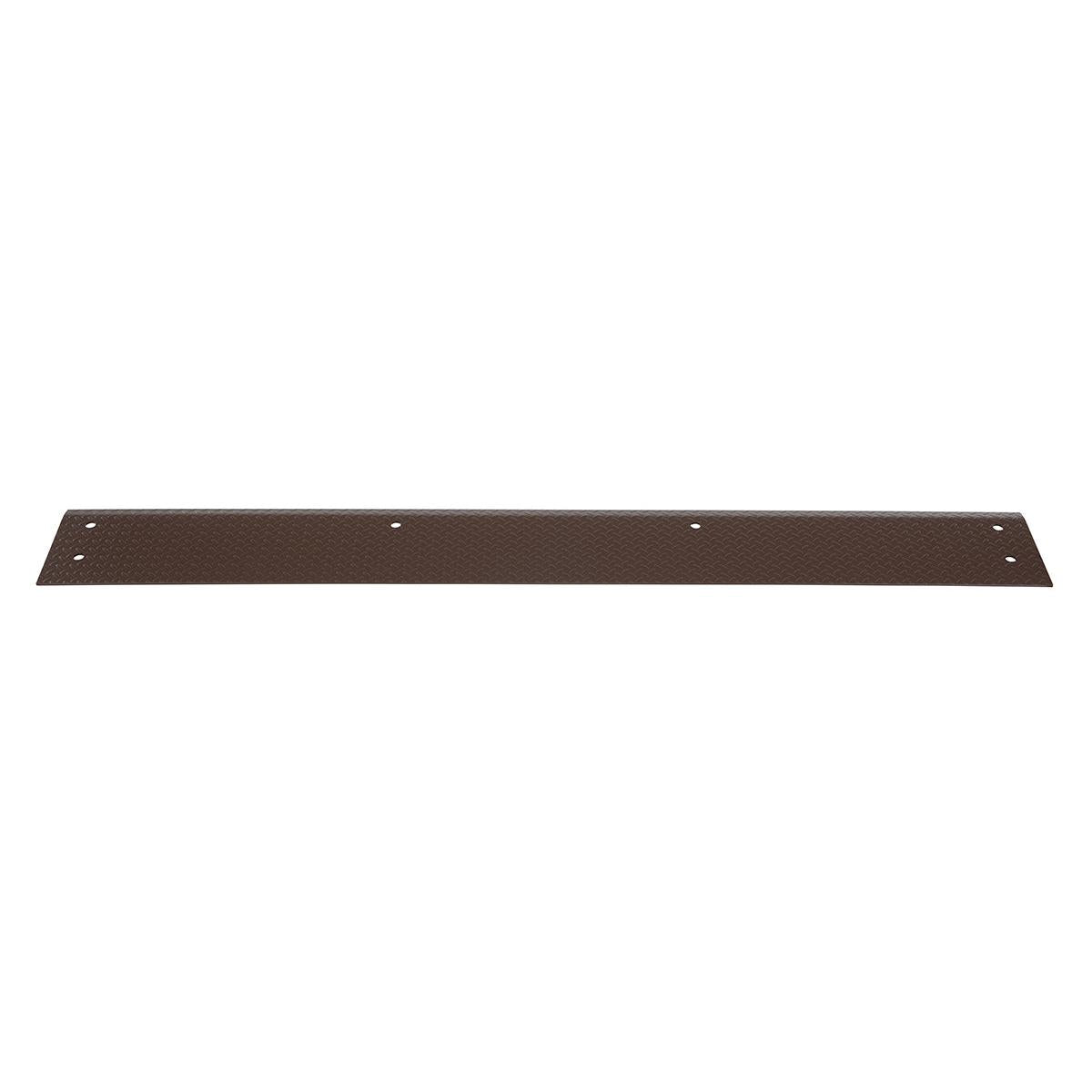

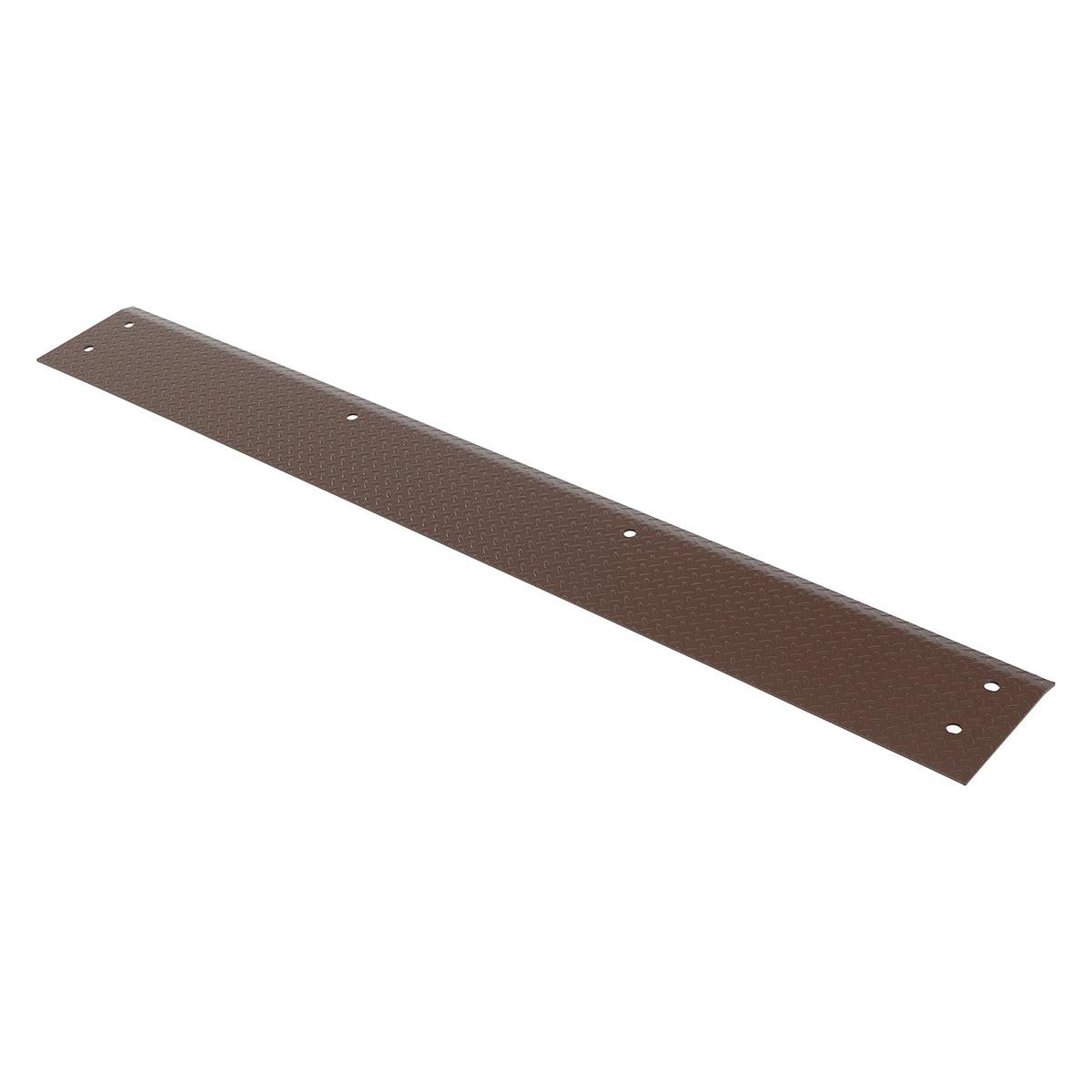

• No Concrete Recess Required: Can be mounted on most standard steel dock edges
• Automatic Lip Return: Lip lowers automatically after trailer departs

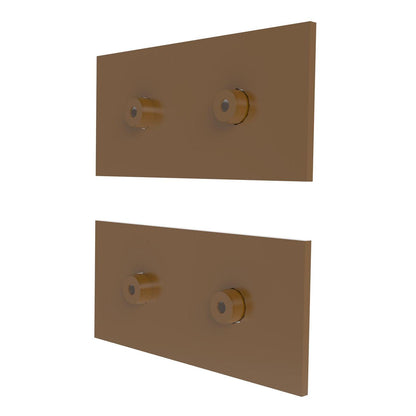

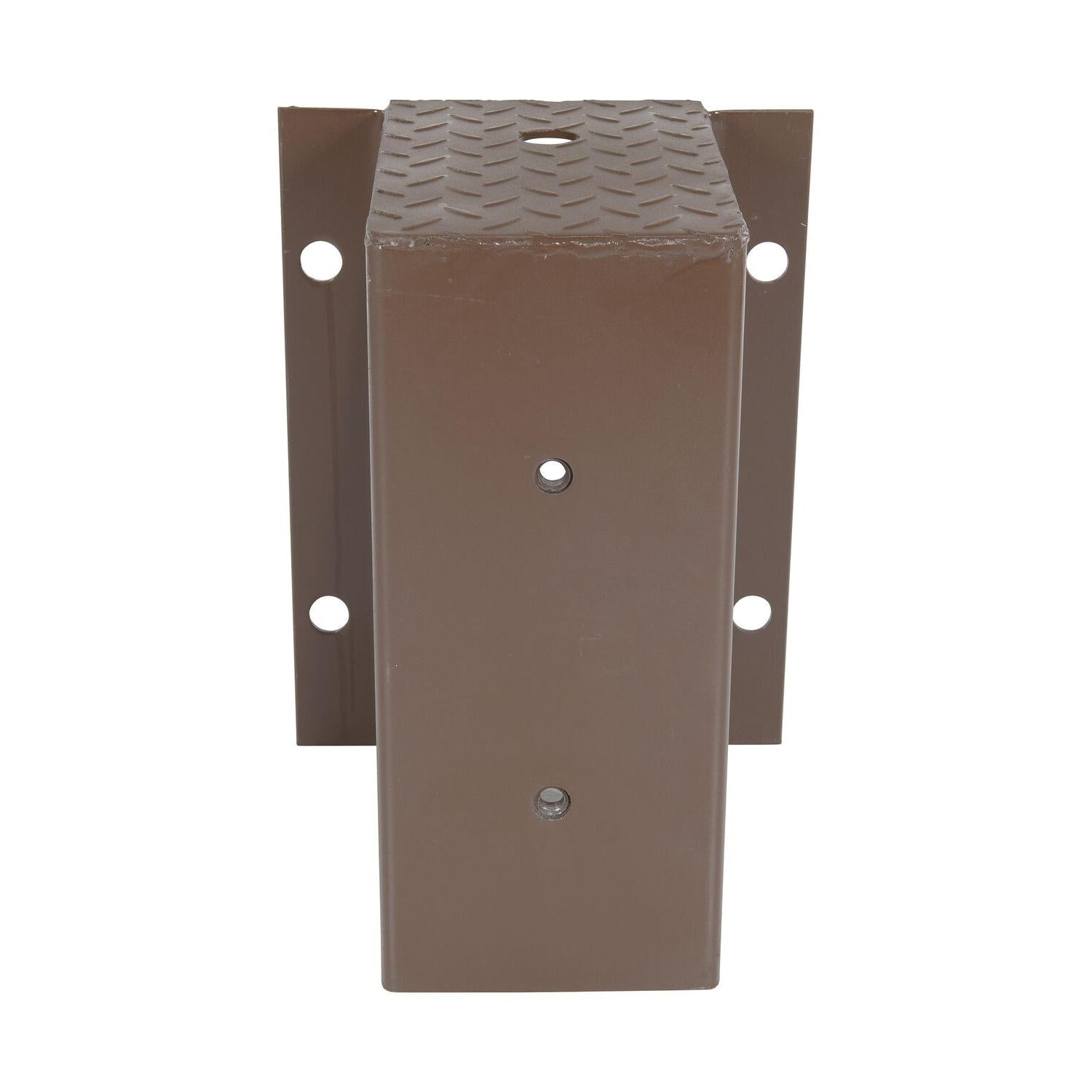

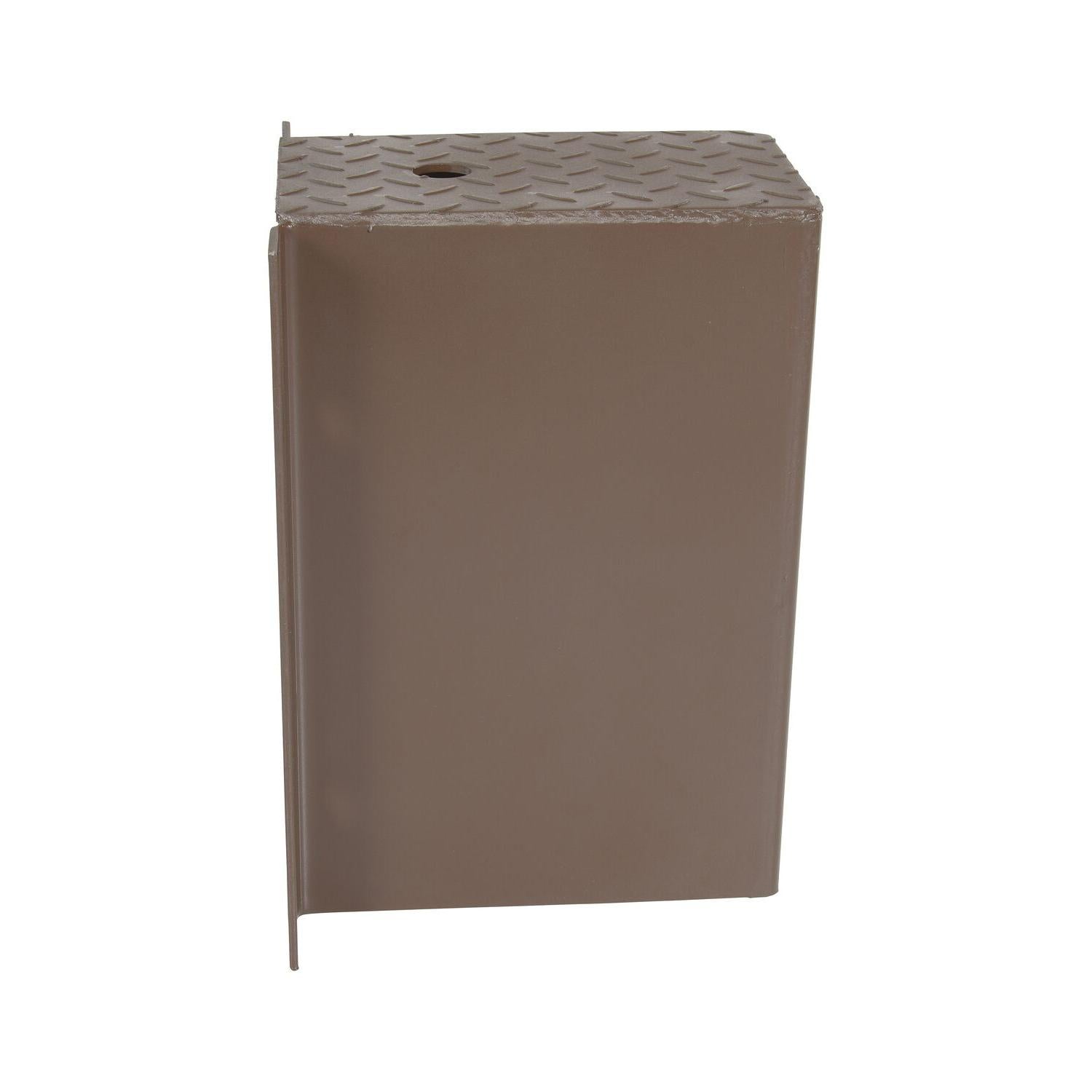

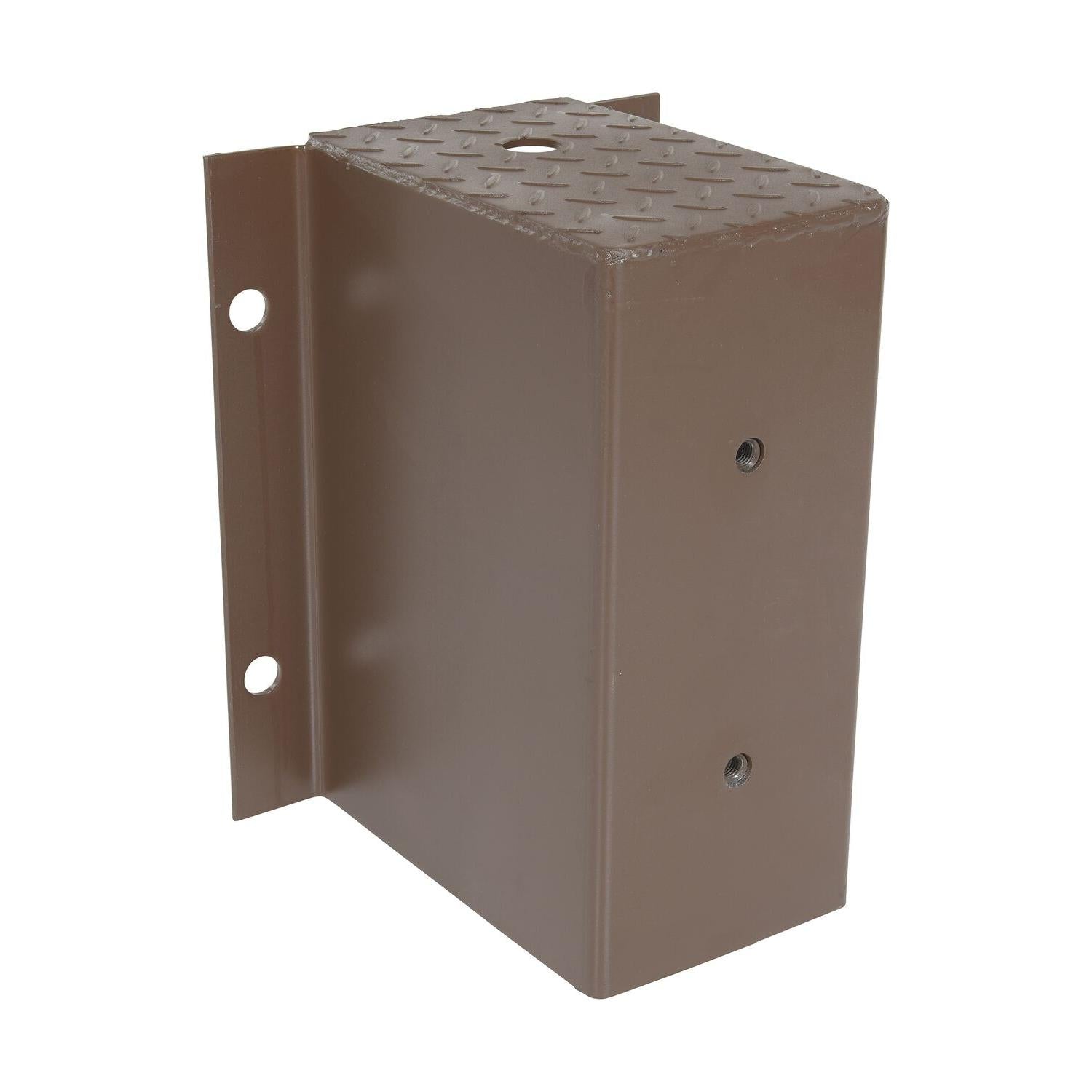

• Complete Kit Included: Comes with hand pump, hydraulic cylinder, 180" hydraulic line, oil, and wall-mount brackets

Additional Information

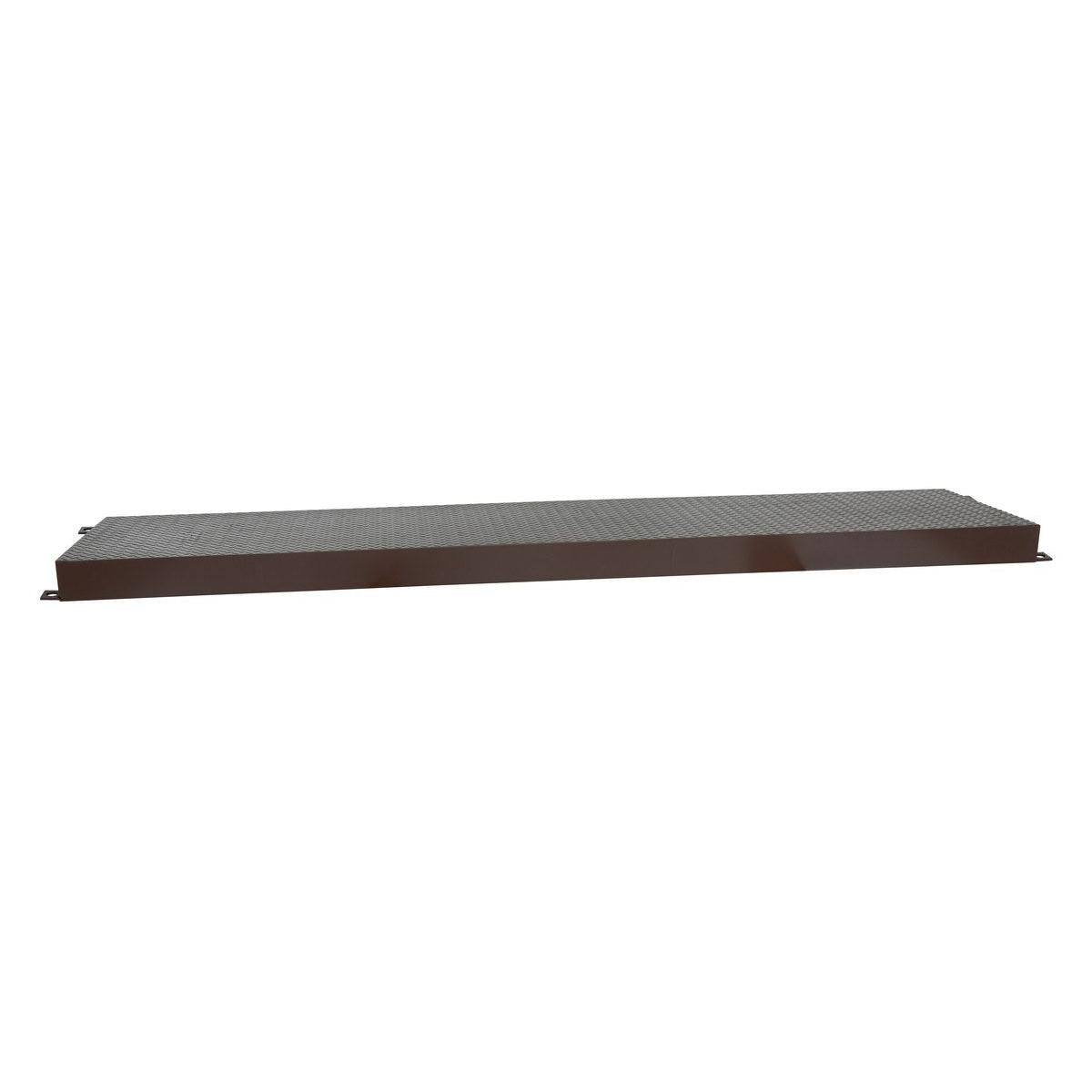

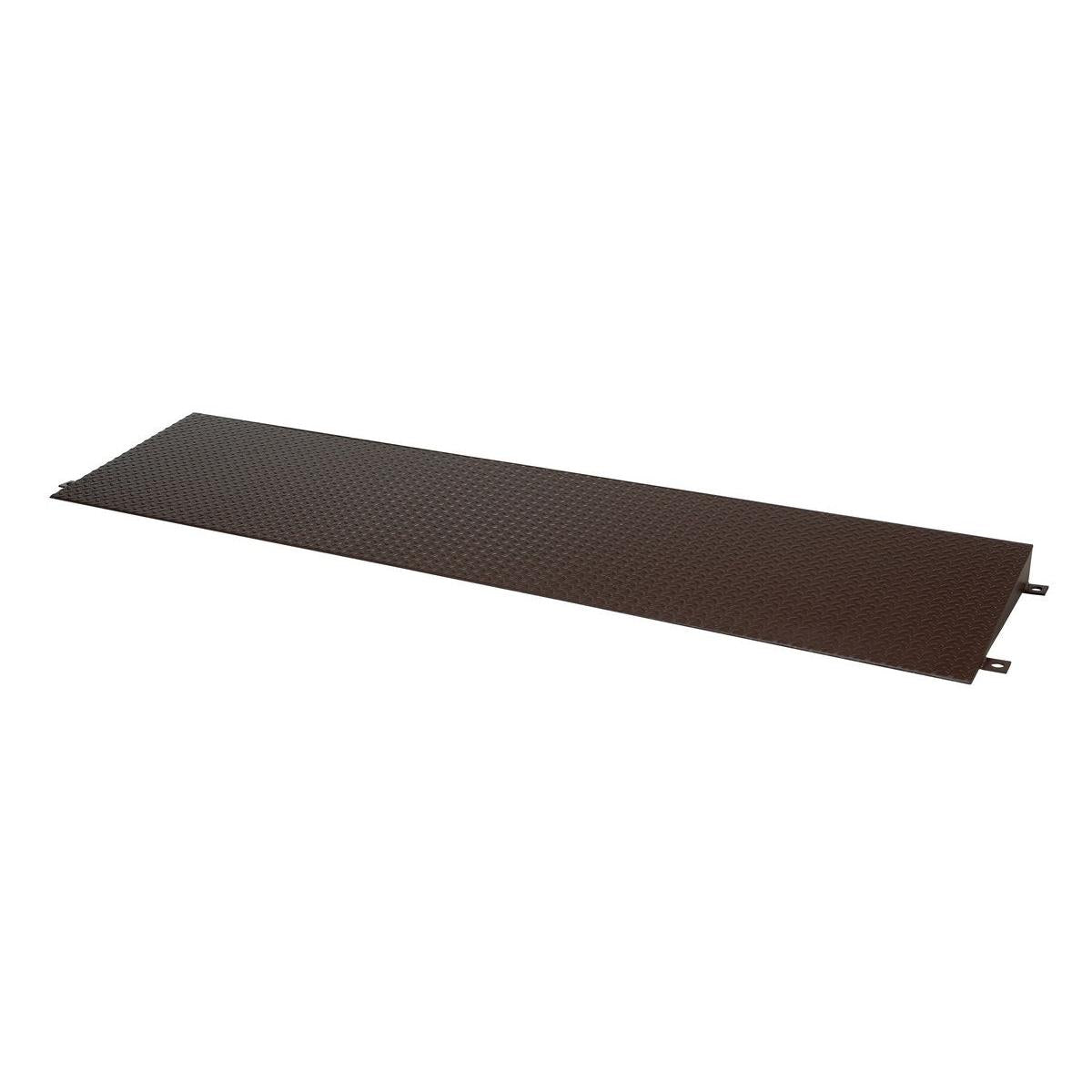

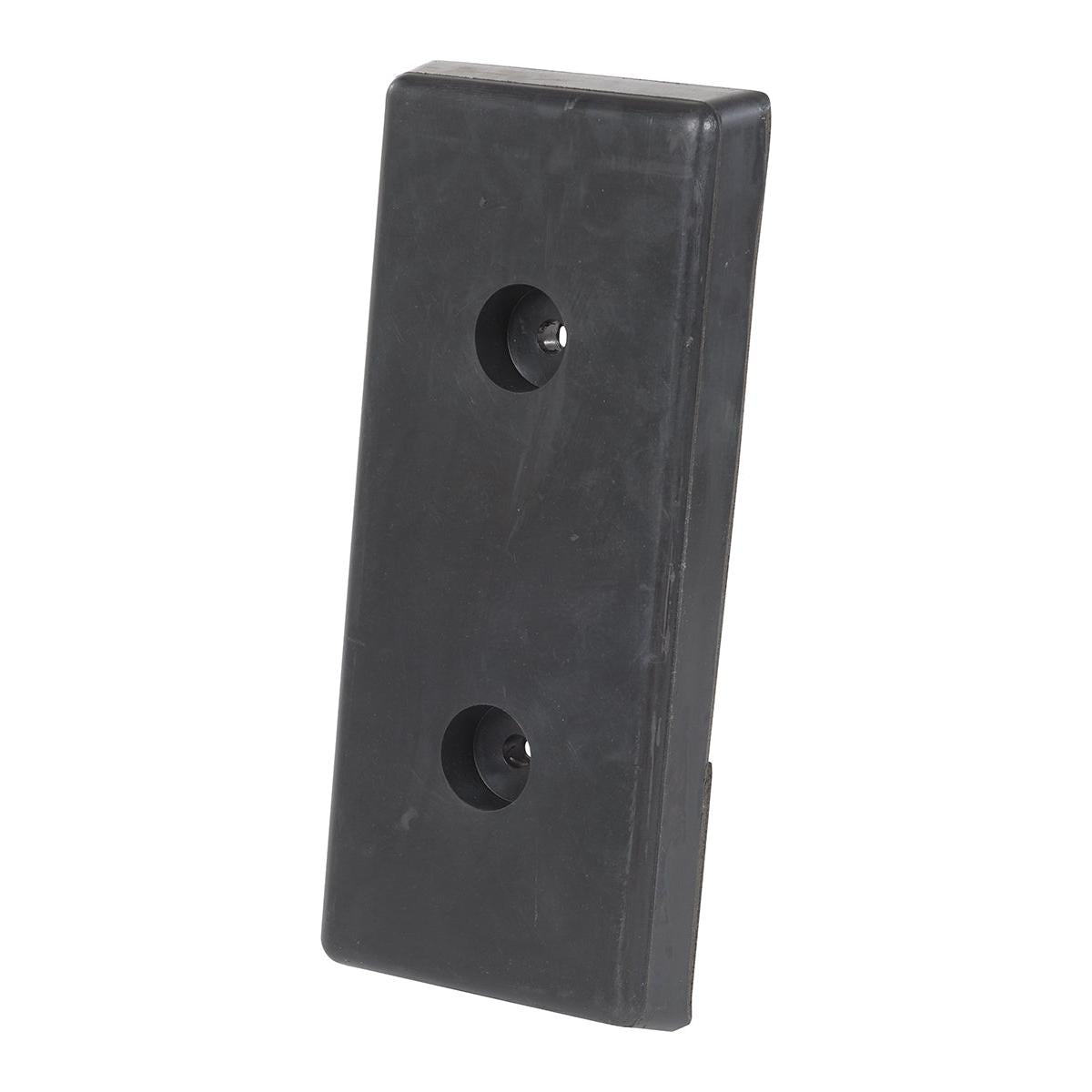

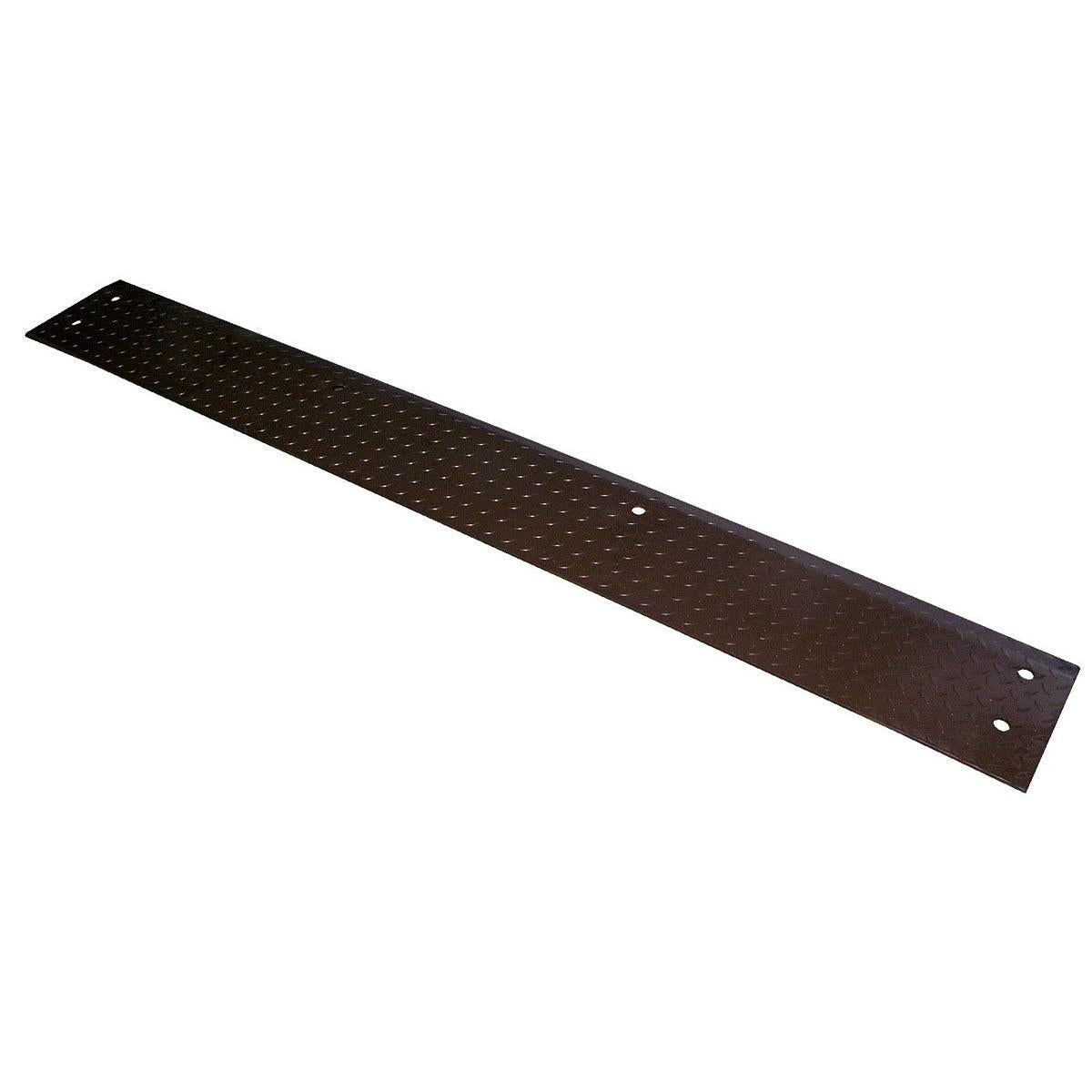

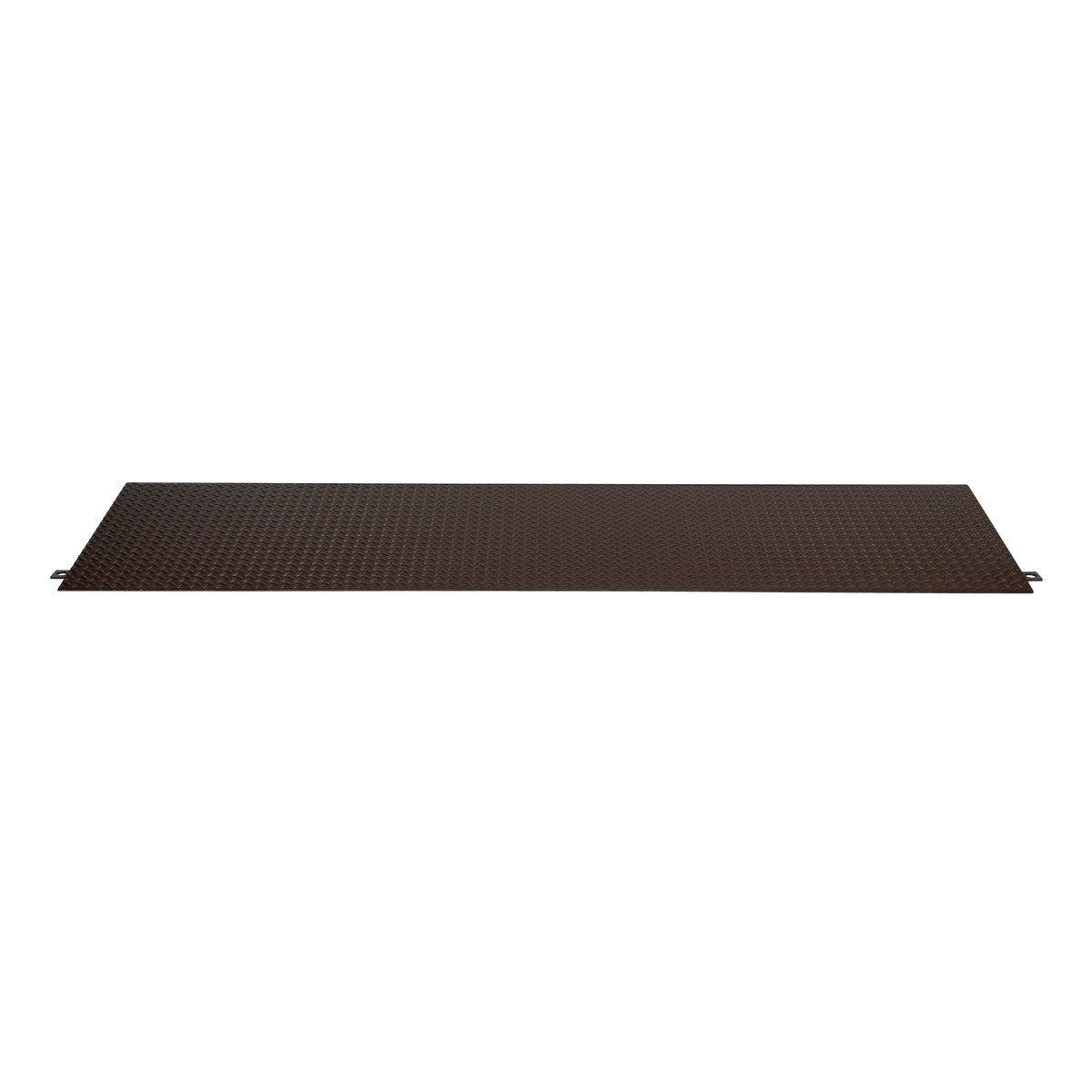

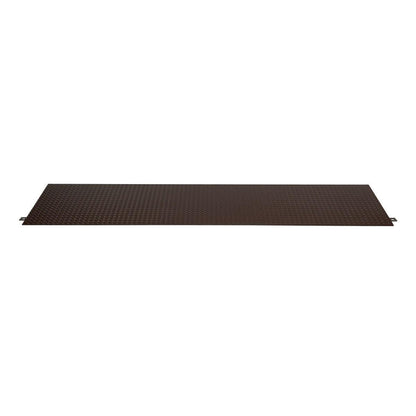

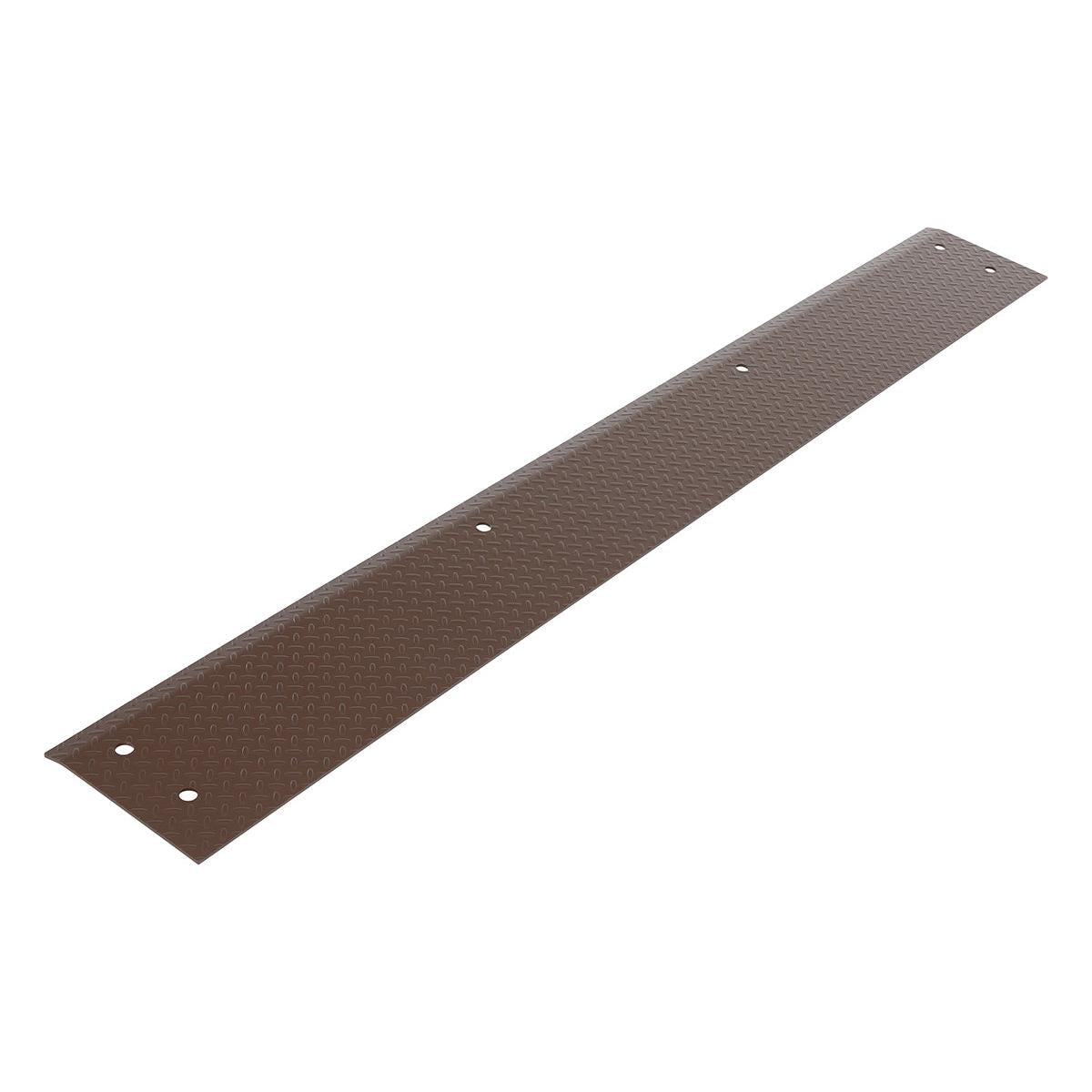

All units include rubber dock bumpers and detailed installation instructions. For proper function, a steel dock edge or pre-installed approach ramp is required. Extended ramping length models (36-5/8 in.) are also available upon request. These units are ideal for facilities that want the benefits of a dock leveler without the complexity or cost of full hydraulic systems.

Technical Specifications:

• Uniform Capacity (lb.): 20,000
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5
• Dock Leveler Operating Method: Hydraulic Hand Pump

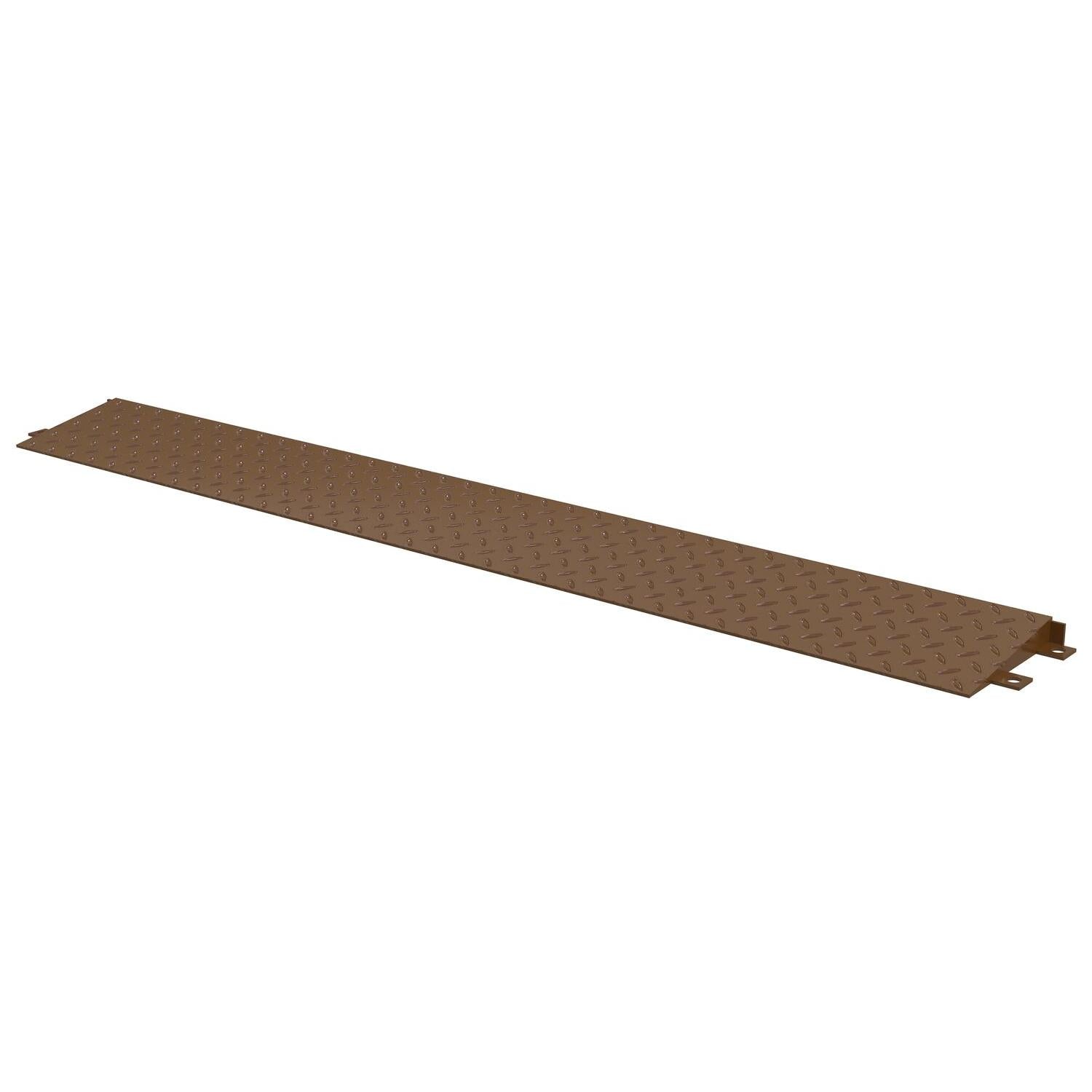

• Ramp Length (in.): 29
• Platform Length (in.): 20
• Platform Thickness (in.): 0.375
• Platform Material: Steel
• Material: Steel
• Color Family: Brown
• Dock Leveler Lip Projection (in.): 11.5

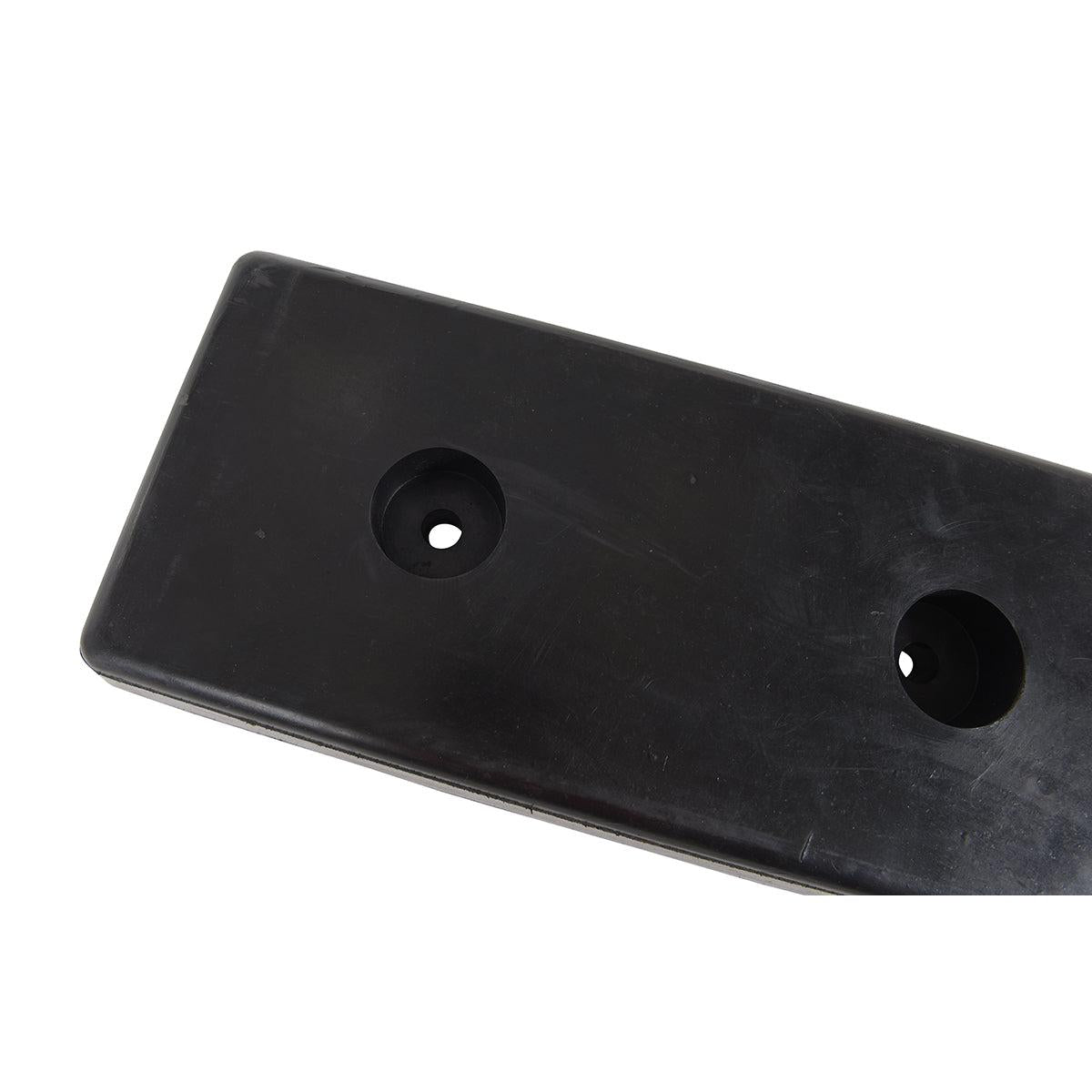

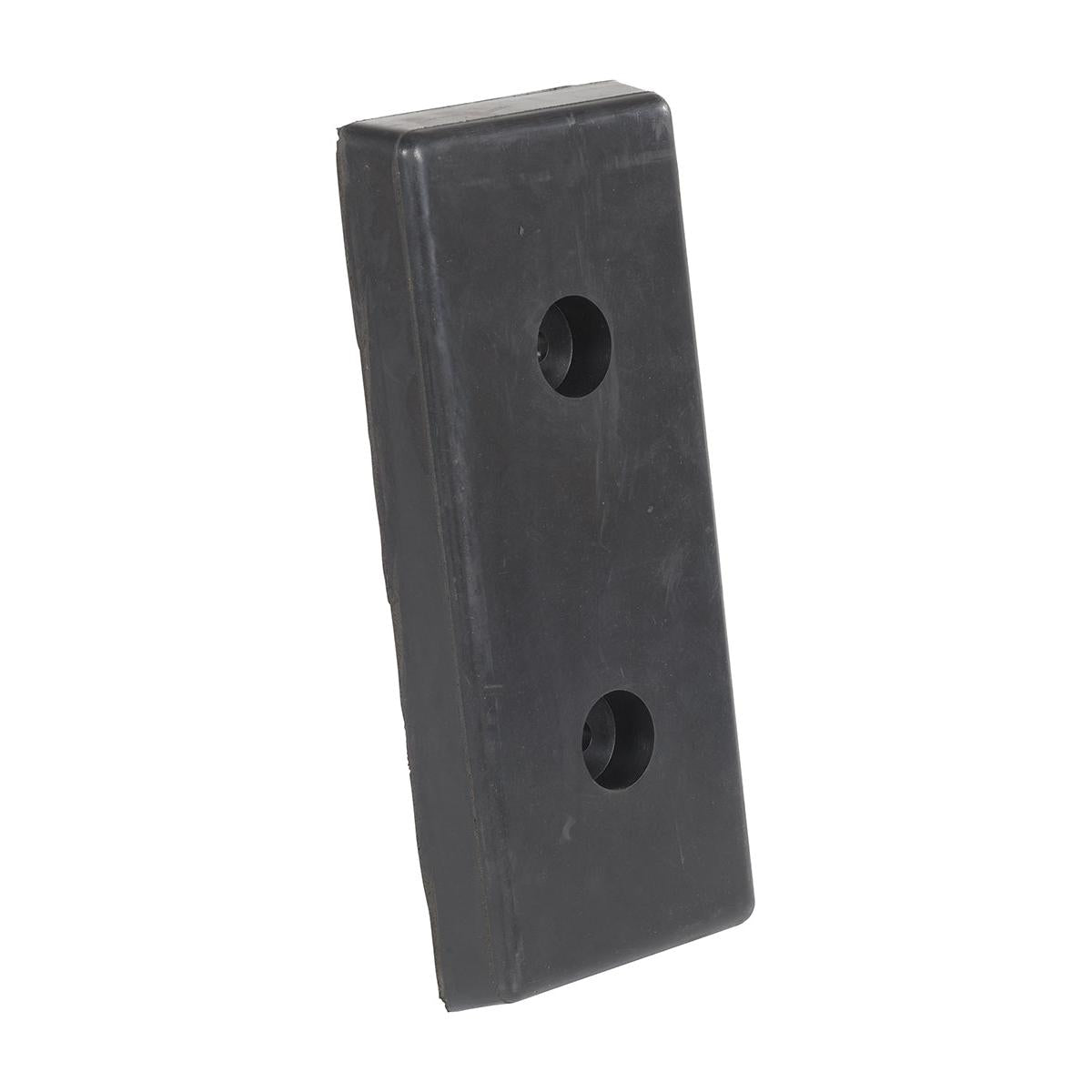

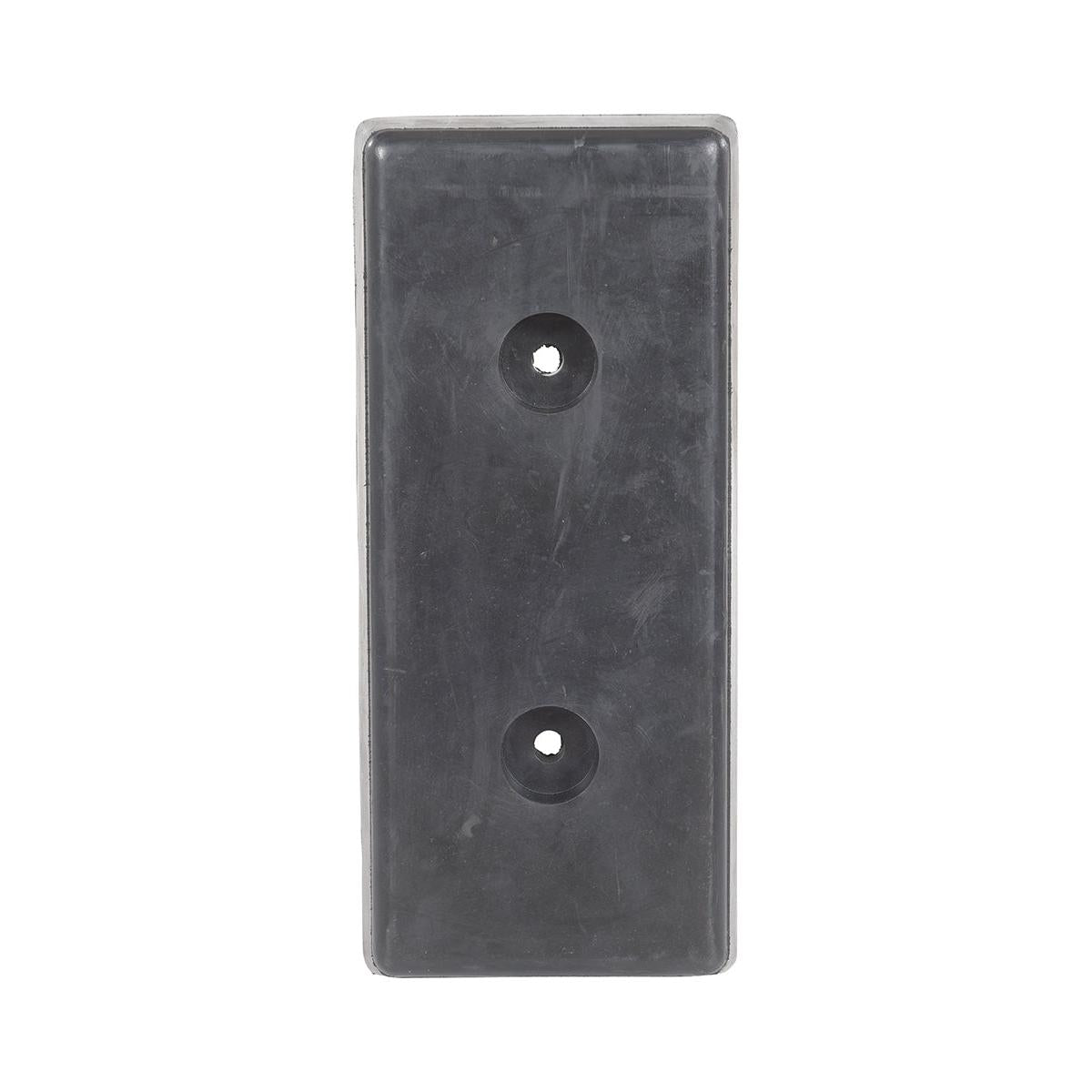

• Bumper Pad Width (in.): 8
• Bumper Pad Thickness (in.): 2
• Bumper Pad Height (in.): 18
• Bumper Projection (in.): 17.5

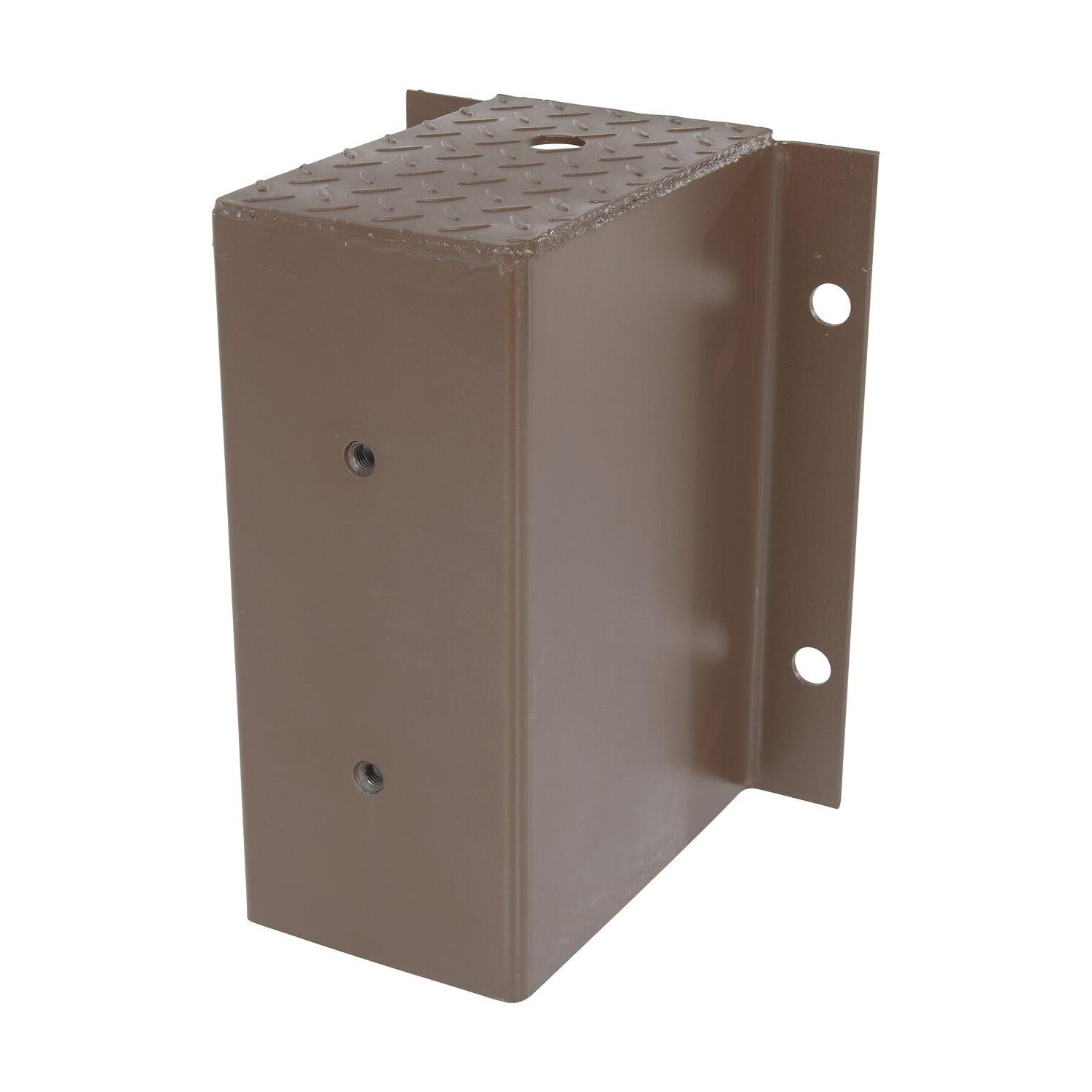

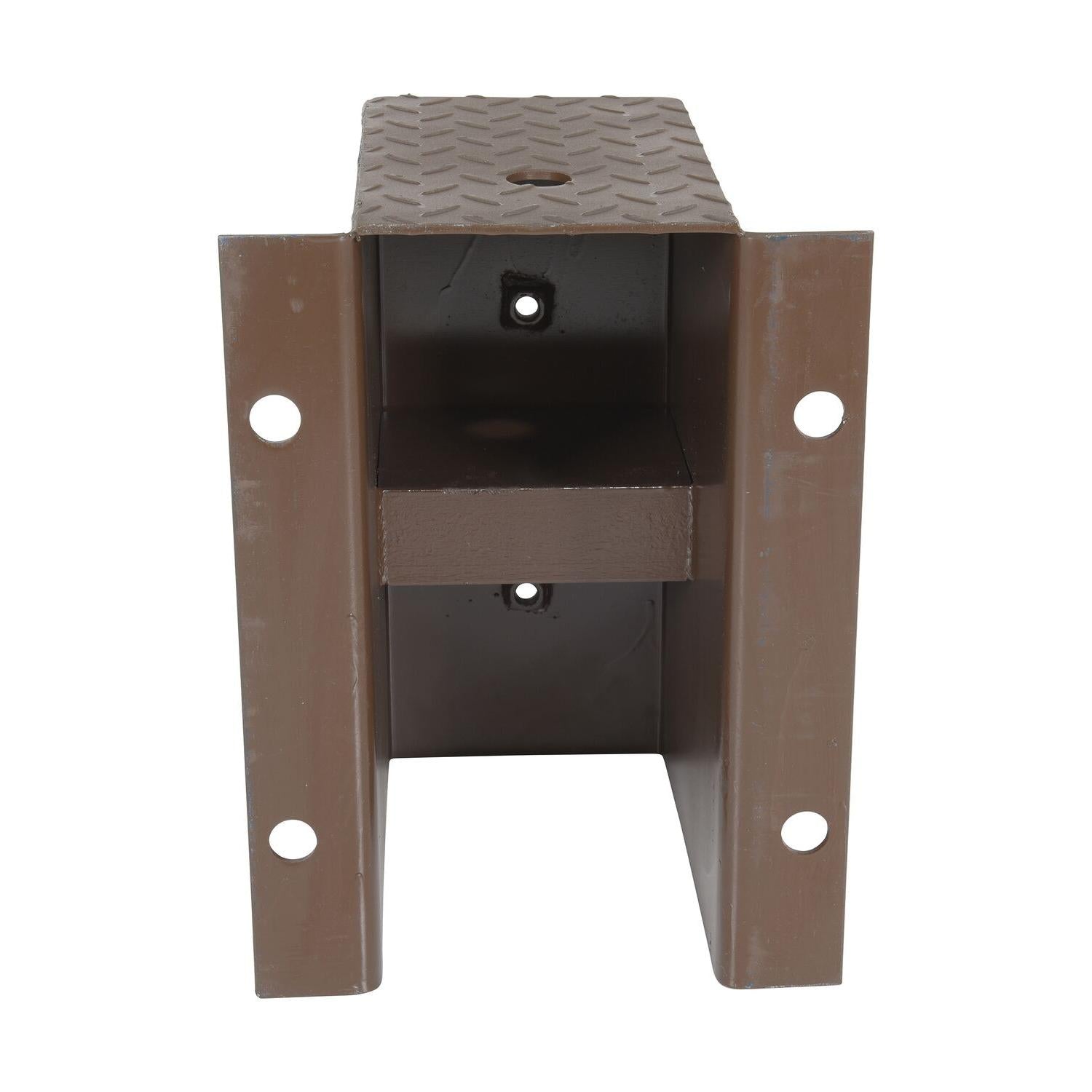

• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and Installation Instructions
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year
• Assembly: Assembly Required
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required?: No
• Overall Length (ft): 2.42
• Assembled Height (in.): 27.5

Discover the Edge-O-Dock Levelers complete collection:

• Steel Hand Pump Edge-O-Dock Leveler – 72" Ramp Width x 36-5/8" Ramp Length – 15,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 20,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 25,000 lb. Capacity (66", 72", 72" Extended Ramp)

• Steel Hand Pump Edge-O-Dock Levelers – 30,000 lb. Capacity


Made in USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colorsof this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
