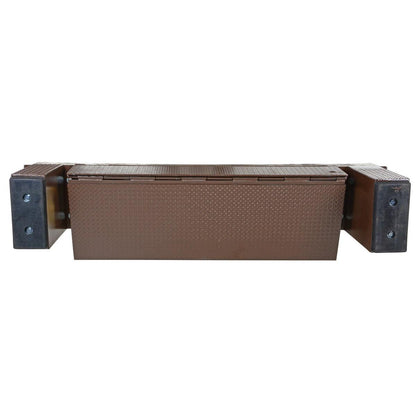

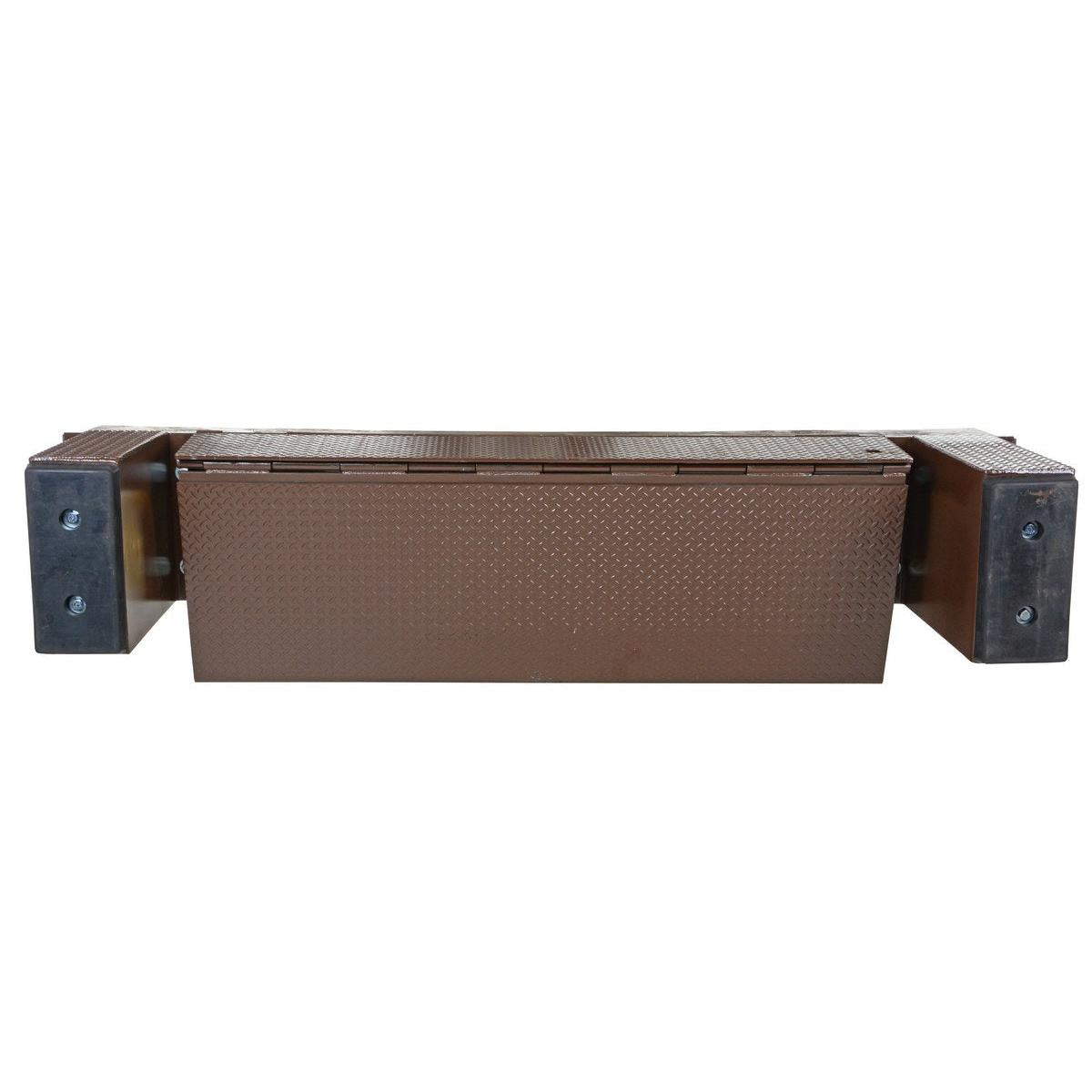

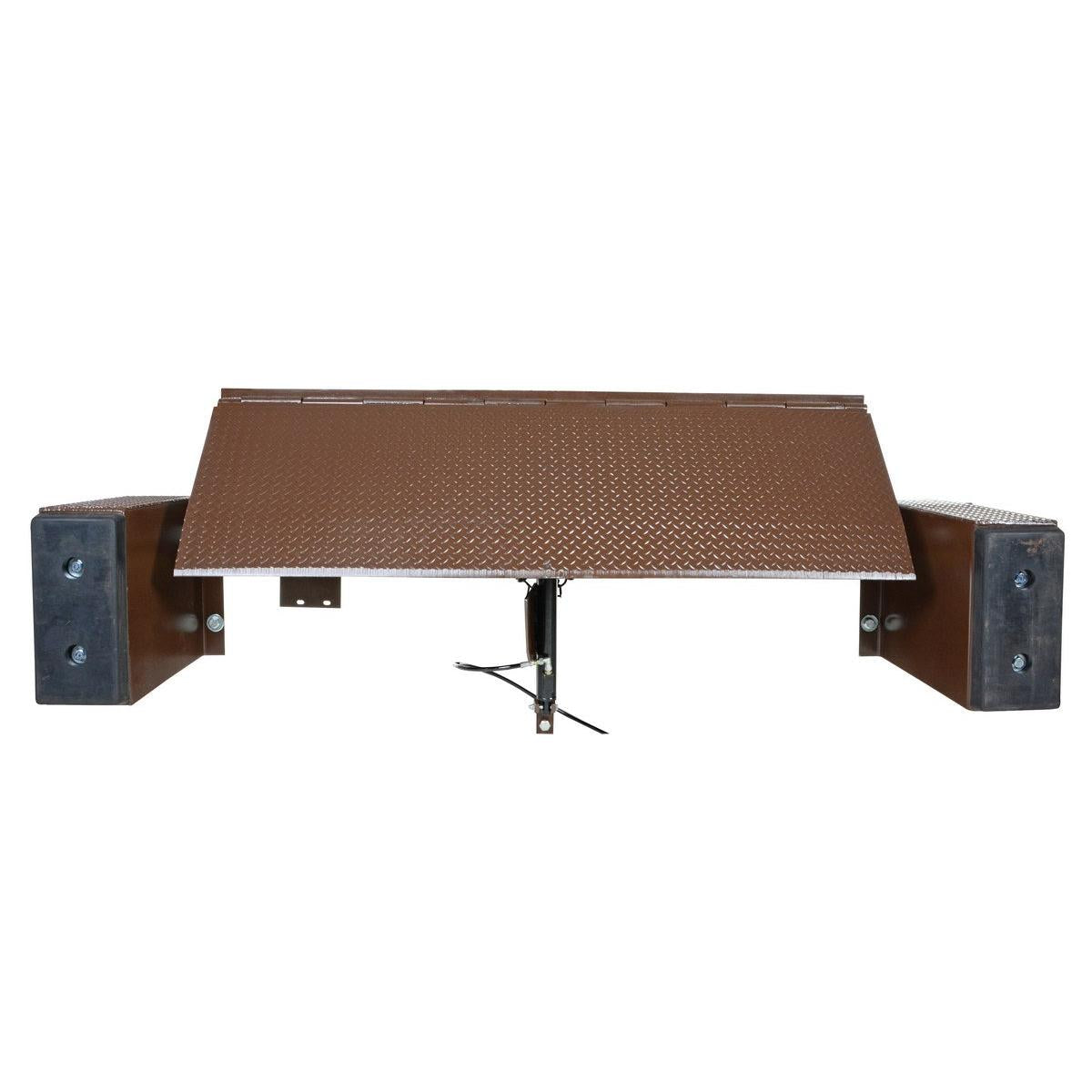

Steel Hand Pump Edge-O-Dock Levelers – 25,000 lb. Capacity (66", 72", 72" Extended Ramp)

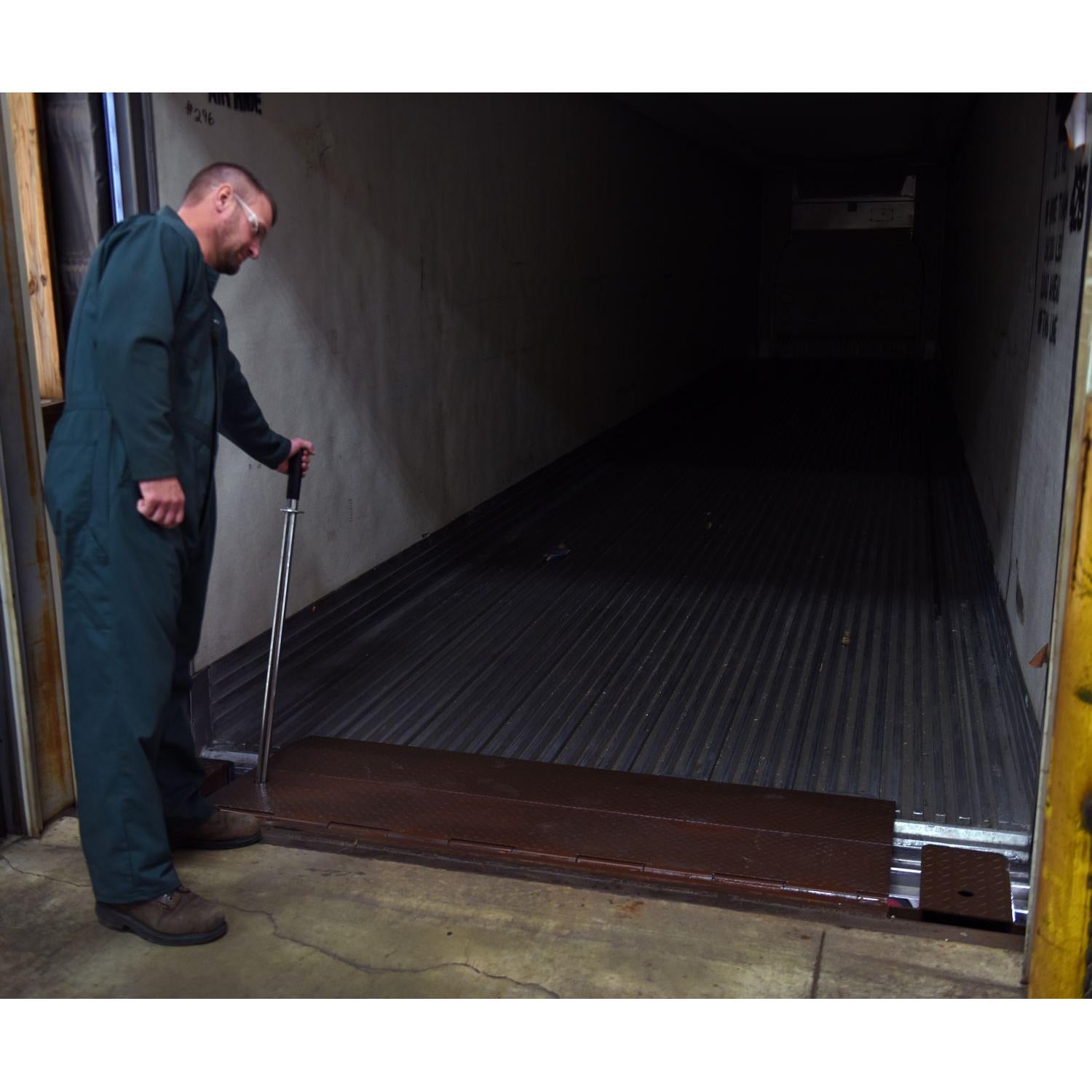

The Steel Hand Pump Edge-O-Dock Levelers provide a reliable and cost-effective solution for bridging the gap between dock and trailer. Permanently mounted to the dock face, these levelers are ideal for facilities with a minimum dock height of 48 inches. Designed for ease of use, they are manually operated via a hydraulic hand pump that lifts the deck and extends the lip to create a secure connection for loading and unloading.

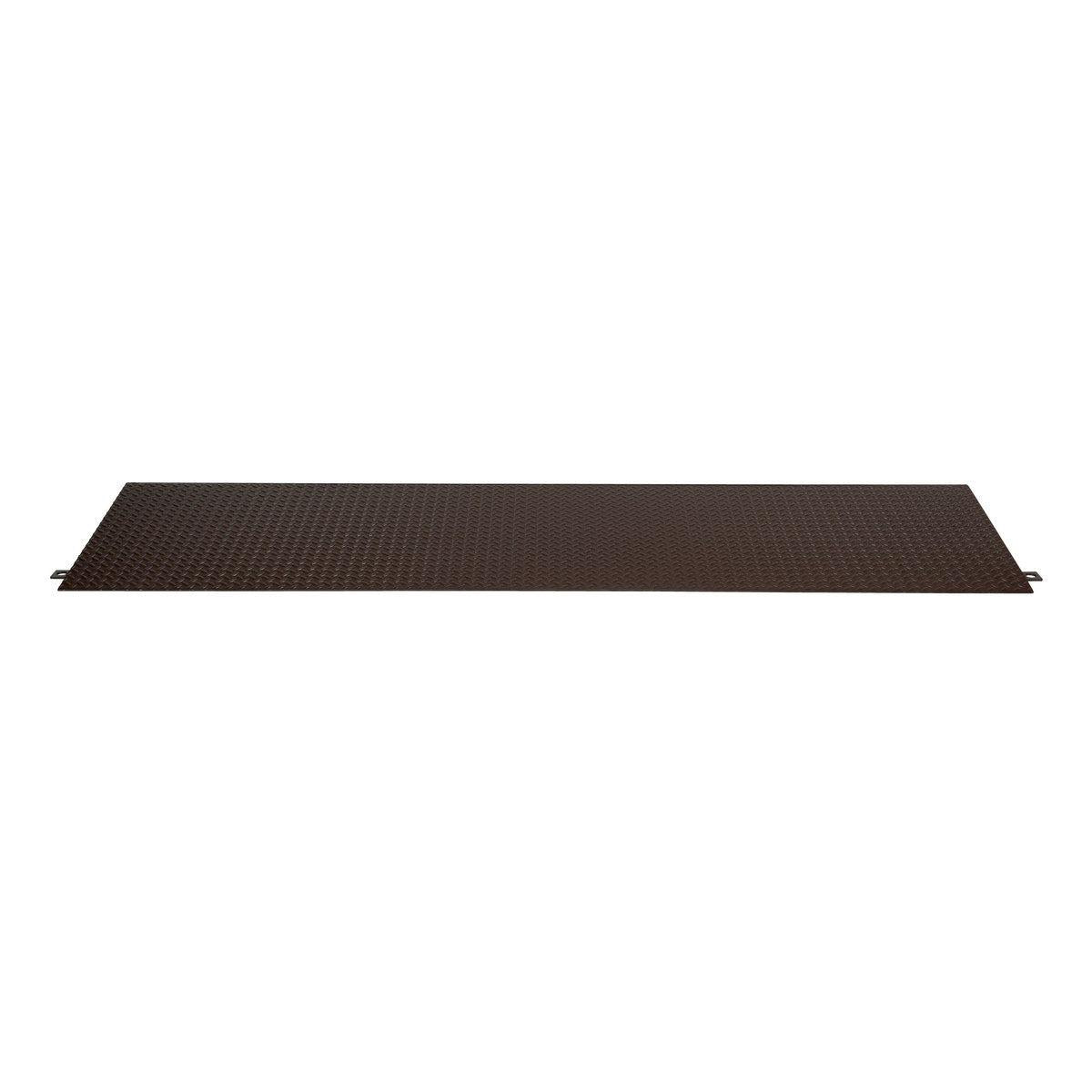

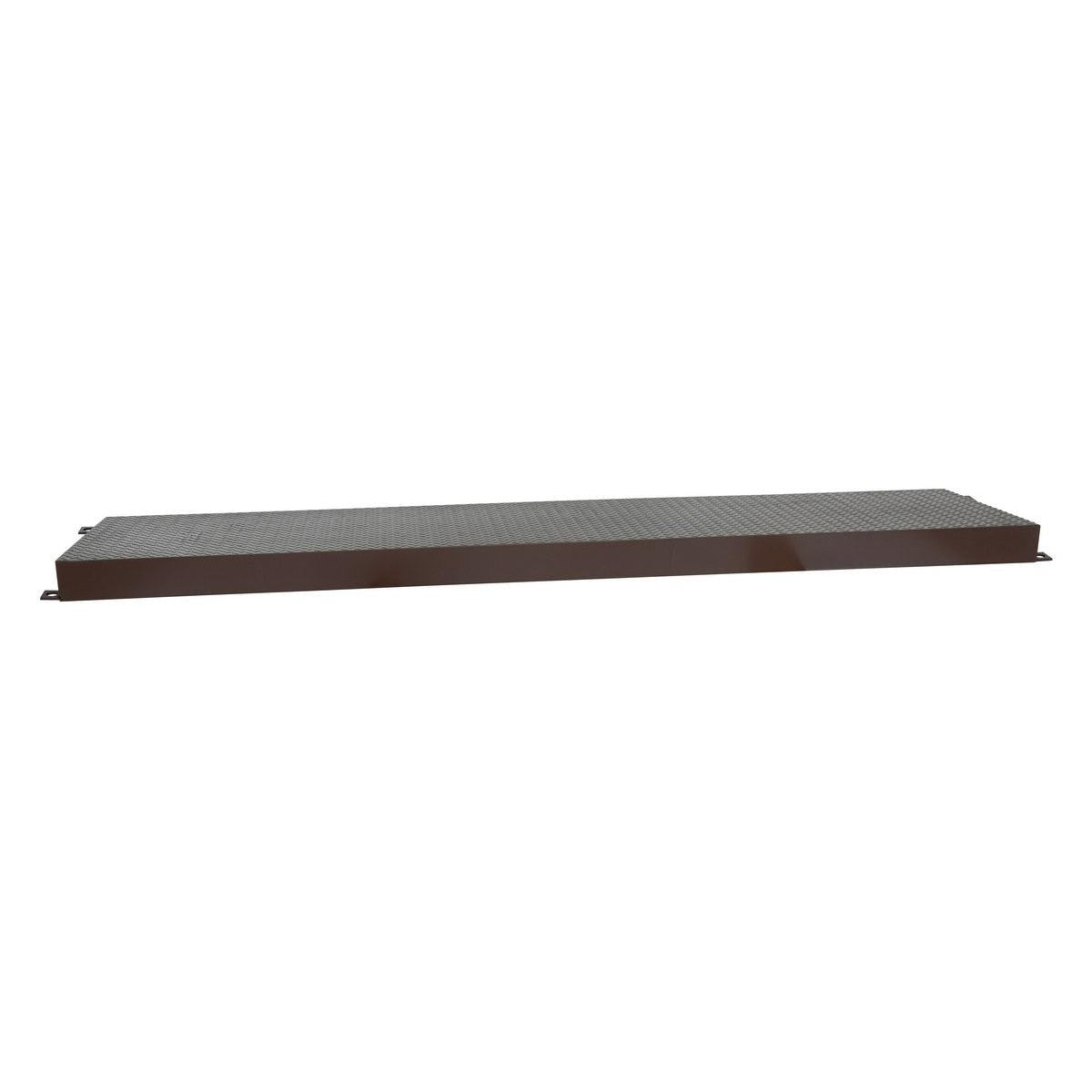

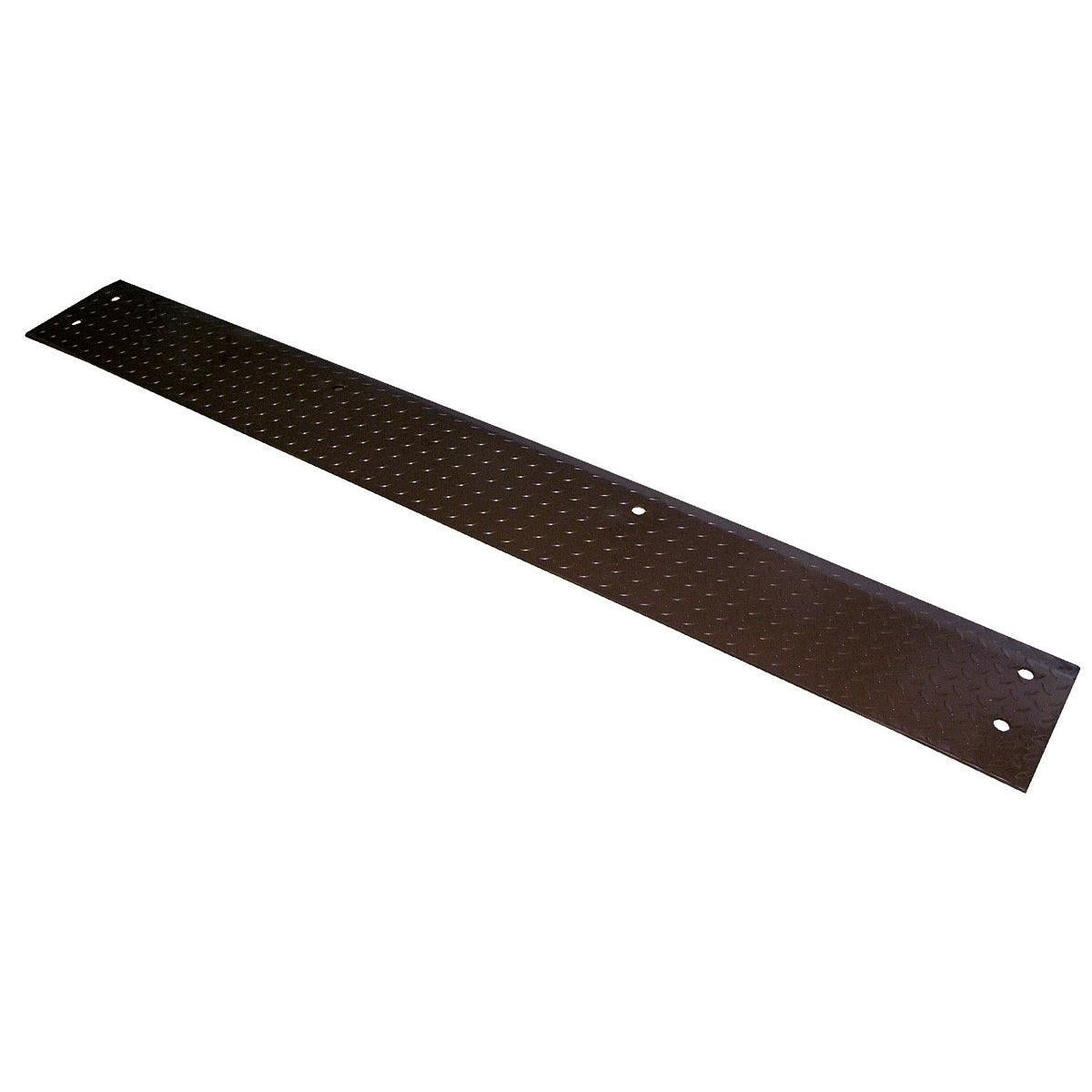

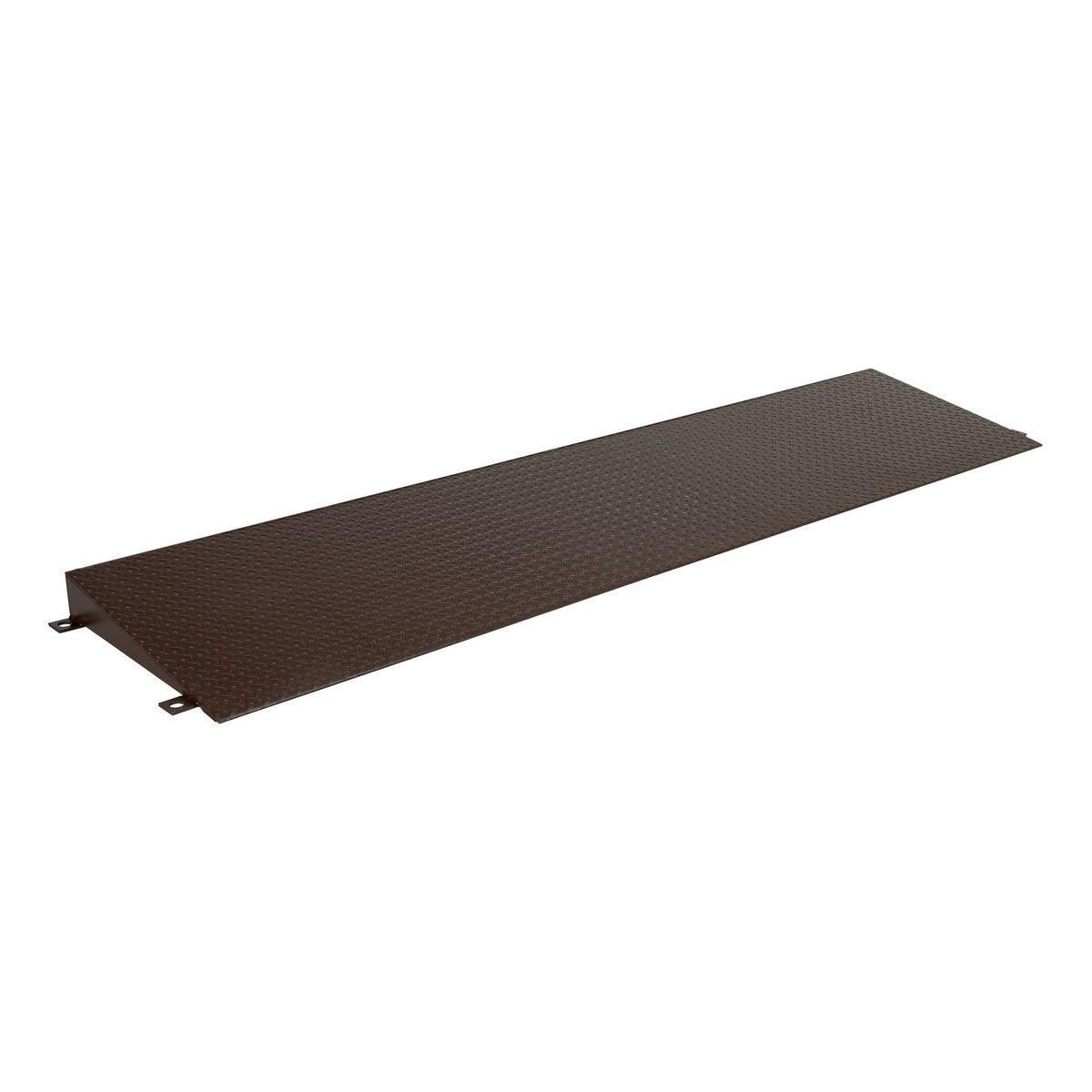

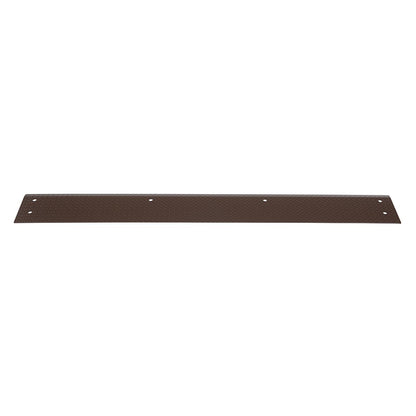

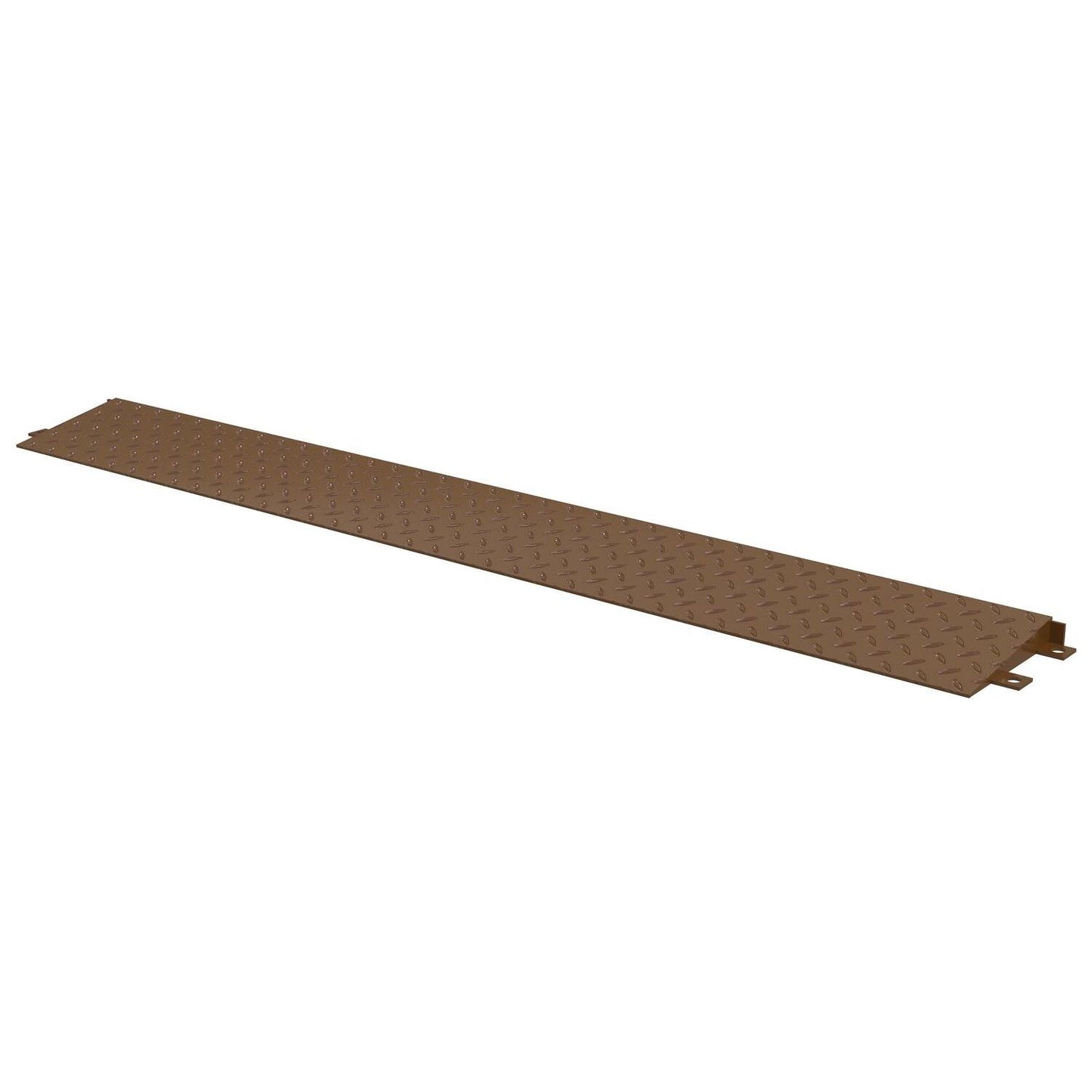

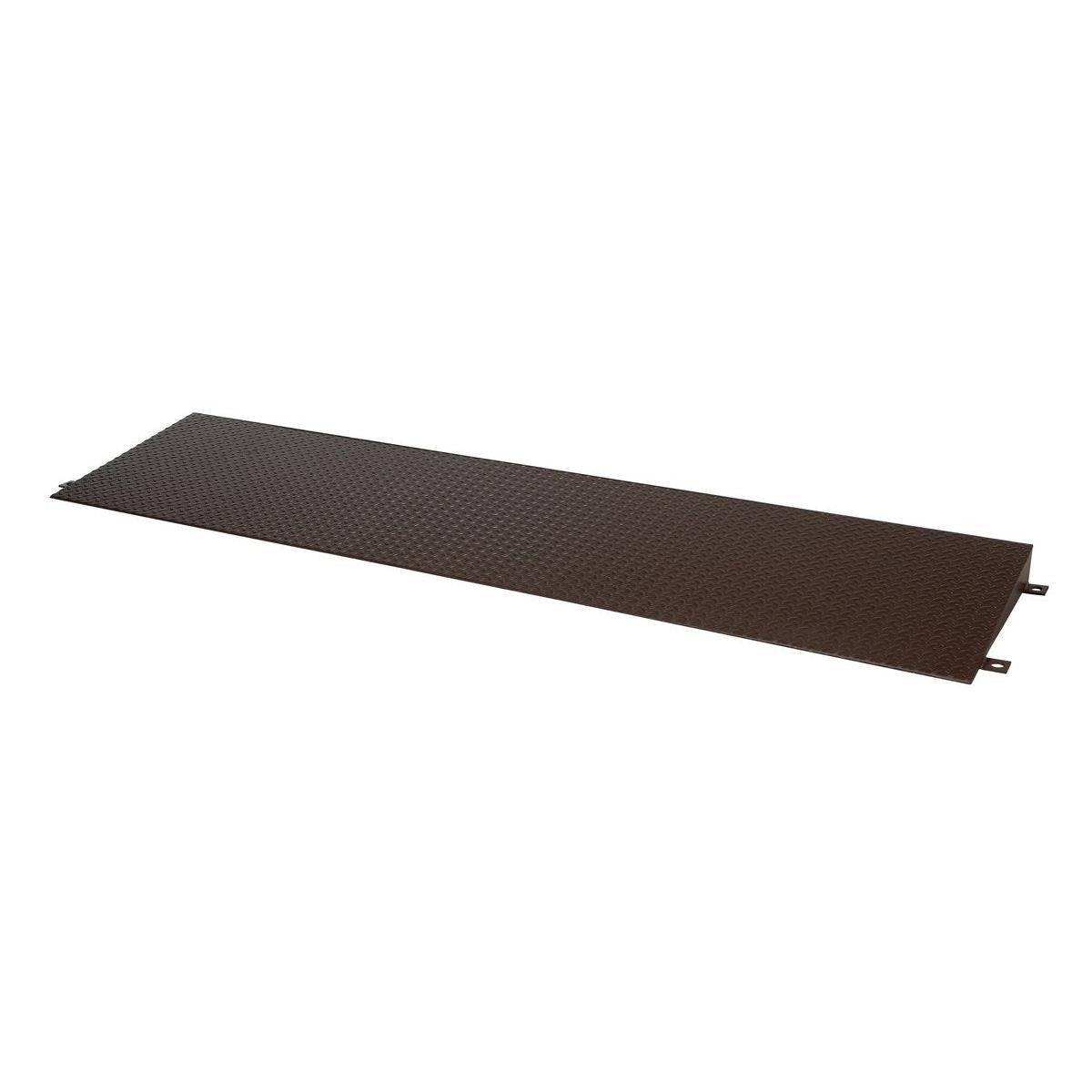

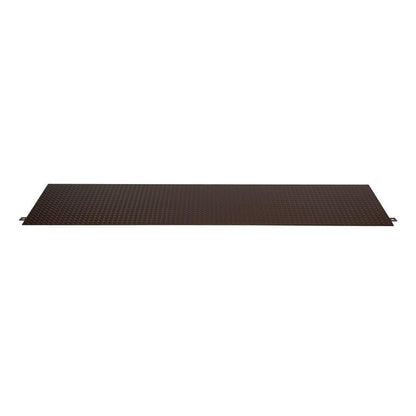

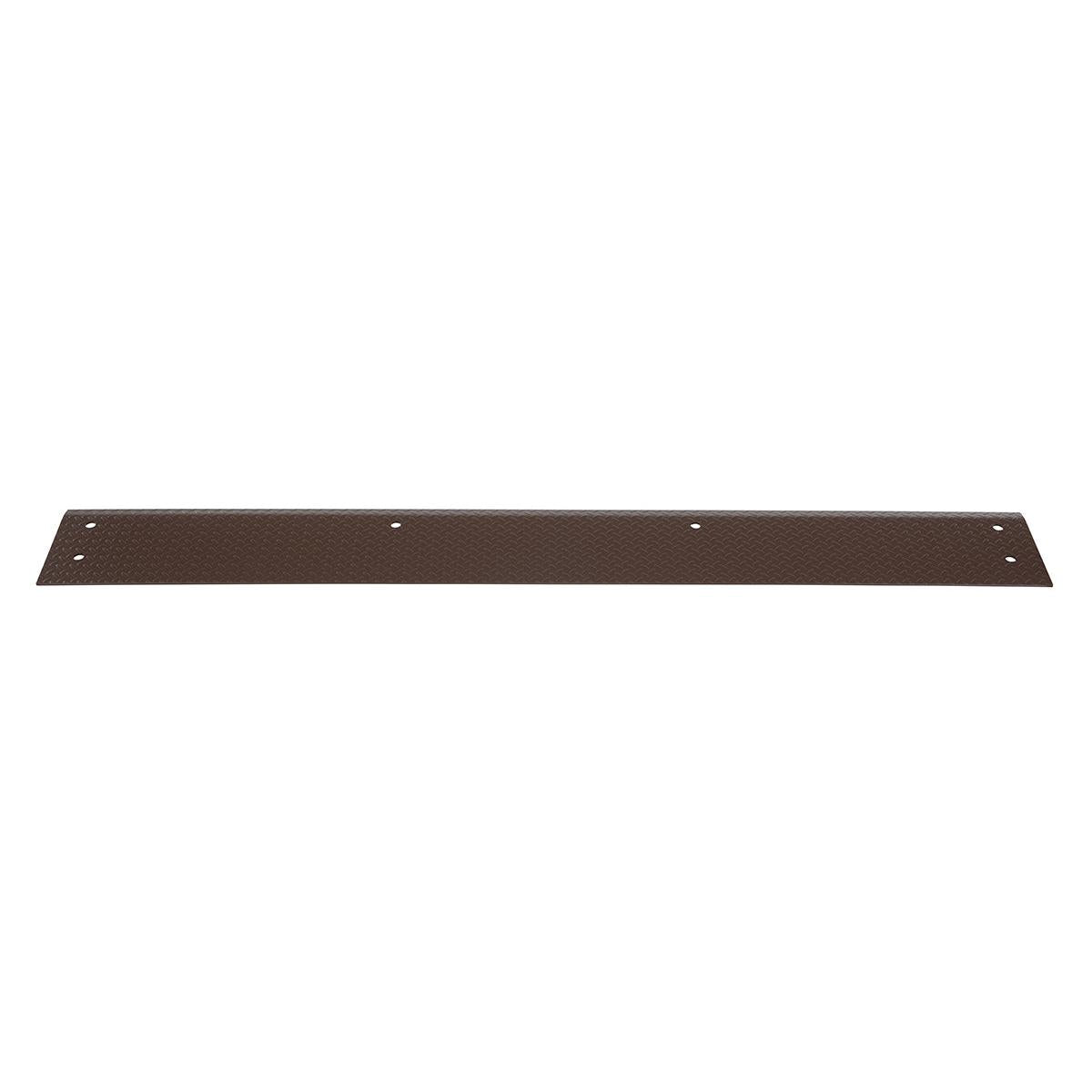

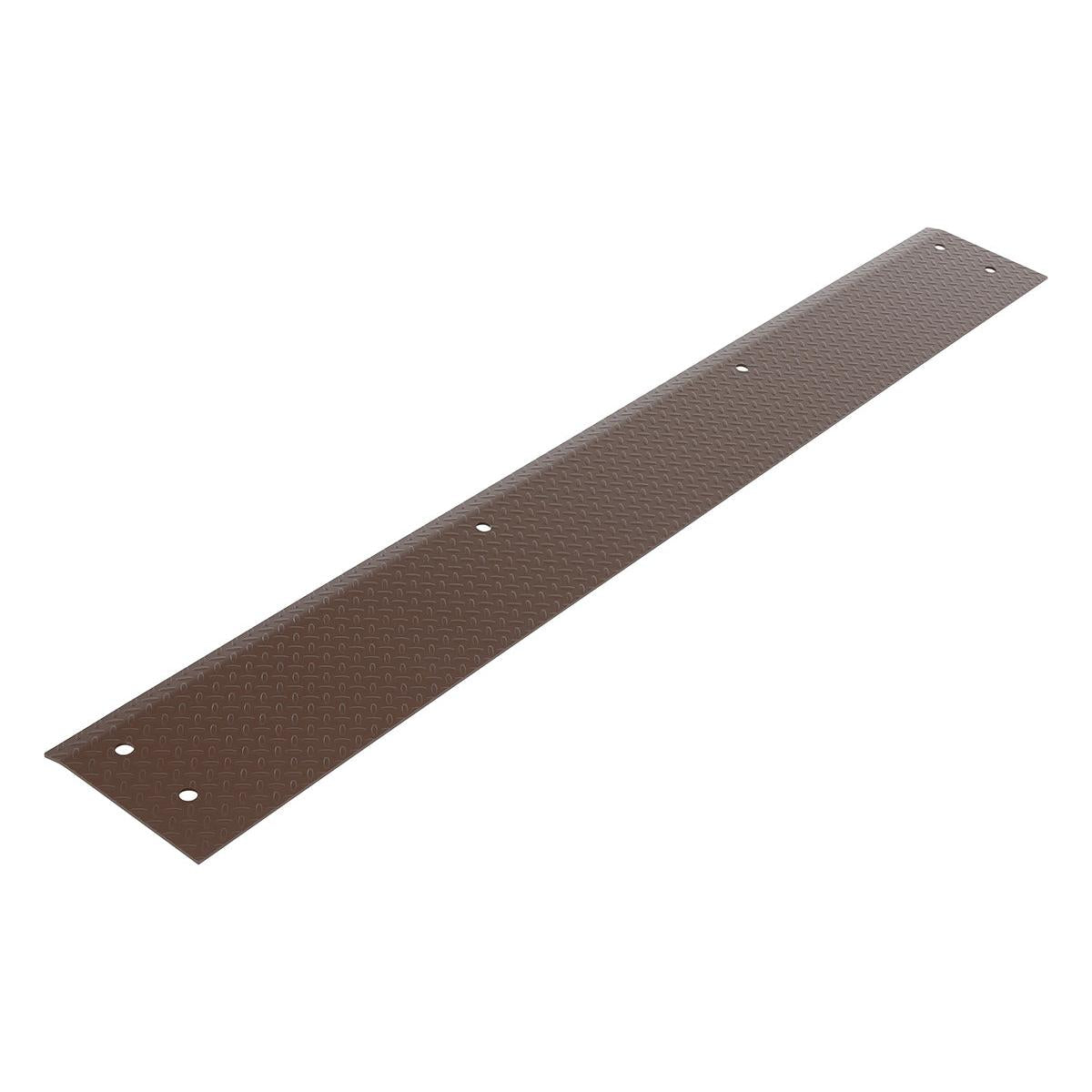

Each unit includes a steel tread plate ramp, rubber bumpers, mounting hardware, and installation instructions. The ramp descends into position with a simple release of the relief valve and automatically stores itself once the truck departs. No concrete recess is required for installation, making it suitable for retrofitting existing docks.

Features and Benefits

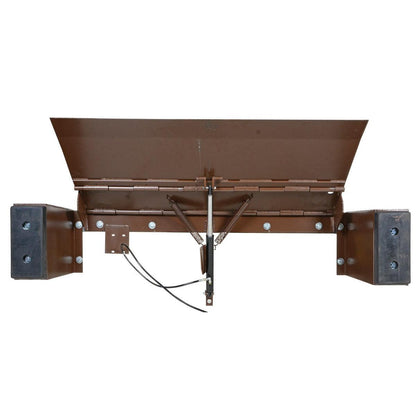

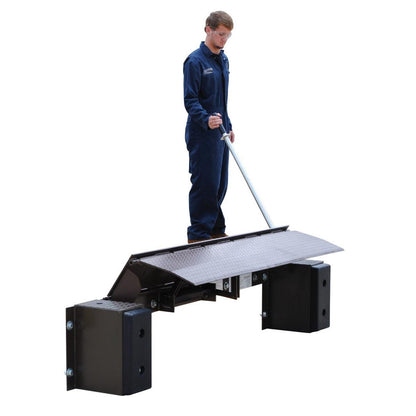

• Manual Hydraulic Operation: Hand pump system for easy, controlled raising and lowering of the ramp and lip.

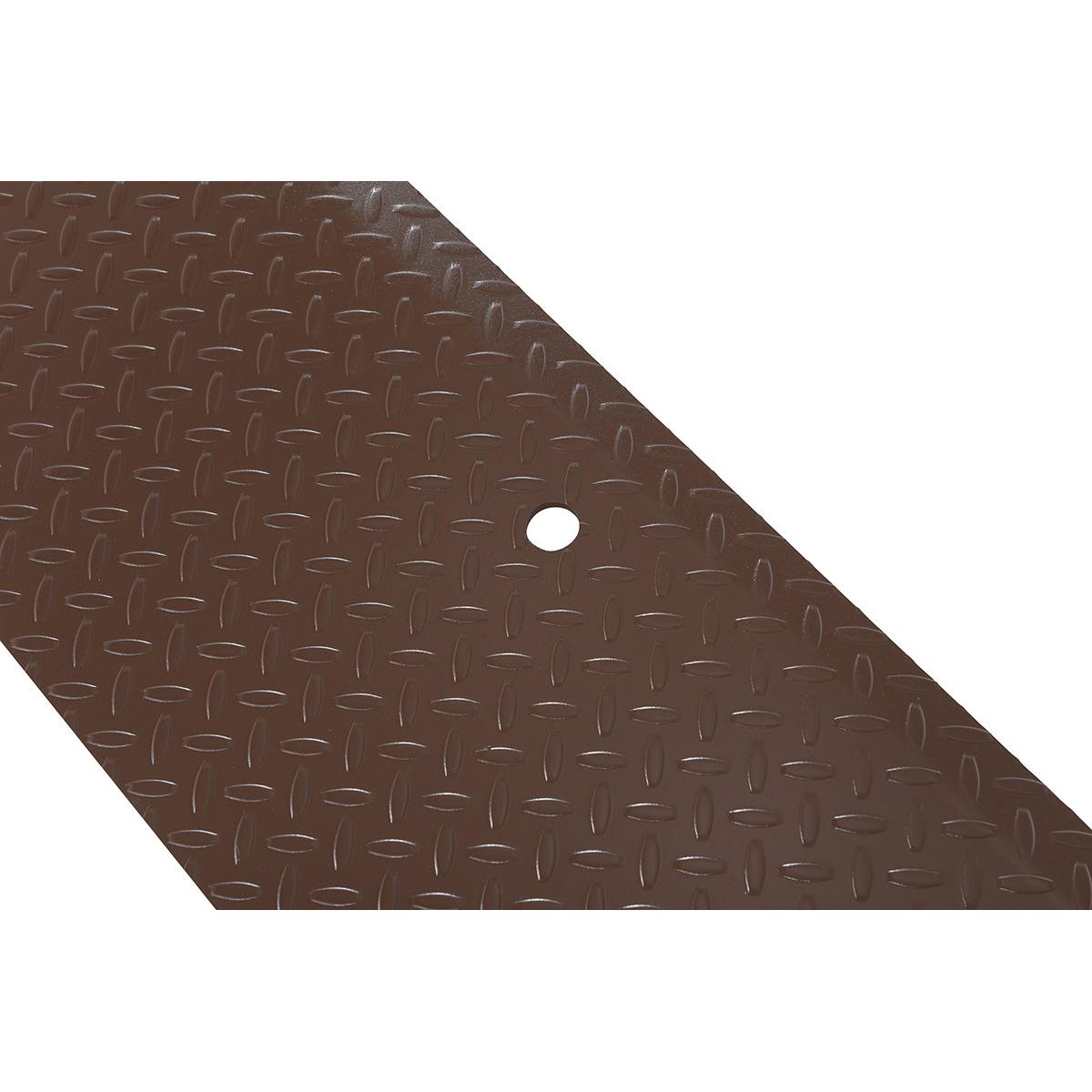

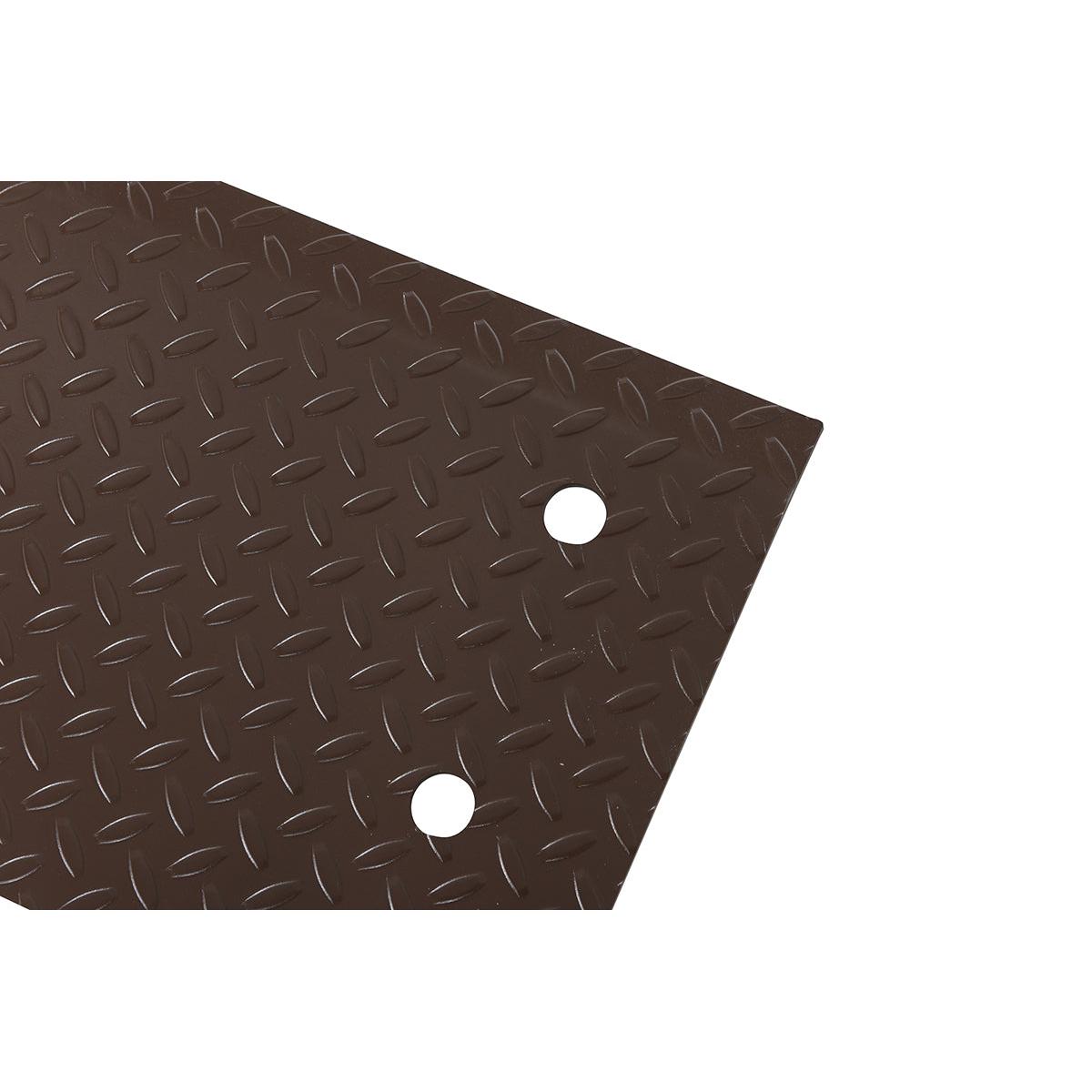

• Non-Slip Deck: Tread plate surface ensures secure footing and safe material handling.

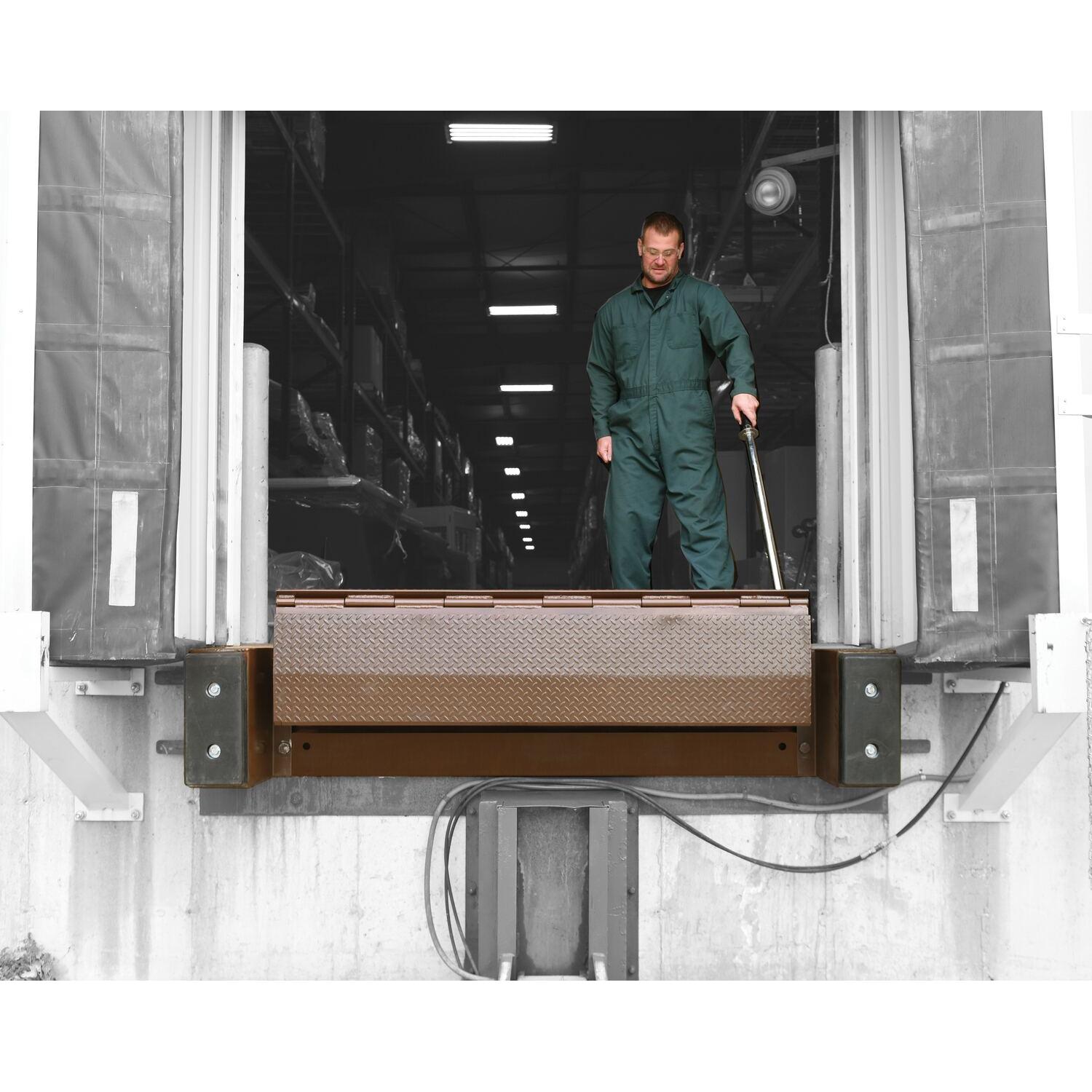

• Permanent Mounting: Fastens directly to the dock face, minimizing movement and maintenance.

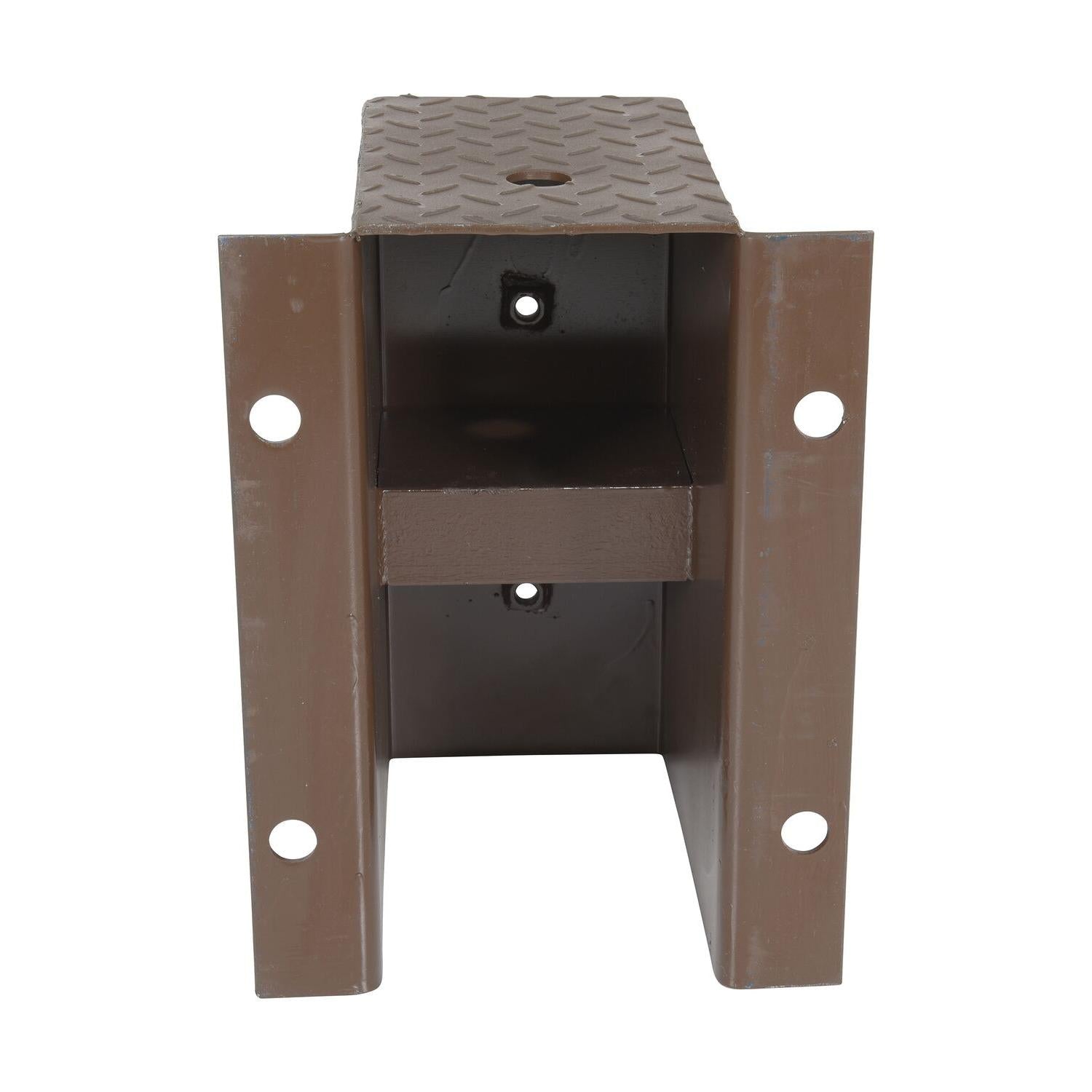

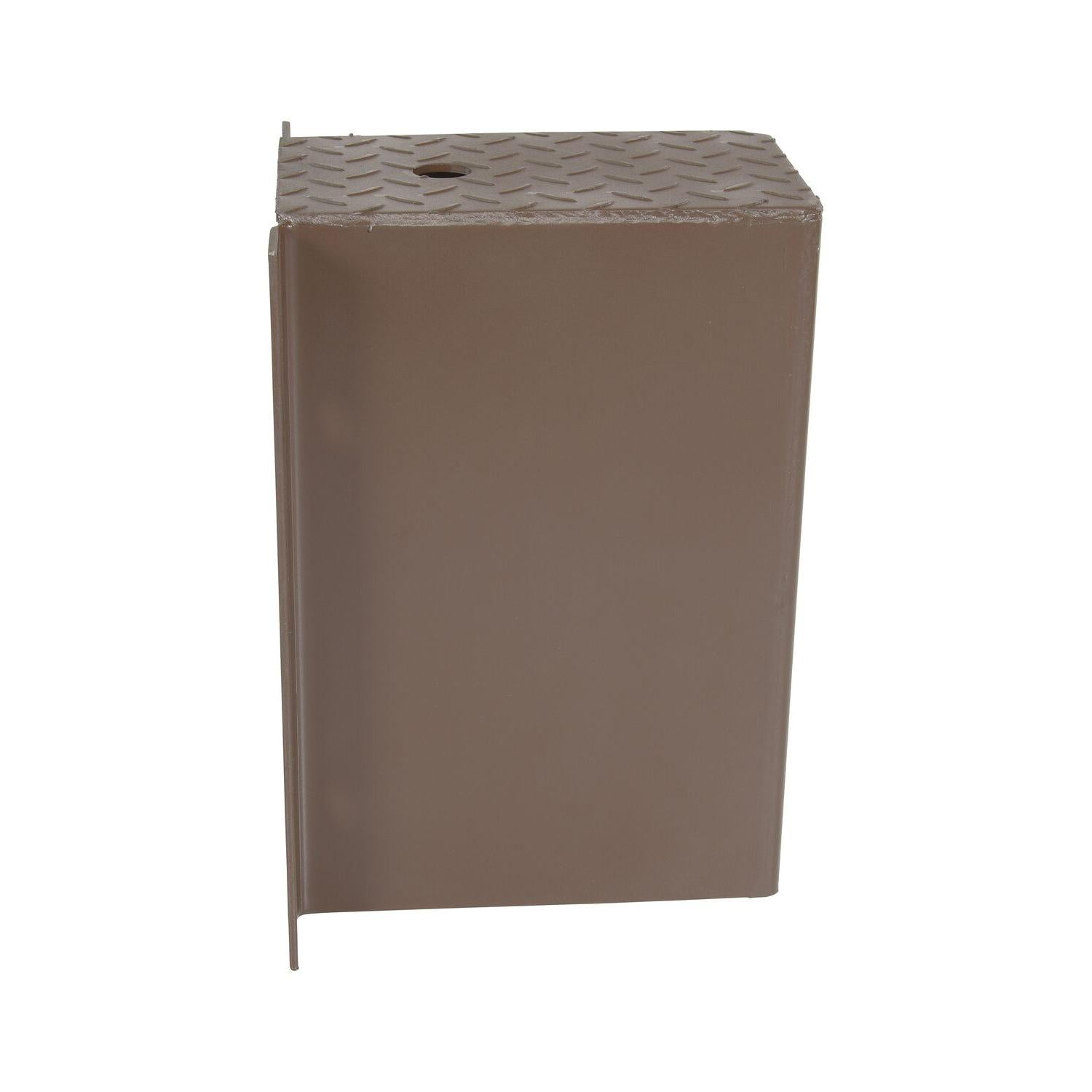

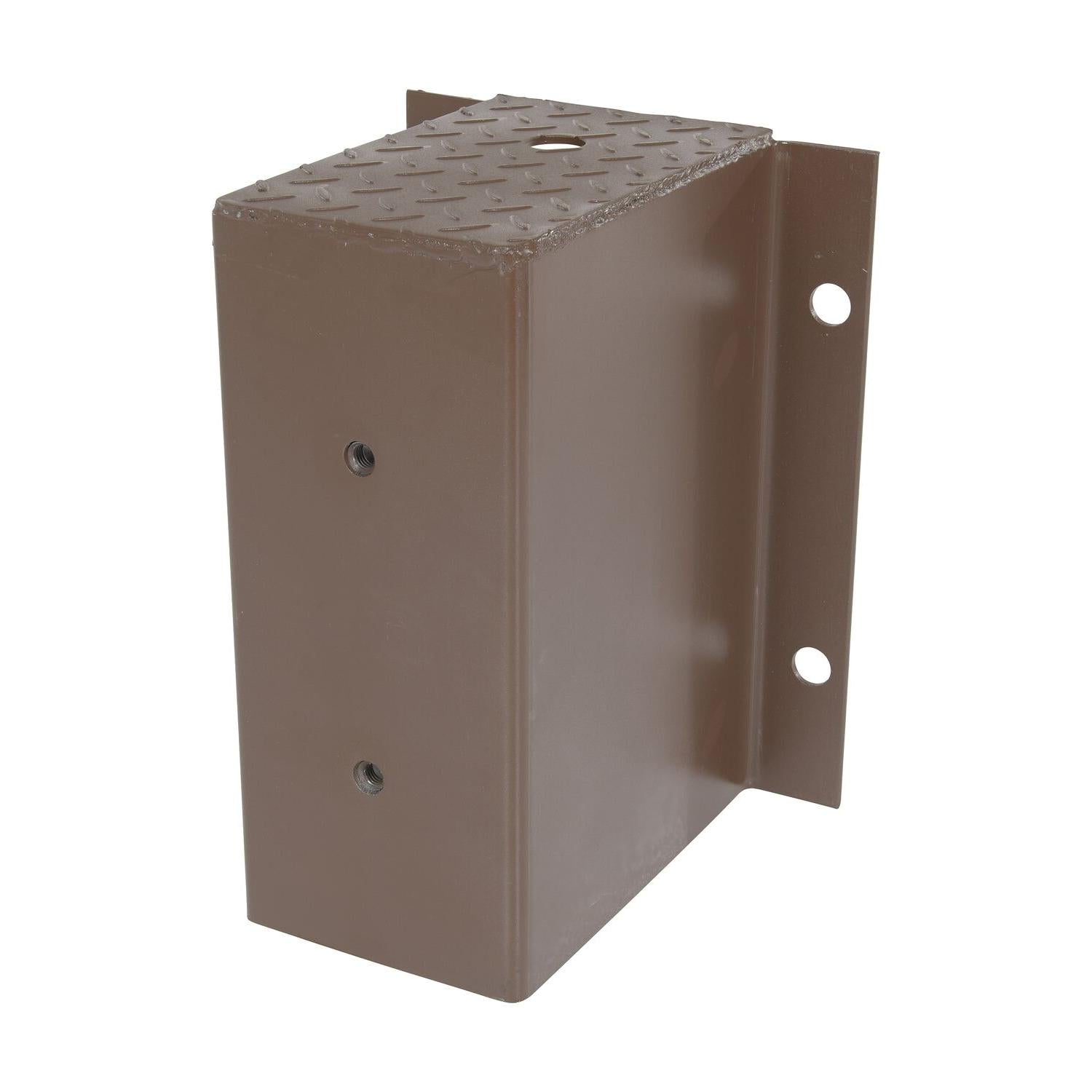

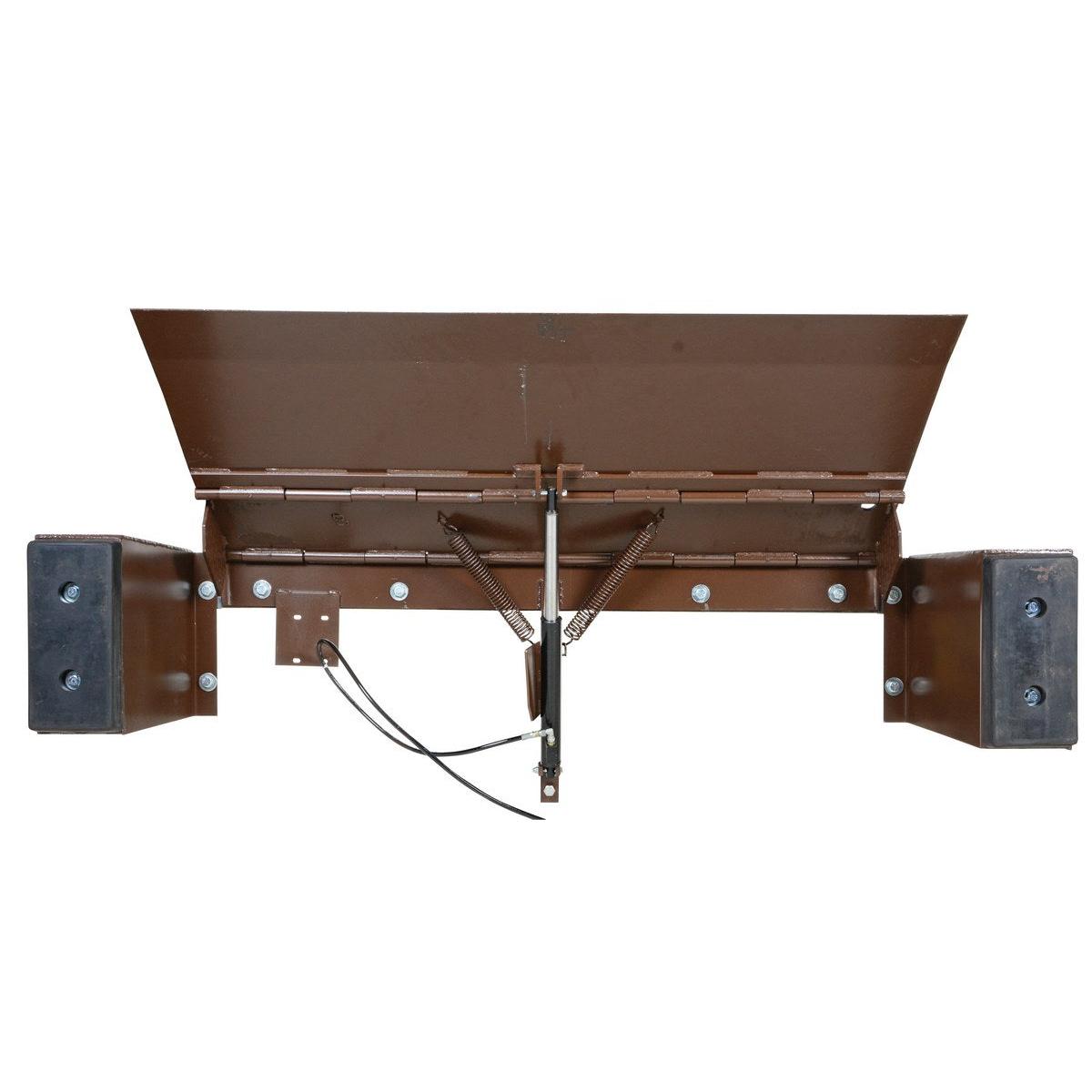

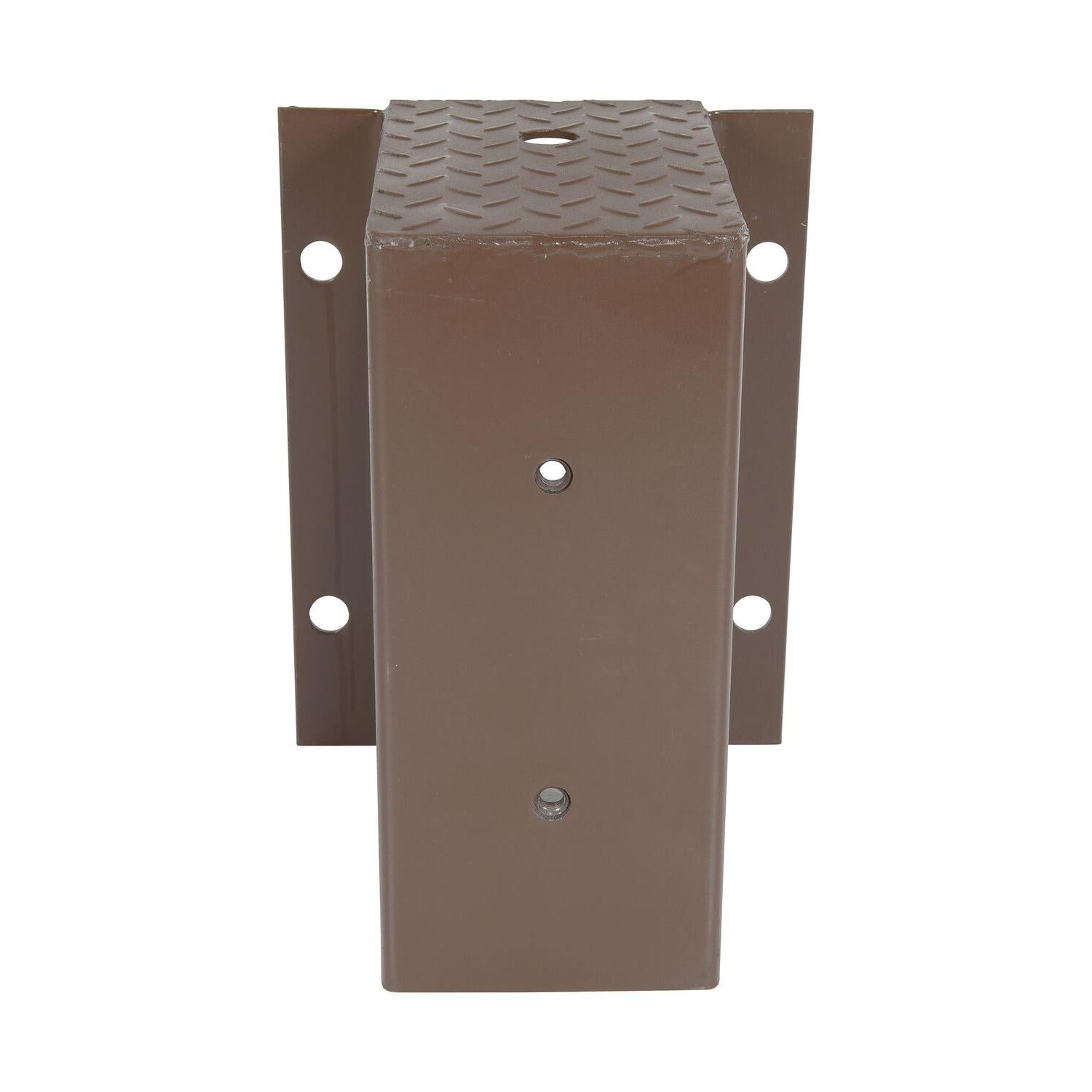

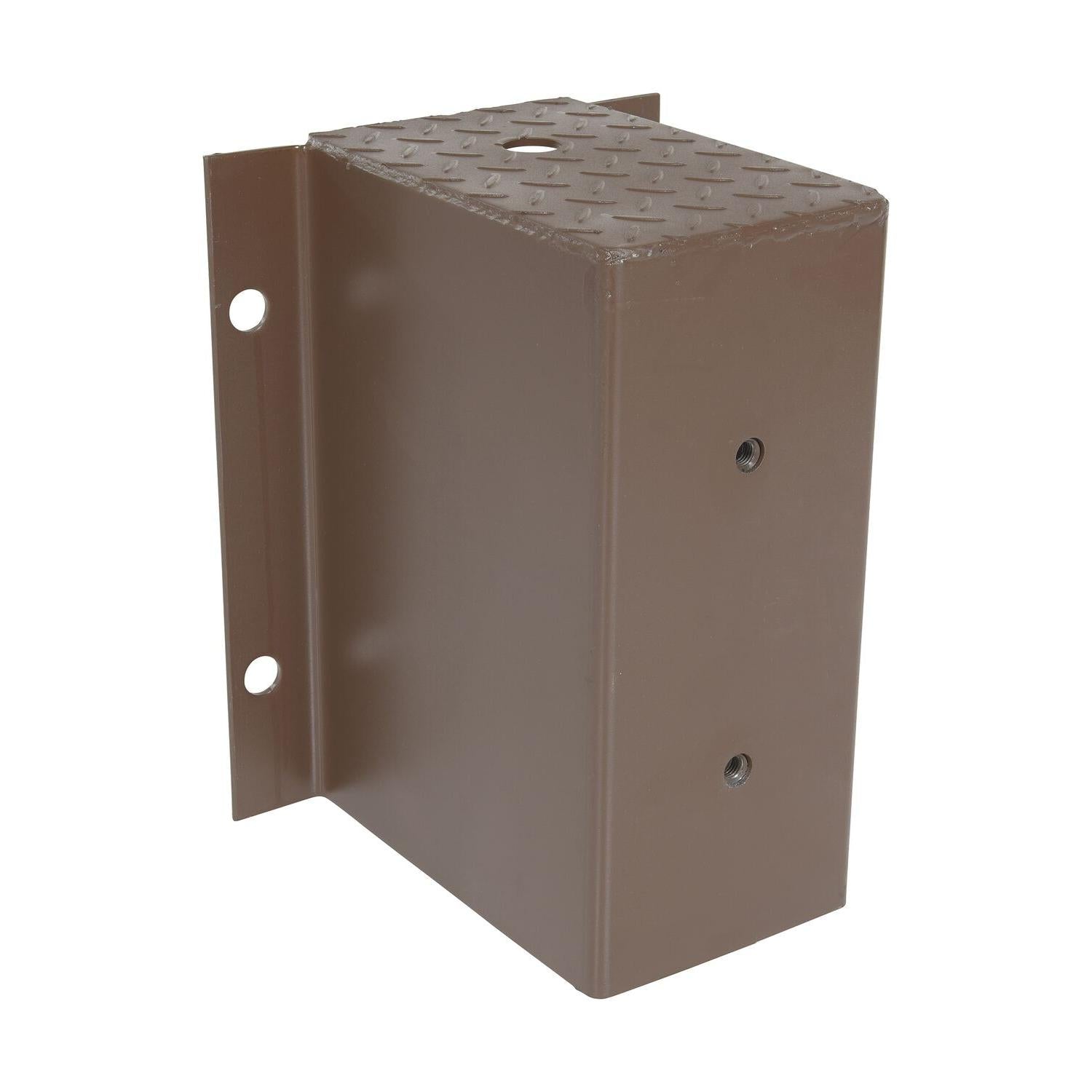

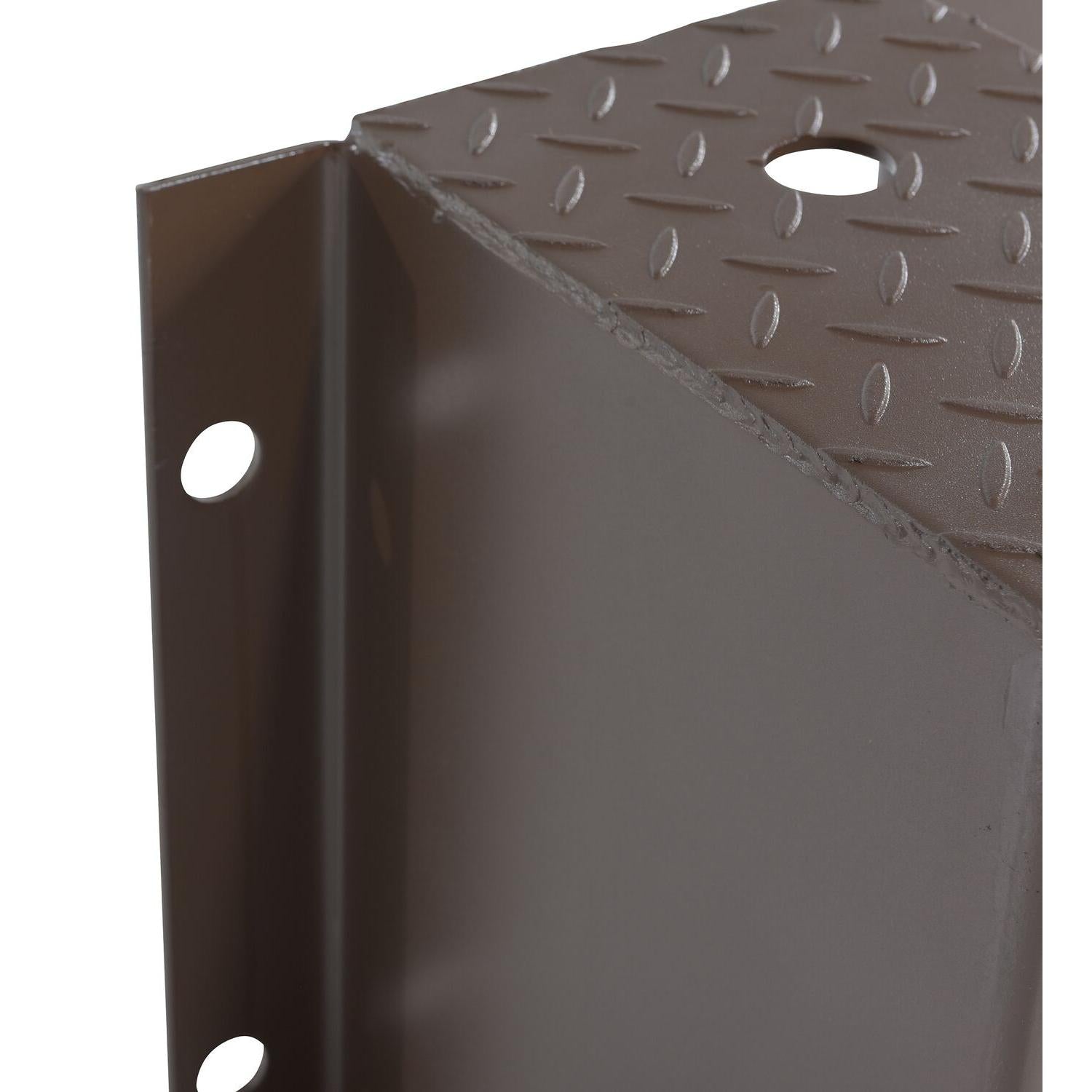

• Complete Kit Included: Comes with hand pump, hydraulic cylinder, 180" hydraulic line, wall brackets, oil, and rubber bumpers.
• No Pit Required: Edge-mounted design eliminates the need for costly concrete recesses.
• Durable Construction: Heavy-duty all-steel design built for high-cycle applications and long-term performance.

Available Configurations

• 66" Ramp Width x 29" Ramp Length – 25,000 lb. Capacity
  Ideal for tighter dock spaces or narrower trailers.
• 72" Ramp Width x 29" Ramp Length – 25,000 lb. Capacity
  The standard configuration for typical dock applications.
• 72" Ramp Width x 36-5/8" Ramp Length – 25,000 lb. Capacity
  Extended ramping provides a smoother incline for improved load transition.

Technical Specifications:

• Uniform Capacity (lbs): 25,000
• Dock Leveler Operating Method: Hydraulic Hand Pump
• Service Range Above Dock (in): 5
• Service Range Below Dock (in): 5
• Platform Length (in): 25
• Platform Thickness (in): 0.375
• Color / Finish: Brown
• Material: Steel
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required: No
• Assembly: Assembly required
• Installation Method: Edge-O-Dock Leveler comes complete with bumpers and installation instructions
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year

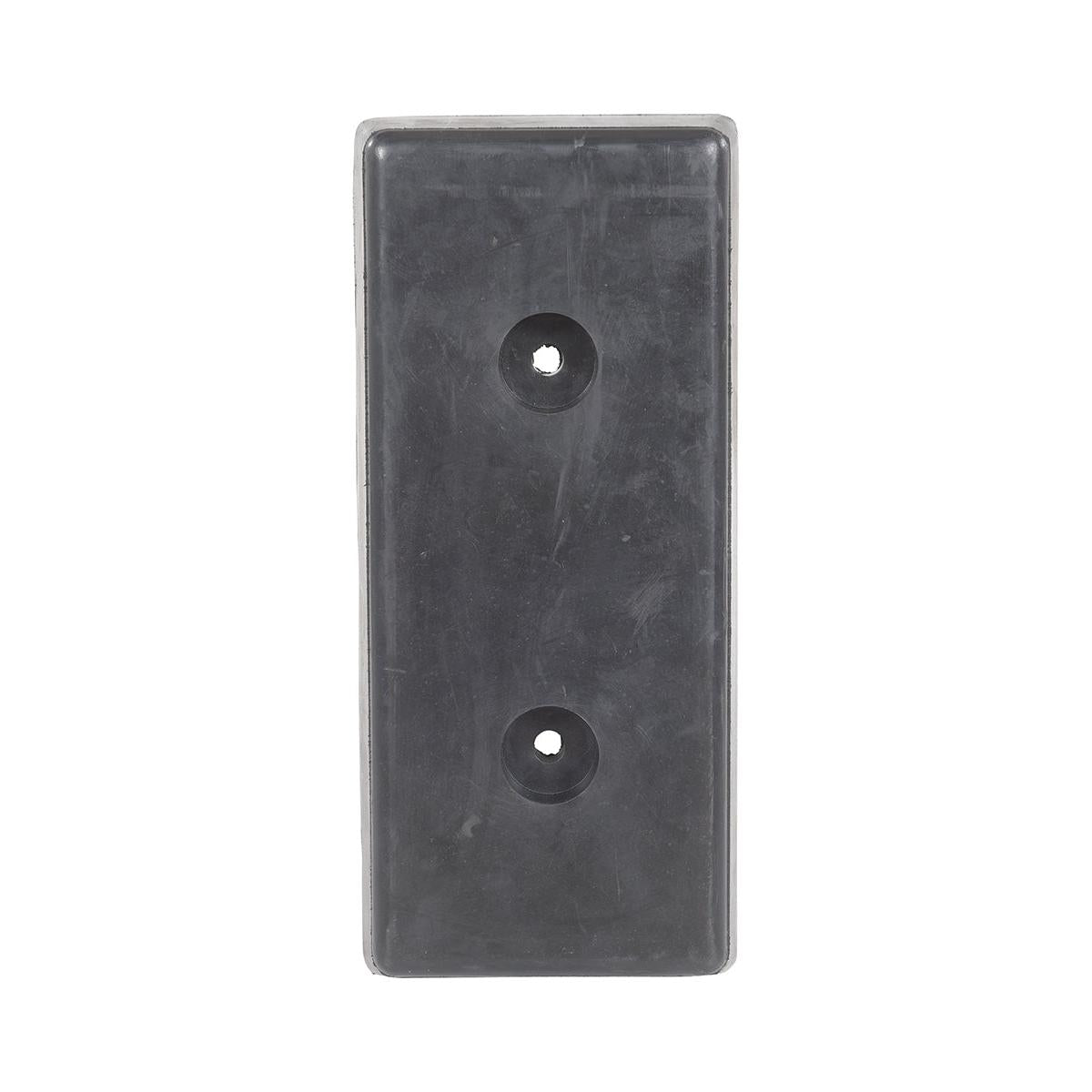

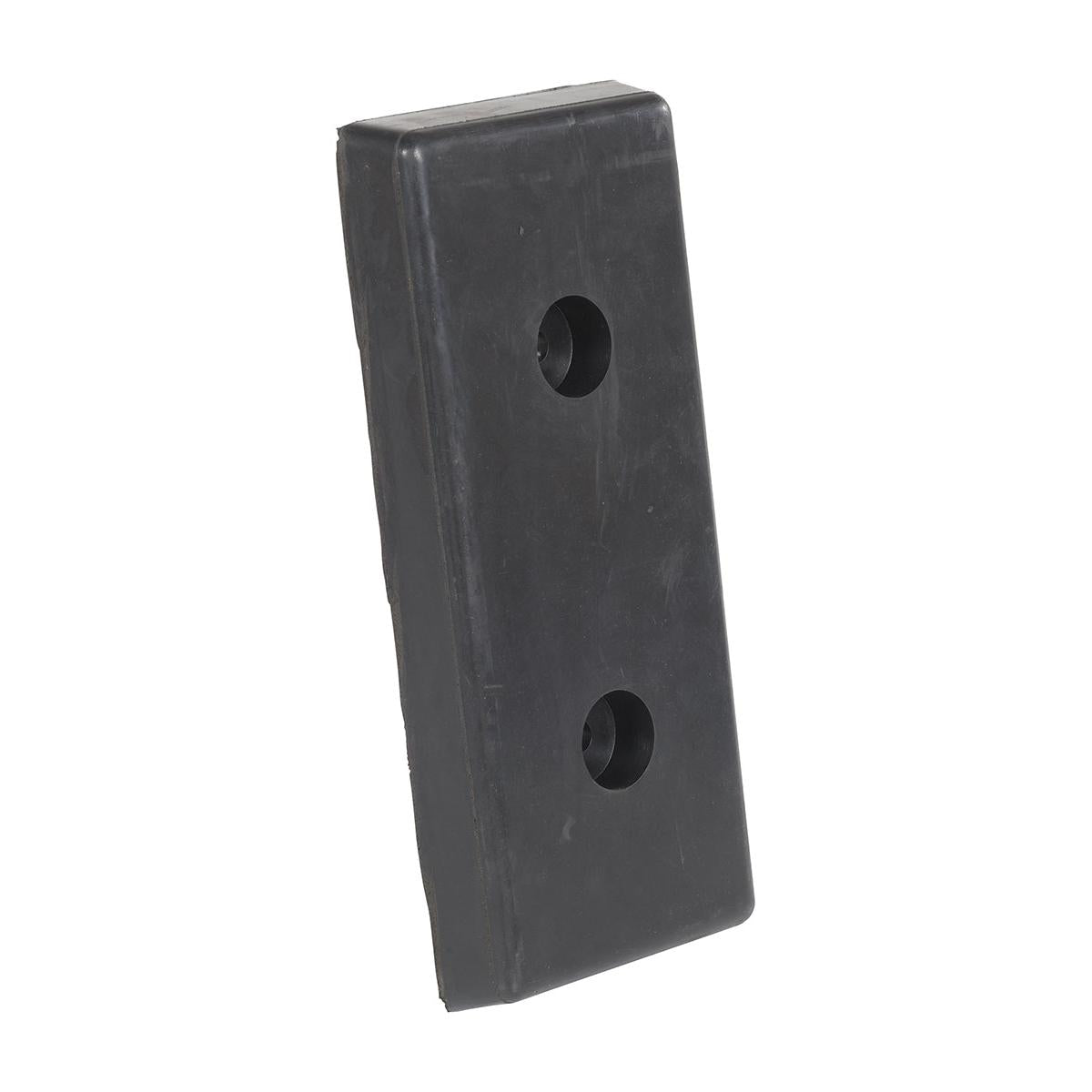

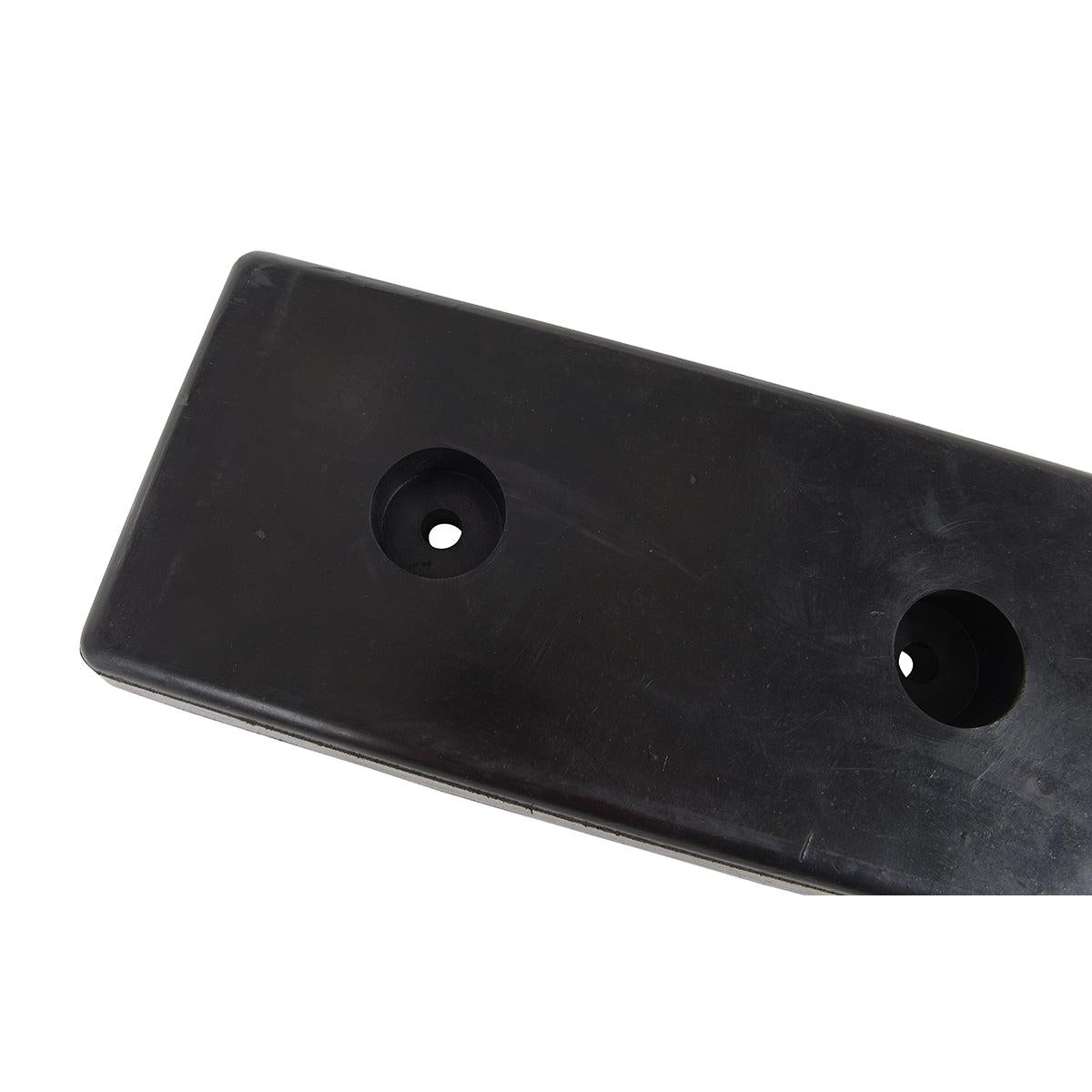

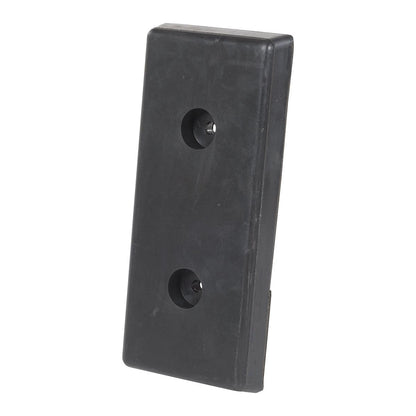

• Bumper Pad Width (in): 8
• Bumper Pad Thickness (in): 2
• Bumper Pad Height (in): 18

Discover the Edge-O-Dock Levelers complete collection:

• Steel Hand Pump Edge-O-Dock Leveler – 72" Ramp Width x 36-5/8" Ramp Length – 15,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 20,000 lb. Capacity

• Steel Hand Pump Edge-O-Dock Levelers – 25,000 lb. Capacity (66", 72", 72" Extended Ramp)
• Steel Hand Pump Edge-O-Dock Levelers – 30,000 lb. Capacity


Made in USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colorsof this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
