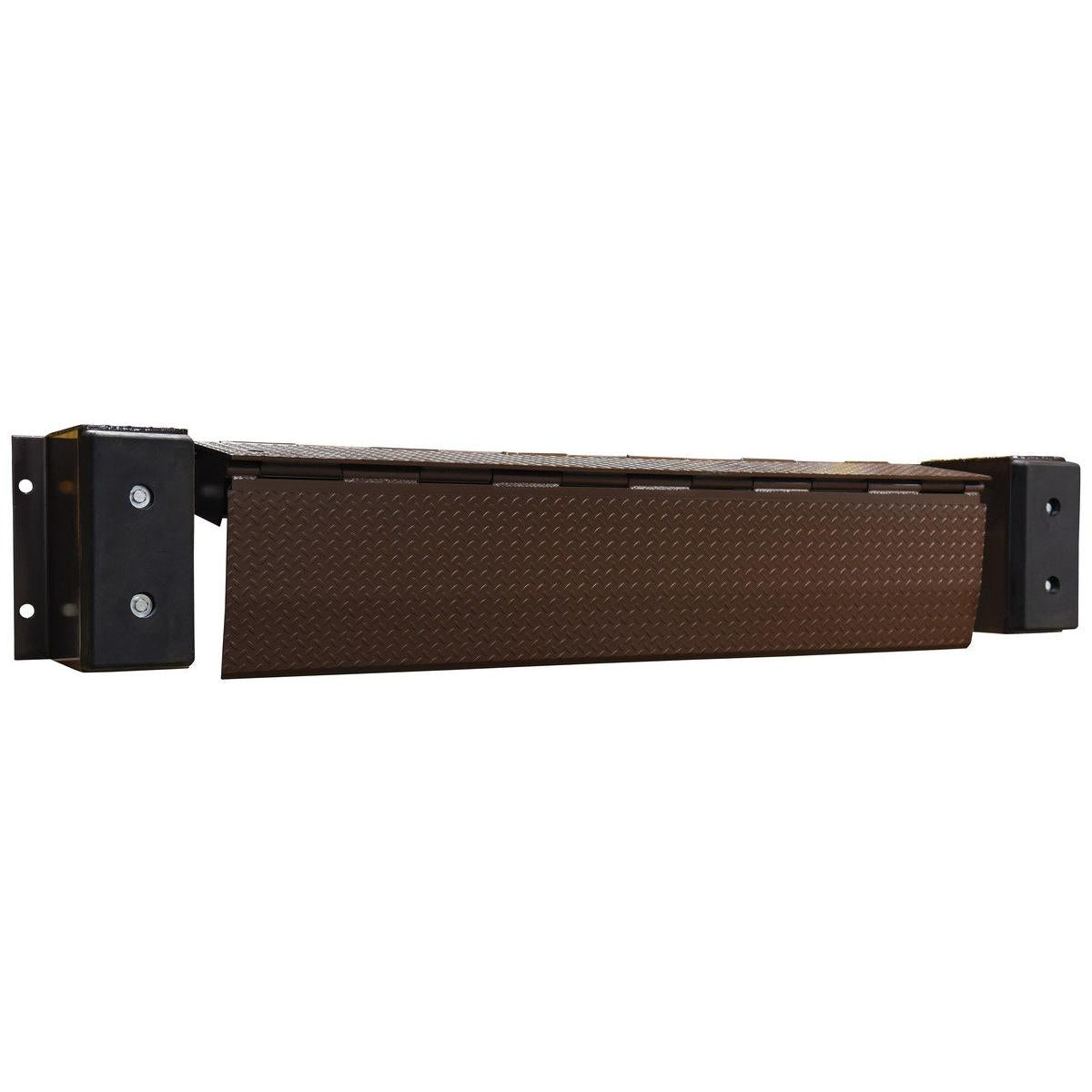

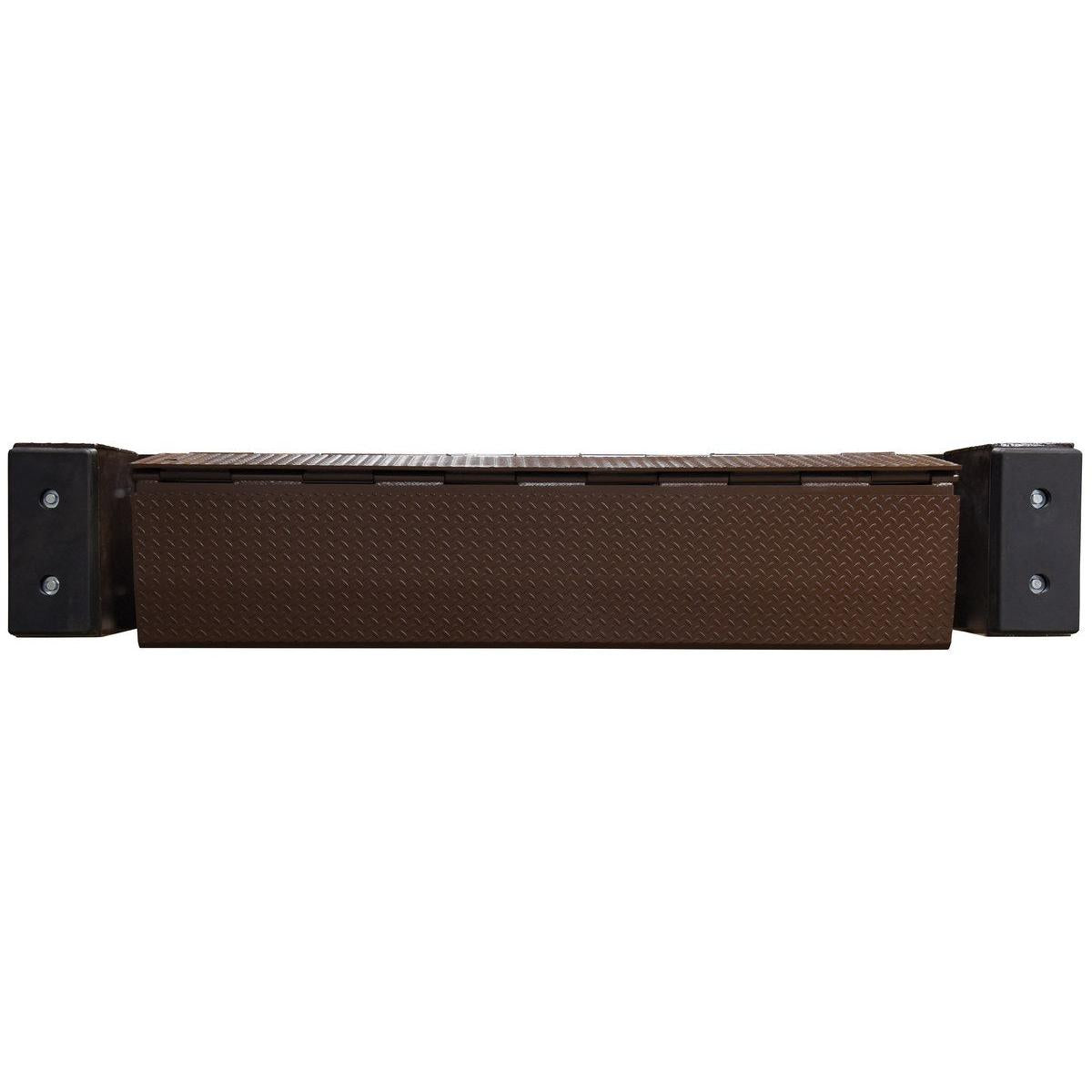

Steel Mechanical Edge O Dock Leveler - 48 In. Ramp Width 6,000 Lb. Capacity

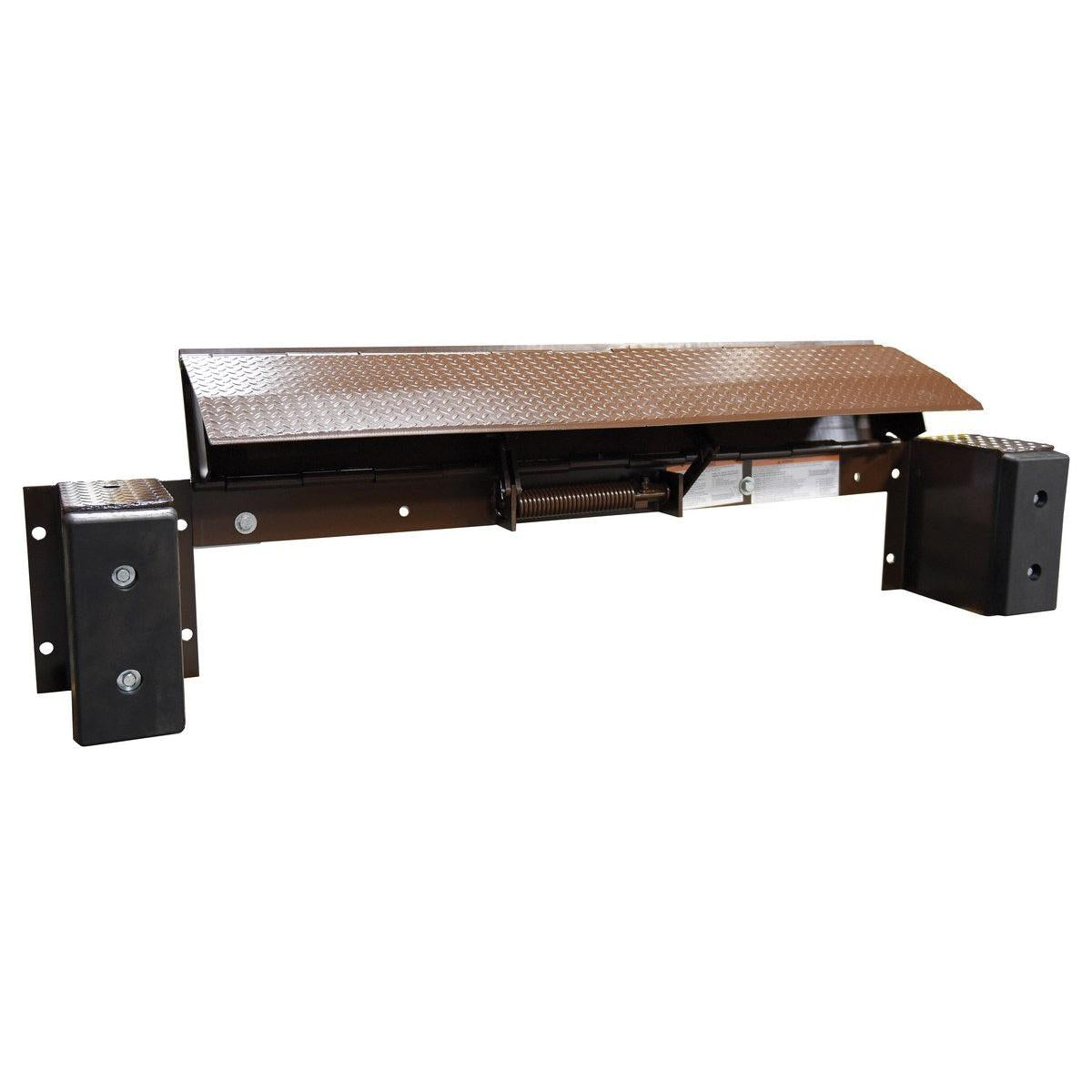

The Steel Mechanical Edge-O-Dock Leveler provides a reliable and efficient solution for bridging the gap between a loading dock and trailer bed. Permanently mounted to the dock face, this leveler is ideal for docks at least 48 inches high and offers smooth, secure loading and unloading operations without the need for a concrete pit.

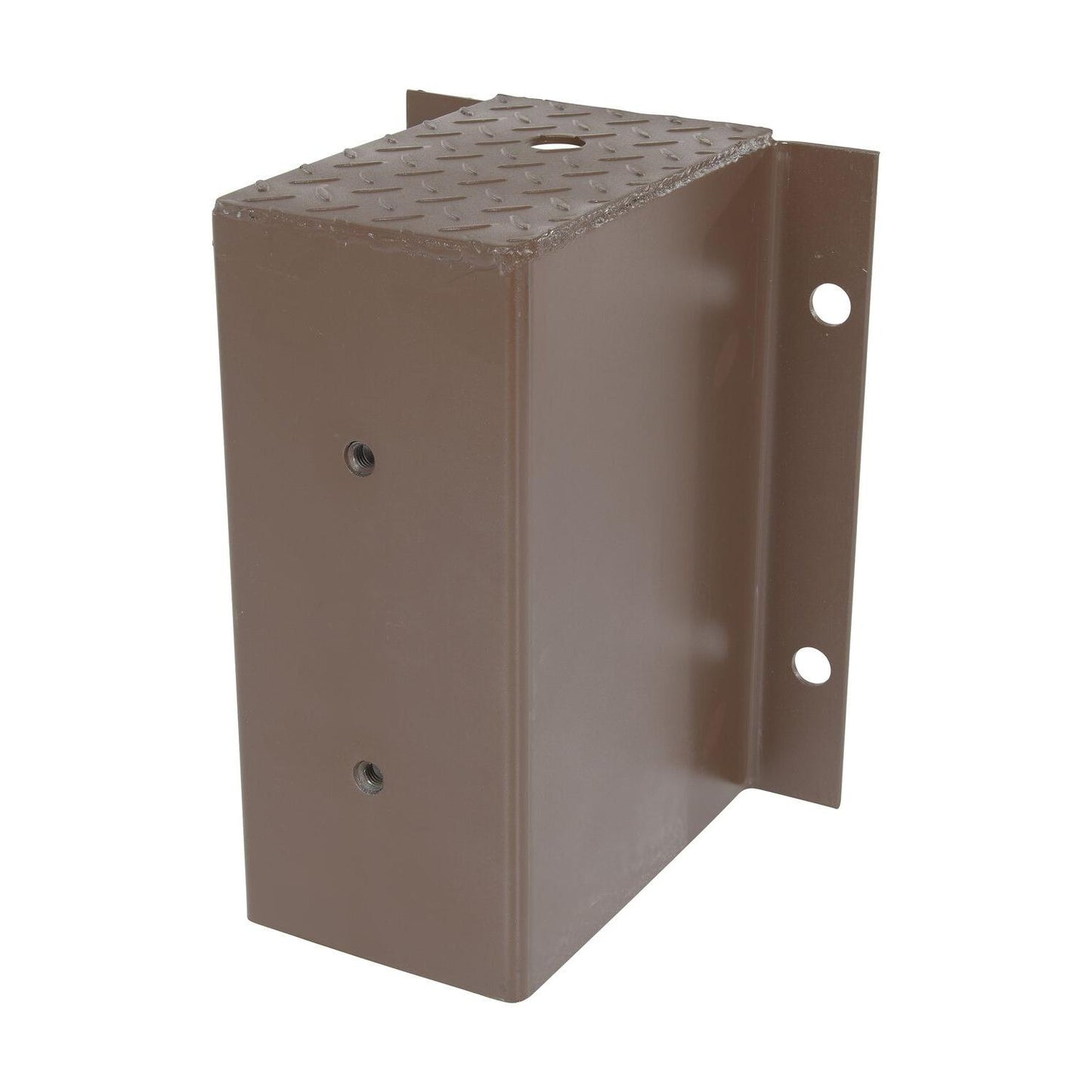

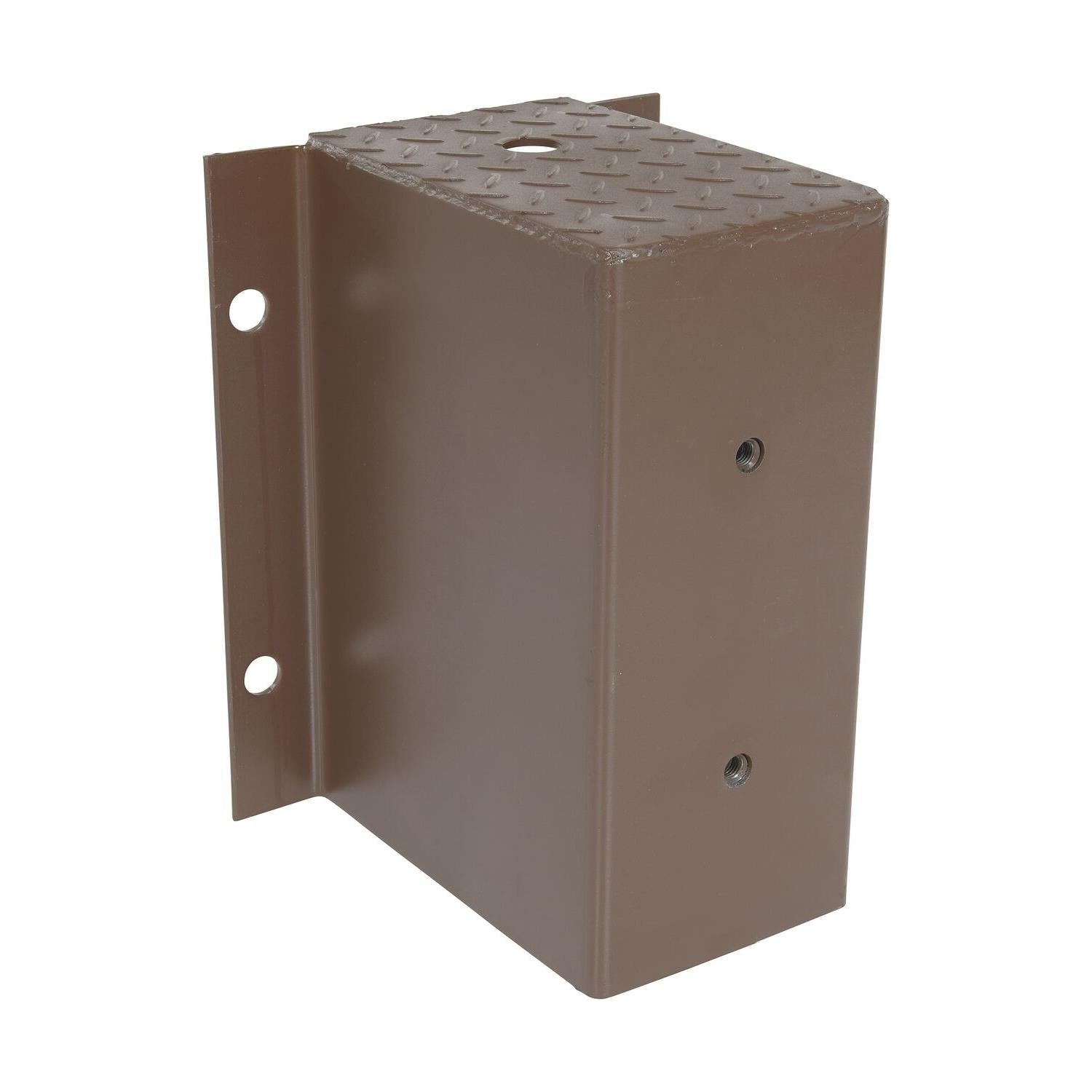

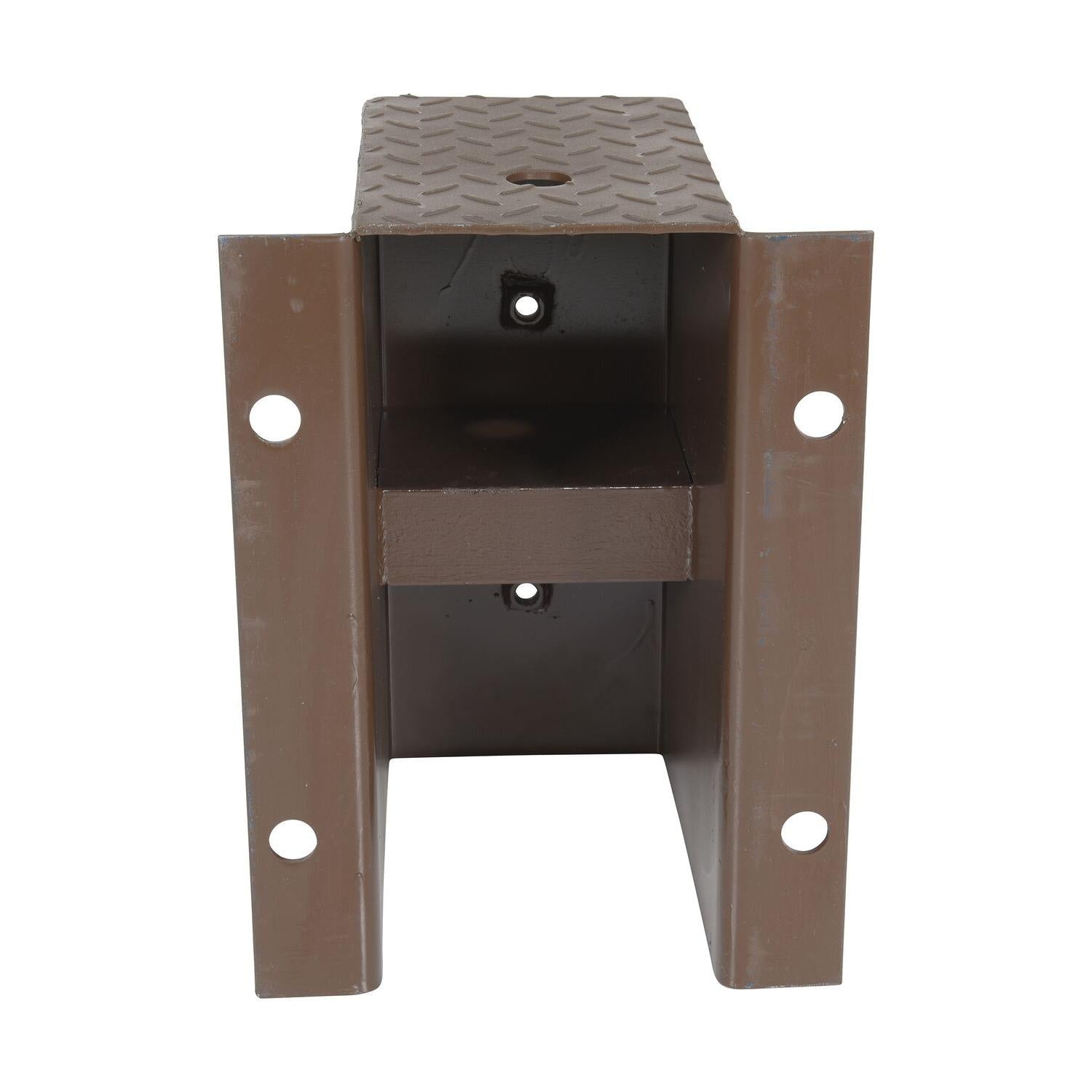

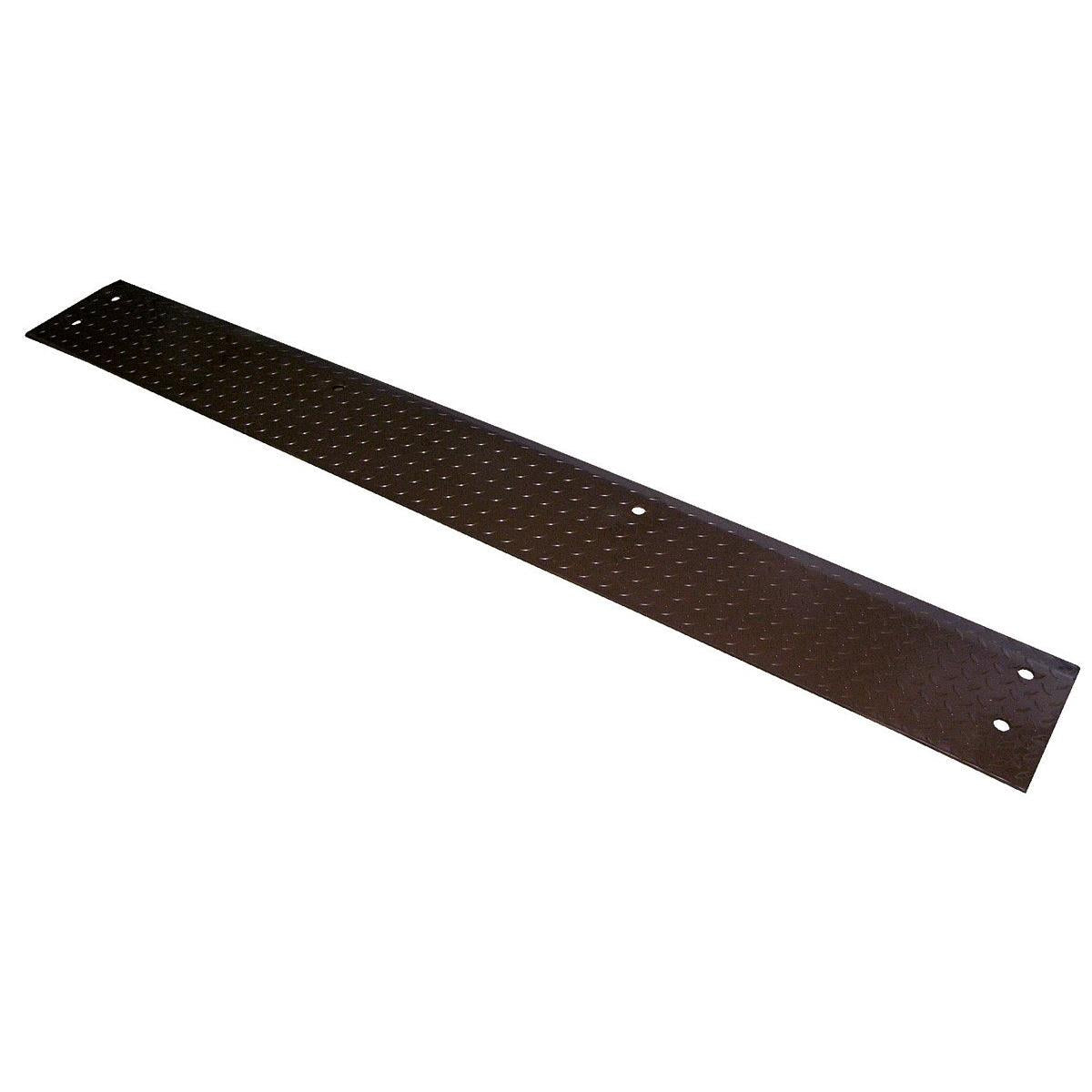

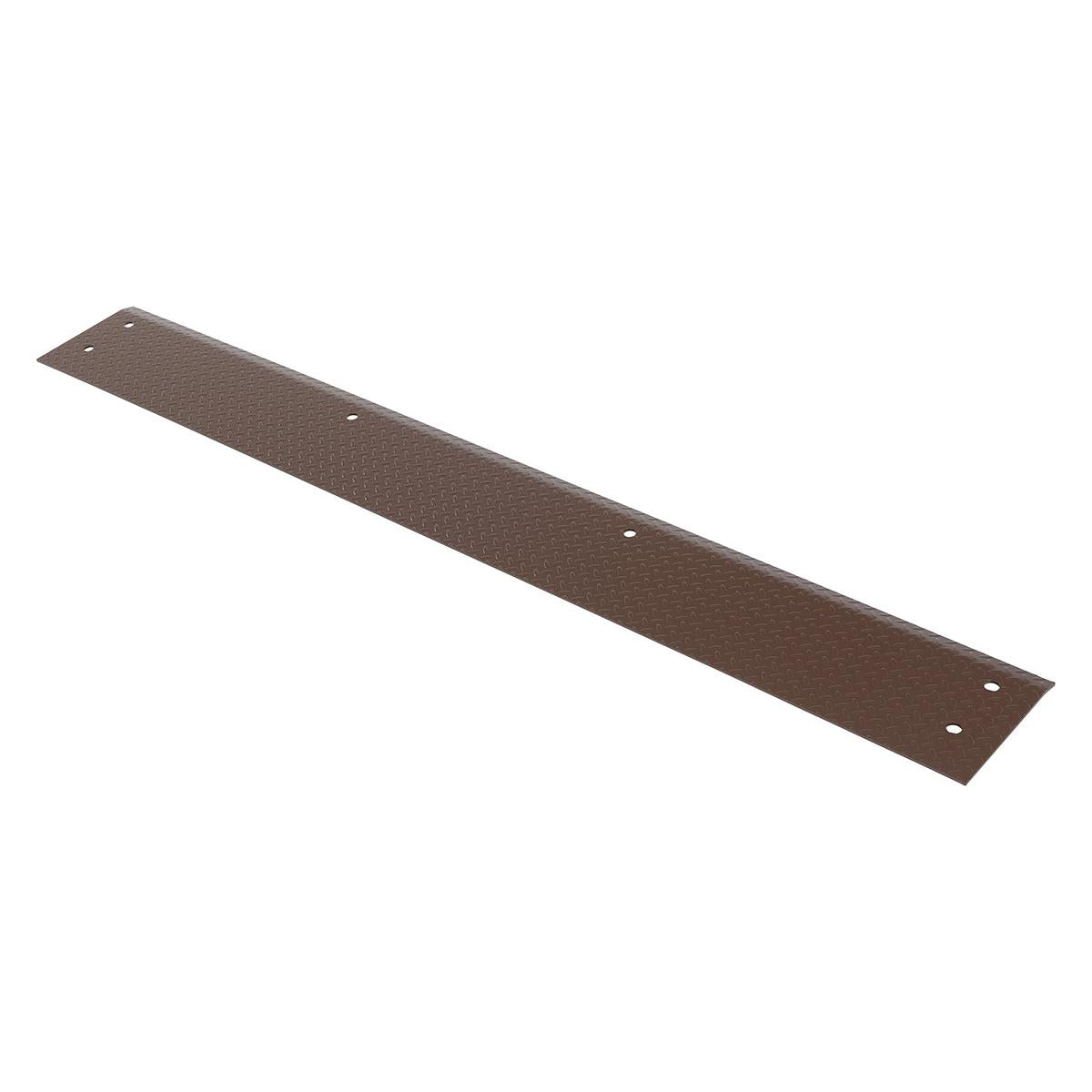

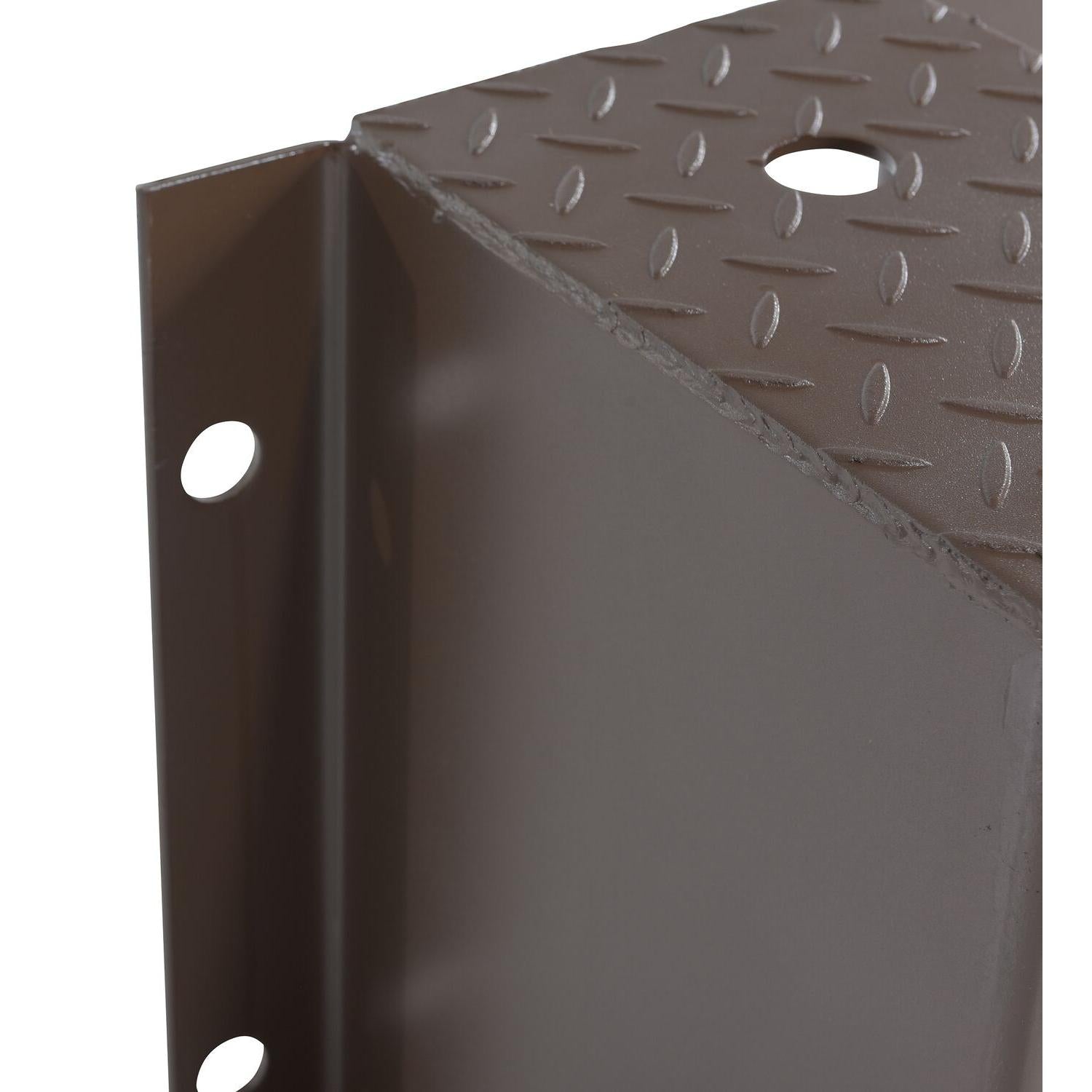

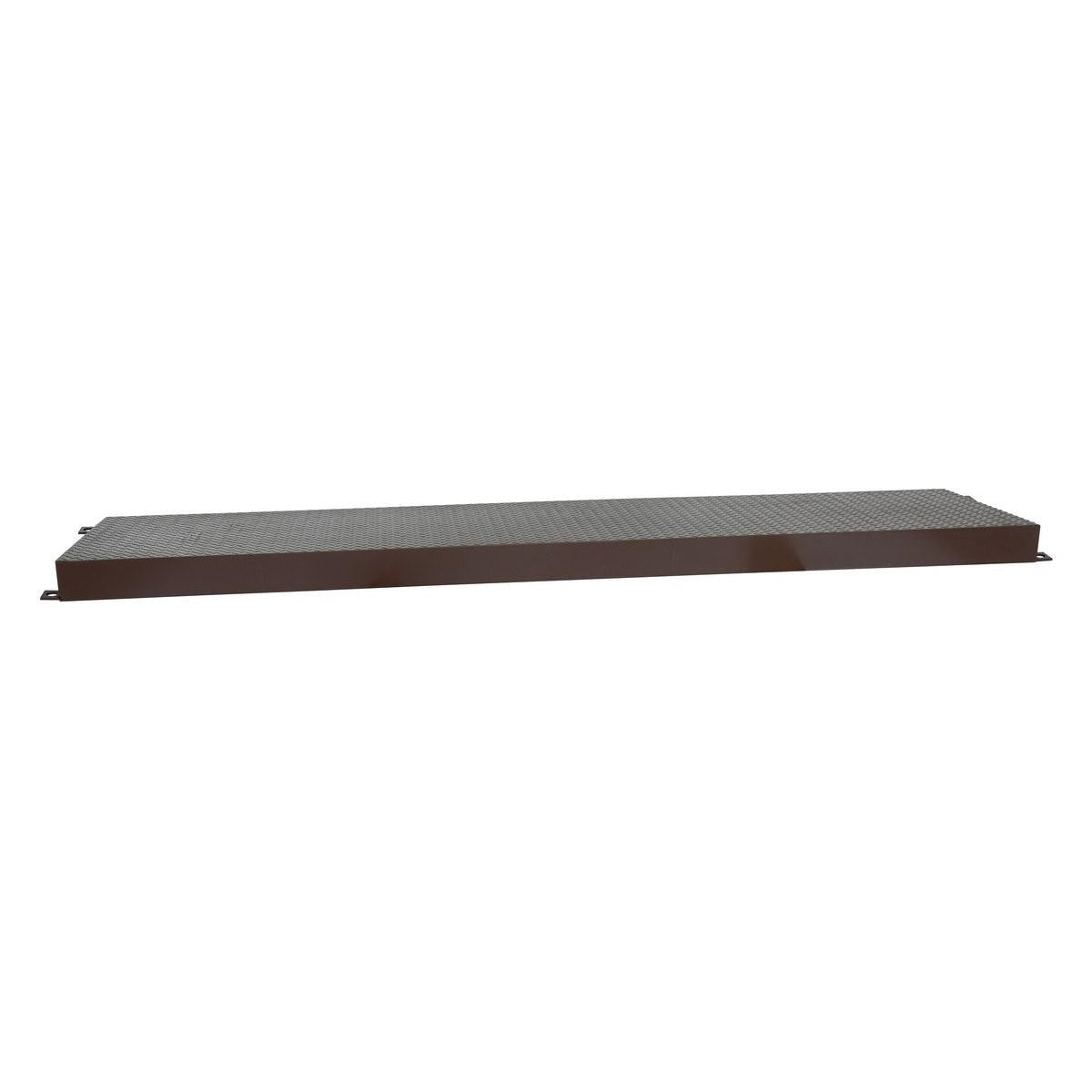

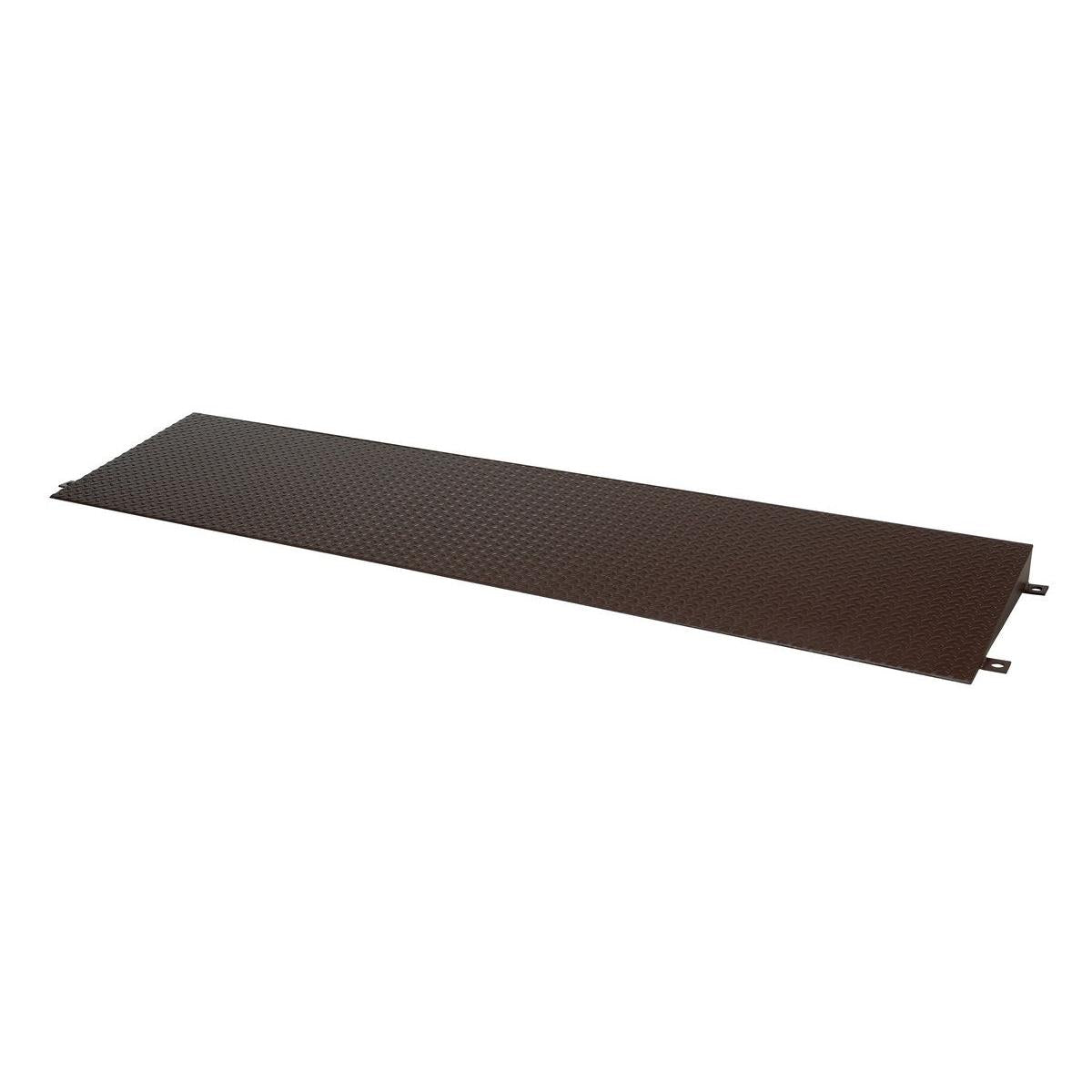

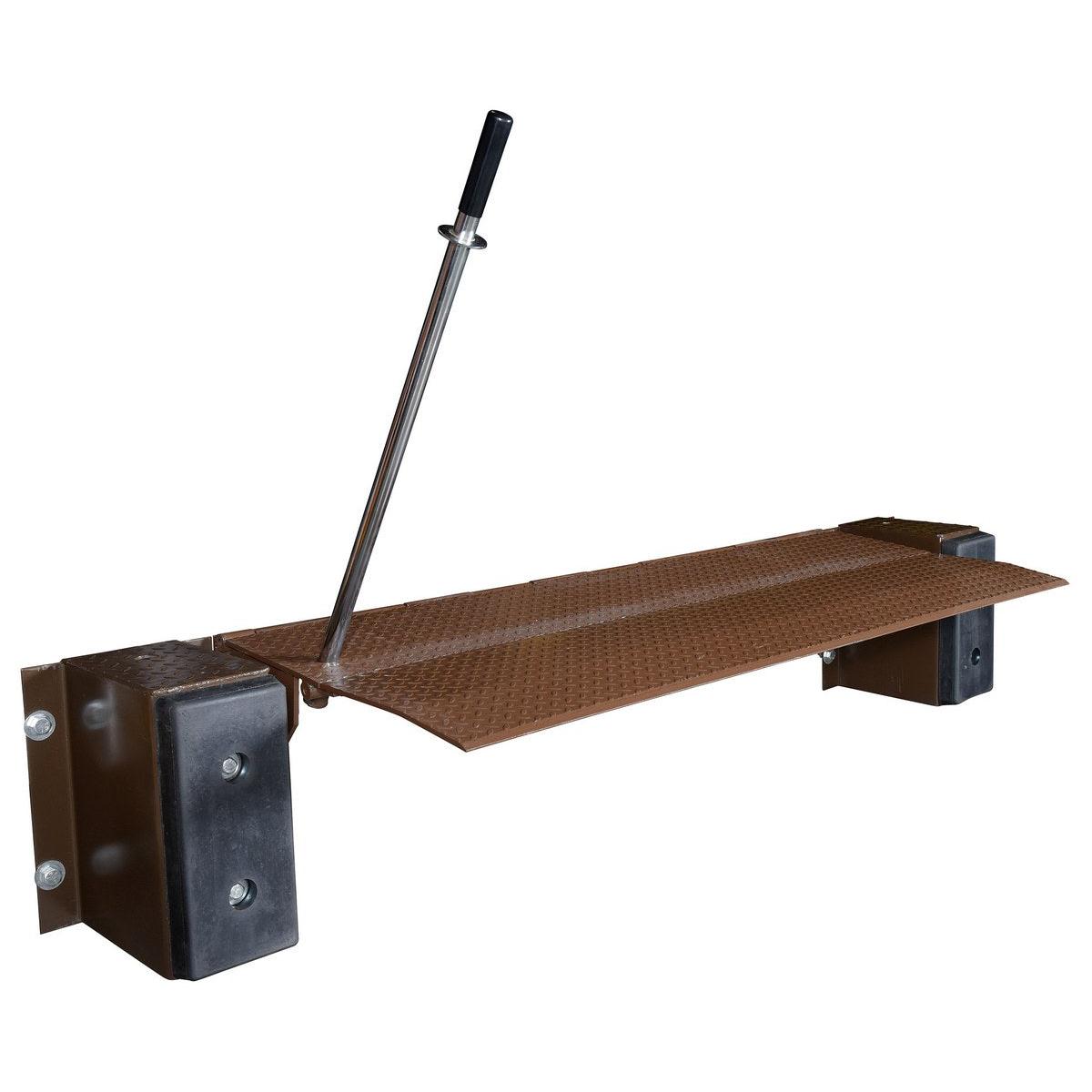

Designed for durability and ease of use, the unit features a mechanical lifting mechanism activated by a handle, allowing the lip to rest firmly on the truck bed. When the trailer pulls away, the lip automatically retracts behind the dock bumpers. The unit includes dock bumpers and installation instructions, and requires a steel dock edge or approach ramp for proper installation.

Features & Benefits:

• 6,000 lb. load capacity accommodates light to moderate loading tasks
• Permanently attaches to dock face - no concrete recess required

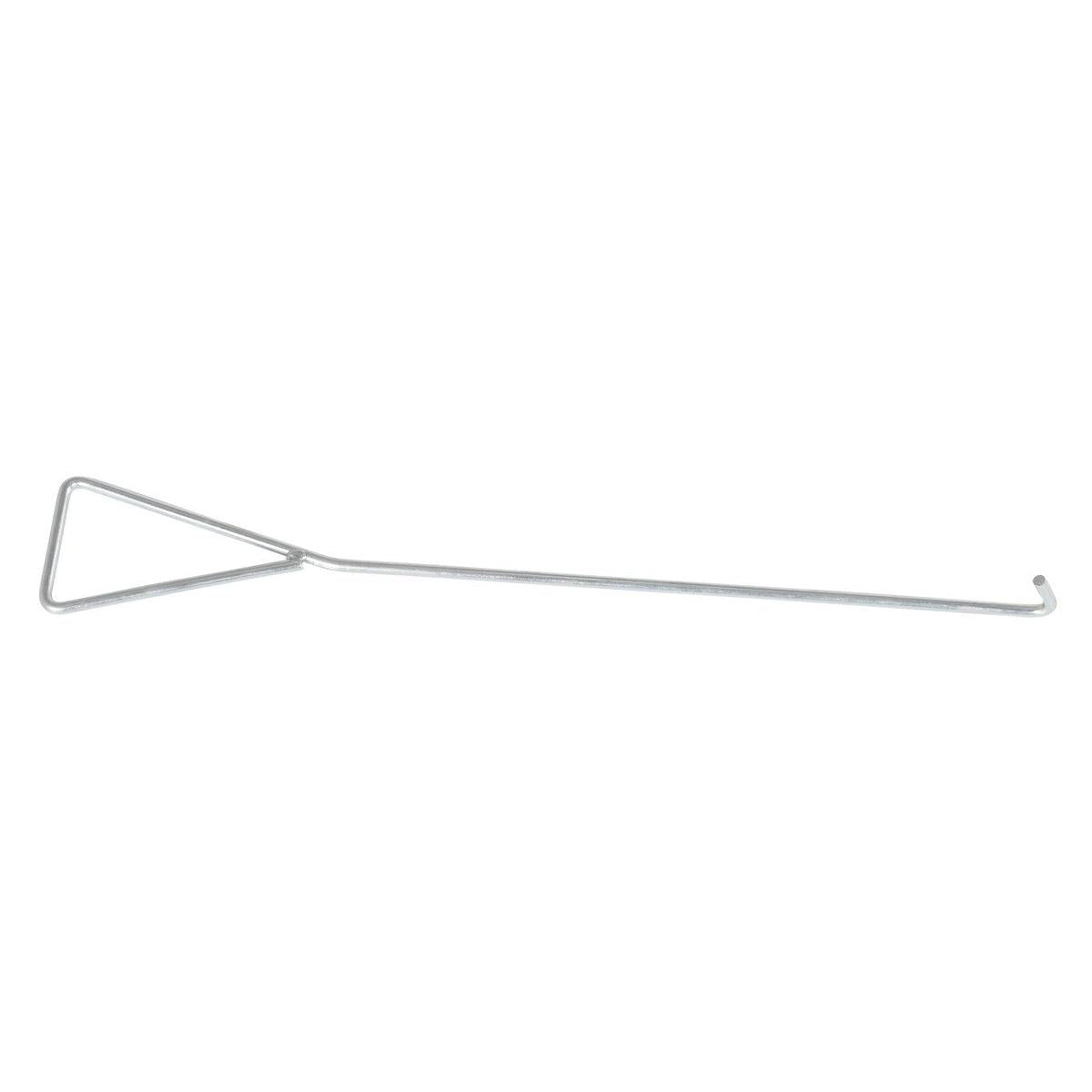

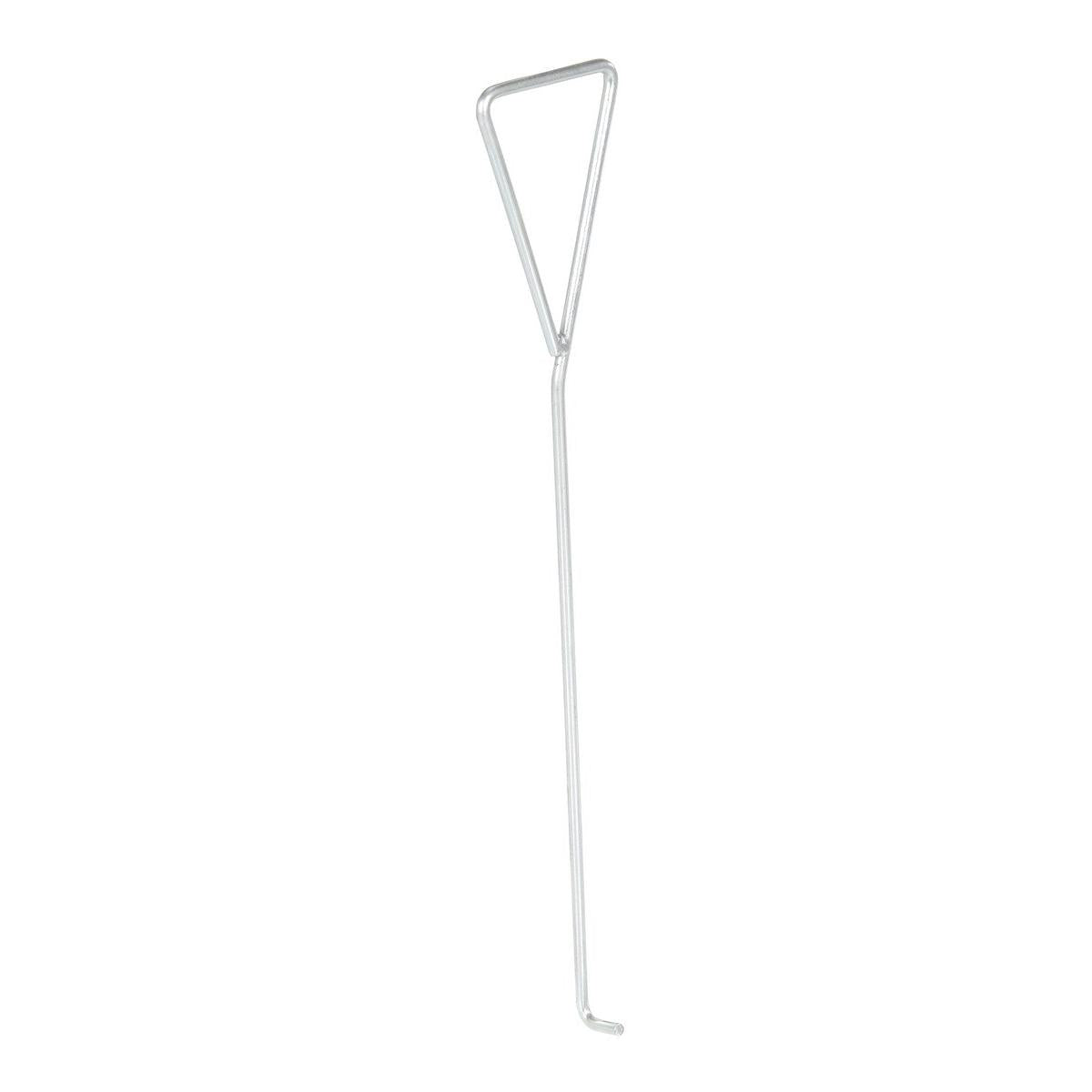

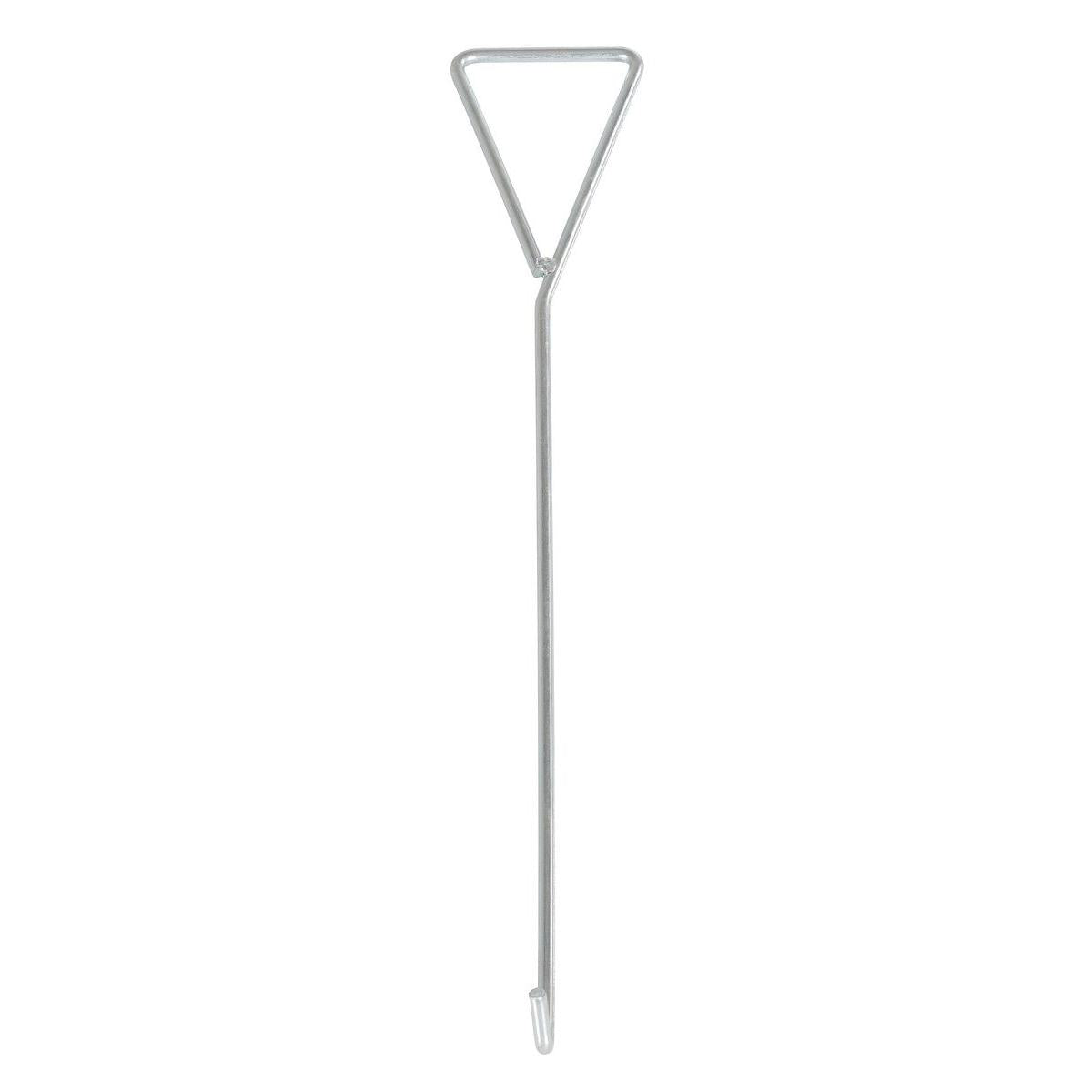

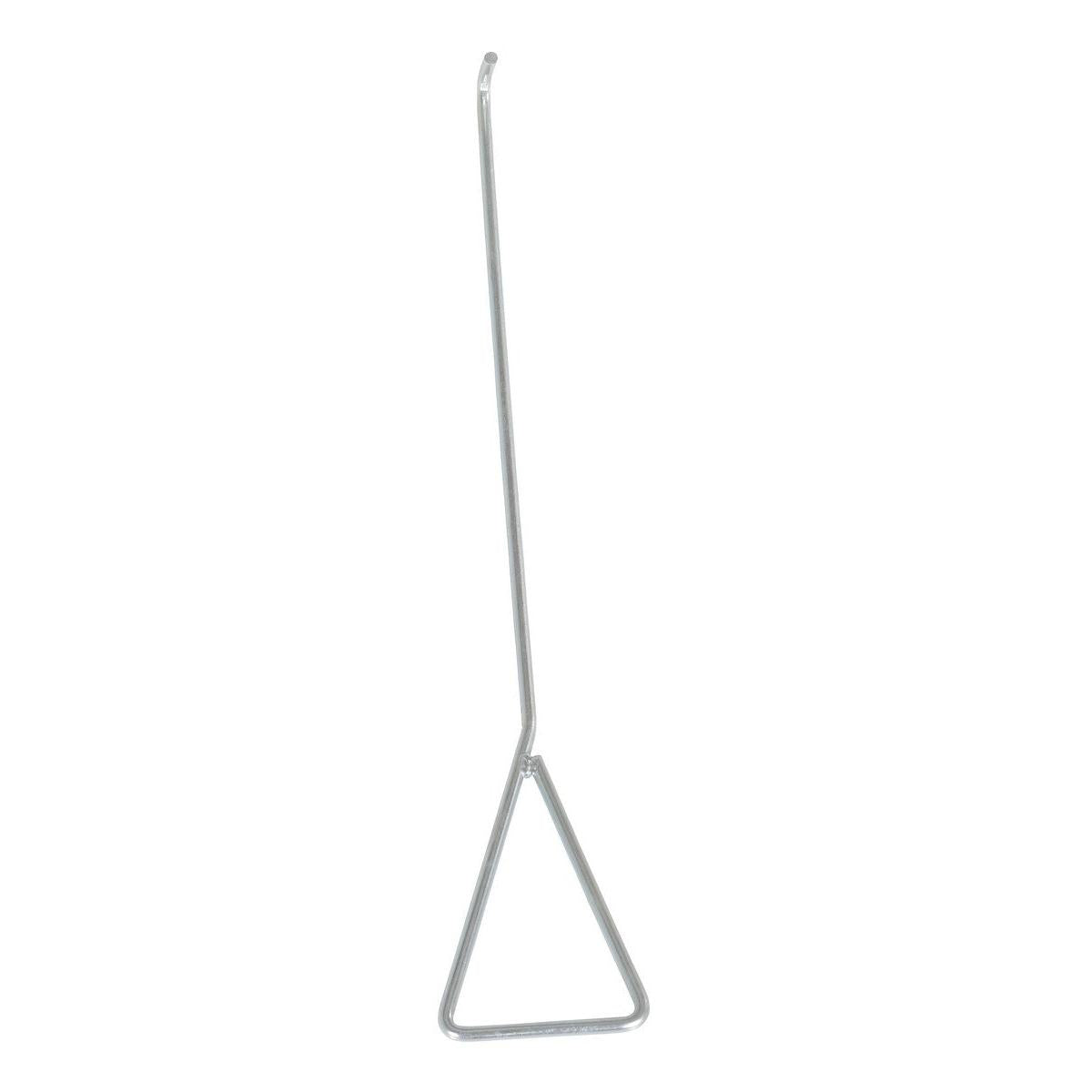

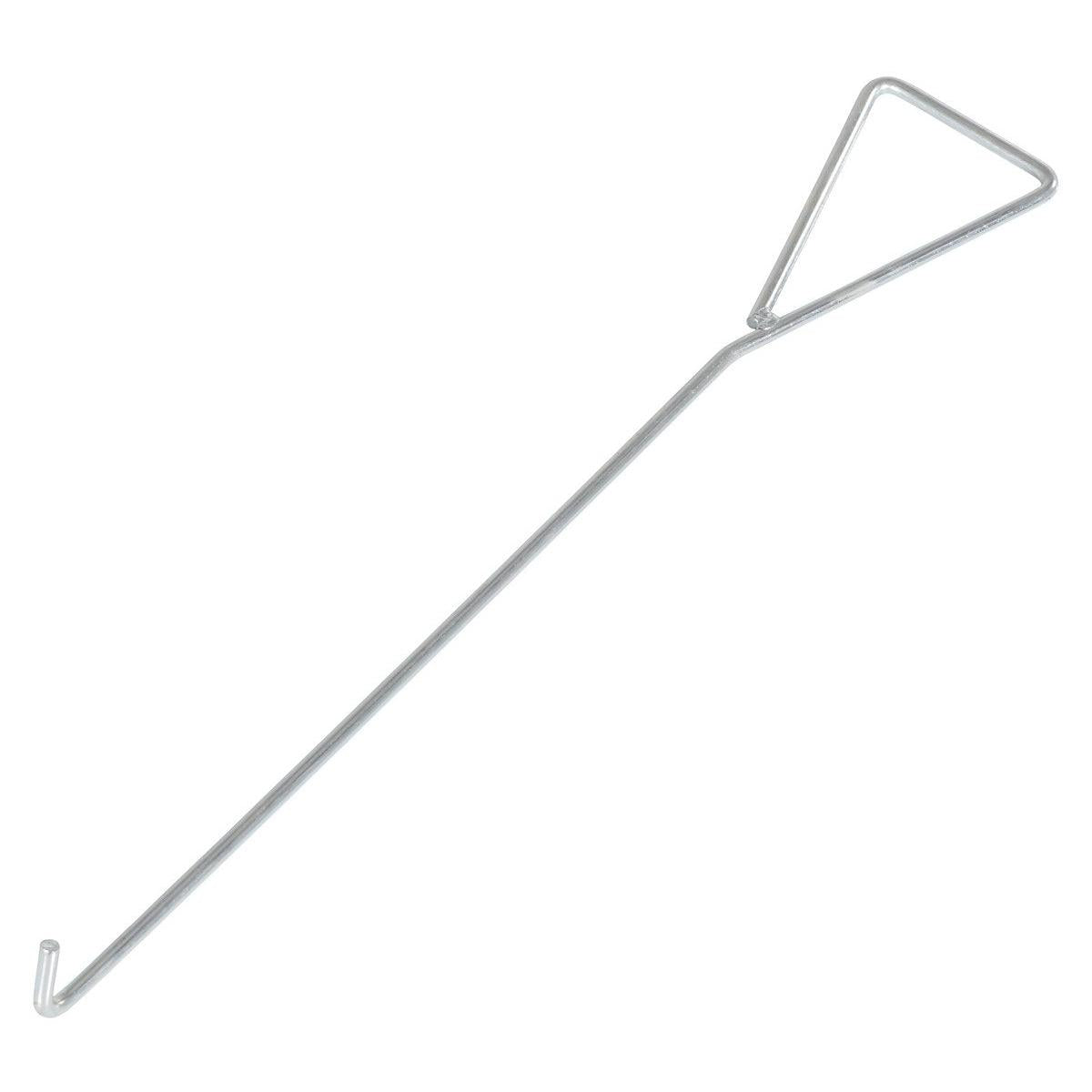

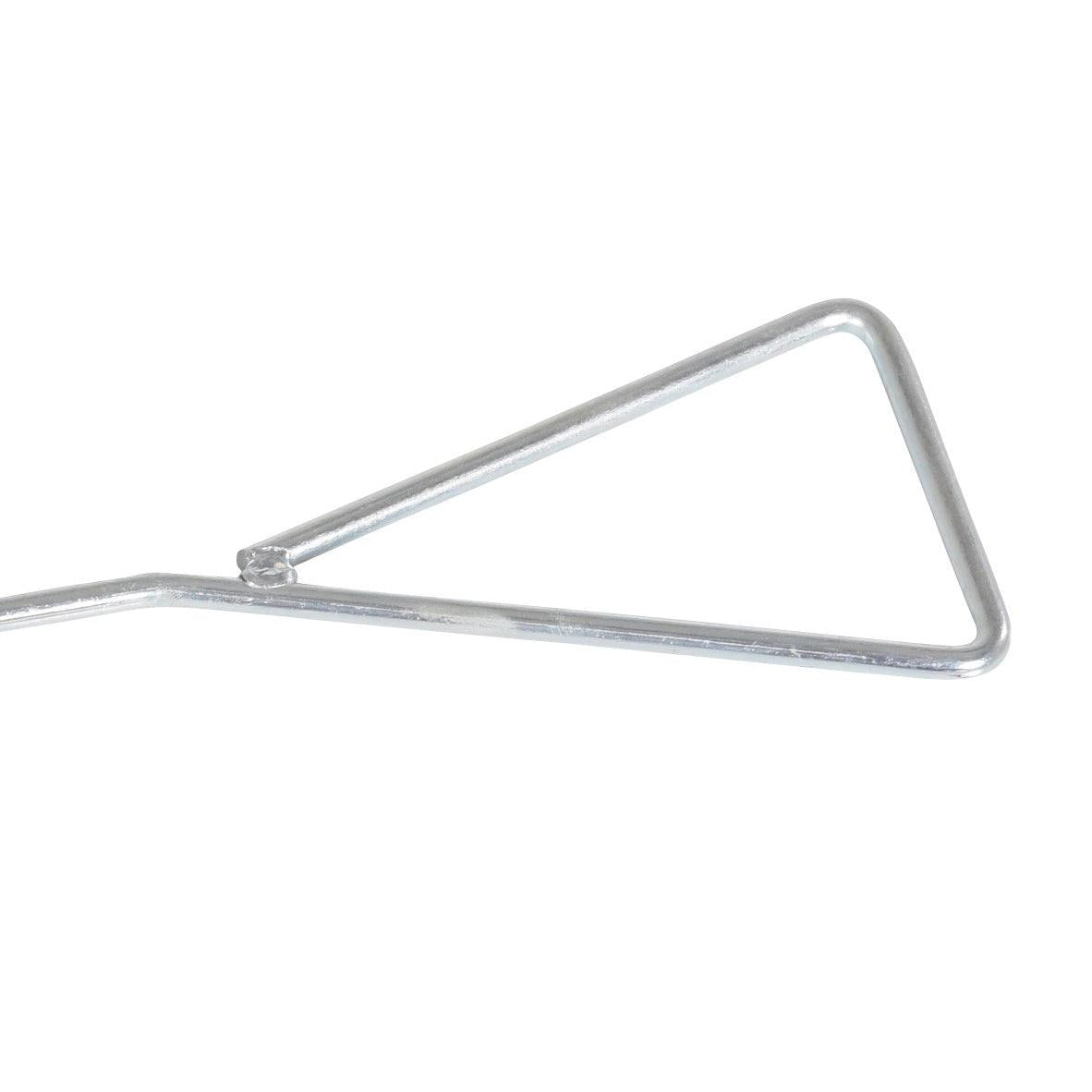

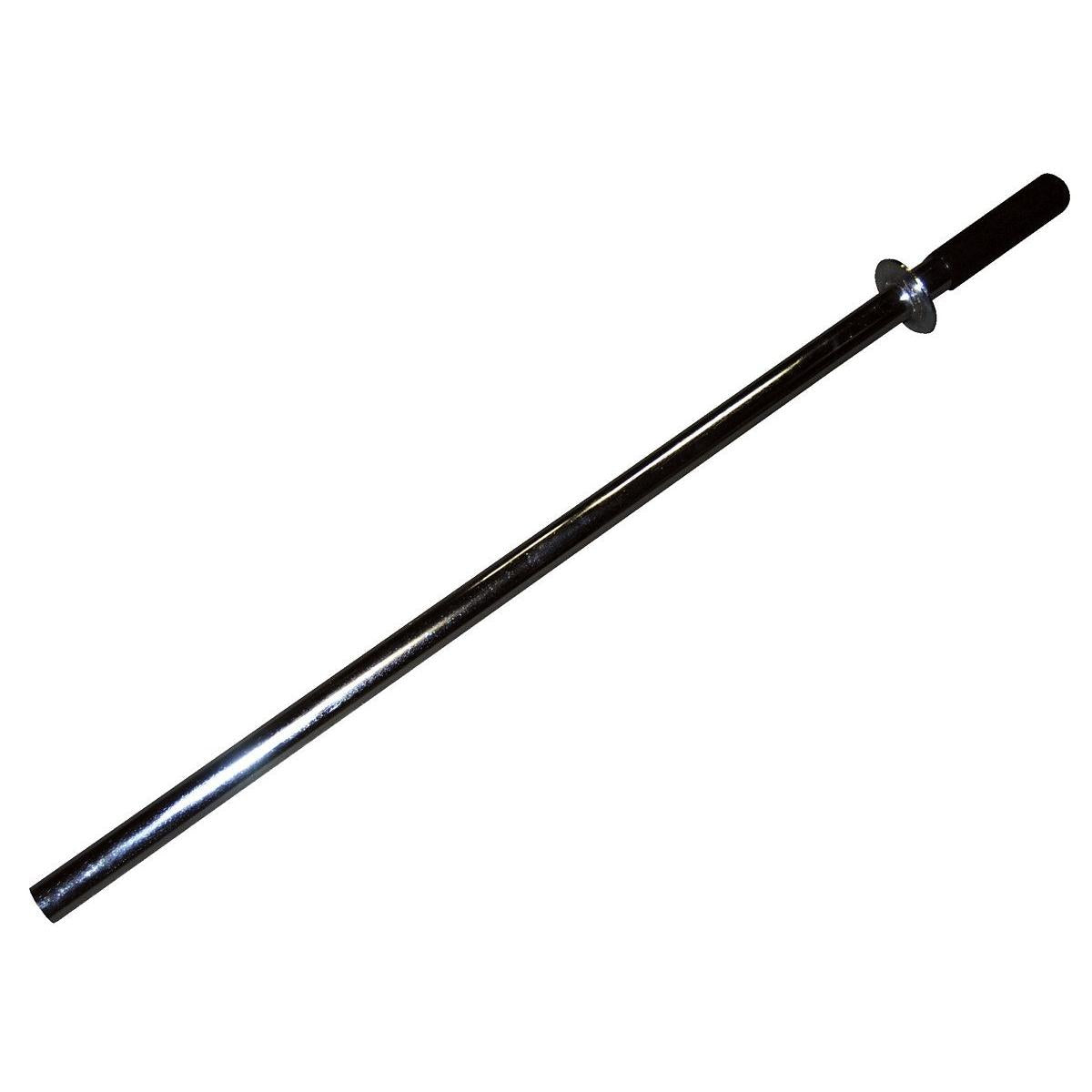

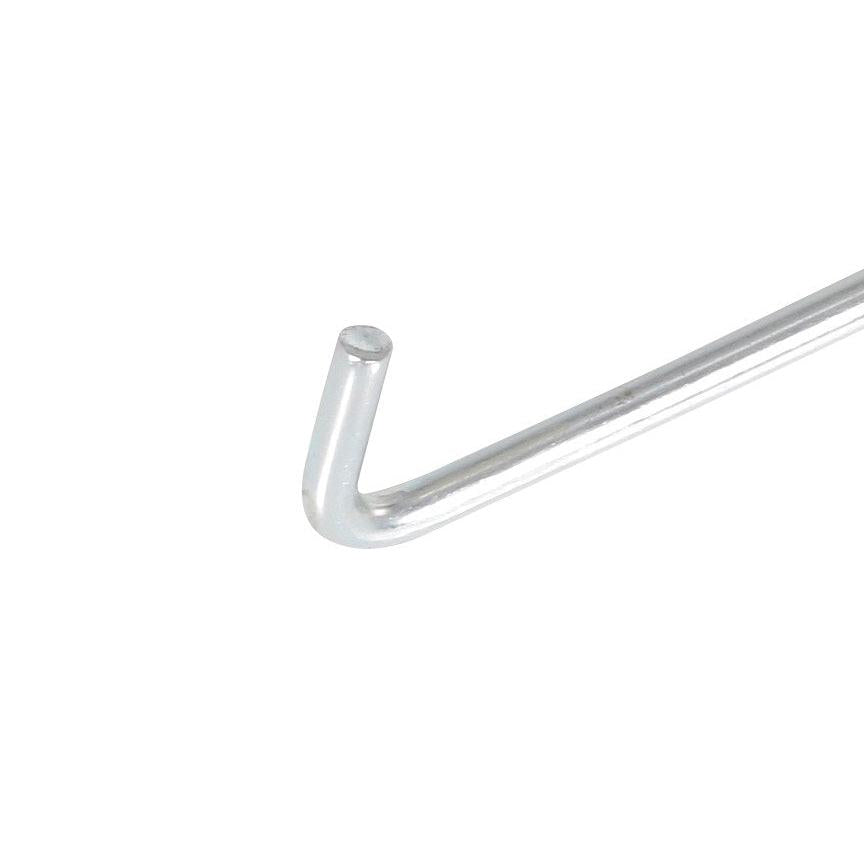

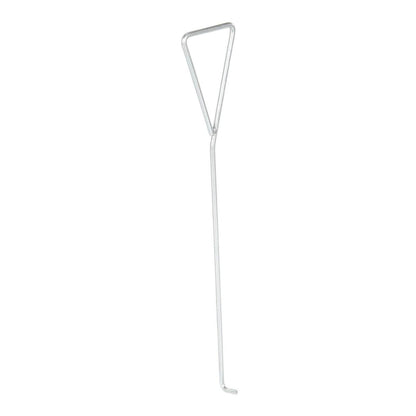

• Operated manually with included actuation handle for simple deployment

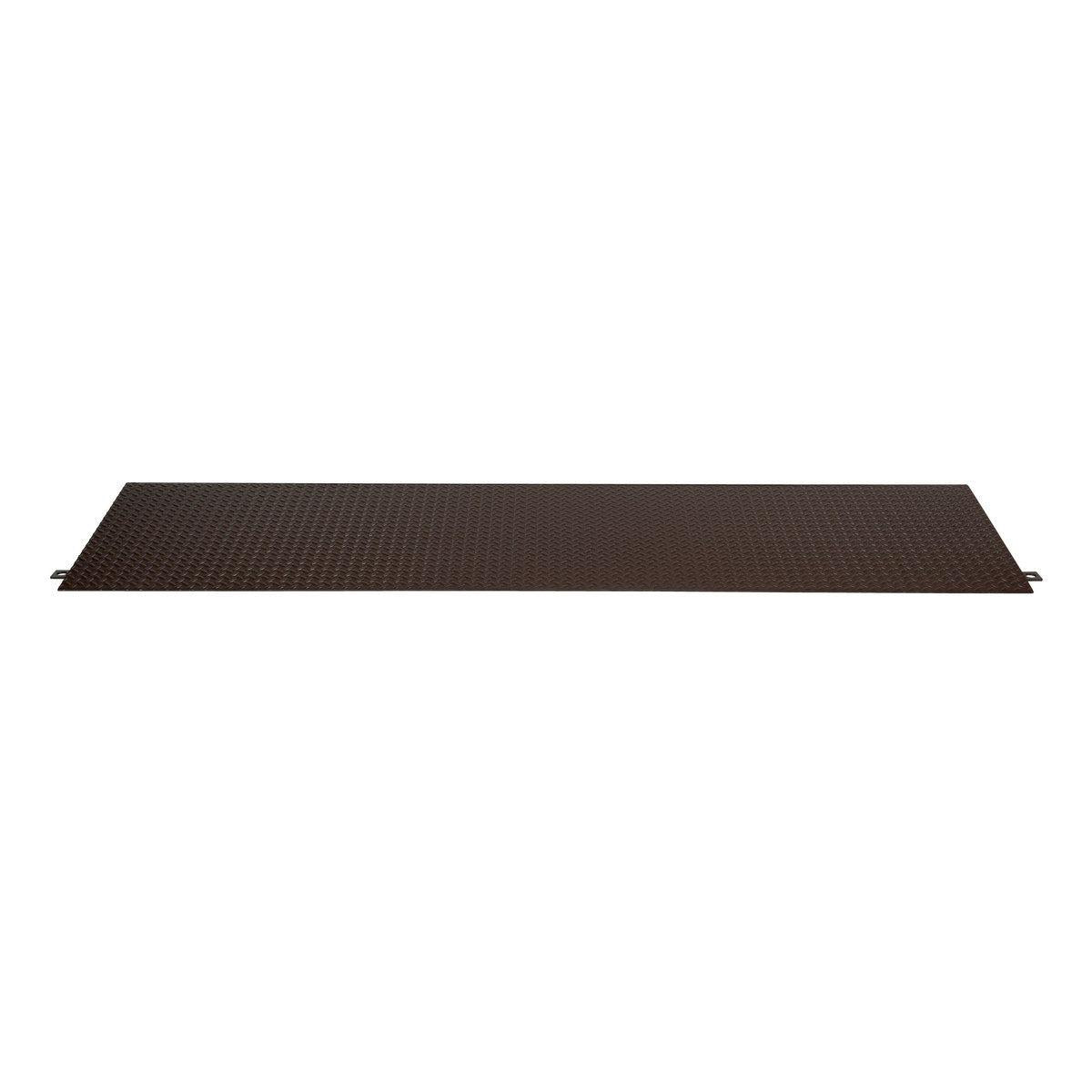

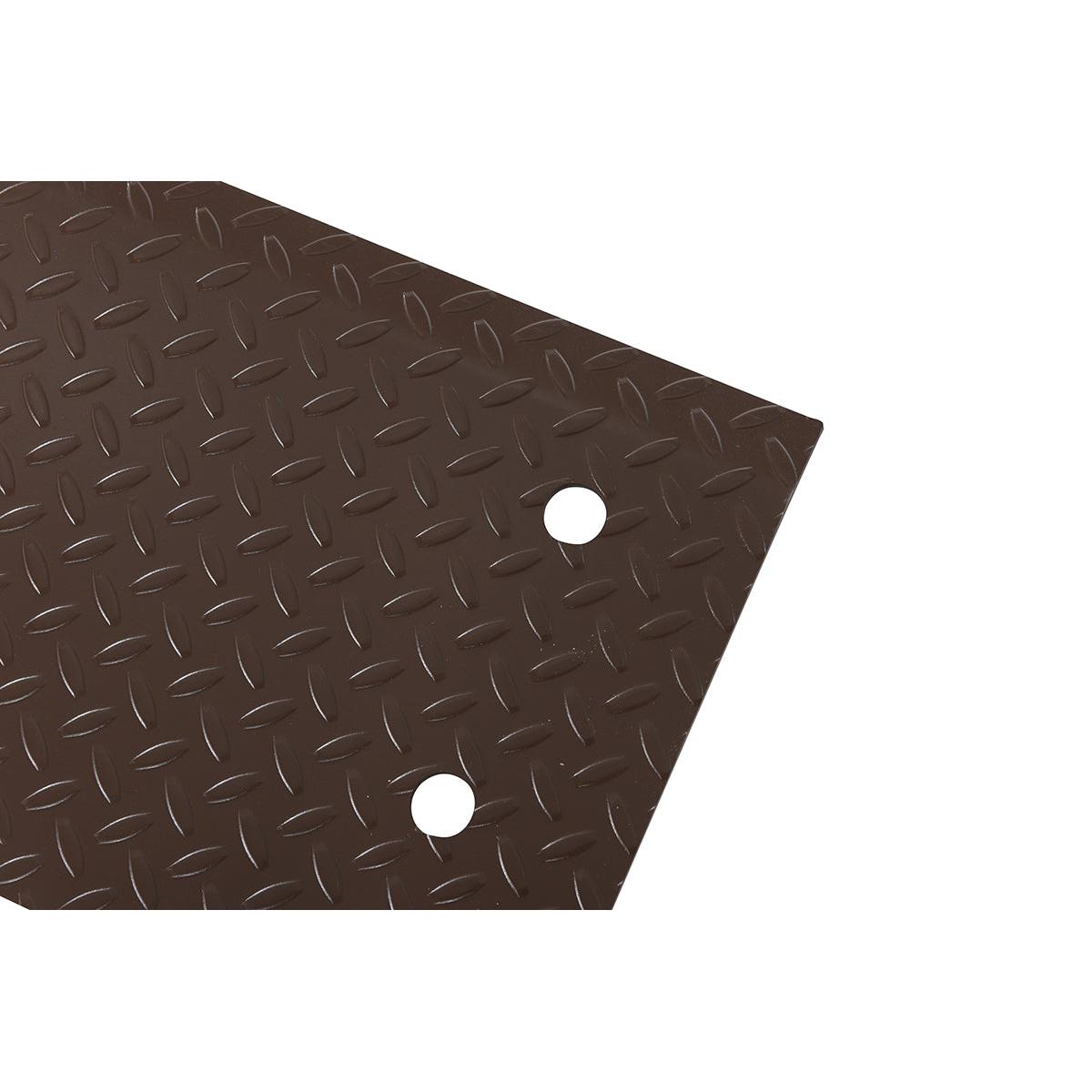

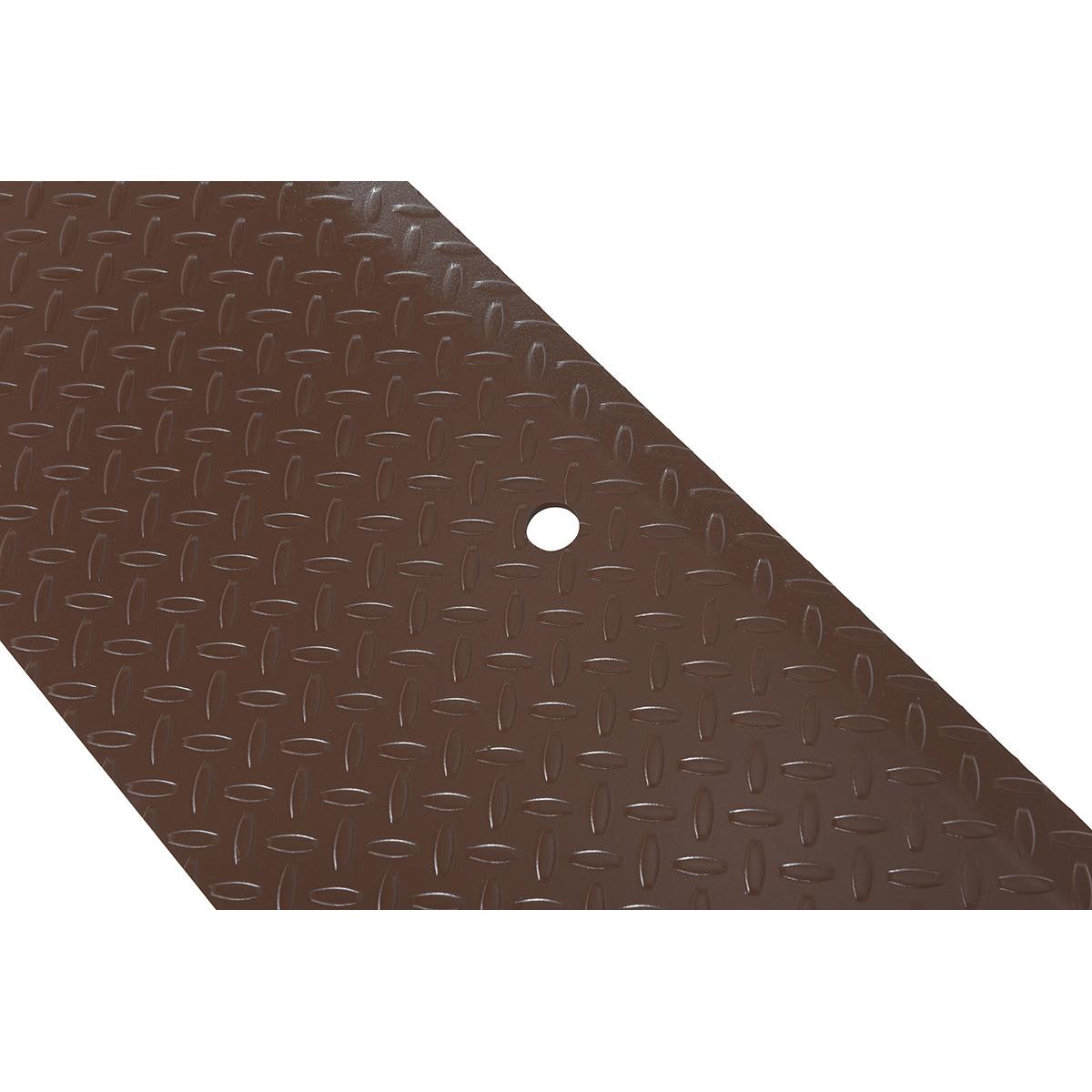

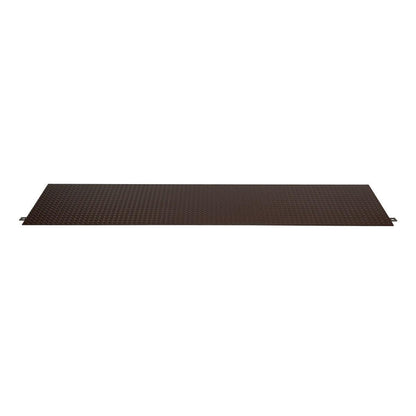

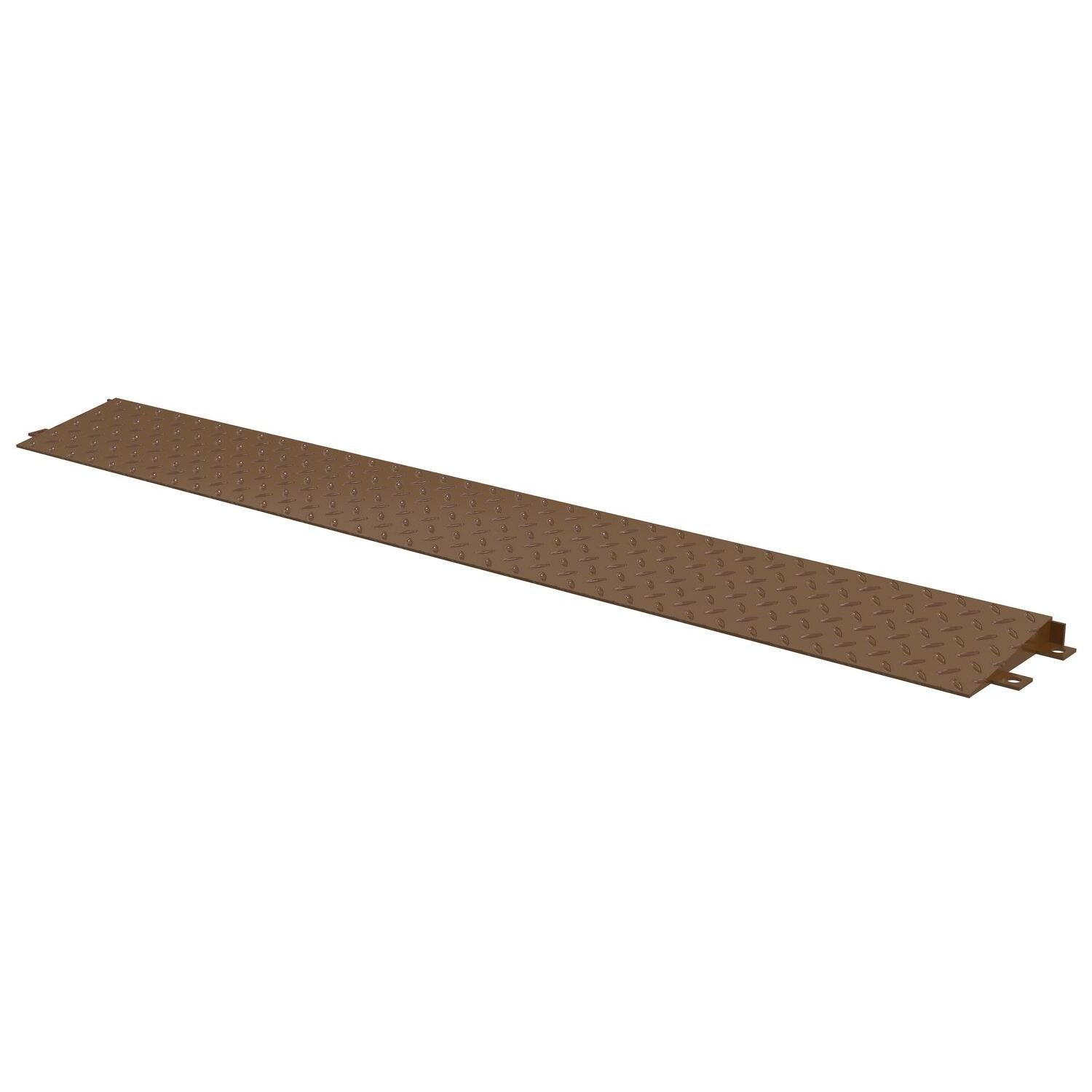

• Tread plate ramp surface ensures secure, non-slip traction
• Solid steel construction for long-lasting, dependable performance

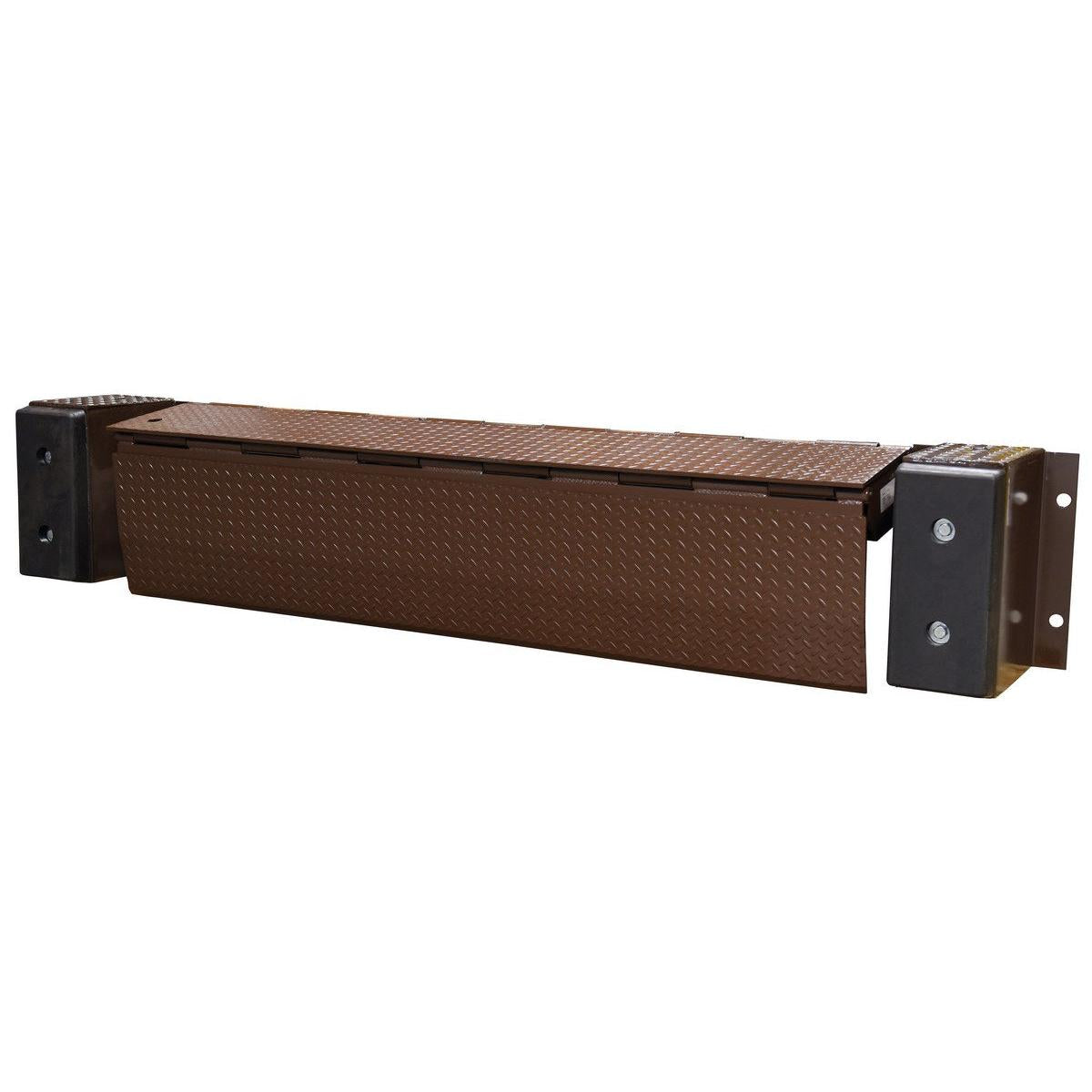

• Lip automatically retracts when trailer departs, minimizing wear

Additional Information:

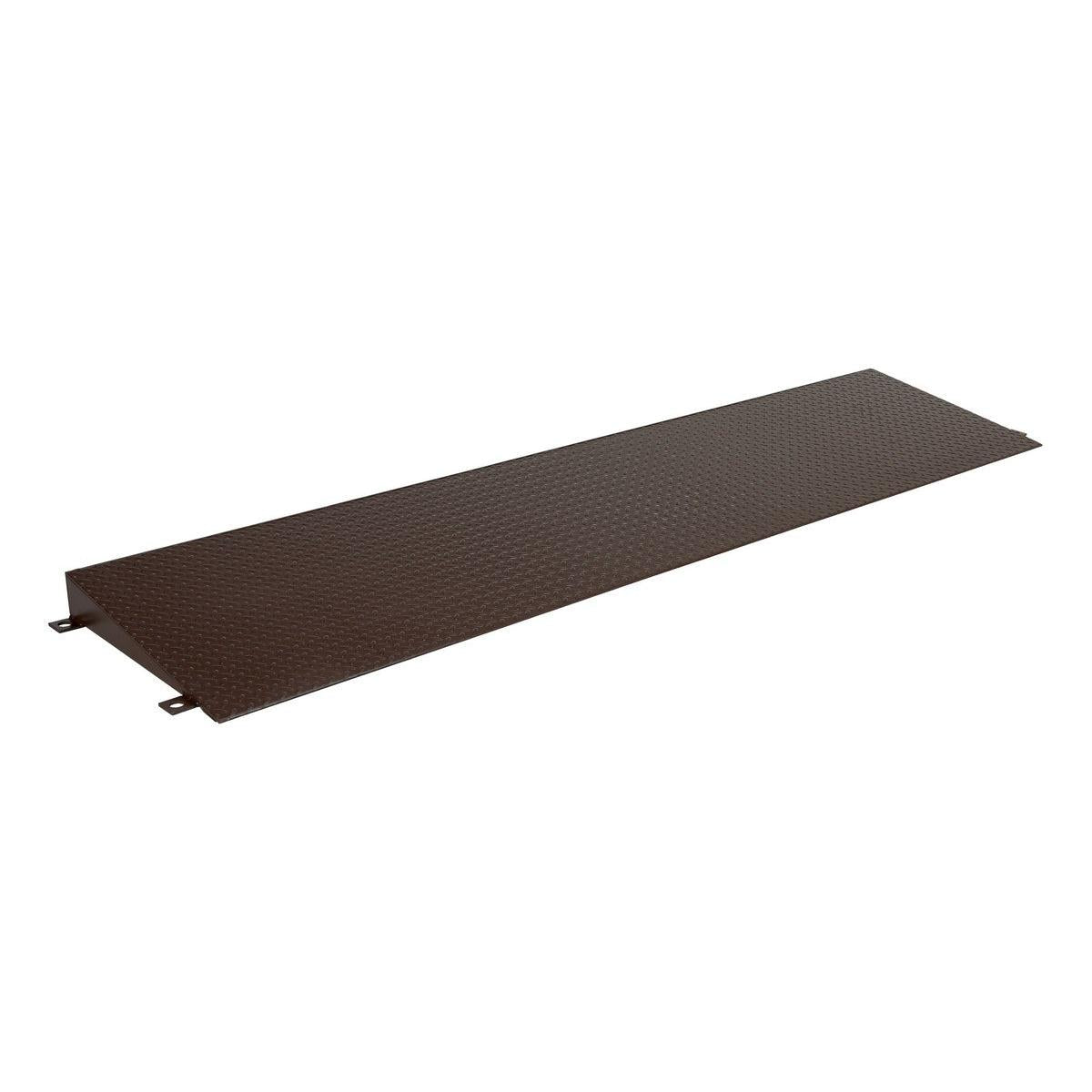

Ramp length is 29" standard. Ideal for facilities with consistent trailer heights, this leveler improves loading efficiency and reduces equipment strain. Powder-coated brown finish adds corrosion resistance in demanding environments.

Technical Specifications:

• Total Ship Weight (lbs.): 348 (1 package)
• Overall Size: 75"W x 15"L x 18"H
• UPC: 691215020558

• GTIN: 00691215020558
• Color / Finish: Brown
• Material: Steel
• Uniform Capacity (lbs.): 6,000
• Ramp Width (in.): 48
• Platform Length (in.): 28.6875
• Platform Thickness (in.): 0.375
• Dock Leveler Lip Projection (in.): 13.69
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5
• Dock Leveler Operating Method: Actuation Handle / Mechanical
• Installation Method: Permanent Installation to Face of Dock
• Installation Hardware Included: Yes
• Assembly: Assembly Required

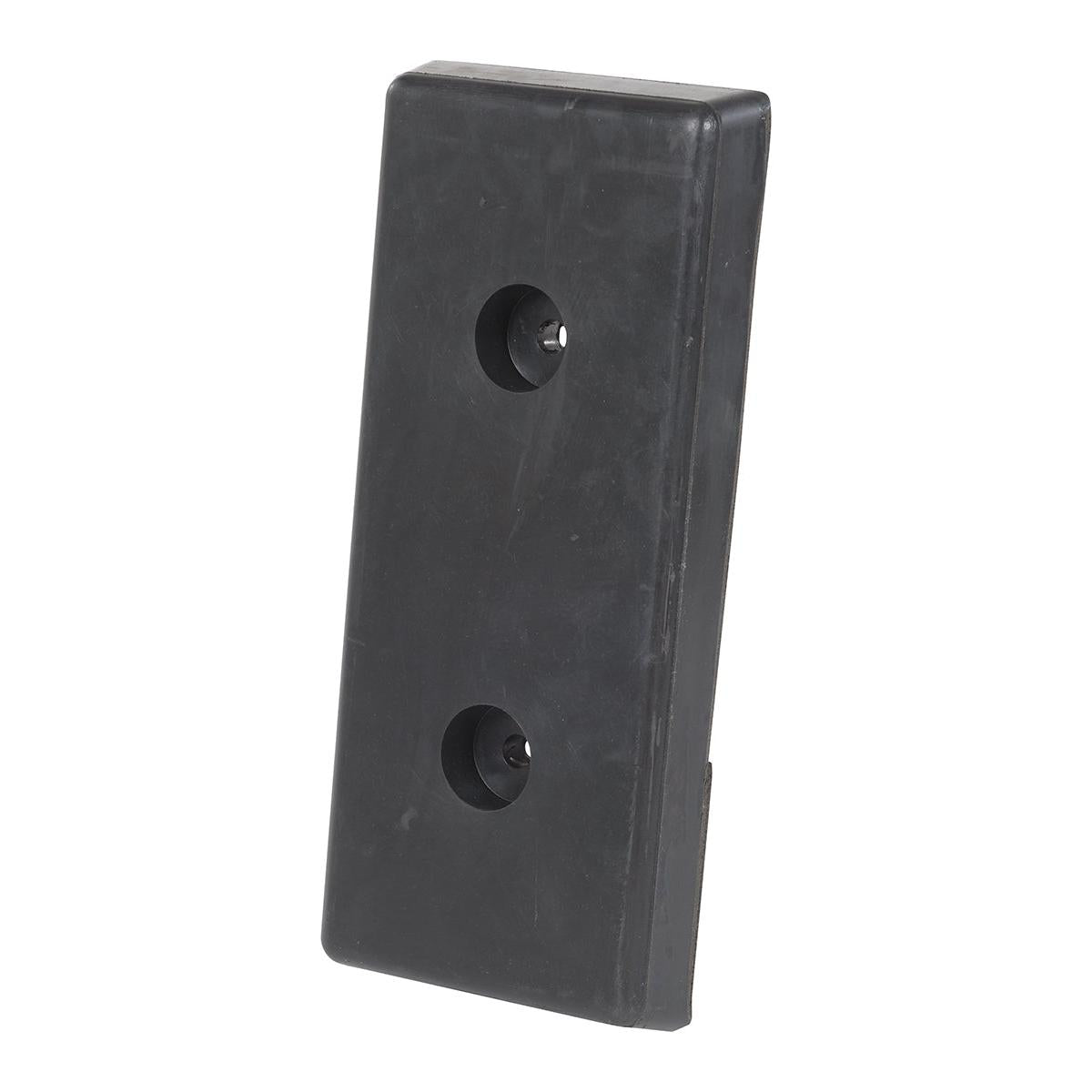

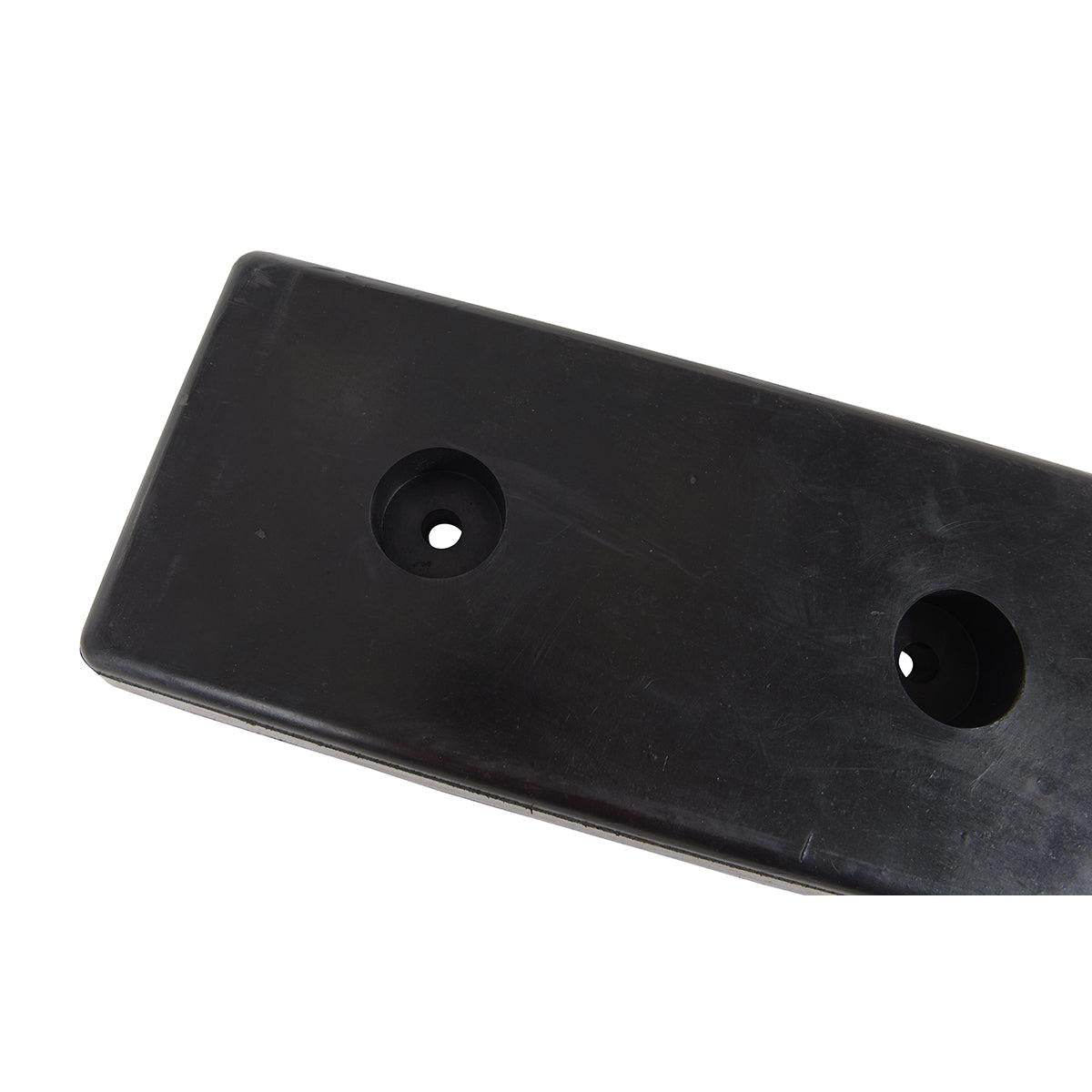

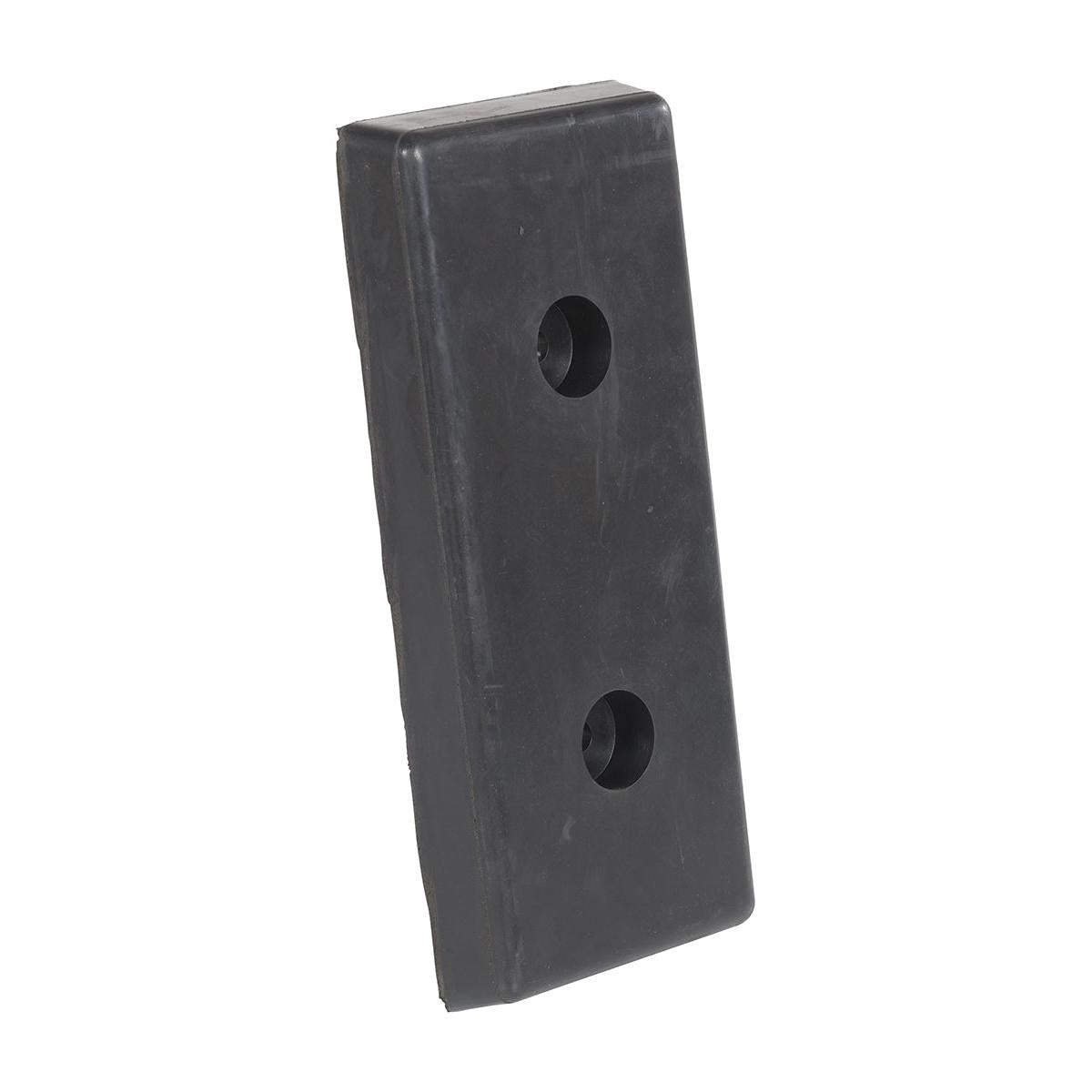

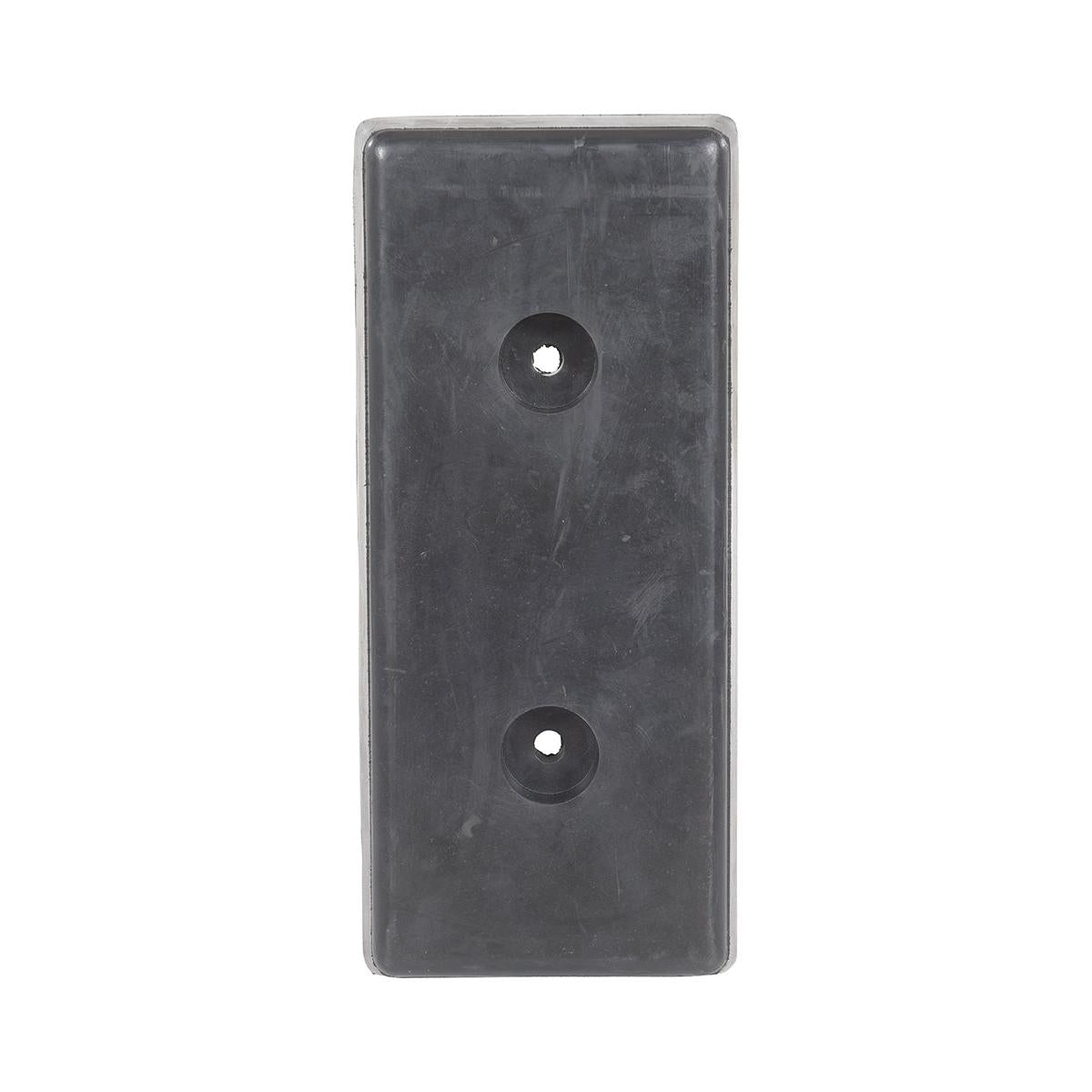

• Bumper Pad Width (in.): 8
• Bumper Pad Thickness (in.): 2
• Bumper Pad Height (in.): 18
• Bumper Projection Including Rubber (in.): 15
• Overall Length (ft.): 1.25
• Approval Drawing Required: No
• CPO-Prop 65 Warning Required: Yes
• Manufacturer Warranty: 1 Year
