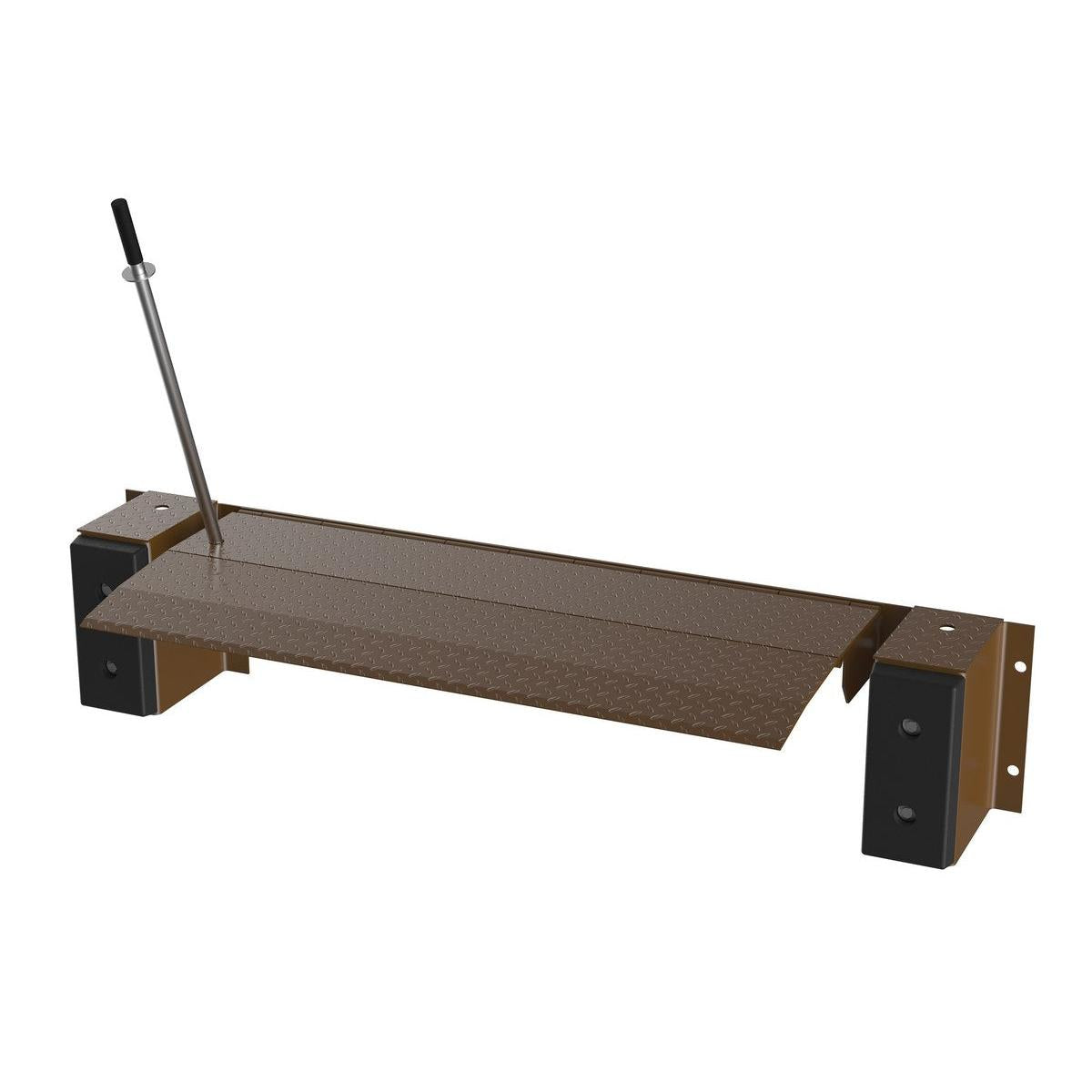

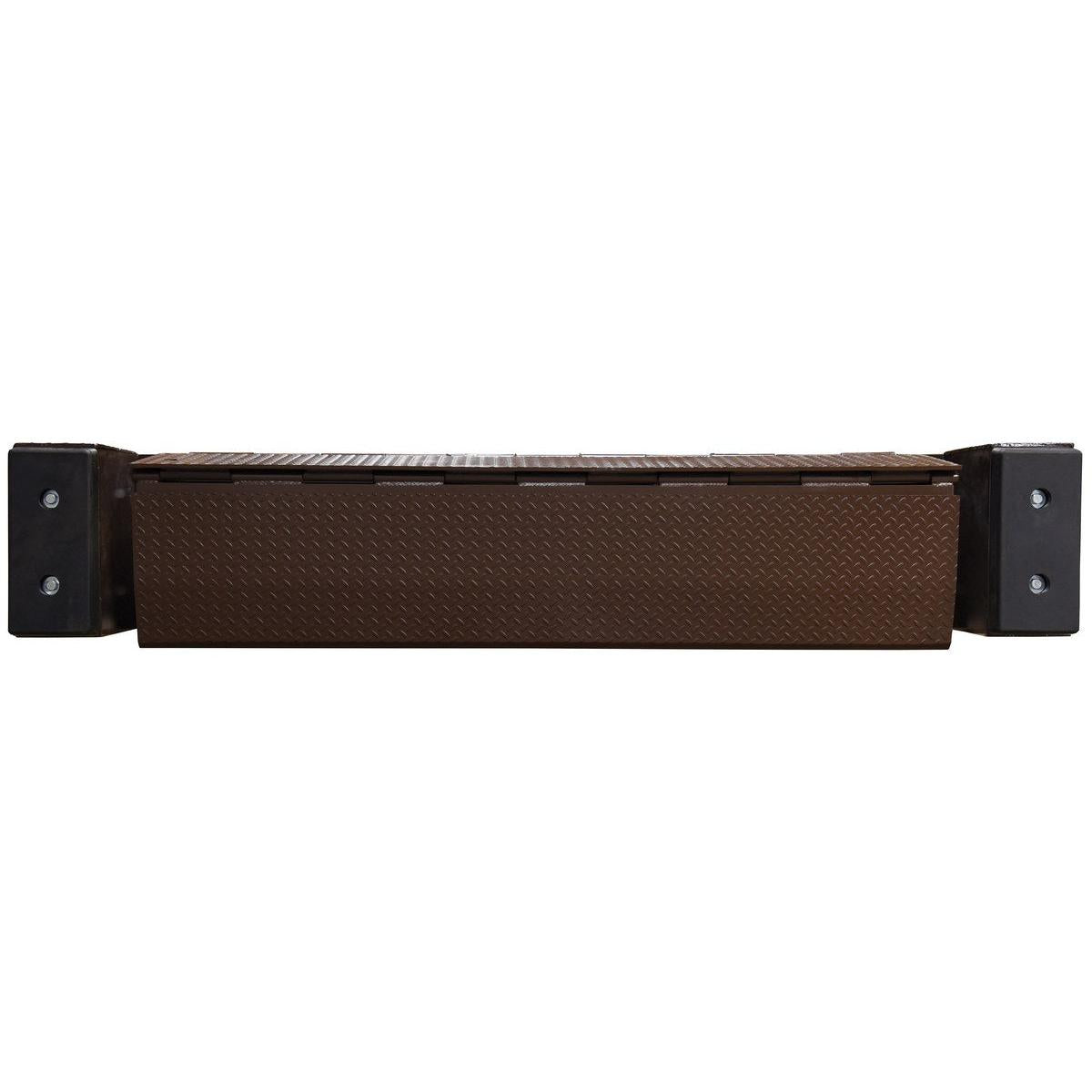

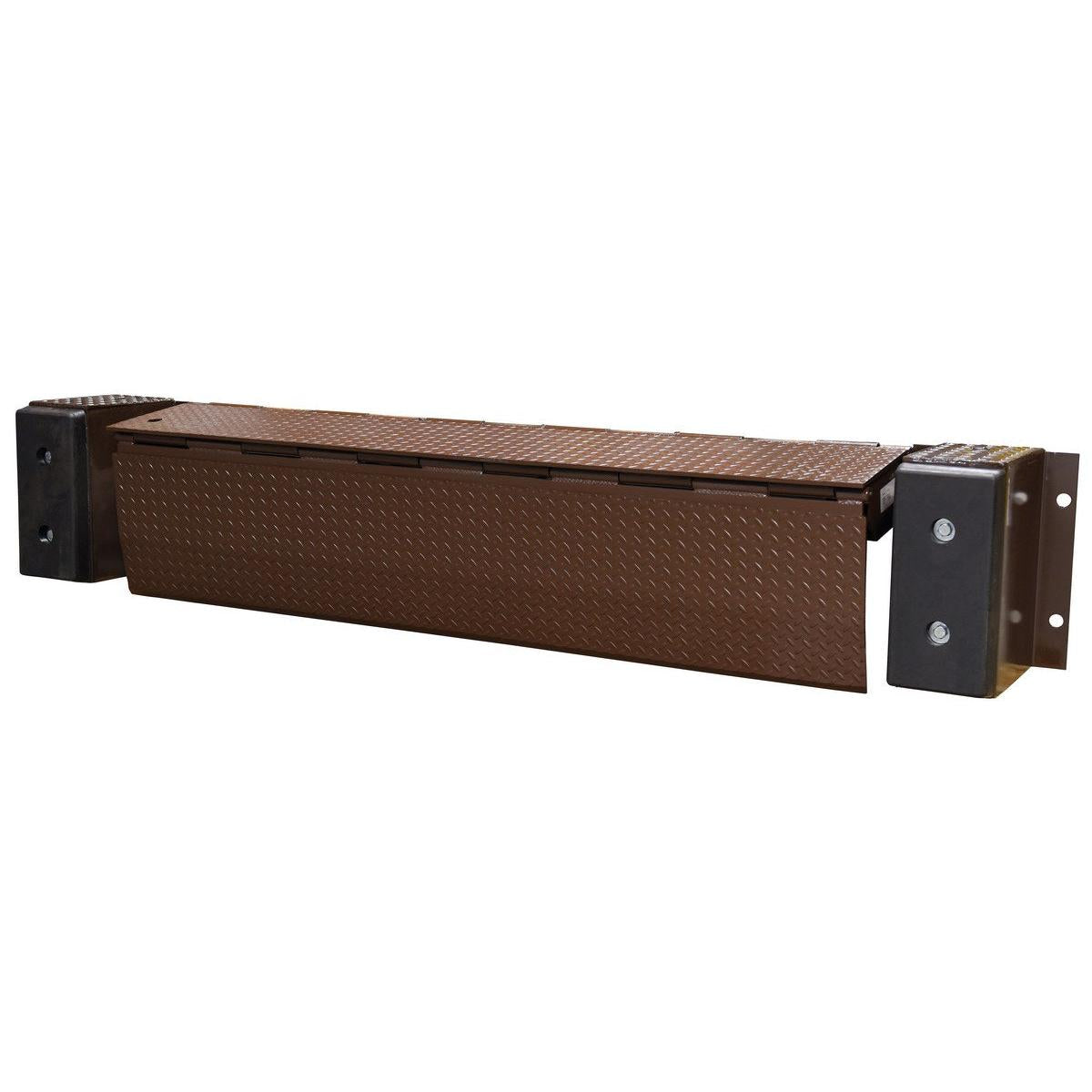

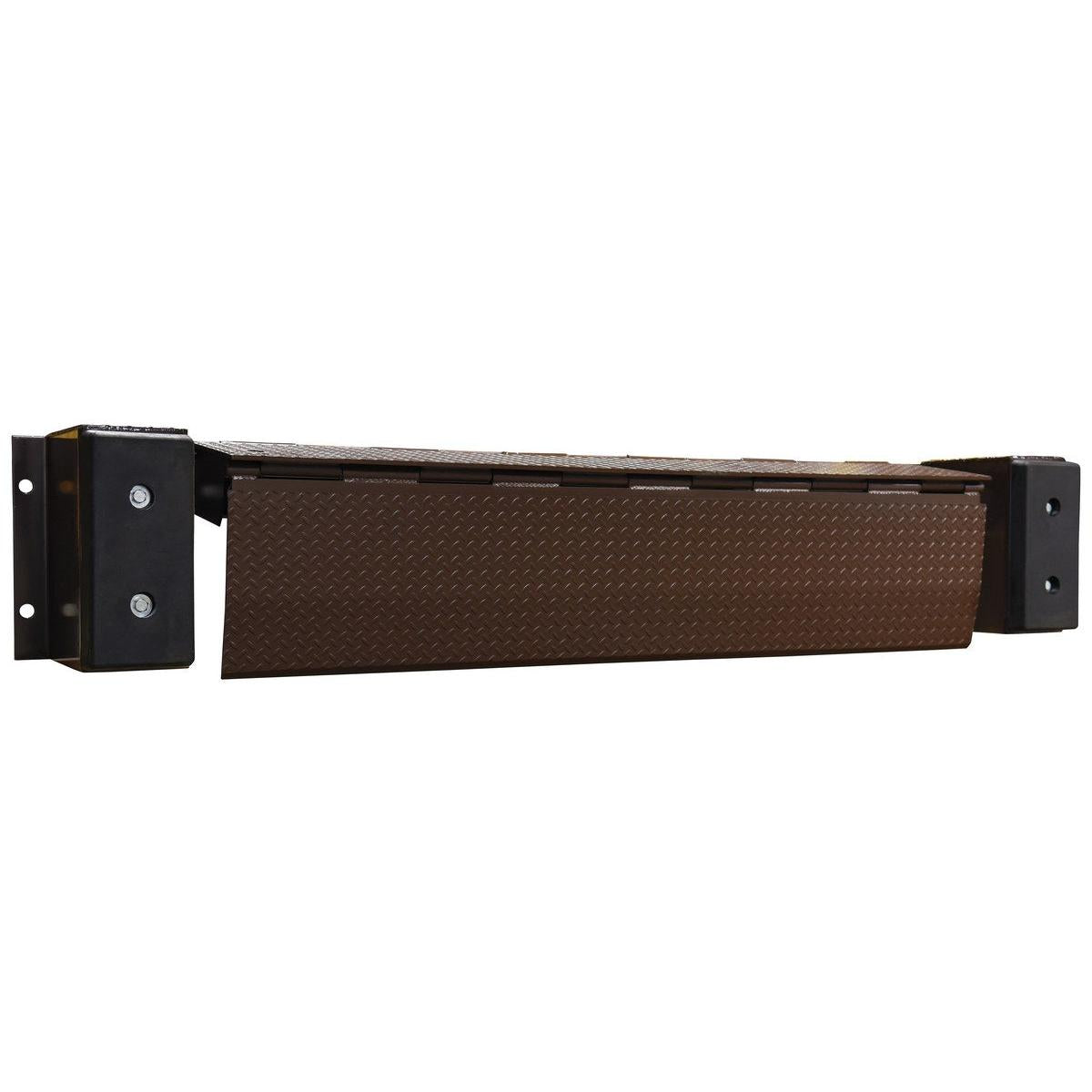

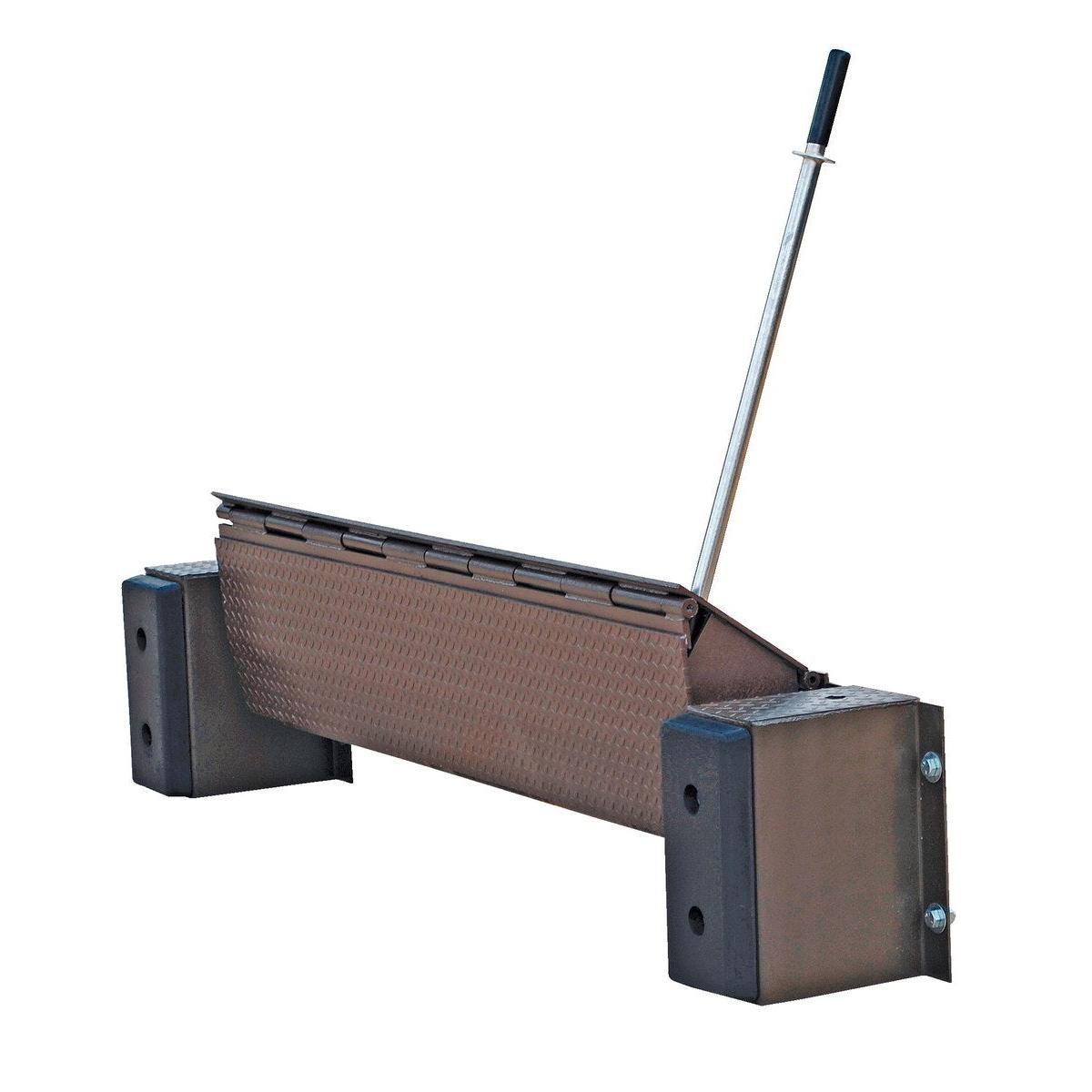

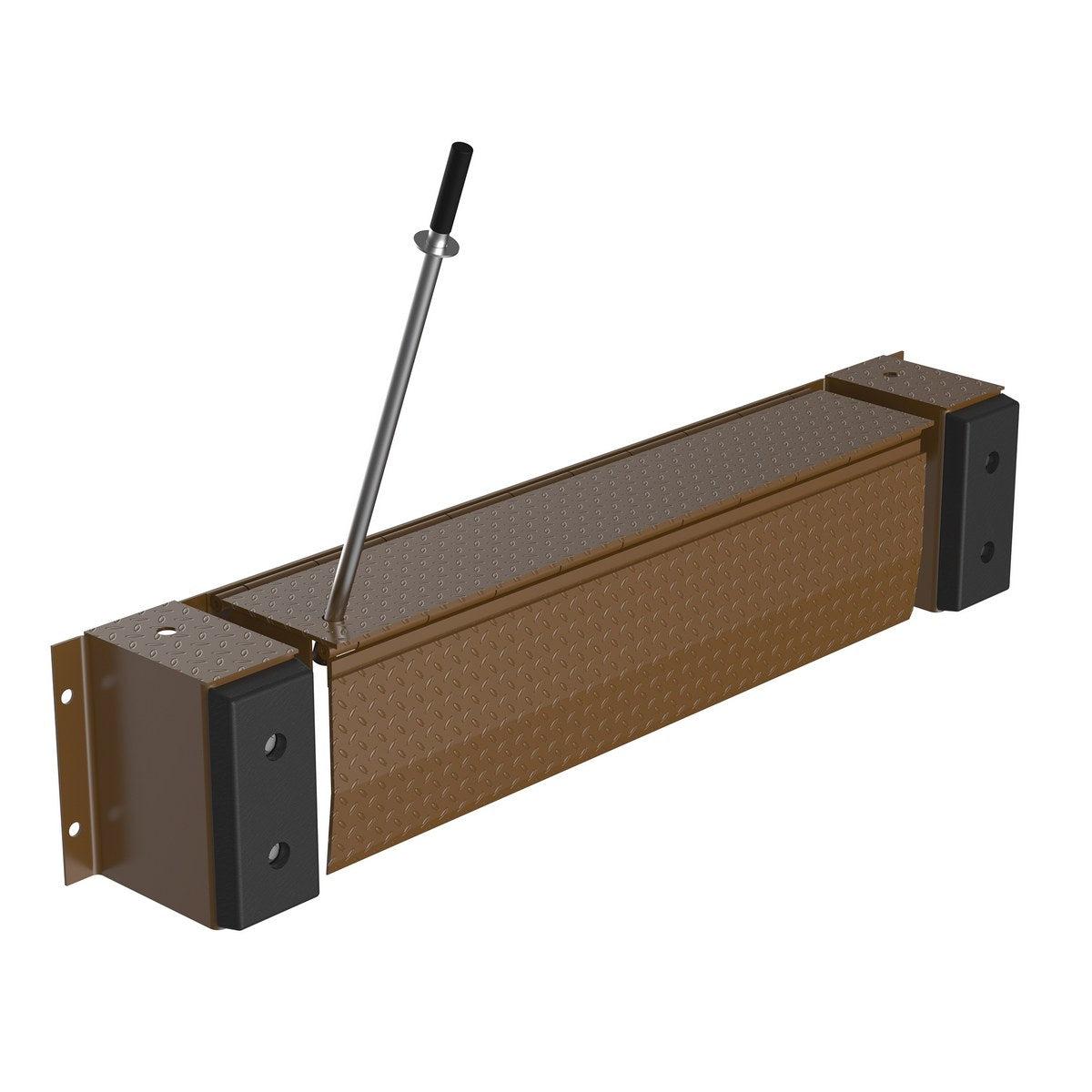

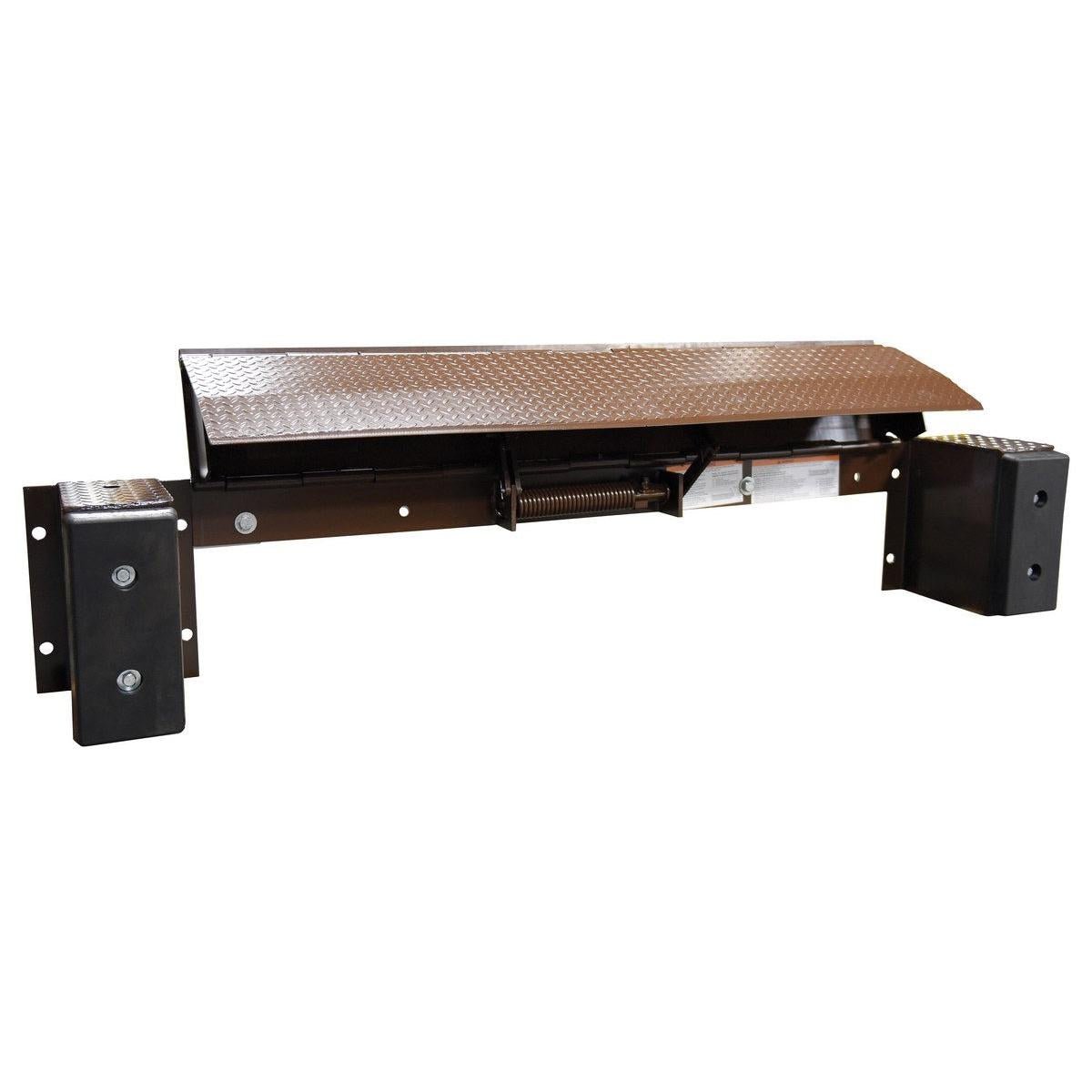

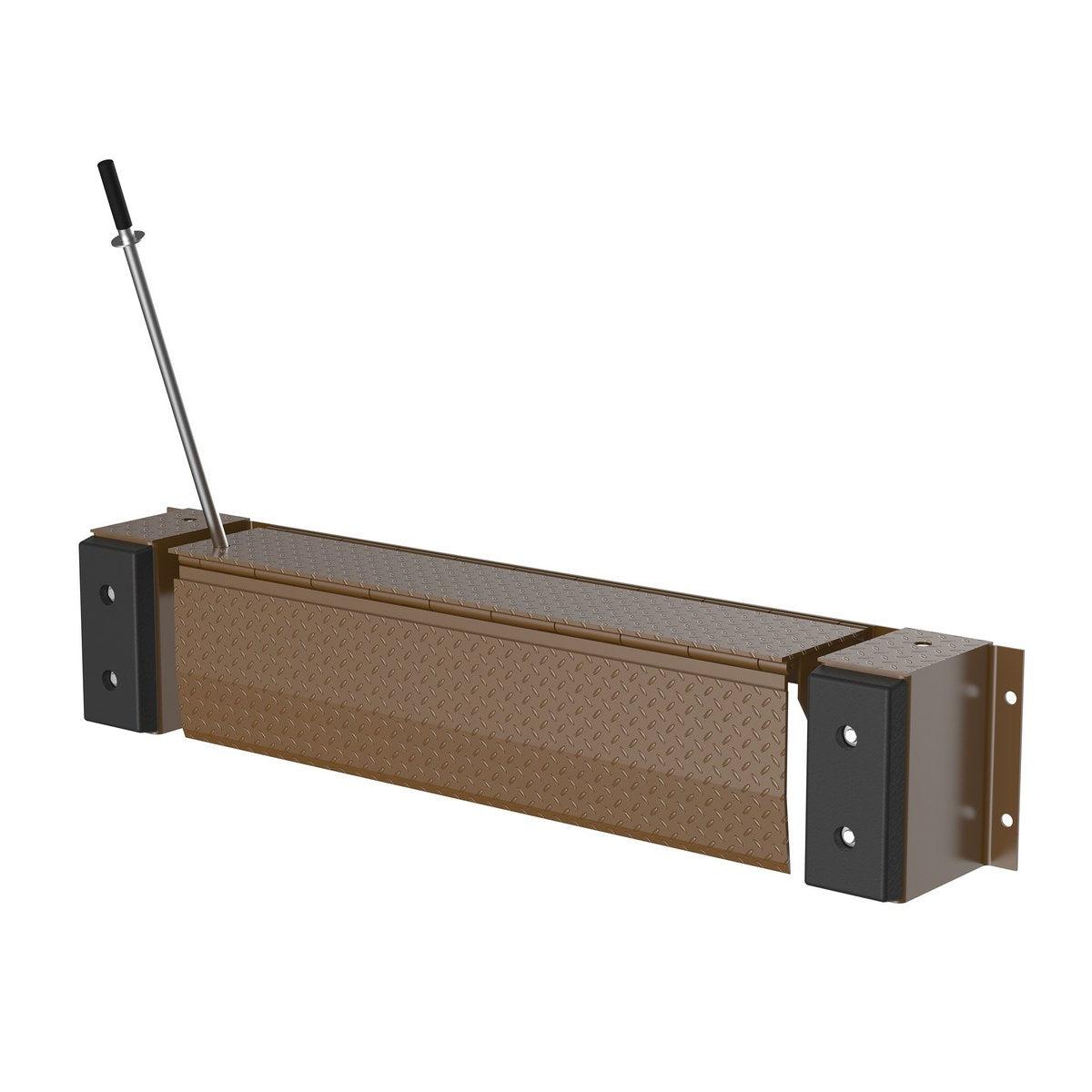

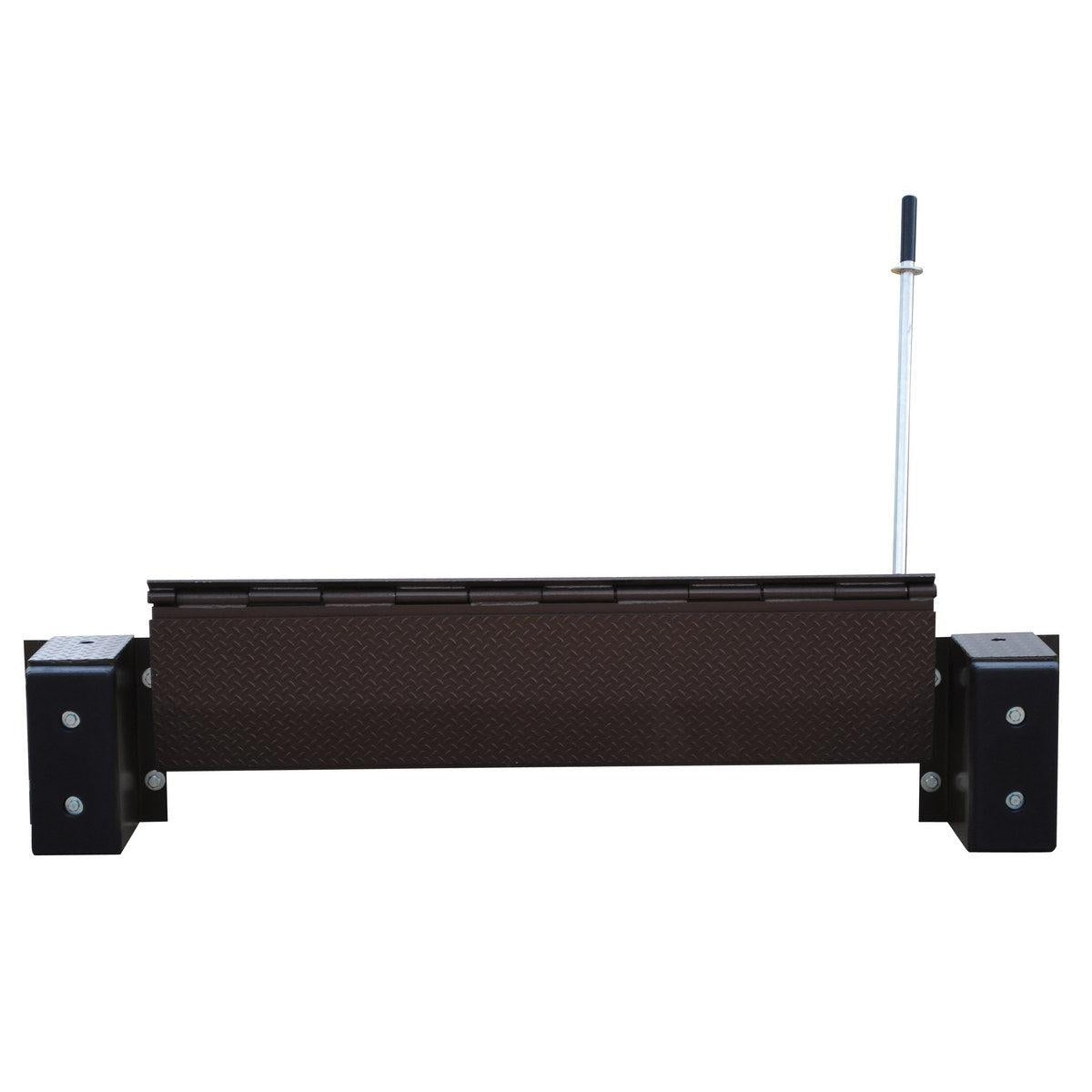

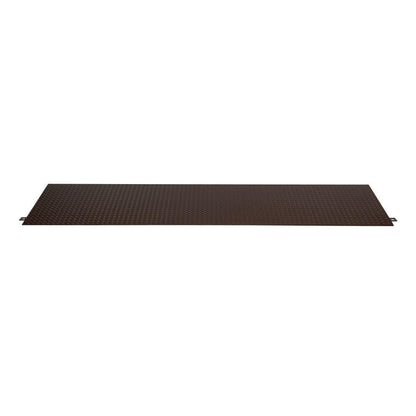

Steel Mechanical Edge-O-Dock Levelers – 30,000 lb. Capacity Series (66", 72" Ramp Width Options)

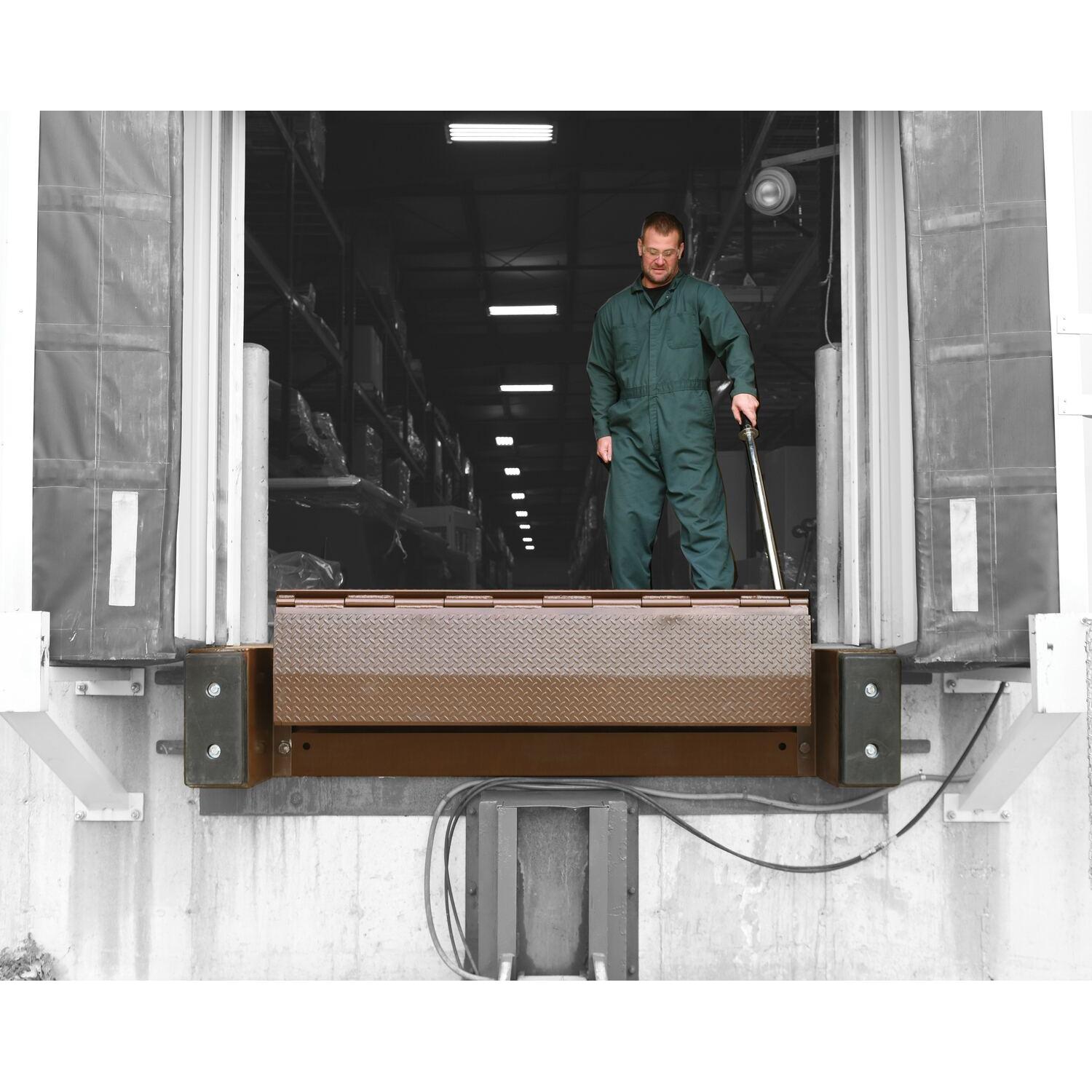

Designed for permanent installation, these heavy-duty mechanical dock levelers offer a robust and efficient solution for bridging the gap between dock and trailer. With a 30,000 lb. load capacity, they are ideal for high-volume loading environments requiring dependable performance and safety. These levelers mount directly to the dock face and operate manually with an included actuation handle for seamless trailer access.

Important Information

These models are available in two ramp widths to accommodate different dock configurations:

• Model 1: 66-inch ramp width
• Model 2: 72-inch ramp width

Both units are engineered for docks with a minimum height of 48 inches and include rubber bumpers and installation hardware. No concrete recess is required—installation is quick with a compatible steel dock edge or approach ramp.

Features and Benefits

• High Capacity: Supports up to 30,000 lbs. for demanding material handling tasks
• Ramp Width Options: Available in 66" and 72" widths to suit various dock sizes

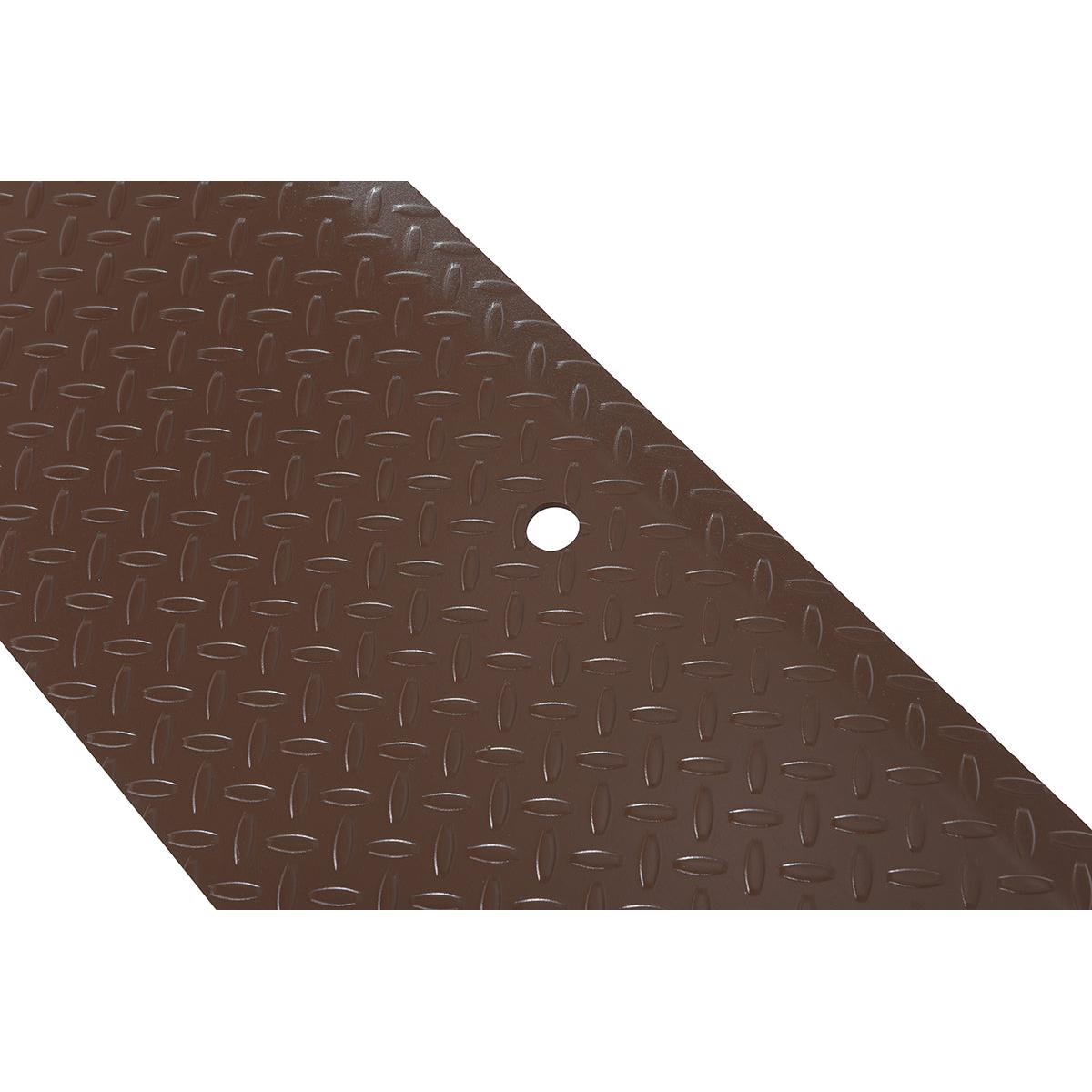

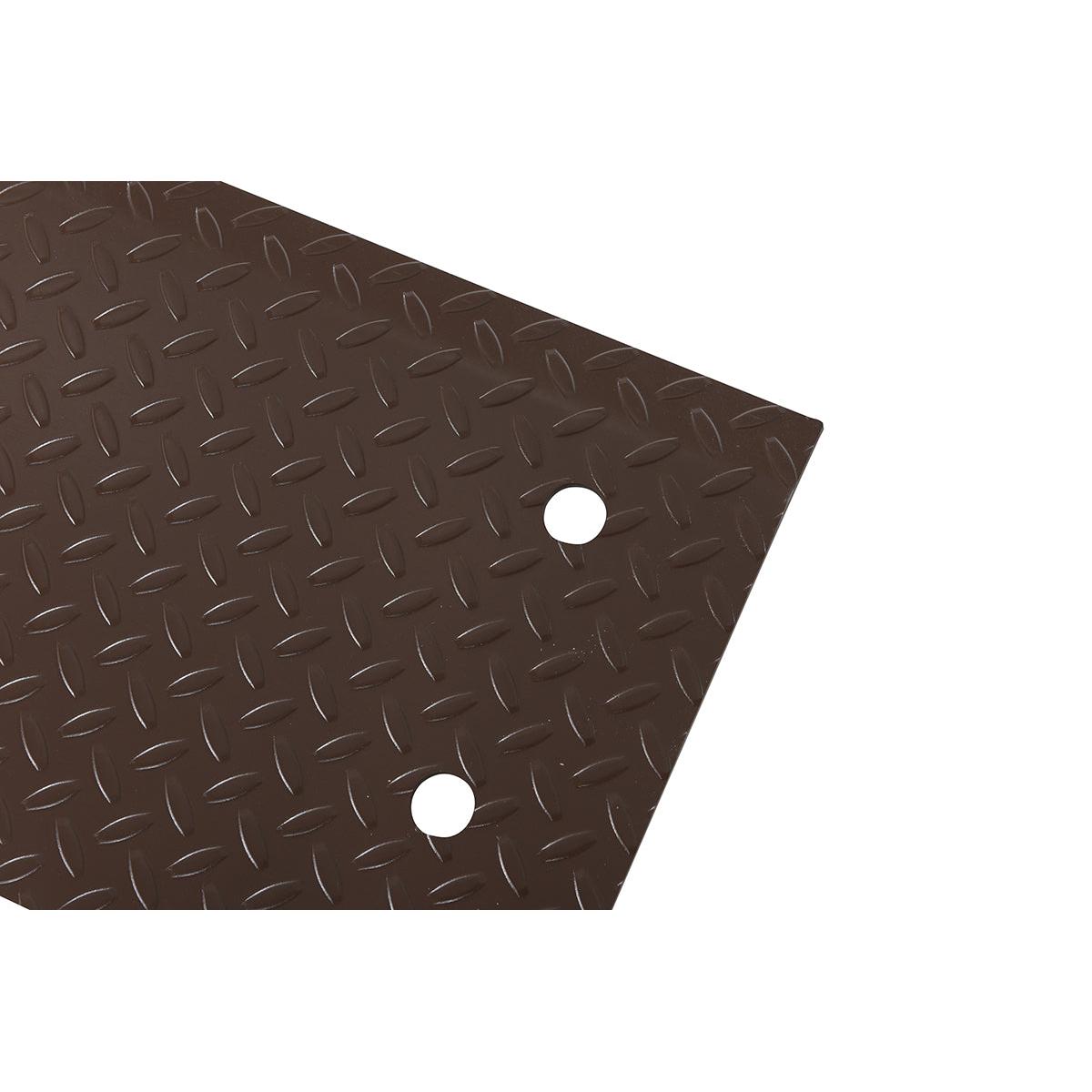

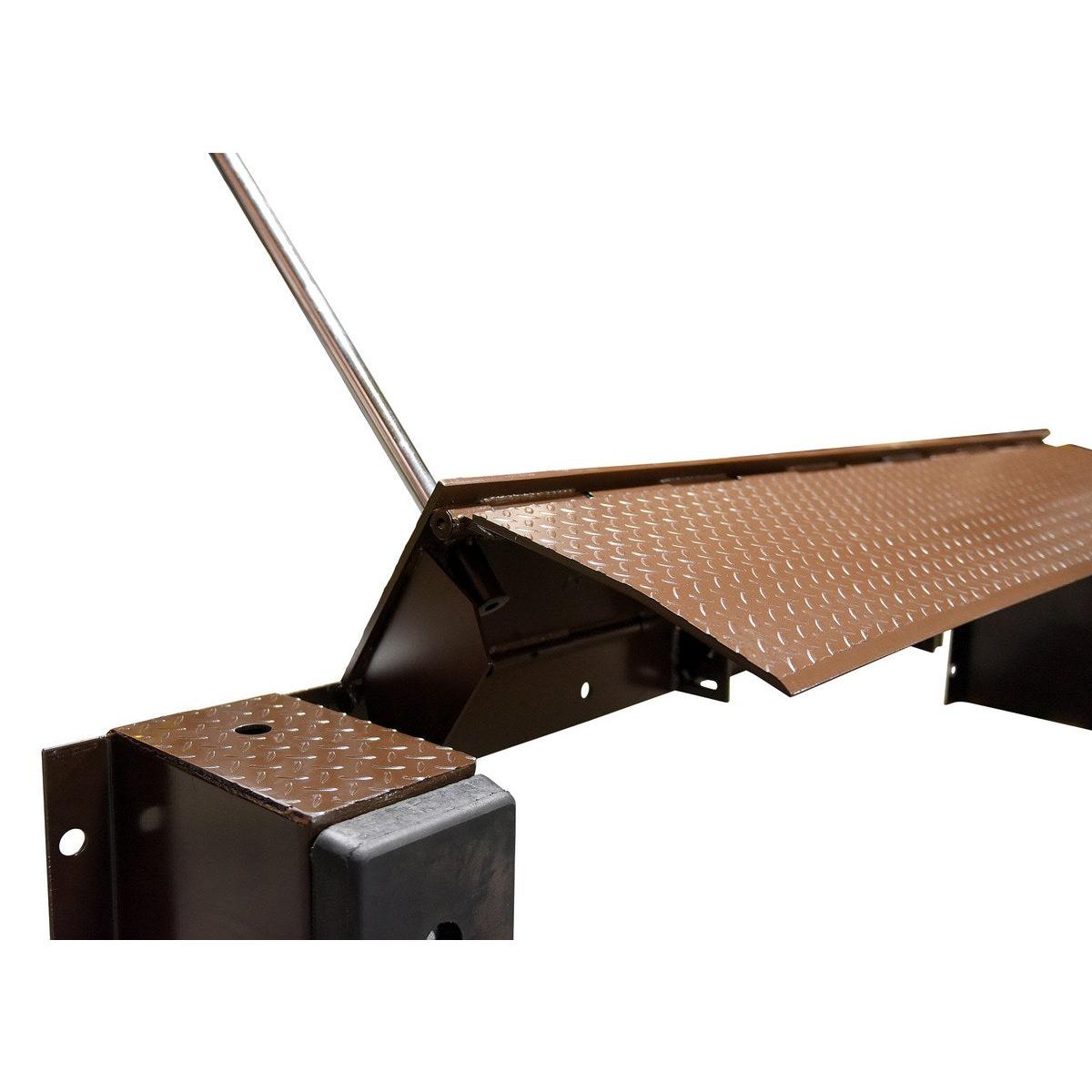

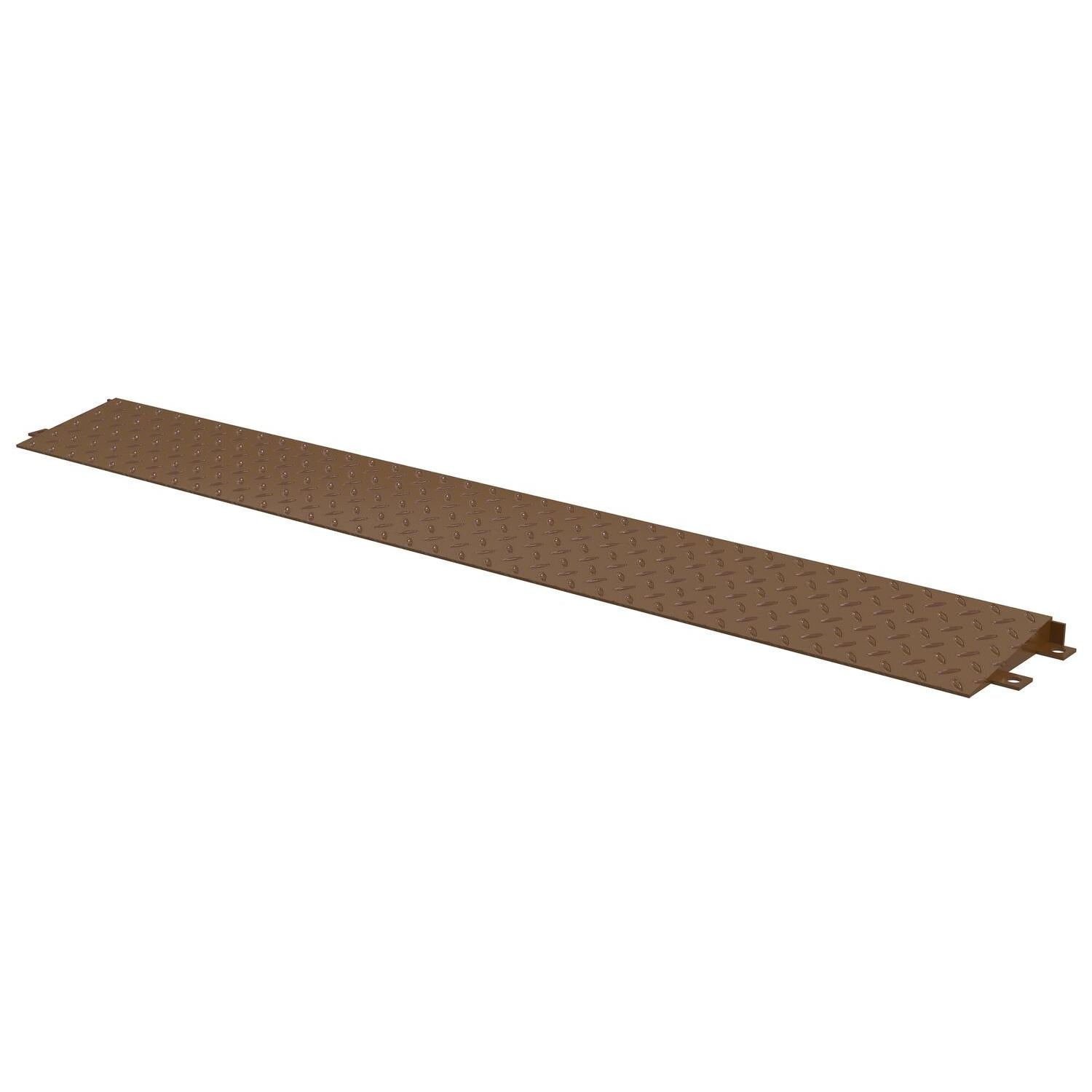

• Non-Slip Surface: Tread plate ramp ensures safe footing and equipment traction

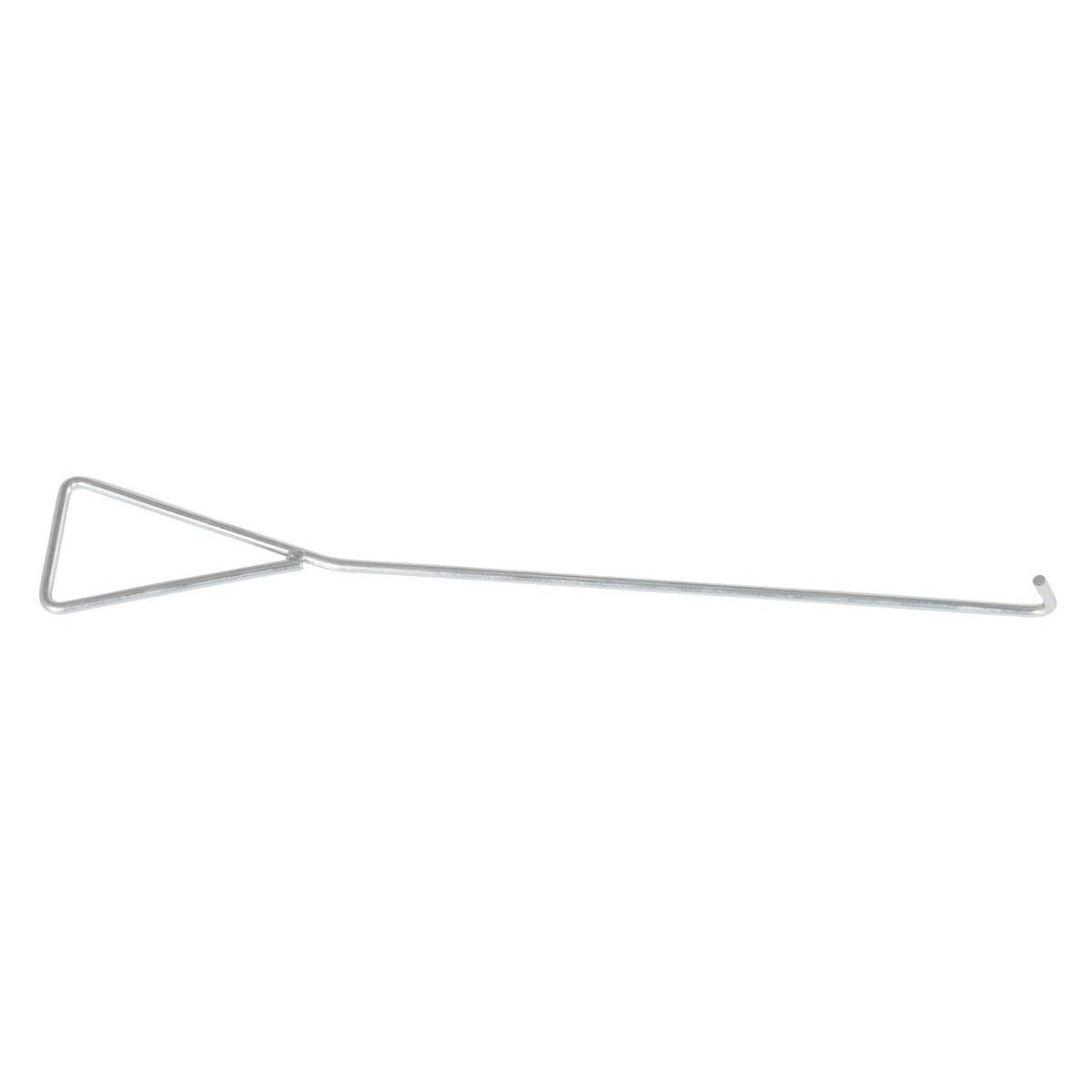

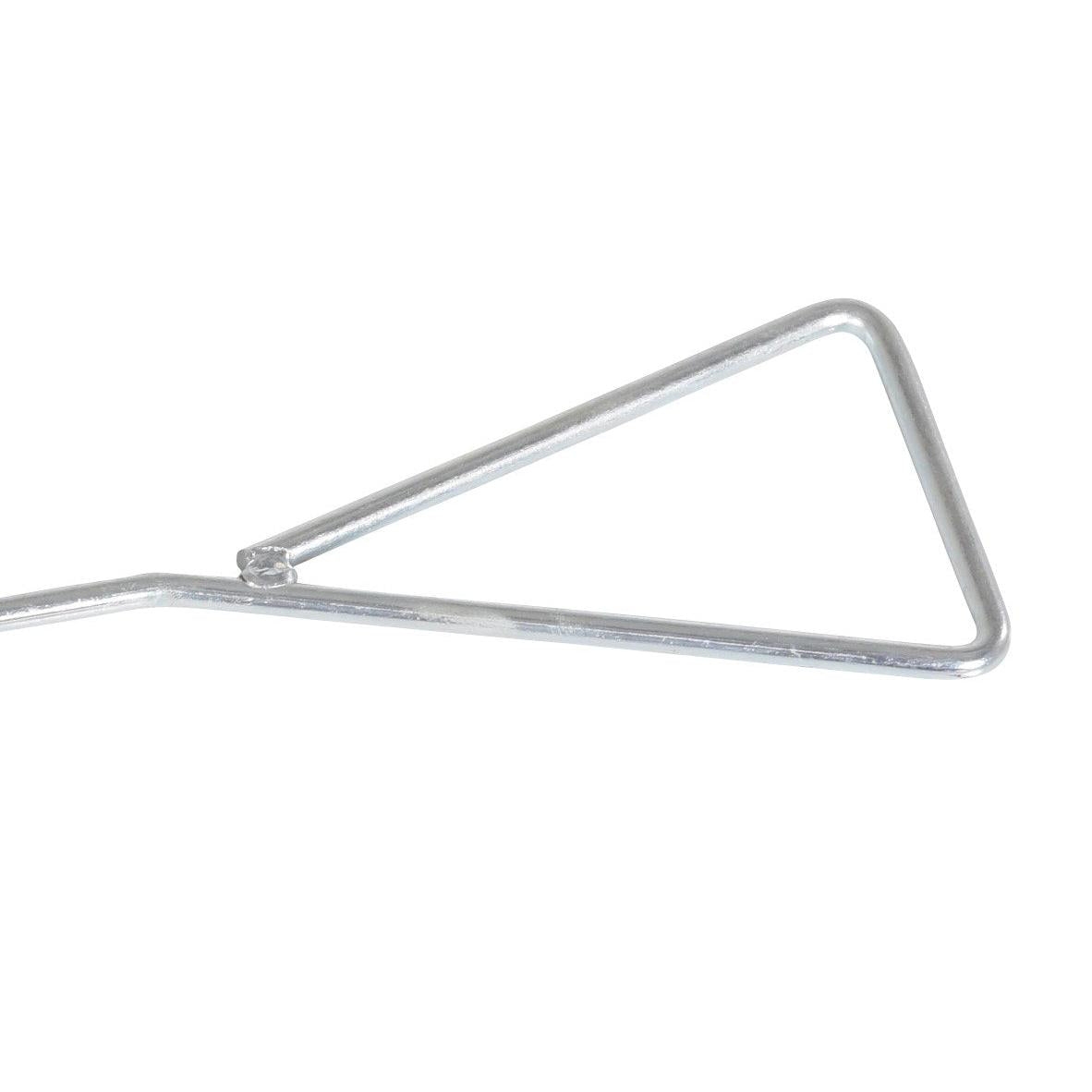

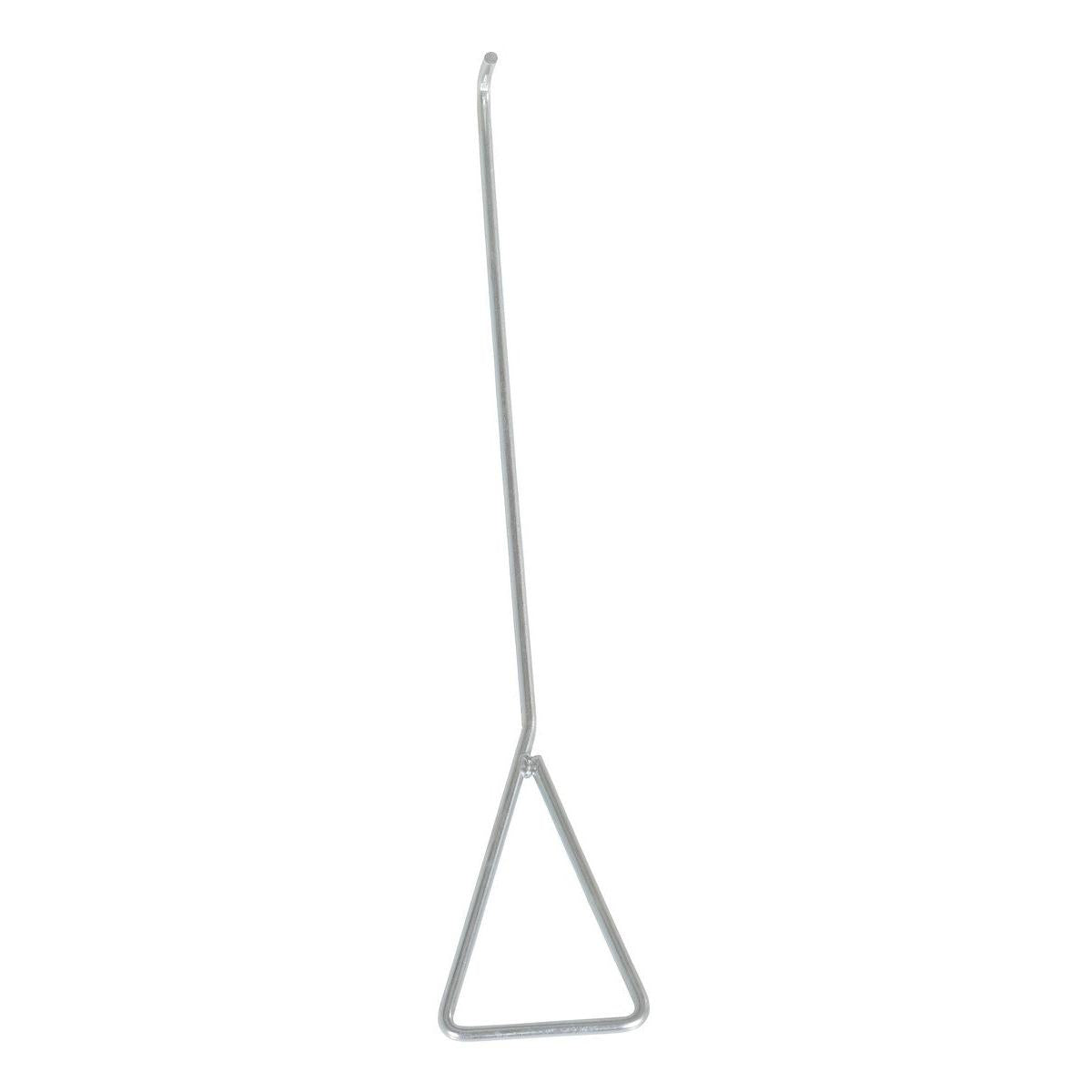

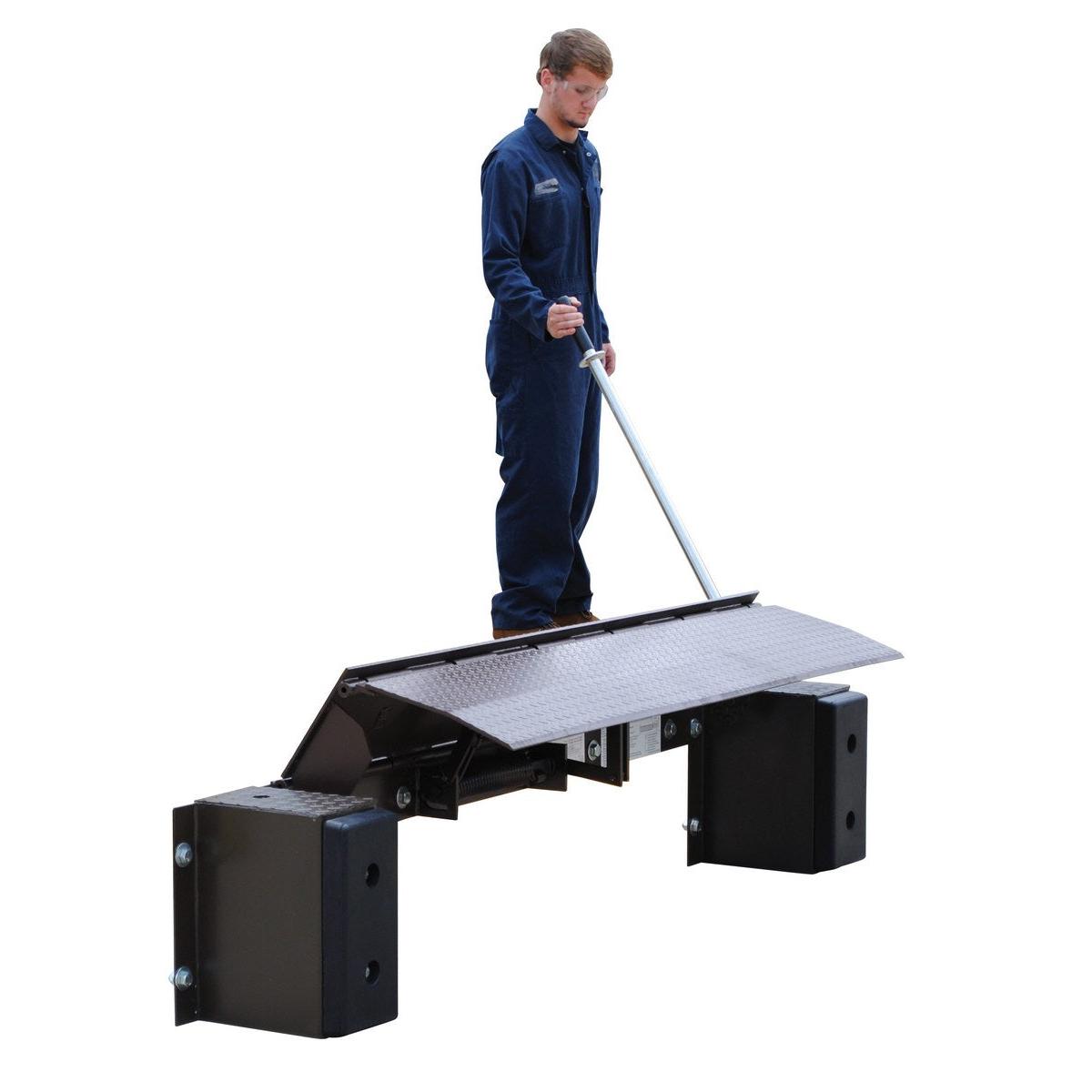

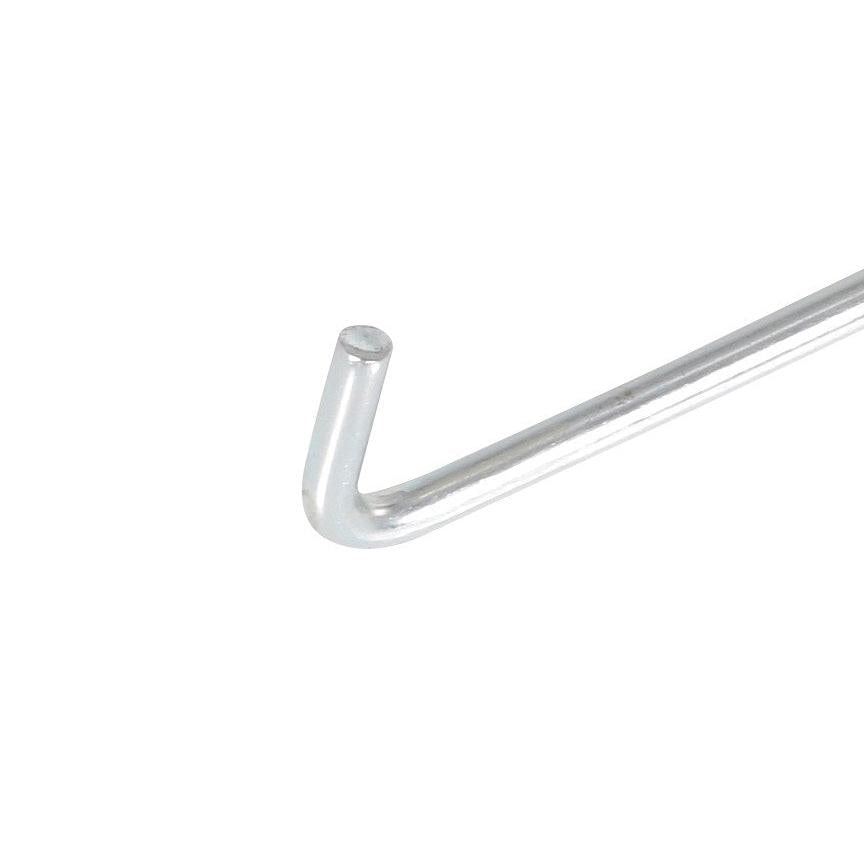

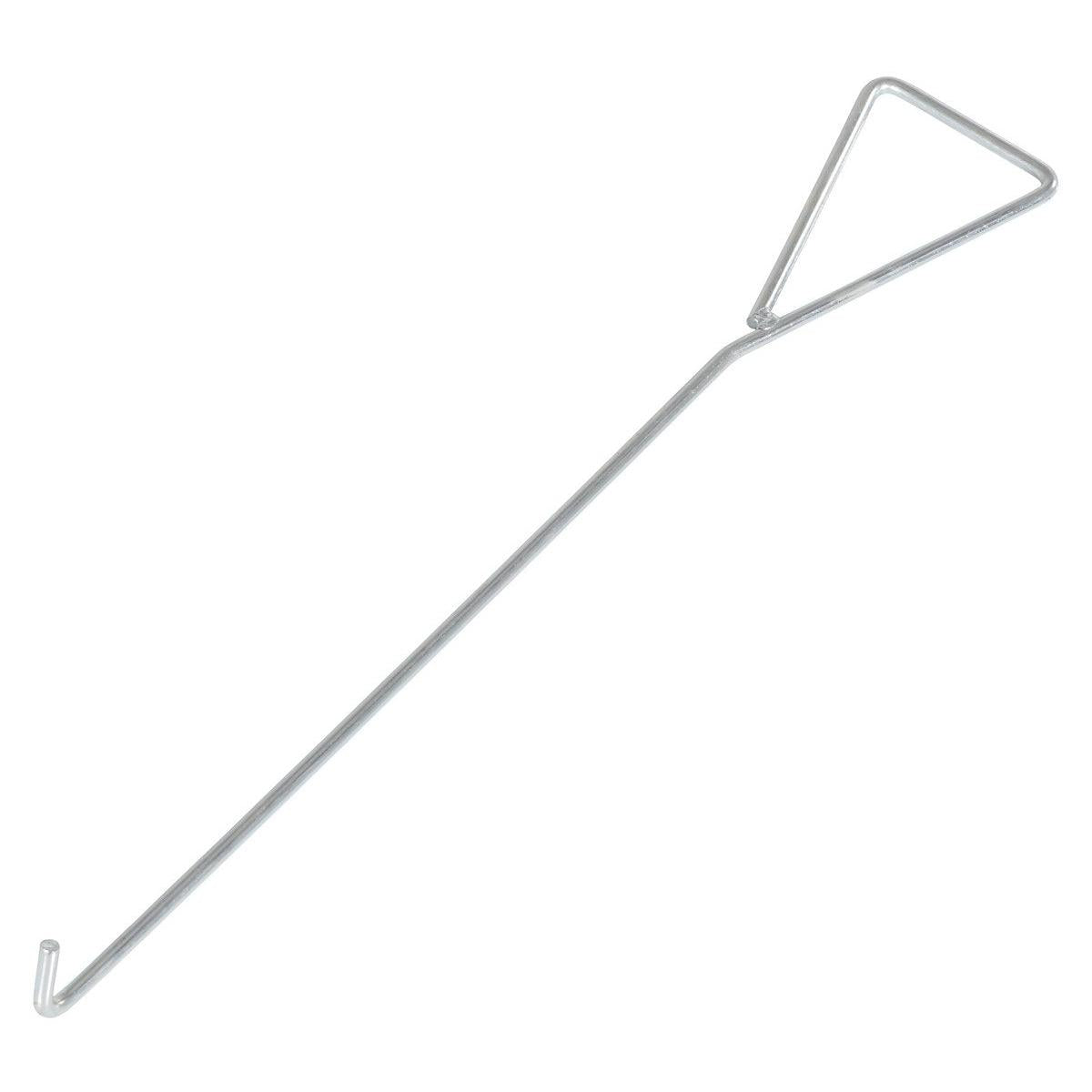

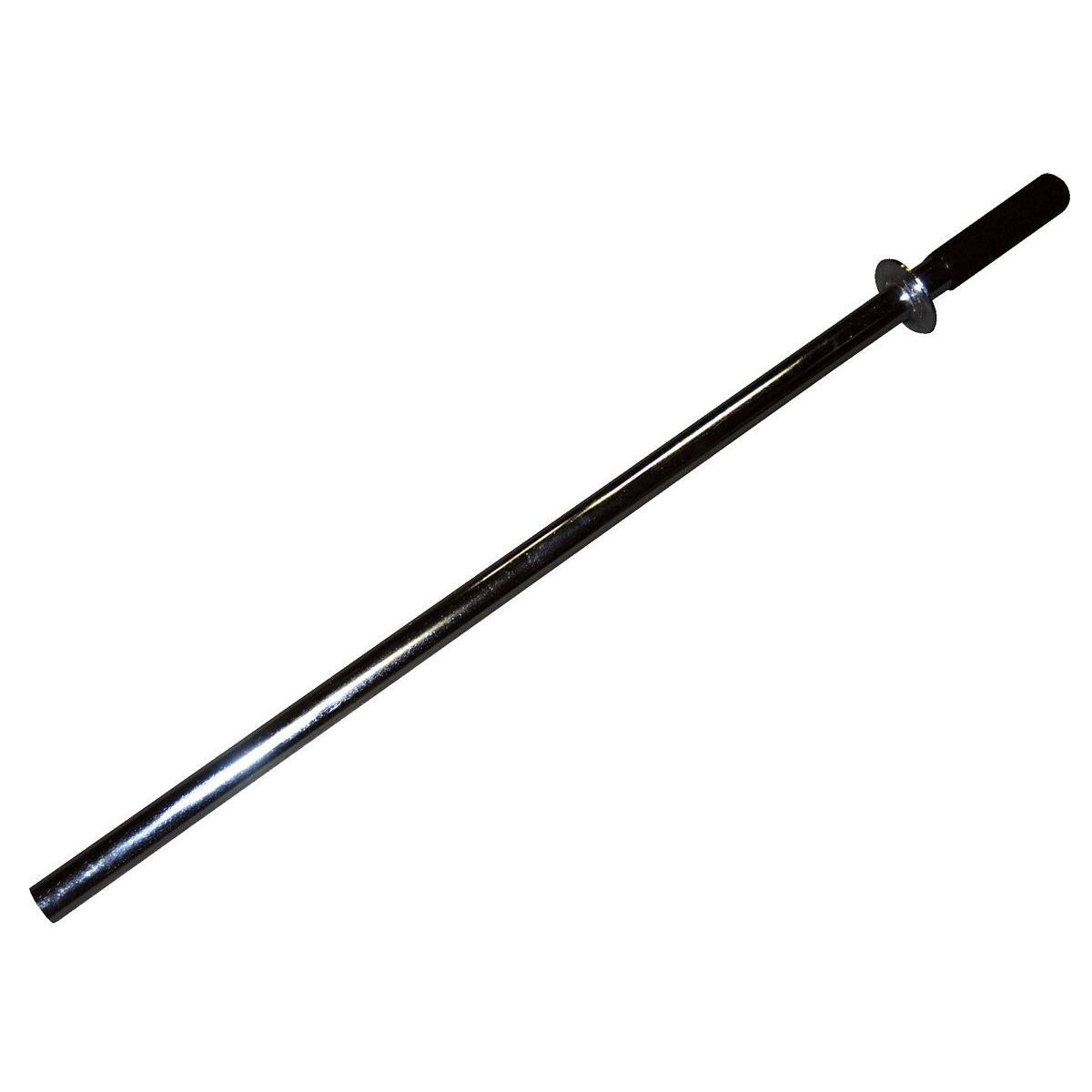

• Manual Operation: Simple actuation with handle included—no hydraulics required
• Automatic Lip Retraction: Lip drops behind bumpers as trailer departs
• Durable Steel Build: Solid construction ensures long-term reliability

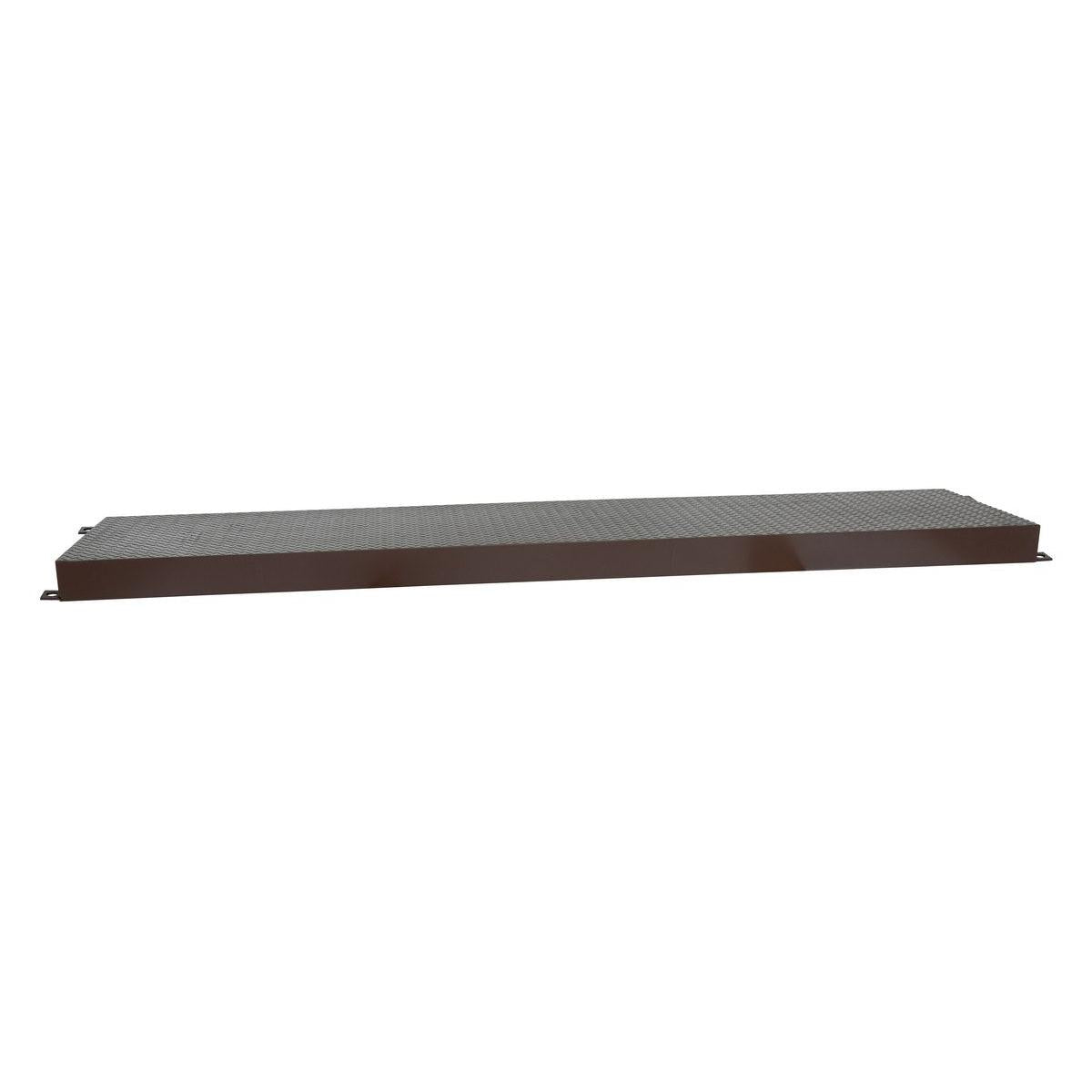

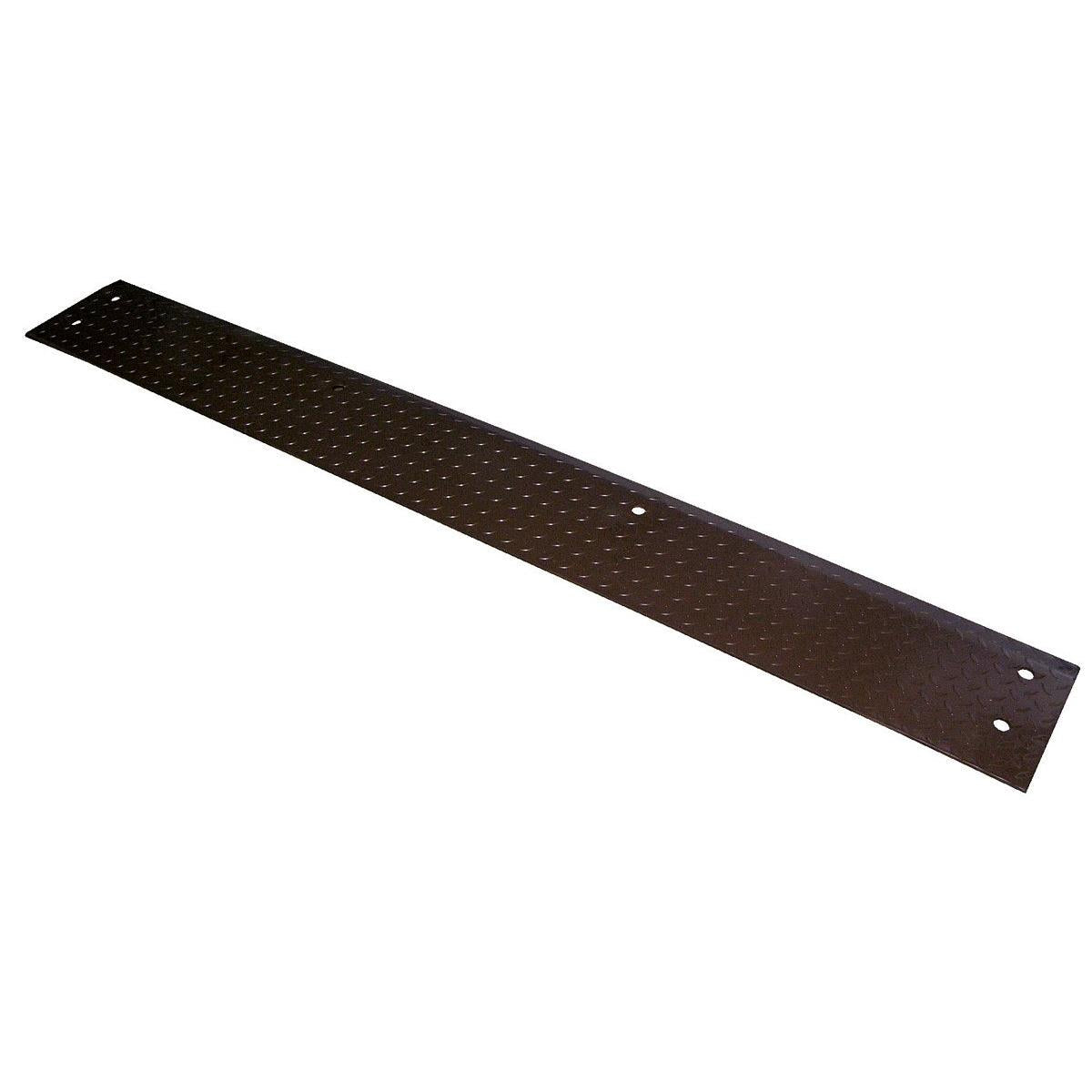

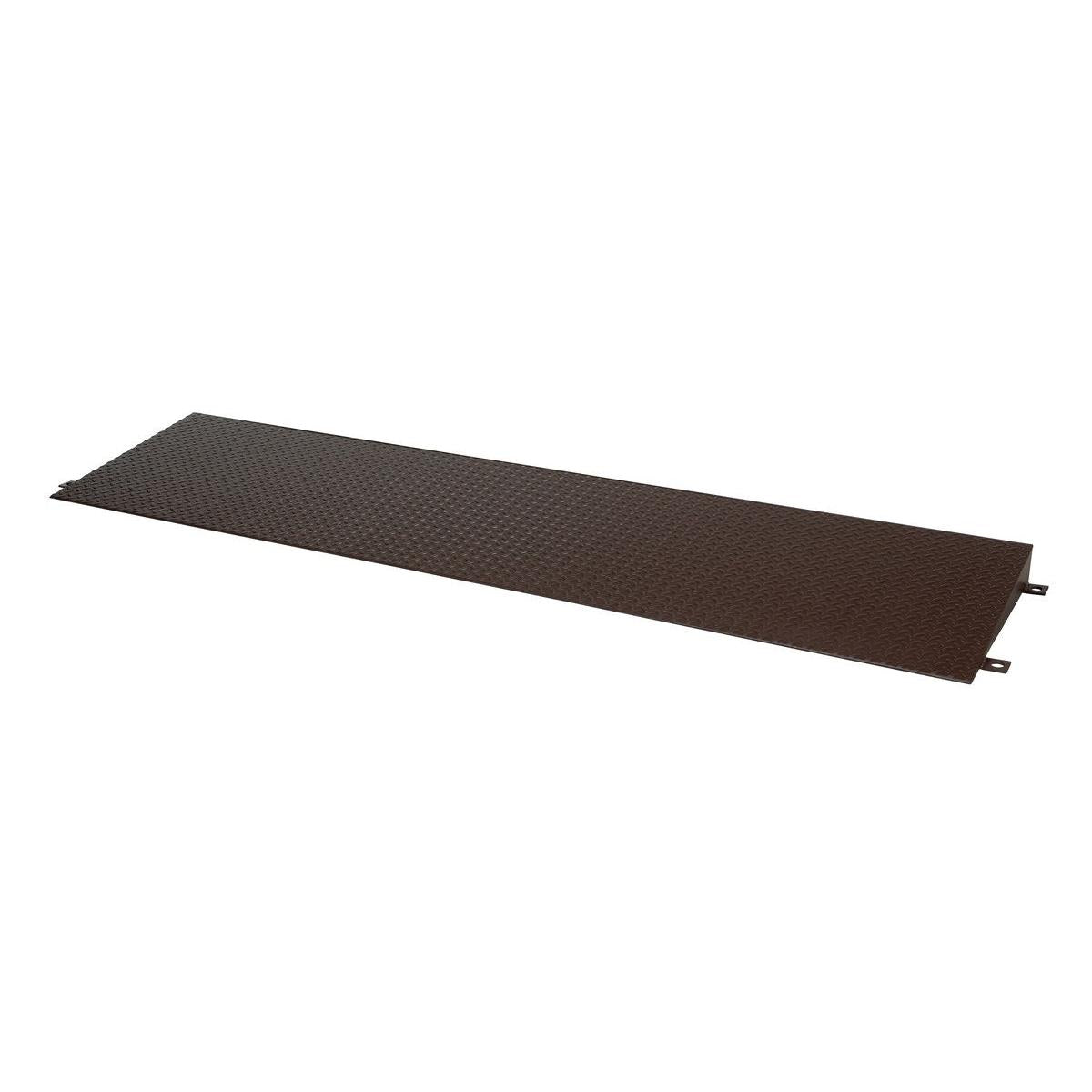

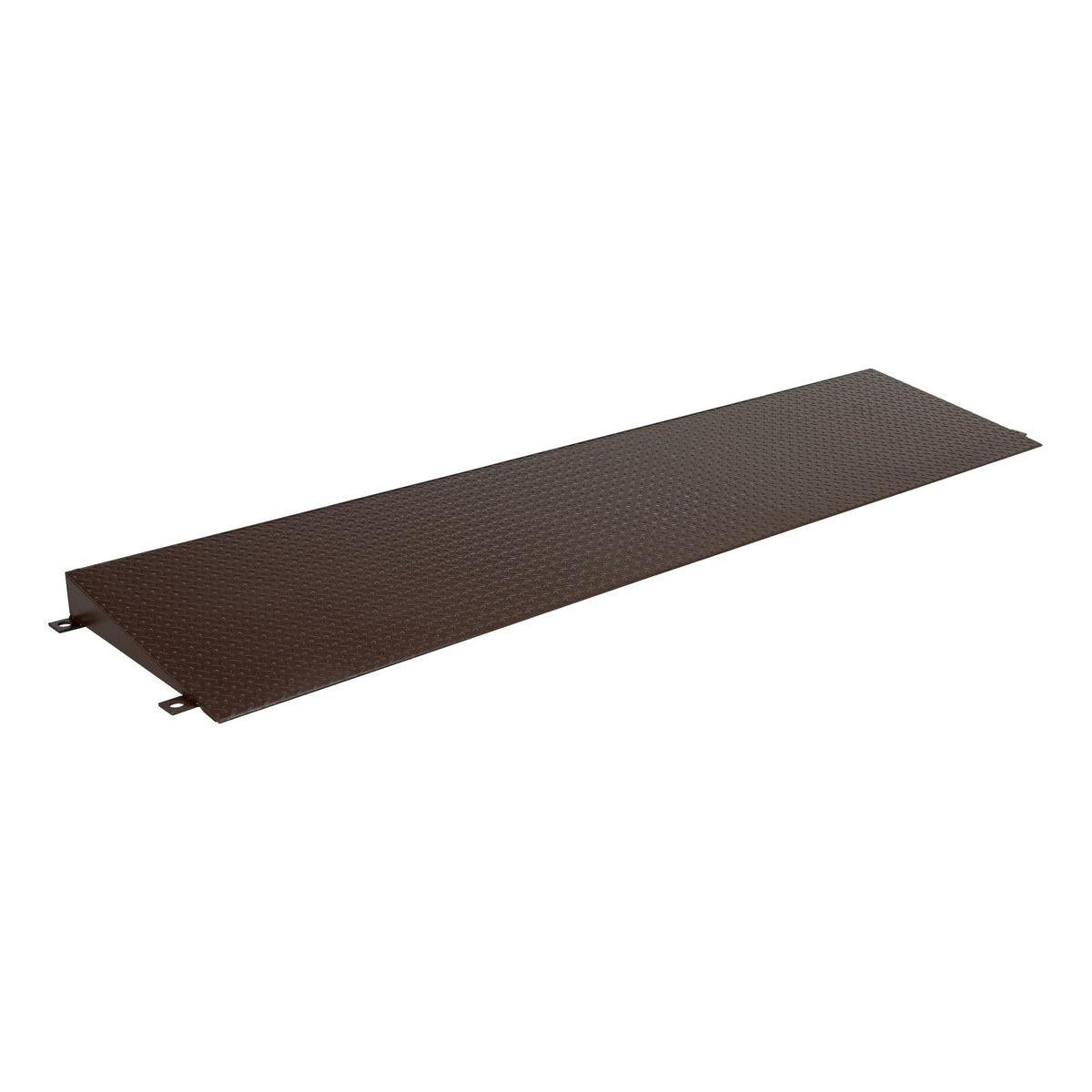

• Quick Mounting: Installs directly to steel dock edge without the need for concrete recess

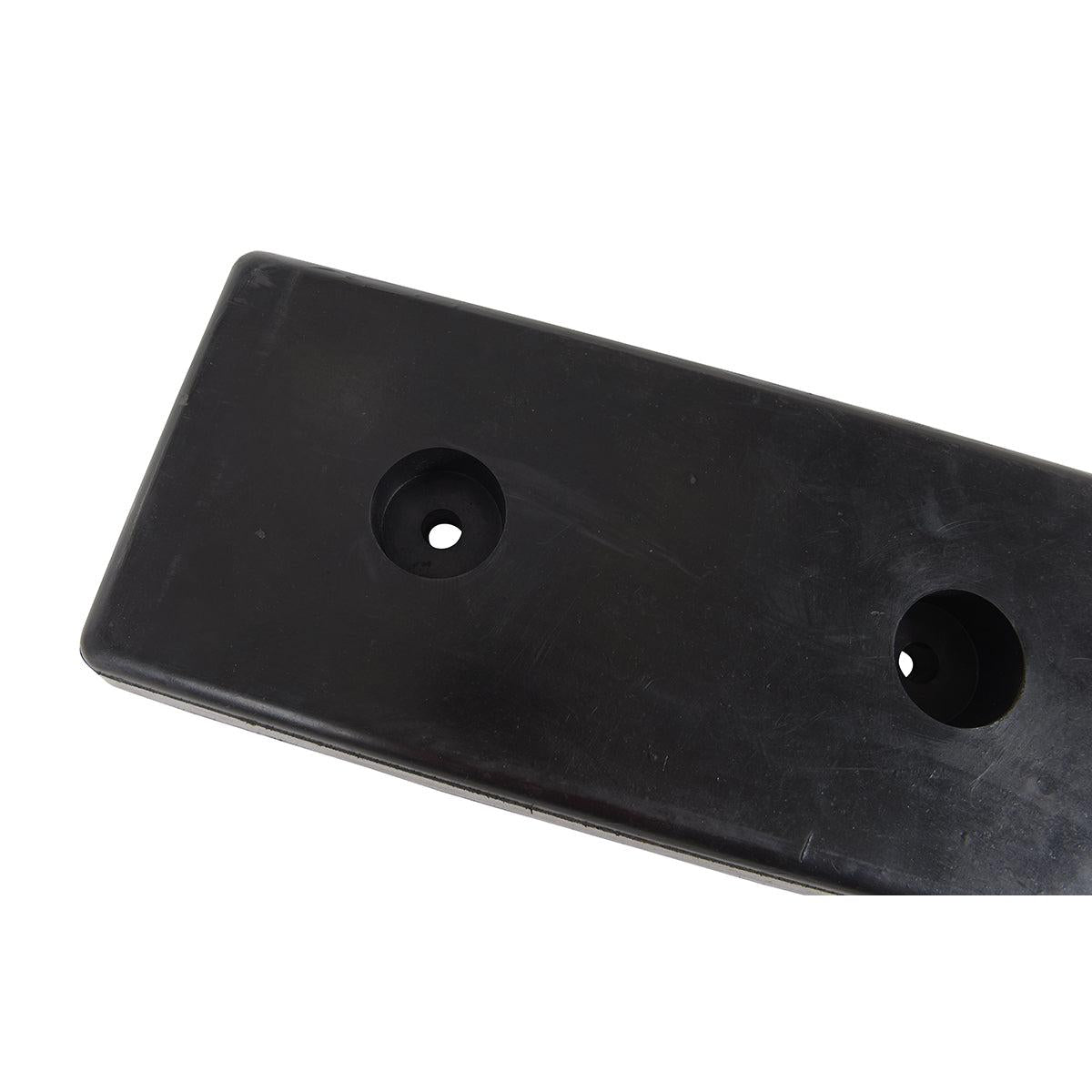

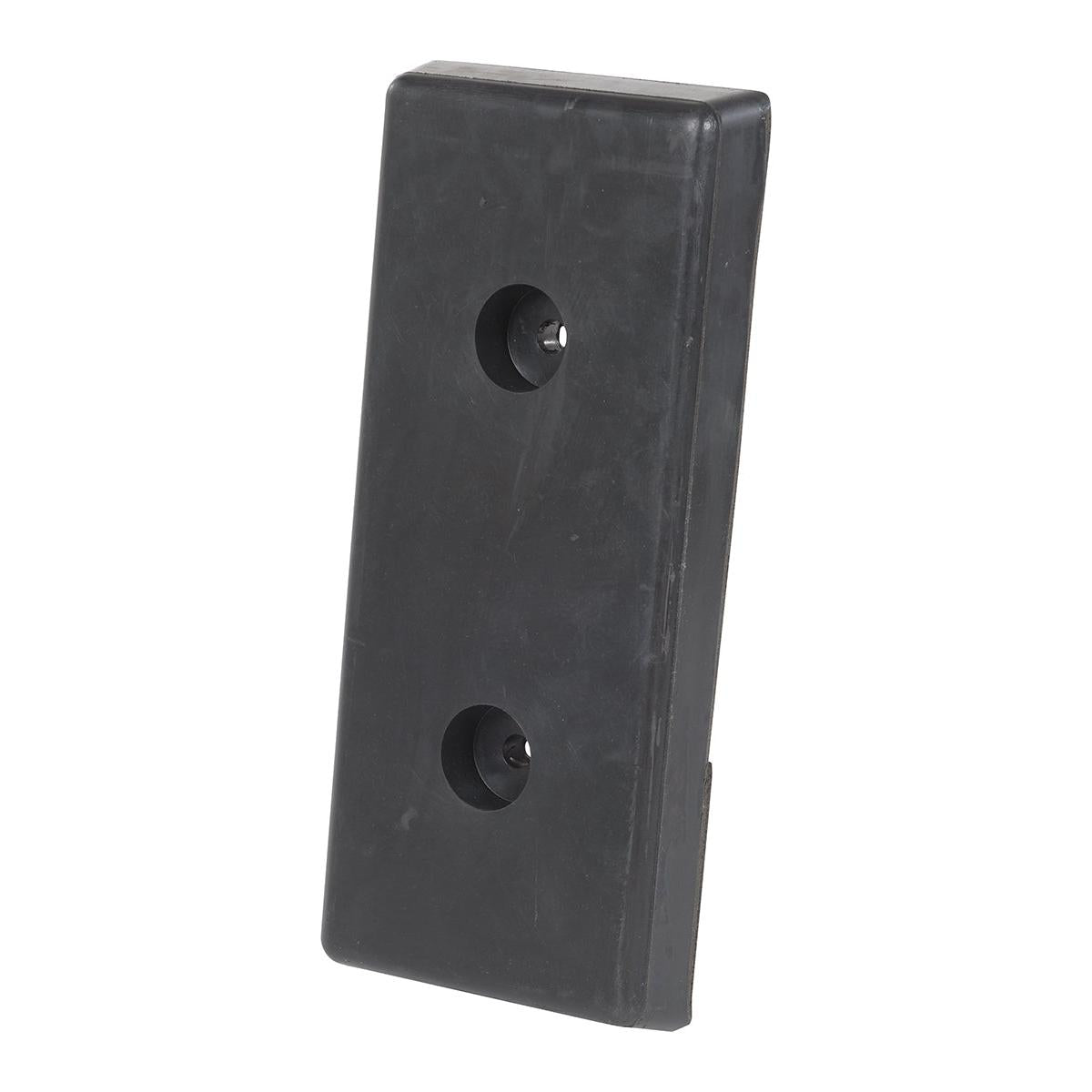

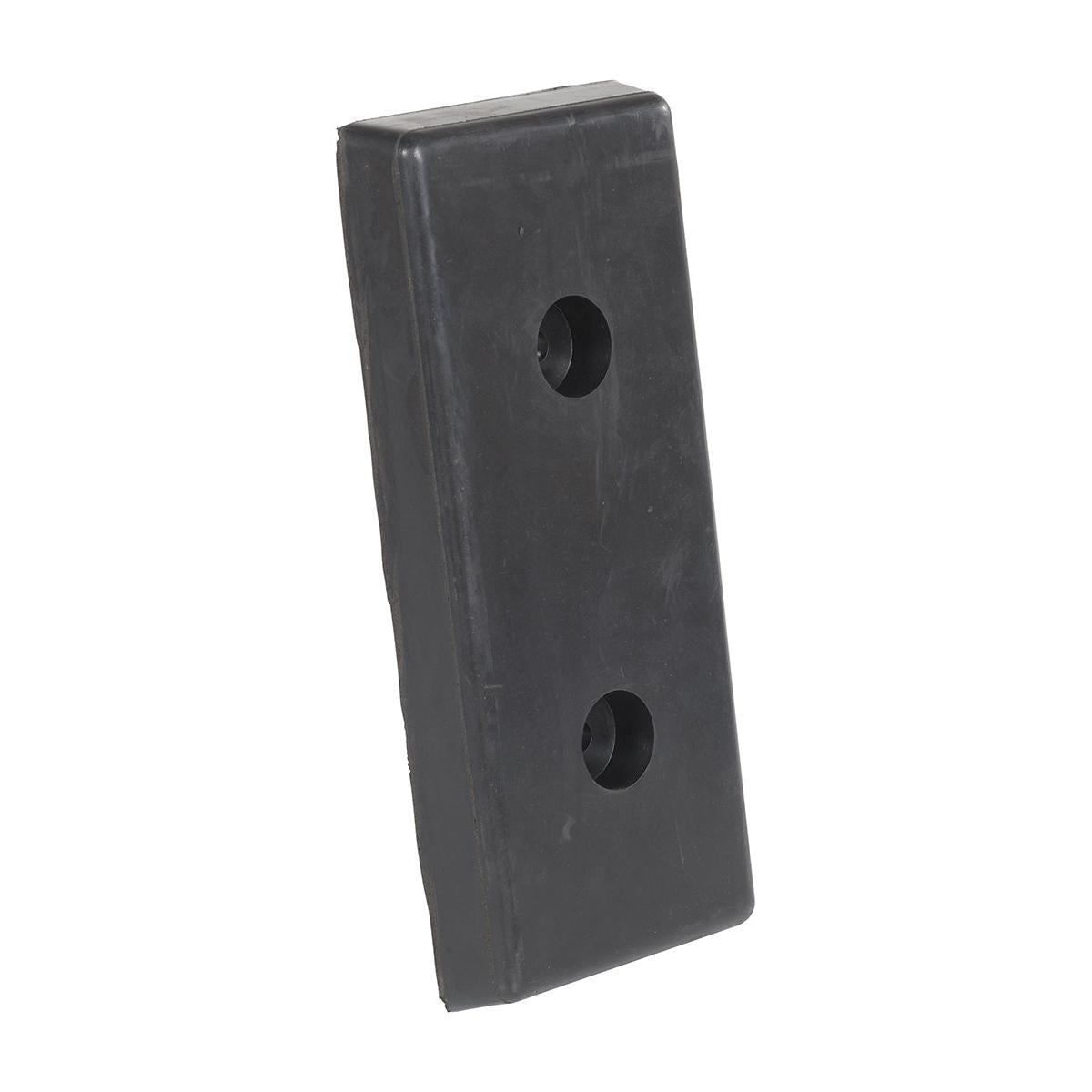

• Complete Kit: Includes rubber bumpers and detailed installation instructions

Additional Information

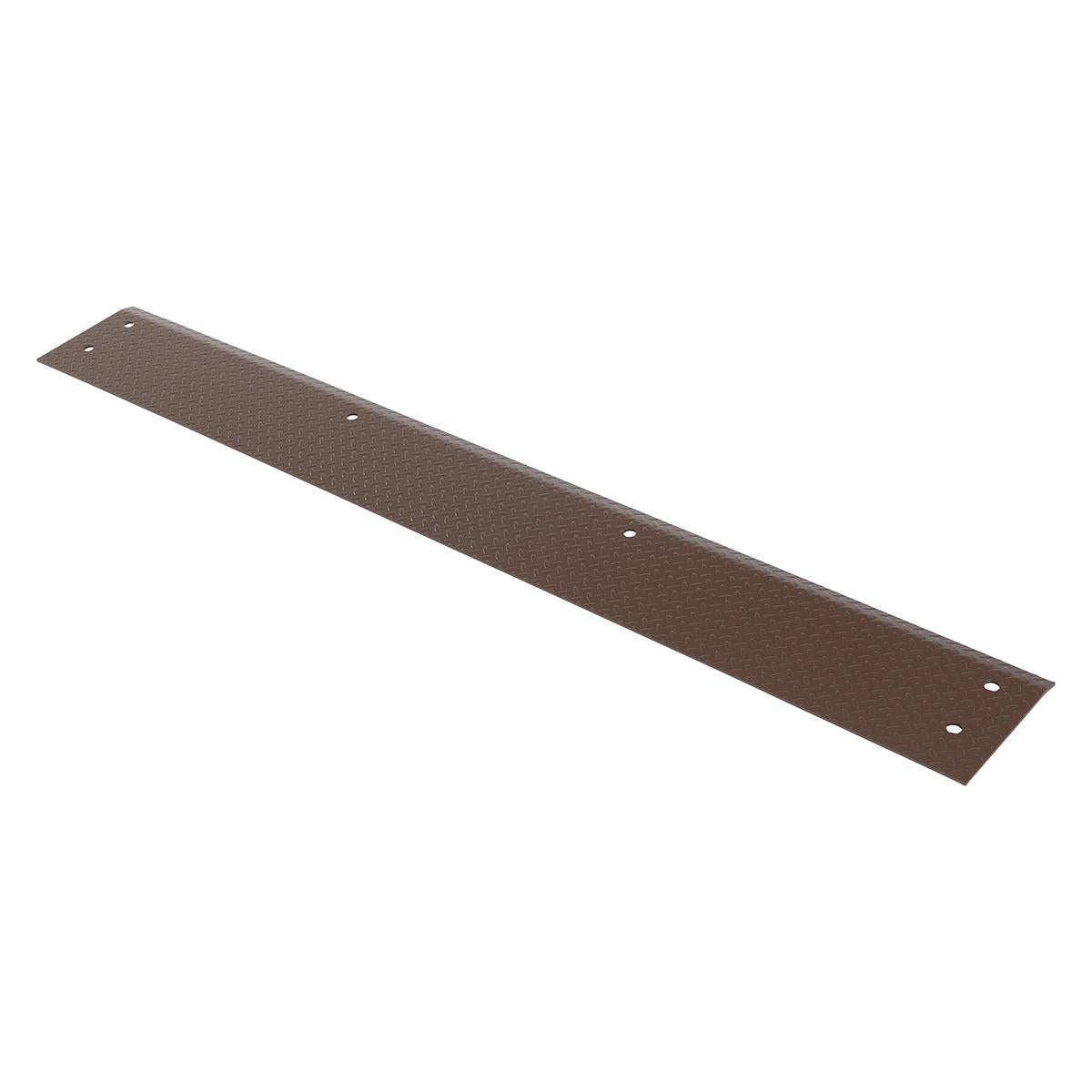

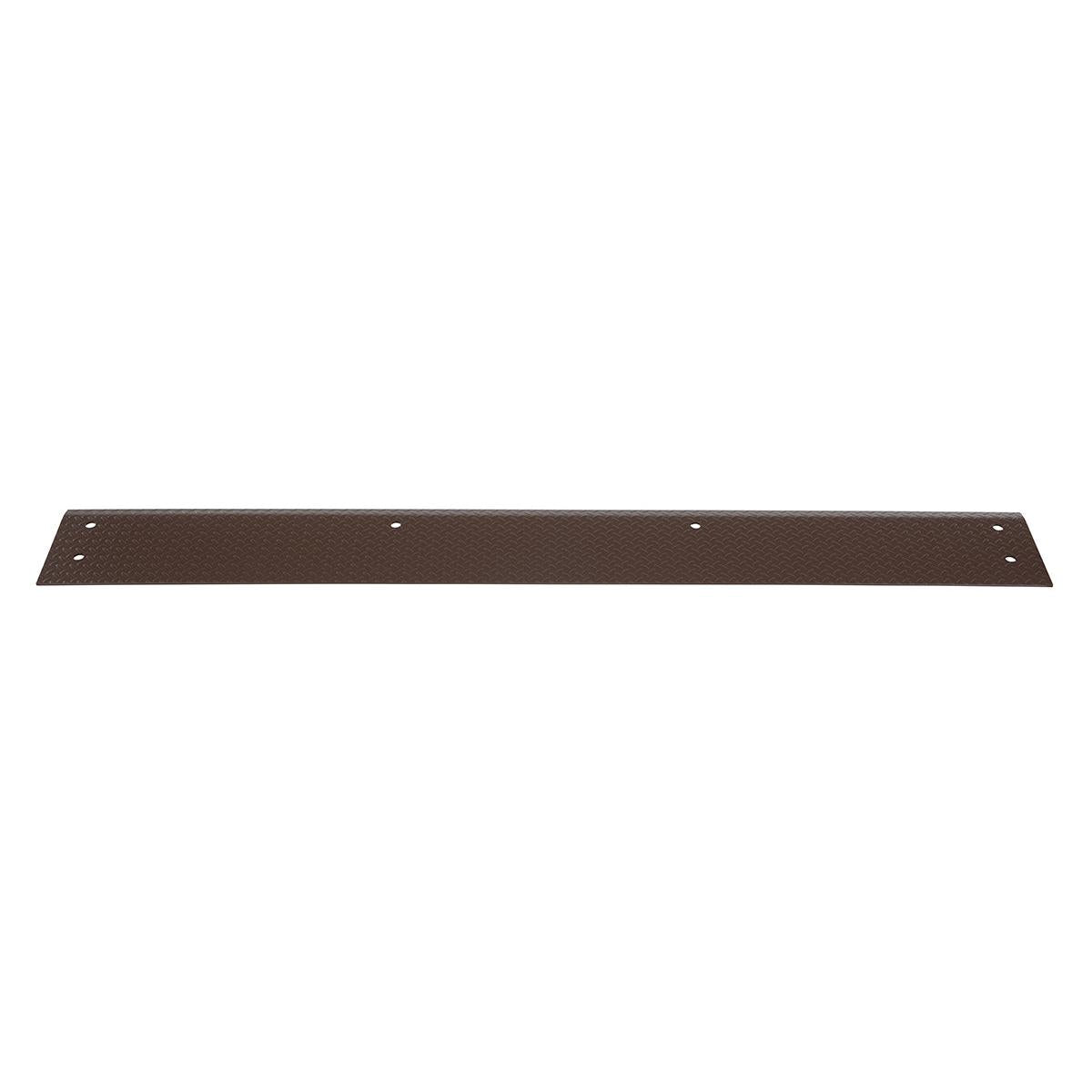

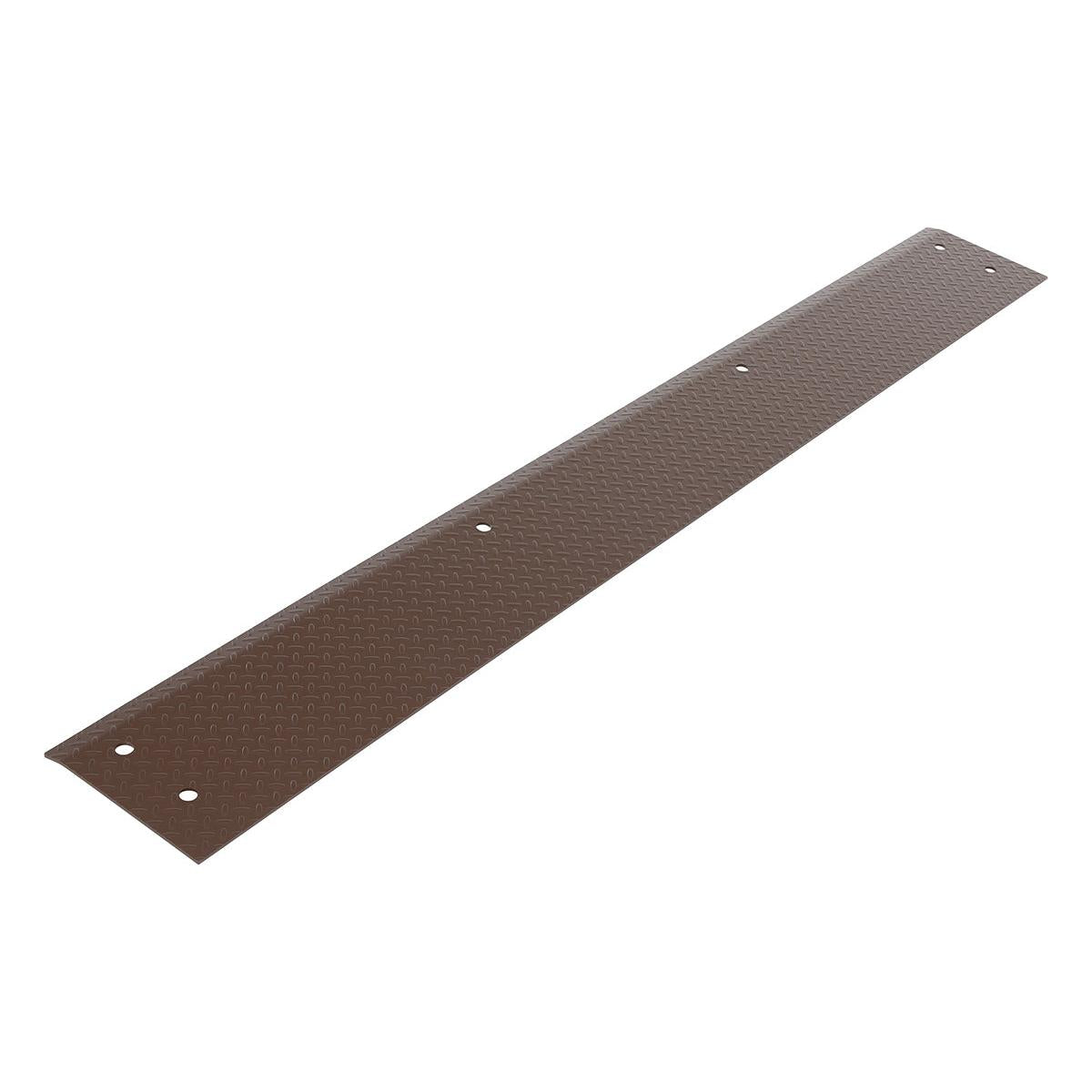

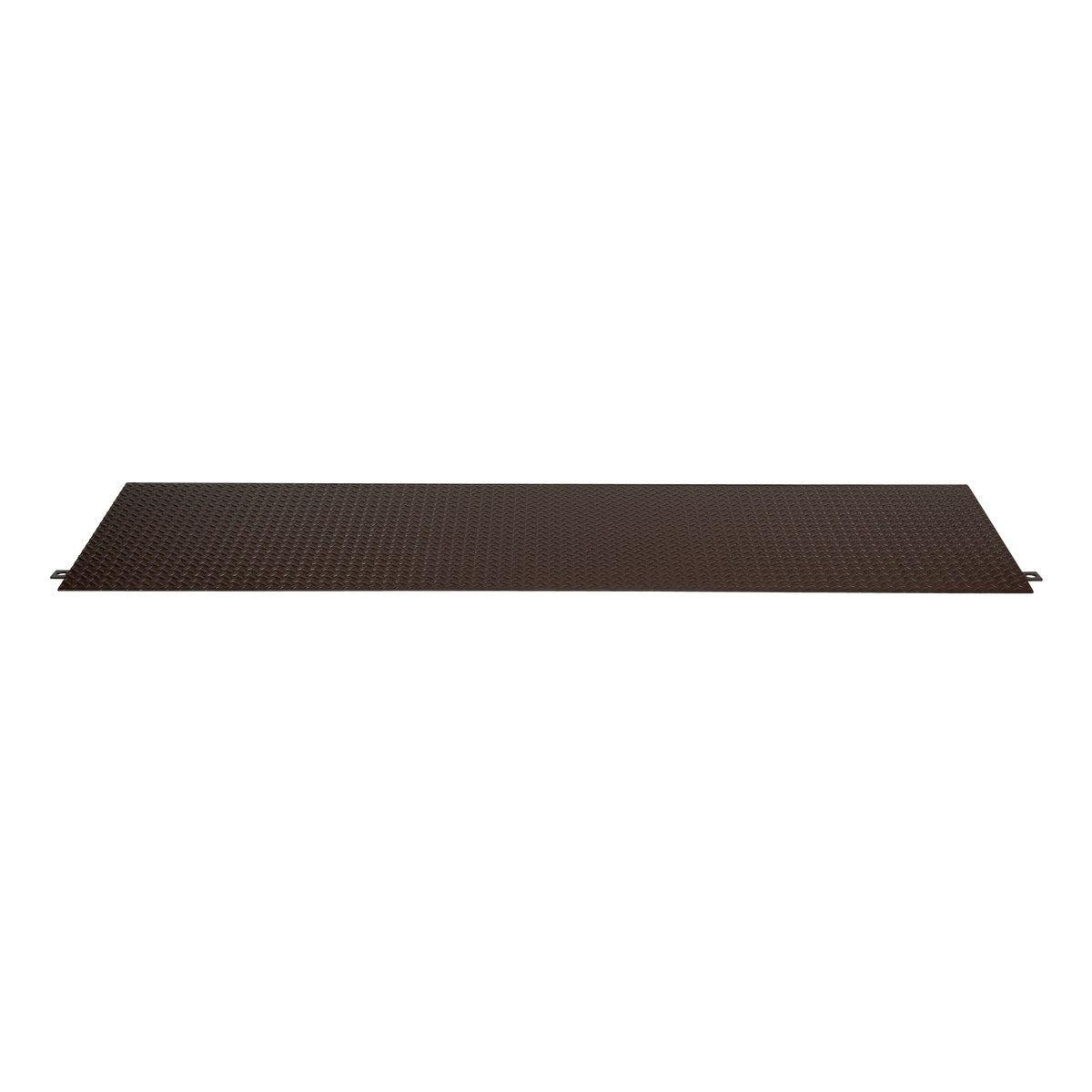

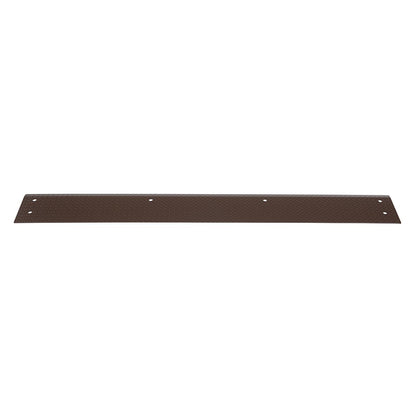

Both models feature a standard ramping length of 29-13/16 inches and are best suited for docks with a minimum height of 48 inches. Installation requires a steel dock edge or appropriate approach ramp. Each unit is finished in brown powder-coated steel for added durability and corrosion resistance, and includes a 1-year manufacturer warranty for peace of mind.

Technical Specifications:

• Uniform Capacity (lbs): 30,000
• Maximum Service Above Dock (in): 5
• Maximum Service Below Dock (in): 5
• Ramp Length (in): 29-13/16

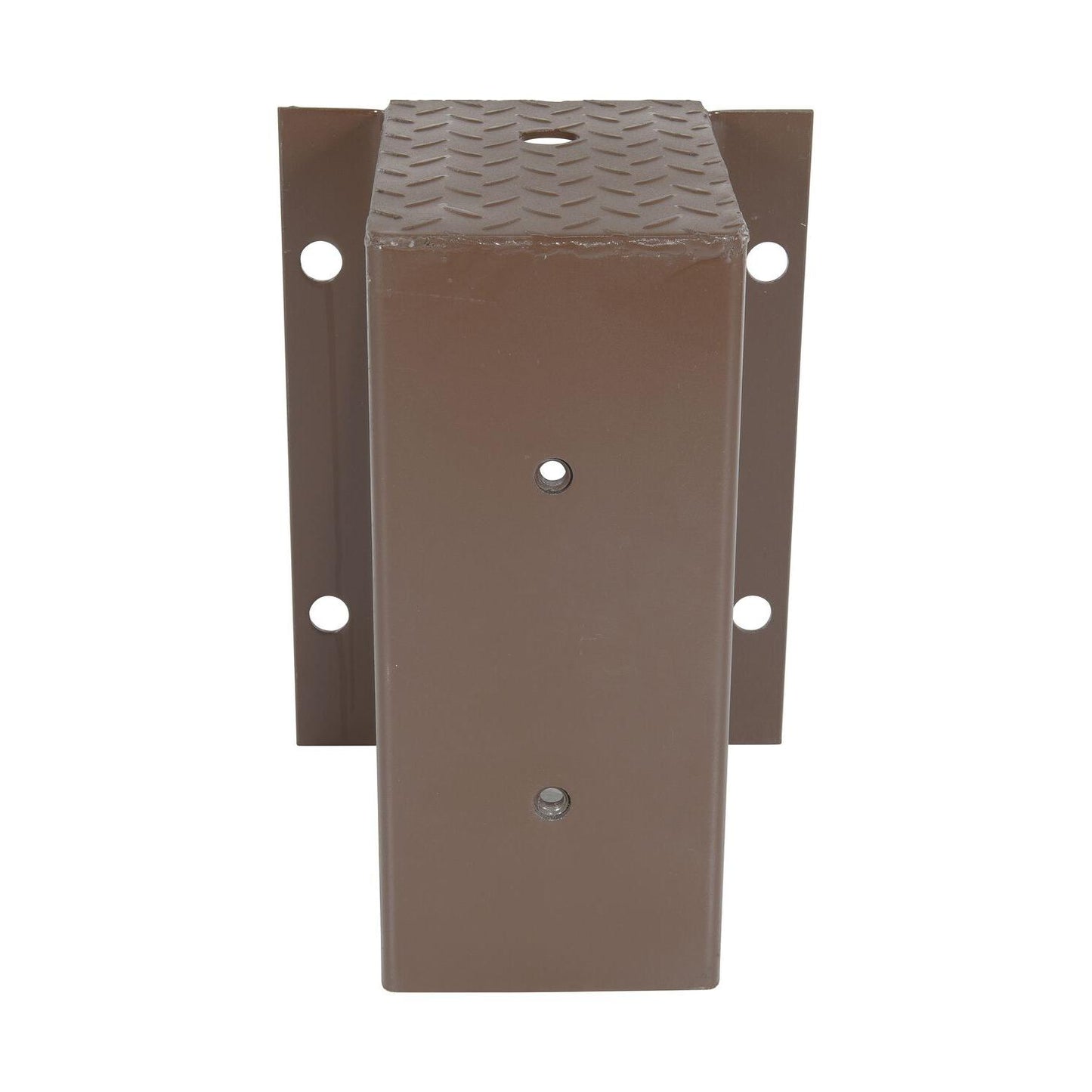

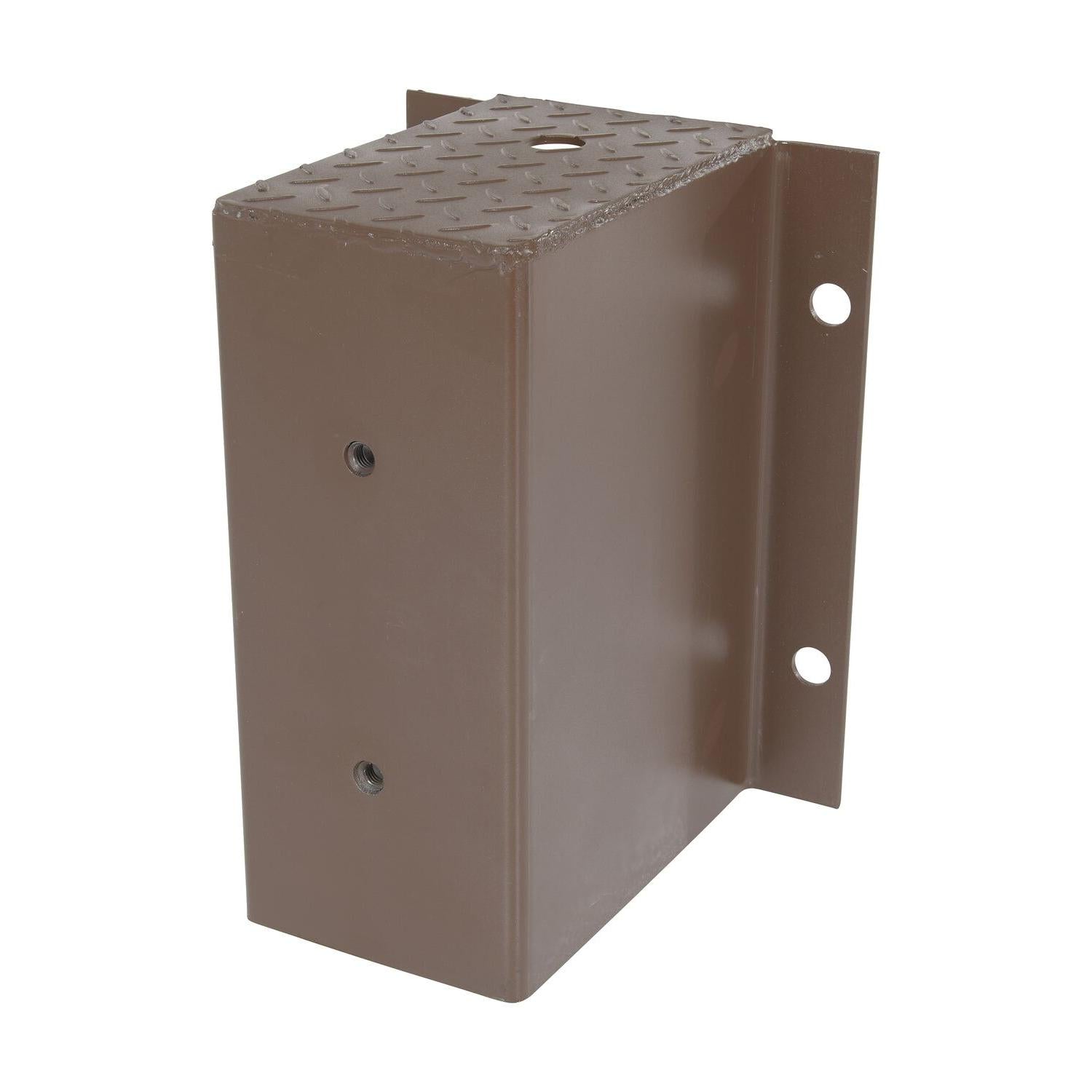

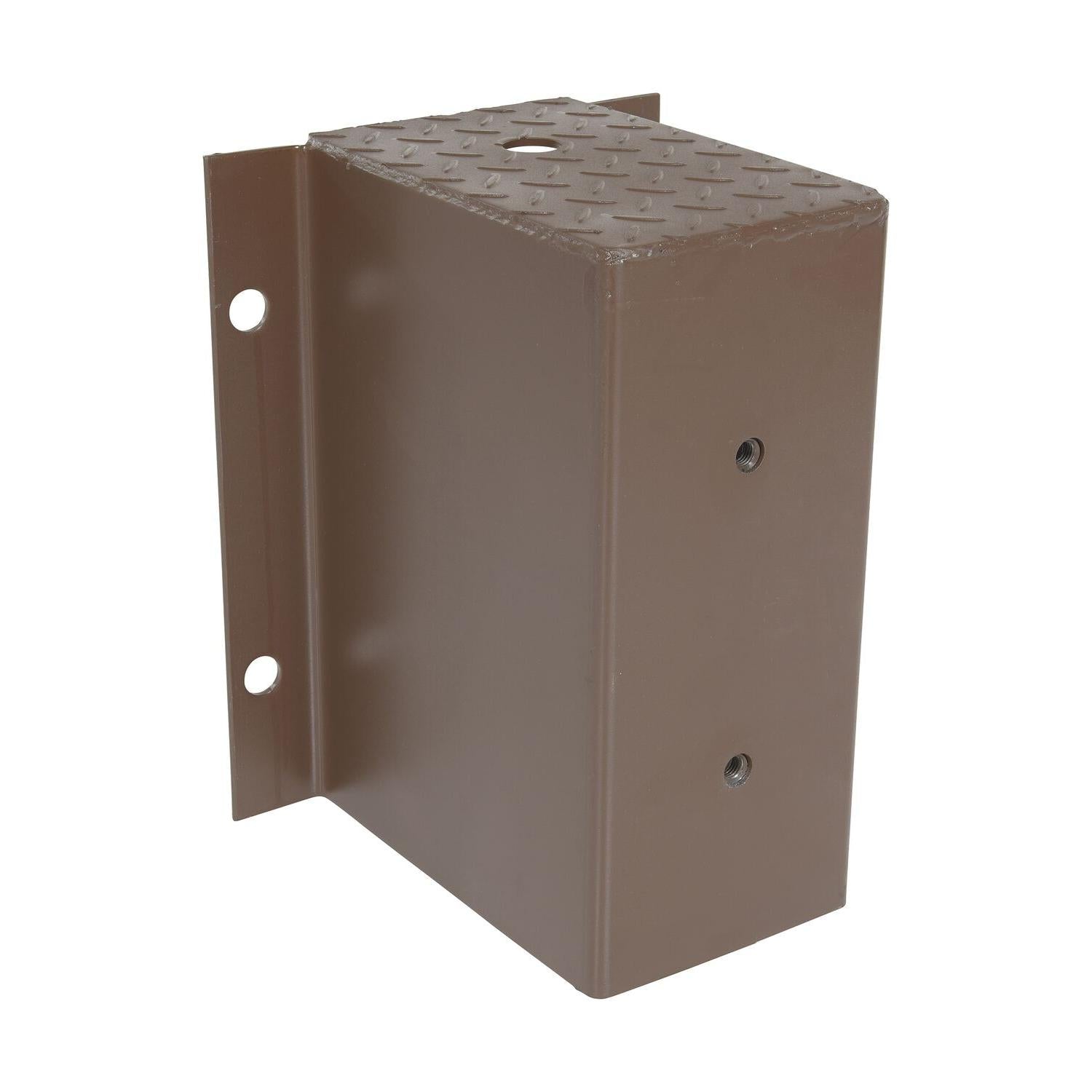

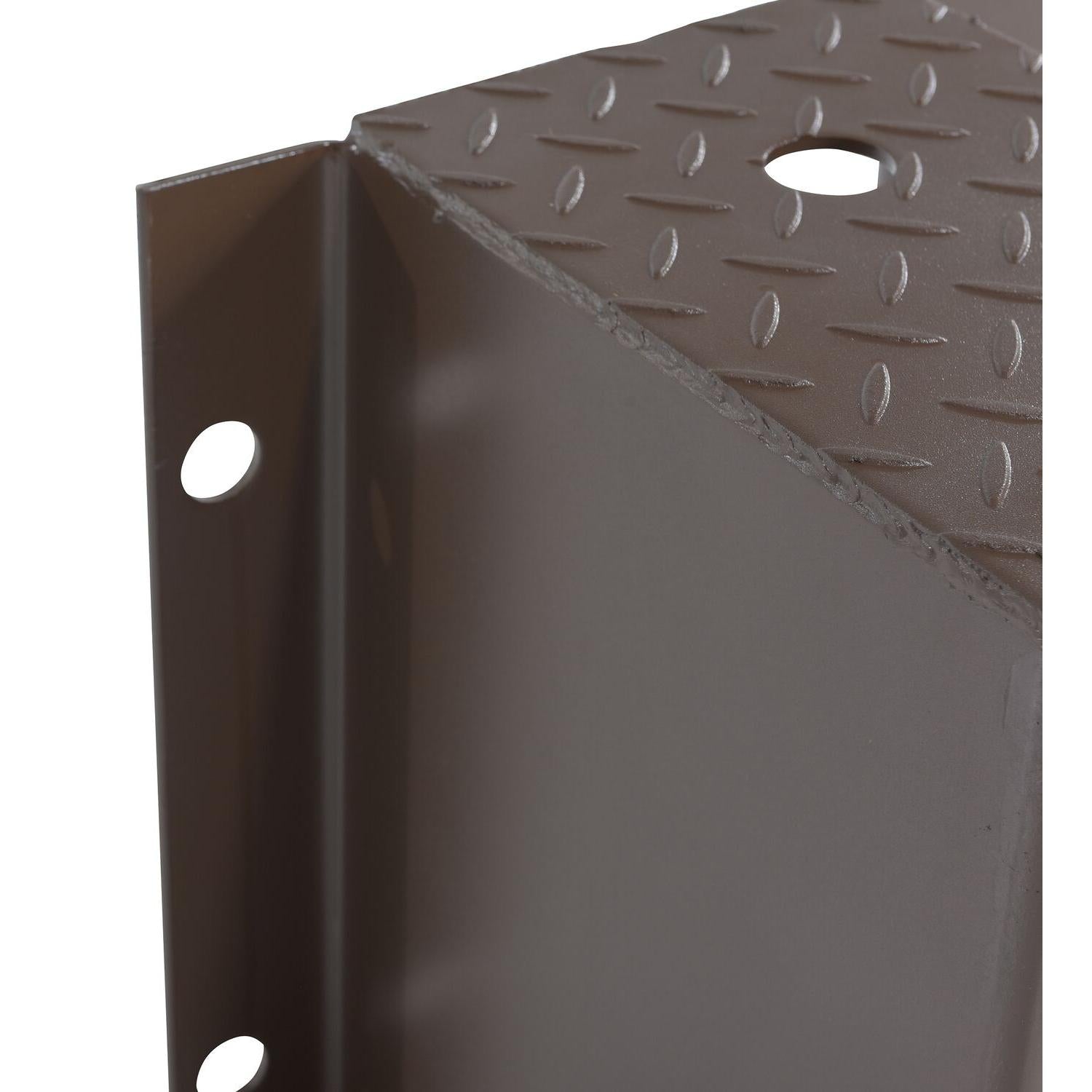

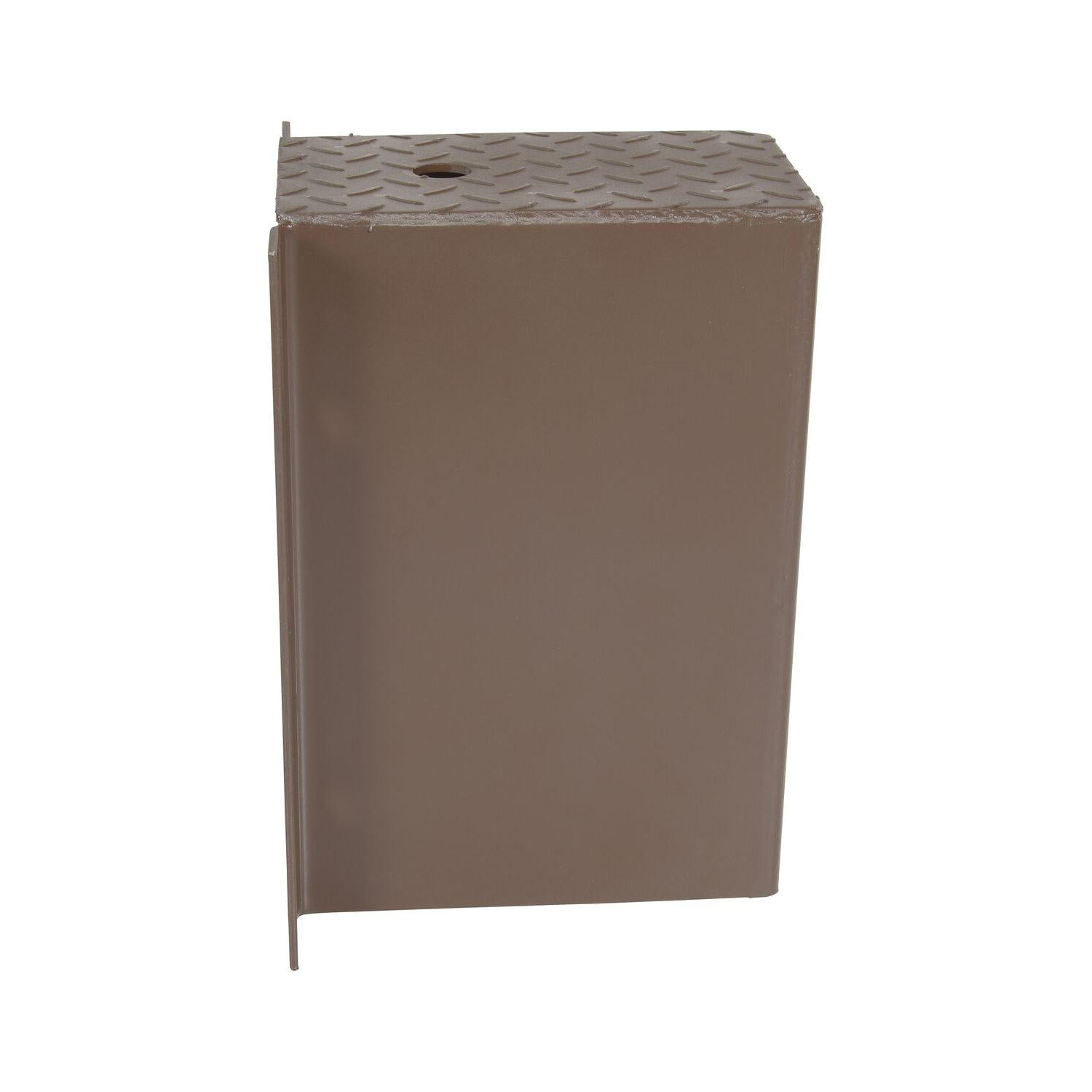

• Bumper Width (in): 8
• Bumper Length (in): 2

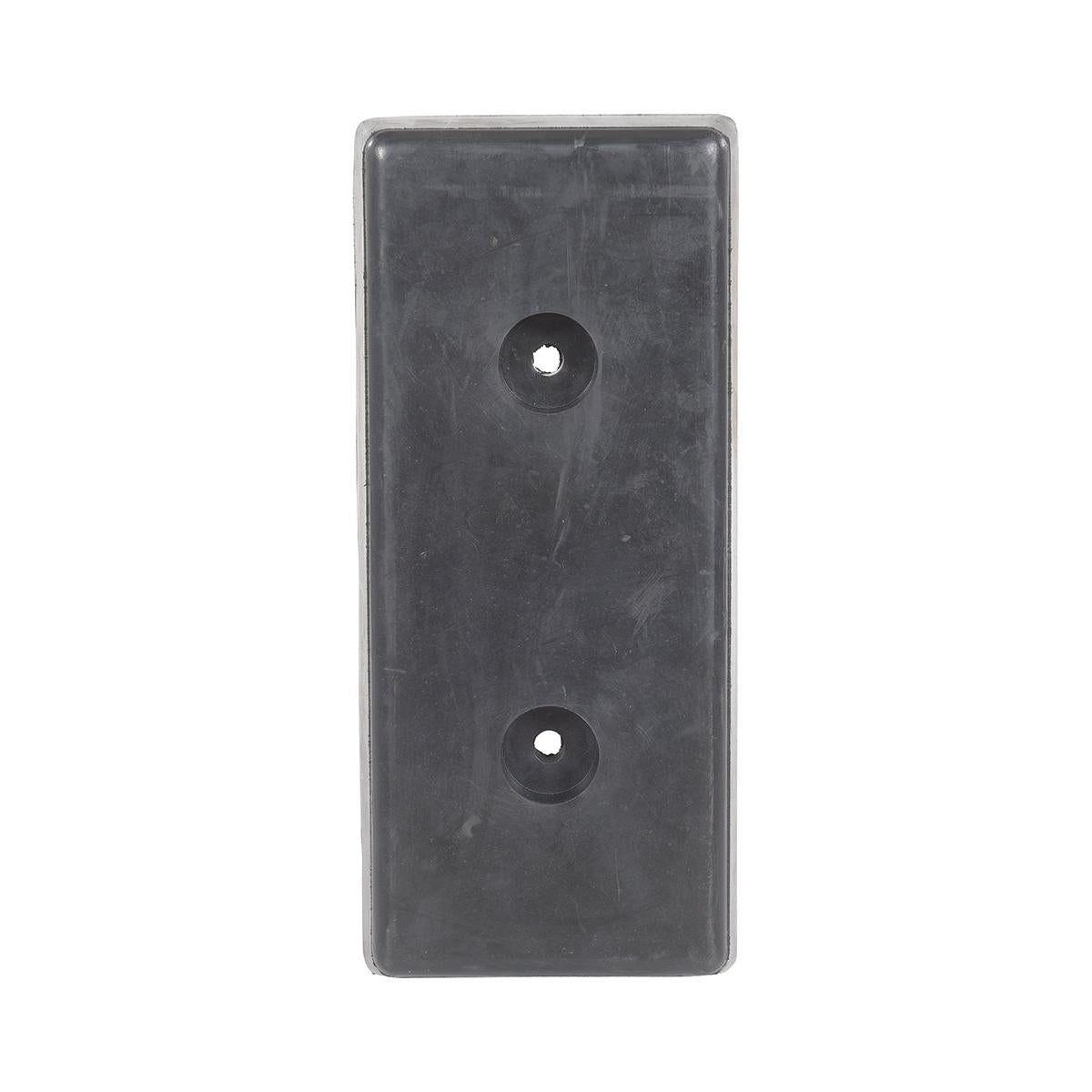

• Bumper Height (in): 18
• Bumper Projection (in): 15
• Dock Leveler Lip Projection (in): 14.81
• Platform Thickness (in): 0.375
• Platform Length (in): 29.8125
• Overall Length (ft): 1.25
• Platform Material: Steel
• Color / Finish: Brown
• Assembly Required: Yes
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required: No

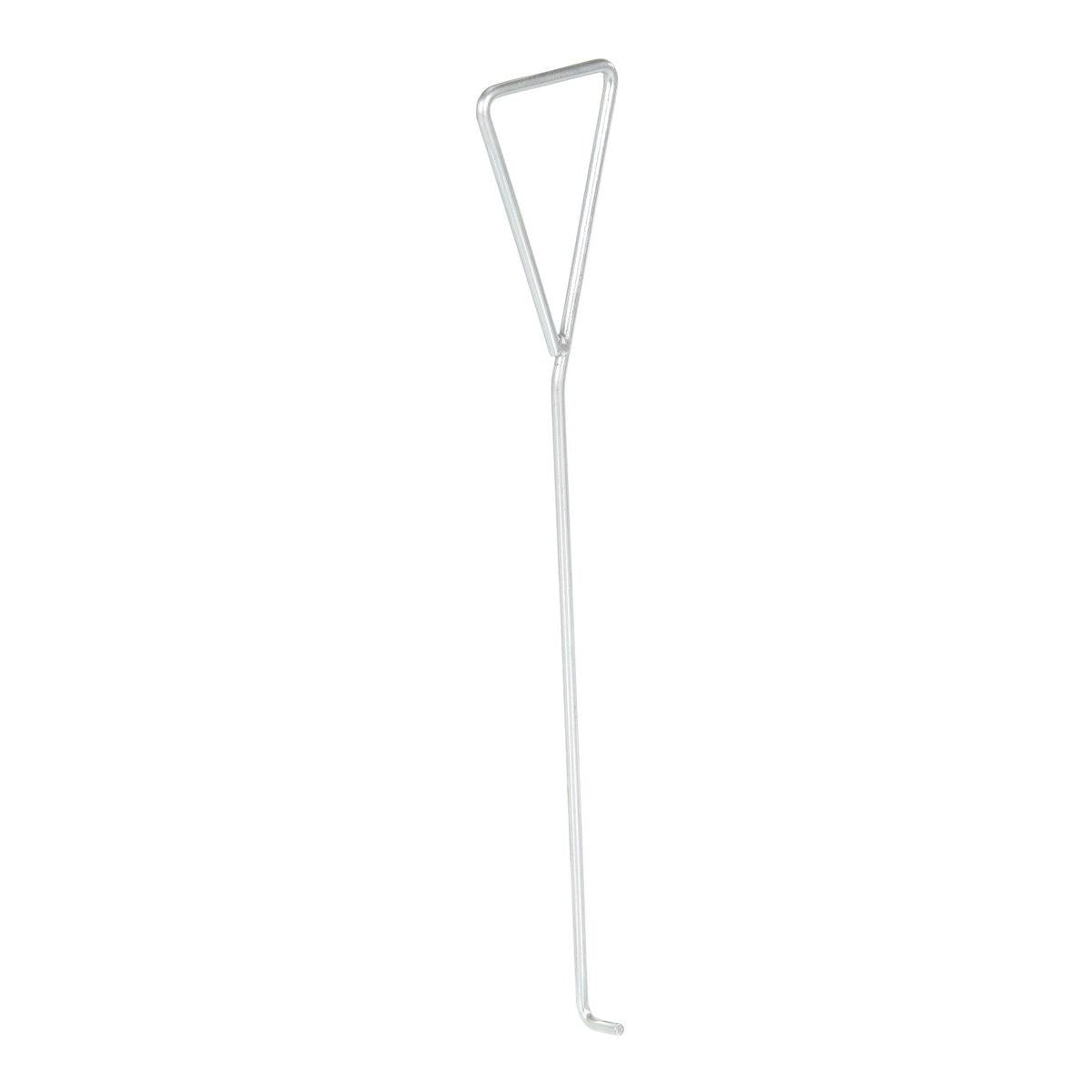

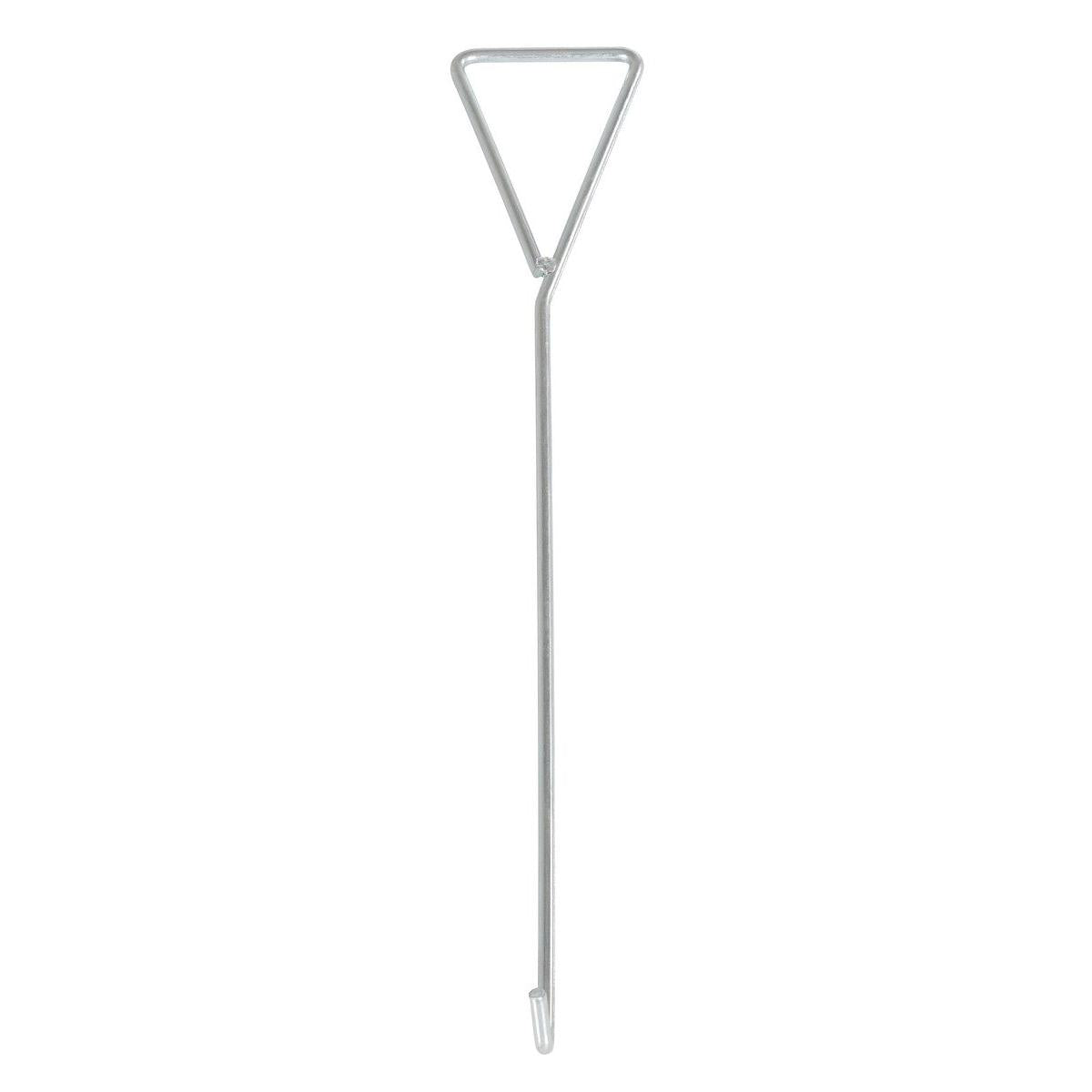

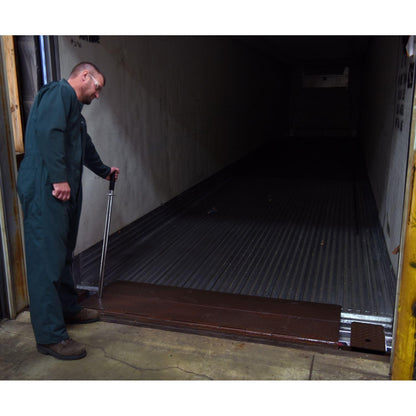

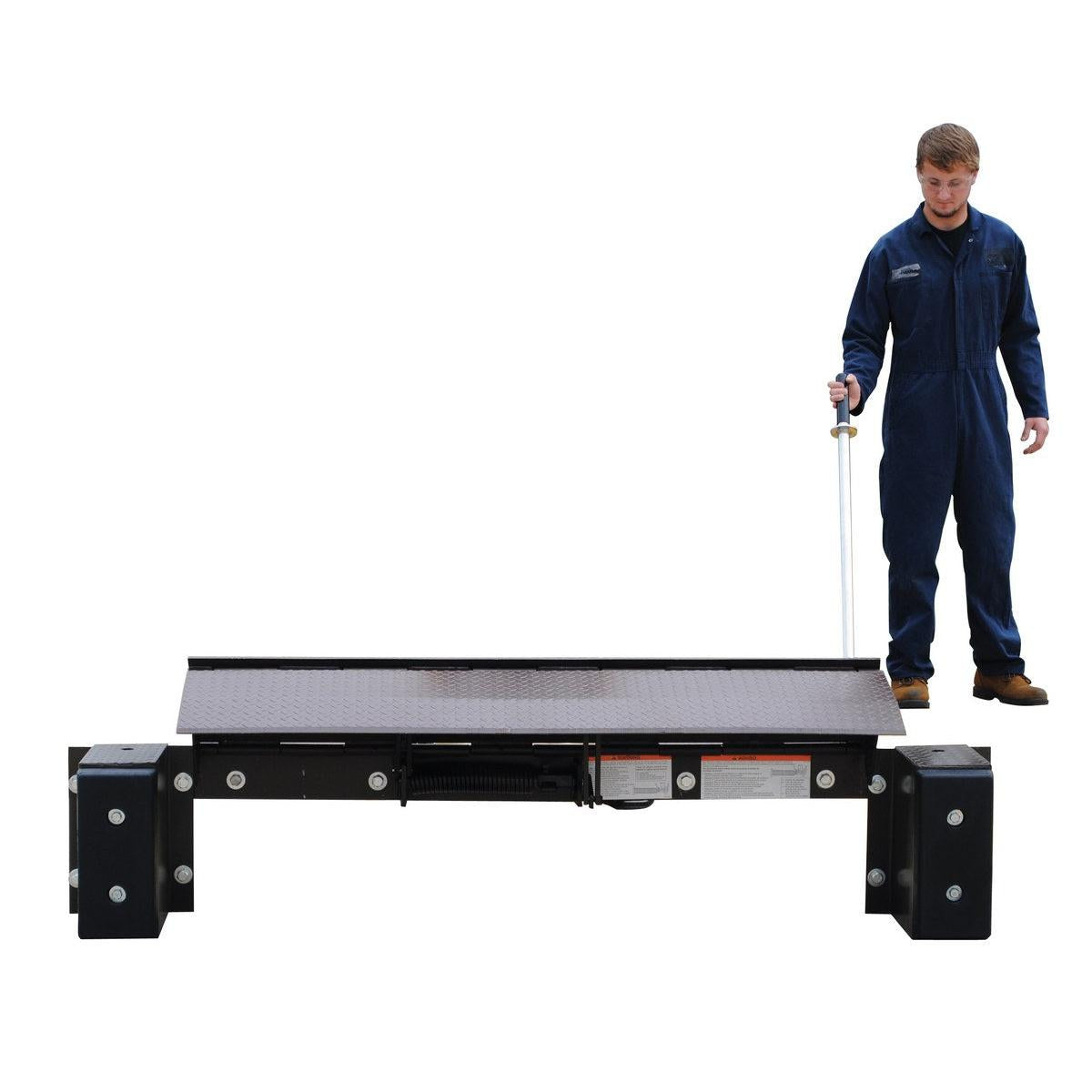

• Dock Leveler Operating Method: Actuation Handle / Mechanical
• Installation Method: Permanent Installation to Face of Dock
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year
