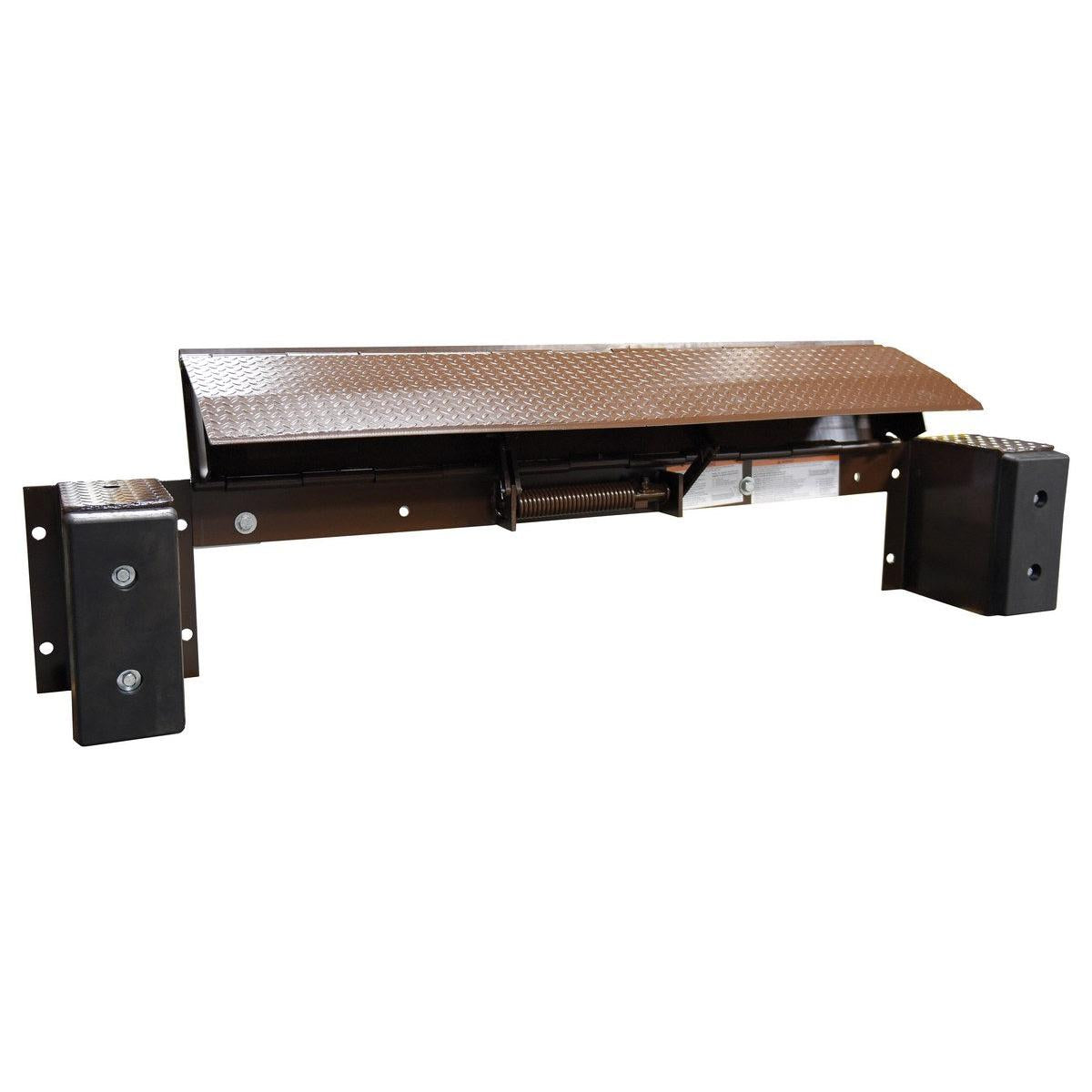

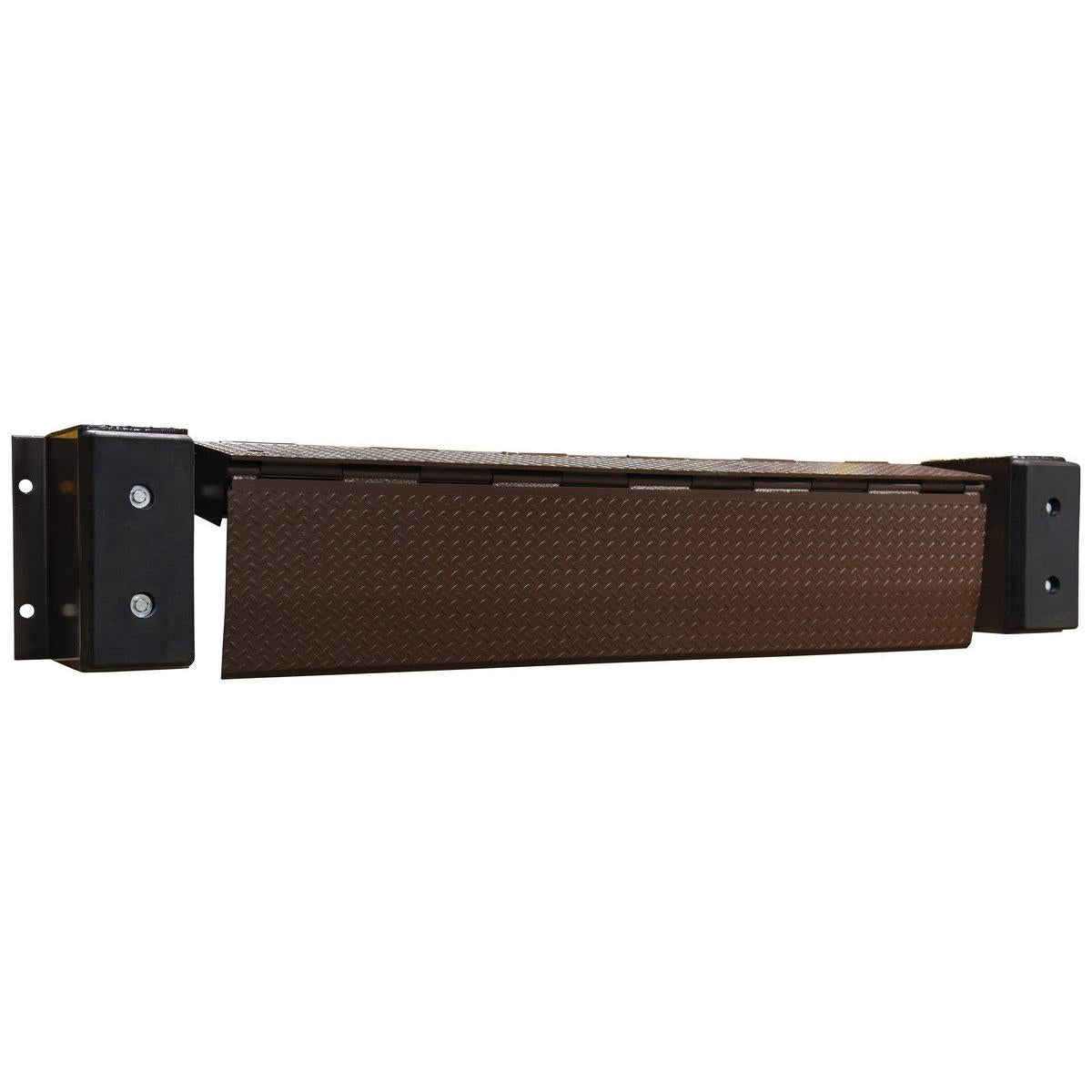

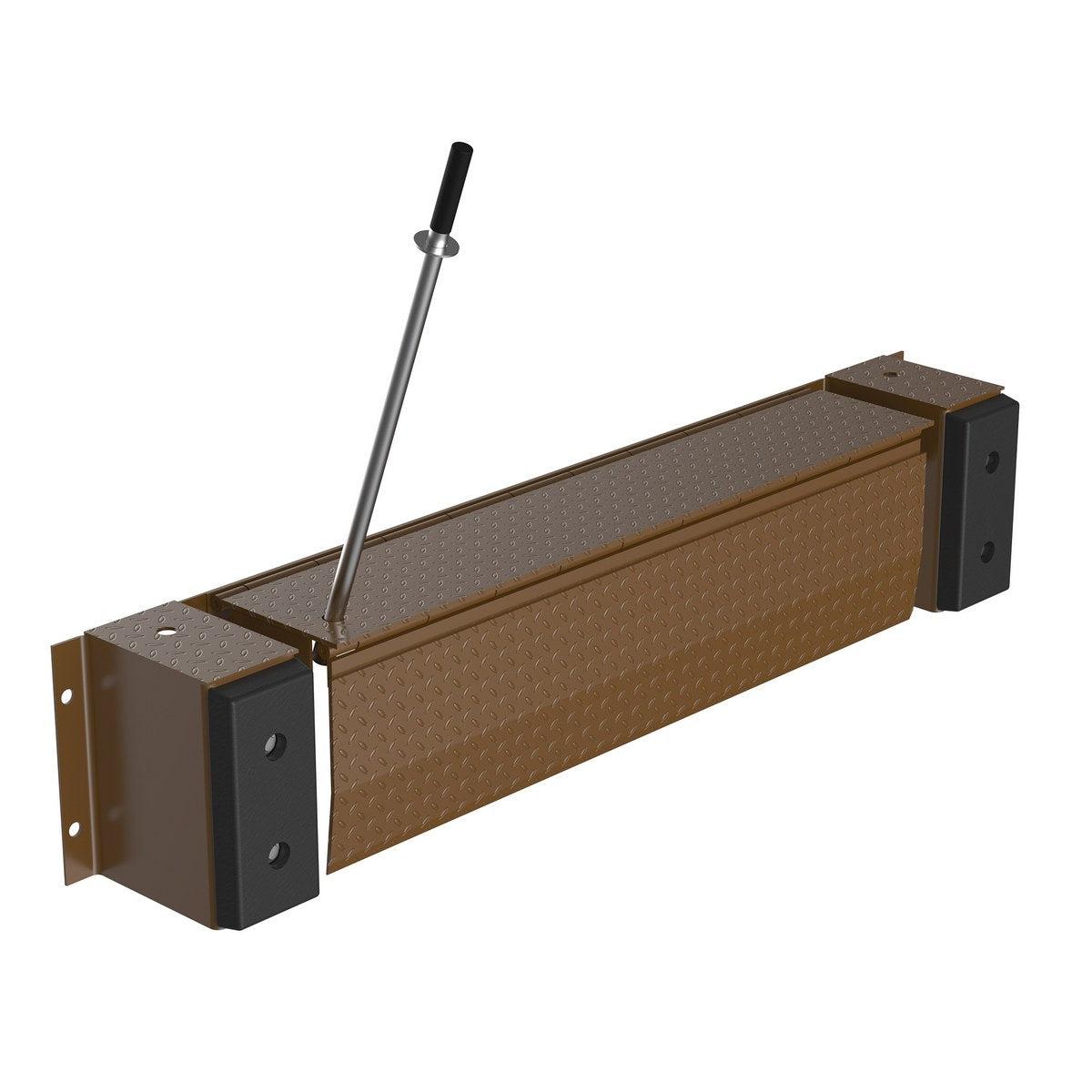

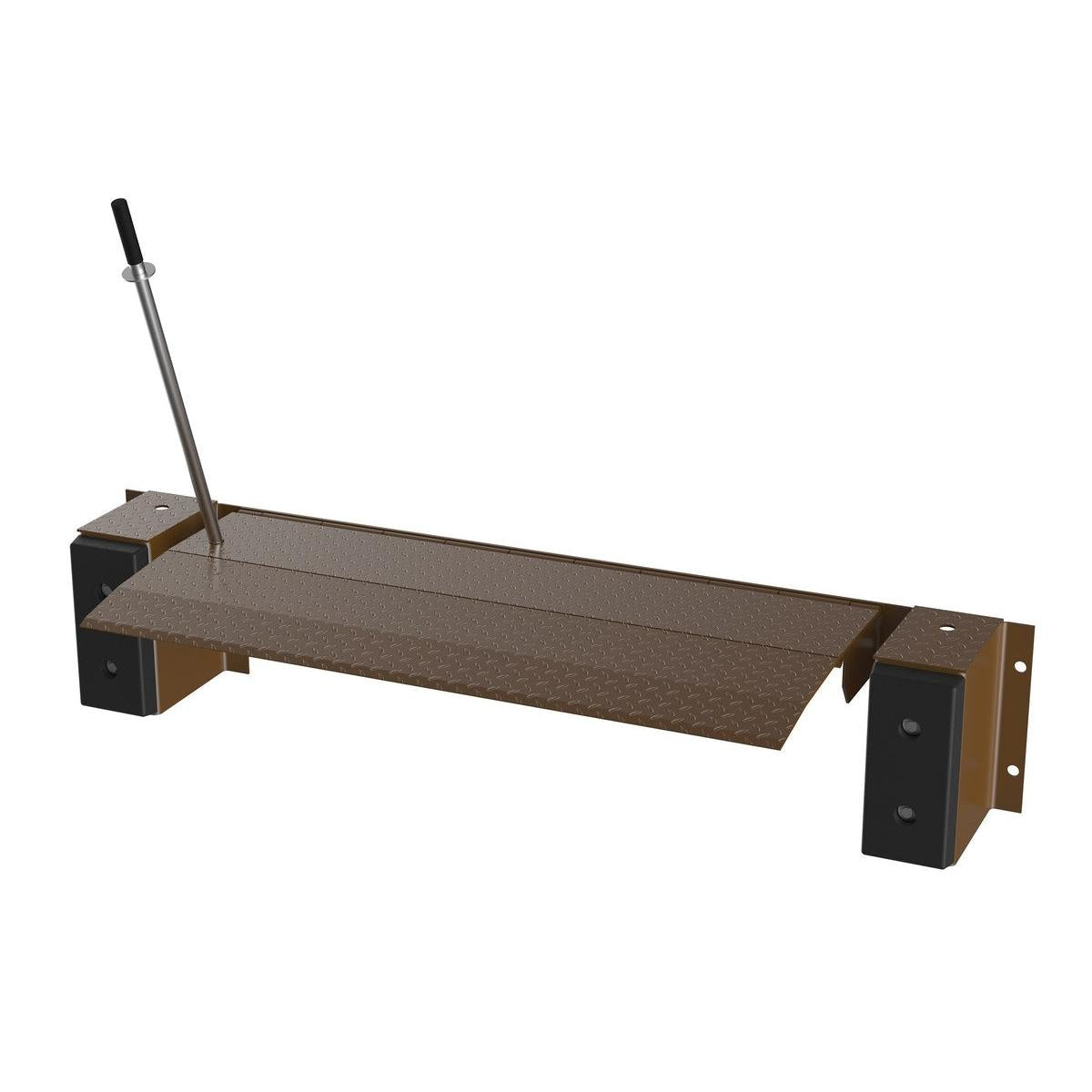

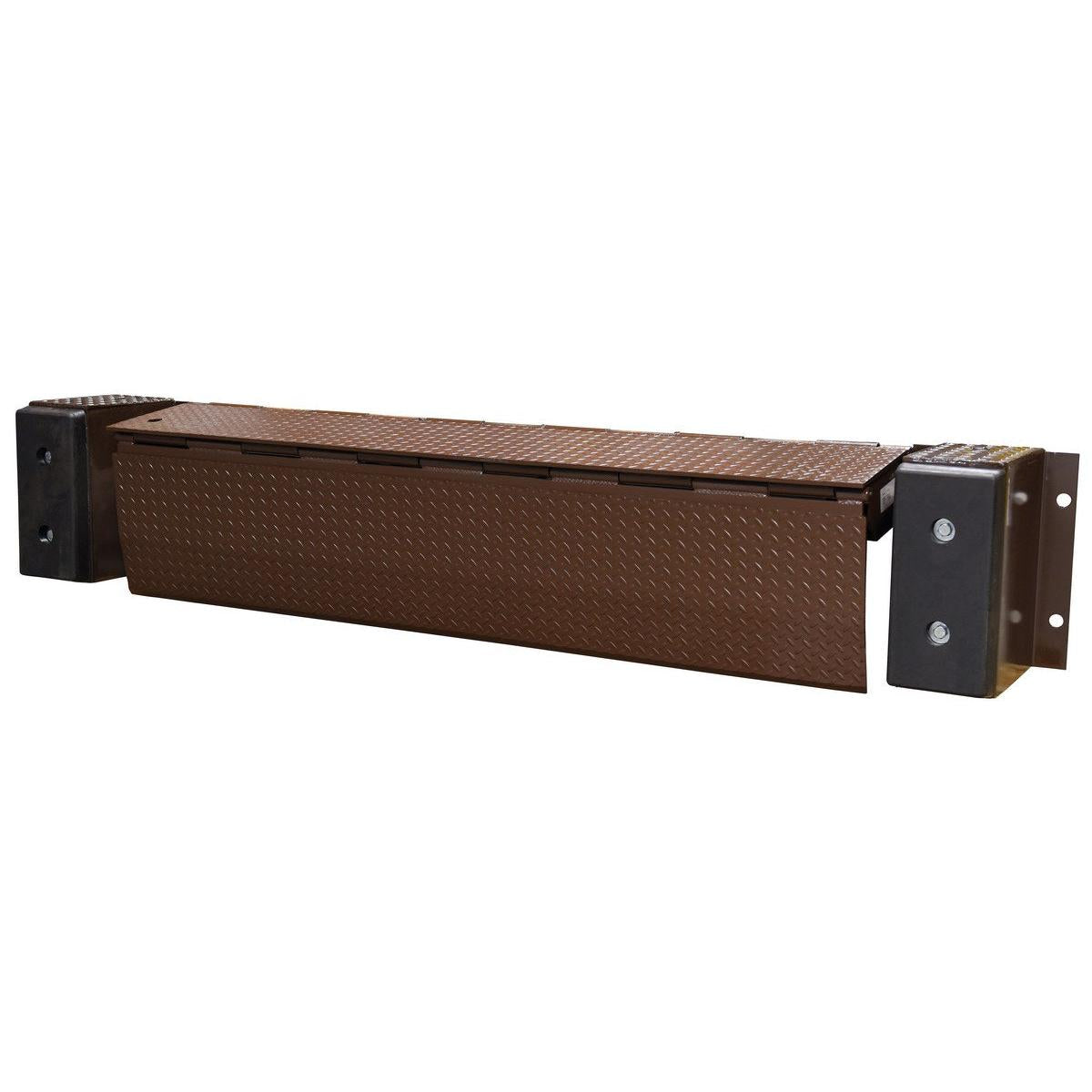

Steel Mechanical Edge-O-Dock Levelers – 20,000 lb. Capacity Series (66", 72", 78" Ramp Width Options)

The Steel Mechanical Edge-O-Dock Leveler Series is engineered to provide efficient and durable dock-to-truck bridging for high-volume loading operations. Permanently mounted to the face of the dock, each unit delivers a seamless transition from the dock floor to the truck bed, enhancing loading safety and reducing downtime. Ideal for facilities with a consistent dock height of 48 inches or higher, these levelers are perfect for operations where a full pit-style leveler is not feasible.

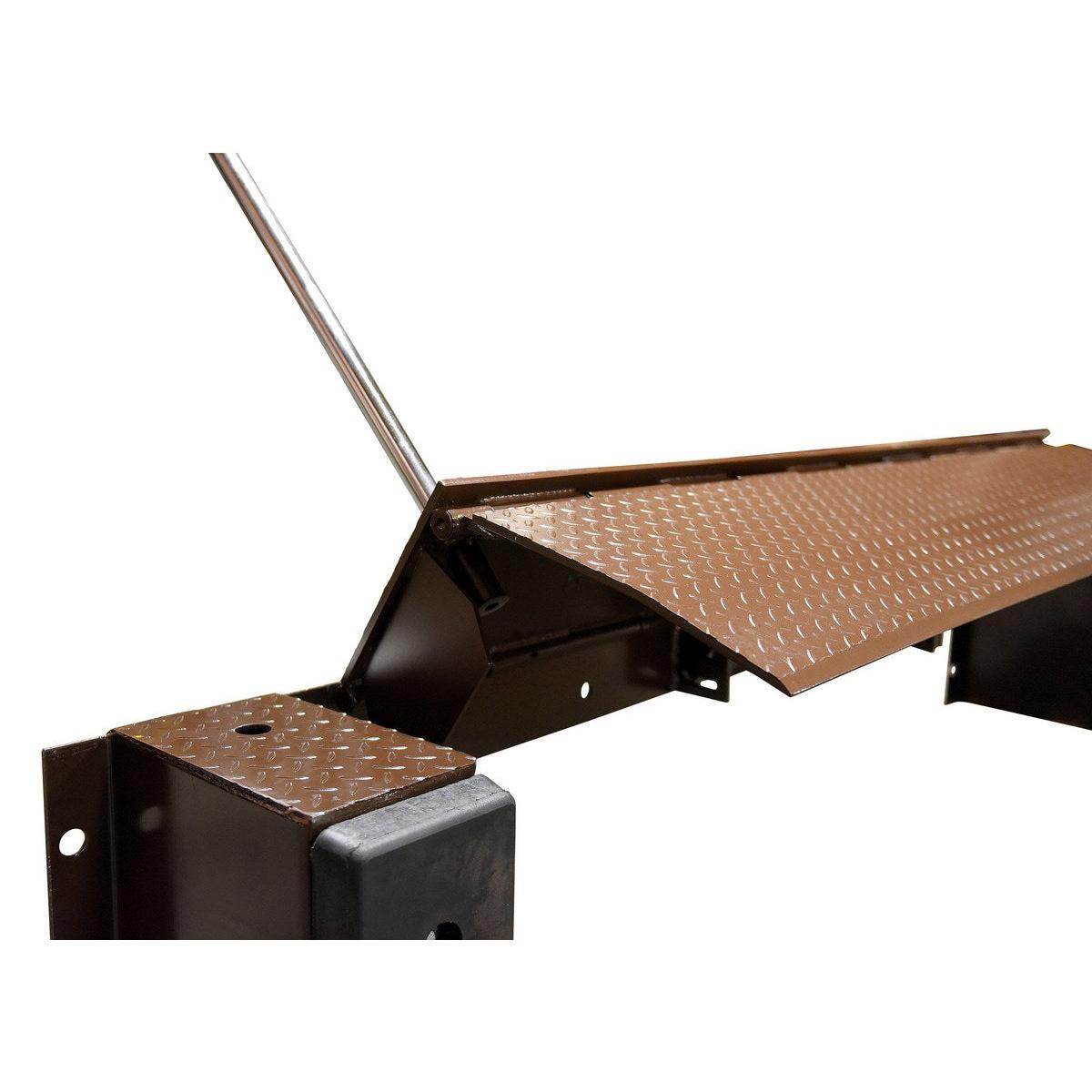

Constructed from high-strength steel with a non-slip tread plate surface, these levelers are built to withstand the demands of daily industrial use. They are manually operated using a simple actuation handle and include bumpers and installation hardware for fast setup. When not in use, the lip retracts automatically behind the bumper face to avoid interference.

Features & Benefits:

• 20,000 lb. load capacity for heavy-duty loading operations
• Permanently attaches to the dock face - no concrete recess required

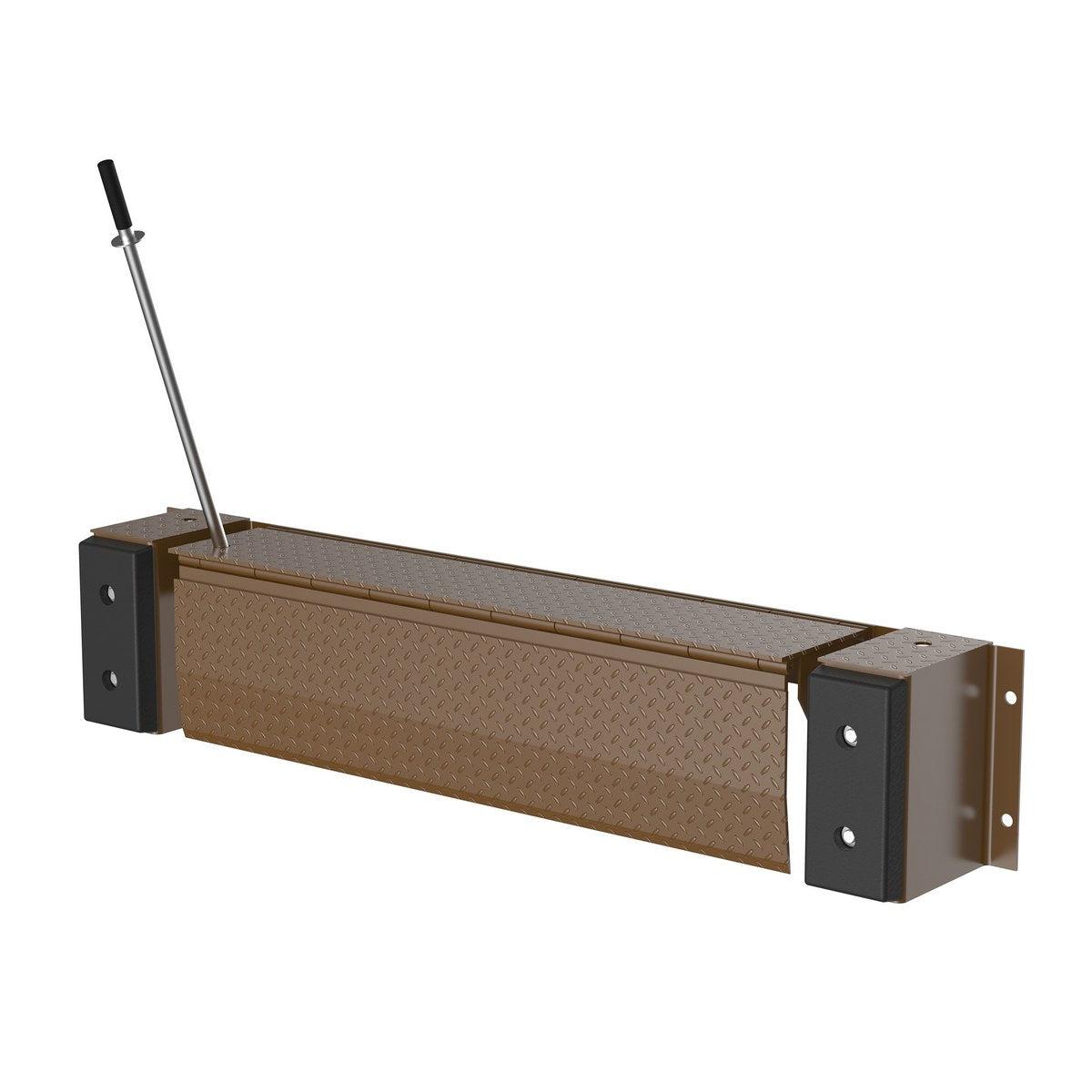

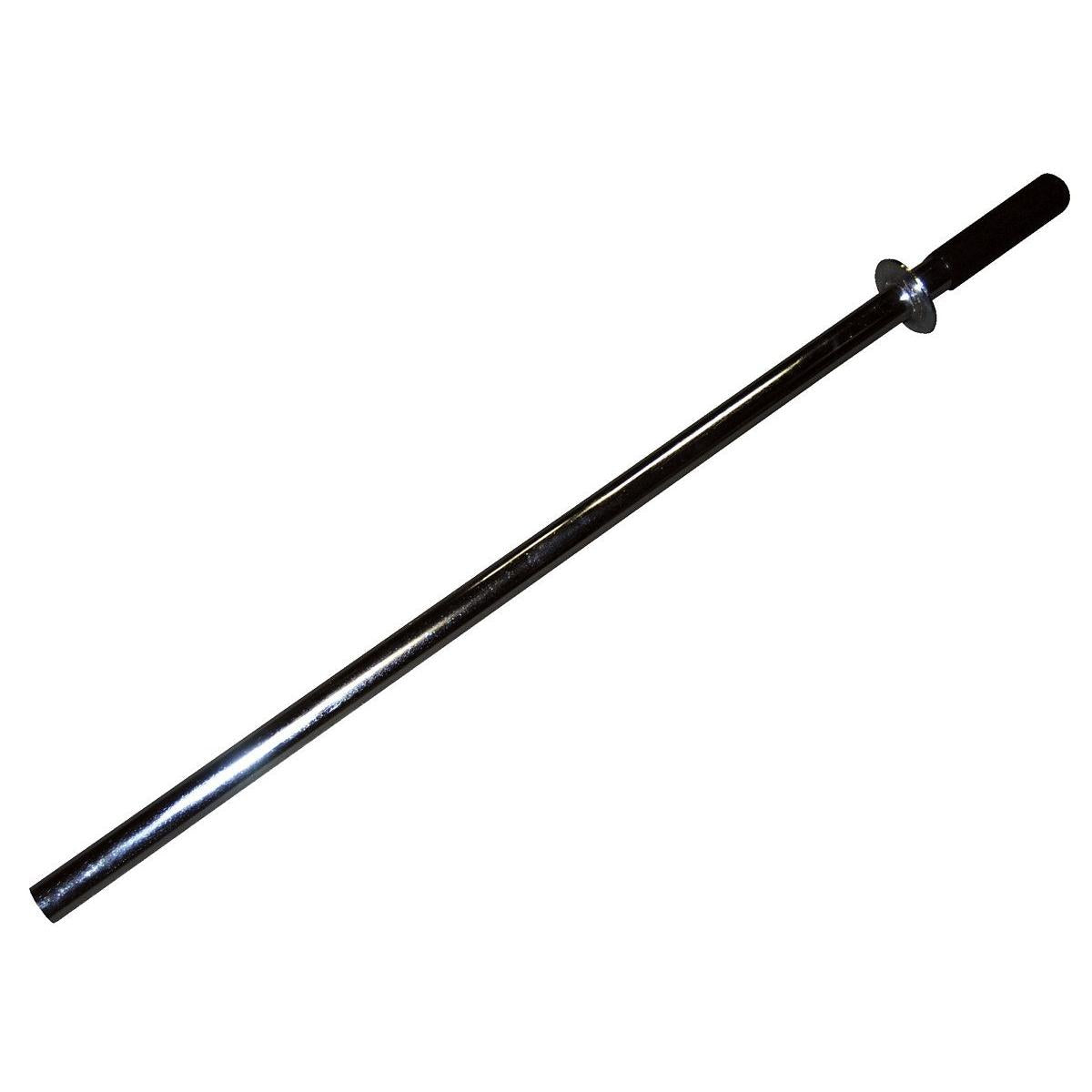

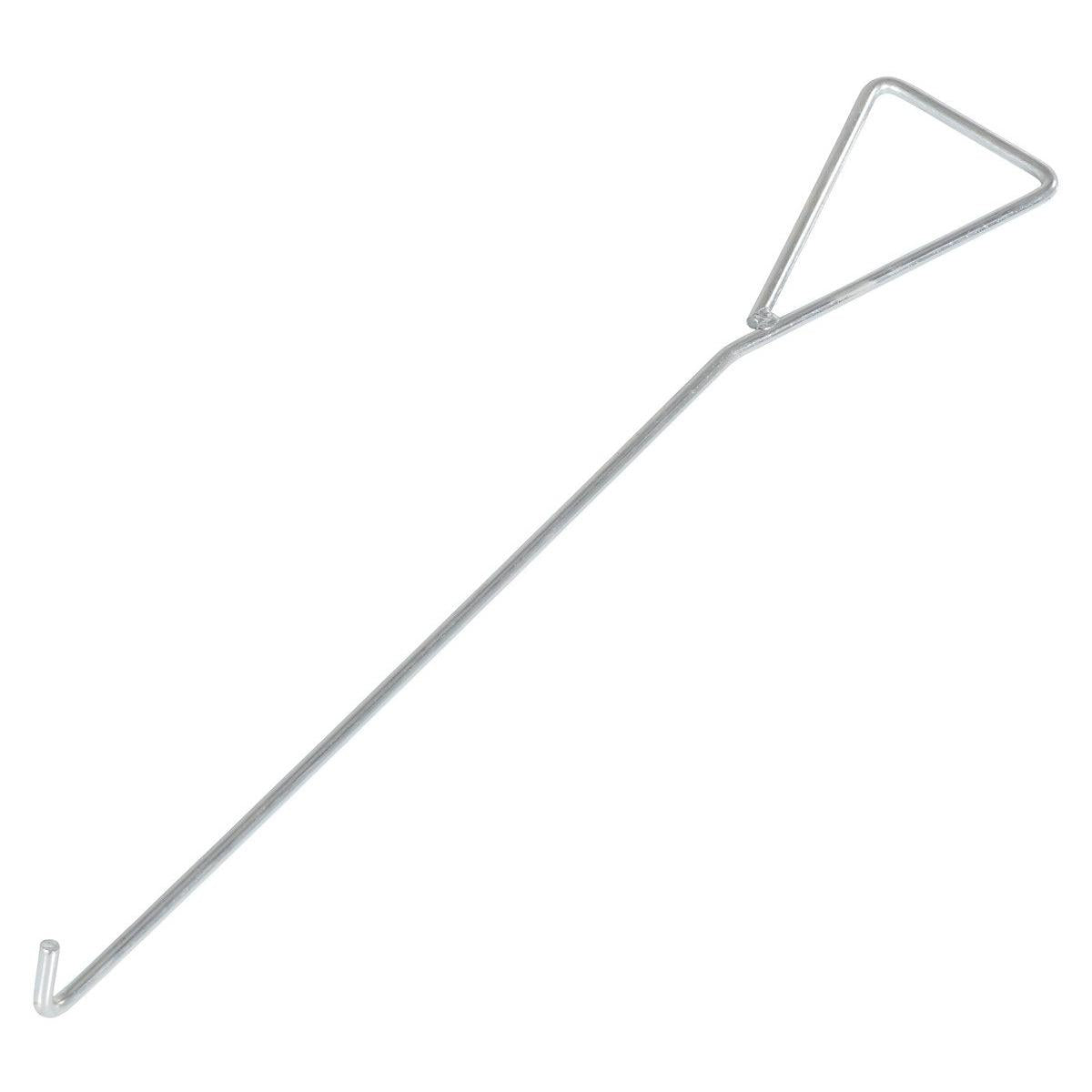

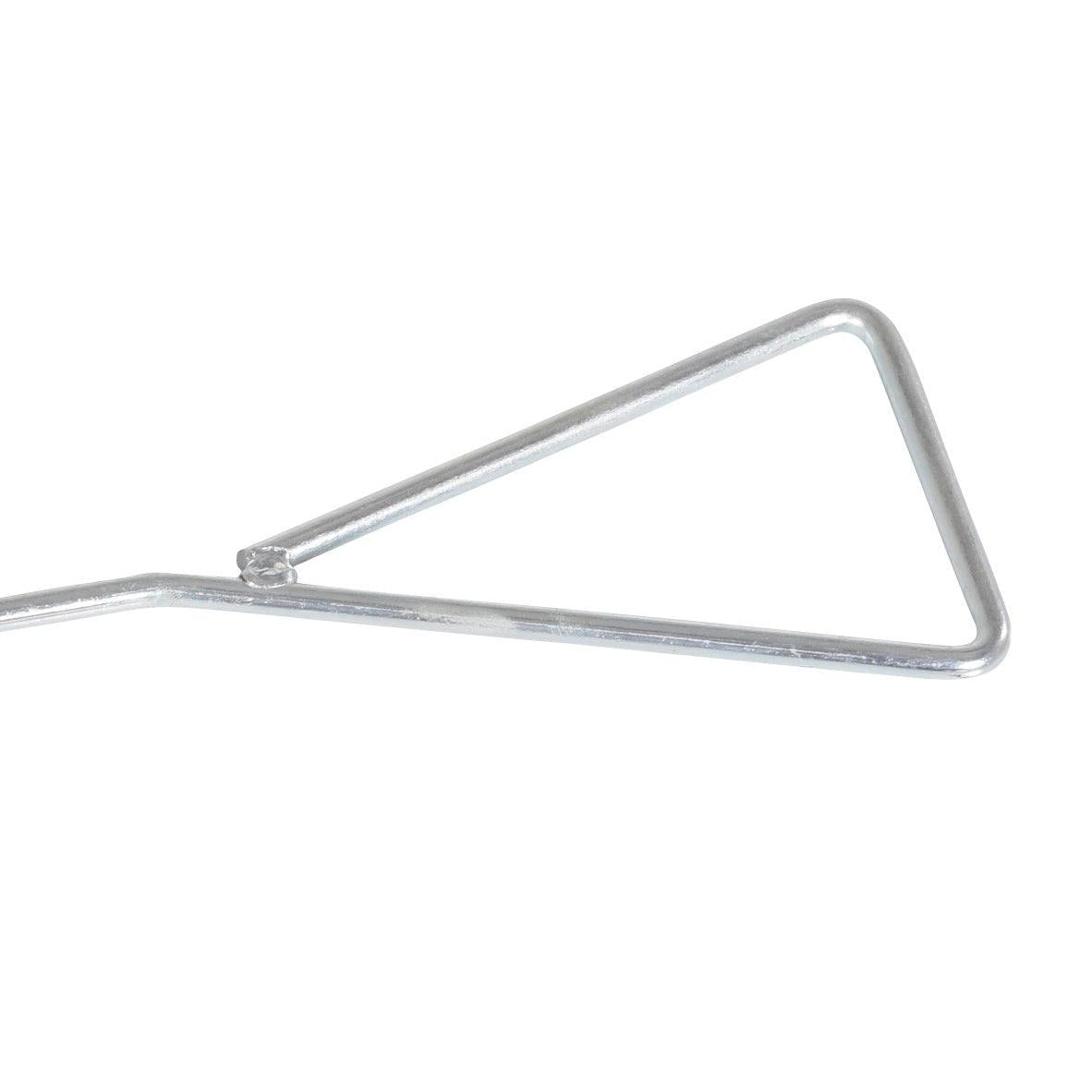

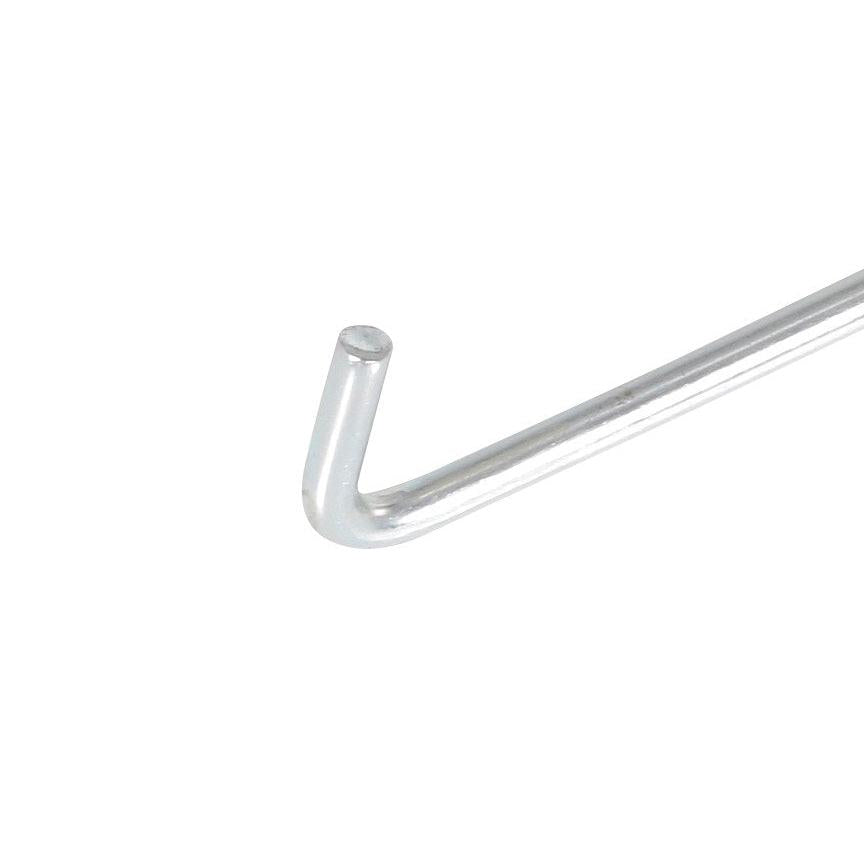

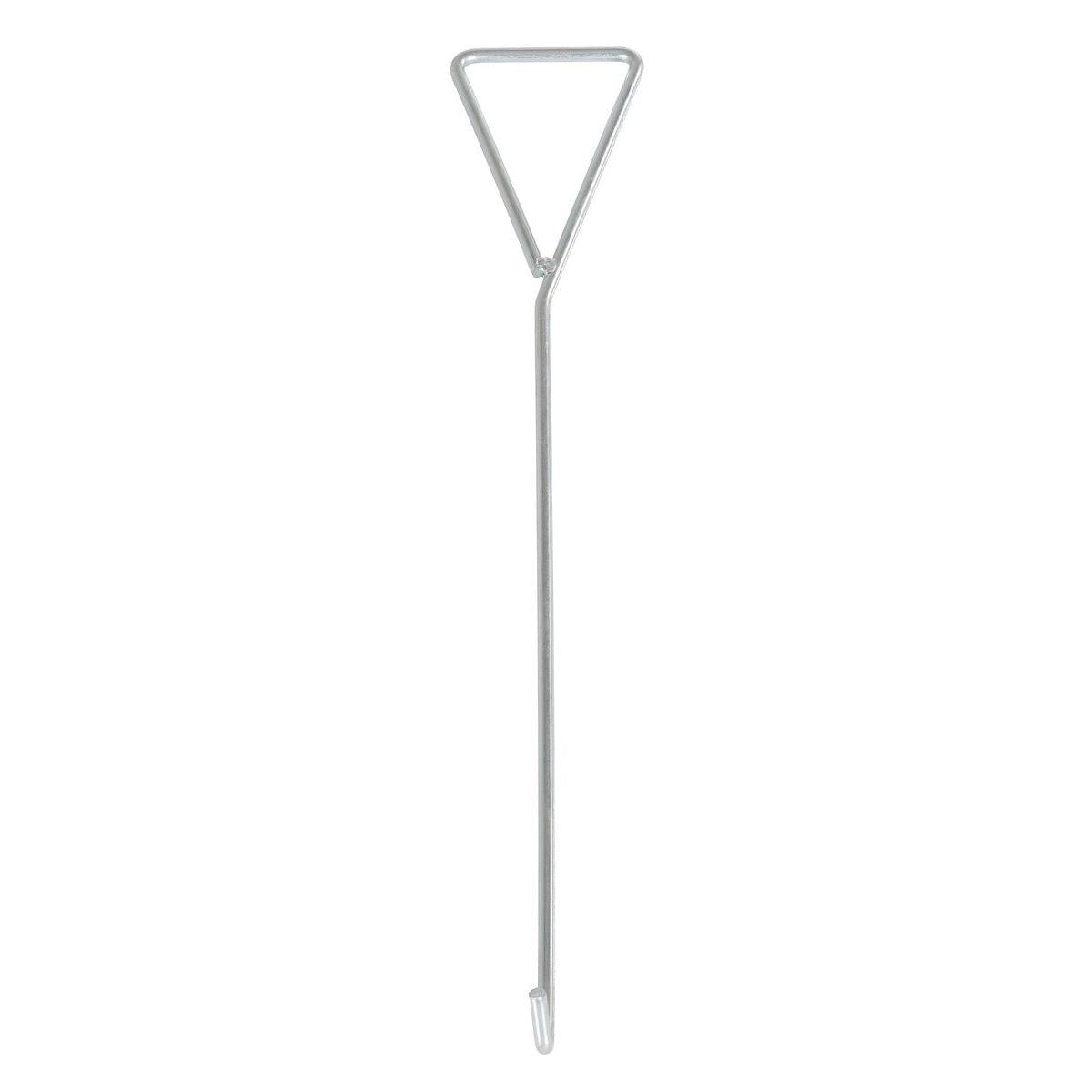

• Actuation handle allows easy manual operation
• Lip automatically retracts behind bumpers when trailer departs

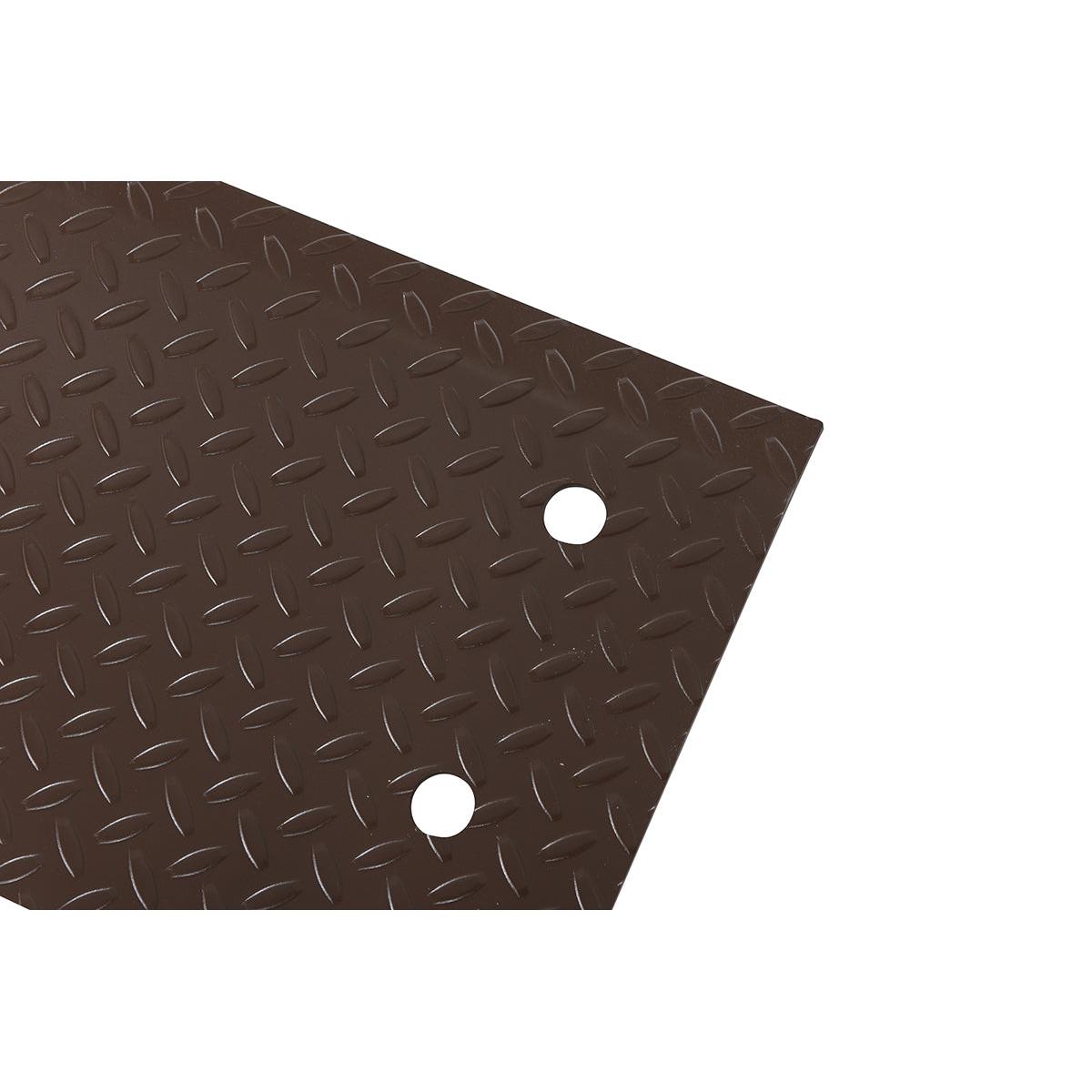

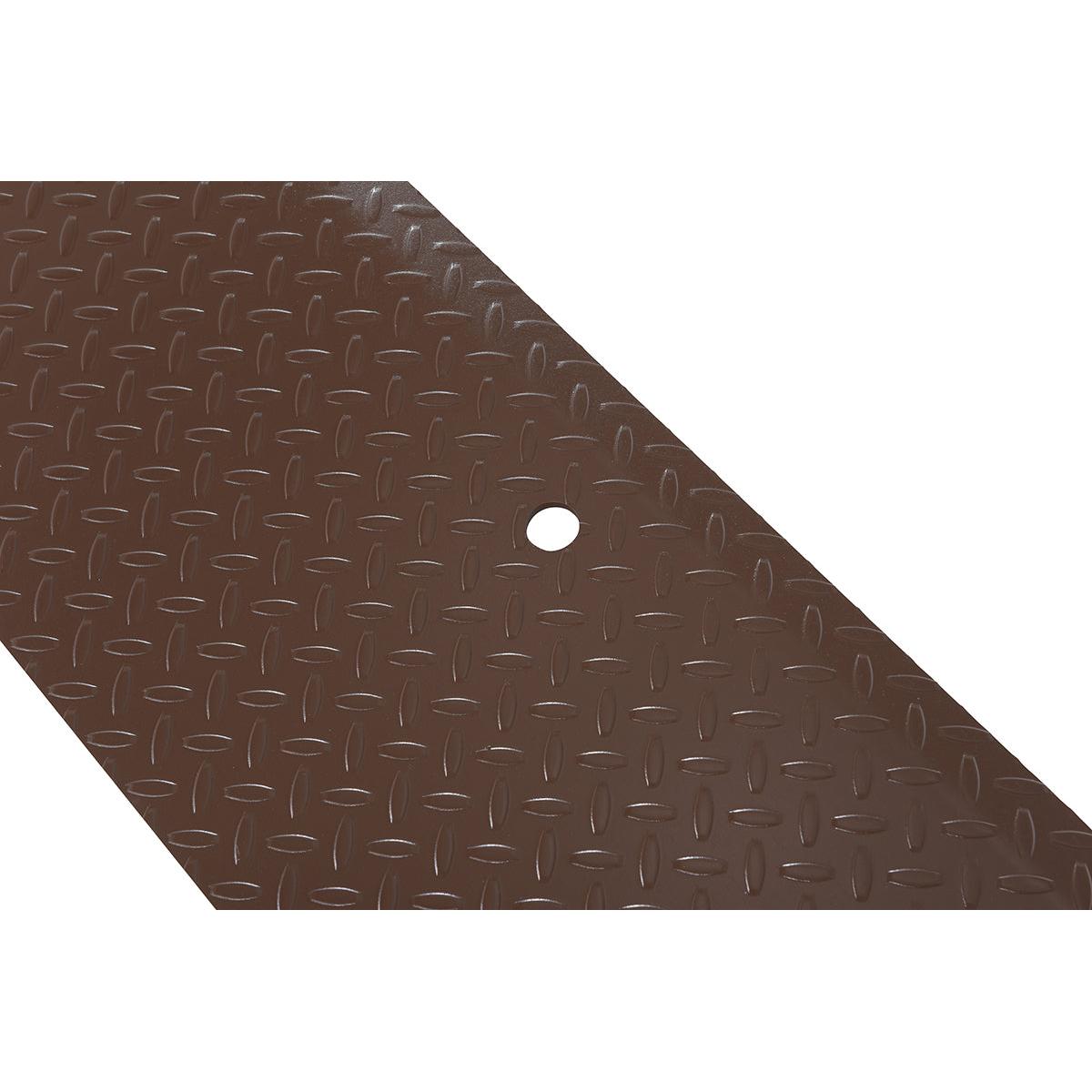

• Steel tread plate surface offers slip-resistant traction

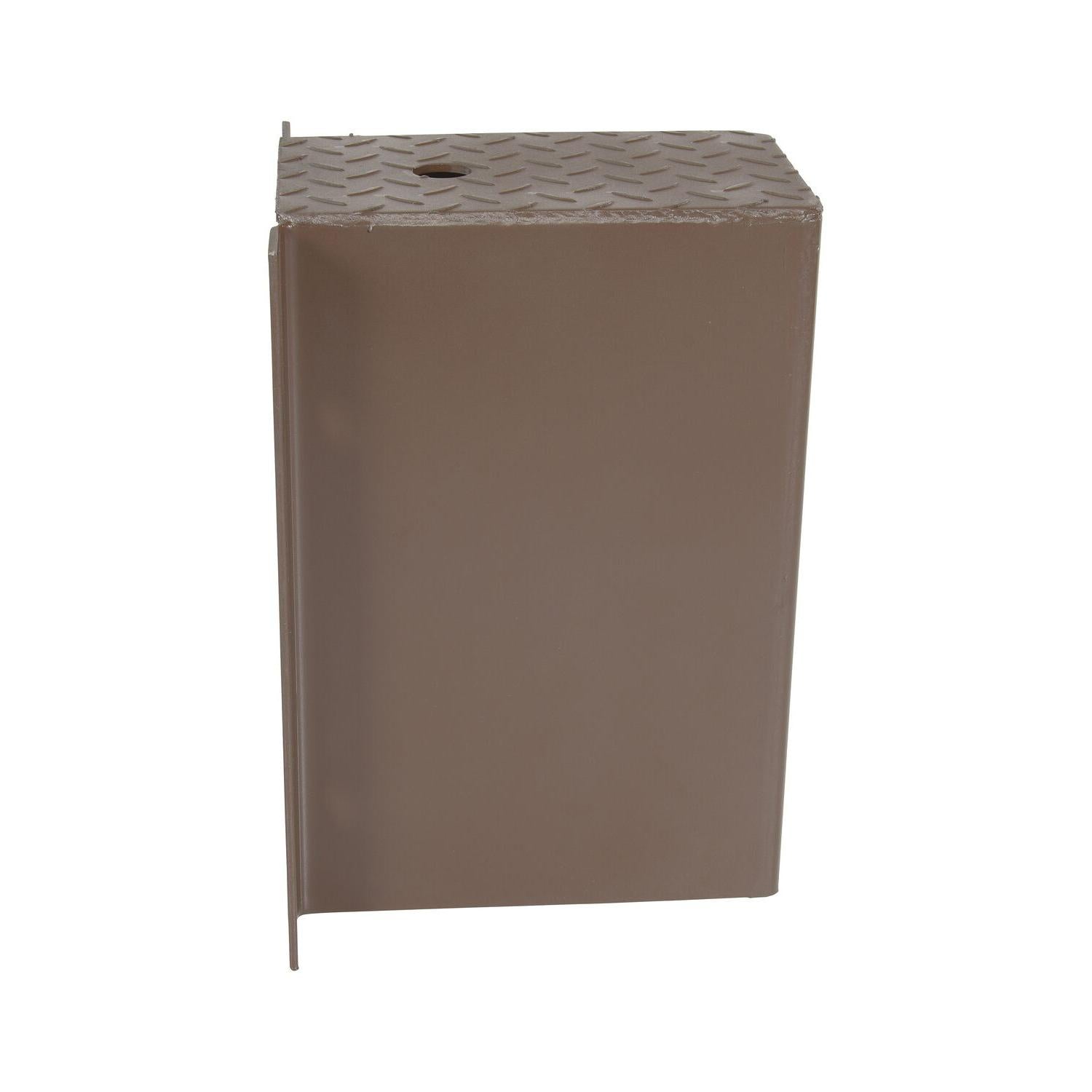

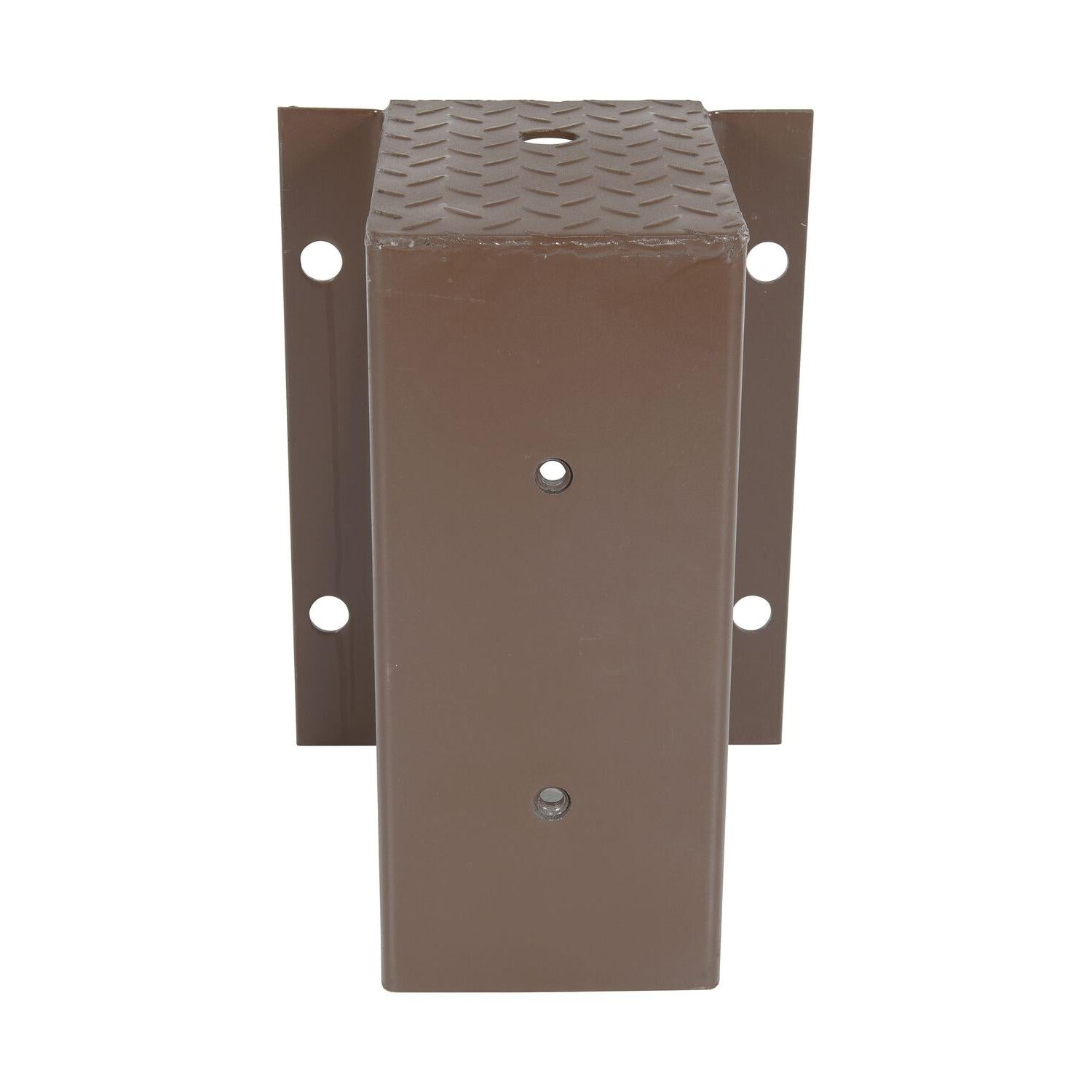

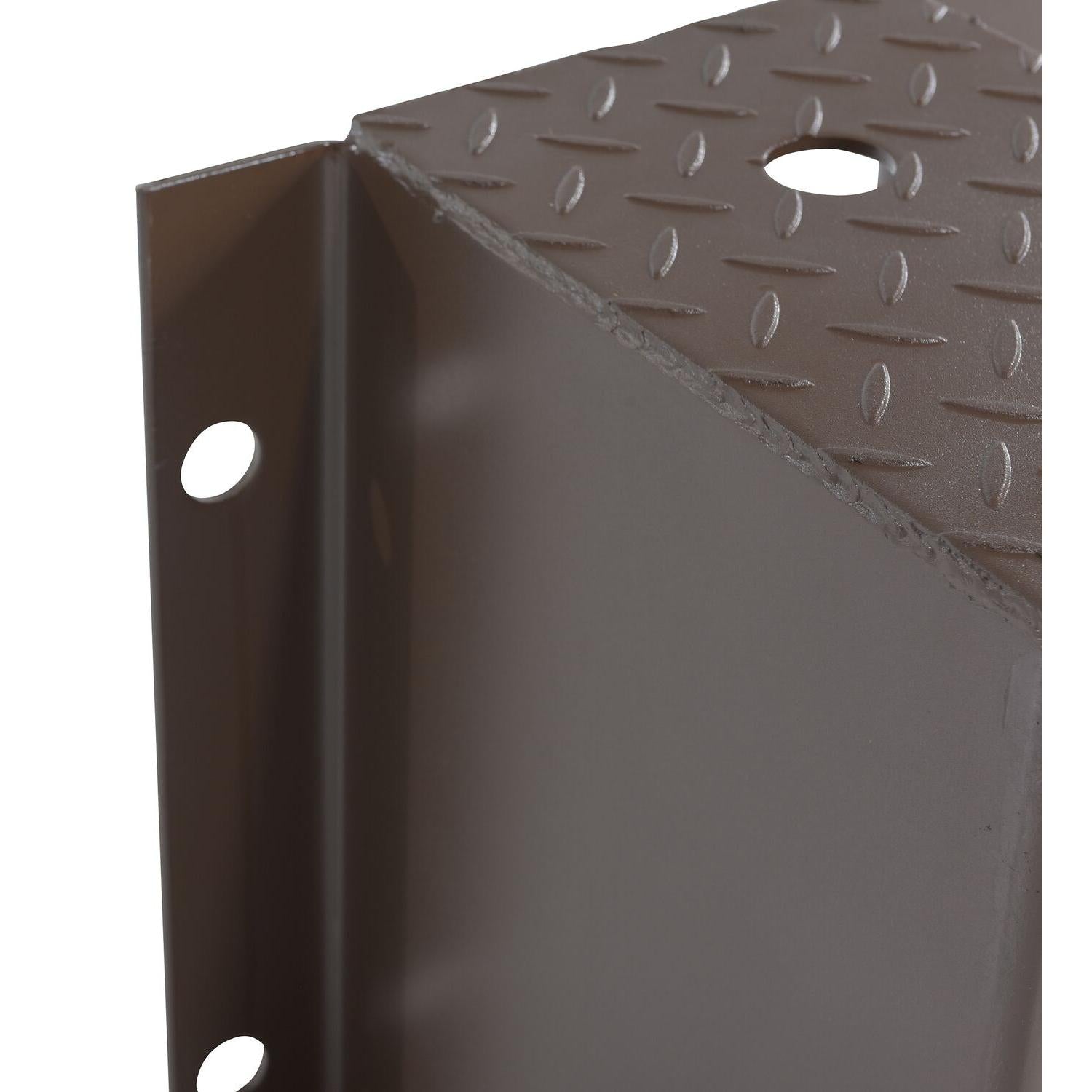

• Includes dock bumpers and installation instructions
• Durable powder-coated brown finish resists wear and corrosion
• Designed for docks 48" high or greater

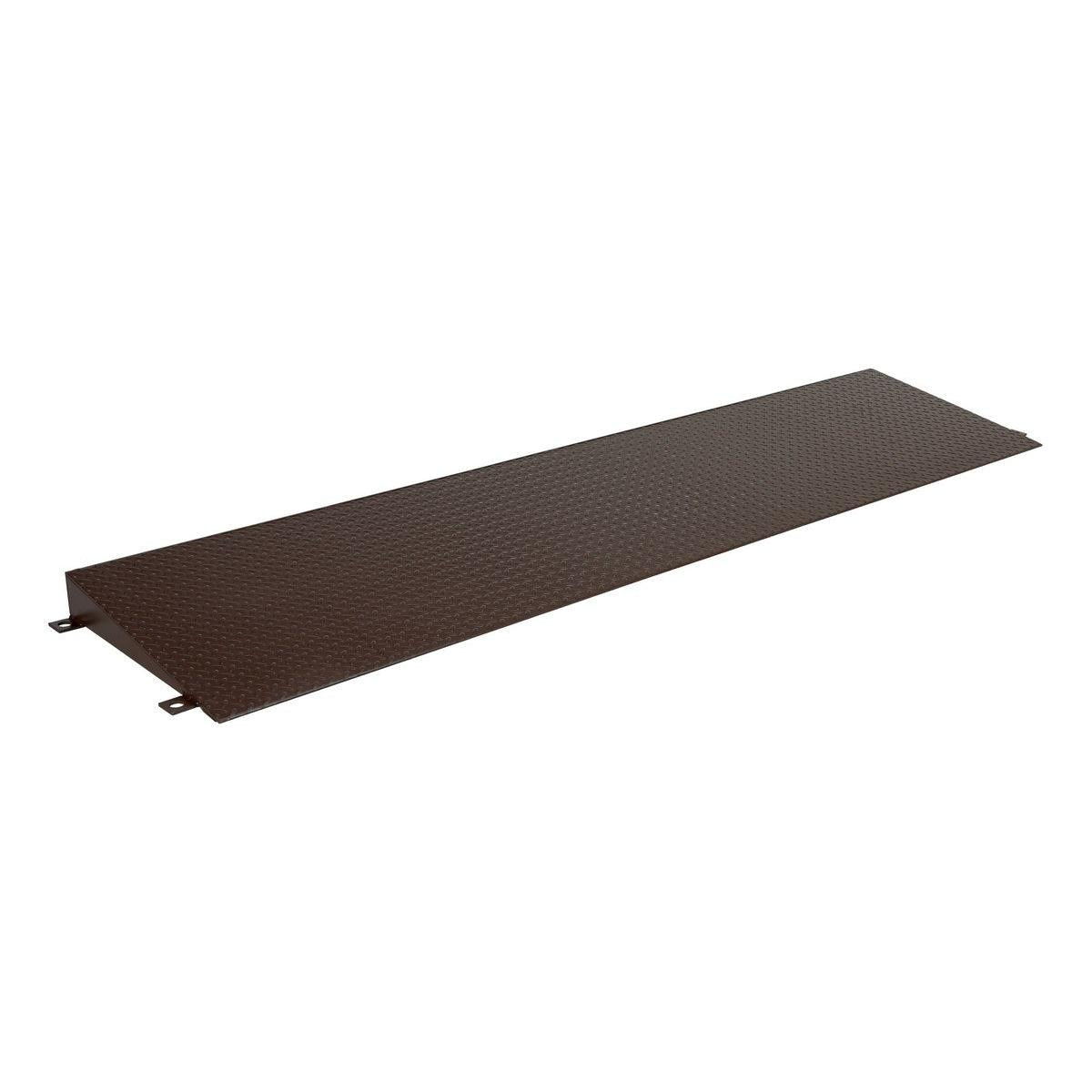

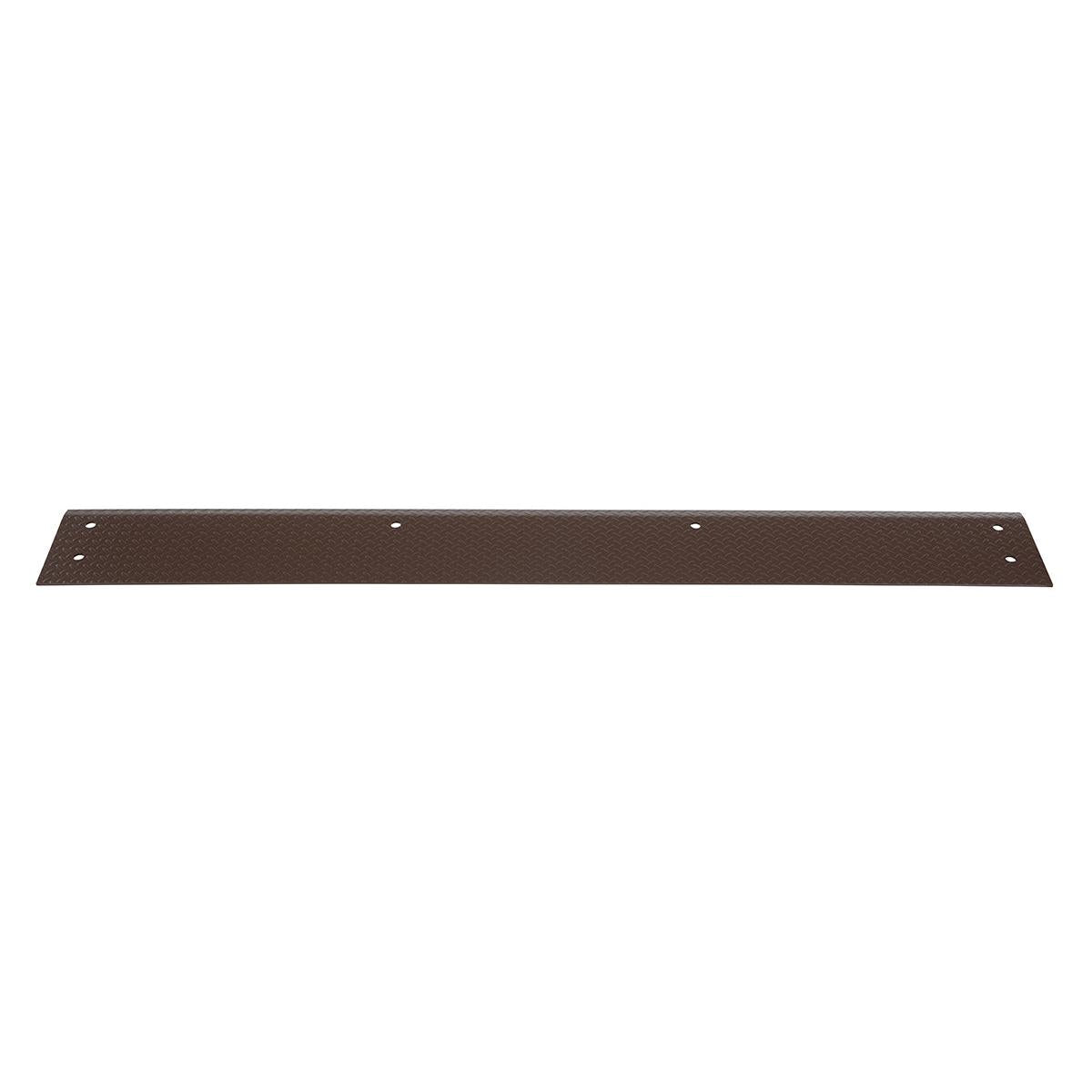

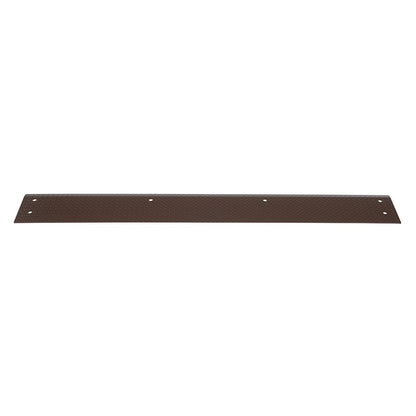

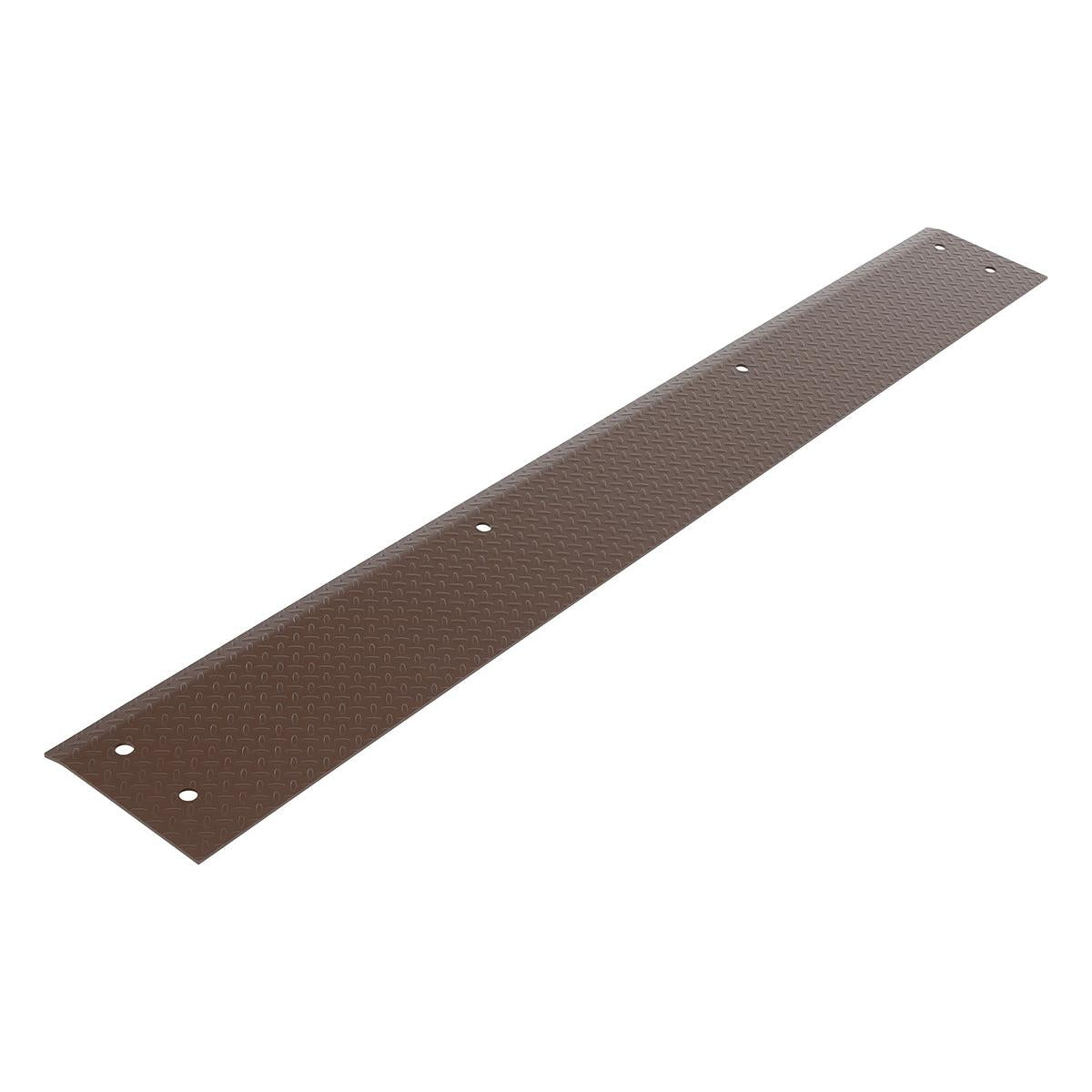

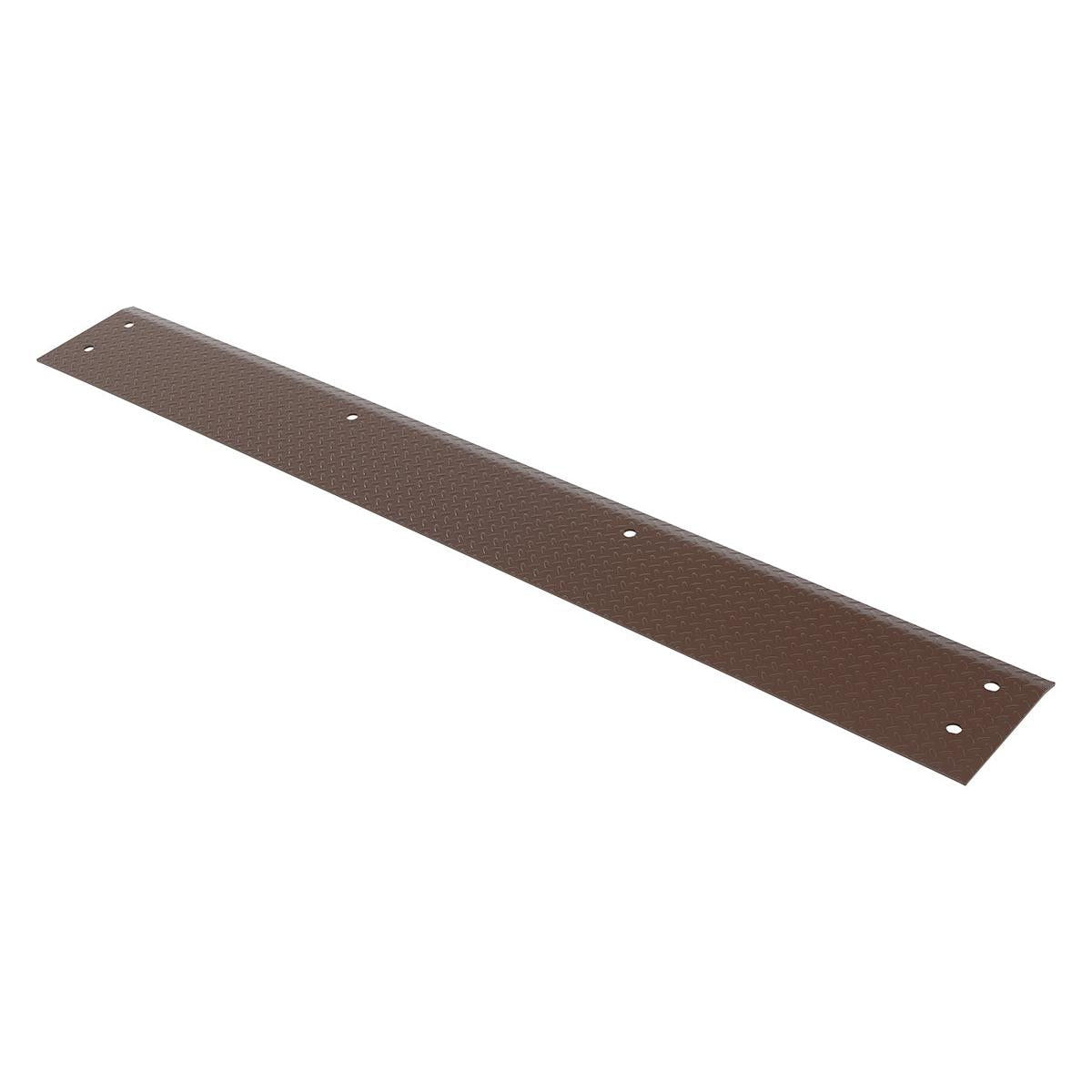

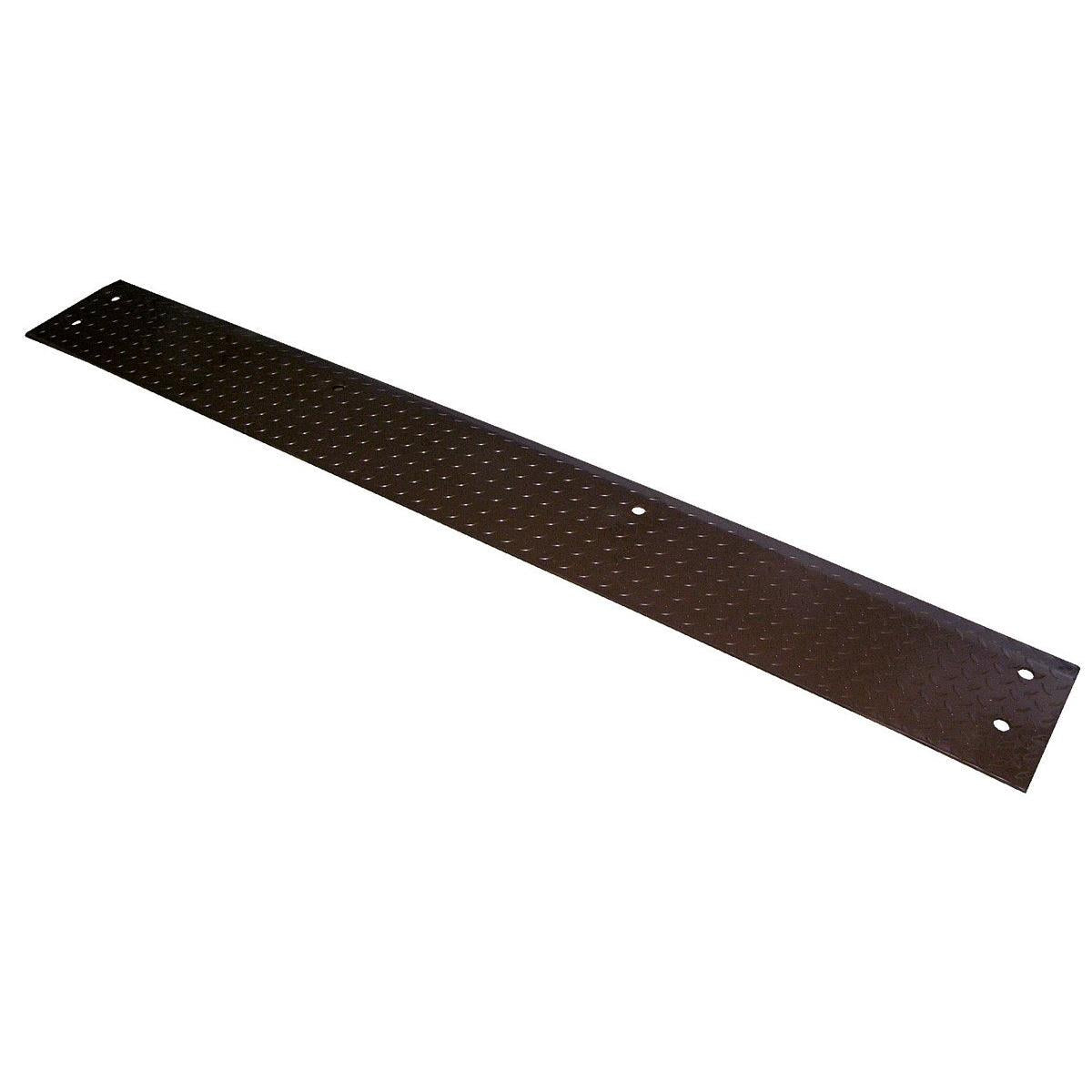

• Compatible with steel dock edge or approach ramp installations

Available Models & Differences:

• 66" Ramp Width Model
  Ideal for standard-width loading areas with moderate traffic.

• 72" Ramp Width Model
  Provides added space for increased safety and maneuverability during loading.

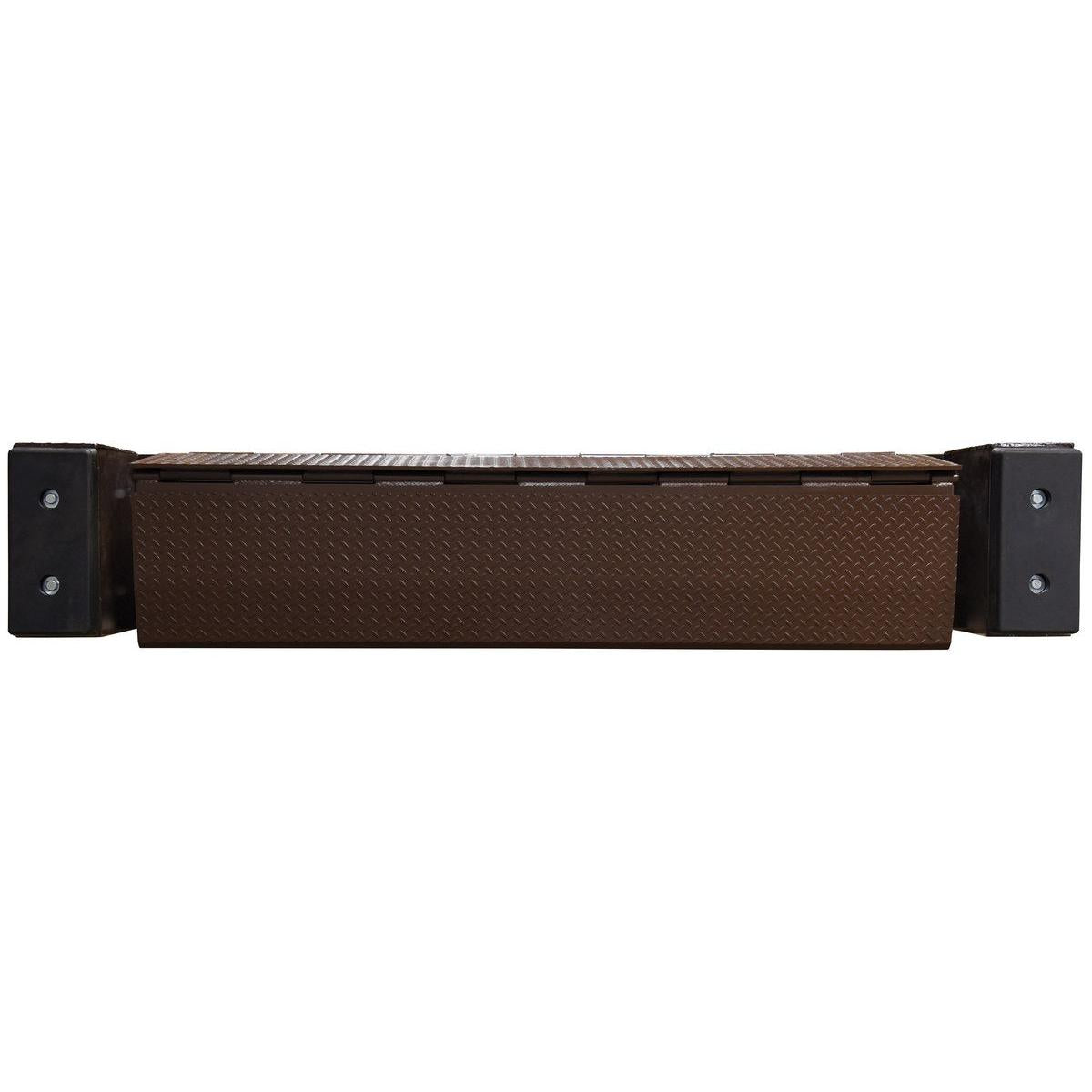

• 78" Ramp Width Model
  Offers the widest platform for large or high-volume operations requiring extra clearance.


Additional Information:

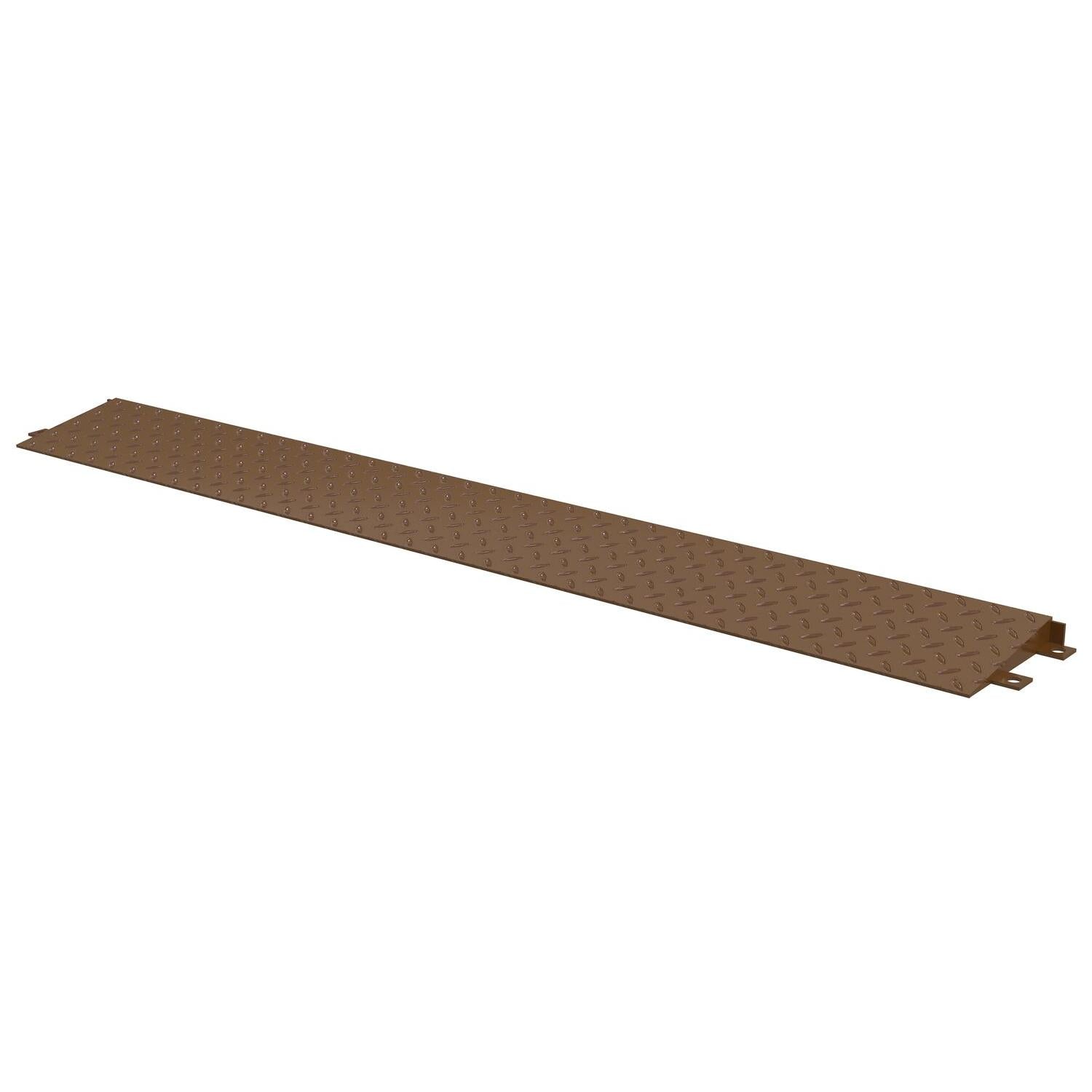

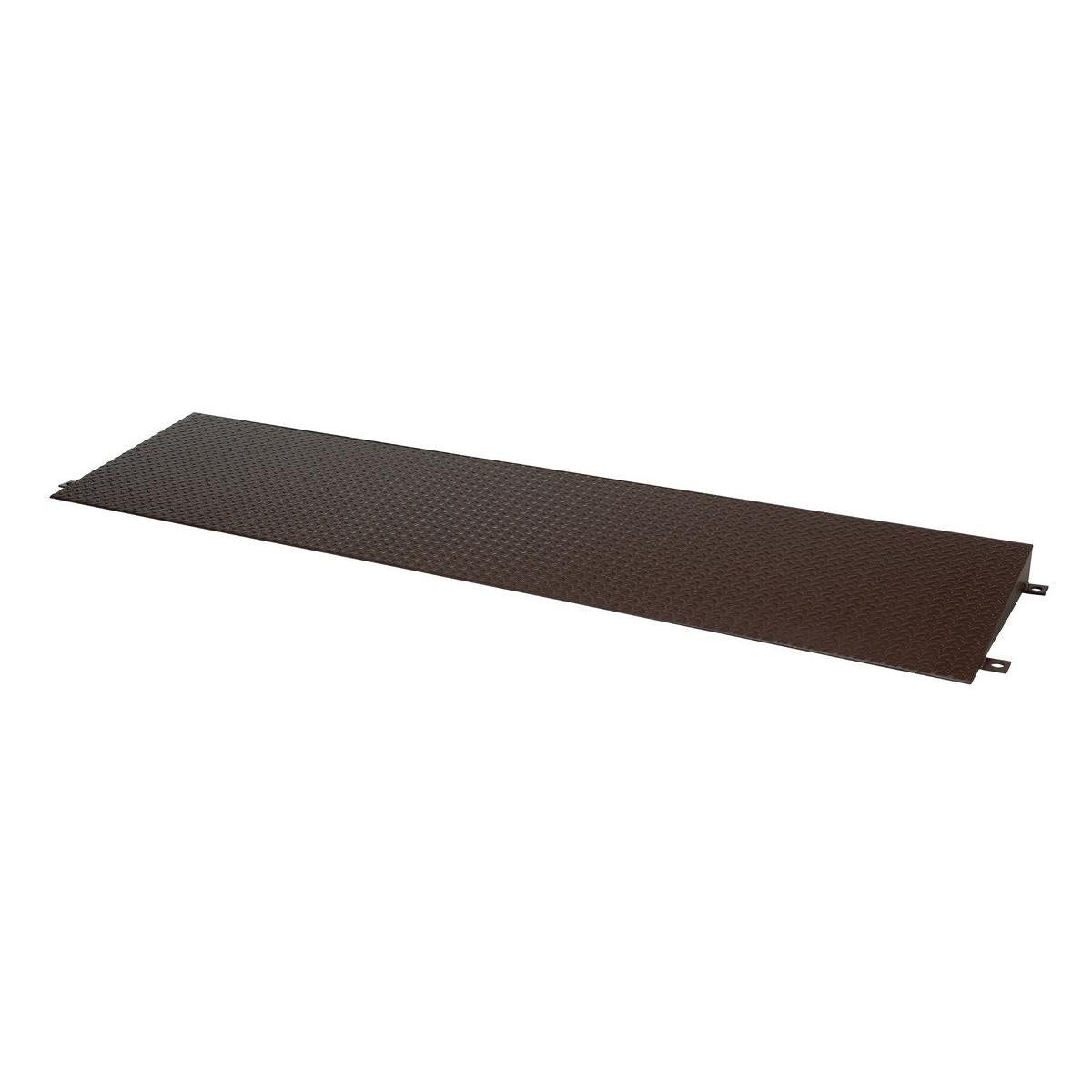

All models come with a 29" standard ramping length and require a steel dock edge or ramp for proper installation. These units are best suited for loading bays where reliability, efficiency, and safety are essential, and where permanent dock equipment is preferred without the need for major structural changes.

Technical Specifications:

• Weight Capacity (lbs): 20,000
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5
• Ramp Length (in.): 29
• Dock Leveler Lip Projection (in.): 14
• Platform Thickness (in.): 0.375

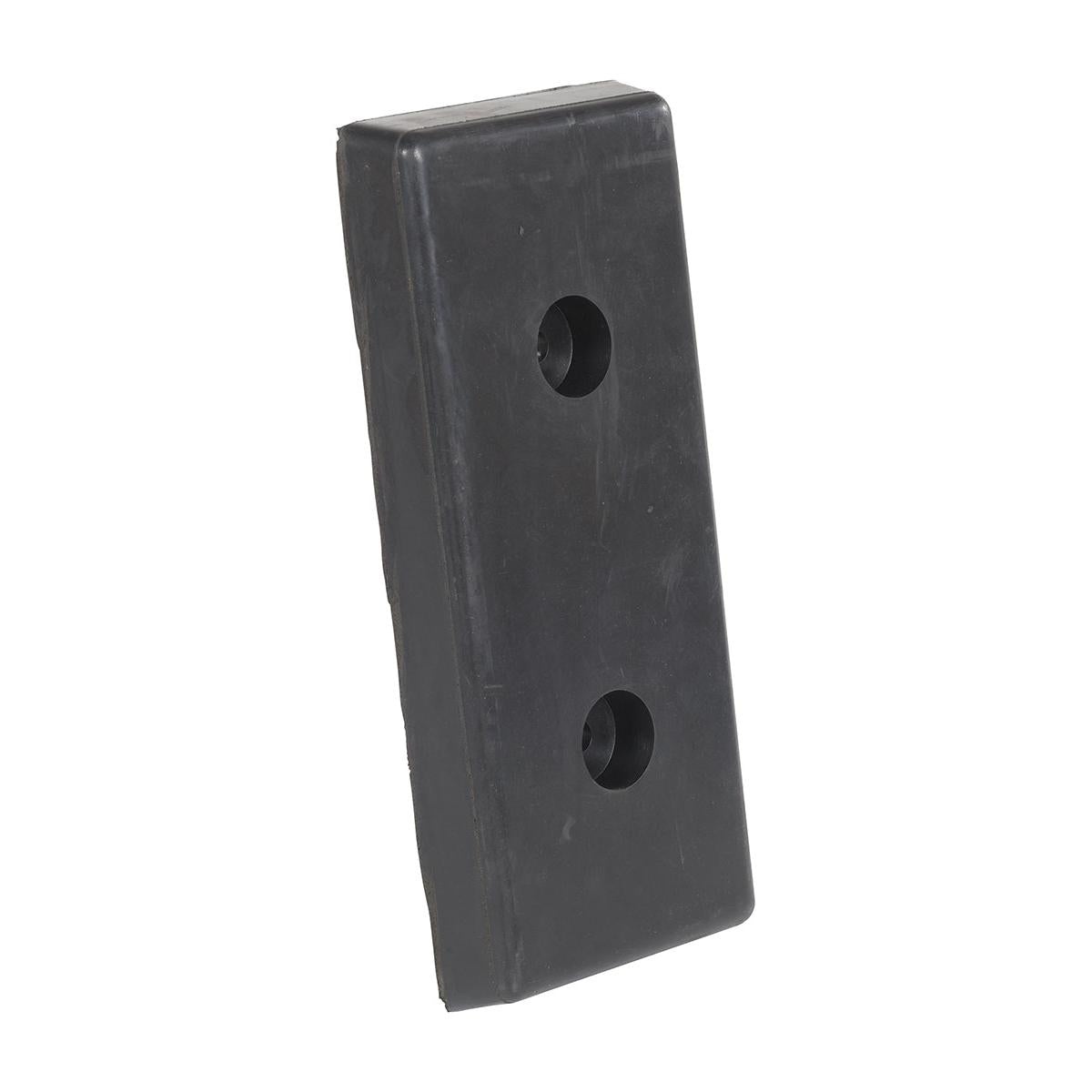

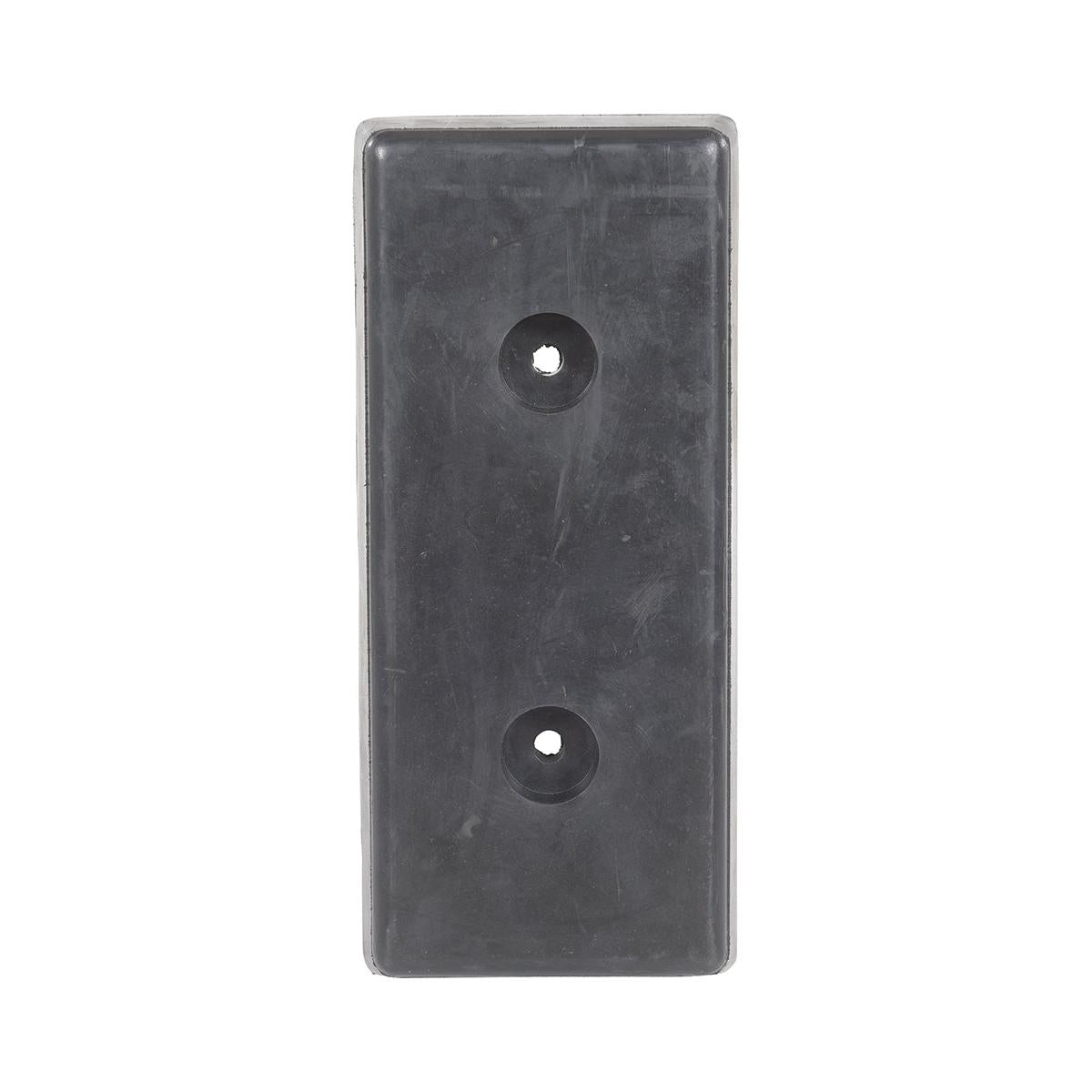

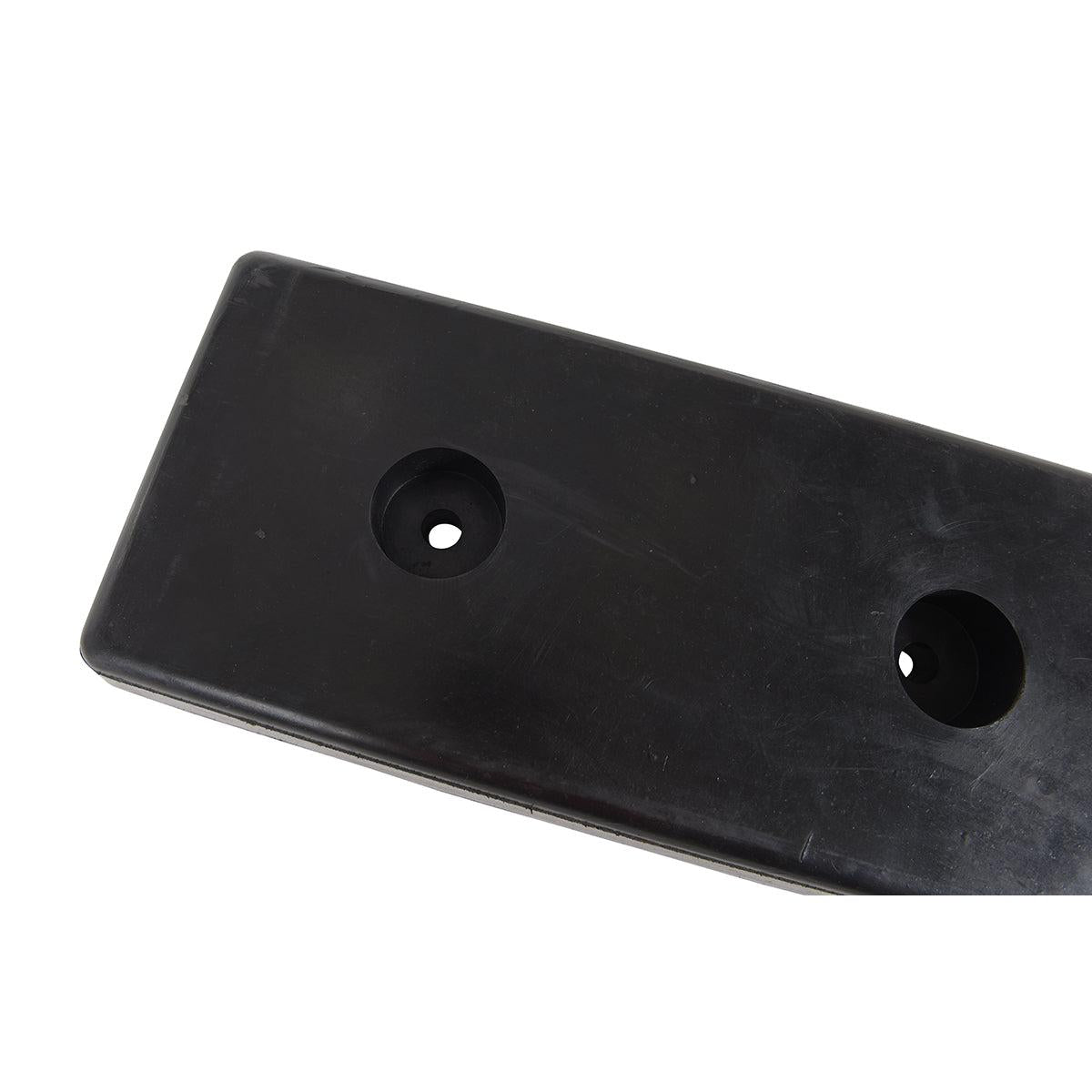

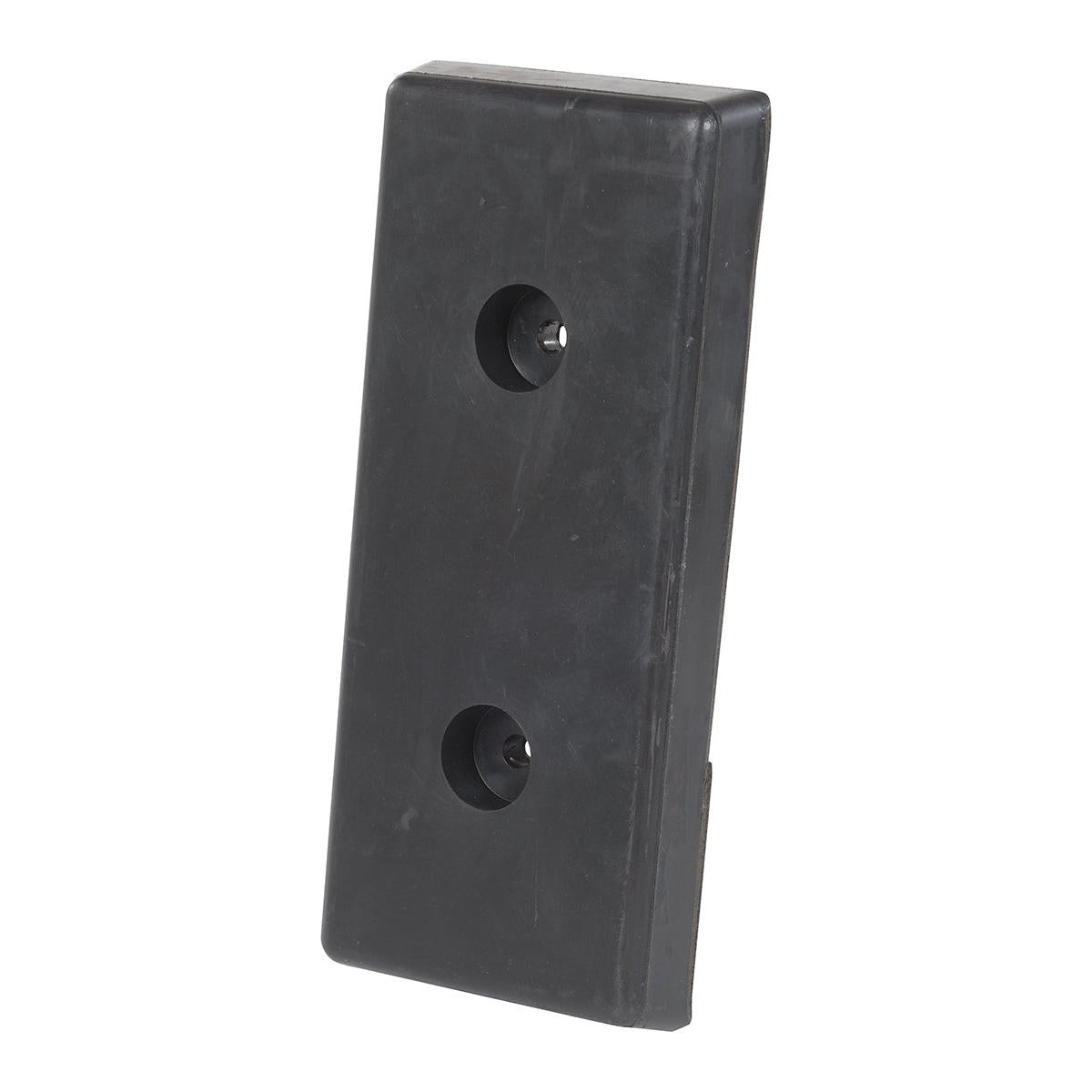

• Bumper Pad Width (in.): 8
• Bumper Pad Thickness (in.): 2
• Bumper Pad Height (in.): 18
• Bumper Projection (in.): 15
• Overall Length (ft.): 1.25
• Dock Leveler Operating Method: Actuation Handle/Mechanical
• Installation Method: Permanent Installation to Face of Dock
• Installation Hardware Included: Yes
• Assembly: Assembly required
• Approval Drawing Required?: No
• CPO-Prop 65 Warning Required: Yes
• Color / Finish: Brown
• Material: Steel
• Manufacturer Warranty: 1 Year
