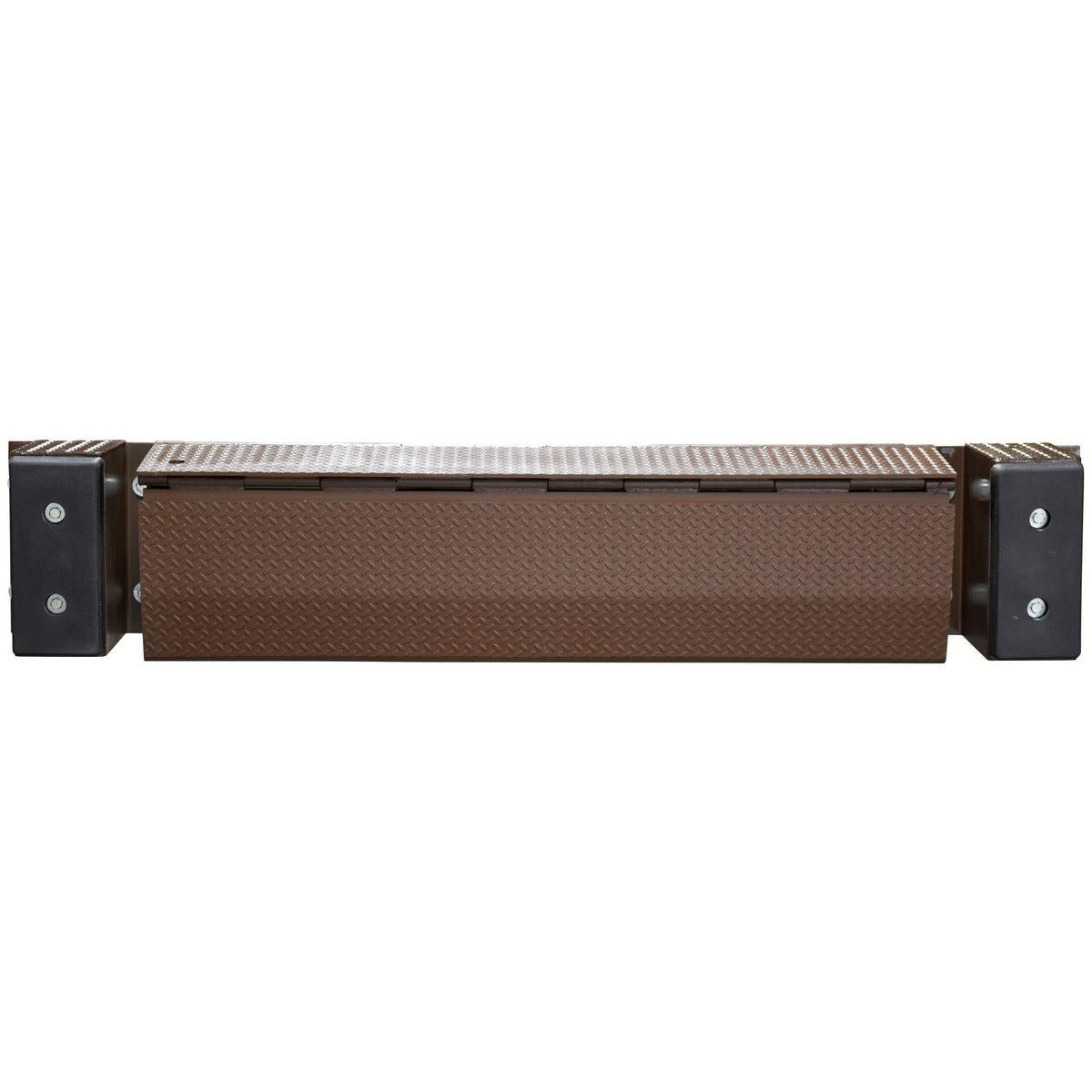

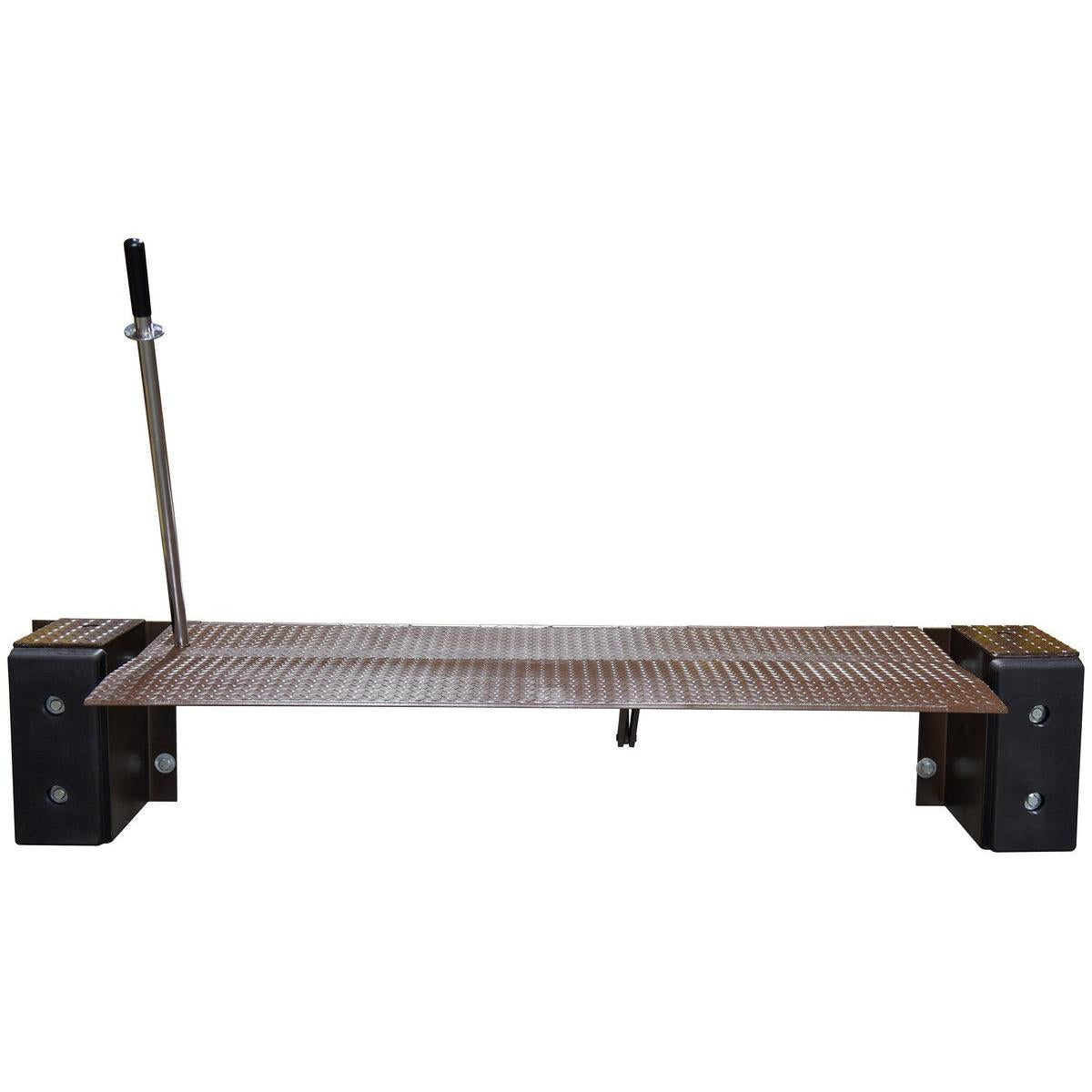

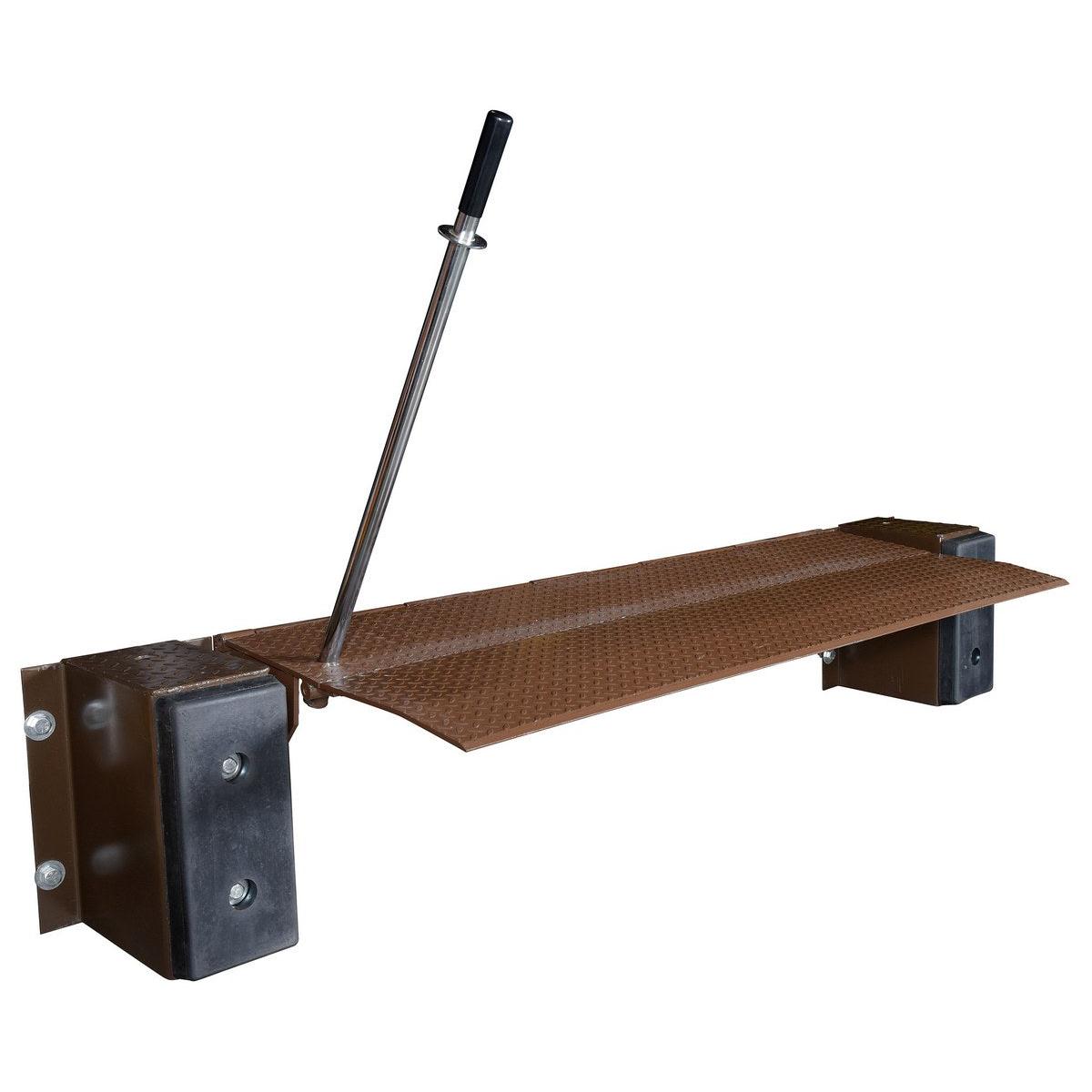

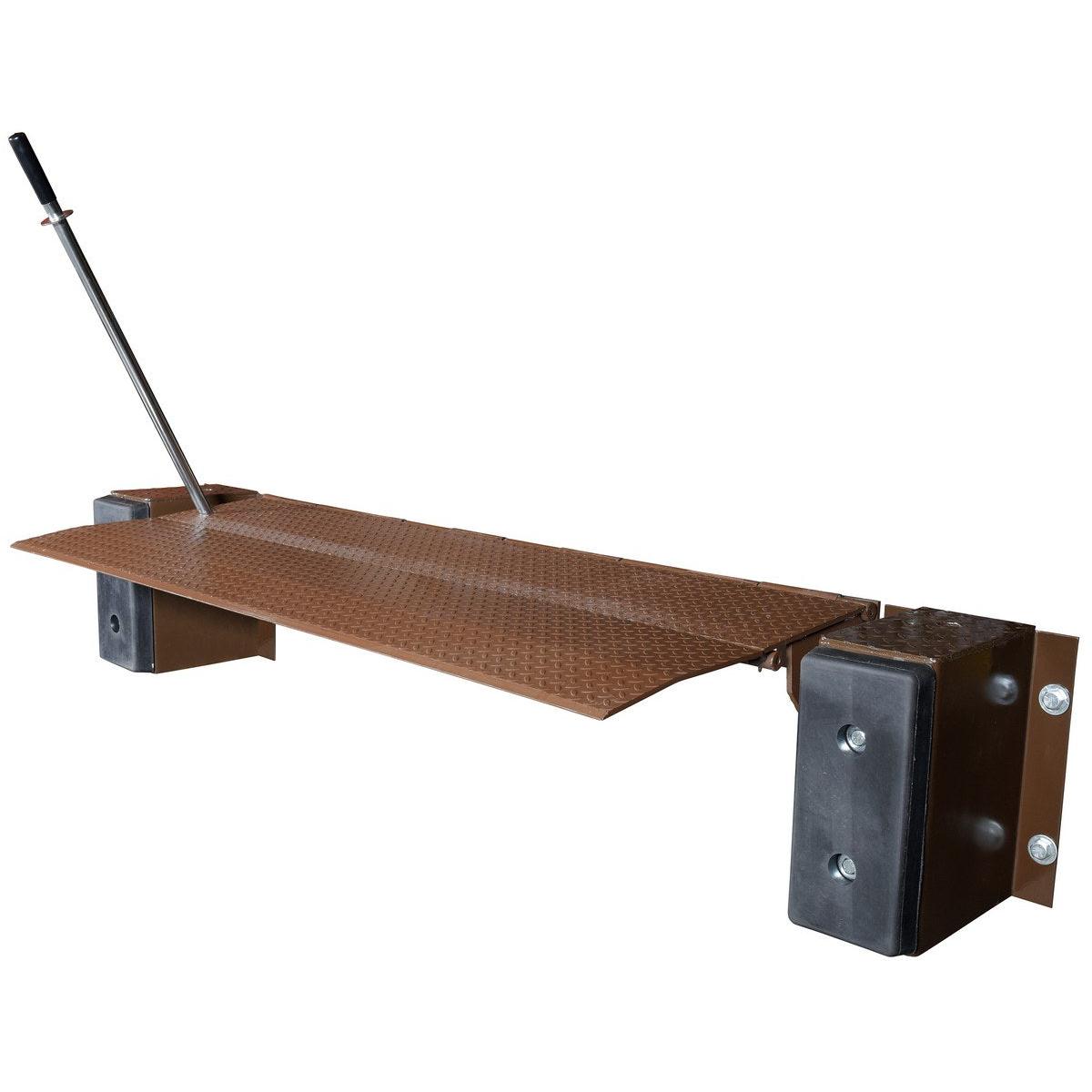

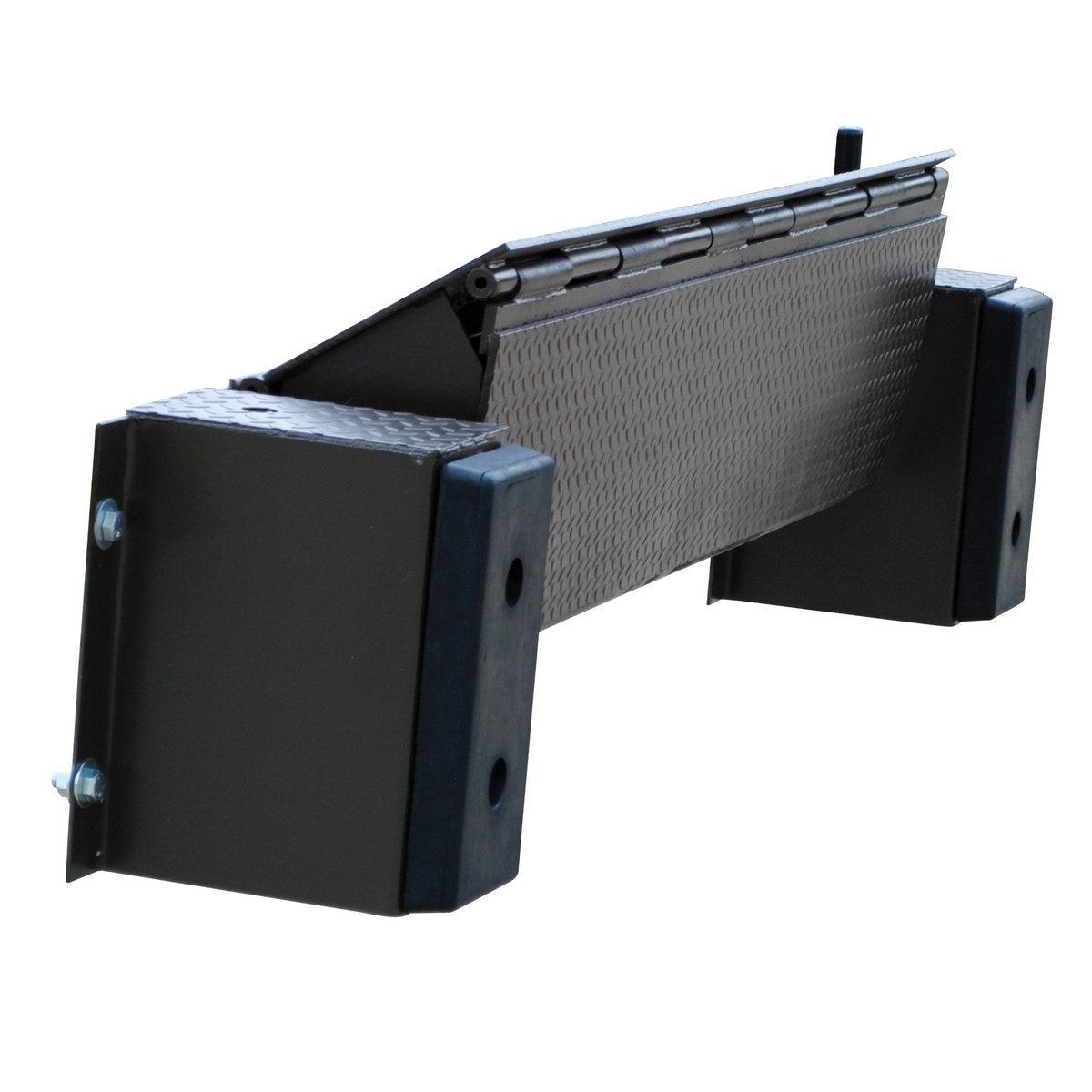

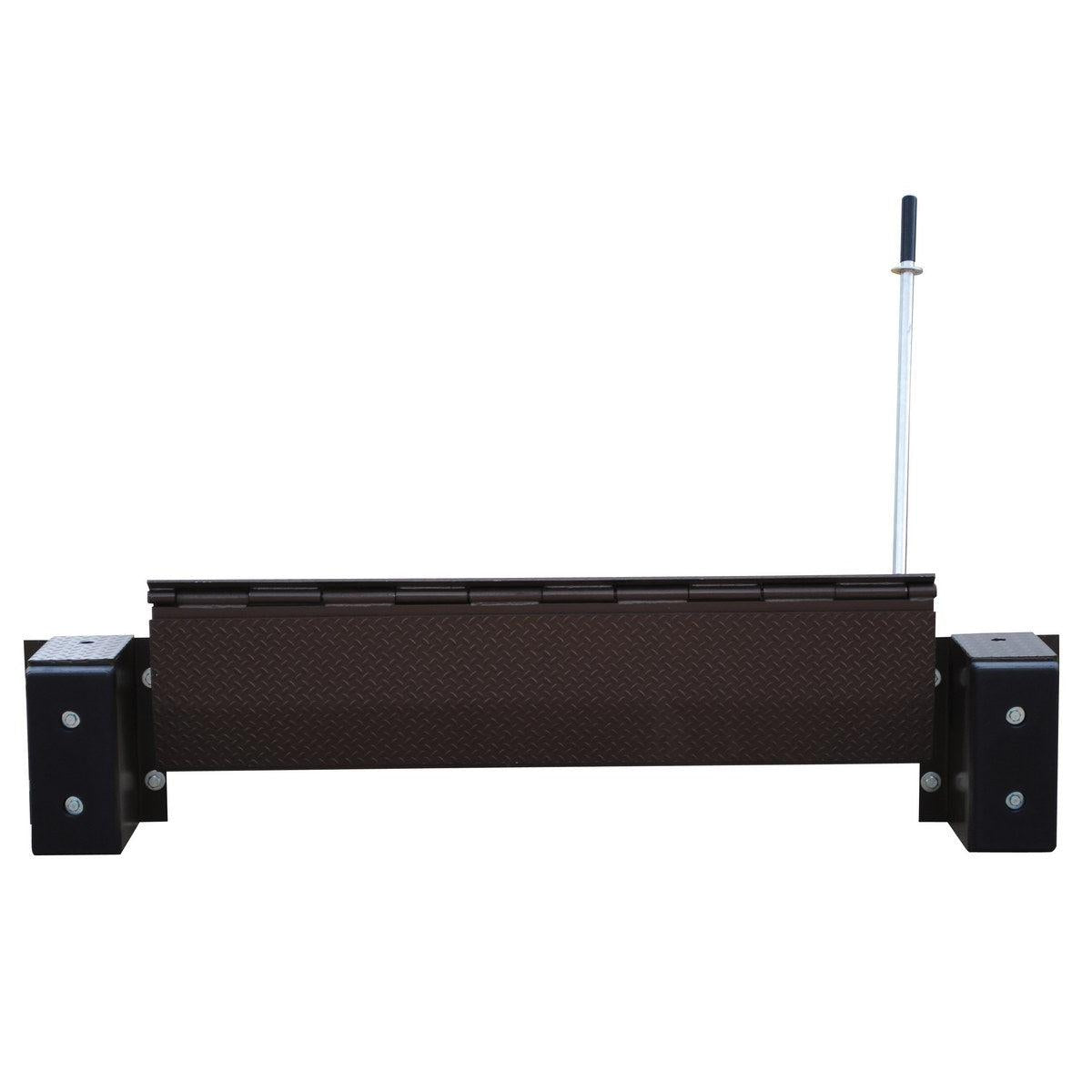

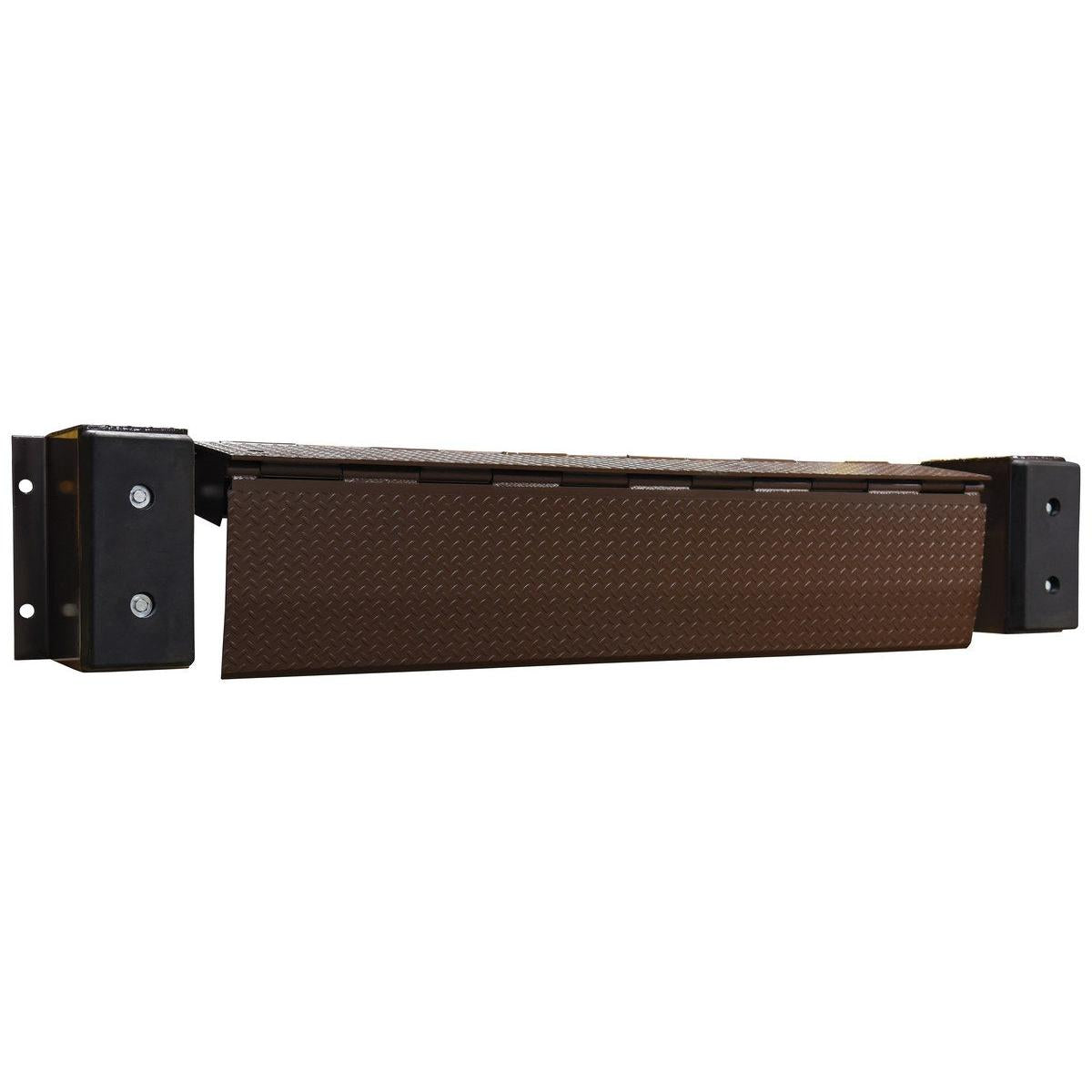

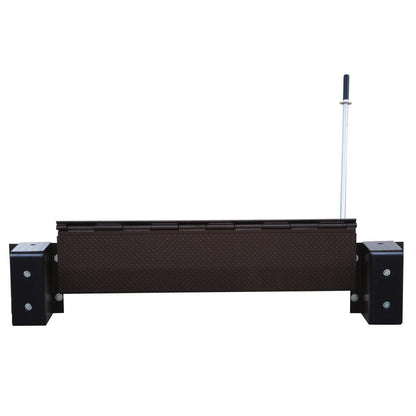

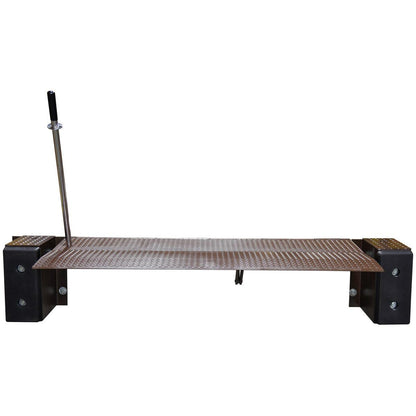

Steel Mechanical Edge-O-Dock Levelers – 25,000 lb. Capacity Series (66", 72" Ramp Width Options)

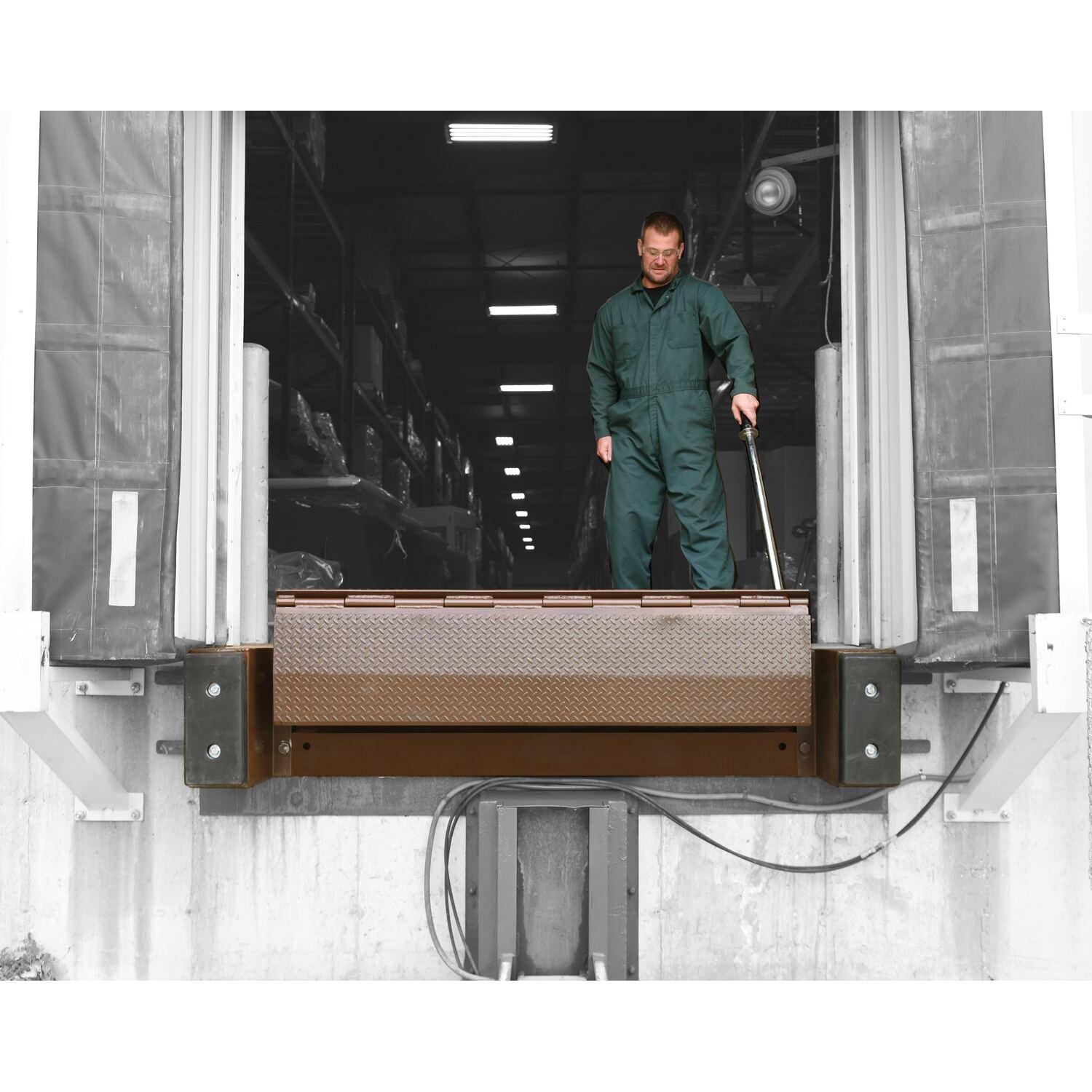

These Steel Mechanical Edge-O-Dock Levelers are built for permanent installation on loading docks with a minimum height of 48 inches, offering a durable and dependable bridge between the dock and trailer. Designed for facilities that handle consistent shipping and receiving, these levelers are ideal for warehouses, distribution centers, and industrial loading bays where powered dock equipment isn't feasible. The mechanical operation makes them especially useful in locations with limited infrastructure or where low-maintenance solutions are preferred.

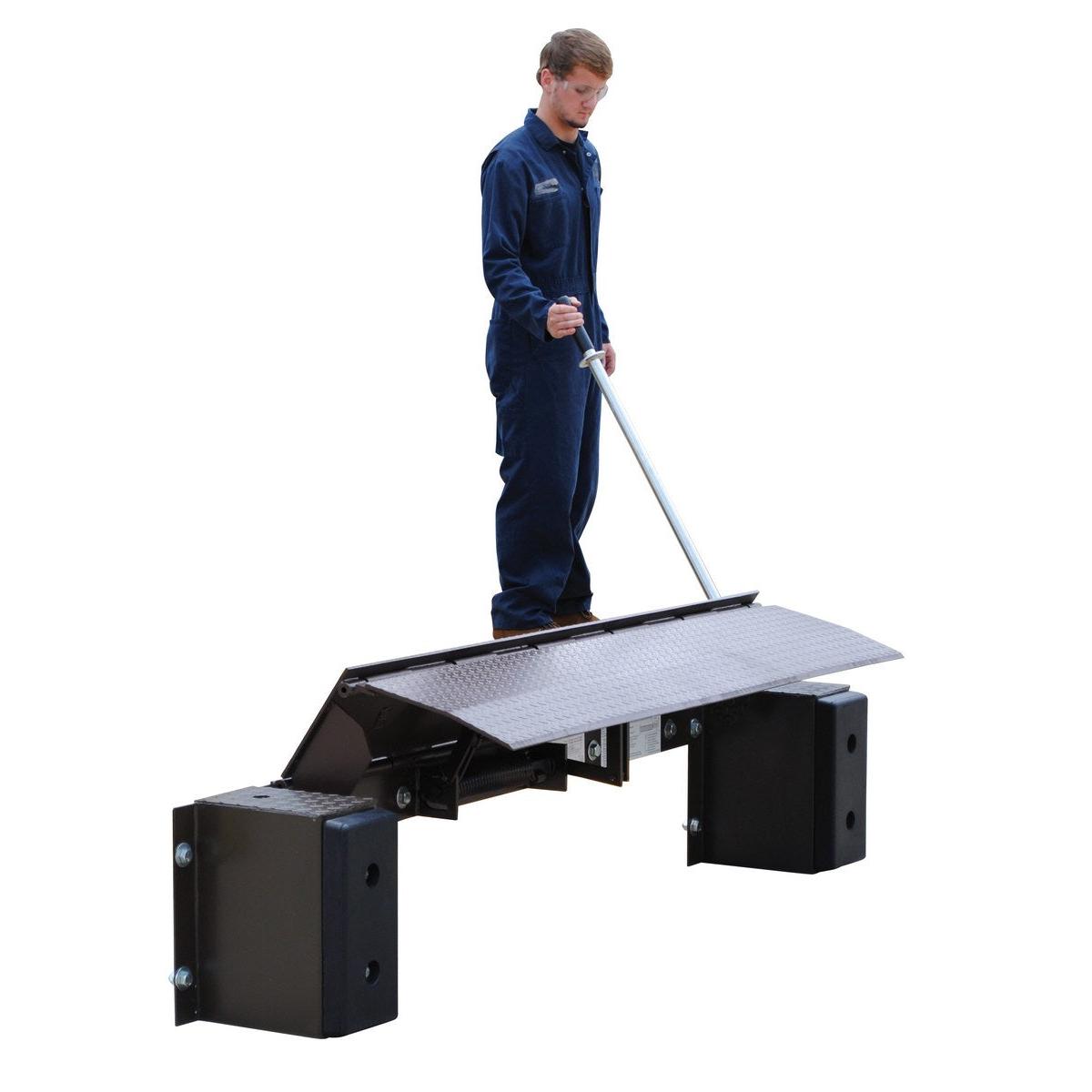

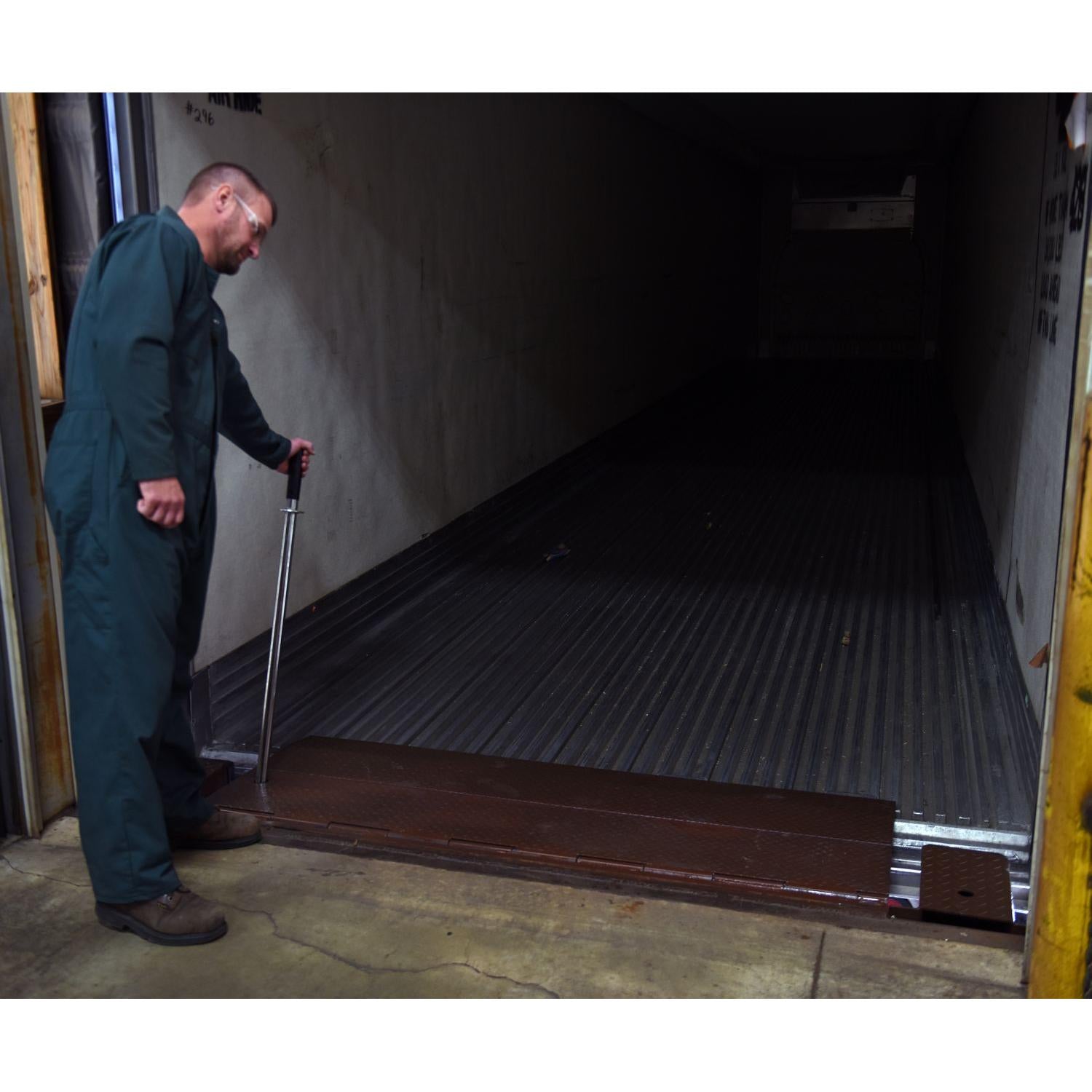

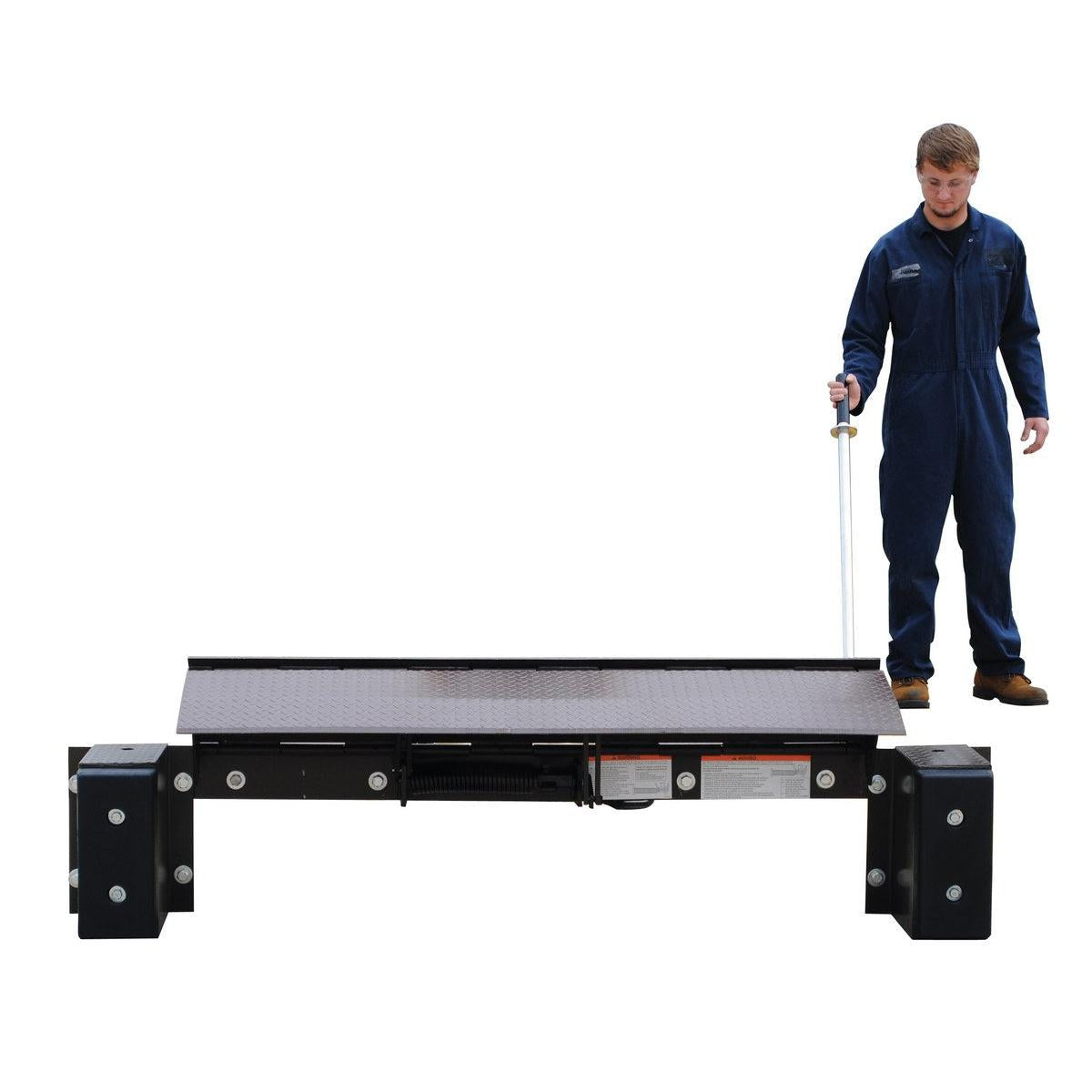

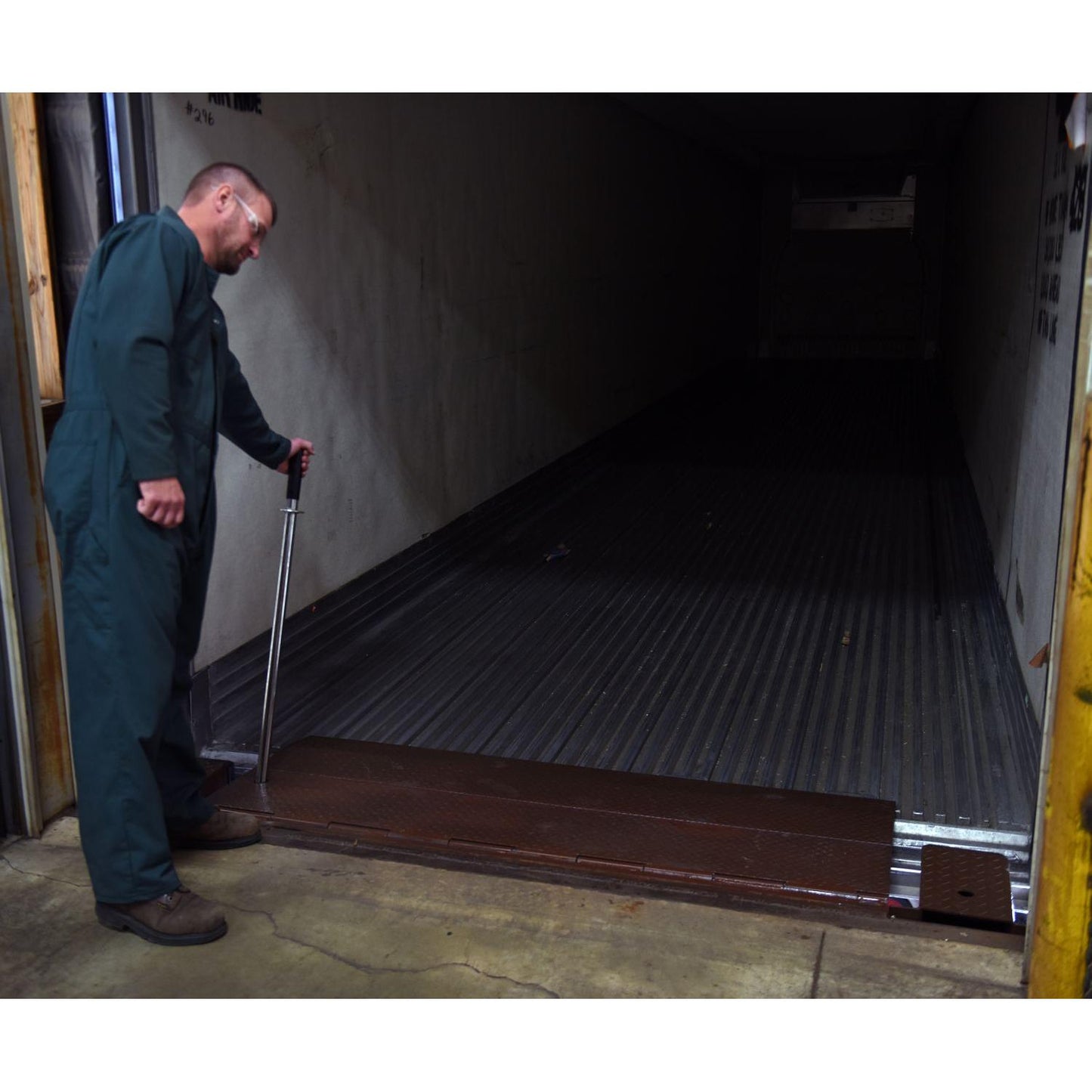

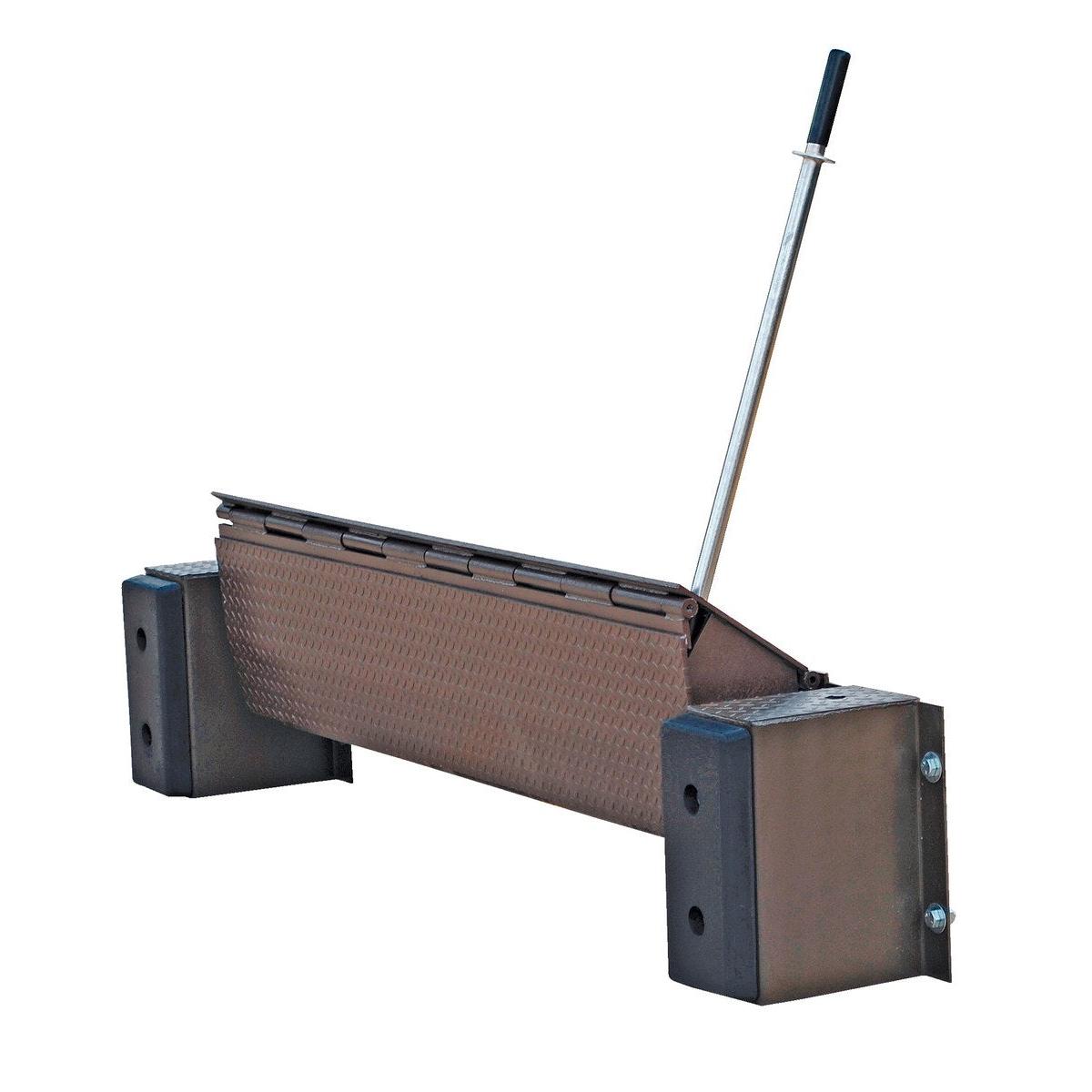

Available in two ramp widths - 66 inches and 72 inches - these models accommodate a range of dock configurations and vehicle types. The leveler is engaged using a simple actuation handle and automatically resets when the trailer departs. A solid steel structure and non-slip tread plate surface ensure reliable performance even in high-traffic environments, while the included rubber bumpers protect both the dock and equipment during trailer contact.

Features and Benefits:

• 25,000 lb. capacity: Heavy-duty load support for demanding dock operations
• Mechanical operation: No power required; actuation handle included
• Two ramp widths: Choose from 66" or 72" wide models based on dock layout
• Surface-mounted design: No concrete recess needed for installation
• Non-slip tread plate: Safe traction for personnel and material handling equipment
• Automatic lip retraction: Lip resets automatically when trailer departs
• Durable construction: All-steel build with brown powder-coated finish
• Quick installation: Includes rubber bumpers, hardware, and instructions

Additional Information:

• Standard ramping length: 29 inches
• Recommended dock height: Minimum 48 inches
• Installation requirements: Steel dock edge or appropriate approach ramp
• Included: Installation hardware, bumpers, actuation handle, and guide

Technical Specifications:

• Uniform Capacity (lb.): 25000
• Service Range Above Dock (in.): 5
• Service Range Below Dock (in.): 5
• Bumper Width (in.): 8
• Bumper Length (in.): 2
• Bumper Height (in.): 18

• Bumper Projection (in): 15
• Ramping Length (in.): 29
• Bumper Projection Including Rubber Bumper (in.): 15
• Assembled Depth (in): 15
• Assembled Height (in): 18
• Overall Length (ft): 1.25
• Dock Leveler Lip Projection (in): 14
• Platform Material: Steel
• Platform Length (in): 29
• Platform Thickness (in): 0.375
• Material: Steel
• Color Family: Brown
• CPO-Prop 65 Warning Required: Yes
• Approval Drawing Required?: No
• Assembly: Assembly required
• Dock Leveler Operating Method: Actuation Handle/Mechanical
• Installation Method: Permanent Installation to Face of Dock
• Installation Hardware Included: Yes
• Manufacturer Warranty: 1 Year

Discover the Edge-O-Dock Levelers complete collection:

• Steel Mechanical Edge O Dock Leveler - 48 In. Ramp Width 6,000 Lb. Capacity
• Steel Mechanical Edge-O-Dock Levelers – 20,000 lb. Capacity Series (66", 72", 78" Ramp Width Options)
• Steel Mechanical Edge-O-Dock Levelers – 25,000 lb. Capacity Series (66", 72" Ramp Width Options)

• Steel Mechanical Edge-O-Dock Levelers – 30,000 lb. Capacity Series (66", 72" Ramp Width Options)

Made in USA

If you would like to request a Quotation for Large Quantities or Custom Powder-Coat Colorsof this or any other products, please email us at sales@linedividers.com or call us at 1-800-288-2832
