Lavi Industries

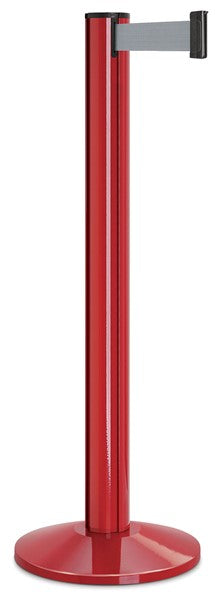

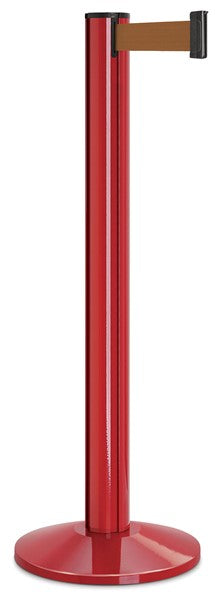

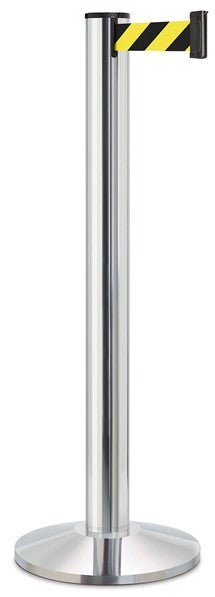

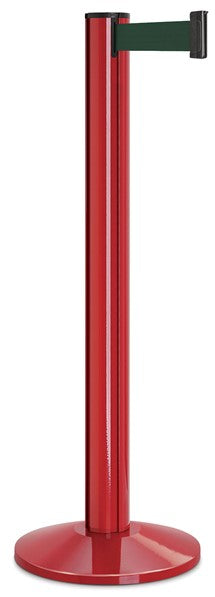

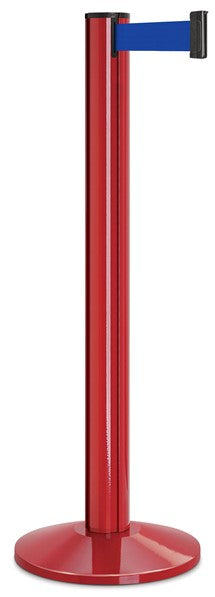

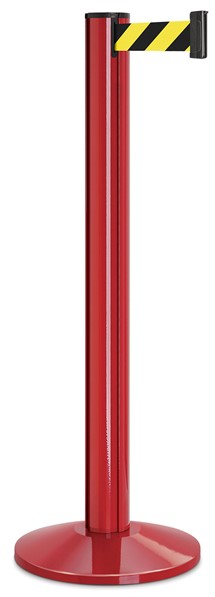

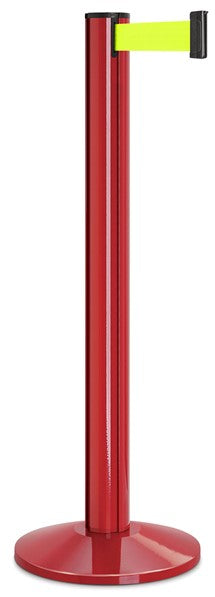

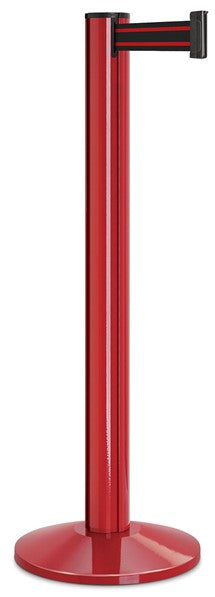

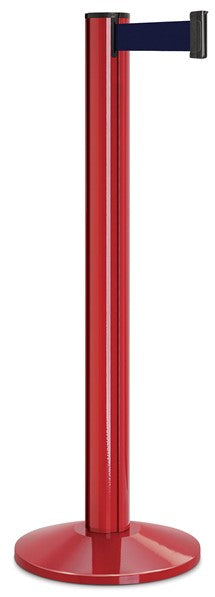

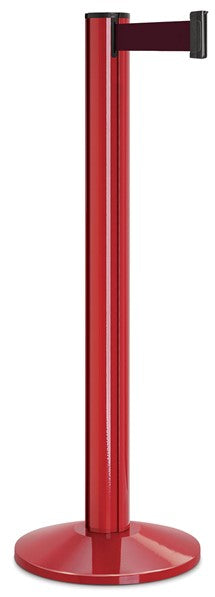

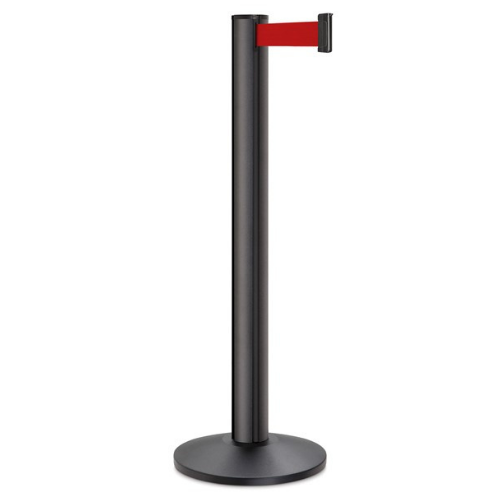

14" Sloped Base - 15 Feet
14" Sloped Base - 15 Feet
SKU:LAV-50-3100A-WB-BK
Free Shiipping in Lower 48 States
- Call or Email us for Large QTY quotes
Regular price
$270.50 USD
Regular price
Sale price
$270.50 USD
Unit price
per
Couldn't load pickup availability
BELT REACH
15 ft
BASE
14 in
HEIGHT
40 in
POST Ø
2.75 in
BEST APPLICATION
Temporary or frequently changing lines where portability matters and longer spans can reduce the number of posts required.
PRIMARY BENEFIT
No floor installation required; weighted steel stability, floor-protective rubber contact, and a longer 15-foot belt.
ㅤ
TECHNICAL OVERVIEW
KEY PRODUCT SPECIFICATIONS
POST HEIGHT
40 in
POST DIAMETER
2.75 in
CONSTRUCTION
Extruded aluminum post
BASE
Weighted steel, 14-inch sloped
FLOOR PROTECTION
Factory-applied slotted rubberized base
SYSTEM CONNECTION
Standard 4-way dovetail connection
SOURCE PRODUCT GRAPHICS
VISUAL REFERENCE
4-way belt connection detail
Weighted, rubberized base detail
INSTALLATION / ASSEMBLY
SOURCE-BASED PROCEDURE
Condensed for on-page guidance. Use the linked source document below for the complete illustrated procedure, tool list, cautions, and figures when one is provided.
01
Position the Bolt
Pass the center hex bolt through the bottom of the sloped base so it protrudes through the top.
02
Engage the Post
Align the threaded aluminum insert in the post with the bolt and turn the bolt until the threads catch.
03
Seat the Post
Tilt the assembly while pushing the post snugly against the base so the post-to-base connection sits flush.
04
Tighten Securely
Use the supplied 5/16-drive Allen wrench to tighten the center bolt until fully secured. Recheck the post position and retighten if required.
TECHNICAL DOCUMENTS
INSTALLATION & SERVICE RESOURCES
| PRODUCT GRAPHIC |
15 FT
|
10 FT
|
15 FT
|
10 FT
|
15 FT
|
10 FT
|
10 OR 15 FT
|
10 OR 15 FT
|
10 OR 15 FT
|
10 OR 15 FT
|
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT | 7.5" Heavy Duty Magnetic Base - 15 Feet | 7.5" Heavy Duty Magnetic Base - 10 Feet | 5.5" Magnetic Base - 15 Feet | 5.5" Magnetic Base - 10 Feet |
14" Sloped Base - 15 Feet
CURRENT PRODUCT
|
14" Sloped Base - 10 Feet | 14.5" Slim Base | Wall-Mounted Retractable Belt Barrier | Magnetic Wall-Mounted Retractable Belt | Glass/Surface Mount Retractable Belt |
| MOUNT / BASE | 7.5" heavy-duty magnetic floor base | 7.5" heavy-duty magnetic floor base | 5.5" compact magnetic floor base | 5.5" compact magnetic floor base | 14" portable sloped weighted base | 14" portable sloped weighted base | 14.5" portable slim weighted base | Mechanical wall grip connector | Magnetic vertical-surface mount | Adhesive steel plates on glass / smooth surface |
| BELT REACH | 15 ft | 10 ft | 15 ft | 10 ft | 15 ft | 10 ft | 10 or 15 ft | 10 or 15 ft | 10 or 15 ft | 10 or 15 ft |
| BEST WHEN | Long, fixed-geometry queues need maximum magnetic hold | Tighter fixed-geometry queues need maximum magnetic hold | Floor footprint must stay minimal across longer spans | Floor footprint must stay minimal in dense layouts | Portable layouts need wider spans | Portable layouts need tighter turns and spacing | Portable post with slimmer base profile is preferred | Closure repeats in the same location | Closure must move between steel surfaces | Barrier is needed on glass or smooth surfaces |
| PRIMARY BENEFIT | 18 magnets + 28.7 lbf tip-over force; removable post | Heavy magnetic hold + controlled 10-ft geometry | Smallest floor footprint with 15-ft reach | Smallest floor footprint for dense queues | No floor installation; fewer posts over wider spans | Maximum portability for compact layouts | Portable stability with 10/15-ft flexibility | Zero floor footprint; opposing receiver included | Tool-free relocation; no permanent fasteners | Creates magnetic barrier points on glass/smooth surfaces |
Tip: on smaller screens, swipe horizontally to compare all configurations.
