TECHNICAL OVERVIEW

KEY PRODUCT SPECIFICATIONS

POST HEIGHT

38.563 in

POST WEIGHT

8 lb

BASE DIAMETER

5.5 in

FLOOR PLATE DIAMETER

5 in

TIP-OVER FORCE

22.5 lbf

EMERGENCY FEATURE

Emergency breakaway belt end supplied standard

SOURCE PRODUCT GRAPHICS

VISUAL REFERENCE

Magnetic-base footprint and floor-plate concept

Magnetic-base queue application

INSTALLATION / ASSEMBLY

SOURCE-BASED PROCEDURE

Condensed for on-page guidance. Use the linked source document below for the complete illustrated procedure, tool list, cautions, and figures.

Assess & Prepare

Confirm the floor is flat, smooth, even, and free of abrasions. Sweep and clean the surface; allow it to dry completely.

Lay Out the Queue

Use layout lines and measurements to mark the intended center points of the stanchions before any plate is bonded.

Clean the Plate Location

Center the floor-plate template over the marked position and clean the exposed mounting area with rubbing alcohol until residue, oil, and chalk are removed.

Bond the Floor Plate

Warm the prepared area to about 100°F, remove the adhesive backing, place the stainless-steel plate once, and press it firmly into full contact. The industrial adhesive cannot be repositioned after placement.

Allow Full Cure

Apply full pressure across the plate and allow at least 24 hours before attaching a post; the source guide recommends 24–72 hours for best adhesive cure.

Attach the Stanchion

After cure, orient the belt, bring the base edge to the plate edge, and rock the magnetic base into controlled contact rather than allowing it to slam onto the plate.

TECHNICAL DOCUMENTS

INSTALLATION & SERVICE RESOURCES

TECHNICAL SPEC SHEET ↗ FLOOR-PLATE INSTALLATION ↗ FLOOR-PLATE REMOVAL ↗ BELT MECHANISM REPLACEMENT ↗

>>>>>

SYSTEM COMPARISON

COMPARE ALL 10 CONFIGURATIONS

PRODUCT GRAPHIC	15 FT	10 FT	15 FT	10 FT	15 FT	10 FT	10 OR 15 FT	10 OR 15 FT	10 OR 15 FT	10 OR 15 FT

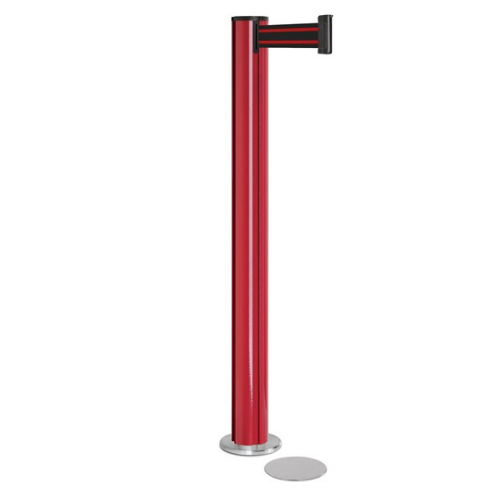

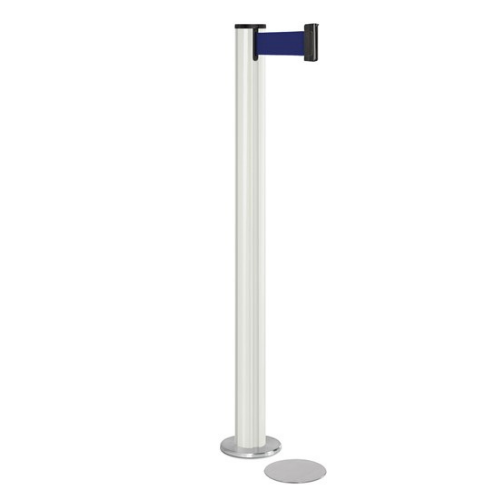

PRODUCT	7.5" Heavy Duty Magnetic Base - 15 Feet	7.5" Heavy Duty Magnetic Base - 10 Feet	5.5" Magnetic Base - 15 Feet	5.5" Magnetic Base - 10 Feet CURRENT PRODUCT	14" Sloped Base - 15 Feet	14" Sloped Base - 10 Feet	14.5" Slim Base	Wall-Mounted Retractable Belt Barrier	Magnetic Wall-Mounted Retractable Belt	Glass/Surface Mount Retractable Belt
MOUNT / BASE	7.5" heavy-duty magnetic floor base	7.5" heavy-duty magnetic floor base	5.5" compact magnetic floor base	5.5" compact magnetic floor base	14" portable sloped weighted base	14" portable sloped weighted base	14.5" portable slim weighted base	Mechanical wall grip connector	Magnetic vertical-surface mount	Adhesive steel plates on glass / smooth surface
BELT REACH	15 ft	10 ft	15 ft	10 ft	15 ft	10 ft	10 or 15 ft	10 or 15 ft	10 or 15 ft	10 or 15 ft
BEST WHEN	Long, fixed-geometry queues need maximum magnetic hold	Tighter fixed-geometry queues need maximum magnetic hold	Floor footprint must stay minimal across longer spans	Floor footprint must stay minimal in dense layouts	Portable layouts need wider spans	Portable layouts need tighter turns and spacing	Portable post with slimmer base profile is preferred	Closure repeats in the same location	Closure must move between steel surfaces	Barrier is needed on glass or smooth surfaces
PRIMARY BENEFIT	18 magnets + 28.7 lbf tip-over force; removable post	Heavy magnetic hold + controlled 10-ft geometry	Smallest floor footprint with 15-ft reach	Smallest floor footprint for dense queues	No floor installation; fewer posts over wider spans	Maximum portability for compact layouts	Portable stability with 10/15-ft flexibility	Zero floor footprint; opposing receiver included	Tool-free relocation; no permanent fasteners	Creates magnetic barrier points on glass/smooth surfaces
