TECHNICAL OVERVIEW

KEY PRODUCT SPECIFICATIONS

BELT LENGTH

10 ft or 15 ft

MOUNTING PLATE

2.5 in wide × 2.5 in tall

REQUIRED SURFACE

Ferromagnetic material such as steel

BELT END

Magnetic

MECHANISM

Slow controlled retract; field-replaceable

INSTALLATION

Tool-free placement on compatible steel surfaces

SOURCE PRODUCT GRAPHICS

VISUAL REFERENCE

10-foot magnetic wall-mount configuration

15-foot magnetic wall-mount configuration

INSTALLATION / ASSEMBLY

SOURCE-BASED PROCEDURE

Condensed for on-page guidance. Use the linked source document below for the complete illustrated procedure, tool list, cautions, and figures when one is provided.

Confirm the Surface

Choose a ferromagnetic vertical surface such as steel. The magnetic mount will not adhere to non-ferrous materials such as wood, aluminum, or brass.

Place the Housing

Position the wall-mount housing at the desired height and bring the rear magnet into full contact with the steel surface.

Confirm the Receiving Point

For the magnetic belt-end version, verify that a suitable ferromagnetic surface is available at the opposite end of the intended barrier span.

Deploy the Belt

Extend the belt and attach the magnetic belt end to the opposing compatible metal surface. Relocate the housing whenever the closure point changes.

TECHNICAL DOCUMENTS

INSTALLATION & SERVICE RESOURCES

WALL-MOUNT SPEC SHEET ↗ MAGNETIC WALL-MOUNT INSTALLATION ↗ BELT MECHANISM REPLACEMENT ↗ BELT END REPLACEMENT ↗

>>>>>

SYSTEM COMPARISON

COMPARE ALL 10 CONFIGURATIONS

PRODUCT GRAPHIC	15 FT	10 FT	15 FT	10 FT	15 FT	10 FT	10 OR 15 FT	10 OR 15 FT	10 OR 15 FT	10 OR 15 FT

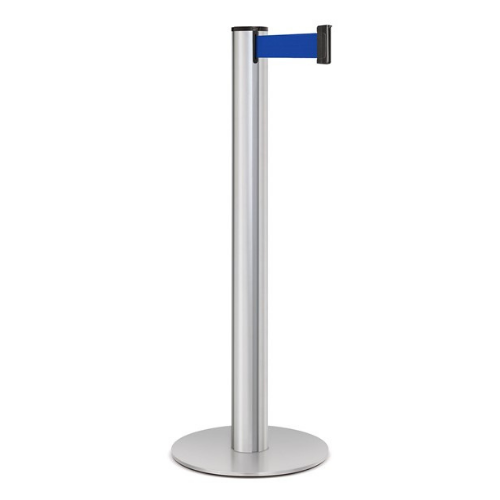

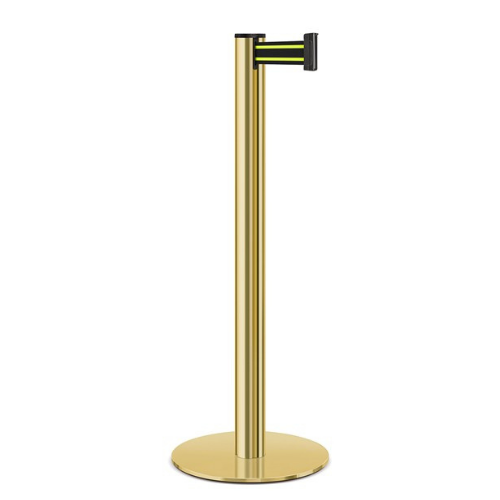

PRODUCT	7.5" Heavy Duty Magnetic Base - 15 Feet	7.5" Heavy Duty Magnetic Base - 10 Feet	5.5" Magnetic Base - 15 Feet	5.5" Magnetic Base - 10 Feet	14" Sloped Base - 15 Feet	14" Sloped Base - 10 Feet	14.5" Slim Base	Wall-Mounted Retractable Belt Barrier	Magnetic Wall-Mounted Retractable Belt CURRENT PRODUCT	Glass/Surface Mount Retractable Belt
MOUNT / BASE	7.5" heavy-duty magnetic floor base	7.5" heavy-duty magnetic floor base	5.5" compact magnetic floor base	5.5" compact magnetic floor base	14" portable sloped weighted base	14" portable sloped weighted base	14.5" portable slim weighted base	Mechanical wall grip connector	Magnetic vertical-surface mount	Adhesive steel plates on glass / smooth surface
BELT REACH	15 ft	10 ft	15 ft	10 ft	15 ft	10 ft	10 or 15 ft	10 or 15 ft	10 or 15 ft	10 or 15 ft
BEST WHEN	Long, fixed-geometry queues need maximum magnetic hold	Tighter fixed-geometry queues need maximum magnetic hold	Floor footprint must stay minimal across longer spans	Floor footprint must stay minimal in dense layouts	Portable layouts need wider spans	Portable layouts need tighter turns and spacing	Portable post with slimmer base profile is preferred	Closure repeats in the same location	Closure must move between steel surfaces	Barrier is needed on glass or smooth surfaces
PRIMARY BENEFIT	18 magnets + 28.7 lbf tip-over force; removable post	Heavy magnetic hold + controlled 10-ft geometry	Smallest floor footprint with 15-ft reach	Smallest floor footprint for dense queues	No floor installation; fewer posts over wider spans	Maximum portability for compact layouts	Portable stability with 10/15-ft flexibility	Zero floor footprint; opposing receiver included	Tool-free relocation; no permanent fasteners	Creates magnetic barrier points on glass/smooth surfaces
